Samsung UE**F5000A SERIES User manual

LED TV
SERVICEManual
LED TV Contents
1. Precautions
2. Product specications
3. Disassembly and Reassembly
4. Troubleshooting
5. Wiring Diagram
UE**F5000AW / UE**F4000AW
Chassis : U85B U85C
Model : UE**F5000A* UE32F4800AW
UE**F5005AK
UE**F5020AK
UE**F5070SS
UE32F40**AW

Contents
1. Precautions...................................................................................................................1-1
1-1. Safety Precautions ..............................................................................................................1-1
1-2. Servicing Precautions..........................................................................................................1-3
1-3. Static Electricity Precautions ...............................................................................................1-4
1-4. Installation Precautions .......................................................................................................1-5
2. Product Specications.................................................................................................2-1
2-1. Product Information .............................................................................................................2-1
2-2. Accessories .......................................................................................................................2-22
3. Disassembly and Reassembly ....................................................................................3-1
3-1. Disassembly and Reassembly ............................................................................................3-1
3-2. Assy Board P-Jog Switch & Ir..............................................................................................3-7
3-3. Disassembly(PTC)...............................................................................................................3-9
4. Troubleshooting ...........................................................................................................4-1
4-1. Troubleshooting ...................................................................................................................4-1
4-2. How to Check Fault Symptom.............................................................................................4-4
4-3. Factory Mode Adjustments..................................................................................................4-7
4-4. White Balance ...................................................................................................................4-22
4-5. White Ratio (Balance) Adjustment.....................................................................................4-25
4-6. Software Upgrade..............................................................................................................4-27
4-7. Rear Cover Dimension ......................................................................................................4-29
5. Wiring Diagram.............................................................................................................5-1
5-1. Wiring Diagram....................................................................................................................5-1
5-2. Connector ...........................................................................................................................5-3
5-3. Connector Functions ...........................................................................................................5-6
5-4. Cables .................................................................................................................................5-7

This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
© 2013 Samsung Electronics Co.,Ltd.
All rights reserved.
Printed in Korea

Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as
electrical shock.
1-1-1. Warnings
WARNING
For continued safety, do not attempt to modify the circuit board.
Disconnect the AC power and DC power jack before servicing.
1-1-2. Servicing the LED TV
When servicing the LED TV, Disconnect the AC line cord from the AC outlet.1.
It is essential that service technicians have an accurate voltage meter available at all times. Check the calibration of this2.
meter periodically.
1-1-3. Fire and Shock Hazard
Before returning the monitor to the user, perform the following safety checks:
Inspect each lead dress to make certain that the leads are not pinched or that hardware is not lodged between the1.
chassis and other metal parts in the monitor.
Inspect all protective devices such as nonmetallic control knobs, insulating materials, cabinet backs, adjustment and2.
compartment covers or shields, isolation resistorcapacitor networks, mechanical insulators, etc.
Leakage Current Hot Check:3.
DEVICE
UNDER
TEST
(READING SHOULD)
NOT BE ABOVE 0.5mA LEAKAGE
CURRENT
TESTER
TEST ALL
EXPOSED METAL
SURFACES
2-WIRE CORD
ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)
EARTH
GROUND
WARNING
Do not use an isolation transformer during this test.
Use a leakage current tester or a metering system that complies with American National Standards
Institute (ANSI C101.1, Leakage Current for Appliances), and Underwriters Laboratories (UL
Publication UL1410, 59.7).
With the unit completely reassembled, plug the AC line cord directly into a 120V AC outlet. With the unit’s AC switch rst 4.
in the ON position and then OFF, measure the current between a known earth ground (metal water pipe, conduit, etc.)
and all exposed metal parts, including: metal cabinets, screwheads and control shafts.
The current measured should not exceed 0.5 milliamp.
Reverse the power-plug prongs in the AC outlet and repeat the test.
1-1
1. Precautions
1. Precautions
1-1. Safety Precautions

1-2
1. Precautions
1-1-4. Product Safety Notices
Some electrical and mechanical parts have special safetyrelated characteristics which are often not evident from visual
inspection. The protection they give may not be obtained by replacing them with components rated for higher voltage,
wattage, etc. Parts that have special safety characteristics are identied by on schematics and parts lists. A substitute
replacement that does not have the same safety characteristics as the recommended replacement part might create
shock, re and/or other hazards. Product safety is under review continuously and new instructions are issued whenever
appropriate.

WARNING
An electrolytic capacitor installed with the wrong polarity might explode.
CAUTION
Before servicing units covered by this service manual, read and follow the Safety Precautions section of
this manual.
NOTE
If unforeseen circumstances create conict between the following servicing precautions and any of the
safety precautions, always follow the safety precautions.
1-2-1. General Servicing Precautions
Always unplug the unit’s AC power cord from the AC power source and disconnect the DC Power Jack before1.
attempting to: (a) remove or reinstall any component or assembly, (b) disconnect PCB plugs or connectors, (c) connect
a test component in parallel with an electrolytic capacitor.
Some components are raised above the printed circuit board for safety. An insulation tube or tape is sometimes used.2.
The internal wiring is sometimes clamped to prevent contact with thermally hot components. Reinstall all such elements
to their original position.
After servicing, always check that the screws, components and wiring have been correctly reinstalled. Make sure that3.
the area around the serviced part has not been damaged.
Check the insulation between the blades of the AC plug and accessible conductive parts (examples: metal panels, input4.
terminals and earphone jacks).
Insulation Checking Procedure: Disconnect the power cord from the AC source and turn the power switch ON. Connect5.
an insulation resistance meter (500 V) to theblades of the AC plug. The insulation resistance between each blade of the
AC plug and accessible conductive parts (see above) should be greater than 1 megohm.
Always connect a test instrument’s ground lead to the instrument chassis ground before connecting the positive lead;6.
always remove the instrument’s ground lead last.
1-3
1. Precautions
1-2. Servicing Precautions

Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly
called Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some eld-effect
transistors. The following techniques will reduce the incidence of component damage caused by static electricity.
Immediately before handling any semiconductor components or assemblies, drain the electrostatic charge from your1.
body by touching a known earth ground. Alternatively, wear a discharging wrist-strap device. To avoid a shock hazard,
be sure to remove the wrist strap before applying power to the monitor.
After removing an ESD-equipped assembly, place it on a conductive surface such as aluminum foil to prevent2.
accumulation of an electrostatic charge.
Do not use freon-propelled chemicals. These can generate electrical charges sufcient to damage ESDs.3.
Use only a grounded-tip soldering iron to solder or desolder ESDs.4.
Use only an anti-static solder removal device. Some solder removal devices not classied as “anti-static” can generate 5.
electrical charges sufcient to damage ESDs.
Do not remove a replacement ESD from its protective package until you are ready to install it. Most replacement ESDs6.
are packaged with leads that are electrically shorted together by conductive foam, aluminum foil or other conductive
materials.
Immediately before removing the protective material from the leads of a replacement ESD, touch the protective material7.
to the chassis or circuit assembly into which the device will be installed.
CAUTION
Be sure no power is applied to the chassis or circuit and observe all other safety precautions.
Minimize body motions when handling unpackaged replacement ESDs. Motions such as brushing clothes together, or8.
lifting your foot from a carpeted oor can generate enough static electricity to damage an ESD.
1-4
1. Precautions
1-3. Static Electricity Precautions

For safety reasons, more than a people are required for carrying the product.1.
Keep the power cord away from any heat emitting devices, as a melted covering may cause re or electric shock.2.
Do not place the product in areas with poor ventilation such as a bookshelf or closet. The increased internal temperature3.
may cause re.
Bend the external antenna cable when connecting it to the product. This is a measure to protect it from being exposed4.
to moisture. Otherwise, it may cause a re or electric shock.
Make sure to turn the power off and unplug the power cord from the outlet before repositioning the product. Also check5.
the antenna cable or the external connectors if they are fully unplugged. Damage to the cord may cause re or electric
shock.
Keep the antenna far away from any high-voltage cables and install it rmly. Contact with the highvoltage cable or the 6.
antenna falling over may cause re or electric shock.
When installing the product, leave enough space (0.4m) between the product and the wall for ventilation purposes.7.
A rise in temperature within the product may cause re.
1-5
1. Precautions
1-4. Installation Precautions

2-1
2. Product specications
2. Product Specications
2-1. Product Information

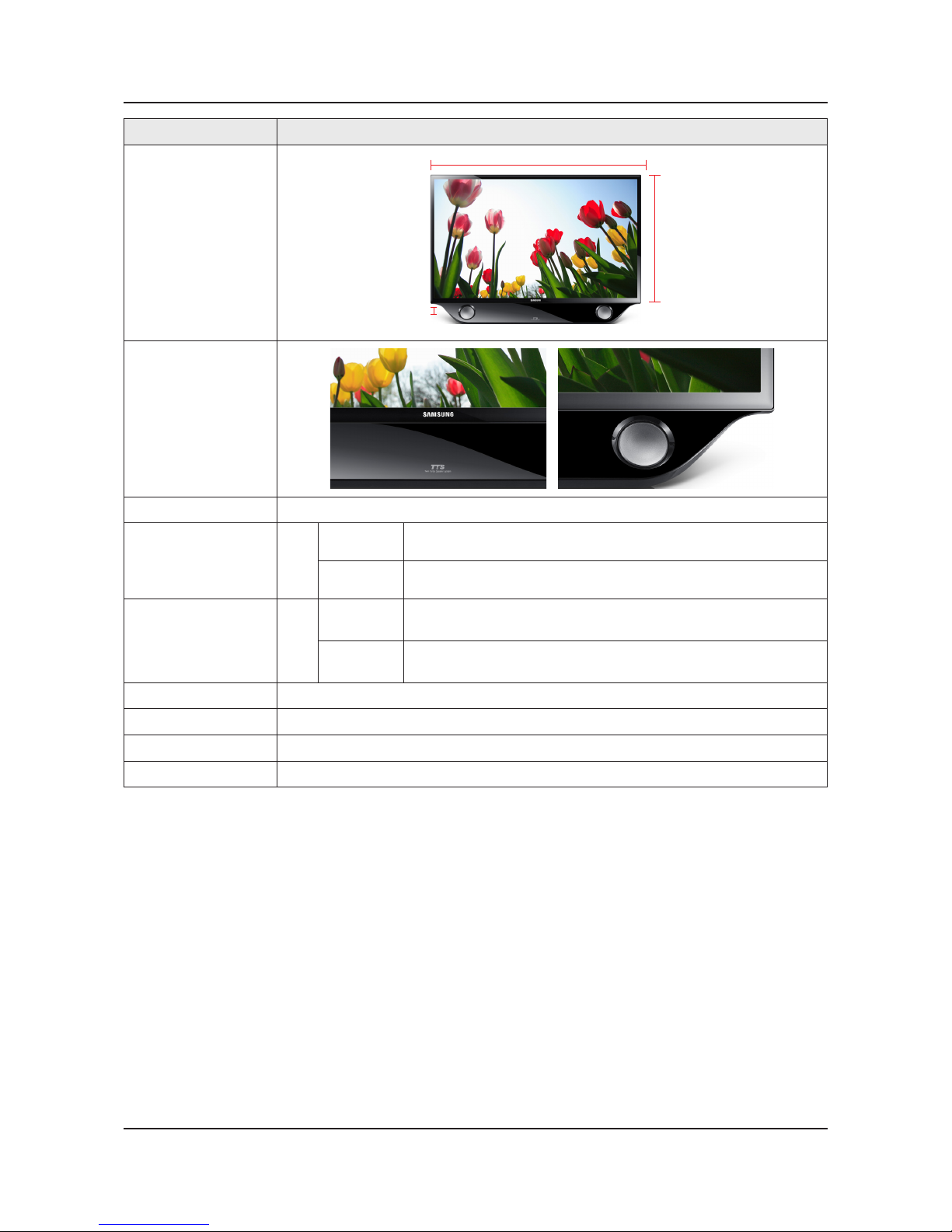

2-1-1. Model Comparison
Model UE**F50**
Front View
W
* W : Width H : High D : Depth
H
D
Detail View
Front Color Black (Panel)
Dimensions
(W x H x D)
32"
Set with
Stand 738.0 x 505.8 x 191.7 mm / 29.1 x 19.9 x 7.5 inches
Set without
Stand 738.0 x 445.4 x 49.0 mm / 29.1 x 17.5 x 1.9 inches
39"
Set with
Stand 895.6 x 593.0 x 235.0 mm / 35.3 x 23.3 x 9.3 inches
Set without
Stand 895.6 x 533.0 x 49.4 mm / 35.3 x 21.0 x 1.9 inches
42"
Set with
Stand 971.8 x 637.2 x 235.0 mm / 38.3 x 25.1 x 9.3 inches
Set without
Stand 971.8 x 576.9 x 49.4 mm / 38.3 x 22.7 x 1.9 inches
46"
Set with
Stand 1059.6 x 686.1 x 235.0 mm / 41.7 x 27.0 x 9.3 inches
Set without
Stand 1059.6 x 626.2 x 49.4 mm / 41.7 x 24.7 x 1.9 inches
50"
Set with
Stand 1135.4 x 727.9 x 235.0 mm / 44.7 x 28.7 x 9.3 inches
Set without
Stand 1135.4 x 668.0 x 49.8 mm / 44.7 x 26.3 x 2.0 inches

2-2
2. Product specications
Model UE**F50**
Weight
32"
Set with
Stand 5.6 kg / 12.3 lbs
Set without
Stand 5.0 kg / 11.0 lbs
39"
Set with
Stand 9.1 kg / 20.1 lbs
Set without
Stand 7.6 kg / 16.8 lbs
42"
Set with
Stand 10.2 kg / 22.5 lbs
Set without
Stand 8.4 kg / 18.5 lbs
46"
Set with
Stand 12.3 kg / 27.1 lbs
Set without
Stand 10.8 kg / 23.8 lbs
50"
Set with
Stand 14.5 kg / 32.0 lbs
Set without
Stand 13.0 kg / 28.7 lbs
Panel Type Anti Glare
Internal Memory 128 Mbyte
DDR 256 Mbyte
Feature Media Play
