Samsung UH46H7150AF User manual

LED TV
SERVICEManual
LED TV Contents
1. Precautions
2. Product specications
3. Disassembly and Reassembly
4. Troubleshooting
5. Wiring Diagram
UN**H7150AF
Chassis : U8DB
Model : UN46H7150AF
UN55H7150AF
UN60H7150AF
UN65H7150AF
UN75H7150AF
All manuals and user guides at all-guidesbox.com
all-guidesbox.com

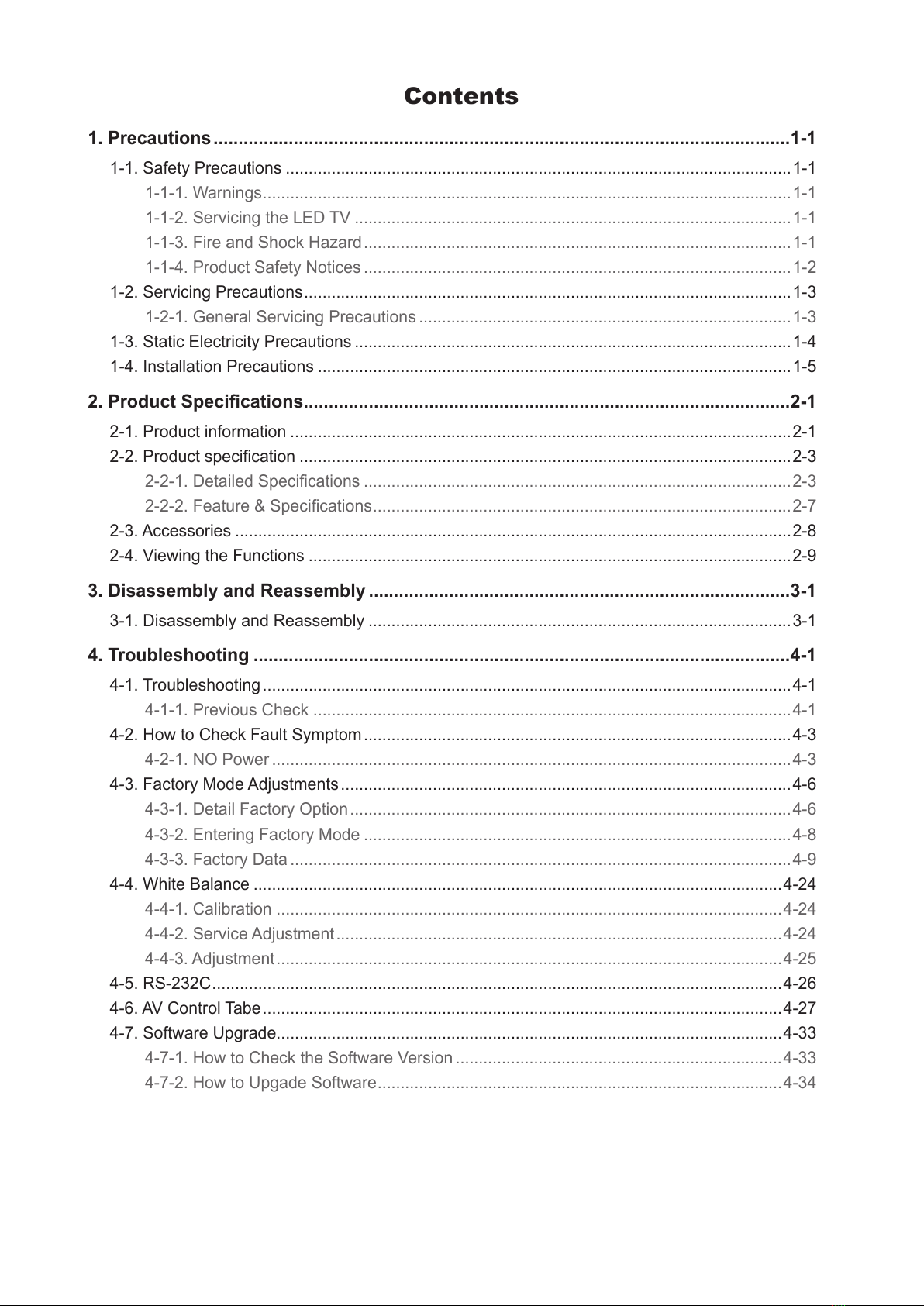

Contents
1. Precautions...................................................................................................................1-1
1-1. Safety Precautions ..............................................................................................................1-1
1-1-1. Warnings...................................................................................................................1-1
1-1-2. Servicing the LED TV ...............................................................................................1-1
1-1-3. Fire and Shock Hazard.............................................................................................1-1
1-1-4. Product Safety Notices .............................................................................................1-2
1-2. Servicing Precautions..........................................................................................................1-3
1-2-1. General Servicing Precautions .................................................................................1-3
1-3. Static Electricity Precautions ...............................................................................................1-4
1-4. Installation Precautions .......................................................................................................1-5
2. Product Specications.................................................................................................2-1
2-1. Product information .............................................................................................................2-1
2-2. Product specication ...........................................................................................................2-3
2-2-1. Detailed Specications .............................................................................................2-3
2-2-2. Feature & Specications...........................................................................................2-7
2-3. Accessories .........................................................................................................................2-8
2-4. Viewing the Functions .........................................................................................................2-9
3. Disassembly and Reassembly ....................................................................................3-1
3-1. Disassembly and Reassembly ............................................................................................3-1
4. Troubleshooting ...........................................................................................................4-1
4-1. Troubleshooting...................................................................................................................4-1
4-1-1. Previous Check ........................................................................................................4-1
4-2. How to Check Fault Symptom.............................................................................................4-3
4-2-1. NO Power .................................................................................................................4-3
4-3. Factory Mode Adjustments..................................................................................................4-6
4-3-1. Detail Factory Option................................................................................................4-6
4-3-2. Entering Factory Mode .............................................................................................4-8
4-3-3. Factory Data .............................................................................................................4-9
4-4. White Balance ...................................................................................................................4-24
4-4-1. Calibration ..............................................................................................................4-24
4-4-2. Service Adjustment.................................................................................................4-24
4-4-3. Adjustment..............................................................................................................4-25
4-5. RS-232C............................................................................................................................4-26
4-6. AV Control Tabe.................................................................................................................4-27
4-7. Software Upgrade..............................................................................................................4-33
4-7-1. How to Check the Software Version .......................................................................4-33
4-7-2. How to Upgade Software........................................................................................4-34
All manuals and user guides at all-guidesbox.com

5. Wiring Diagram.............................................................................................................5-1
5-1. Wiring Diagram....................................................................................................................5-1
5-2. Connector............................................................................................................................5-6
5-3. Connector Functions ...........................................................................................................5-9
All manuals and user guides at all-guidesbox.com

This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
© 2014 Samsung Electronics Co.,Ltd.
All rights reserved.
Printed in Korea
All manuals and user guides at all-guidesbox.com

Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as
electrical shock.
1-1-1. Warnings
WARNING
For continued safety, do not attempt to modify the circuit board.
Disconnect the AC power and DC power jack before servicing.
1-1-2. Servicing the LED TV
When servicing the LED TV, Disconnect the AC line cord from the AC outlet.1.
It is essential that service technicians have an accurate voltage meter available at all times. Check the calibration of this2.
meter periodically.
1-1-3. Fire and Shock Hazard
Before returning the monitor to the user, perform the following safety checks:
Inspect each lead dress to make certain that the leads are not pinched or that hardware is not lodged between the1.
chassis and other metal parts in the monitor.
Inspect all protective devices such as nonmetallic control knobs, insulating materials, cabinet backs, adjustment and2.
compartment covers or shields, isolation resistorcapacitor networks, mechanical insulators, etc.
Leakage Current Hot Check:3.
DEVICE
UNDER
TEST
(READING SHOULD)
NOT BE ABOVE 0.5mA LEAKAGE
CURRENT
TESTER
TEST ALL
EXPOSED METAL
SURFACES
2-WIRE CORD
ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)
EARTH
GROUND
WARNING
Do not use an isolation transformer during this test.
Use a leakage current tester or a metering system that complies with American National Standards
Institute (ANSI C101.1, Leakage Current for Appliances), and Underwriters Laboratories (UL
Publication UL1410, 59.7).
With the unit completely reassembled, plug the AC line cord directly into a 120V AC outlet. With the unit’s AC switch rst 4.
in the ON position and then OFF, measure the current between a known earth ground (metal water pipe, conduit, etc.)
and all exposed metal parts, including: metal cabinets, screwheads and control shafts.
The current measured should not exceed 0.5 milliamp.
Reverse the power-plug prongs in the AC outlet and repeat the test.
1-1
1. Precautions
1. Precautions
1-1. Safety Precautions
All manuals and user guides at all-guidesbox.com

1-2
1. Precautions
1-1-4. Product Safety Notices
Some electrical and mechanical parts have special safetyrelated characteristics which are often not evident from visual
inspection. The protection they give may not be obtained by replacing them with components rated for higher voltage,
wattage, etc. Parts that have special safety characteristics are identied by on schematics and parts lists. A substitute
replacement that does not have the same safety characteristics as the recommended replacement part might create
shock, re and/or other hazards. Product safety is under review continuously and new instructions are issued whenever
appropriate.
All manuals and user guides at all-guidesbox.com
all-guidesbox.com

WARNING
An electrolytic capacitor installed with the wrong polarity might explode.
CAUTION
Before servicing units covered by this service manual, read and follow the Safety Precautions section of
this manual.
NOTE
If unforeseen circumstances create conict between the following servicing precautions and any of the
safety precautions, always follow the safety precautions.
1-2-1. General Servicing Precautions
Always unplug the unit’s AC power cord from the AC power source and disconnect the DC Power Jack before1.
attempting to: (a) remove or reinstall any component or assembly, (b) disconnect PCB plugs or connectors, (c) connect
a test component in parallel with an electrolytic capacitor.
Some components are raised above the printed circuit board for safety. An insulation tube or tape is sometimes used.2.
The internal wiring is sometimes clamped to prevent contact with thermally hot components. Reinstall all such elements
to their original position.
After servicing, always check that the screws, components and wiring have been correctly reinstalled. Make sure that3.
the area around the serviced part has not been damaged.
Check the insulation between the blades of the AC plug and accessible conductive parts (examples: metal panels, input4.
terminals and earphone jacks).
Insulation Checking Procedure: Disconnect the power cord from the AC source and turn the power switch ON. Connect5.
an insulation resistance meter (500 V) to theblades of the AC plug. The insulation resistance between each blade of the
AC plug and accessible conductive parts (see above) should be greater than 1 megohm.
Always connect a test instrument’s ground lead to the instrument chassis ground before connecting the positive lead;6.
always remove the instrument’s ground lead last.
1-3
1. Precautions
1-2. Servicing Precautions
All manuals and user guides at all-guidesbox.com

Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly
called Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some eld-effect
transistors. The following techniques will reduce the incidence of component damage caused by static electricity.
Immediately before handling any semiconductor components or assemblies, drain the electrostatic charge from your1.
body by touching a known earth ground. Alternatively, wear a discharging wrist-strap device. To avoid a shock hazard,
be sure to remove the wrist strap before applying power to the monitor.
After removing an ESD-equipped assembly, place it on a conductive surface such as aluminum foil to prevent2.
accumulation of an electrostatic charge.
Do not use freon-propelled chemicals. These can generate electrical charges sufcient to damage ESDs.3.
Use only a grounded-tip soldering iron to solder or desolder ESDs.4.
Use only an anti-static solder removal device. Some solder removal devices not classied as “anti-static” can generate 5.
electrical charges sufcient to damage ESDs.
Do not remove a replacement ESD from its protective package until you are ready to install it. Most replacement ESDs6.
are packaged with leads that are electrically shorted together by conductive foam, aluminum foil or other conductive
materials.
Immediately before removing the protective material from the leads of a replacement ESD, touch the protective material7.
to the chassis or circuit assembly into which the device will be installed.
CAUTION
Be sure no power is applied to the chassis or circuit and observe all other safety precautions.
Minimize body motions when handling unpackaged replacement ESDs. Motions such as brushing clothes together, or8.
lifting your foot from a carpeted oor can generate enough static electricity to damage an ESD.
1-4
1. Precautions
1-3. Static Electricity Precautions
All manuals and user guides at all-guidesbox.com

For safety reasons, more than a people are required for carrying the product.1.
Keep the power cord away from any heat emitting devices, as a melted covering may cause re or electric shock.2.
Do not place the product in areas with poor ventilation such as a bookshelf or closet. The increased internal temperature3.
may cause re.
Bend the external antenna cable when connecting it to the product. This is a measure to protect it from being exposed4.
to moisture. Otherwise, it may cause a re or electric shock.
Make sure to turn the power off and unplug the power cord from the outlet before repositioning the product. Also check5.
the antenna cable or the external connectors if they are fully unplugged. Damage to the cord may cause re or electric
shock.
Keep the antenna far away from any high-voltage cables and install it rmly. Contact with the highvoltage cable or the 6.
antenna falling over may cause re or electric shock.
When installing the product, leave enough space (0.4m) between the product and the wall for ventilation purposes.7.
A rise in temperature within the product may cause re.
If an equipment is provided with a replaceable battery, and if replacement by an incorrect type could result in an8.
explosion (for example, with some lithium batteries), the following applies:
CAUTION
Risk of explosion if battery is replaced by an incorrect type dispose of used batteries according to•
the instructions.
Do not dispose of batteries in a re.•
Do not short circuit, disassemble or overheat the batteries.•
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent•
type.
Do not be exposed to excessive heat such as sunshine, re or the like.•
1-5
1. Precautions
1-4. Installation Precautions
All manuals and user guides at all-guidesbox.com

2-1
2. Product specications
2. Product Specications
2-1. Product information
Model UN**H7150AF
Front View
W
D
* W : Width H : High D : Depth
H
Detail View
Front Color Black
Dimensions
(W x H x D)
46"
Body 1033.3 X 596.9 X 33.2 mm
With stand 1033.3 X 639.2 X 208.8 mm
55"
Body 1224.8 X 706.9 X 33.2 mm
With stand 1224.8 X 747.5 X 267.7 mm
60"
Body 1362.1 X 792.7 X 34.2 mm
With stand 1362.1 X 833.1 X 267.7 mm
65"
Body 1447.3 X 836.4 X 35.2 mm
With stand 1447.3 X 886.1 X 301.8 mm
75"
Body 1670.2 X 962.6 X 36.4 mm
With stand 1670.2 X 1012.3 X 316.9 mm
All manuals and user guides at all-guidesbox.com

2-2
2. Product specications
Model UN**H7150AF
Weight
46"
Body 11.3 kg
With stand 12.5 kg
55"
Body 14.8 kg
With stand 16.7 kg
60"
Body 19.1 kg
With stand 21.1 kg
65"
Body 22.4 kg
With stand 25.0 kg
75"
Body 34.0 kg
With stand 37.1 kg
Panel Type Ultra Clear
Internal Memory 4GB
DDR 1.25GB
Feature Smart Interaction, Smart Touch Control
All manuals and user guides at all-guidesbox.com
all-guidesbox.com

2-3
2. Product specications
2-2. Product specication
2-2-1. Detailed Specications
NOTE
Design and specications are subject to change without prior notice.
Item UN**H7150AFXZA
General Information Product LED
Series 7
Country UNITED STATES
Display Inch 46" / 55" / 60" / 65" / 75"
Resolution 1,920 x 1,080
Ultra Clear Panel No
Video Clear Motion Rate 960
Micro Dimming Micro Dimming Pro
Precision Black (Local Dimming) N/A
Wide Color Enhancer (Plus) Yes
Color Accuracy N/A
Auto Depth Enhancer N/A
Auto Motion Plus 240Hz
Film Mode Yes
Audio Dolby MS10 / MS110 Dolby MS10
DTS Studio Sound / DNSe+ DTS Studio Sound
DTS Premium Sound / DTS Premium Sound
5.1 DTS Premium Sound 5.1
3D Sound Yes
Auto Volume Leveler Yes
Sound Customizer N/A
Sound Output (RMS) 40W(Left:10W, Right:10W, Woofer:20W)
Speaker Type 2.2Ch Down Firing
Woofer Yes
HD Audio -
Smart TV Smart Hub Yes
Samsung SMART TV Yes
On TV Yes
Movies & TV Shows Yes
Multimedia Yes
Apps Yes
Game Yes
Multi-Screen (Dual / Quad Screen) Dual
All manuals and user guides at all-guidesbox.com

2-4
2. Product specications
Item UN**H7150AFXZA
Smart TV Web Browser Yes
Smart Interaction Voice Interaction Yes
Camera Built-in N/A
Motion control Ready
Smart Convergence Contents Streaming Yes
Screen Mirroring Yes
ISP Bound Service No
RUI No
RVU Yes (US Only, DIRECTV Ready)
Samsung SMART View Yes
Smart Home Yes
Tuner/Broadcasting DTV Tuner ATSC / Clear QAM
Analog Tuner Yes
Connectivity HDMI 4
USB 3
Component In (Y/Pb/Pr) 1
Composite In (AV) 1(1Common Use for Component Y)
Ethernet (LAN) Yes
Headphone No
Audio Out (Mini Jack) Yes
Digital Audio Out (Optical) 1
PC In (D-sub) N/A
PC/DVI Audio In (Mini Jack) N/A
RF In (Terrestrial / Cable input) 1/1(Common Use for Terrestrial)/0
Ex-Link ( RS-232C ) 1
One Connect (Jack) No
WiFi Direct Yes
MHL N/A
HDMI 1.4 3D Auto Setting Yes
HDMI 1.4 A/Return Ch. Support Yes
Wireless LAN Built-in Yes
Anynet+ (HDMI-CEC) Yes
Design Design Floating Canvas Design
Bezel Type SNB
Light Effect (Deco) No
Stand Type U-Stand
Swivel (Left/Right) No
Camera Type N/A
All manuals and user guides at all-guidesbox.com

2-5
2. Product specications
Item UN**H7150AFXZA
Additional Feature Samsung 3D Yes
3D Converter Yes
Instant On Yes
Quad Core+ N/A
Digital Clean View Yes
Auto Channel Search Yes
Auto Power Off Yes
Clock&On/Off Timer Yes
Sleep Timer Yes
BD Wise Plus Yes
Caption (Subtitle) Yes
AC/DC TV N/A
Embeded POP Yes
EPG Yes
Game Mode Yes
History N/A
IP Video Closed Caption Yes
OSD Language English, Spanish, French
Picture-In-Picture Yes
Multi Tasking N/A
BT HID Built-in Yes
USB HID Support Yes
Smart Evolution Support N/A
TV SoundConnect Yes
Teletext (TTXT) No
Time Shift No
V-Chip Yes
Eco Feature Eco Label N/A
Eco Sensor Yes
Accessory 3D Active Glasses (Included) 2 (SSG-5150GB)
Remote Controller Model TM1460A, TM1260C
Batteries (for Remote Control) Yes
Samsung Smart Touch Control (Included) Yes
Ultra Slim Wall Mount Supported No
Mini Wall Mount Supported Yes
Vesa Wall Mount Supported Yes
IR Extender Cable (Included) Yes
Wireless Keyboard (Included) No
All manuals and user guides at all-guidesbox.com

2-6
2. Product specications
Item UN**H7150AFXZA
Accessory User Manual Yes
E-Manual Yes
Power Cable Yes
Slim Gender Cable No
All manuals and user guides at all-guidesbox.com

2-7
2. Product specications
2-2-2. Feature & Specications
Feature
Digital-TV, RF, 4-HDMI, 1-Component,1-A/V, 3-USB2.0(Media Play), LAN, WIFI•
PIP(in HDMI 1, 2, 3, 4 Component and Sub picture is available only in TV mode(DTV/ATV))•
CMR 960•
Dolby Digital Plus Pulse, DTS Premium Sound 5.1, DTS Studio Sond•
Specications
Model UN**H7150AF
Item Description
Screen Size (Diagonal) 46 inches 55 inches 60 inches 65 inches 75 inches
LCD Panel FHD 240Hz
Scanning Frequency Horizontal : 31 kHz ~ 80 kH
Vertical : 56 Hz ~ 75 Hz
Display Resolution 1920 X 1080
Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated
Input Sync Signal H/V Separate, TTL, P. or N.
Maximum Pixel Clock Rate 138MHz
AC Power Voltage & Frequency AC110-120V 60Hz
Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)
Operating Humidity : 10% ~ 80%, non-condensing
Storage Temperature : -4˚F ~ 113˚F (-20˚C ~ 45˚C)
Storage Humidity : 5% ~ 95%, non-condensing
Sound (Output) 40W (Left:10W, Right:10W, Woofer:20W)
Note : Allshare, Smart Hub, Web Browser, IR Blaster, Smart Touch Control
All manuals and user guides at all-guidesbox.com
all-guidesbox.com

2-8
2. Product specications
2-3. Accessories
NOTE
The items’ colors and shapes may vary depending on the model.•
Cables not included in the package contents can be purchased separately.•
The part code for some accessories may differ depending on your region.•
Product Code. No Product Code. No
Remote Control• BN59-01179B
Samsung 3D Active Glasses• BN96-31881A
BN96-30010A (75")
Batteries (AAA x 2)• 4301-000101
Smart Touch Control• BN59-01185A Power Cord• 3903-000853
Batteries (AA x 2)• 4301-000103 User Manual• BN68-05934A
Image Product Code. No
Holder-Wire Stand• BN61-08370A
Hoder Ring (65" / 75")• BN61-07295A
IR Extender Cable• BN96-31644A
All manuals and user guides at all-guidesbox.com

2-9
2. Product specications
2-4. Viewing the Functions
Using the Remote Control
BCD
Turns the TV on and off. Displays and selects the available
video sources.
Returns to the previous channel.
Cuts off the sound temporarily.
Changes channels.
Exits the menu.
STB: Turns the satellite or cable
set-top box connected to the TV on
and off.
STB GUIDE: Displays the STB's
EPG (Electronic Program Guide).
STB MENU: Opens the STB's OSD
(Menu).
These buttons are only available
when the universal remote control is
set and the TV is on.
Brings up Smart Hub applications.
See the e-Manual chapter, Smart
Features > Smart Hub.
E-MANUAL: Displays the e-Manual.
SEARCH: Opens the Search
function.
KEYPAD: Displays a virtual On-
Screen Remote on the screen.
See the e-Manual chapter,
Using the Remote Control and
Peripherals > Using the Samsung
Smart Control > Displaying and
Using the On-Screen Remote.
Displays the EPG
(Electronic Program Guide).
Displays information on the TV
screen.
Gives direct access to channels.
Adjusts the volume.
Opens the OSD (Menu).
Displays channel lists on the screen.
Displays frequently used functions.
Use these buttons according to
the directions on the TV's screen.
Returns to the previous menu.
Turn on the backlight for the buttons.
When on, the buttons become
illuminated for a moment when pressed.
(Using the remote control
with this button set to On will reduce the
battery usage time.)
Press to select additional digital
channels being broadcast by
the same digital station. For example,
to select channel ‘54-3’, press ‘54’,
then press ‘-’ and ‘3’.
3D: Turns the 3D image on or off.
MTS: Press to choose stereo, mono,
Separate Audio Program
(SAP broadcast).
CC: Controls the caption decoder.
Moves the cursor, selects the
on-screen menu items, and changes the
values seen on the TV's menu.
Use these buttons in a specic feature.
Use these buttons according to the
directions on the TV's screen.
All manuals and user guides at all-guidesbox.com

2-10
2. Product specications
Using the Samsung Smart Control
RETURN
EXIT
GUIDE
CH.LIST
SMART HUB
KEYPAD SOURCE
VOL CH
VOICE
3D CC P. SIZEMTS
MENU M.SCREEN
SEARCH
MIC
TV
G
Microphone: Use the microphone with the Voice
Control and Voice functions.
The Voice Control function can be affected by •
unclear pronunciation, voice level, or surrounding
noise.
Turns the TV on and off.
Changes channels.
Use these buttons with a specic feature and
according to the directions on the TV's screen.
3D: Turns the 3D function on or off. See the e-Manual chapter, Picture and Sound Settings > Viewing in 3D.
MTS: Press to choose stereo, mono, Separate Audio Program (SAP broadcast).
CC: Controls the caption decoder and displays captions on the screen.
P.SIZE: Lets you choose the picture size.
MENU: Displays the menu on the screen.
M.SCREEN: You can split the TV screen and enjoy multiple activities - such as watching TV,
surng the web, and watching a video - all at the same time.
Touch pad
Place a nger on the touch pad and move the
Samsung Smart Control. The pointer on the screen
moves in the direction you moved the Samsung Smart
Control.
Press the touch pad to run the focused item.
Press and hold the touch pad to display the Context-
Sensitive Menus.
GGG
: Moves the cursor, selects the on-screen
menu items, and changes the values seen on the TV's
menu.
Adjusts the volume.
RETURN: Returns to the previous menu.
SMART HUB: Brings up Smart Hub applications.
See the e-Manual chapter, Smart Features >
Smart Hub.
To exit an application quickly, press the •
G
button.
GUIDE: Displays the EPG (Electronic Program Guide).
SEARCH: Run the Search function.
KEYPAD: Displays the On-Screen Remote. See the
e-Manual chapter, Using the Remote Control and
Peripherals > Using the Samsung Smart Control >
Displaying and Using the On-Screen Remote.
SOURCE: Displays and lets you select video sources.
VOICE: Takes your voice commands and lets you
enter text using your voice.
MUTE: Cuts off the
sound temporarily.
All manuals and user guides at all-guidesbox.com

3-1
3. Disassembly and Reassemble
3. Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the LED TV.
WARNING
This LED TV contains electrostatically sensitive devices. Use caution when handling these components.
3-1. Disassembly and Reassembly
CAUTION
Disconnect the LED TV from the power source before disassembly.1.
Follow these directions carefully; never use metal instruments to pry apart the cabinet.2.
If there is no additional coment, it is same for all inches.3.
46" / 55" / 60"
Description Picture Description Screws
1
Remove screws from the Stand. Torque :
9~ 11Kgf.cm.
6001-001782
Remove stand.
All manuals and user guides at all-guidesbox.com
