Samsung SPE-100 User manual

NETWORK ENCODER
User Manual SPE-100

Copyright
©2011 Samsung Techwin Co., Ltd. All rights reserved.
Trademark
is the registered logo of Samsung Techwin Co., Ltd.
The name of this product is the registered trademark of Samsung Techwin Co., Ltd.
Other trademarks mentioned in this manual are the registered trademark of their respective company.
Restriction
Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this
document shall be reproduced, distributed or changed, partially or wholly, without formal authorization of
Samsung Techwin.
Disclaimer
Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but
no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on
the user’s own responsibility. Samsung Techwin reserves the right to change the contents of this document
without prior notice.
Warranty
If the product does not operate properly in normal conditions, please let us know. Samsung Techwin will resolve
the problem for free of charge. The warranty period is 3 years. However, the followings are excluded:
If the system behaves abnormally because you run a program irrelevant to the system operation.
Deteriorated performance or natural worn-out in process of time
•
•
Network Encoder
User Manual

English _3
●OVERVIEW
IMPORTANT SAFETY INSTRUCTIONS
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings, Install in accordance with the manufacturer’s
instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided for
your safety, If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs, conve-
nience receptacles, and the point where they exit from the apparatus.
Only use attachments/ accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
Unplug this apparatus during lighting storms or when unused for
long periods of time.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
overview

overview
4_ overview
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS PROCUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC
OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS
ON THE EQUIPMENT.
Apparatus shall not be exposed to dripping or splashing and that no objects
filled with liquids, such as vases, shall be placed on the apparatus.
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the product.

English _5
●OVERVIEW
Class construction
An apparatus with CLASS construction shall be connected to a MAINS
socket outlet with a protective earthing connection.
Battery
Batteries(battery pack or batteries installed) shall not be exposed to excessive
heat such as sunshine, fire or the like.
It is essential that when changing the battery in the unit, the replacement
battery must be of the same type otherwise there may be a possibility of an
explosion.
CALIFORNIA USA ONLY
This Perchlorate warning applies only to primary CR (Manganese Dioxide)
Lithium coin cells in the product sold or distributed ONLY in California USA.
“Perchlorate Material - special handling may apply, See www.dtsc.ca.gov/
hazardouswaste/perchlorate.”
CAUTION
These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock do not perform any servicing other than
that contained in the operating instructions unless you are qualified to do so.
Please use the input power with just one camera and other devices must not
be connected.

overview
6_ overview
Please read the following recommend safety precautions carefully.
Do not Place this apparatus on an uneven surface.
Do not install on a surface where it is exposed to direct sunlight, near
heating equipment or heavy cold area.
Do not place this apparatus near.
Do not attempt to service this apparatus yourself.
Do not place a glass of water on the product.
Do not install near any magnetic sources.
Do not block any ventilation openings.
Do not place heavy items on the product.
User’s Manual is a guidance book for how to use the products.
The meaning of the symbols are shown below.
Reference : In case of providing information for helping of product’s usages
Notice : If there’s any possibility to occur any damages for the goods and
human caused by not following the instruction
ÚPlease read this manual for the safety before using of goods and keep it in
the safe place.
y
y
y
y
y
y
y
y
y
y

English _7
●OVERVIEW
CONTENTS
OVERVIEW
3
3Important Safety Instructions
9Product Features
9Recomended PC Specifications
9Recomended SD/SDHC Memory
Card Specifications
10 What’s Included
11 At a Glance
INSTALLATION &
CONNECTION
14
14 Inserting/Removing an SD
Memory Card
15 Memory Card Information (Not
Included)
16 Connecting with other Device
NETWORK CONNECTION
AND SETUP
21
21 Connecting the Network encoder
Directly to Local Area Networking
22 Connecting the Network encoder
Directly to a DHCP Based DSL/
Cable Modem
23 Connecting the Network encoder
Directly to a PPPoE Modem
24 Connecting the Network encoder
to a broadband router with the
PPPoE/Cable Modem
25 Buttons used in IP Installer
26 Static IP Setup
29 Dynamic IP Setup
30 Port Range Forward (Port Mapping)
Setup
32 Connecting to the Network
encoder from a Shared Local PC
32 Connecting to the Network
encoder from a Remote PC via
the Internet

overview
8_ overview
SETUP SCREEN
43
43 Setup
43 Audio & Video Setup
47 Network Setup
52 Event Setup
59 System Setup
APPENDIX
64
64 Specification
66 Troubleshooting
68 Open Source Announcement
70 GPL/LGPL Software License
WEB VIEWER
33
33 Connecting to the Network
encoder
34 Login
35 Installing Silverlight Runtime
37 Using the Live Screen
38 Using the Camera Menu
41 Playback
42 Playing the backup recordings

English _9
●OVERVIEW
PRODUCT FEATURES
Multi-Streaming
This network camera can display videos in different resolutions and qualities simultaneously
using different CODECs.
MHowever, MPEG-4 video can not be played on a web page. Use CMS software if you want to play
the video on a web page.

Support various communication protocols
Web Browser-based Monitoring
Using the Internet web browser to display the image in a local network environment.
Alarm
If an event occurs, the event-related video will be transferred to the FTP/email specified by
the user or saved to the SD memory, or the event signal will be sent to the ALARM OUT
port.
ONVIF (Spec 1.01) Compliance
This product supports ONVIF Core Spec. 1.01.
For more information, refer to www.onvif.org.
RECOMENDED PC SPECIFICATIONS
CPU : Intel(R) Core(TM)2 2.00 GHz or higher
Operating System : Windows XP, VISTA, 7
Mac OS
Resolution : 1280X1024 pixels or higher
RAM : 1GB or higher
Web Browser :
Internet Explorer 7.0 or higher, Firefox, Chrome, Safari
Video Memory : 128MB or higher
RECOMENDED SD/SDHC MEMORY CARD SPECIFICATIONS
2GB ~ 32GB
To ensure proper recording of video data, it is recommended you use a memory card that
supports at least read/write speed 10Mbps and Class 6.
For your network encoder, we recommend you use a memory card from the following
manufacturers:
SD/SDHC Memory Card : Sandisk, Transcend
y
y
y
y
y
y
y
y
y
y
y
y
y
y

overview
10_ overview
WHAT’S INCLUDED
Please check if your network encoder and accessories are all included in the product package.
Appearance Item Name Quantity Description
User Manual,
Installer S/W CD 1
CMS S/W DVD 1
Quick Guide 1
ASSY-Tapping Screw 4 Used for installation on the wall or ceiling

English _11
●OVERVIEW
AT A GLANCE
Front Side
Item Description

AUDIO IN Audio input terminal which brings sound to the network encoder.
Used to connect the microphone.
b
AUDIO OUT Audio output terminal which outputs sound from the network encoder.
Used to connect the speaker.
c
VIDEO IN Used to connect the BNC video input signal.

LOOP OUT Used to monitor the BNC video signal.

overview
12_ overview

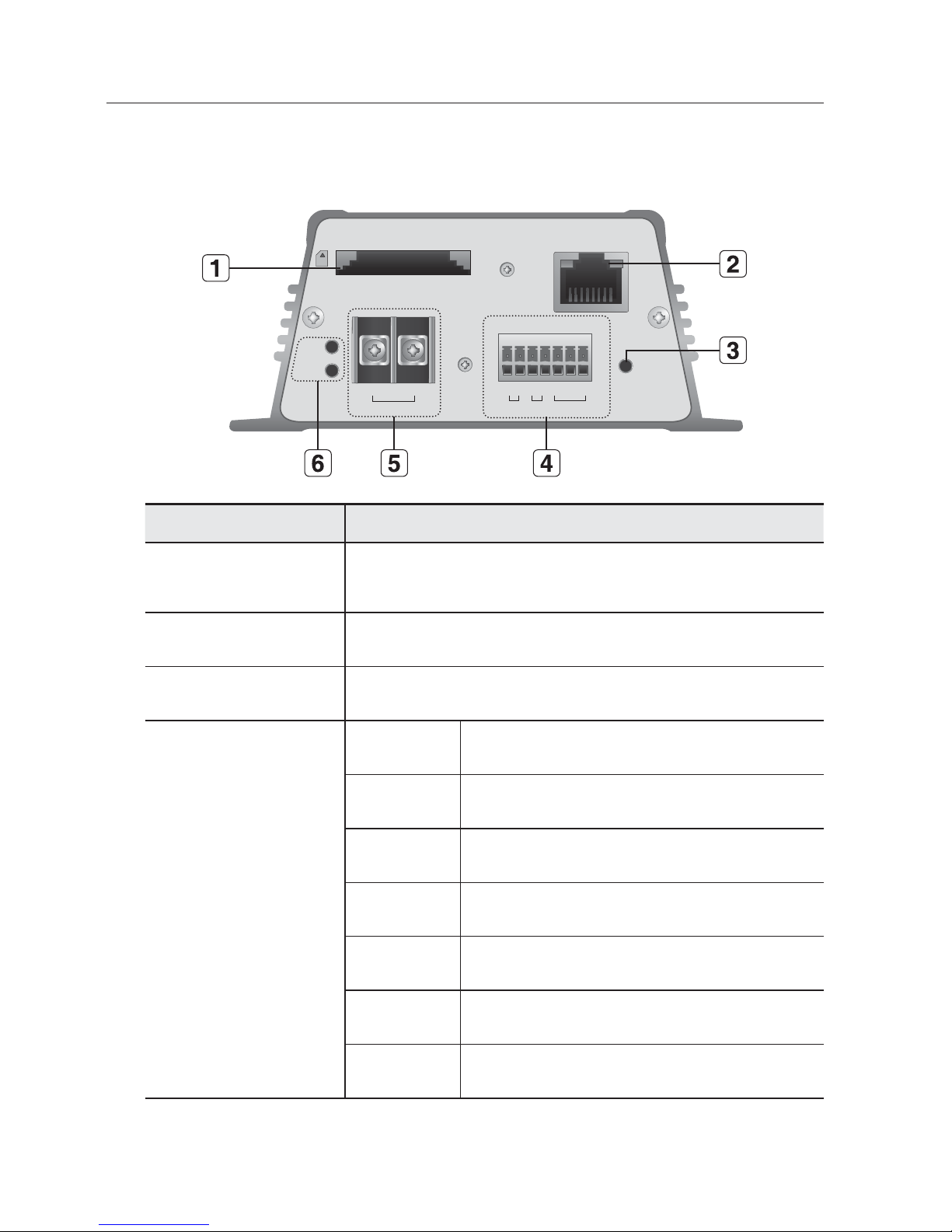

Rear Side
Item Description

SD Memory Card
Compartment Compartment for the SD memory card.
b
Network Port Used to connect a PoE or LAN cable.
c
Reset Button Hold it down for 5 seconds to return all your settings to the factory default.


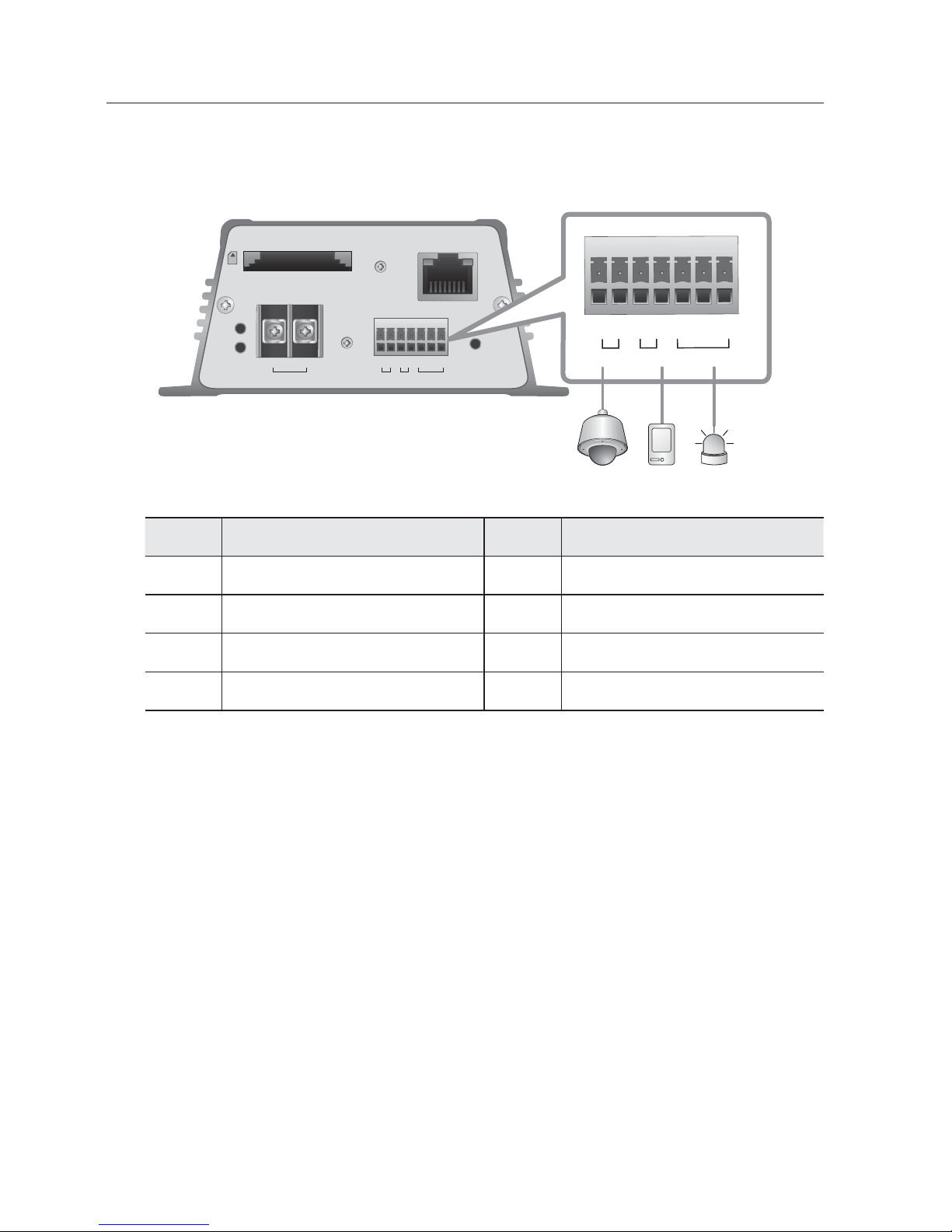

I/O Port
D+ RS-485 Data Line
D- RS-485 Data Line
S1 Alarm In
G GND
NC Alarm Out (for Normal Close)
CM Alarm Out (Common)
NO Alarm Out (for Normal Open)
(7+(51(73R(
6'&$5'
6'
32:(5 5(6(7

'&9
''6*1&&012
566(16255(/$<287

English _13
●OVERVIEW
Item Description

Power Port Used to connect the specified power source.

Power,
SD Indicators
SD
ON : A memory card is inserted and operates normally.
Flashing : Failed to record, insufficient space, or inserted
abnormally.
OFF : Network encoder is off, network encoder is
restarting, memory card is not in place,
When record is off.
POWER ON : While the power is on.
OFF : If the power is off.

installation & connection
14_ installation & connection
INSERTING/REMOVING AN SD MEMORY CARD
Inserting an SD Memory Card
Push the SD memory card in the direction of the arrow shown in the diagram.
Do not insert the SD memory card while it’s upside down by force. Otherwise, it may damage the
SD memory card.
Removing an SD Memory Card
Gently press down on the exposed end of the memory card as shown in the diagram to
eject the memory card from the slot.
Pressing too hard on the SD memory card can cause the card to shoot out uncontrollably from the
slot when released.
To remove the SD memory card, set <Record> to <Off> from <SD record> and press [Apply
( )]. (page 54)
If you have saved data in the SD memory card, removing the SD memory card prior to setting
record to OFF will cause damage to the data stored in the card.
If the SD memory is inserted and when record is on, the SD LED indicator on the rear of the
network encoder will turn on.
If there occurs a problem in the SD memory, the SD LED indicator will blink.
J
J




installation & connection

English _15
●INSTALLATION & CONNECTION
MEMORY CARD INFORMATION (NOT INCLUDED)
What is a memory card?
The memory card is an external data storage device that has been developed to offer an
entirely new way to record and share video, audio, and text data using digital devices.
Selecting a memory card that’s suitable for you
Your network encoder supports SDHC memory cards.
You may, however, experience compatibility issues depending on the model and make of
the memory card.
Playback performance can be affected depending on the speed of memory card, so use
the high-speed memory card.
Memory Card Use
SD and SDHC memory cards feature a switch that disables writing data on to the media.
Having this switch to the Lock position will prevent accidental deletion of data stored in the
memory card but at the same time will also prevent you from writing data on to the media.
Memory Card Components
❖
SD/SDHC
Lock Switch
Contacts

installation & connection
16_ installation & connection
CONNECTING WITH OTHER DEVICE

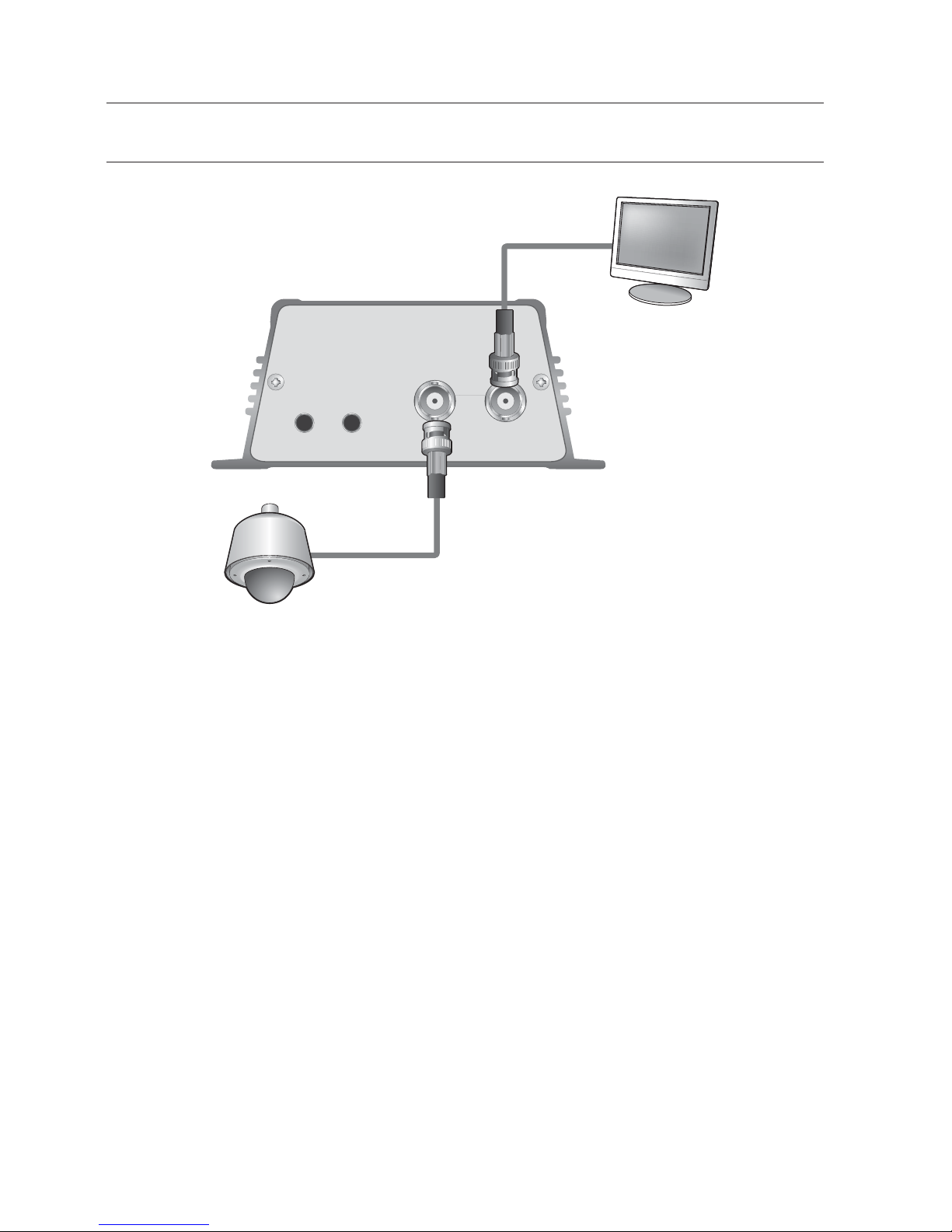

Connecting to the monitor
Connect the [LOOP OUT] port of the network encoder to the video input port of the monitor.
In the initial installation of the camera, you can connect the camera to the monitor for checking
the connection status.
LOOP OUT is provided for output test monitoring.
Connecting the camera
Connect the [VIDEO IN] port of the network encoder to the video output port of the camera.
M

9,'(2,1 /223287
$8',2,1 $8',2287
Monitor
Camera

English _17
●INSTALLATION & CONNECTION
Ethernet Connection
Connect the Ethernet cable to the local network or to the Internet.
Power Supply
Use the screwdriver to connect each line (+, –) of the power cable to the corresponding
power port of the network encoder.
Be careful not to reverse the polarity when you connect the power cable.
You can also use a router featuring PoE (Power over Ethernet) to supply power to the camera.
If PoE and DC 12V are both applied, this camera will get supplied with power from PoE.
If you connect the machine to external device, please make sure that the product's power
connected with encoder is turned off.
J


(7+(51(73R(
6'&$5'
6'
32:(5 5(6(7

'&9
''6*1&&012
566(16255(/$<287
EthernetPower

installation & connection
18_ installation & connection
Connecting to Audio Input/Output
Connect the AUDIO IN port of the network encoder with the microphone directly or
LINE OUT port of the amplifier that the microphone is connected to.
Connect the AUDIO OUT port of the network encoder with the LINE IN port of the
speaker.
Check the specifications for audio input.
1.
2.
3.
Speaker
Amp
Microphone
PC
Amp
Network
Microphone
Camera
Microphone
Speaker

English _19
●INSTALLATION & CONNECTION
Audio Codec
G.711 PCM. μ-law 64kbps 8kHz sampling
Full duplex Audio
Audio in
Used for mono signal line input (Max.2.4 Vpp)
Audio out
Used for mono signal line output (Max.2.4 Vpp)
Line out impedance
600
Alarm I/O Wiring Diagram
For controlling the power with electrical contacts, a separate circuit is required.
y
y
y
y
y
J
3
GND 4
5
6
7
ALARM IN
ALARM OUT
(NC)
ALARM COM
ALARM OUT
(NO)
(12mA sink)
(24VDC 1A,
125VAC 0.5A MAX)

installation & connection
20_ installation & connection
Connecting to the I/O port box
Connect the Alarm I/O signal to the corresponding port of the rear port box.
Port Description Port Description
D+ RS-485 Data Line NC Alarm Out (for Normal Close)
D- RS-485 Data Line CM Alarm Out (Common)
S1 Alarm In NO Alarm Out (for Normal Open)
GGND
Connecting to the RS-485 device
Connect the external device to the [RS-485 D+, D-] ports.
You can connect and control PTZ camera that supports RS-485 communication.
Depending on camera’s type, connection polarity can be different.
For further information, refer to the corresponding PTZ Camera’s documentation
Connecting to the Alarm Input
Connect one signal cable (out of 2) of applicable sensor to the [S1] port, and the other to
the [G] port.
Connecting the Alarm Output
Connect one signal cable (out of 2) of applicable external device to the [Alarm Out(NC, NO)],
and the other to the [CM] port.

(7+(51(73R(
6'&$5'
6'
32:(5 5(6(7

'&9
''6*1&&012
566(16255(/$<287
''6*1&&012
566(16255(/$<287
