Samsung LH008IWJMWR User manual

Samsung Electronics
Ver. 0.3 (2020. 08. 04)
LED Display
Installation Manual
LH008IWJMWR (P0.84)
LH012IWJMWR (P1.26)
LH016IWJMWR (P1.68)
SNOW-1810U (S-Box)
J2014003 (Power Shelf)
CP3500 (Power Rectifier)

Samsung Electronics
1
Installation Manual History Note
Version Date Last Edited by Detail
0.1 2020. 06. 26 Daehwan Sohn - Initial Release
0.2 2020. 07. 09 Daehwan Sohn - Global Tech Sales Group, B2B Field Quality Group requirements added
0.3 2020. 08. 04 Daehwan Sohn - Monitoring Tool guideline added, VPS code and part number updated

Samsung Electronics
2
Check first before installation (1/3)
•For HDBT signal stability, use the cable above CAT6 *STP, *FTP level. (Length 15m~100m)
-Do not use “comb” or “pinstripe” cable. “CAT6 UTP cannot be allowed”
•All power cables and OCM cables must be connected firmly.
•Do not mix cabinet which have different Project number, since each cabinet has its own
project number.
Module Cabinet Box
※ You can find Module bin information from ‘U***’ at Module S/N or Box label.

Samsung Electronics
3
Check first before installation (2/3)
•Install the device only using SNOW-1810U and its supplied IG.
※ Please check below Cabinet and S-Box compatibility table information.
S-Box SNOW-1810U SNOW-1703ULD SNOW-1703U
I/G BN91-20525A BN91-19993A BN91-19100A
Cabinet IF015H,
IF020H,
IF025H,
IF025H-D,
IF040H-D,
IF060H-D,
IF012J,
IW008J
IW012J
IW016J
IW008J-R
IW012J-R
IW016J-R
IF015H,
IF020H,
IF025H,
IF025H-D,
IF040H-D,
IF060H-D,
IF012J
IF015H,
IF020H,
IF025H,
IF025H-D,
IF040H-D,
IF060H-D

Samsung Electronics
4
Check first before installation (3/3)
•This manual is for LH008IWJMWR / LH012IWJMWR / LH016IWJMWR by Samsung Electronics.
Only essential contents are included for Power Shelf / Power Rectifier by GE.
Use the link below to see all the instructions for products by GE before installation.
Power Shelf :
http://apps.geindustrial.com/publibrary/checkout/CP3500%20i2c%20Shelf?TNR=Data%20Sheets%7CCP3500
%20i2c%20Shelf%7CPDF&filename=CP3500%20i2c%20Shelf%20DS_Aug_07_2015.pdf
Power Rectifier :
https://library.industrialsolutions.abb.com/publibrary/checkout/CP3000-
CP3500?TNR=Data%20Sheets%7CCP3000-CP3500%7CPDF&filename=CP3500AC54TE_DS_20200429.pdf
Power Shelf Monitoring Tool :
http://powertalk.campaigns.abb.com/DigitalPowerInsight.html

Samsung Electronics
1. Product Information and Precautions for Installation ( 6 page )
2. Check Point about the Radiant Heat ( 17 page )
3. Preparation for Cabinet Installation ( 23 page )
4. Frame Installation ( 30 page )
5. Cabinet + Frame Installation ( 38 page )
6. Power OFF Board Installation and Cabinet Connection ( 49 page)
7. Disassembly & Front Service ( 68 page )
8. Cable Connection ( 85 page )
9. S-BOX Installation and Connection ( 97 page )
10. LSM Settings and How to Use ( 114 page )
11. Precaution for LSM Connection ( 129 page )
12. Color Calibration ( 130 page )
13. Bezel Installation ( 133 page )
14. Appendix and Reference ( 141 page )
5
Table of Contents

Samsung Electronics
6
1. Product Information and Precautions for Installation
◇Cabinet Product Information
IW008J (P0.84) IW012J (P1.26) IW016J (P1.68)
Basic Spec Pitch 0.84 mm 1.26 mm 1.68 mm
Cabinet Resolution 960 X 540 640 X 360 480 X 270
Picture Spec
Brightness Peak/Max 1000-nit / 500-nit 1600-nit / 800-nit 1400-nit / 1000-nit
Contrast Ratio 10,000 : 1
Viewing angle (H/V) 160°/ 140°160°/ 140°160°/ 140°
Refresh rate 1920 Hz ~ 3840 Hz
Power Spec Input Power 48V DC
Power consumption (Max) 168 (W/Cabinet) 144 (W/Cabinet) 125 (W/Cabinet)
Operating
Condition
Working Temperature 0℃~+40℃ / 10~80%RH
IP Rating IP20
Power Daisy Chain Depends on the length of DC Cable (See Page 11 in detail)
Rating Spec Safety 60950-1
EMC Class A

Samsung Electronics
<S-Box> <I/G>
(Interface Gender)

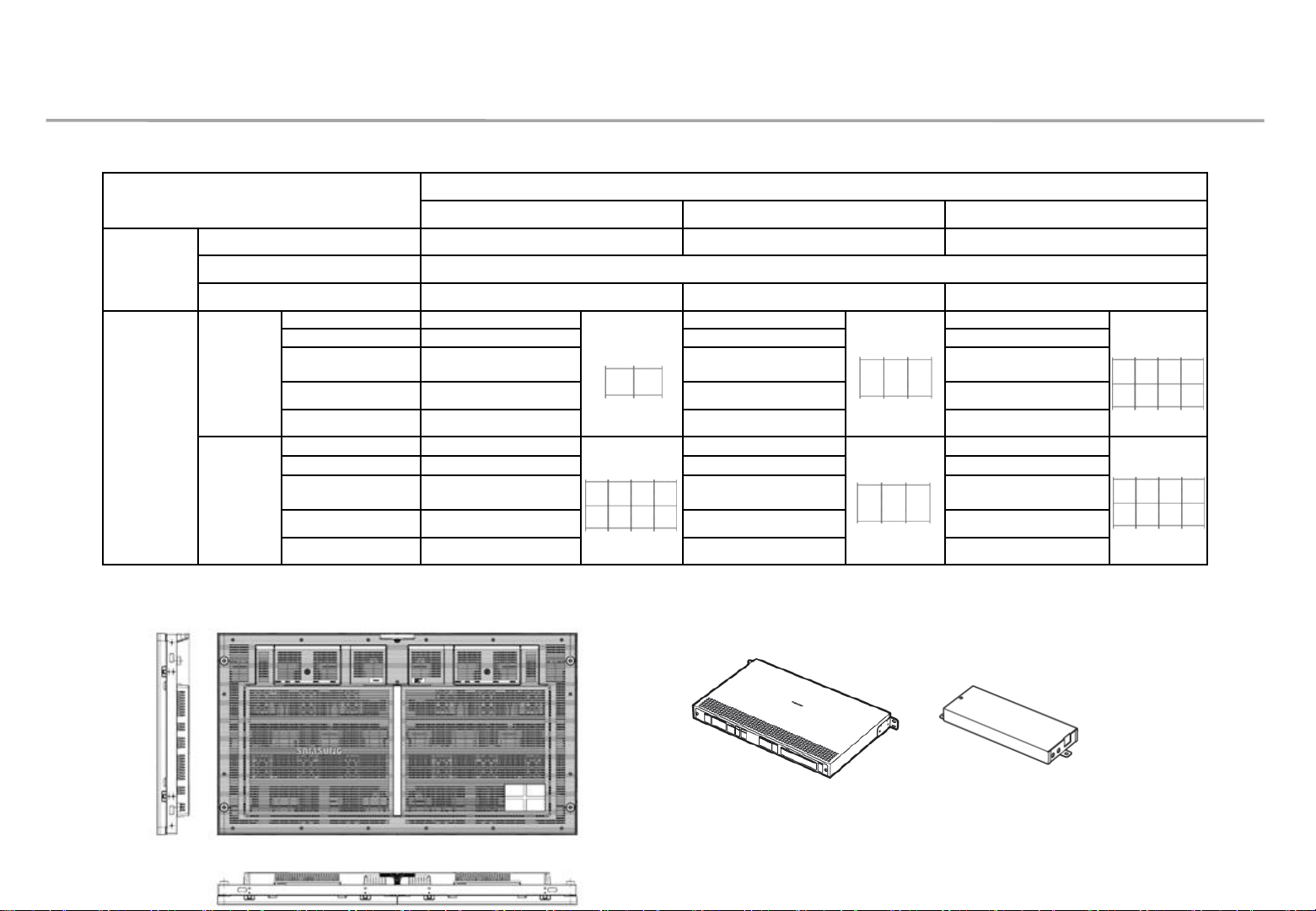

◇Screen Configuration by LED Pitch (Please refer page 22 for Frame Kit Configuration in detail.)
7
1. Product Information and Precautions for Installation
◇SNOW-1810U (S-Box, I/G)
◇Cabinet Figure
Spec IWJ
P0.84 P1.26 P1.68
Cabinet
Cabinet Size 806.4 x 453.6 x 72.2 806.4 x 453.6 x 72.2 806.4 x 453.6 x 72.8
Module Size 201.6 mm x 151.2 mm
Weight 12.5kg 12.2kg 12.5kg
Screen
Configuration
FHD
Cabinet Quantity 2x2 (4set) 3x3 (9set) 4x4 (16set)
I/G Quantity 1 1 1
Size 1612.8mm X 907.2mm 2419.2mm X 1360.8mm 3225.6mm X 1814.4mm
Frame Kit VG-LFJ08FWW VG-LFJ08TWW VG-LFJ08UWW
Bezel IWJPA-WP008D2X2 IWJPA-WP008D3X3 IWJPA-WP008D4X4
UHD
Cabinet Quantity 4x4 (16set) 6x6 (36set) 8x8 (64set)
I/G Quantity 4 4 4
Size
3225.6mm X 1814.4mm
4838.4mm X 2721.6mm 6451.2mm X 3628.8mm
Frame Kit VG-LFJ08UWW VG-LFJ08TWW x4 VG-LFJ08UWW x4
Bezel IWJPA-WP008D4X4 IWJPA-WP008D3X3 IWJPA-WP008D4X4
x4 x4

Samsung Electronics

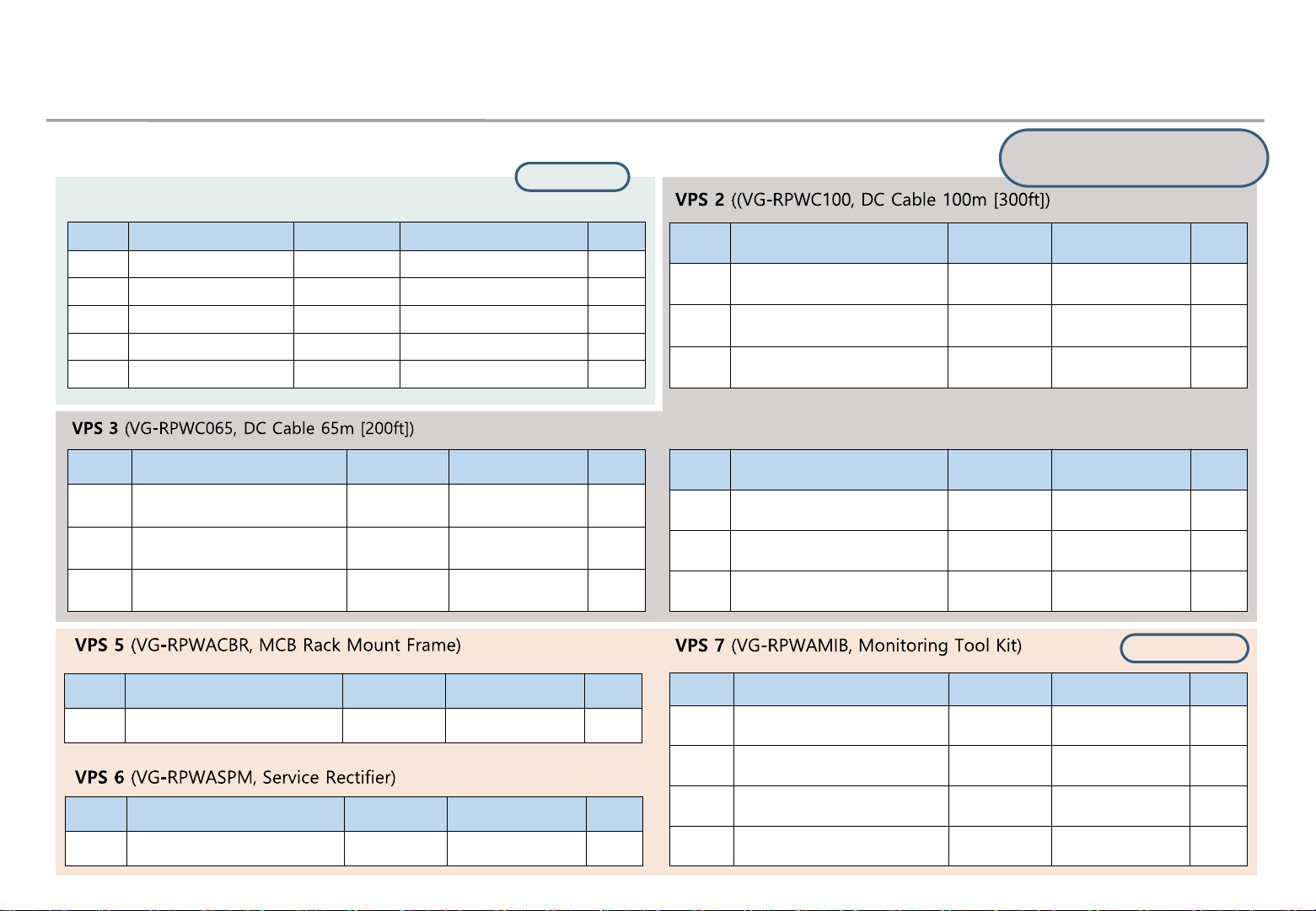

◇Off-Power Board VPS Unit Configuration
8
1. Product Information and Precautions for Installation
Index Product Name Vendor Part Number Qty
1
AWG 1
2, 2C, 300V, UL1277 35mKDC 2
2
Daisy
Power Cable 1.5m KDC 10
3
MCB (Miniature
Circuit Break) ABB (GE) S201-C25 2
Index Product Name Vendor Part Number Qty
1
Power Shelf
ABB (GE)
J2014003L001A
1
2
Power Rectifier
ABB (GE)
CP3500AC54TEZ
4
3
AC Cable
Longwell
P200062
5
4
LUG, 2 AWG
BURNDY
YAV2C
-L2TC14-FX-90 6
5
Heat
Shrinking Tube -
-
Index Product Name Vendor Part Number Qty
1
AWG 1
2, 2C, 300V, UL1277
100m
KDC 2
2
Daisy
Power Cable 1.5m KDC 4
3
MCB (Miniature
Circuit Break) ABB (GE) S201-C25 2
Index Product Name Vendor Part Number Qty
1
AWG 1
2, 2C, 300V, UL1277 65mKDC 2
2
Daisy
Power Cable 1.5m KDC 6
3
MCB (Miniature
Circuit Break) ABB (GE) S201-C25 2
Index Product Name Vendor Part Number Qty
1
Power
Rectifier CP3500 ABB (GE)
CP3500AC54TEZ
1
Index Product Name Vendor Part Number Qty
1
Shelf
Interface Board KDC 150045498 1
2
Interface
Cable KDC CC848848960 1
3
Interface Adapter Kit
ABB (GE) 150036482 1
4
Monitoring Data Cable
ABB (GE) CC848848952 1
Index Product Name Vendor Part Number Qty
1
MCB
Rack Mount Frame PEN ELECOM R1299/3UK-KIT 1
Essential
Essential : Selective by
installation condition
Optional
VPS 4 (VG-RPWC035, DC Cable 35m[100ft])
VPS 1 (VG-RPWSKIT, Power Shelf Set)

Samsung Electronics
◇Off-Power Board VPS Unit Configuration - Detail
1. Product Information and Precautions for Installation
Index Product Name Vendor Part Number Qty
1
Power Shelf
ABB (GE)
J2014003L001A
1
2
Power Rectifier
ABB (GE)
CP3500AC54TEZ
4
3
AC Cable
Longwell
P200062
3
4
LUG, 2 AWG
BURNDY
YAV2C
-L2TC14-FX-90 6
5
Heat Shrink
Tube dalincom
S
-901-600
300mm
9
1. Power Shelf 2. Power Rectifier
3. AC Cable
4. LUG, 2 AWG
VPS 1 (VG-RPWSKIT, Power Shelf Set)
5. Heat Shrink Tube

Samsung Electronics
◇Off-Power Board VPS Unit Configuration - Detail
10
1. Product Information and Precautions for Installation
Index Product Name Vendor Part Number Qty
1
AWG 1
2, 2C, 300V, UL2464
100m
KDC JWHARNESS004 2
2
Daisy
Power Cable 1.5m KDC JWHARNESS001 4
3
MCB (Miniature
Circuit Breaker) ABB (GE) S201-C25 2
Index Product Name Vendor Part Number Qty
1
AWG 1
2, 2C, 300V, UL2464 65mKDC JWHARNESS003 2
2
Daisy
Power Cable 1.5m KDC JWHARNESS001 6
3
MCB (Miniature
Circuit Breaker) ABB (GE) S201-C25 2
Index Product Name Vendor Part Number Qty
1
AWG 1
2, 2C, 300V, UL2464 35mKDC JWHARNESS002 2
2
Daisy
Power Cable 1.5m KDC JWHARNESS001 10
3
MCB (Miniature
Circuit Breaker) ABB (GE) S201-C25 2

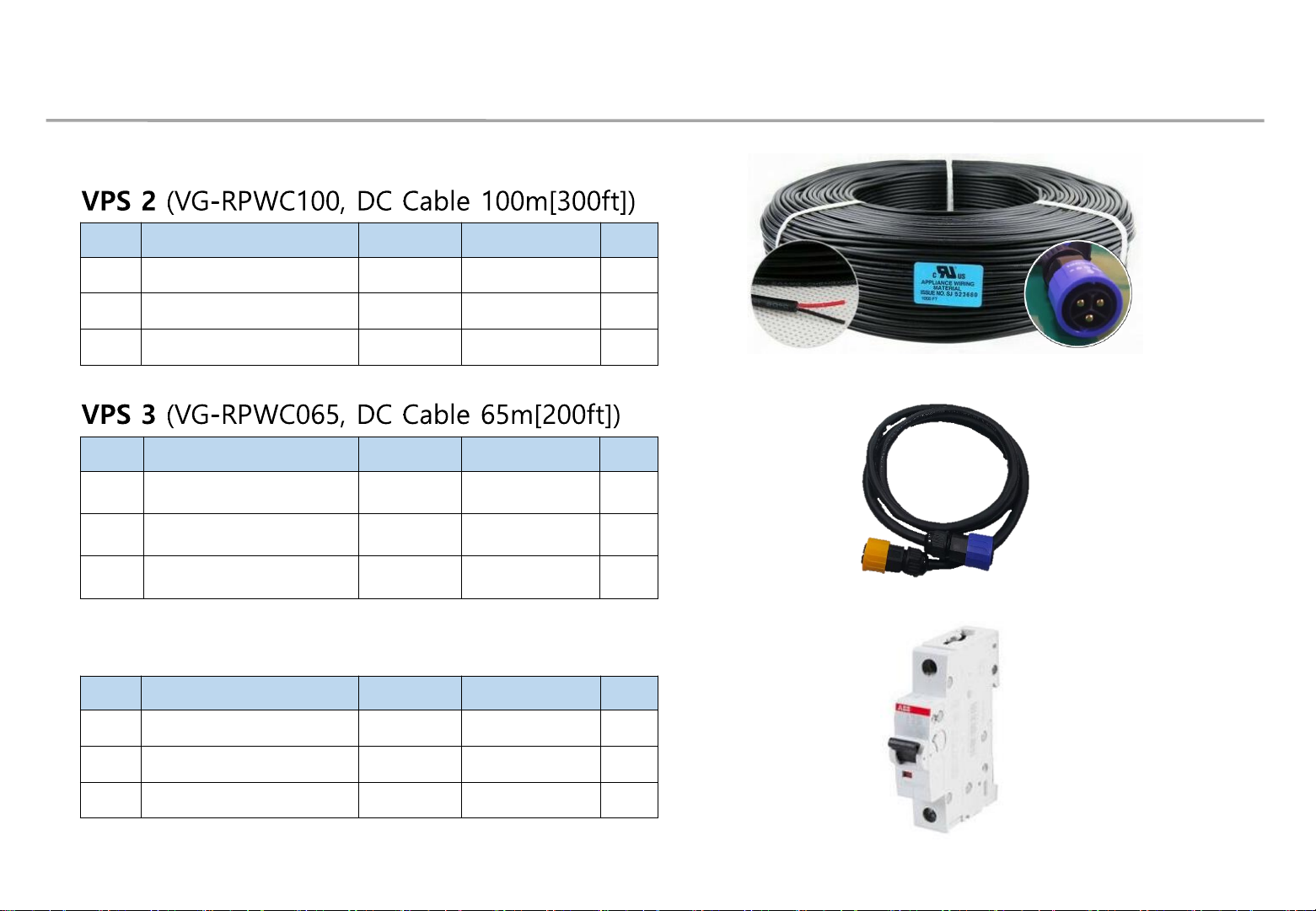

1. AWG 12 Cable (100m / 65m / 35m)
2. Daisy Power Cable 1.5m
3. Miniature Circuit Breaker
VPS 4 (VG-RPWC035, DC Cable 35m[100ft])

Samsung Electronics

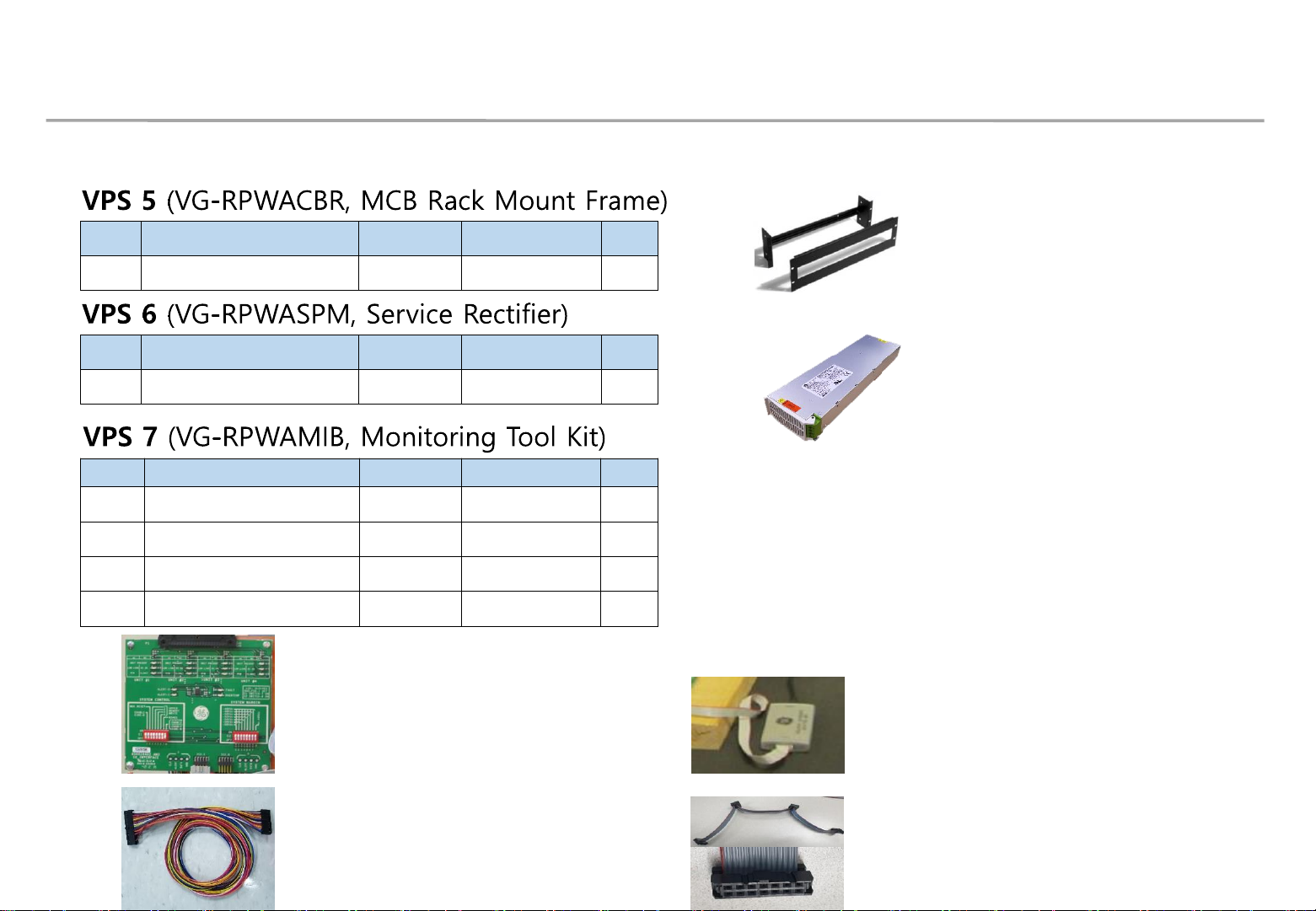

◇Off-Power Board VPS Unit Configuration - Detail
11
1. Product Information and Precautions for Installation
Index Product Name Vendor Part Number Qty
1
Shelf
Interface Board KDC 150045498 1
2
Interface
Cable KDC CC848848960 1
3
Interface Adapter Kit
ABB (GE) 150036482 1
4
Monitoring Data Cable
ABB (GE) CC848848952 1
Index Product Name Vendor Part Number Qty
1
Power Rectifier
ABB (GE) CP3500AC54TEZ 1
Index Product Name Vendor Part Number Qty
1
MCB
Rack Mount Frame PEN ELECOM R1299/3UK-KIT 1
VPS 5
1. MCB Rack Mount Frame
VPS 6
1. Power Rectifier
VPS 7
1. Shelf Interface Board
2. Interface Cable
3. Interface Adapter Kit
4. Monitoring Data Cable
※ The manual for Monitoring Tool locates at installed path that
can be found in the link below.
http://powertalk.campaigns.abb.com/DigitalPowerInsight.html

Samsung Electronics
12
1. Product Information and Precautions for Installation
◇The Wall Pro UHD Screen and Power Shelf Installation Guide by Installation Condition
Model
Cable Length
Cabinets
per cable
Cabinets for
UHD Screen
Cable Qty
Needed
Power Shelf
Qty Needed
(by Cable Qty*)
Power Shelf
Qty Needed
(110V)
Power Shelf
Qty Needed
(220V)
P0.84
35m 516 4 1 1 1
65m 316 6 1 1 1
100m 216 8 1 1 1
P1.26
35m 536 8 1 2 1
65m 336 12 1 2 1
100m 236 18 2 2 2
P1.68
35m 564 13 2 3 2
65m 364 22 2 3 2
100m 264 32 3 3 3
Model Cable
Length
Cabinet Qty
for 110V
Cabinet Qty
for 220V
P0.84
35m 16 40**
65m 16 36
100m 16 24
P1.26
35m 20 45**
65m 20 36
100m 20 24
P1.68
35m 24 60
65m 24 36
100m 24 24
*Max 12 Cables connectable per 1 Power Shelf
※Important
** In case of 35mDC Cable / 220V, it is available of connecting maximum 5
cabinets per DC Cable, totally 60 Cabinets connected per 1 Power Shelf but
that exceeds the maximum rating power of Power Shelf. Do not connect
more than 5 FHD Screen (40 Cabinets for P0.84,45 Cabinets for P1.26)per 1
Power Shelf.

Samsung Electronics
Example for VPS purchase according to installation condition
Example 1)
Screen : UHD X 3, Model : P1.26, Distance : 80m, Supply Voltage : 220V
→ Cabinet 108(=36 * 3)EA, Shelf 5EA Needed, Cable Length and Quantity : 100m / 54 EA
∴ VPS 1 –5EA / VPS 2 –54EA / VPS 5 –3EA (∵ MCB 24 EA mountable per 1 MCB Mount Frame)
13
1. Product Information and Precautions for Installation

Samsung Electronics

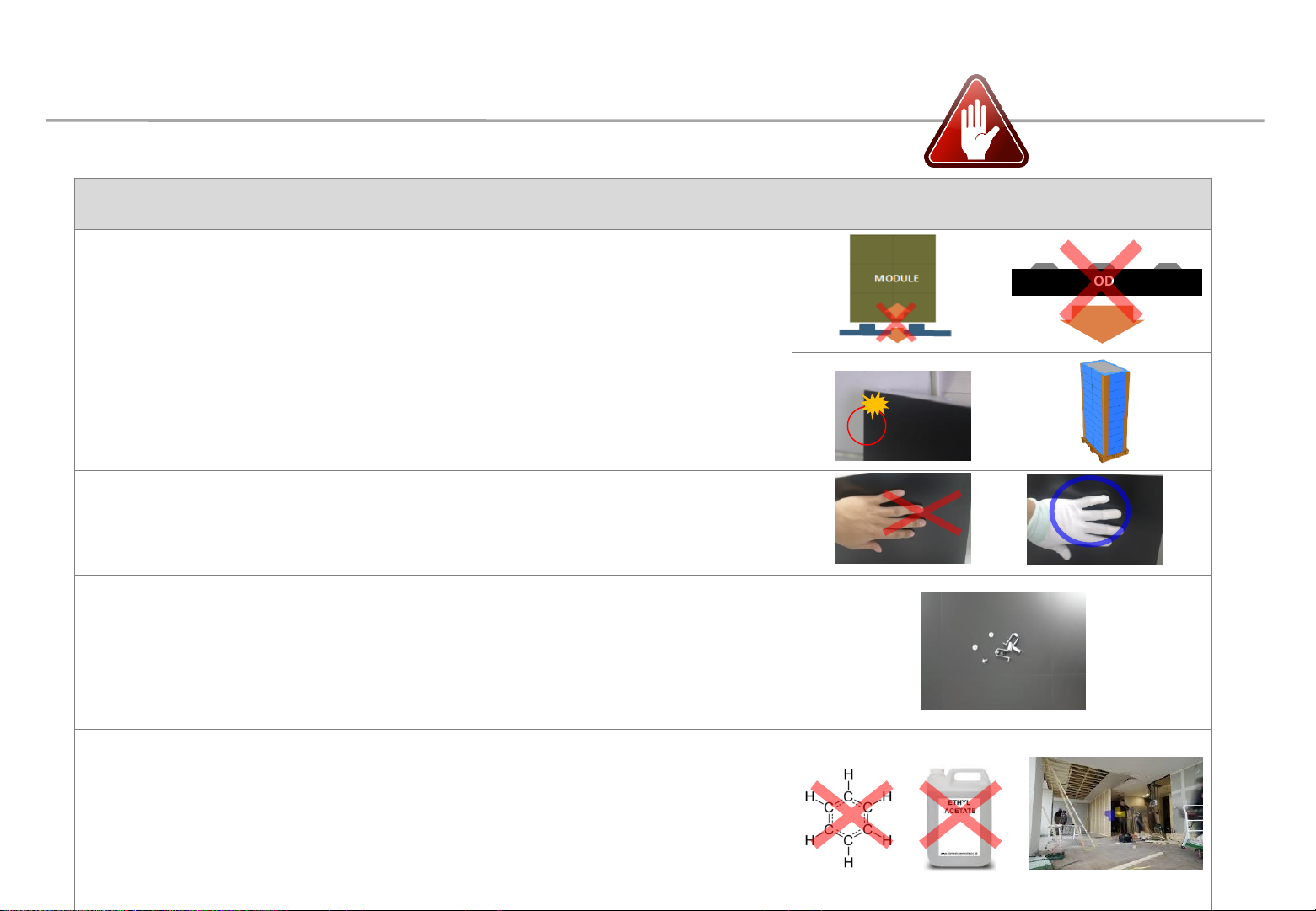

Caution Image
[ Beware of Outside Impact, Fall]
①Beware not to cause any impact on the LED screen or drop the product on the floor
after the protection gets taken off for installation.
②Beware not to put the LED side headed downwards to the floor after the protection
gets taken off for installation.
③Beware not to have the corner area of LED module be damaged due to the contact
with the outside.
④
Beware not to put more than 12 layers.
①
②
③
④
[Beware of LED Damage due to Static Electricity]
▶
Beware not to touch LED screen with bare hands without putting gloves on.
[Beware of LED & Film Damage due to Metallic Substances]
▶
Beware not to have metallic substances pulled in to the surface
due to the magnetic force on the front side of the LED.
▶
If any metallic substances get drawn in on the surface, please disassemble the
module and then remove the pollutants by using a magnet.
[Beware of LED Damage due to chemicals.]
▶
Beware not to contact water, waxes, benzene, thinners, mosquito repellents,
lubricants, cleaners, solvents or surfactants on edge of LED Module.
▶
When installing on the construction site, it should be installed after construction & cleaning.
▶
If the installation site requires construction work, the product is covered with a
curtain and operated 50% white or video for 2 hours every day.
◇Precautions for Installation (LED damage)
14
1. Product Information and Precautions for Installation
MODULE
Front

Samsung Electronics
◇Caution for cleaning screen
15
1. Product Information and Precautions for Installation
★Caution★
- Wipe lightly with the soft cleaning cloth provided with the
product. (Watch out for surface LED damage)
- Hard stuff on screen surface can damage LED chip and film
during cleaning. Clear screen surface before cleaning.
- Watch out for damage when cleaning gap between Half-Cabinets.
- Watch out for damage when cleaning gap between Modules.
- Do not insert any cleaning tool or spay cleaner directly into
the gap.
- Do not wipe the LED surface with hard materials such as
paper towels, brushes comb or brush, acrylic or steel.
- Do not use chemicals such as wax, benzene, cinna, mosquito
repellent, air freshener, lubricant, and detergent in products

Samsung Electronics
16
1. Product Information and Precautions for Installation
◇ 설치 준비
Hex Wrench
2mm, 6mm
•Provided in Frame Kit (VG-LFJ08*WW).
•Provided in Accessory Kit (CY-WJJPWP).
※ 권장 규격
PROTECTION
(BN81-17111A)
EDGE PROTECTION V/H
(BN81-17514A/BN81-17515A)
PLIER
(BN81-17541A)
Absorber
(BN81-17124A)
Glove
(RA00400E-002539)
MAGNET JIG
(BN81-17114A)
GAP TOOL
(BN81-17113A)
X 4
•Provided as Cabinet Accessory
(BN96-48298A)
Cover-PCB
(BN63-18008A)
SCREW-MACHINE
(6003-001501)
HOLDER-SCREW
(BN61-16452B)
M4, L6
(-) (+) driver
Adjustment JIG
(BN81-17112A)
M3, L6
※ Packed in a small zipper bag

Samsung Electronics

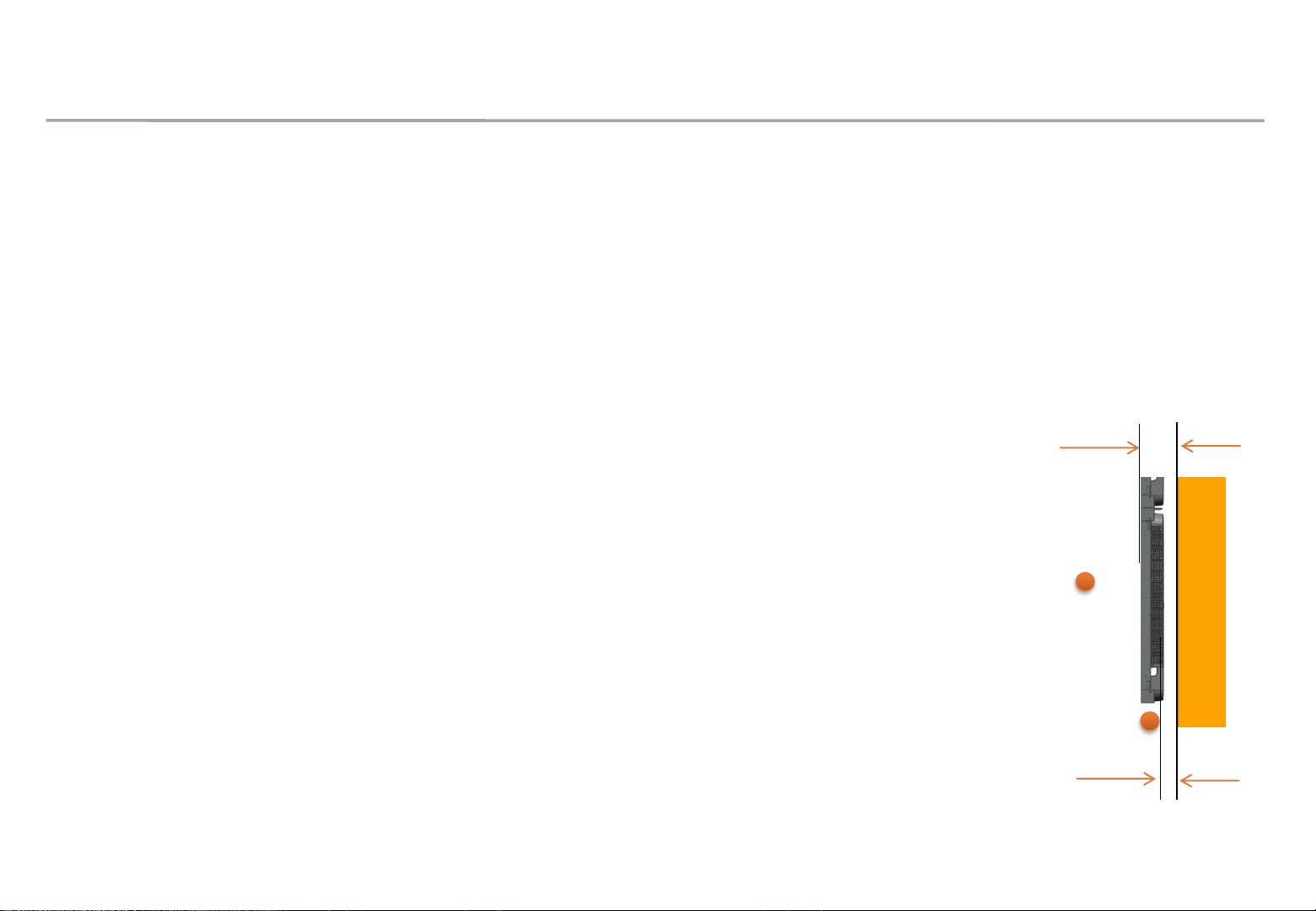

Standard and condition for indoor installation
-Standard for using ‘SAMSUNG WALL MOUNT’ (Fulfill ADA)
-Ceiling installation, outdoor installation, cannot be installed where there is vibration
It is not possible to install it in a special case, and it is necessary to consult technical sales separately.
-In principle, solar window direct radiation condition installation is avoided.
-Window side, adjacent installation
. A weak solar scan of the time zone except for the noon time zone during work is allowed
. If surface temperature rise is minor (1 ~ 2 degrees) allowed
. Use UV blocking / light blocking film when installation of window adjacent is inevitable.
- Room temperature is recommended to be 0 ~ 25 ℃
- Effect of Cold / Hot Wind on Air Conditioning System
. If the cold or hot air is the same air conditioning system, be careful not to affect the product.
- Air temperature measurement position
. Based on product center or air let part
17
2. Check Point about the Radiant Heat
※ ADA(American’s with Disabilities Act
※ Written under ‘Full white, (back light 7)’ standard
Written under ‘Video, (back light 10)’ standard
98.6mm
26.1mm
wall
Measuring
location for
ambient
temperature
Measuring
location for
ambient
temperature

Samsung Electronics
18

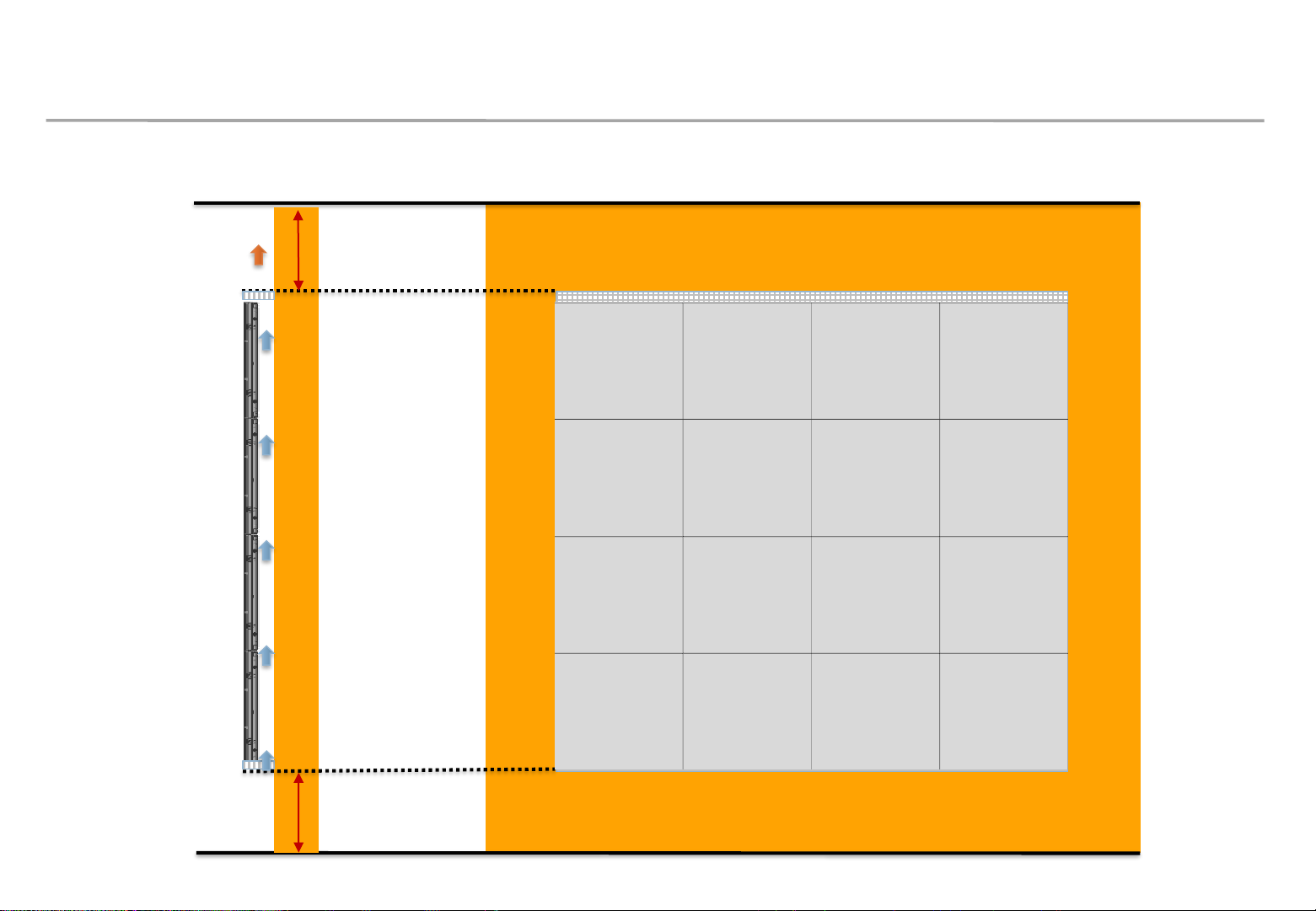

Minimum spacing for buried installation
Min 60mm
Min 60mm
WALL
Min 60mm
Min 60mm
Min 100mm (set ~ floor)
※ Vent and interior finishing work will proceed after screen installation
Recommended condition : Min 500mm (set ~ ceiling)
Min 100mm when maintaining the indoor temperature below
25 degrees due to air conditioning operation
Air vent area
Must use mesh with an opening rate of 60% or more
Air vent area
Must use mesh with an opening rate
of 60% or more
※ At least 60mm installation space required for upper,
lower, left, and right
All interior finishes proceed after screen installation
2. Check Point about the Radiant Heat–without Fan

Samsung Electronics
Minimum spacing for buried installation
19
Air vent area
WALL
Min 100mm (set ~ floor)
Recommended condition : Min 500mm (set ~ ceiling)
Min 100mm when maintaining the indoor temperature below 25 degrees due to
air conditioning operation
2. Check Point about the Radiant Heat–without Fan
