Samsung OL46B User manual

The color and the appearance may differ depending on the
product, and the specifications are subject to change
without prior notice to improve the performance.
SyncMaster OL46B
LCD Display
User Manual

Safety Instructions
Notational
Note
These safety instructions must be followed to ensure your safety and prevent property damage.
Make sure to read the instructions carefully and use the product in the correct manner.
Warning / Caution
Failure to follow directions noted by this symbol could result in bodily harm
or damage to the equipment.
Note
Prohibited Important to read and under-
stand at all times
Do not disassemble Disconnect the plug from the
outlet
Do not touch Ground to prevent an electric
shock
An administration fee may be charged if either
• (a) an engineer is called out at your request and there is no defect in the product
(i.e. where you have failed to read this user manual).
• (b) you bring the unit to a repair centre and there is no defect in the product
(i.e. where you have failed to read this user manual).
The amount of such administration charge will be advised to you before any work or home
visit is carried out.
Cleaning the Monitor
Cleaning
The panel and exterior of the cutting-edge monitor scratch easily and require careful attention. Clean
the monitor according to the following steps.
• Power off the monitor and PC.
• Disconnect the power cable from the monitor.
Note
To avoid electric shock, be sure you disconnect the cable by gripping the
plug and do not touch the cable with wet hands.

• Wipe the monitor using a soft, slightly damp cloth that has been
squeezed .
Do not use a cleaning agent that contains alcohol or
solvents, or that is surface active.
Otherwise, the exterior may discolor or crack or the
panel coating may come off.
Do not spray water or cleaning agent directly onto the
monitor.
Otherwise, the liquid may sink into the monitor and
cause a fire, electric shock, or failure.
Clean the exterior of the monitor using a soft cloth dampened with a small
amount of water.
• Connect the power cable to the monitor after you have finished clean-
ing.
• Power on the monitor and PC.
Power
When not used for extended period of time, set your computer to DPM.
If using a screen saver, set it to active screen mode.
The images here are for reference only, and are not applicable in all cases (or
countries).
Shortcut to Anti-Afterimage Instructions
Do not use a damaged power cord or plug or a damaged or loose power
outlet.
• Otherwise, this may result in electric shock or fire.
Do not touch the power plug with wet hands when removing or plug-
ging the plug into the outlet.
• Otherwise, this may result in electric shock.
Make sure to connect the power cord to a grounded power outlet.
• Otherwise, it may result in electric shock or personal injury.
Ensure that the power plug is plugged into the power outlet firmly and
correctly.
• Otherwise, this may result in fire.
Safety Instructions

Do not forcefully bend or pull the power plug and do not place any
heavy material on it.
• Otherwise, this may result in fire.
Do not connect multiple appliances to the same power outlet.
• Otherwise, this may cause fire due to overheating.
Do not disconnect the power cord while using the product.
• Otherwise, this may result in damage to the product due to electric
shock.
To disconnect the apparatus from the mains, the plug must be pulled
out from the mains socket, therefore the mains plug shall be readily op-
erable.
• Otherwise, this may cause electric shock or fire.
Use only the power cord provided by our company. Do not use the
provided power cord of another product.
• Otherwise, this may result in fire or electric shock.
Connect the power plug to a wall outlet that can be easily reached.
• When a problem occurs with the product, you must unplug the power
plug to cut the power off completely. You cannot cut the power off
completely using only the power button on the product.
Installation
Be sure to contact an authorized Service Center when installing your monitor in
a location with heavy dust, high or low temperatures, high humidity, and exposed
to chemical substances and where it operates for 24 hours such as at airports,
train stations etc.
Failure to do so may cause serious damage to your monitor.
Ensure that at least two persons lift and move the product.
• Otherwise, it may be dropped and cause personal injury, and/or dam-
age the product.
When installing the product in a cabinet or rack, make sure that the
front end of the bottom of the product does not project out.
• Otherwise, it may fall or cause personal injury.
• Use a cabinet or rack of a size appropriate to the product.
DO NOT PLACE CANDLES, MOSQUITO REPELLANT, CIGA-
RETTES AND ANY HEATING APPLIANCES NEAR THE PROD-
UCT.
• Otherwise, this may result in fire.
Safety Instructions

Keep heating appliances as far away from the power cord or the prod-
uct as possible.
• Otherwise, this may result in electric shock or fire.
When putting the product down, make sure to put it down softly.
• Otherwise, this may result in damage to the screen display.
Do not place the front of the product on the floor.
• Otherwise, this may result in damage to the screen display.
Install your product in a well ventilated location. Ensure that there is
a clearance of more than 4 inches (10 cm) from the wall.
• Otherwise, it may result in fire due to an increase in the internal tem-
perature.
Ensure that the packaging vinyl is kept away from children.
• Otherwise, it may result in serious harm (suffocation) if children play
with it.
If the height of your monitor is adjustable, do not place any object or
part of your body on the stand when lowering it.
• This may cause damage to the product or the person carrying it.
Edible oil, such as soybean oil, can damage or deform the product. Do
not install the product in a kitchen or near a kitchen counter.
Others
The product is a high voltage product. Do not disassemble, repair or
modify the product yourself.
• Otherwise, this may result in electric shock or fire. If the product
needs to be repaired, contact a Service Center.
If there is a strange smell or a strange sound or smoke is coming from
the product, disconnect the power plug immediately and contact a Service
Center.
• Otherwise, this may result in electric shock or fire.
When you drop the product or the case is broken, turn the power off
and disconnect the power cord. Contact a Service Center.
• Otherwise, this may result in electric shock or fire.
Safety Instructions

During a lightning or thunderstorm, power off the product and remove
the power cable.
• Otherwise, this may result in electric shock or fire.
Do not try to move the monitor by pulling only the wire or the signal
cable.
• Otherwise, it may fall and result in electric shock, damage to the
product or fire due to damage to the cable.
Do not lift or move the product back and forwards or right and left
while only holding the power cord or signal cables.
• Otherwise, it may fall and result in electric shock, damage to the
product or fire due to damage to the cable.
Make sure that the ventilating opening is not blocked by a table or
curtain.
• Otherwise, it may result in fire due to an increase in the internal tem-
perature.
Do not place any containers containing water, vases, flowerpots, med-
icines as well as any metal on the product.
• If water or a foreign material enters the product, disconnect the power
cord and contact a Service Center.
• This may result in a product malfunction, electric shock, or fire.
Do not use or keep combustible spray or flammable material near the
product.
• Otherwise, this may result in an explosion or fire.
Do not insert any metal, such as chopsticks, coins, pins and steel, or
flammable objects, such as matches or paper, inside the product (through
the ventilating openings, input and output terminals, etc).
• If water or foreign material enters the product, disconnect the power
cord and contact a Service Center.
• Otherwise, this may result in electric shock or fire.
When using a fixed screen for a long time, an afterimage or stain may
occur.
• If you are not using your product for a long period of time, put it into
sleep mode or use a moving screen saver.
Set a resolution and frequency appropriate to the product.
• Otherwise, your eyesight may be damaged.
When using headphones or earphones, do not turn the volume too high.
• Having the sound too loud may damage your hearing.
Safety Instructions

To avoid eyestrain, do not sit too close to the product.
Take a rest for at least five (5) minutes after using the monitor for one
(1) hour.
This reduces eye fatigue.
Do not install it in an unstable location such as an unstable rack or
uneven surface or a location exposed to vibrations.
• Otherwise, it may fall and cause personal injury and/or damage the
product.
• If you use the product in a location exposed to vibrations, it may
damage the product and result in fire.
When moving the product, turn the power off and disconnect the power
plug, antenna cable, and all the cables connected to the product.
• Otherwise, it may result in electric shock or fire.
Ensure that children do not hang onto the product or climb up onto the
product.
• The product may fall and cause personal injury or death.
If you do not use the product for a long period of time, disconnect the
power cord from the power outlet.
• Otherwise, this may result in overheating or fire due to dust, and may
result in fire due to electric shock or leakage.
Do not place any heavy items or toys or confectionery, such as cookies
etc. that may attract the attention of children and to the product.
• Your children may hang onto the product causing it to fall and this
may result in personal injury or death.
Be careful that children do not place the battery in their mouths when
removed from the remote control. Place the battery in a location that
children or infants cannot reach.
• If children have had the battery in their mouths, consult your doctor
immediately.
When replacing the battery, insert it with the right polarity (+, -).
• Otherwise, the battery may become damaged or it may cause fire,
personal injury or damage due to leakage of the internal liquid.
Use only the specified standardized batteries, and do not use a new
battery and a used battery at the same time.
• Otherwise, the batteries may be damaged or cause fire, personal in-
jury or damage due to a leakage of the internal liquid.
Safety Instructions

The batteries (and rechargeable batteries) are not ordinary refuse and
must be returned for recycling purposes. The customer is responsible for
returning the used or rechargeable batteries for recycling.
• The customer can return used or rechargeable batteries to a nearby
public recycling center or to a store selling the same type of the battery
or rechargeable battery.
Do not drop any objects onto the product or cause any impact to the
product.
• Otherwise, this may result in electric shock or fire.
Do not put any heavy objects on the product.
• This may result in personal injury and/or damage to the product.
Power Installation Guide
Make sure to read and follow the instructions carefully and correctly. Failing to
do so, may result in death, serious personal injury or fire.
• Before installing the product, make sure to check the power requirements for the installation lo-
cation.
If you want to install the product in a power environment (power cable, power outlet, circuit breaker,
etc.) with a current/power capacity lower than the current product consumption/power consump-
tion, install a separate power transformer according to the ’Rated Capacities’ table.
The consumer should pay the expenses for this.
• Make sure to connect the product to a dedicated power outlet and do not connect it to a multi-plug
extension cord.
If you have to use a multi-plug extension cord, refer to the current consumption in the ’Rated
Capacities’ table and use a multi-plug with the permitted current specifications greater than the
total current consumption of the products connected to it.
• When using a dedicated power extension cable, use a high-capacity power cable.
Use a power cable with a permitted current of 12.5 A or more.
Rated Current of the Power Plug /Cord/Appliance Coupler
• Use a power cable with 12.5 A or more.
Refer to the Cable Safety Specifications.
• UL specifications - Use a cable with 14 AWG or more
• KS specification - Use a cable with 20.SQ or more
• IEC specification - Use a cable with 2.5 SQ or more
Safety Instructions

Introduction
Package Contents
Note
Please make sure the following items are included with your LCD Display.
If any items are missing, contact your dealer.
Contact a local dealer to buy optional items.
Unpacking
LCD Display
Manuals
Quick Setup Guide Warranty Card
(Not available in some loca-
tions)
User Manual

Others
Remote Control Batteries (AAA X 2)
(Not available in some loca-
tions)
Brackets link top
Brackets link bottom (x 2) Bolts (x 4) Wrench Bolts (x 4)
L Wrench (x 2)
Sold separately
D-Sub Cable DVI Cable LAN Cable
DP Cable HDMI Cable RS232C Cable
USB Cable Stereo Cable RGB to COMPONENT Ca-
ble
Network Box
Your LCD Display
The color and the appearance may differ depending on the product, and the specifications are subject
to change without prior notice to improve the performance.
Introduction

Front
Brightness Sensor
Brightness Sensor detects the ambient light intensity so that the picture brightness
can automatically be adjusted.
Power indicator
Shows PowerSaver mode by blinking green
Note
See PowerSaver described in the manual for further information regarding power
saving functions. For energy conservation, turn your LCD Display OFF when it
is not needed or when leaving it unattended for long periods.
Remote Control Sensor
Aim the remote control towards this spot on the LCD Display.
Speaker
Rear
Note
For detailed information concerning cable connections, refer to Connecting Cables under Setup. The
LCD Display 's configuration at the back may vary slightly depending on the LCD Display model.
Introduction

RGB/COMPONENT IN (PC/COMPONENT
Connection Terminal (Input))
•Connect the [RGB/COMPONENT IN] port
on the monitor to the RGB port on the PC us-
ing the D-SUB cable.
• Connect the [RGB/COMPONENT IN] port
on the monitor to the COMPONENT port on
the external device using the RGB to COM-
PONENT cable.
• Connect the [RGB/COMPONENT IN] port
on the monitor to the BNC port on the PC us-
ing the RGB to BNC cable.
DVI IN (PC Video Connection Terminal)
Connect the [DVI IN] port on the monitor to the
DVI port on the PC using the DVI cable.
RGB/DVI/HDMI AUDIO IN (PC/DVI/HDMI
Audio Connection Terminal (Input))
Connect the [RGB/DVI/HDMI AUDIO IN] ter-
minal of the monitor and the speaker output ter-
minal of your computer's sound card using a
stereo cable (sold separately).
DP IN
Receives a signal from the Display port.
Introduction

Connect a DP cable to [DP IN] on the product and
DP IN on another devices.

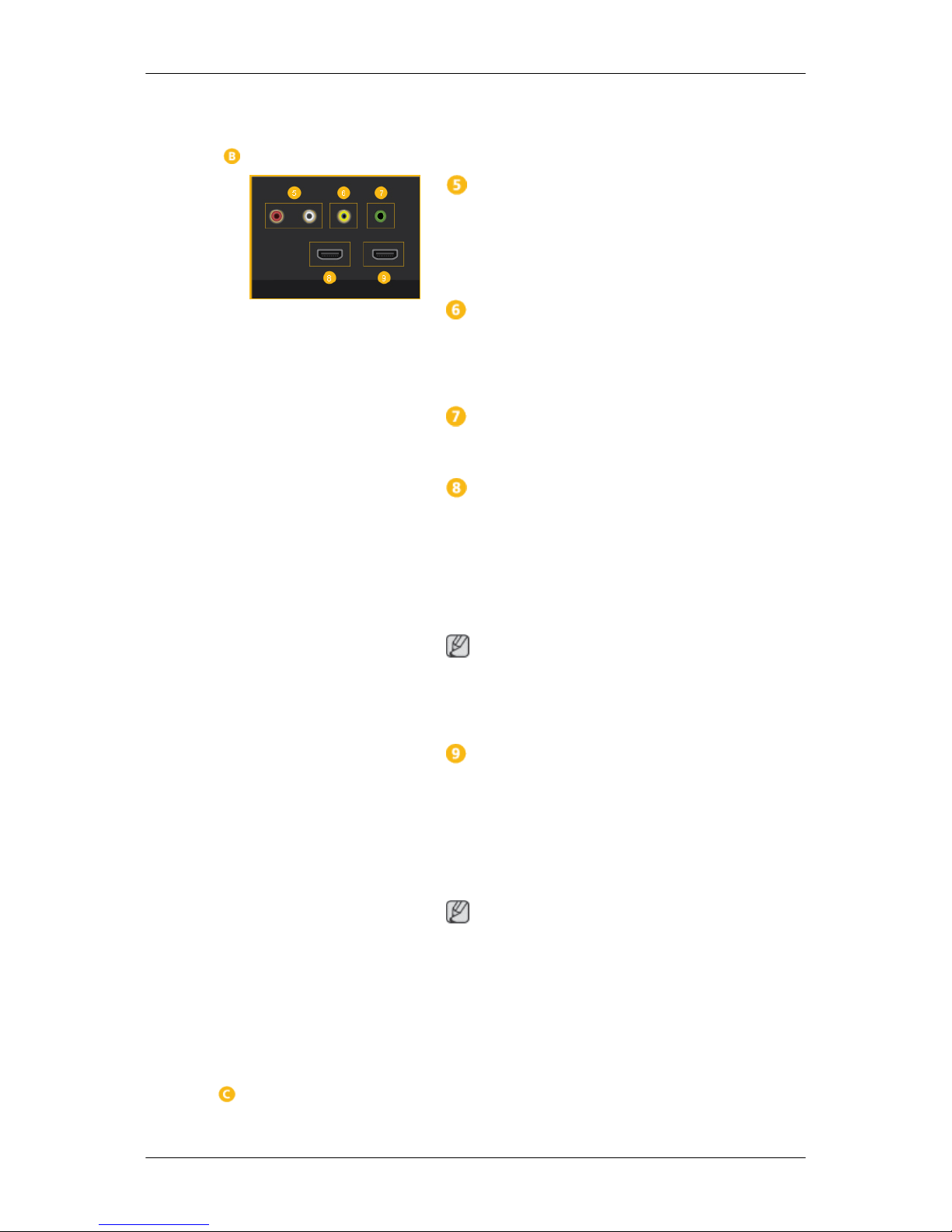

AV/COMPONENT AUDIO IN [R-AUDIO-L]
Connect the [AV/COMPONENT AUDIO IN [R-
AUDIO-L]] port on the monitor to the audio
output port on the PC or on the external device
using an audio cable.
AV IN
Connect the [AV IN] terminal of your monitor to
the video output terminal of the external device
using a VIDEO cable.
AUDIO OUT
Connect a headphone or an External speaker.
HDMI IN 1
•Connect the [HDMI IN 1] terminal at the back
of your LCD Display to the HDMI terminal
of your digital output device using a HDMI
cable.
• Up to HDMI 1.3 can be supported.
Note
•A normal external device (DVD player or
camcorder, etc.) can be connected to the
[HDMI IN 1] terminal.
HDMI IN 2 (MAGICINFO)
•Connect the [HDMI IN 2 (MAGICINFO)]
terminal at the back of your LCD Display to
the HDMI terminal of your digital output de-
vice using a HDMI cable.
• Up to HDMI 1.3 can be supported.
Note
To use MagicInfo, the network box specified
separately by Samsung must be installed inside
the product and the MagicInfo output of the net-
work box must be connected to the [HDMI IN 2
(MAGICINFO)] terminal.
For more information on how to purchase and in-
stall a network box, contact Samsung Electronics.
Introduction

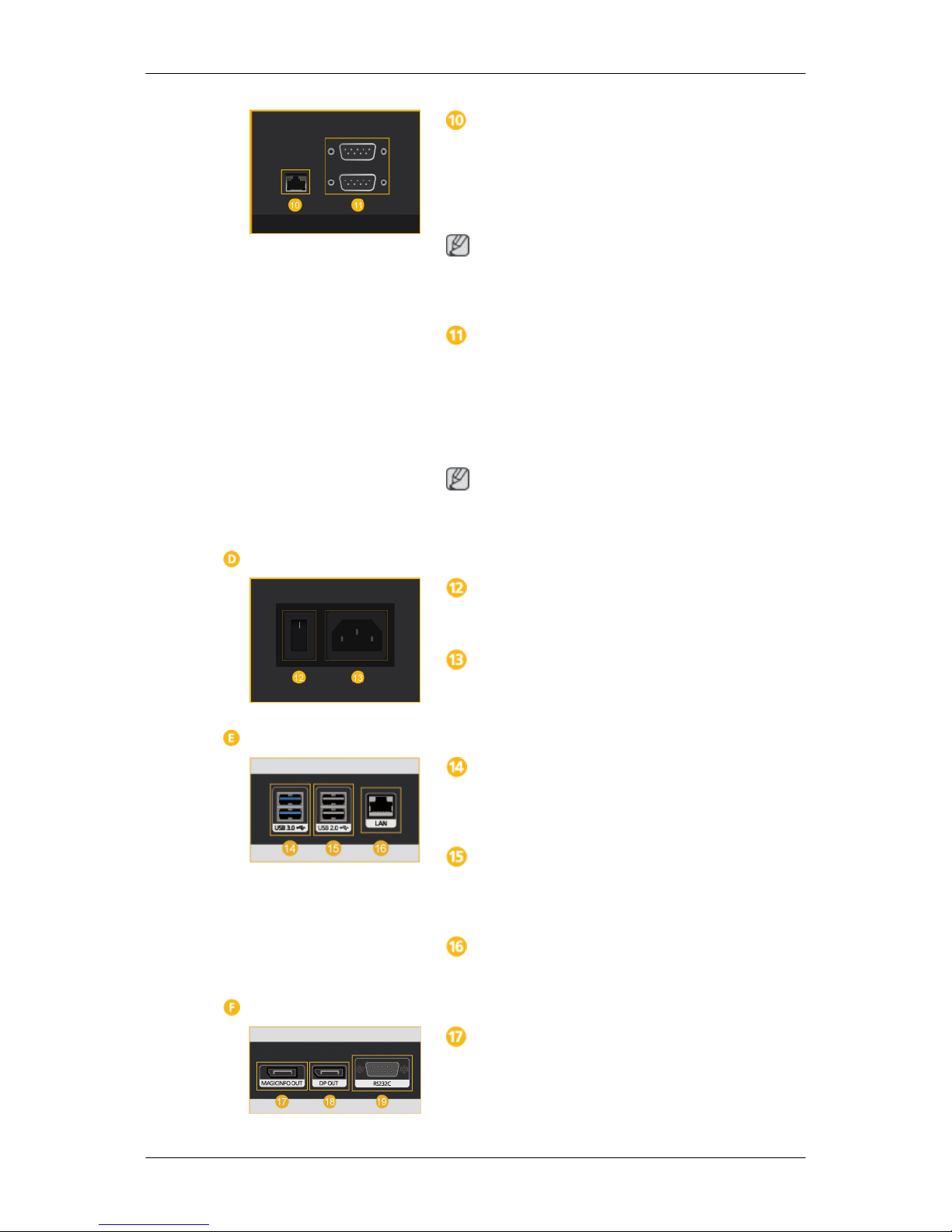

RJ 45 MDC (MDC PORT)
MDC(Multiple Display Control) Program Port
Connect the LAN cable to [RJ45 MDC] on the
product and LAN on the PC. To use an MDC, the
MDC Program must be installed on the PC.
Note
Go to Multi Control and select RJ45 MDC as
the MDC Connection.
RS232C OUT/IN (RS232C Serial PORT)
MDC(Multiple Display Control) Program Port
Connect a serial cable (cross type) to [RS232C]
on the product and RS232C on the PC. To use an
MDC, the MDC Program must be installed on the
PC.
Note
Go to Multi Control and select RS232C MDC
as the MDC Connection.
POWER S/W ON [ │ ] / OFF
Switches the LCD Display On/Off.
POWER
The power cord plugs into the LCD Display and
the wall outlet.
Connecting a Network Box (sold separately)
USB 3.0 (USB Connection Terminal)
Connect to a device that supports USB 3.0. (Also
compatible with a USB 2.0 device)
USB 2.0 (USB Connection Terminal)
Connect to a USB device such as a USB key-
board, mouse, memory, or digital camera.
LAN (LAN Connection Terminal)
Connect to the Internet using a LAN cable.
Connecting a Network Box (sold separately)
MAGICINFO OUT
Connect the network box to a Samsung display
device that has a MAGICINFO port using the
MAGICINFO OUT-HDMI cable provided. (A
Introduction

display device not manufactured by Samsung
cannot be used.)
DP OUT
Connect the network box to a display device that
supports DP using the DP cable.
RS232C (RS232C Serial PORT)
Connect to a device that supports serial commu-
nication.
Connecting a Network Box (sold separately)
Power on or off the network box.
POWER S/W ON [ │ ] / OFF [O]
Turn on or shut off the AC power supply.
POWER
Connect to the power cord.
Button
Not available.
Air exhaust vent
Air intake vent
Introduction

Note
• Periodically replace the intake vent filter at the lower part of the product.
• Length of the replacement cycle may vary depending on the fine dust concentration (PM-10) in
the location of installation. Refer to the table below.
• Fine dust (PM-10): Tiny particles that are very thin with a diameter of 10 or less
Intake filter replacement cycle according to the dust concentration
Dust Con-
centration
( )
70 60 50 40 30 20 10
Replace-
ment cycle
9 months 11
months
13
months
16
months
21
months
32
months
64
months
• If you do not know the dust concentration in the area of installation, it is recommended that you
replace the filter before summer begins every year.
• Especially in a location exposed to a lot of dust, the filter must be replaced at least every 6
months. A partially dark screen is likely a result of the filter being used longer than the rec-
ommended replacement cycle. Replace the filter immediately.
•In Europe and the United States, the yearly mean dust concentration is less than 30 and
the recommended replacement cycle is about 21 months. In Korea, the yearly mean dust con-
centration is less than 60 and the recommended replacement cycle is about 11 months.
The dust concentration and recommended replacement cycle may vary according to the location
of installation.
Note
The power switches of both of the monitor and the network box must be turned on for the network box
to operate normally.
Remote Control
Note
•Using other display devices in the same space as the remote control of this product can cause the
other display devices to be inadvertently controlled.
• Remote control button functions may differ for different products.
Introduction

SOURCE
OFF
Number Buttons
+ VOL -
CONTENT (HOME)
MagicInfo Lite
TOOLS
Up-Down Left-Right / Enter buttons
RETURN
The Color button / The PC/DVI/HDMI/DP se-
lection button
MagicInfo
3D
( ) / / / ( ) /
D.MENU
MUTE
CH
MENU
BLANK
INFO
EXIT
LOCK
Power on the product.
SOURCE Select a connected source device.
OFF Power off the product.
Number Buttons Enter the password in the OSD menu.
Not available.
+ VOL - Adjust the volume.
CONTENT (HOME) Not available.
MagicInfo Lite Not available.
Introduction

TOOLS Not available.
Up-Down Left-Right / En-
ter buttons
Up-Down Left-Right button : Move to the upper, lower, left or
right menu, or adjust an option's setting.
Enter button : Activates a highlighted menu item.
RETURN Return to the previous menu.
The Color button / The PC/
DVI/HDMI/DP selection but-
ton
Manually select a connected input source from PC, DVI,
HDMI or DP.
MagicInfo MagicInfo Quick Launch Button.
MagicInfo can only be enabled when a network box(sold sepa-
rately)is connected.
This button is disabled for products that do not support MagicIn-
fo.
3D Not available.
( ) / / /
( ) /
Not available.
D.MENU Not available.
MUTE Mute the sound.
Unmuting the sound: Press MUTE again or press the volume con-
trol (+ VOL -) button.
CH Not available.
MENU Display or hide the onscreen display menu, or return to the pre-
vious menu.
BLANK Not available.
INFO Display information on the screen.
EXIT Exit the current menu.
LOCK It sets safe lock function.
Fixing the product
Unpacking
Brackets link top Brackets link bottom (x 2) Bolts (x 4)
Introduction

Wrench Bolts (x 4) L Wrench (x 2)
Note
To install components that are not provided in the package, purchase the components separately.
Note
• The product can tip over easily. Ensure the product is fastened to the ground.
• For the installation locations of the anchors (sold separately) on the ground, refer to the dimensions
of the base as shown below.
Dimensions of the base
Process to fix the product
Introduction

Connecting a Network Box
Connecting the Power
Note
• Network boxes are sold separately.
• For more information on how to purchase and install a network box, contact Samsung Electronics.
Connect the power cables inside the product to power input port on the product and power input
port on the network box respectively.
Connecting to MAGICINFO OUT
Connect the [MAGICINFO OUT] terminal of the network box and the [HDMI IN 2 (MAGICINFO)]
terminal of the monitor using the DP to HDMI cable.
Note
• A MAGICINFO OUT-HDMI cable is provided with the network box.
