Your New Plasma Display Panel
ENG
➢
The actual configuration on your PDP may be different,
depending on your model.
Rear Panel
Side of the TV
➢For further details about connection, refer to pages 51~55.
Audio Input (L, R)
Video Input
S-Video Input
a) DVI INPUT (DVI-D / L-AUDIO-R)
Connect to the digital video and audio output jack
for device with DVI output.
b) MONITOR OUT (VIDEO / L-AUDIO-R)
Outputs for external devices
c) ANT IN VHF/UHF (75Ω)
75ΩCoaxial connector for Aerial/Cable Network.
d) PC INPUT (RGB IN / AUDIO)
Connect to the video and audio output jack on
your PC.
e) ONLY FOR SERVICE
Connector for service only.
f) S-VIDEO1, S-VIDEO2
(S-VIDEO1 or S-VIDEO2 / L-AUDIO-R)
Video and audio inputs for external devices with
an S-Video output, such as a camcorder or VCR.
g) AV1, AV2, AV3
(VIDEO / L-AUDIO-R )
Video and audio inputs for external devices, such
as a camcorder or VCR.
h) COMPONENT1, COMPONENT2
Video (Y/Pb/Pr) and audio (L-AUDIO-R) inputs for
Component.
i) POWER IN
Connect the supplied power cord.
j) EXT SPEAKER (8Ω)
Connectors for external rear speakers.
BN68-00624A-02Eng_0422 5/11/04 3:43 PM Page 7

2
ENG
Infrared Remote Control
➢The performance of the remote control may be affected by bright light.
PICTURE EFFECT SELECTION
PICTURE SIZE/
TELETEXT SIZE SELECTION
MENU DISPLAY/
TELETEXT INDEX
DNIe ON/DEMO/OFF
MOVE TO THE REQUIRED
MENU OPTION/
ADJUST AN OPTION VALUE
RESPECTIVELY
TURNS THE PDP ON AND OFF
FASTEXT TOPIC SELECTION
INFORMATION DISPLAY
TV MODE SELECTION
EXIT TELETEXT
(DEPENDING ON THE MODEL)
DIRECT CHANNEL SELECTION
EXTERNAL INPUT SELECTION/
TELETEXT PAGE HOLD
AUTOMATIC SWITCH-OFF/
TELETEXT SUB-PAGE
CONFIRM YOUR CHOICE
(STORE OR ENTER)
NEXT CHANNEL/
TELETEXT NEXT PAGE/
SOUND MODE SELECTION
IF YOUR REMOTE CONTROL IS NOT
FUNCTIONING PROPERLY, TAKE
OUT THE BATTERIES AND PRESS
THE RESET BUTTON FOR ABOUT
2~3 SECONDS. RE-INSERT THE
BATTERIES AND TRY USING THE
REMOTE CONTROL AGAIN.
TruSurround XT
MODE SELECTION
PREVIOUS CHANNEL/
TELETEXT PREVIOUS PAGE/
PIP FUNCTIONS;
-PIP ACTIVATING OR DEACTIVATING
(PIP ON)
-SWAPPING THE MAIN AND THE SUB
PICTURE (SWAP)
-LOCATION SELECTION (POSITION)
-SOURCE SELECTION (SOURCE)
-SIZE SELECTION (SIZE)
-SCAN
-SELECTING THE CHANNEL OF SUB
PICTURE (P )
MAKE THE REMOTE CONTROL WORKS
FOR TV, VCR, CATV, DVD PLAYER, STB
SOUND EFFECT SELECTION
TELETEXT CANCEL
VOLUME INCREASE
TEMPORARY SOUND SWITCH-OFF
VOLUME DECREASE
TELETEXT DISPLAY/
MIX BOTH TELETEXT INFORMATION
AND THE NORMAL BROADCAST
PICTURE STILL
WHEN YOU PRESS A BUTTON , ‘
’
APPEARS ALONG WITH SELECTED MODE
(TV, VCR, CATV, DVD OR STB) AND
REMAINING BATTERIES ON LCD
VCR/DVD FUNCTIONS;
-REWIND (REW)
-STOP
-PLAY/PAUSE
-FAST FORWARD (FF)
REMOTE CONTROL SETUP
BN68-00624A-02Eng_0422 5/11/04 3:43 PM Page 8

3
ENG
You must insert or replace the batteries in the remote control when
you:
◆Purchase the PDP
◆Find that the remote control is no longer operating
correctly
1Remove the cover on the rear of the remote control by pressing
the symbol ( ) downwards and then pulling firmly to remove it.
2Insert two R03, UM4, “AAA” 1.5V or equivalent batteries taking
care to respect the polarities:
◆ - on the battery against - on the remote control
◆ + on the battery against + on the remote control
3Replace the cover by aligning it with the base of the remote
control and pressing it back into place.
Inserting the Batteries in the Remote Control
Assembling the Stand-Base
1Assemble two support pins with the stand base and firmly secure
both sides of the support pins using 8 screws provided.
2Assemble the PDP with the stand and firmly secure the PDP using
4 screws provided.
➢◆
Two or more people should carry the PDP. Never lay the
PDP on the floor because of possible damage to the screen.
Always store the PDP upright.
The angle of the PDP can be up to 15
degrees left/right.
(depending on your model)
BN68-00624A-02Eng_0422 5/11/04 3:43 PM Page 9

4
ENG
Installing the Display on the Wall Attachment Panel

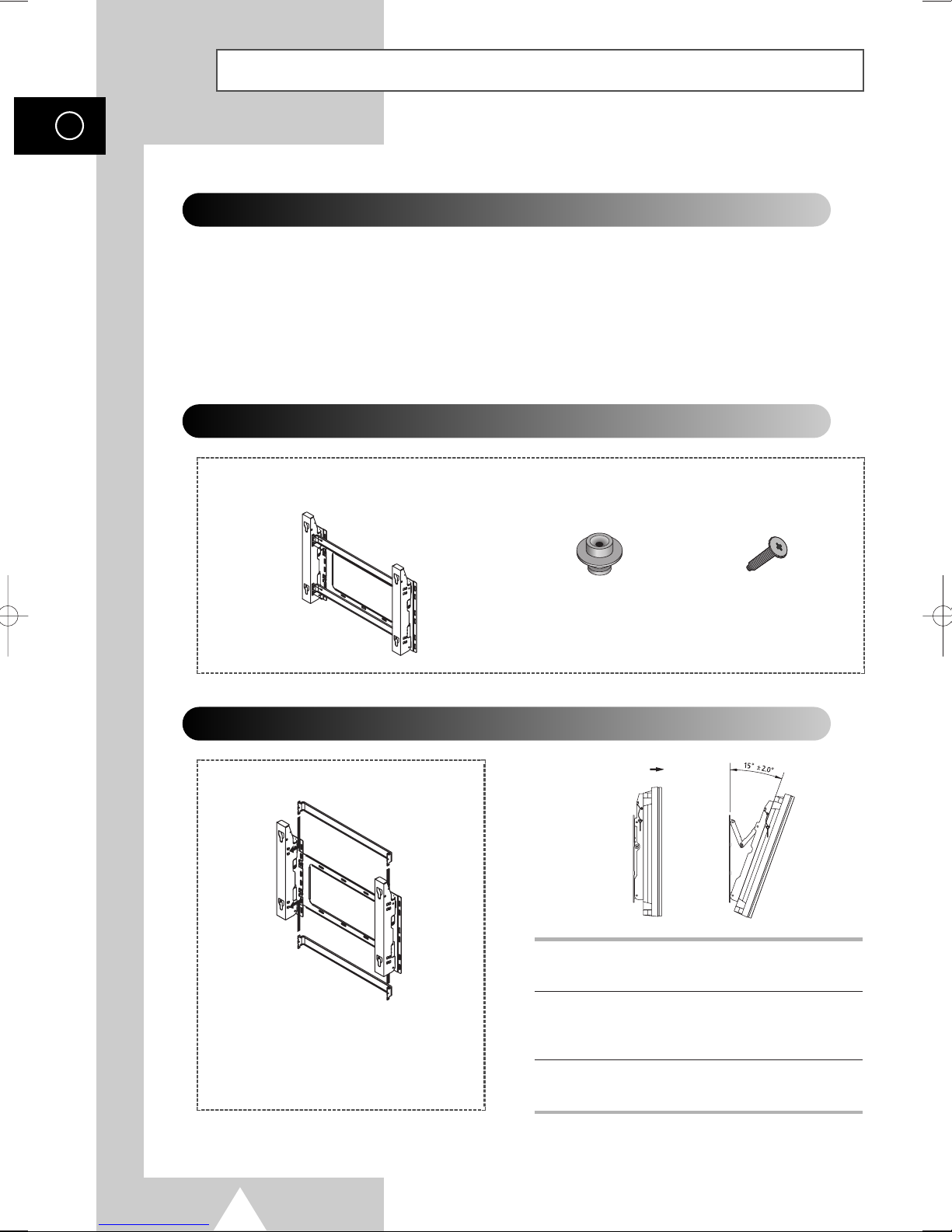

Wall Mount Bracket
Mounting Kits
4 EA 4 EA
Plastic Hanger Screws
How to Adjust Mounting Angle
1Secure the PDP to the wall mount bracket.
(Please refer to the following instructions.)
2Set the angle by pulling the upper end of the
PDP attached to bracket in the direction of the
arrow.
3The angle can be adjusted from 0° to 15° by
±2°.
The wall mount bracket is delivered
separately. Please tighten the captive
screw in the direction of the arrow after
assembling the bracket.
Installation Notes
◆ Do not install the PDP on any place other than vertical walls.
◆ To protect the performance of the PDP and prevent troubles, avoid the followings:
- Do not install next to smoke and fire detectors.
- Do not install in an area subjected to vibration or high voltage.
- Do not install near or around any heating apparatus.
◆ Use only recommended parts and components.
(depending on your model)
BN68-00624A-02Eng_0422 5/11/04 3:43 PM Page 10

5
ENG
Installing the Display on the Wall Attachment Panel (continued)
1Remove the screws from the back of the PDP.
3Tighten the screws of the plastic hanger to the
back side of the PDP.
4Put the 4 pegs on the PDP in the grooves of the wall mount bracket and pull down on the PDP (!) to
secure it to the wall mount bracket (@). Tighten the screws as shown (#) so that the PDP cannot be
separated from wall mount bracket.
2Use the screws and assemble the plastic
hanger.
☛◆Please ask the installers to install the
wall mount bracket.
◆Please be sure to check if the plastic
hanger is completely secured on both
the left and right side after hanging
the PDP on the wall mount bracket.
◆Please avoid catching your fingers
while installing and adjusting the
angle.
◆Please tightly secure the wall mount
bracket to the wall to avoid injury
from a falling PDP.
Connecting External Devices to the PDP
1Be sure to remove the safety pins underneath the PDP.
◆If the safety pins are not removed, the angle cannot be adjusted.
Any attempt to do so may cause damage to the PDP.
2Pull out the bottom of the PDP (which has been attached to the Wall
Mount Bracket) in the direction indicated by the arrows (refer to
the illustration) until it clicks.
◆Using the PDP After Connecting External Devices.
Be sure to secure the PDP by inserting the 2 safety pins after
readjusting the angle of the PDP to 0
o
.
◆For safety, be sure to secure the PDP using the safety pins.
If the safety pins are not used, the PDP may fall, causing serious
injury.
➢The exterior of the PDP may be different than the picture.
(Assembly and installation of the plastic hanger is the same.)
◆ To connect external devices such as a DVD or a Home Theater System to the PDP, please refer
to following instructions:
PDP panel
Wall attachment panel bracket Wall
BN68-00624A-02Eng_0422 5/11/04 3:43 PM Page 11

6
ENG
In order to watch television programmes broadcast via a satellite
network, you must connect a satellite receiver to the rear of the
PDP. Also, in order to descramble a coded transmission signal, you
must connect a decoder to the rear of the PDP.
Using a Coaxial cable
Connect a coaxial cable to the:
◆Receiver (or Decoder) output socket.
◆Television aerial input socket.
➢If you wish to connect both a satellite receiver (or decoder)
and a VCR, you should connect the:
◆Receiver (or Decoder) to the VCR
◆VCR to the PDP
Otherwise, connect the receiver (or decoder) directly to the
PDP.
Connecting a Satellite Receiver or Decoder
Rear of the PDP
Satellite receiver/
Decoder
To view television channels correctly, a signal must be received by
the set from one of the following sources:
◆An outdoor aerial
◆A cable television network
◆A satellite network
1In the first three cases, connect the aerial or network input cable to
the 75Ωcoaxial socket on the rear of the PDP.
2If you are using an indoor aerial, you may need to turn it when
tuning your PDP until you obtain a picture that is both sharp and
clear.
For further details, refer to the user manual:
◆“Storing Channels Automatically” on page 18
◆“Storing Channels Manually” on page 19
➢When installing or re-installing your PDP, be sure to use the
supplied coaxial antenna cable. If you connect using a different
coaxial cable, there is risk of noise or interference to the screen
image. (You must not use another general purpose cable.
Use the 3M/5M/7M cable supplied by Samsung.)
Connecting to an Aerial or Cable Television Network
Rear of the PDP
Cable Television
Network
or
or
BN68-00624A-02Eng_0422 5/11/04 3:43 PM Page 12

7
ENG
Connecting to the External Devices
“MONITOR OUT” are used for the equipment with an RGB output, such as
video game devices or video disc players.
Rear of the TV
(Input/Output)
① This end can be fitted with:
◆Three RCA connectors (VIDEO + AUDIO-L/R)
② If you have a second VCR and wish to copy cassettes tape, connect the source VCR to
“AV 1, AV 2, AV 3” and the target VCR to “MONITOR OUT” so that you can redirect the signal from
“AV 1, AV 2, AV 3” to “MONITOR OUT” .
③ When you wish to record a programme, connect the receiver to “AV 1, AV 2, AV 3” and the VCR to
“MONITOR OUT” so that you can redirect the signal from “AV 1, AV 2, AV 3” to “MONITOR OUT” .
VCR
Decoder /
Video game device
Video disc player
Satellite receiver
DVD
②
①
③
Rear of the TV
(Input/Output)
Camcorder
Video disc player
Video game device
BN68-00624A-02Eng_0422 5/11/04 3:44 PM Page 51

8
ENG
Connecting to the S-Video Input
The S-VIDEO1 and RCA (AUDIO-L/R) connectors are used for equipment with an S-Video output,
such as a camcorder or VCR.
Rear of the TV
Camcorder
VCR
① To play picture and sound, both the S-VIDEO and RCA connectors must be used.
and
①
and
①
Side of the TV
☛Whenever you connect an audio or video system to your television,
ensure that all elements are switched off. Refer to the documentation
supplied with your equipment for detailed connection instructions
and associated safety precautions.
BN68-00624A-02Eng_0422 5/11/04 3:44 PM Page 52

9
ENG

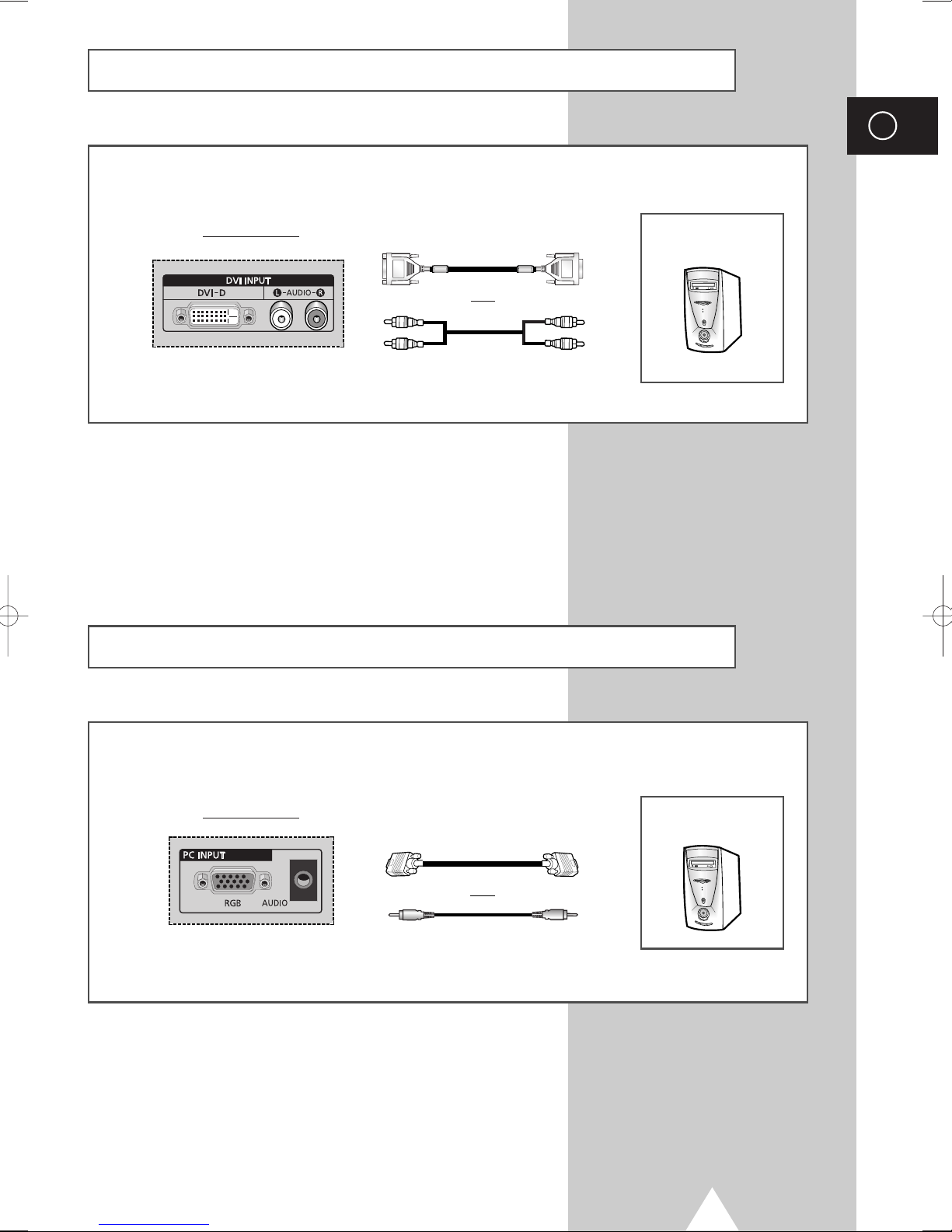

Connecting to the DVI Input
Connecting to the PC Input
The “RGB” (video) and “AUDIO” connectors are used for interfacing with your PC.
Personal Computer
and
Rear of the TV
The “DVI” (video) and “L-AUDIO-R” connectors are used for equipment with a DVI output.
Personal Computer
Rear of the TV
and
BN68-00624A-02Eng_0422 5/11/04 3:44 PM Page 53

10
ENG
Connecting to the Component Input

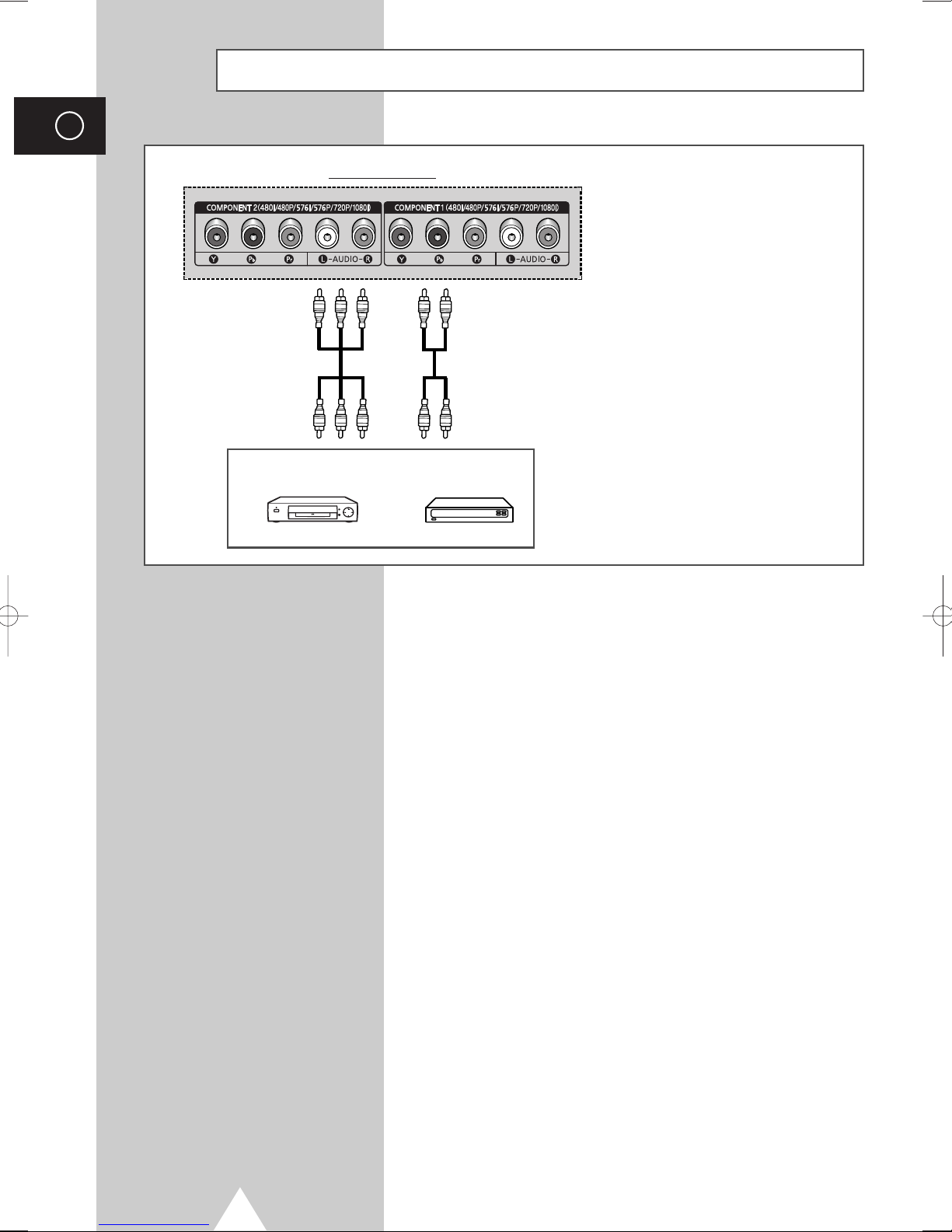

① The “COMPONENT 1” connectors are
used for equipment with a DVD output.
(480i/480P/576i/576P/720P/1080i)
② The “COMPONENT 2” connectors are
used for DTV receiver.
(480i/480P/576i/576P/720P/1080i)
DVD
Rear of the TV
DTV receiver
①②
BN68-00624A-02Eng_0422 5/11/04 3:44 PM Page 54

11
ENG
Connecting and Using the Home Theater System
Connecting the Home Theater System
① Connect the monitoring audio out L, and
R jacks of the MONITOR OUT on the
rear-side connection panel of the PDP
TV to the AUDIO IN jacks of the DVD
Home Theater System (or AV Receiver)
using the audio cable.
② Press the SOURCE button to select the
desired external device connected to the
PDP TV.
③ If you want to hear the sound through
separate speakers, cancel the internal
amplifier.
To Display the DVD Home Theater
! Turn the PDP on and press the SOURCE button to select the AV1 (or AV2,AV3,
Component1,Component2).
@ Be sure to connect the video cable properly if desired external input (AV1, AV2, AV3,
Component1, or Component2) cannot be selected.
# Play the DVD after activating the DVD Home Theater System.
$ Use the volume control of the Home Theater System while watching the PDP using the DVD
Home Theater, where the PDP TV does not produce the audio.
DVD Home Theater
Rear of the TV
AV Receiver Amplifier
①②
Use the Monitor Out ports of the PDP for Home Theater System Connections.
☛◆Refer to corresponding user’s manual from the manufacturer for wiring the
speakers to the DVD Home Theater System (or AV Receiver).
◆Disable the PDP TV internal speaker to enjoy the rich sound through the
speakers of your Home Theater System.
◆In this case, enjoy the sound from the Home Theater System while the PDP TV
does not produce the audio.
BN68-00624A-02Eng_0422 5/11/04 3:44 PM Page 55

12
Installing the Speakers
ENG

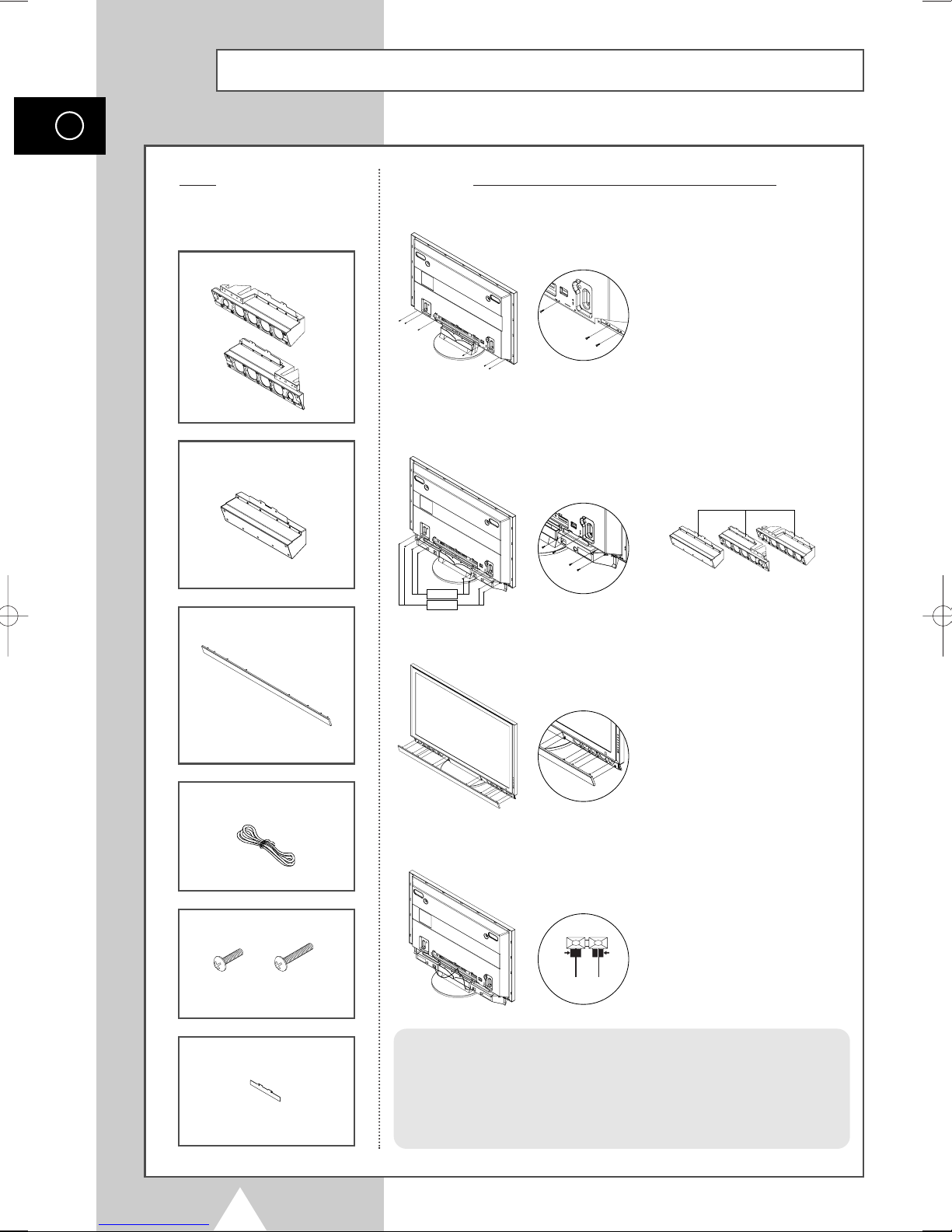

Parts
The actual product may differ
slightly from the illustration.
Speakers
2 EA
How to Assemble the Speakers(Standing)
① Remove the screws indicated on the rear of the PDP (6 screws on
the left and right sides).
③ Secure the Speaker Dust Cover by setting it into the grooves
located on the front side of the speakers.
④ Connect the speakers to the PDP using the speaker cable.
The connection terminals are on the rear side of both the PDP and
the speakers. (Match the color coded terminals and cables.)
② Attach the Bracket Pads to the Speaker’s Guide Bracket.
Set the Speaker Guide Bracket into the square grooves located on
either side of the PDP’s bottom rear and secure it with the provided
screws ①, ➁. (Always use the proper screws, as indicated.)
Middle Cabinet
(Wall Mount Only)
1 EA
Speaker Dust Cover
1 EA
Speaker Cable
Screws
Screw①
: 6EA
Screw➁
: 4EA
3 EA
Bracket Pads
➢
This speaker installation guide is for the 4240 Model.
BLACK
BLACK RED
RED
WARNING
1. When moving the PDP with the speakers attached, be sure to hold on to the PDP
to prevent damage. (Damage may occur to the speaker connecting brackets or
the speakers.)
2. Speakers of 8ΩImpedance, 15W Nom. Power, 30W Max. Power is recommended.
Bracket Pads
Screw①
Screw②
BN68-00624A-02Eng_0422 5/11/04 3:45 PM Page 56

13
Installing the Speakers (continued)
ENG
Parts
The actual product may differ
slightly from the illustration.
Speakers
2 EA
How to Assemble the Speakers(Wall Mount)
① Remove the screws indicated on the rear of the PDP (6 screws on the
left and right sides, 2 screws on the center).
③ Secure the Speaker Dust Cover by setting it into the grooves
located on the front side of the speakers.
④ Connect the speakers to the PDP using the speaker cable.
The connection terminals are on the rear side of both the PDP and
the speakers. (Match the color coded terminals and cables.)
Bracket Pads
② Attach the Bracket Pads to the Speaker’s Guide Bracket.
Set the Speaker Guide Bracket into the square grooves located on
either side of the PDP’s bottom rear and secure it with the provided
screws ①, ➁. Secure the Middle Cabinet to the center of the PDP
with a screw ①. (Always use the proper screws, as indicated.)
Middle Cabinet
(Wall Mount Only)
1 EA
Speaker Dust Cover
1 EA
Speaker Cable
Screws
Screw①
: 6EA
Screw➁
: 4EA
3 EA
Bracket Pads
BLACK
BLACK RED
RED
WARNING
1. When moving the PDP with the speakers attached, be sure to hold on to the PDP
to prevent damage. (Damage may occur to the speaker connecting brackets or
the speakers.)
2. Speakers of 8ΩImpedance, 15W Nom. Power, 30W Max. Power is recommended.
Screw①
Screw②
BN68-00624A-02Eng_0422 5/11/04 3:46 PM Page 57
