Samsung SyncMaster 172W User manual

SyncMaster 172W

User’s Manual
Index
Main Page On-Screen Display
Safety Instructions Troubleshooting
Notational Check List
Power Q & A
Installation Self-Test Feature Check
Cleaning
Other
Introduction Specifications
Unpacking General Specifications
Front PowerSaver
Rear Preset Display Modes
Setup Information
Connecting Your Monitor Service
Installing the Monitor Driver Terms
— Automatic Regulatory
— Manual Natural Color
For BetterDisplay
Authority

User’s Manual
Safety Instructions
Failure to follow directions noted by this symbol could result in bodily harm or damage to equipment.
Notational
Warning/Caution
Notation Conventions
Prohibited Important to read and understand at all times
Do not disassemble Disconnect the plug from the outlet
Do not touch Grounding to prevent an electric shock

User’s Manual
Safety Instructions
When not used for extended periods of time, set your PC to DPMS. If using a screen saver,
set it to the active screen mode.
•Do not use a damaged or loose plug.
•This may cause an electric shock or fire.
•Do not pull the plug out by the wire nor touch the plug
with wet hands.
•This may cause an electric shock or fire.
•Use only a properly grounded plug and recepticle.
•An improper ground may cause electric shock or equipment damage
•Do not excessively bend the plug and wire nor place
heavy objects upon them, which could cause damage.
•Failure to do so may cause an electric shock or fire.
Power

User’s Manual
Safety Instructions
•Disconnect the plug from the outlet during storms or
lightening or if it is not used for a long period of time.
•Failure to do so may cause an electric shock or fire.
•Do not connect too many extension cords or plugs to an
outlet.
•This may cause a fire.
Power

User’s Manual
Safety Instructions

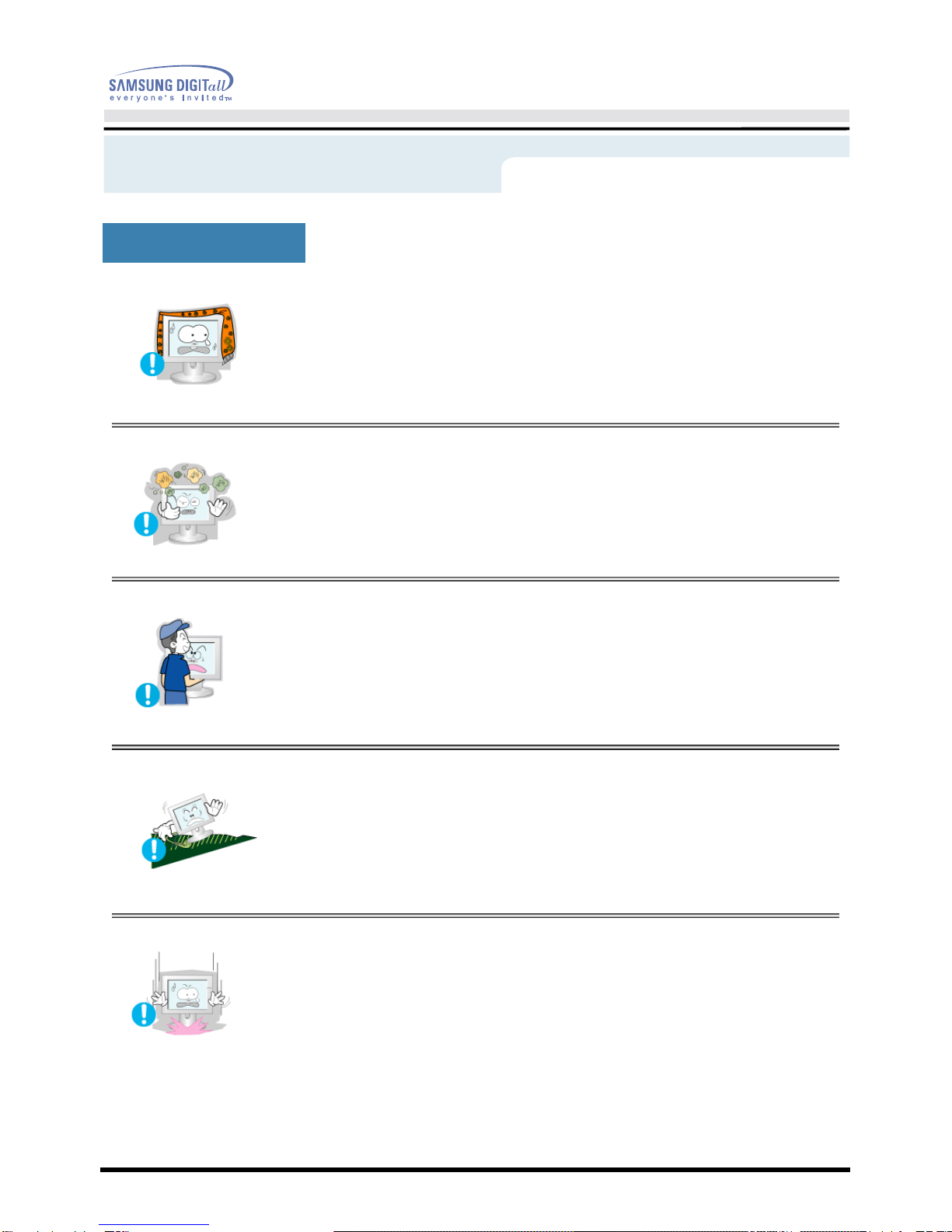

•Do not cover the vents on the monitor cabinet.
•Bad ventilation may cause a breakdown or fire.
•Put your monitor in a location with low humidity and a
minimum of dust.
•An electric shock or fire could result inside the monitor.
•Do not drop the monitor when moving it.
•This may cause damage to the product or human body.
•Place the monitor on a flat and stable surface.
•The monitor can cause injury by falling.
•Set down the monitor carefully.
•It could be damaged or broken.
Installation

User’s Manual
Safety Instructions
•Do not place the monitor face down.
•The TFT-LCD surface may be damaged.
Installation

User’s Manual
Safety Instructions
•Do not spray detergent directly on the monitor.
•Use the recommended detergent with a smooth cloth.
•If the connector between the plug and the pin is dusty or
dirty, clean it properly with a dry cloth.
•A dirty connector can cause an electric shock or fire
•Do not set a glass of water, chemicals or any small metal
objects on the monitor.
•This may cause damage, electric shock or a fire.
•If a foreign substance gets into the monitor, disconnect the plug and
then contact a service center.
Clean
When cleaning the monitor case or the surface of the TFT-LCD, wipe with a slightly
moistened, soft fabric.

User’s Manual
Safety Instructions
•Do not remove cover(or back). No user serviceable parts
inside.
•This may cause an electric shock or a fire.
•Refer servicing to qualified service personnel.
•If your monitor does not operate normally - in particular,
if there are any unusual sounds or smells coming from
it - unplug it immediately and contact an authorized deal-
er or service.
•This may cause an electric shock or a fire.
•Do not place any heavy objects on the monitor.
•This may cause an electric shock or a fire.
•For each hour of looking at the monitor, you should let
your eyes rest for 5 minutes.
•This will reduce eye fatigue.
•Do not use or store inflammable substances near the
monitor.
•This may cause an explosion or fire.
Other

User’s Manual
Safety Instructions
•Do not try to move the monitor by pulling on the wire or
the signal cable.
•This may cause a breakdown, electric shock or a fire due to damage
to the cable.
•Do not move the monitor right or left by pulling only the
wire or the signal cable.
•This may cause a breakdown, electric shock or a fire due to damage
to the cable.
•Never insert anything metallic into the monitor openings.
•This may cause an electric shock, fire or injury.
Other

User’s Manual
Introduction
Unpacking
Please make sure the following items are included with your monitor. If any items are missing, contact
your dealer.
Unpacking
Monitor
VESA Mounting Bracket
D-Sub Cable Quick Setup Guide
DVI Cable(Option) Warranty Card
(Not available in all
locations)
Power Cord
DC-Adapter
User's Guide and Driver
Installation CD
For Multimedia model (Option)
Multimedia Speaker Stand Sound Cable

User’s Manual
Introduction

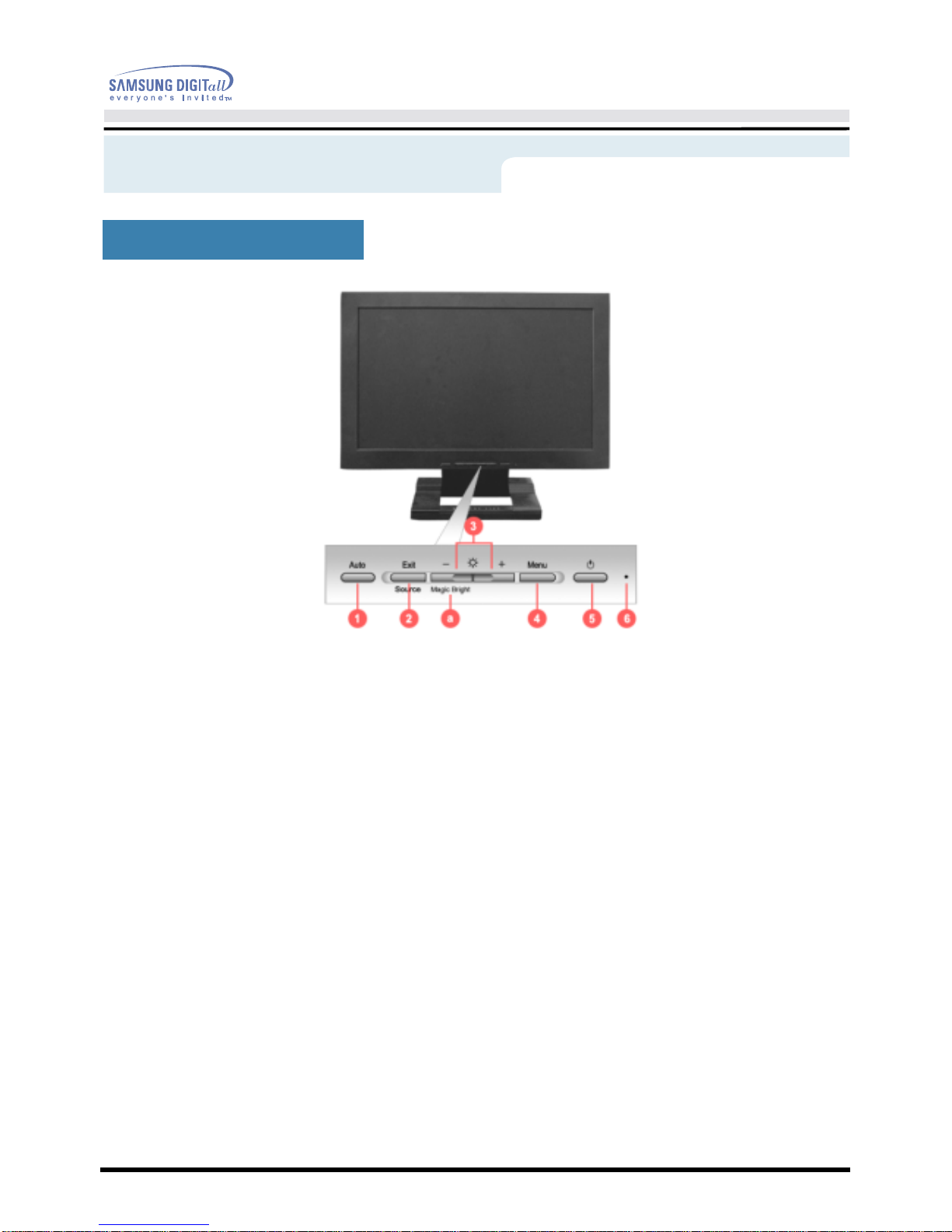

Front
1. Auto button Use this button to auto adjustment direct access.
2. Exit button
Source button
Use this button to Exit the active menu or the OSD.
When push the 'Source' button, then Selects the Video signal while the OSD
is off. (When the Source button is pressed to change the input mode, a
message appears in the center of the screen displaying the current mode --
analog or digital input signal.)
Note:If you select the Digital mode, you must connect your monitor to the
graphic card with a digital port using the DVI cable.
3. Adjust buttons These buttons allow you to highlight and adjust items in the menu.
4. Menu button Use this button to open the OSD and activate a highlighted menu item.
5. Power button Use this button to turn the monitor on and off.(When the power is turned on, a
message appears in the center of the screen displaying the current mode --
analog or digital input signal.)
6. Power indicator This light glows green during normal operation, and blinks green once as the
monitor saves your adjustments.
a. MagicBright
button
MagicBright is a new feature providing optimum viewing environment
depending on the contents of the image you are watching. Currently three
different modes are available: Text, Internet, and Entertain. Each mode has it
own pre-configured brightness value. You can easily select one of three
settings by simply pressing MagicBright control buttons.
Note: See PowerSaver described in the manual for further information regarding power saving functio
For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended f
long periods.

User’s Manual
Introduction

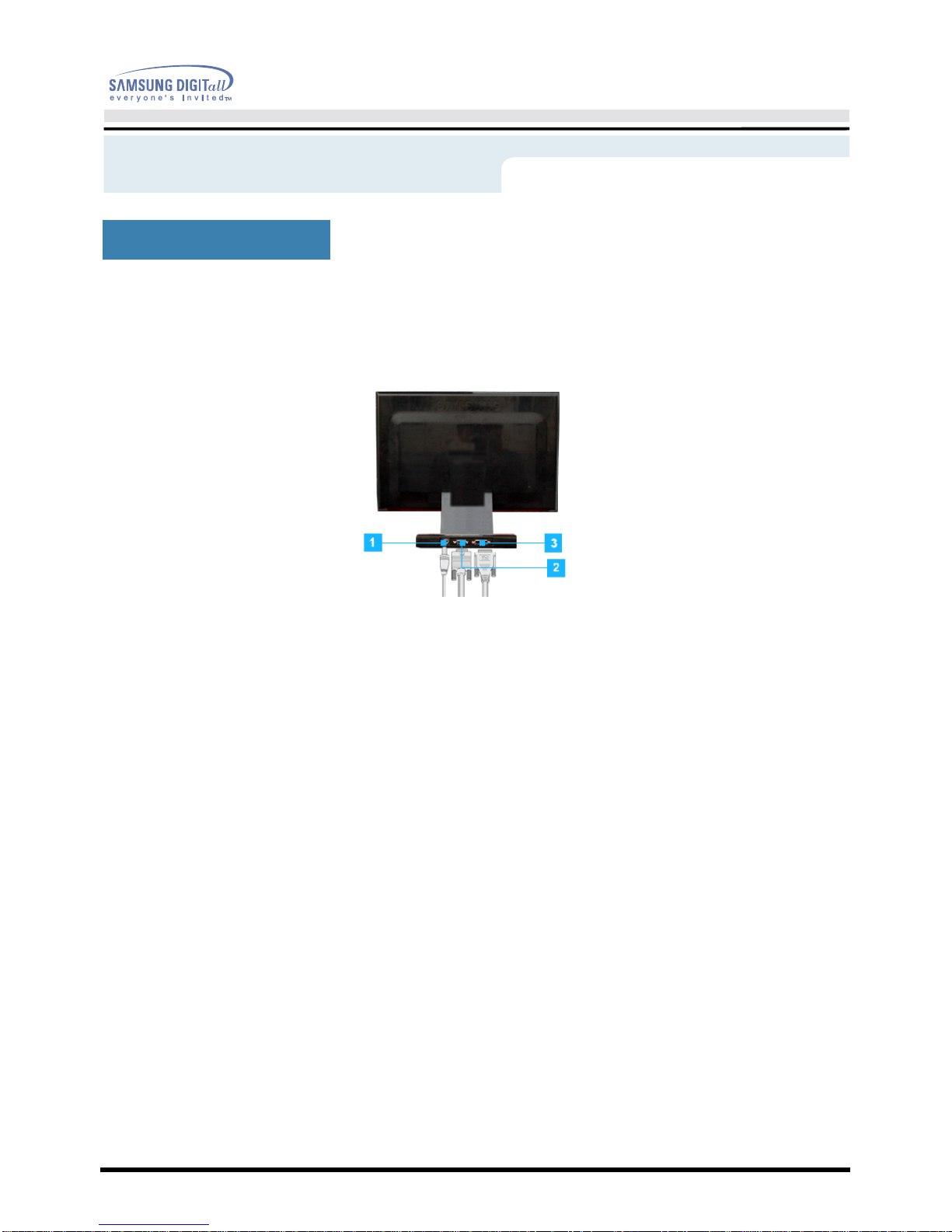

Rear
(The configuration at the back of the monitor may vary from product to product.)
1. Power port Connect the power cord for your monitor to the power port on the back
of the monitor.
2. Signal port
Connect the signal cable to the 15-pin, D-sub connector on the back of your monitor.
3. DVI port Connect the DVI Cable to the DVI Port on the back of your Monitor.
Note: See Connecting Your Monitor for further information regarding cable connections.

User’s Manual
Setup
Connecting Your Monitor
Setup-General
1. Connect the DC Adapter for your monitor to the power port on the back of the monitor. Plug
the power cord for the monitor into a nearby outlet.
2-1. Using the D-sub (Analogue) connector on the video card.
Connect the signal cable to the 15-pin, D-sub connector on the back of your monitor.
2-2. Using the DVI (Digital) connector on the video card.
Connect the DVI Cable to the DVI Port on the back of your Monitor.
3. Connected to a Macintosh.
Connect the monitor to the Macintosh computer using the D-SUB connection cable.
4. In the case of an old model Macintosh, you need to connect the monitor using a special Mac
adaptor.
5. Turn on your computer and monitor. If your monitor displays an image, installation is complete.
You may get a blank screen depending on the type of video card you are using, if you connect
simultaneously both the D-sub and DVI cables to one computer.
If you connect properly your monitor using the DVI connector but get a blank or fuzzy screen,
check to see if the monitor status is set to analogue. Press Source button to have the monitor
double-check the input signal source.

User’s Manual
Setup
1. PC sound connection terminal (Input)
2. Headphone connection terminal (Output)
3. Volume
4. To listen in privacy,connect headphones here.
5. Connect a sound cable from the input source (sound card,computer,CD-ROM drive).
Connecting Your Monitor
Setup-For Multimedia model

User’s Manual
Setup
Attaching a base
NOTE: This monitor accepts a 75mm x 75mm VESA-compliant mounting interface pad.
Squeeze the folded monitor stand into the VESA mounting bracket. Then fasten it using the
four supplied nuts with the monitor, mounting pad and VESA mounting bracket aligned.
1. VESA Mounting Brkt
2. Mounting interface pad
Attaching a base (Option)

When prompted by the operating system for the monitor driver, insert the CD-ROM
included with this monitor. Driver installation is slightly different from one operating
system to another. Follow the directions as appropriate for the operating system you
have.
Prepare a blank disk and download the driver program file at the Internet web site shown
here.
z
Internet web site : http://www.samsung-monitor.com/ (Worldwide)
http://www.samsungusa.com/monitor (USA)
http://www.sec.co.kr/monitor (Korea)
http://www.samsungmonitor.com.cn/ (China)
Windows ME
1. Insert CD into the CD-ROM drive.
2. Click "Windows ME Driver".
3. Choose your monitor model in the model list, then click the "OK" button.
4. Click the "Install" button in the "Warning" window.
5. Monitor driver installation is completed.
Windows XP/2000
1. Insert CD into the CD-ROM drive.
2. Click "Windows XP/2000 Driver".
3. Choose your monitor model in the model list, then click the "OK" button.
User’s Manual
Setup

4. Click the "Install" button in the "Warning" window.
5. If you can see following "Message" window, then click the "Continue Anyway" button.
Then click "OK" button.
This monitor driver is under certifying MS logo,and this installation don't damage your
system.The certified driver will be posted on Samsung Monitor Homepage
http://www.samsung-monitor.com/.
6. Monitor driver installation is completed.
User’s Manual
Setup

When prompted by the operating system for the monitor driver, insert the CD-ROM
included with this monitor. Driver installation is slightly different from one operating
system to another. Follow the directions as appropriate for the operating system you
have.
Prepare a blank disk and download the driver program file at the Internet web site shown
here.
zInternet web site : http://www.samsung-monitor.com/ (Worldwide)
http://www.samsungusa.com/monitor (USA)
http://www.sec.co.kr/monitor (Korea)
http://www.samsungmonitor.com.cn/ (China)
Microsoft®Windows®XP Operating System
1. Insert CD into the CD-ROM driver.
2. Click "Start" —> "Control Panel" then click the "Appearance and Themes" Icon.
3. Click "Display" icon and choose the "Settings" tab then click "Advanced..".
4. Click the "Properties" button on the "Monitor" tab and select "Driver" tab.
User’s Manual
Setup

5. Click "Update Driver.." and select "Install from a list or.." then click "Next" button.
6. Select "Don't search ,I will.." then click "Next" and then click "Have disk".
7. Click the "Browse" button then choose A:(D:\Driver) and choose your monitor model in the
model list and click the "Next" button.
8. If you can see following "Message" window, then click the "Continue Anyway" button. Then
click "OK" button.
User’s Manual
Setup
