Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com/register
(MFM TV)
imagine the possibilities
TA550
TA350

2
English
Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.
Product design and specifications may be changed without notice.
Still image warning
Avoid displaying still images (such as jpeg picture files) or still image elements (such as TV channel logos, panorama or 4:3 image format, stock or news
bars at screen bottom etc.) on the screen. Constant displaying of still picture can cause ghosting of screen, which will affect image quality. To reduce risk
of this effect, please follow below recommendations:
• Avoid displaying the same TV channel for long periods.
• Always try to display a full screen image.
• Reducing brightness and contrast will help to avoid the appearance of after-images.
• Use all TV features designed to reduce image retention and screen burn, refer to proper user manual section for details.
Securing the Installation Space

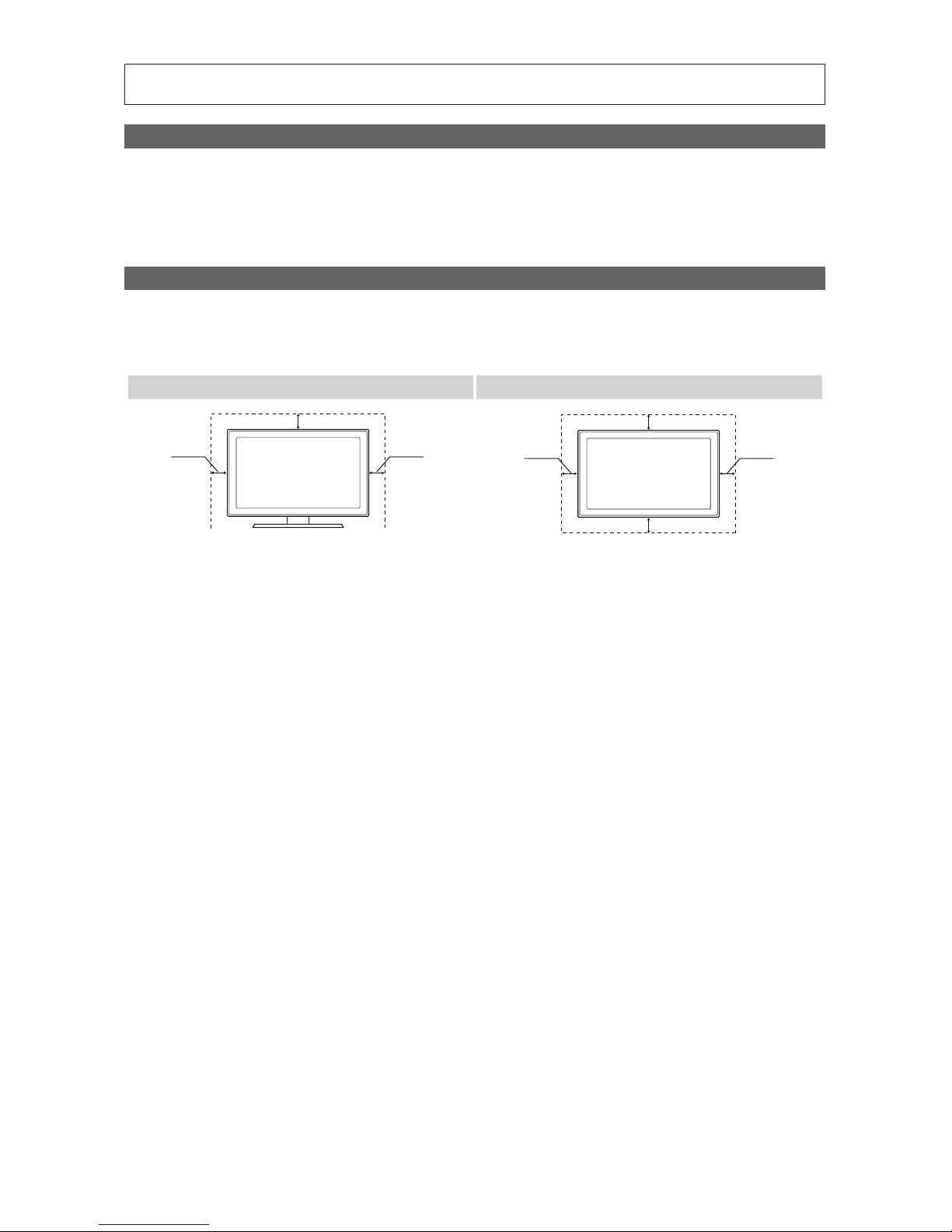

Keep the required distance between the product and other objects (e.g. walls) to ensure proper ventilation.
Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature of the product.
✎
The actual appearance of the TV may differ from the images in this manual, depending on the model.
✎
Be careful when you touch the TV. Some parts can be somewhat hot.
Installation with a stand Installation with a wall-mount
10 cm
10 cm
10 cm 10 cm
10 cm
10 cm
10 cm

3
Contents
ENGLISH
English
Check the Symbol!
t
TOOLS
Note Step by Step Guide
This function can be used by
pressing the TOOLS button on
the remote control.
Indicates additional information. Check here for instructions on how to open the
relevant submenu within the OSD (on screen
display).
Contents
Other Information
42
42 Installing the Device Driver
43 Attaching a Wall Mount/Desktop Stand
44 Assembling the Cables
44 Anti-theft Kensington Lock
45 Troubleshooting
48 License
49 Specifications
50 Index
Advanced Features
33
33 Using the My Contents
38 Anynet+ (HDMI-CEC)
Basic Features
20
20 How to Navigate Menus
21 Using the INFO button (Now & Next guide)
21 Using the Channel Menu
24 Channel Menu
24 Picture Menu
27 Sound Menu
28 Setting the Time
Connections
15
15 Connecting to an Antenna
15 Plug & Play (Initial Setup)

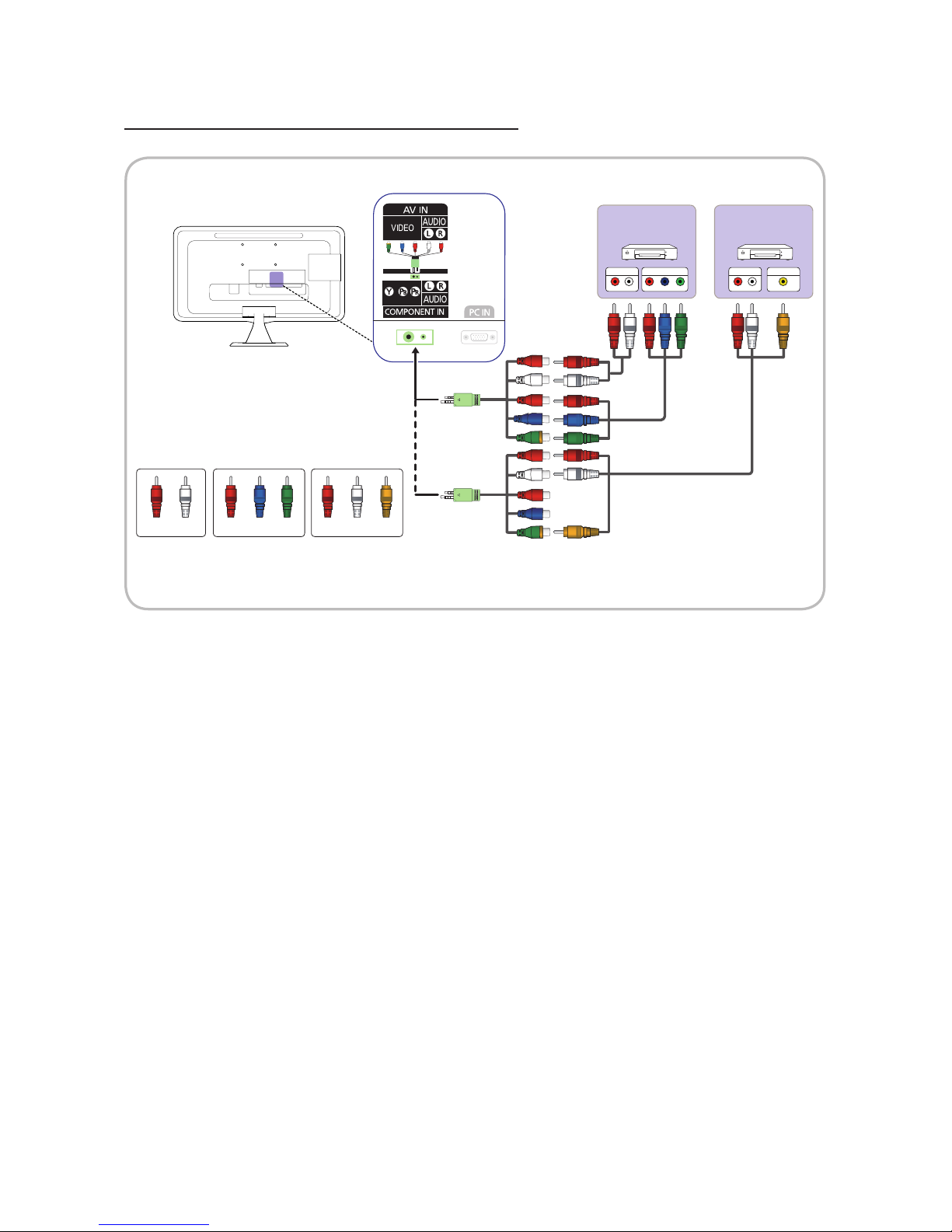

16 Connecting to an AV Device

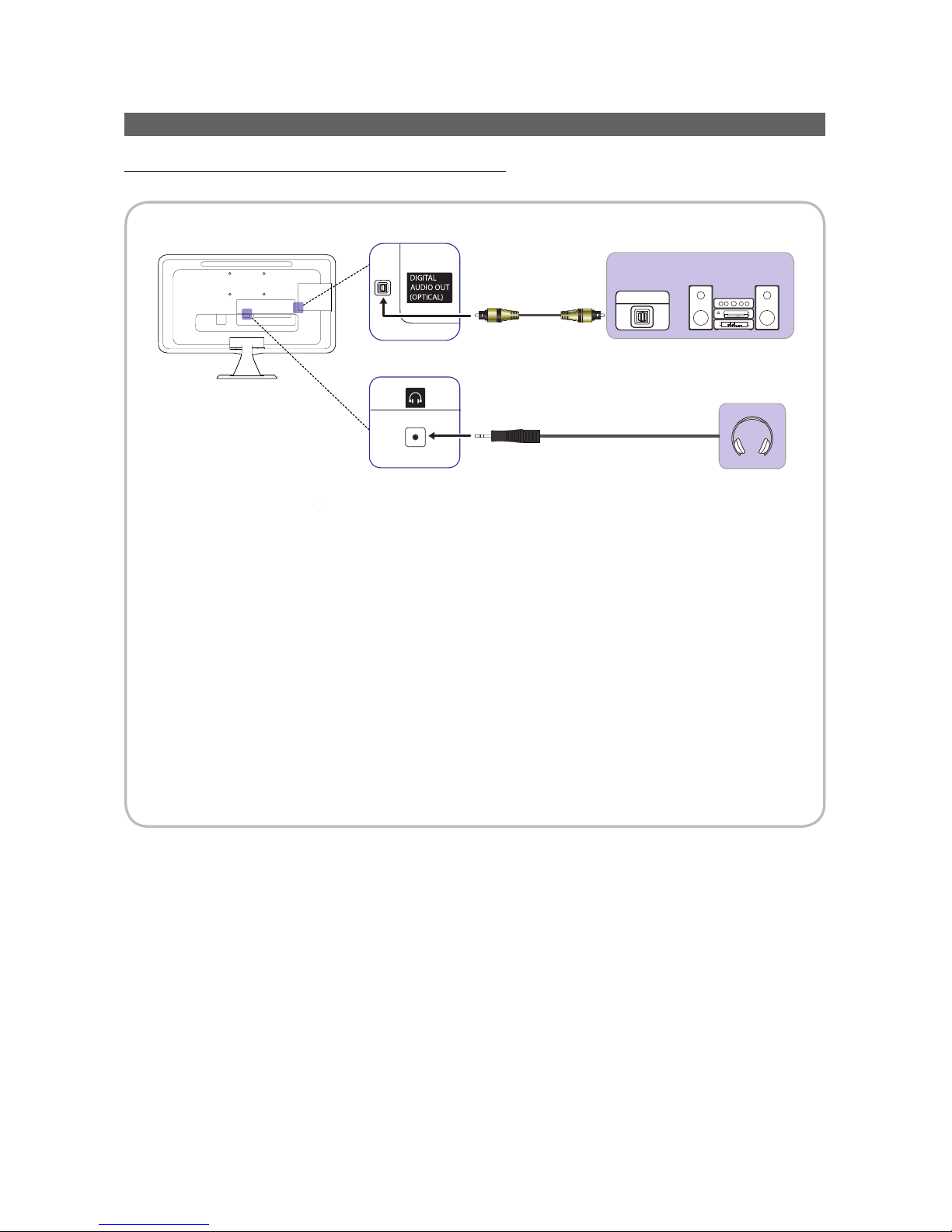

18 Connecting to an Audio Device

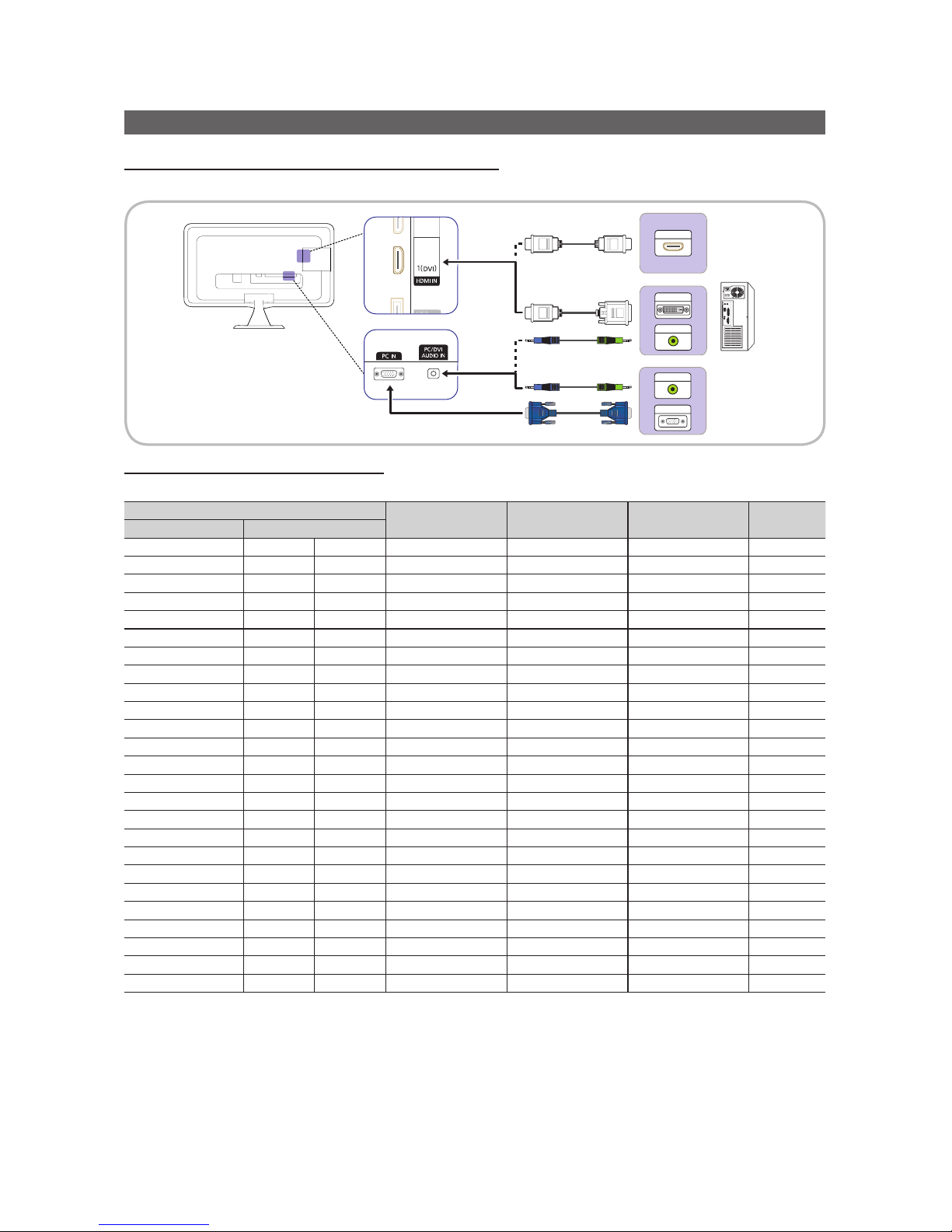

19 Connecting to a PC
20 Changing the Input Source
Getting Started
4
4 Safety Precautions
11 List of Features
11 Accessories

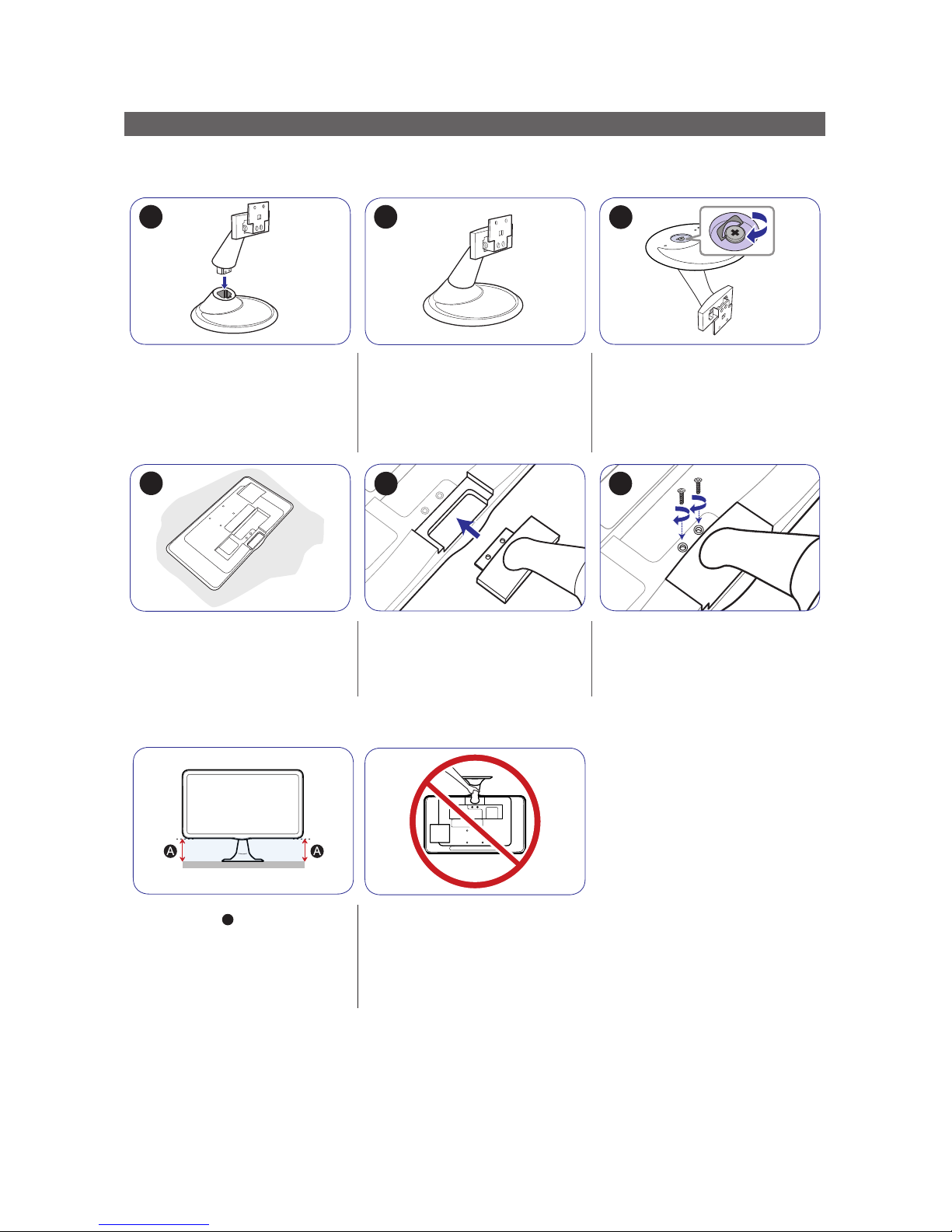

12 Installing the Stand
13 Viewing the Control Panel

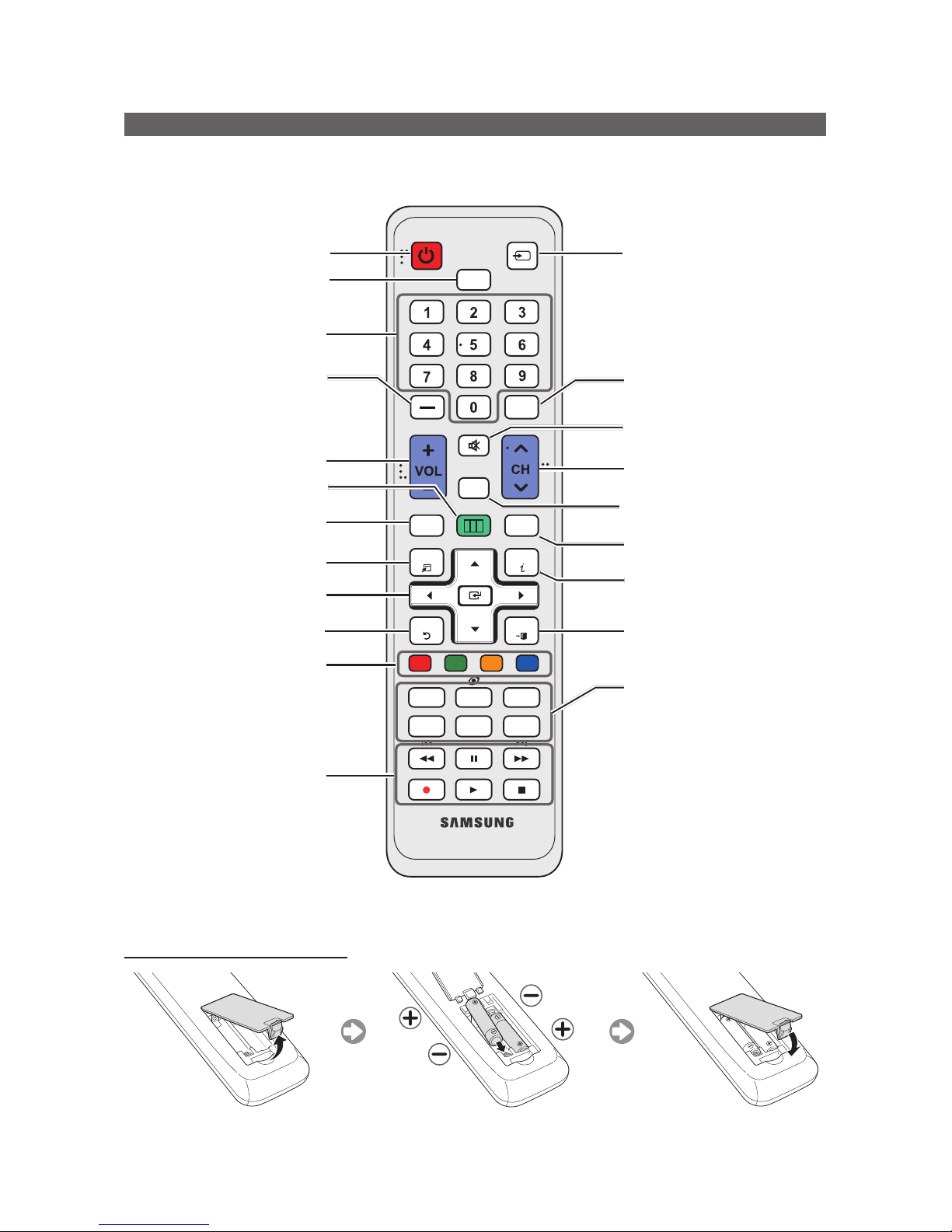

14 Viewing the Remote Control

4
English
Getting Started
Safety Precautions
Icons used for safety precautions
WARNING Failing to follow the precautions marked with this sign may result in a serious injury or
even a fatality.
CAUTION Failing to follow the precautions marked with this sign may result in a personal injury or
property damage.
Do not perform.
Must be followed.
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). THERE ARE
NO USER SERVICEABLE PARTS INSIDE. REFER ALL
SERVICING TO QUALIFIED PERSONNEL.
This symbol indicates that high voltage is
present inside. It is dangerous to make any kind
of contact with any internal part of this product.
This symbol alerts you that important literature
concerning operation and maintenance has
been included with this product.
¦Power Related
✎ The following images are for your reference and may differ depending on models and countries.
Warning
Avoid using a damaged power
cord or plug or a loose power
outlet.
yOtherwise, it may result in
electric shock or fire.
Avoid connecting multiple electric
appliances to a single wall outlet.
yOtherwise, it may result in fire
due to overheating of the wall
outlet.
Avoid plugging in or unplugging
the power supply with wet hands.
yOtherwise, it may result in
electric shock.
!
Plug the power plug in firmly.
yOtherwise, it may result in fire.
!
Make sure to connect the power
cord to a grounded wall outlet (for
insulation class 1 equipment only).
yOtherwise, it may result in
electric shock or injury.
Avoid bending or twisting the power
cord excessively and avoid placing
heavy objects on the cord.
yOtherwise, it may result in
electric shock or fire due to a
damaged power cord.
Keep the power cord and the
product away from a heater.
yOtherwise, it may result in
electric shock or fire.
!
If the pins of the power plug or the
wall outlet are covered in dust, clean
it using a dry cloth.
yOtherwise, it may result in fire.
Getting Started

5
English
Getting Started
Caution
Avoid unplugging the power plug
while the product is operating.
yOtherwise, it may damage the
product due to electric shock.
!
Make sure to use only the power
cord supplied by our company. In
addition, do not use the power cord
of another electric appliance.
yOtherwise, it may result in
electric shock or fire.
!
When unplugging the power plug
from the wall outlet, make sure to
hold it by the plug and not by the
cord.
yOtherwise, it may result in
electric shock or fire.
!
Connect the power plug to a wall
outlet that can be easily reached.
yWhen a problem occurs
with the product, you must
unplug the power plug to cut
the power off completely.
You cannot cut the power
off completely using only the
power button on the product.
¦Installation Related
Warning
Avoid placing burning candles,
mosquitorepellentor cigarettes on
the product.
yOtherwise, it may result in fire.
!
Ask an installation engineer or
relevant company to install the
product onto the wall.
yOtherwise, it may result in
injury.
yMake sure to use the specified
wall mount.
Avoid installing the product in a
badly-ventilated location such as
inside a bookshelf or closet.
yOtherwise, it may result in fire
due to internal over-heating.
!
Keep the plastic bags used to pack
the product away from children.
yIf children place the plastic
bags over their heads, they may
suffocate.
Avoid installing the product in
a location that is unstable or
exposed to excessive vibration
such as on an unstable or slanted
shelf.
yThe product may fall and this
may result in damage to the
product or injury.
yIf you use the product in a
location exposed to excessive
vibrations, it may result in a
problem with the product or
fire.
!
Avoid installing the product in a
location exposed to dust, moisture
(sauna), oil, smoke or water (rain
drops) and installing it within a
vehicle.
yThis may result in electric shock
or fire.

6
English
Getting Started
Avoid installing the product in a
location exposed to direct sunlight
and installing the product near a
heat source such as a fireplace or
heater.
yThis may shorten the product
life cycle or cause fire.
Avoid installing the product where
children may reach it.
yIf a child touches the product,
the product may fall and this
may result in injury.
ySince the front part is heavier,
install the product on a flat and
stable surface.
!
Bend the outdoor antenna cable
downwards at the location where
it comes in the house so that
rainwater does not flow in.
yIf rainwater enters the product,
it may result in electric shock
or fire.
!
Install the antenna far away from
any high voltage cables.
yIf the antenna touches or falls
onto a high voltage cable, it
may result in electric shock or
fire.
Caution
!
Do not let the product drop while
moving it.
yThis may result in a problem
with the product or injury.
Do not place the product face down
on the floor.
yThis may damage the panel of
the product.
When installing the product on a
console or shelf, make sure that
the front of the product does not
protrude out of the console or
shelf.
yOtherwise, this may cause the
product to fall off and result in
a malfunction or injury.
yMake sure to use a cabinet or
shelf suitable to the size of the
product.
!
When putting the product down,
handle it gently.
yOtherwise, it may result in a
problem with the product or
injury.
SAMSUNG
!
If the product is installed in a
location where the operating
conditions vary considerably,
a serious quality problem may
occur due to the surrounding
environment. In this case, install
the product only after consulting
one of our service engineers about
the matter.
yPlaces exposed to
microscopic dust, chemicals,
too high or low temperature,
high humidity, airports or
stations where the product is
continuously used.

7
English
Getting Started
¦Cleaning Related
Warning
!
Before cleaning the product,
unplug the power cord.
yOtherwise, it may result in
electric shock or fire.
When cleaning the product, do
not spray water directly over the
product parts.
yMake sure that water does not
enter the product.
yOtherwise, it may result in fire,
electric shock or a problem with
the product.
Caution
Avoid spraying cleansing agent
directly onto the product.
yThis may result in discoloration
or cracking of the exterior
of the product or the panel
coming off.
!
When cleaning the product,
disconnect the power cord and
clean the product with the supplied
cleaning cloth.
yAvoid using chemicals such as
wax, benzene, alcohol, thinner,
mosquitorepellent, fragrance,
lubrication or cleansing agent
when cleaning the product.
 This may result in the exterior
being deformed or the print
being removed.
!
If you can't get the product clean
with just the supplied cloth, use a
soft, damp cloth with a "monitor-
exclusive cleansing agent" and
wipe the product with it.
yIf no monitor-exclusive
cleansing agent is available,
dilute a cleansing agent with
water at a ratio of 1:10 before
cleaning the product.
!
Since the exterior of the product is
easily scratched, be sure to use the
supplied cleansing cloth.
¦Usage Related
Warning
Since a high voltage runs through
the product, never disassemble,
repair or modify the product
yourself.
yOtherwise, it may result in fire
or electric shock.
yIf the product needs to be
fixed, contact a service center.
!
To move the product, turn the
power off and unplug the power
cord, the antenna cable and any
other wires connected to the
product.
yOtherwise, it may result in
electric shock or fire due to the
damaged power cord.

8
English
Getting Started
!
If the product generates a strange
noise, a burning smell, or smoke,
unplug the power plug immediately
and contact a service center.
yOtherwise, it may result in
electric shock or fire.
Avoid letting children hang or climb
onto the product.
yOtherwise, it may result in the
product falling and this may
result in injury or death.
If you drop the product or the
case is damaged, turn the power
off and unplug the power cord.
Contact a service center.
yOtherwise, it may result in fire
or electric shock.
Avoid placing objects such as toys
and cookies on top of the product.
yIf a child hangs over the
product to grab an object, the
object or the product may fall
and this may result in injury or
even death.
!
When thunder or lighting occurs,
unplug the power cord and
under no circumstance touch
the antenna cable as this is
dangerous.
yOtherwise, it may result in
electric shock or fire.
!
Avoid dropping an object over the
product or cause impact to the
product.
yOtherwise, it may result in
electric shock or fire.
Avoid moving the product by
pulling the power cord or antenna
cable.
yOtherwise, it may result
in electric shock, fire or a
problem with the product due
to damage to the cable.
!
GAS
When a gas leak occurs, do not
touch the product or the power plug
and ventilate immediately.
yA spark may result in an
explosion or fire.
yDuring a thunder or lighting
storm, do not touch the power
cord or antenna cable.
Avoid lifting up or moving the
product by holding only the power
cord or signal cable.
yOtherwise, it may result
in electric shock, fire or a
problem with the product due
to damage to the cable.
!
Avoid using or placing inflammable
spray or objects near the product.
yThis may result in an explosion
or fire.
Take care not to block the vent by
a table cloth or curtain.
yOtherwise, it may result in fire
due to internal overheating.
100
Avoid inserting metal objects such
as a chopsticks, coins or hairpins,
or inflammable objects into the
product (the vents, ports, etc).
yIf water or substances enters
the product, turn the power
off, unplug the power cord and
contact a service center.
yOtherwise, it may result in a
problem with the product,
electric shock or fire.

9
English
Getting Started
Avoid placing a liquid container
such as a vase, flowerpot,
beverage, cosmetics or drugs, or a
metal object over the product.
yIf water or substances enter
the product, turn the power
off, unplug the power cord
and contact a service center.
yOtherwise, it may result in a
problem with the product,
electric shock or fire.
Do not press down hard on the
product. The product may become
deformed or damaged.
Caution
!
Displaying a still image for a long
time may create a persistent image
or stain on the screen.
yIf you do not use the product
for a long time, use the
power-saving mode or set the
screensaver to the moving
picture mode.
-_-
!
When not using the product for
a long time such as leaving your
home, unplug the power cord from
the wall outlet.
yOtherwise, it may cause dust
accumulation and result in fire
caused by overheating or short
circuit or result in an electric
shock.
!
Set the appropriate resolution and
frequency for the product.
yOtherwise, it may result in eye
strain.
Avoid turning the product upside
down or move the product holding
only the stand.
yThis may cause the product to
fall, resulting in damage to the
product or injury.
!
Watching the product from too
close a distance continuously may
damage your eyesight.
Avoid using a humidifier or cooker
near the product.
yOtherwise, it may result in
electric shock or fire.

10
English
Getting Started
!
It is important to give your eyes
some rest (5 minutes every hour)
when viewing the product screen
for long periods of time.
yThis will alleviate any eye
strain.
Since the display panel is hot after
using it for a long time, do not touch
the product.
!
Keep the small accessories in
a location out of the reach of
children.
!
Take care when adjusting the angle
of the product or the height of the
stand.
yIf your hand or finger is caught,
you may be injured.
yIf the product is tilted
excessively, the product may
fall and this may result in injury.
Avoid placing a heavy object over
the product.
yOtherwise, it may result in a
problem with the product or
injury.
When using headphones or
earphones, do not turn the volume
too high.
yHaving the sound too loud may
damage your hearing.
Be careful that children do not
place the batteries in their mouths
when removed from the remote
control. Place the battery in a
location that children or infants
cannot reach.
yIf children have had the battery
in their mouths, consult your
doctor immediately.
!
When replacing the batteries, insert
them with right polarity (+, -).
yOtherwise, the battery may
become damaged or it may
cause fire, personal injury or
damage due to leakage of the
internal liquid.
Use only specified standard
batteries. Do not use new and
used batteries together.
yThis may cause a battery to
break or leak and may cause
fire, injury, or contamination
(damage).
!
The batteries (and rechargeable
batteries) are not ordinary refuse
and must be returned for recycling
purposes. The customer is
responsible for returning the used or
rechargeable batteries for recycling.
yThe customer can return used
or rechargeable batteries
to a nearby public recycling
center or to a store selling the
same type of the battery or
rechargeable battery.

11
English
Getting Started
List of Features
yExcellent Digital Interface & Networking: With a built-in HD digital tuner, nonsubscription HD broadcasts can be viewed
without a cable box / STB (Set-Top-Box) satellite receiver (Set-Top Box).
yMy Contents: Allows you to play music files, pictures and movies saved on a USB device (p. 33).
ySelf Diagnosis: You can check whether picture or sound operate normally (p. 32).

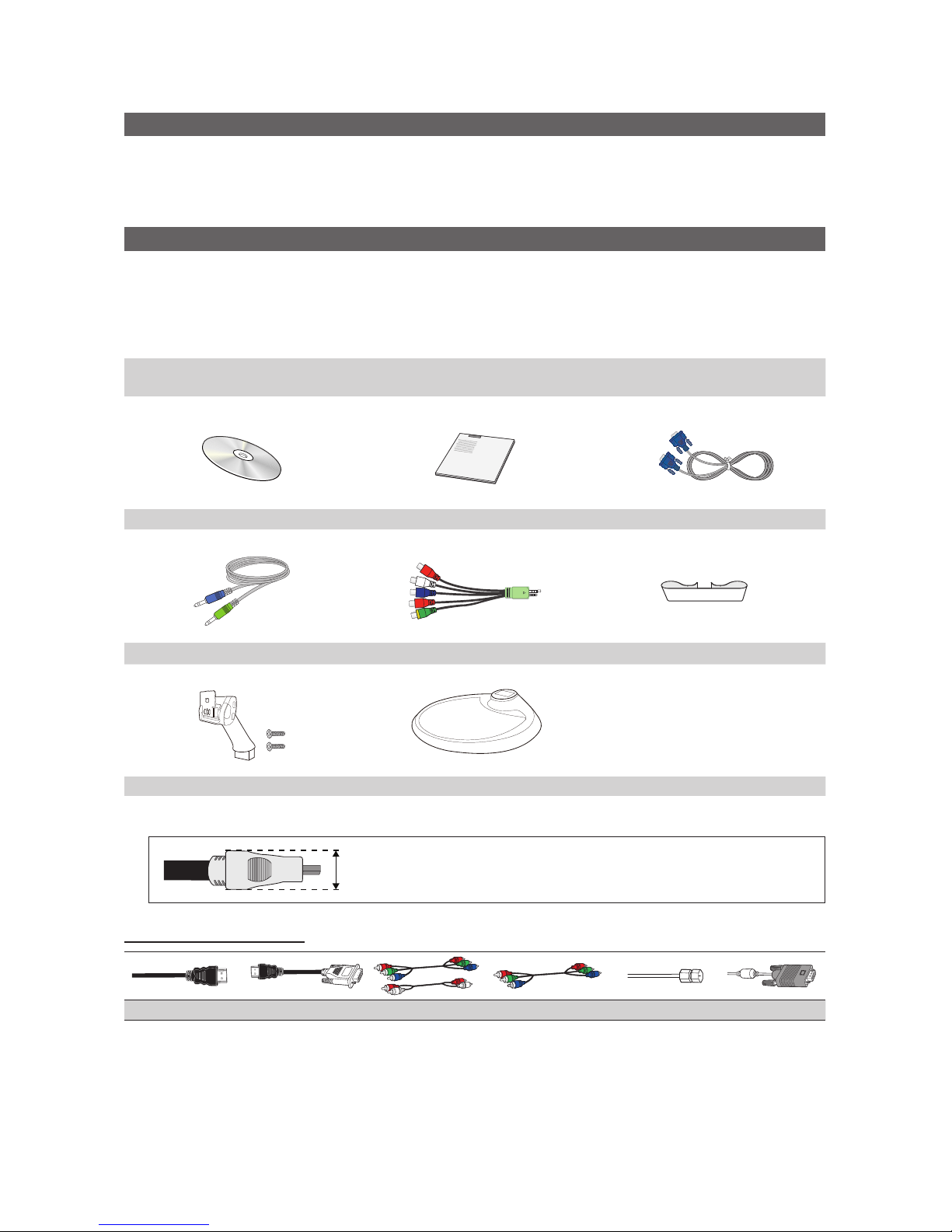

Accessories
✎ Please make sure the following items are included with your TV. If any items are missing, contact your dealer.
✎ The items' colors and shapes may vary depending on the models.
✎ Cables not included in the package contents can be purchased separately.
✎ Check that there is no accessory hidden behind packing materials when you open the box.
yRemote Control & Batteries (AAA x 2) (Not available in some locations)
yWarranty Card / Safety Guide (Not available in some locations)
yCleaning Cloth
yPower cord
yUser Manual yQuick Setup Guide yD-sub Cable
yStereo Cable yAV/Component Adapter yCable Holder
yStand Connector / Screws (2ea) yStand Base
✎ For best cable connection to this product, be sure to use cables with a maximum thickness as below:
yMaximum thickness - 0.55 inches (14mm)
Input Cables (Sold Separately)
HDMI HDMI-DVI Component Composite (AV) Coaxial (RF) VGA

12
English
Getting Started
Installing the Stand
✎ Before assembling the product, place the product down on a flat and stable surface so that the screen is facing
downwards.
Insert the Stand Connector into the
Stand in the direction shown by the
figure.
Check if the Stand Connector is firmly
connected.
Turn the connecting screw at the
bottom of the stand fully so that it is
completely fixed.
Place a soft cloth over the table to
protect the product and place the
product onto the cloth so that the front
of the product is facing downwards.
Push the assembled stand into the
main body in the direction of the arrow
as shown in the figure.
Firmly fasten the stand using the
screws.
- Caution
If the height of "
B
A
" on one side is
different from the other side, unfasten
the screws, adjust the heights, and
re-assemble.
Avoid lifting the product holding only
the stand.
✎ The cleaning cloth is supplied with black high-glossy models only.
✎ The colour and the appearance may differ depending on the product, and the specifications are subject to change
without prior notice to improve the performance.
1
4
2
5
3
6

13
English
Getting Started
Viewing the Control Panel
✎ The product color and shape may vary depending on the model.
✎ Contact with objects other than your finger may switch on the LED touchpad.
Remote control sensor Aim the remote control towards this spot on the TV.
Power Indicator Blinks and turns off when the power is on and lights up in standby mode.
SOURCE
E
Toggles between all the available input sources. In the on-screen menu, use this
button as you would use the ENTER E button on the remote control.
MENU Displays an on-screen menu, the OSD (on screen display) of your TV’s features.
y
Adjusts the volume. In the OSD, use the y buttons as you would use the
◄and ►buttons on the remote control.
z
Changes the channels. In the OSD, use the z buttons as you would use the
▼and ▲buttons on the remote control.
P (Power) Turns the TV on or off.
Standby mode
Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example). A small amount
of electric power is still consumed even when the power button is turned off. It is best to unplug the power cord.
Control Panel
Speakers

14
English
Getting Started
Viewing the Remote Control
✎ This is a special remote control for the visually impaired persons and has Braille points on the Power, Channel and
Volume buttons.
Installing batteries (Battery size: AAA)
CH LIST
MUTE
POWER
PRE-CH
MENU
TOOLS
RETURN
E-MANUAL
P.SIZE
MTSCC
EXIT
INFO
A B C D
P.MODE SRS
CONTENT
HDMI
SOURCE
GUIDE
Turns the TV on and off.
Returns to the previous channel.
Cuts off the sound temporarily.
Displays the channel list on the screen
(p. 22).
Changes channels.
Displays and selects the available video
sources.
Displays the EPG (Electronic Program
Guide) (p.21).
Displays information on the TV screen.
Exits the menu.
E-MANUAL: Not Available.
SRS: Selects SRS TruSurround HD
mode.
P.MODE: Press to select the Picture
Mode (p. 24).
P.SIZE: Selects the Picture Size (p . 25).
CC: Controls the caption decoder(p. 30).
MTS: Press to choose stereo, mono
or Separate Audio Program (SAP
broadcast) (p. 28).
Have direct access to channels.
Not Available.
Brazil only : Press to select additional
channels (digital) being broadcasted by the
same station. For example, to select channel
“54.3”, press “54”, then press “-” and “3”.
Adjusts the volume.
Displays the main on-screen menu.
Selects the HDMI mode directly.
Displays the Content Home, which
includes Watch TV(p.21),
My Contents(p.33) and Source(p.20).
Quickly select frequently used functions.
Move the cursor and select an item.
Confirm the setting.
Returns to the previous menu.
These buttons are for the Channel List,
Channel Manager, My Contents menu,
etc.
Use these buttons in My Contents and
Anynet+ (HDMI-CEC) modes (p. 33, 38)

15
English
Connections
Connecting to an Antenna
When the TV is initially powered on, basic settings proceed automatically.
✎ Connecting the power cord and antenna.
Plug & Play (Initial Setup)
When the TV is initially powered on, a sequence of on-screen prompts will assist in configuring basic settings. Press the
POWER P button. Plug & Play is available only when the Input Source is set to TV.
✎ To return to the previous step, press the Red button.
1Selecting a language Press the ▲or ▼button, then press the ENTER
E button. Select
the desired OSD (On Screen Display) language.
P
POWER
INFO GUIDE
2Selecting Store Demo
or Home Use
Press the ◄or ►button, then press the ENTER
E button.
ySelect the Home Use mode. Store Demo mode is for retail
environments.
yTo return the unit’s settings from Store Demo to Home Use
(standard): Press the volume button on the TV. When you see
the volume OSD, press and hold MENU for 5 sec.
yStore Demo is only for shop display. If you select it, several
functions are not able to use. Please select Home Use when
you watch at home.
3Setting the Clock
Mode
Set the Clock Mode automatically or manually.
yAuto: Allows you to select time zone.
yManual: Allows you to manually set the current date and time (p. 28).
4Selecting an antenna Press the ▲or ▼button, then press the ENTER
E button.
yIf the antenna is connected to ANT 1 IN (AIR), select Air and if it is connected to ANT 2
IN (CABLE), select Cable.
yIf both ANT 1 IN (AIR) and ANT 2 IN (CABLE) are connected, select Air+Cable.
5Selecting a channel After selecting the antenna source to memorize, select Search. The TV will begin
memorizing all of the available channels. For more information, refer to Channel →Auto
Program (p. 24).
yPress the ENTER
E button at any time to interrupt the memorization process.
6Enjoy your TV. Press the ENTER
E button.
If You Want to Reset This Feature...
O MENU m →System →Plug & Play →ENTER E
You should do Plug & Play again at home although you did in shop.
✎ If you forget the PIN code, press the remote control buttons in the following sequence in Standby mode, which resets
the PIN to “0-0-0-0”: POWER (off) →MUTE →8 →2 →4 →POWER (on).
Connections
ANT OUT
VHF/UHF Antenna
Cable
or

16
English
Connections
Connecting to an AV Device
Using an HDMI or an HDMI to DVI Cable: HD connection (up to 1080p)
Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver
✎ HDMI IN 1(DVI), 2 / PC/DVI AUDIO IN
x
For better picture and audio quality, connect to a digital device using an HDMI cable.
x
An HDMI cable supports digital video and audio signals, and does not require an audio cable.
– To connect the TV to a digital device that does not support HDMI output, use an HDMI/DVI and audio cables.
x
The picture may not display normally (if at all) or the audio may not work if an external device that uses an older
version of HDMI mode is connected to the TV. If such a problem occurs, ask the manufacturer of the external
device about the HDMI version and, if out of date, request an upgrade.
x
Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection error may
occur.
x
A basic high-speed HDMI cable or one with ethernet is recommended. This product does not support the
ethernet function via HDMI.
HDMI OUT
DVI OUT
AUDIO OUT
R
W
R
W
R-AUDIO-L
Device
Device
WhiteRed

17
English
Connections
Using a Component (up to 1080p) or Audio/Video (480i only) Cable
Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR
✎ To obtain the best picture quality, the Component connection is recommended over the A/V connection.
Red White Red White Yellow
PRPBY
AUDIO OUT COMPONENT OUT AUDIO OUT
R-AUDIO-LR-AUDIO-L
VIDEO OUT
W
RR BGR
W
Y
W
R R BGR
W
Y
W
R R
B
G
R
W
Y
Device
Device
Red Blue Green

18
English
Connections
Connecting to an Audio Device
Using an Optical (Digital) or an Audio (Analog) Cable Connection
Available devices: Digital Audio System, Amplifier, DVD home theater
✎ DIGITAL AUDIO OUT (OPTICAL)
x
When a Digital Audio System is connected to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume
of both the TV and the system.
x
5.1 CH (channel) audio is available when the TV is connected to an external device supporting 5.1 CH.
x
When the receiver (home theater) is set to on, you can hear sound output from the TV’s optical jack. When the
TV is receiving a DTV signal, the TV will send 5.1 CH sound to the home theater receiver. When the source is
a digital component such as a DVD / Blu-ray player / cable box / STB (Set-Top-Box) satellite receiver and is
connected to the TV via HDMI, only 2 CH audio will be heard from the home theater receiver. If you want to
hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player / cable box / STB satellite
receiver directly to an amplifier or home theater.
✎ Headphones H : You can connect your headphones to the headphones output on your set. While the
headphones are connected, the sound from the built-in speakers will be disabled.
x
Sound function may be restricted when connecting headphones to the TV.
x
Headphone volume and TV volume are adjusted separately.
OPTICAL
Digital Audio System

19
English
Connections
Connecting to a PC
Using an HDMI cable or an HDMI to DVI cable or a D-sub cable
✎ Connecting through the HDMI cable may not be supported depending on the PC.
Display Modes (D-Sub and HDMI/DVI Input)
Optimal resolution is 1920 X 1080 @ 60 Hz.
Display Mode Horizontal Frequency
(kHz)
Vertical Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
Mode Resolution
IBM 640 x 350 70 Hz 31.469 70.086 25.175 +/-
IBM 720 x 400 70 Hz 31.469 70.087 28.322 -/+
MAC 640 x 480 67 Hz 35.000 66.667 30.240 -/-
MAC 832 x 624 75 Hz 49.726 74.551 57.284 -/-
MAC 1152 x 870 75 Hz 68.681 75.062 100.000 -/-
VESA DMT 640 x 480 60 Hz 31.469 59.940 25.175 -/-
VESA DMT 640 x 480 72 Hz 37.861 72.809 31.500 -/-
VESA DMT 640 x 480 75 Hz 37.500 75.000 31.500 -/-
VESA DMT 800 x 600 56 Hz 35.156 56.250 36.000 +/+
VESA DMT 800 x 600 60 Hz 37.879 60.317 40.000 +/+
VESA DMT 800 x 600 72 Hz 48.077 72.188 50.000 +/+
VESA DMT 800 x 600 75 Hz 46.875 75.000 49.500 +/+
VESA DMT 1024 x 768 60 Hz 48.363 60.004 65.000 -/-
VESA DMT 1024 x 768 70 Hz 56.476 70.069 75.000 -/-
VESA DMT 1024 x 768 75 Hz 60.023 75.029 78.750 +/+
VESA DMT 1152 x 864 75 Hz 67.500 75.000 108.000 +/+
VESA DMT 1280 x 800 60 Hz 49.702 59.810 83.500 -/+
VESA DMT 1280 x 960 60 Hz 60.000 60.000 108.000 +/+
VESA DMT 1280 x 1024 60 Hz 63.981 60.020 108.000 +/+
VESA DMT 1280 x 1024 75 Hz 79.976 75.025 135.000 +/+
VESA DMT 1360 x 768 60 Hz 47.712 60.015 85.500 +/+
VESA DMT 1440 x 900 60 Hz 55.935 59.887 106.500 -/+
VESA DMT 1440 x 900 75 Hz 70.635 74.984 136.750 -/+
VESA DMT 1680 x 1050 60 Hz 65.290 59.954 146.250 -/+
VESA DMT 1920 x 1080 60 Hz 67.500 60.000 148.500 +/+
✎ NOTE
x
For PC connection, you must use the HDMI IN 1(DVI) jack.
x
The interlace mode is not supported.
x
The set may operate abnormally if a non-standard video format is selected.
x
Separate and Composite modes are supported. SOG(Sync On Green) is not supported.
HDMI OUT
DVI OUT
AUDIO OUT
PC IN
AUDIO OUT
PC OUT
DVI OUT
AUDIO OUT
AUDIO OUT
PC OUT

20
English
Connections
Changing the Input Source
Source
O SOURCE →Source
Use to select TV or an external input sources
such as a DVD / Blu-ray player / cable box /
STB satellite receiver.
■TV / PC / HDMI1/DVI / HDMI2 / AV /
Component / USB
✎ You can only choose external devices that are
connected to the TV. In the Source, connected
inputs will be highlighted.
✎ In the Source, PC is always activated.
Edit Name
O SOURCE →TOOLS →Edit Name →ENTER E
■VCR / DVD / Cable STB / Satellite STB / PVR STB /
AV Receiver / Game / Camcorder / PC / DVI PC / DVI
Devices / TV / IPTV / Blu-ray / HD DVD / DMA: Name
the device connected to the input jacks to make your
input source selection easier.
✎ When connecting a PC to the HDMI IN 1(DVI) port with
HDMI cable, you should set the TV to PC mode under
Edit Name.
✎ When connecting a PC to the HDMI IN 1(DVI) port with
HDMI to DVI cable, you should set the TV to DVI PC
mode under Edit Name.
✎ When connecting an AV devices to the HDMI IN 1(DVI)
port with HDMI to DVI cable, you should set the TV to
DVI Devices mode under Edit Name.
Information
O SOURCE →TOOLS →Information →ENTER E
You can see detailed information about the selected external
device.
SOURCE
How to Navigate Menus
Before using the TV, follow the steps below to learn how to
navigate the menu and select and adjust different functions.
C
H LI
ST
MUTE
P
O
WE
R
S
OURCE
PRE-C
H
TOO
L
S
AD
P
.SIZ
E
SU
BT.
DUA
L
INF
O
TTX
/
MI
X
A
B
C
D
INTERNET
M
EDIA.P
G
UIDE
O
N/
O
F
F
3
4
2
1
CONTENT
V
O
L
C
H
MENU
RETURN
EXIT
1 ENTER E / Direction button: Move the cursor and
select an item. Confirm the setting.
2 RETURN button: Returns to the previous menu.
3 MENU button: Displays the main on-screen menu.
4 EXIT button: Exits the on-screen menu.
How to Operate the OSD (On Screen Display)
The access step may differ depending on the selected menu.
1MENU
m
The main menu options appear on
the screen:
Picture, Sound, Channel, System,
Support.
2▲/ ▼Select an icon with the ▲or ▼
button.
3ENTER
E Press ENTER E to access the
sub-menu.
4▲/ ▼Select the desired submenu with
the ▲or ▼button.
5◄/ ►Adjust the value of an item with the
◄or ►button. The adjustment in
the OSD may differ depending on
the selected menu.
6ENTER
E Press ENTER E to confirm the
selection.
7EXIT
e
Press EXIT.
Basic Features
