Introduction
Package Contents
Note
Please make sure the following items are included with your LCD Display.
If any items are missing,
contact your dealer.
Contact a local dealerto buy optional items.
Checking the Contents of the Package
Remove the lock from the package box, as shown in the figure above.
Lift up the package box
by holding the grooves
on both sides of the
package box.
Check the contents of
the package.
Remove the Styrofoam
and vinyl cover.
Note
" After unpacking the package, make sure to check the contents of the package.
" Make sure to keep the package box for transporting the product in the future.
Unpacking
LCD Display
9

Manuals
Quick Setup Guide Warranty Card
(Not
available in all loca-
tions)
User's Guide
MagicInfo Software CD,
MagicInfo Manual CD
(Applicable
to the CXN-2
model only)
Cables
Power Cord
Others
Remote Control Batteries (AAA X 2)
(Not
available in all loca-
tions)
Sold separately
DVI Cable LAN Cable
(Applicable
to the CXN-2
model only)
Wall Mount KIT
Introduction
10

Sold separately
Component to D-sub
Cable
Semi Stand KIT D-Sub Cable
Your LCD Display
Front
MENU button [MENU]
Opens the on-screen menu and exits from the menu. Also use to exit
the OSD menu or return to the previous menu.
Navigate buttons (Down-Up buttons) / Channel buttons
Moves from one menu item to another vertically or adjusts selected
menu values.
/ When OSD is not on the screen, press the button to adjust channels.
Adjust buttons (Left-Right buttons) / Volume buttons
Moves from one menu item to another horizontally or adjusts selected
menu values. When OSD is not on the screen, press the button to
adjust volume.
ENTER button [ENTER]
Activates a highlighted menu item.
SOURCE button [SOURCE]
Switches from PC mode to Video mode. Selects the input source that
an external device is connected to.
Introduction
11

[PC]
→ [DVI] → [AV] → [Component] → [HDMI]→ [MagicInfo] →
[TV]
Note
MagicInfo supports the CXN-2 model only.
D.MENU
Opens the on-screen D.MENU.
Power button [ ]
Use this button for turning the LCD Display on and off.
Brightness Sensor (Optional)
Automatically detects the surrounding brightness it accordingly.
This function is activated only on the models equipped with an auto
brightness sensor.
Power indicator
Shows PowerSaver mode by blinking green
Note
See PowerSaver described in the manual for further information re-
garding power saving functions. For energy conservation, turn your
LCD Display OFF when it is not needed or when leaving it unattended
for long periods.
Remote Control Sensor
Aim the remote control towards this spot on the LCD Display.
Rear
Note
For detailed information concerning cable connections, refer to Connecting Cables
under Setup. The LCD Display 's configuration at the back may vary slightly depending
on the model.
Introduction
12

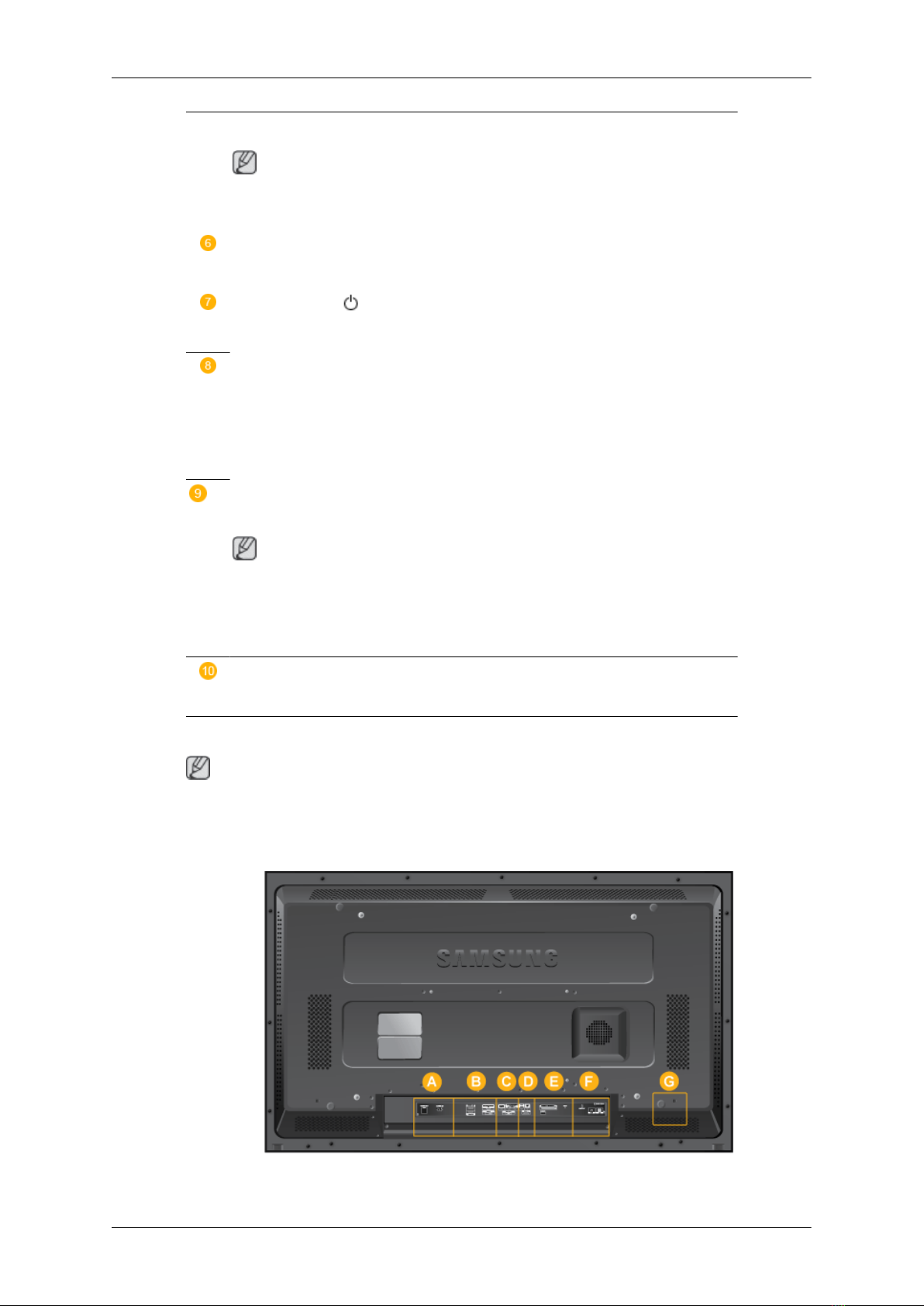

POWER S/W ON [│ ] / OFF [O]
Switches the LCD Display On/Off.
POWER
The power cord plugs into the LCD Display
and the wall outlet.
RS232C OUT/IN (RS232C Serial
PORT)
MDC(Multiple Display Control) Program
Port
RGB/COMPONENT IN (PC Video Con-
nection Terminal)
" Use a D-Sub Cable (15 pin D-Sub) -
PC mode (Analog PC)
" Connect the RGB/COMPONENT IN
port on the monitor to the COMPO-
NENT port on the external device using
the D-SUB to COMPONENT cable.
" Connect the RGB/COMPONENT IN
port on the monitor to the BNC port on
the PC using the D-SUB to BNC cable.
DVI IN (PC Video Connection Termi-
nal)
Use a DVI Cable (DVI-D to DVI-D) - DVI
mode (Digital PC)
Introduction
13

DVI/RGB/HDMI AUDIO IN(PC/DVI/
HDMI(PC) Audio connection terminal(in-
put))

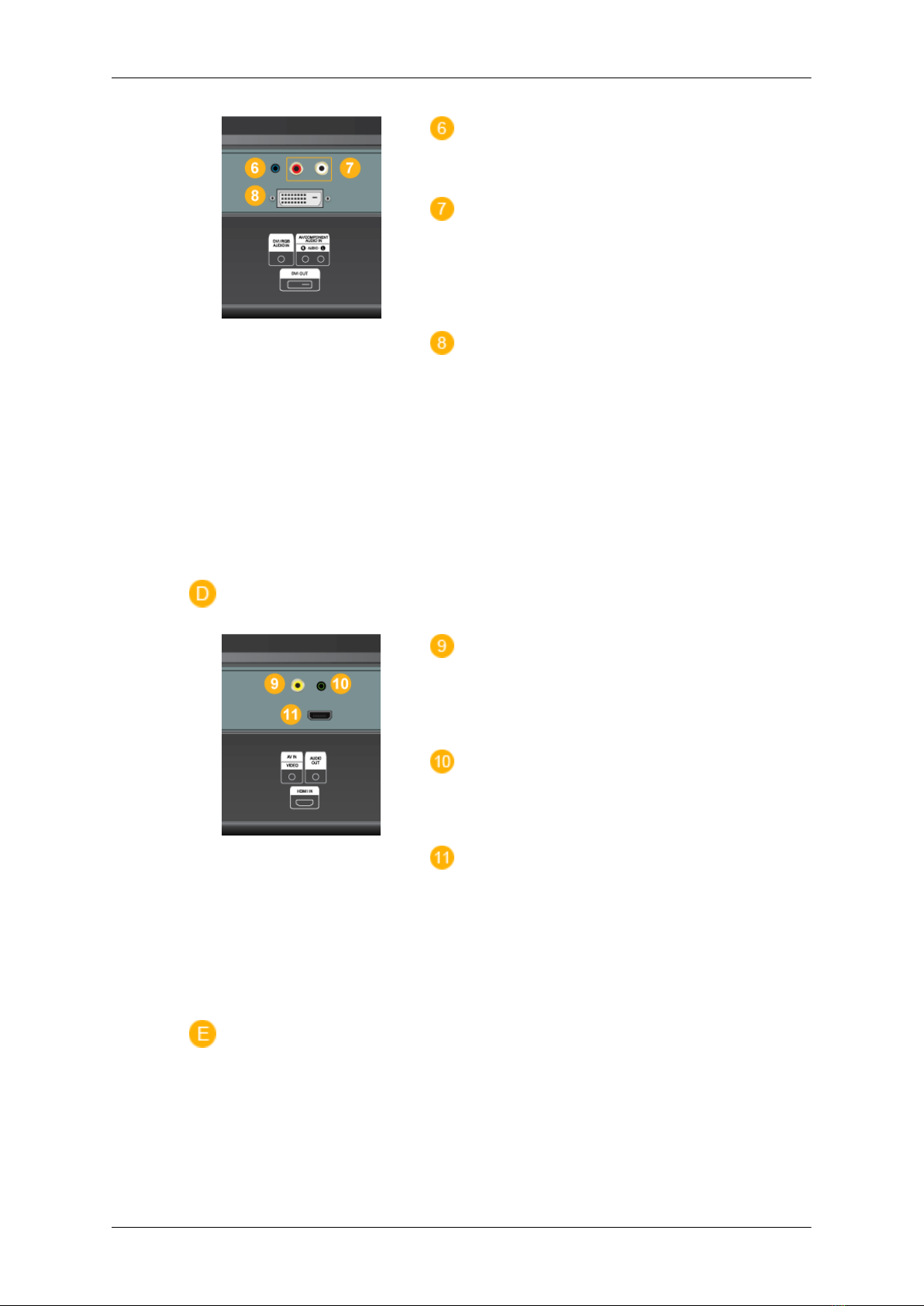

AV / COMPONENT AUDIO IN [R- AU-
DIO- L]
Connect the port of the DVD, VCR (DVD /
DTV Set-Top Box) to the [ R- AUDIO - L]
port of the LCD Display.
DVI OUT
" Connect a monitor to another monitor
through a DVI cable.
" Connect the DVI OUT port on the mon-
itor to the HDMI IN port on the other
monitor using the DVI to HDMI cable.
" DVI, HDMI and network signals sent via
the DVI OUT port are displayed on the
second display which has the DVI IN
port.
AV IN [VIDEO]
Connect the [ VIDEO ] terminal of your
monitor to the video output terminal of the
external device using a VIDEO cable.
AUDIO OUT
Headphone/External speaker output ter-
minal.
HDMI IN
Connect the HDMI terminal at the back of
your LCD Display to the HDMI terminal of
your digital output device using a HDMI
cable.
Up to HDMI cable 1.0 can be supported.
Introduction
14

COMMON INTERFACE
This contains information on CAM inserted
in the CI slot and displays it.
When not inserting CI CARD in some
channels, Scramble Signal is displayed on
the screen.
You can install the CAM anytime whether
the TV is ON or OFF.
SERVICE
This is a reserved terminal used for serv-
icing.
ANT IN
Connect the CATV cable or TV antenna
cable to the " ANT IN" port on the rear side
of the LCD Display. Make sure to use a TV
antenna cable (sold separately) as the
antenna cable.
RGB OUT
Note
(Applicable to the CXN-2 model only)
LAN (LAN Connection Terminal)
Note
(Applicable to the CXN-2 model only)
USB(USB Connection Terminal)
Keyboard / Mouse, Mass Storage Device
Compatible.
Note
(Applicable to the CXN-2 model only)
Introduction
15

Kensington Lock
The Kensington Lock is a device used to
physically fix the system when using it in
a public place. The locking device has to
be purchased separately. The appearance
and locking method may differ from the
illustration depending on the manufactur-
er. Refer to the manual provided with the
Kensington Lock for proper use. The lock-
ing device has to be purchased separate-
ly.
Note
The
location of the Kensington Lock may
be different depending on the model.
Using the Anti-Theft Kensington
Lock
1. Insert the locking device into the Ken-
sington slot on the LCD Display
and turn it in the locking direction
.
2. Connect the Kensington Lock cable.
3. Fix the Kensington Lock to a desk or
a heavy stationary object.
Note
See Connecting Cables
for further information regarding cable connections.
Remote Control
Note
The performance of the remote control may be affected by a TV or other electronic
device operating near the LCD Display , causing a malfunction due to interference with
the frequency.
Introduction
16

POWER
OFF
Number Buttons
DEL / GUIDE button
+ VOL -
SOURCE
D.MENU
TOOLS
Up-Down Left-Right buttons
INFO
COLOR BUTTONS
TTX/MIX
MTS/DUAL
ENTER/PRE-CH
MUTE
CH/P
TV
MENU
RETURN
EXIT
MagicInfo
1. POWER Turns the product On.
2. OFF Turns the product Off.
3. Number Buttons Press to change the channel.
4. DEL / GUIDE but-
ton
The "-" button is used to select Digital channels. For
example, channel 4-1.
Electronic Program Guide (EPG) display.
- This fuction does not work for this LCD Display.
5. + VOL - Adjusts the audio volume.
6. SOURCE Press the button to change the input signal SOURCE.
Changing the SOURCE is only allowed for external de-
vices that are connected to the LCD Display at the time.
7. D.MENU DTV menu display
- This Function does not work for this LCD Display.
Introduction
17

8. TOOLS Use to quickly select frequently used functions.
9. Up-Down Left-Right
buttons
Moves from one menu item to another horizontally, ver-
tically or adjusts selected menu values.
10. INFO Current
picture information is displayed on the upper left
corner of the screen.
11. COLOR BUTTONS Press to add or delete channels and to store channels
to the favorite channel list in the “Channel List” menu.
- This fuction does not work for this LCD Display.
12. TTX/MIX TV
channels provide written information services via tel-
etext.
- This fuction does not work for this LCD Display.
- Teletext Buttons
For more information >TTX / MIX
13. MTS/DUAL - This fuction does not work for this LCD Display.
MTS-
You can select MTS (Multichannel Television Stereo)
mode.
Audio Type MTS/S_Mode Default
FM Stereo Mono Mono Manual
Change
Stereo Mono ↔ Stereo
SAP Mono ↔ SAP Mono
DUAL-
STEREO/MONO, DUAL l / DUAL ll and MONO/NICAM
MONO/NICAM STEREO can be operated depending on
the broadcasting type by using the DUAL button on the
remote control while watching TV.
14. ENTER/PRE-CH This
button is used to return to the immediately previous
channel.
- This fuction does not work for this LCD Display.
15. MUTE Pauses (mutes) the audio output temporarily. This is
displayed on the lower left corner of the screen. The
audio comes back on if MUTE or - VOL + is pressed in
the Mute mode.
16. CH/P In TV mode, selects TV channels.
- This fuction does not work for this LCD Display.
17. TV Selects the TV mode directly.
- This fuction does not work for this LCD Display.
Introduction
18

18. MENU Opens
the on-screen menu and exits from the menu or
closes the adjustment menu.
19. RETURN Returns to the previous menu.
20. EXIT Exits from the menu screen.
21. MagicInfo MagicInfo Quick Launch Button.
Mechanical Layout (400CX-2 ,400CXN-2)
Mechanical Layout
Installation Wall Mount VESA Bracket
" When installing VESA, make sure to comply with the international VESA standards.
" Purchasing VESA Bracket and Installation Information : Please contact your nearest
SAMSUNG Distributor to place an order.
" At least 2 persons are needed in order to move the LCD Display.
" SAMSUNG is not responsible for any product damage or any injury caused by you
installing the Monitor on a wall by yourself.
Introduction
19

Dimensions
Notice
For
securing the bracket on a wall, use only machine screws of 6 mm diameter and 8
to 12 mm length.
Wall Bracket Installation
" Contact a technician for installing the wall bracket.
" SAMSUNG Electronics is not responsible for any damages to the product or persons
if you elect to install the unit on your own.
" This product is for installing on cement walls. The product may not stay in place
when installed on plaster or wood.
Components
Only use the components and accessories shipped with the product.
Wall Bracket(1) Hinge(Left 1, Right
1)
Plastic
Hanger
(4)
Screw
(A)(11)
Screw
(B)(4)
Anchor
(11)
Wall Bracket Assembly
Note
There are two hinges(left and right). Use the correct one.
Introduction
20

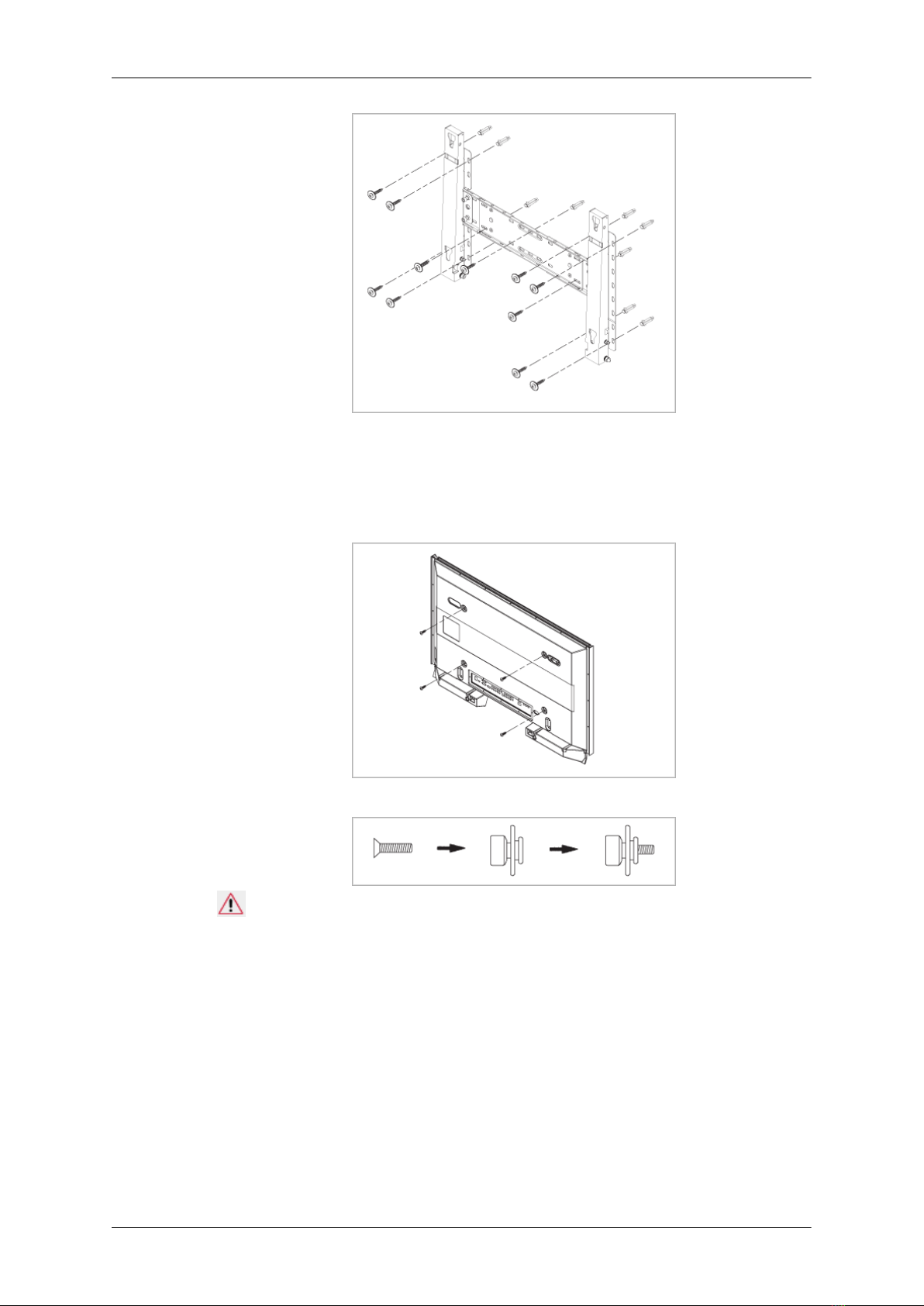

1. Insert and tighten the Captive Screw in the direction of the arrow.
When done, mount the wall bracket on the wall.
There are two hinges(left and right). Use the correct one.
A - Captive Screw
B - Wall Bracket
C - Hinge (Left)
D - Hinge (Right)

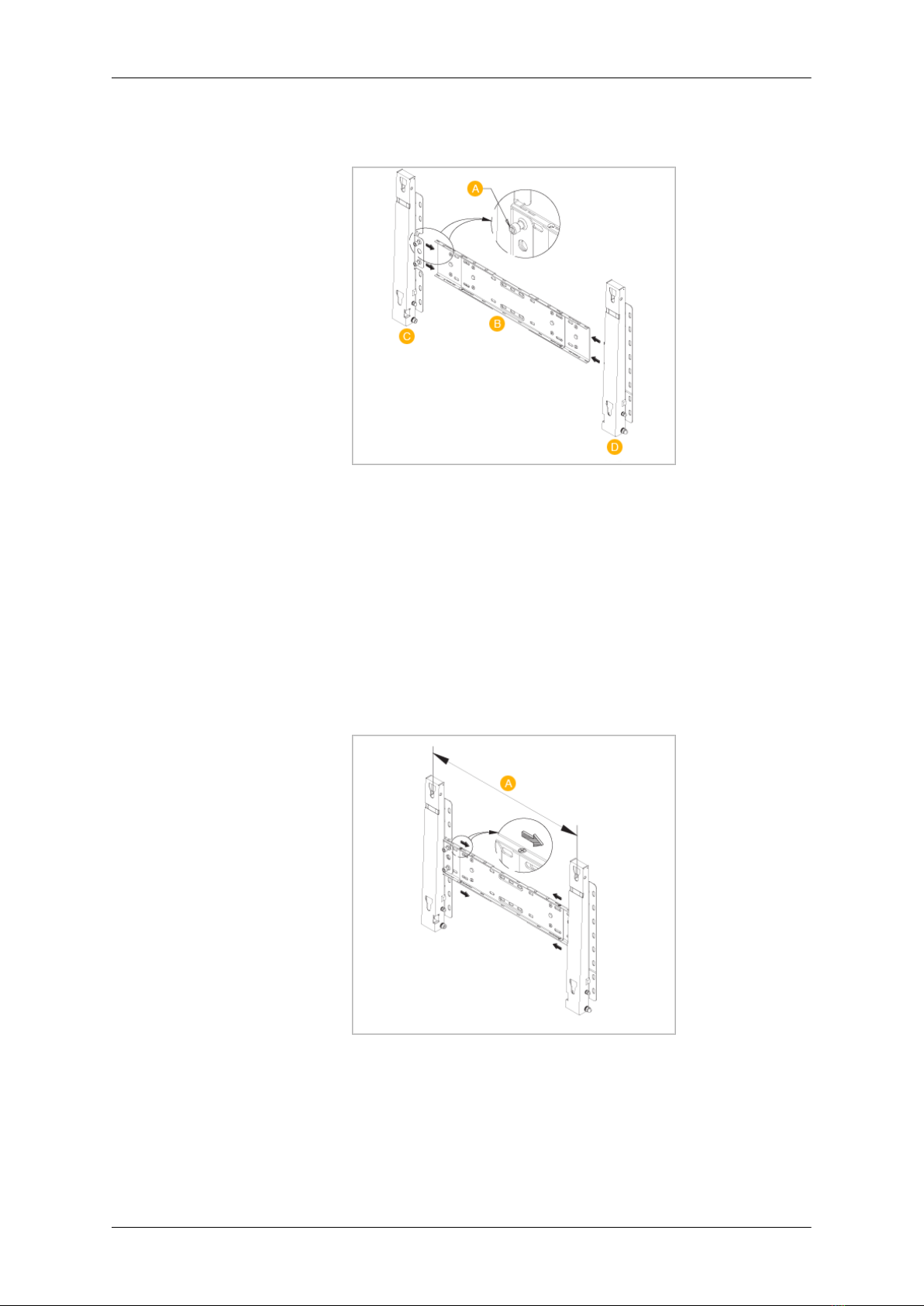

2. Before drilling into the wall, check if the length between the two locking holes at
the back of the product is correct.
If the length is too short or long, loosen all or some of the 4screws on the wall
bracket to adjust the length.
A - Length between the two locking holes
3. Check the installation diagram and mark the drill points on the wall. Use the 5.0 mm
bit to drill holes deeper than 35 mm. Fix each anchor in the corresponding hole.
Match each of the brackets and hinge holes to the corresponding anchor holes and
insert and tighten the 11 screws A.
Introduction
21

To mount the product on the wall bracket
The shape of the product may vary depending on the model. (The assemblies of the
plastic hanger and the screw are the same)
1. Remove the 4 screws on the back of the product.
2. Insert screw B into the plastic hanger.
Notice
" Mount
the product on the wall bracket and make sure it is properly fixed to the
left and right plastic hangers.
" Be careful when installing the product on the bracket as fingers can be caught
in the holes.
" Make sure the wall bracket is securely fixed to the wall, or the product may not
stay in place after installation.
3. Tighten the 4 screws in step 2 (plastic hanger + screw B)to the rear holes of the
product.
Introduction
22

4. Remove safety pin (3) and insert the 4 product holders into the corresponding
bracket holes (1). Then place the product(2) so that it is firmly fixed to the bracket.
Make sure to re-insert and tighten the safety pin (3) to securely hold the product
to the bracket.
A - LCD Display
B - Wall Bracket
C - Wall
Wall Bracket Angle Adjustment
Adjust the bracket angle to -2° before installing it on the wall.
1. Fix the product to the wall bracket.
2. Hold the product at the top in the center and pull it forward (direction of the arrow)
to adjust the angle.
Note
You can adjust the bracket angle between -2° and 15°.
Introduction
23

Make sure to use the top center, and not the left or the right side of the product to adjust
the angle.
Mechanical Layout (460CX-2 ,460CXN-2)
Mechanical Layout
Installation VESA Bracket
" When installing VESA, make sure to comply with the international VESA standards.
" Purchasing VESA Bracket and Installation Information : Please contact your nearest
SAMSUNG Distributor to place an order. After your order is placed, installation pro-
fessionals will visit you and install the bracket.
" At least 2 persons are needed in order to move the LCD Display.
" SAMSUNG Electronics is not responsible for any damage to the product or persons
if you elect to install the unit on your own.
Introduction
24

Dimensions
Notice
For
securing the bracket on a wall, use only machine screws of 6 mm diameter and 8
to 12 mm length.
Wall Bracket Installation
" Contact a technician for installing the wall bracket.
" SAMSUNG Electronics is not responsible for any damage to the product or persons
if you elect to install the unit on your own.
" This product is for installing on cement walls. The product may not stay in place
when installed on plaster or wood.
Components
Only use the components and accessories shipped with the product.
Wall Bracket(1) Hinge(Left 1, Right
1)
Plastic
Hanger
(4)
Screw
(A)(11)
Screw
(B)(4)
Anchor
(11)
Wall Bracket Assembly
Note
There are two hinges(left and right). Use the correct one.
1. Insert and tighten the Captive Screw in the direction of the arrow.
Introduction
25

When done, mount the wall bracket on the wall.
There are two hinges(left and right). Use the correct one.
A - Captive Screw
B - Wall Bracket
C - Hinge (Left)
D - Hinge (Right)
2. Before drilling into the wall, check if the length between the two locking holes at
the back of the product is correct.
If the length is too short or long, loosen all or some of the 4screws on the wall
bracket to adjust the length.
A - Length between the two locking holes
3. Check
the installation diagram and mark the drill points on the wall. Use the 5.0 mm
bit to drill holes deeper than 35 mm. Fix each anchor in the corresponding hole.
Match each of the brackets and hinge holes to the corresponding anchor holes and
insert and tighten the 11 screws A.
Introduction
26

To mount the product on the wall bracket
The shape of the product may vary depending on the model. (The assemblies of the
plastic hanger and the screw are the same)
1. Remove the 4 screws on the back of the product.
2. Insert the screw B into the plastic hanger.
Notice
" Mount
the product on the wall bracket and make sure it is properly fixed to the
left and right plastic hangers.
" Be careful when installing the product on the bracket as fingers can be caught
in the holes.
" Make sure the wall bracket is securely fixed to the wall, or the product may not
stay in place after installation.
3. Tighten the 4 screws in step 2 (plastic hanger + screw B)to the rear holes of the
product.
Introduction
27
