1. Adjust computer resolution and screen injection rate (refresh rate) in control panel of
computer as described below to enjoy the best quality of picture. You can have an uneven
quality of picture in the screen if the best quality of picture is not provided in TFT-LCD.
• Resolution: 1024 x 768 • Vertical frequency (refresh rate): 60 Hz
2. TFT LCD panel manufactured by using advanced semiconductor technology with precision
of 99.999% above is used for this product. But the pixels of RED, GREEN, BLUE and
WHITE color seem to be bright sometimes or some of black pixels could be seen. This is
not from bad quality and you can use it without uneasiness.
• For example, the no. of TFT LCD pixels that is contained in this product are 2,359,296.
3. When you clean the monitor and the panel outside, please apply the recommended small
amount of cleaner by using soft and dry cloth and polish it. Let LCD area not to be forced
but to be scrubbed out softly. If excessive force is applied, you can have a stain on it.
4. If you are not satisfied with the quality of picture, you can get better quality of picture by
executing "auto adjustment function" in display screen that is appeared as window
termination button is pressed. If there's still noise after automatic adjustment, use FINE/
COARSE adjustment function.
Information in this document is subject to change without notice.
© 2001 Samsung Electronics Co., Ltd. All rights reserved.
Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co.,
Ltd. is strictly forbidden.
Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or
consequential damages in connection with the furnishing, performance, or use of this material.
The Samtron logo is the registered trademarks of Samsung Electronics Co., Ltd.; Microsoft, Windows
®
and Windows
®
NT are registered trademarks of Microsoft Corporation; VESA, DPMS and DDC are
registered trademarks of Video Electronics Standard Association; the E
NERGY
S
TAR
name and logo are
registered trademarks of the U.S. Environmental Protection Agency (EPA). As an E
NERGY
S
TAR
Partner,
Samsung Electronics Co., Ltd. has determined that this product meets the E
NERGY
S
TAR
guidelines for
energy efficiency. All other product names mentioned herein may be the trademarks or registered
trademarks of their respective owners.
For Better Display
1_E50Scov.fm Page 2 Thursday, July 12, 2001 11:38 AM

English 1
FrançaisDeutschEspañolPortuguese EnglishItaliano
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Unpacking Your Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Setting up Your Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Setting up an Ergonomic Workstation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Monitor location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Workstation height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Viewing angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Kensington Security Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Connecting Your LCD Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Connecting Your Multimedia LCD Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Plug and Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Installing the Video Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Windows
®
98 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Windows
®
95 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Self-Test Feature Check (STFC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Warm-up Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Adjusting Your LCD Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
User Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Automatic Save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Direct-Access Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Auto Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
OSD Lock/Unlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
On Screen Display (OSD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Accessing the menu system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
OSD functions and adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Audio Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
PowerSaver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Display Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Changing the Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Removing the base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Attaching a base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Maintenance of Your LCD Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . inside back cover
Table of Contents
2_E50Stoc.fm Page 1 Friday, March 30, 2001 9:08 AM

English 2
1
Before connecting the AC power cord to
the DC adapter outlet, make sure the
voltage designation of the DC adapter
corresponds to the local electrical supply.
2
Never insert anything metallic into the
cabinet openings of the Liquid Crystal
Display (LCD) monitor; doing so may
create the danger of electric shock.
3
To avoid electric shock, never touch the
inside of the LCD monitor. Only a
qualified technician should open the
case of the LCD monitor.
4
Never use your LCD monitor if the
power cord has been damaged. Do not
allow anything to rest on the power
cord, and keep the cord away from
areas where people can trip over it.
5
Be sure to hold the plug, not the cord,
when disconnecting the LCD monitor
from an electric socket.
6
Openings in the LCD monitor cabinet
are provided for ventilation. To prevent
overheating, these openings should not
be blocked or covered. Also, avoid
using the LCD monitor on a bed, sofa,
rug, or other soft surface. Doing so may
block the ventilation openings in the
bottom of the cabinet. If you put the
LCD monitor in a bookcase or some
other enclosed space, be sure to
provide adequate ventilation.
7
Put your LCD monitor in a location with
low humidity and a minimum of dust.
8
Do not expose the LCD monitor to rain
or use it near water (in kitchens, near
swimming pools, etc.). If the LCD
monitor accidentally gets wet, unplug it
and contact an authorized dealer
immediately. You can clean the LCD
monitor with a damp cloth when
necessary, but be sure to unplug the
LCD monitor first.
9
Place the LCD monitor on a solid
surface and treat it carefully. The
screen is made of thin glass with a
plastic front surface and can be
damaged if dropped, hit or scratched.
Do not clean the front panel with
keton-type materials (e.g., acetone),
ethyl alcohol, toluene, ethyl acid,
methyl, or chloride – these may
damage the panel.
10
Locate your LCD monitor near an easily
accessible AC outlet.
11
If your LCD monitor does not operate
normally – in particular, if there are any
unusual sounds or smells coming from
it – unplug it immediately and contact
an authorized dealer or service center.
12
High temperature can cause problems.
Don’t use your LCD monitor in direct
sunlight, and keep it away from
heaters, stoves, fireplaces, and other
sources of heat.
13
Unplug the LCD monitor when it is
going to be left unused for an extended
period of time.
14
Unplug your LCD monitor from the AC
outlet before any service.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER
(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Safety Instructions
3_E50Ssaf.fm Page 2 Friday, March 30, 2001 9:09 AM

English 3

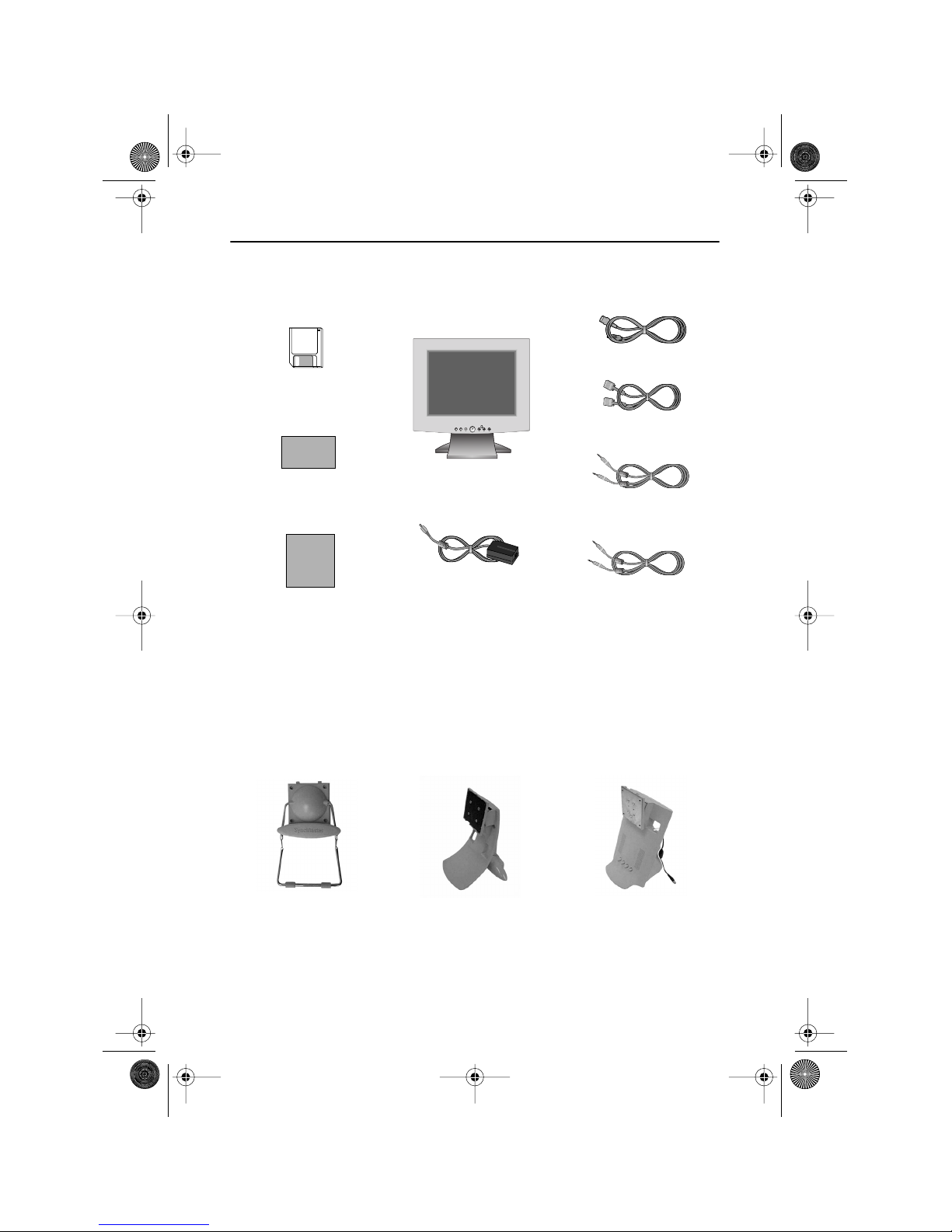

Please make sure the following items are included with your monitor. If any items are
missing, contact your dealer.
†
Your monitor may come equipped with one of three different stands, or none at all,
according to the option you selected at the time of purchase. Contact your dealer if you want
a different base.
EXIT MENUAUTO EXIT MENUAUTO
Manual
Warranty Card
(not available everywhere)
DC Adapter
(Optional)
Speaker Cable
(Optional)
Power Cord
Monitor and Base†
15-pin D-Sub Signal Cable
Microphone Output Cable
(Optional)
Install Driver
Diskette
Simple base
Wire-frame base Multimedia base
Unpacking Your Monitor
4_E50Sbody.fm Page 3 Thursday, July 12, 2001 11:39 AM

English 4
English
Setting up an Ergonomic Workstation
Consider the advice given below before you install your monitor.
Monitor location
Choose a position that exposes you monitor to the least reflection from lights or windows,
usually at a right angle to any window.
Workstation height
Place your LCD monitor so that the top of the screen is slightly below your eye level when
you are comfortably seated.
Viewing angle
Tilt the screen backward or forward to a comfortable viewing position.

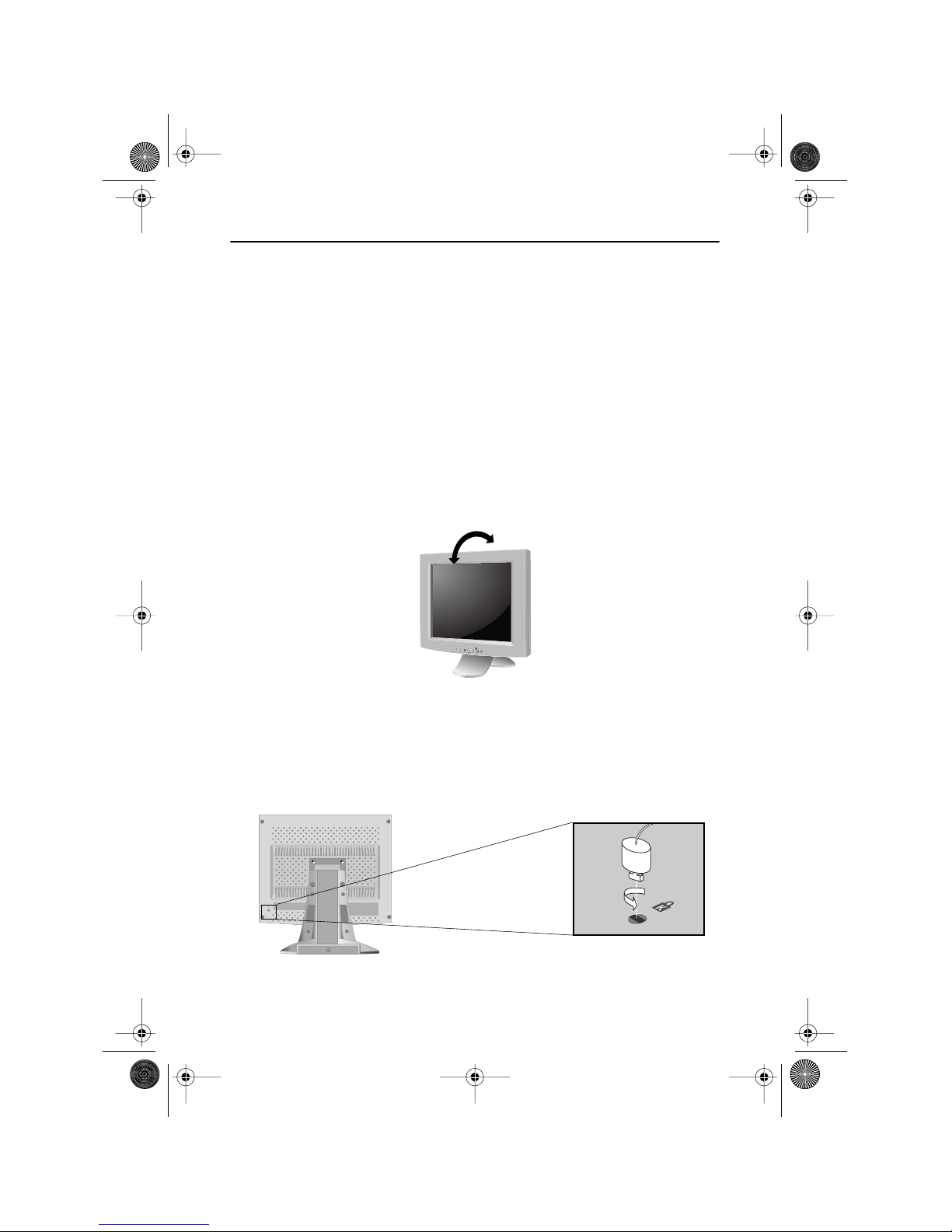

Figure 1. Tilt the screen
Kensington Security Slot
This monitor offers you the opportunity to secure your monitor using a Kensington-type
security device. Kensington lock not included. Refer to your locking device documentation for
installation instructions.
Figure 2. Kensington-type security slot location
MENU
AUTO
Setting up Your Monitor
4_E50Sbody.fm Page 4 Thursday, July 12, 2001 11:39 AM

English 5
Connecting Your LCD Monitor

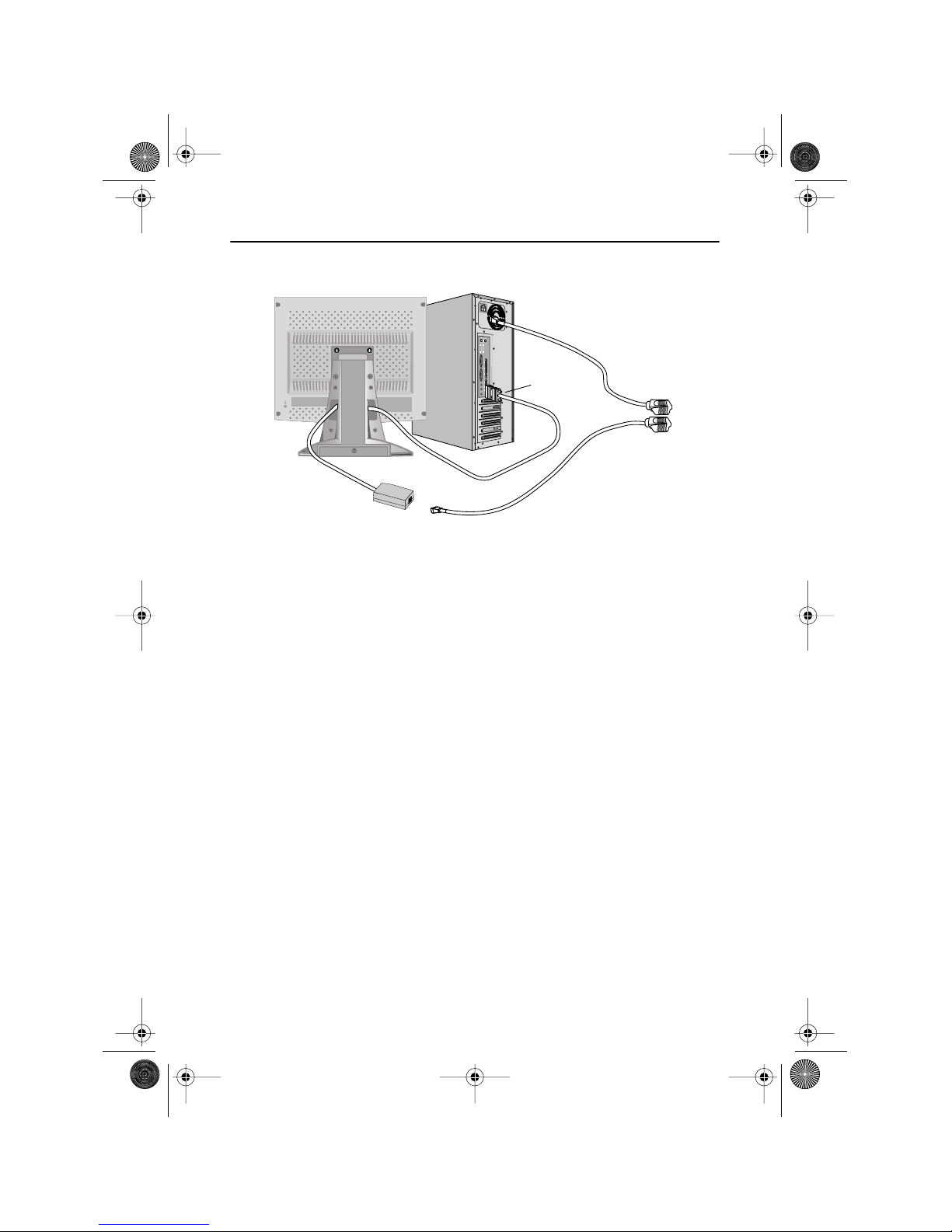

Figure 3. Cable connections
1
Turn off your computer and unplug its power cord.
2
Connect the signal cable to the 15-pin, D-sub connector on the back of your monitor.
3
Connect the signal cable to the video port on your computer, video board, video card,
or graphics card.
4
Connect the power cord for your monitor to the DC adapter and connect the adapter
jack to the DC power port on the back of your monitor.
5
Plug the computer and monitor power cords into a nearby power mains outlet.
6
Turn your computer and monitor on. If your monitor displays an image, it has been
successfully installed.
7
If necessary, install the video driver for this monitor (see “Installing the Video Driver”
on page 7).
8
After your monitor has been fully installed, run Auto Adjustment (see page 11).
➄
➃
➃
➂
②
Setting up Your Monitor
4_E50Sbody.fm Page 5 Thursday, July 12, 2001 11:39 AM

English 6
English
Connecting Your Multimedia LCD Monitor

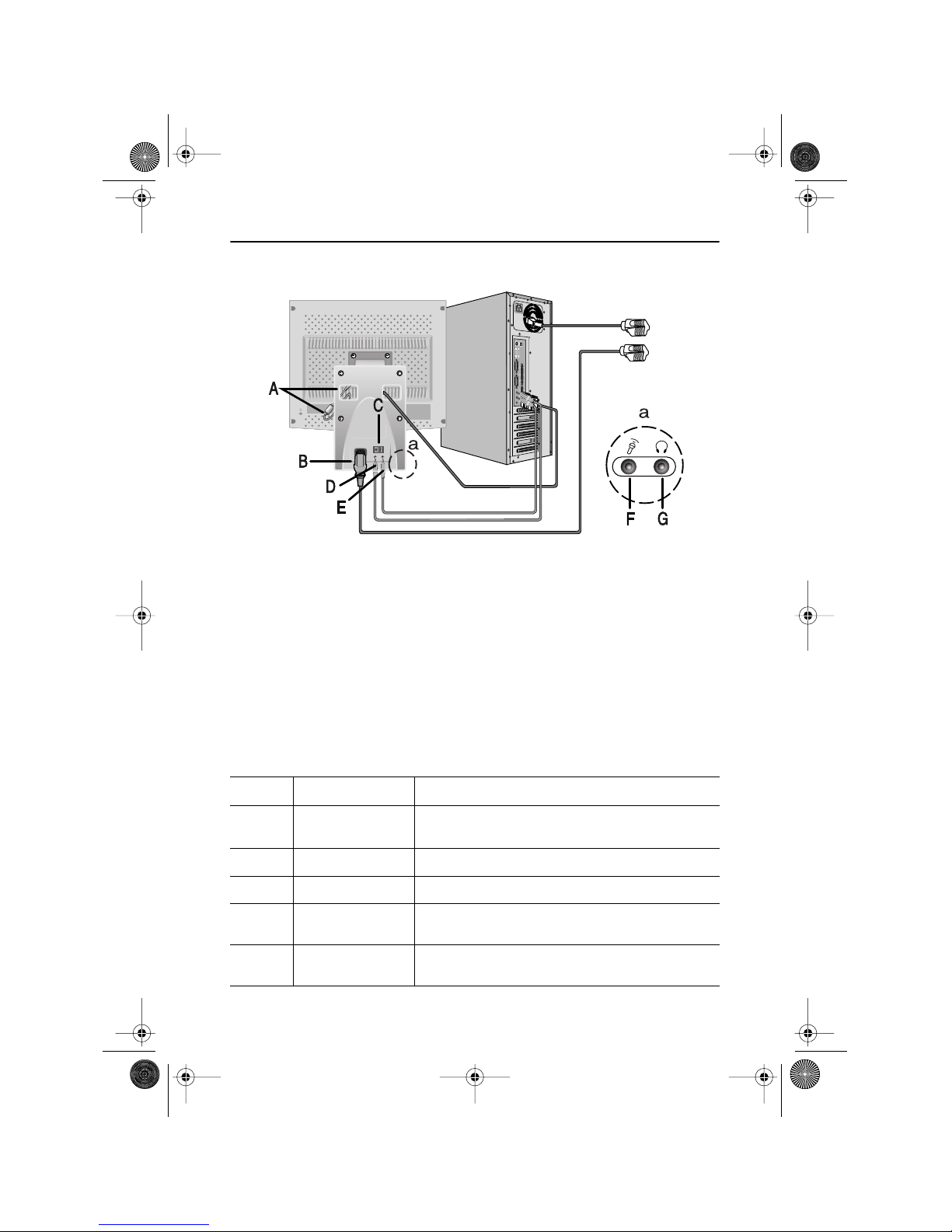

Figure 4. Multimedia connections
1
Follow steps 1 through 3 on the previous page.
2
If you have a Multimedia or Multimedia Pivot stand, connect the attached power
adapter jack (A) to the DC power port on the back of your monitor. Connect the power
cord to the power port on the back of the stand.
3
Follow the directions that came with your sound card or your computer to connect the
speakers and microphone on the stand. See Figure 4, above and Table 1, below.
4
Continue with step 5 on the previous page.
Table 1. Connector locations for multimedia bases
Item Name Description
A
Attached power
adapter jack
Connect this cable to the DC power port on the back
of the monitor cabinet.
B
Power port
Connect the power cable here.
C
Power switch
Use this switch to turn the monitor On and Off.
D
MIC OUT jack
Connect a cable here to send sound from the internal
microphone to the computer’s sound card.
E
AUDIO IN jack
Connect a cable here to bring sound from your
computer’s sound card.
OUT IN
MIC AUDIO
Setting up Your Monitor
4_E50Sbody.fm Page 6 Thursday, July 12, 2001 11:39 AM

English 7
Plug and Play
Our adoption of the new VESA
®
Plug and Play solution eliminates complicated and time
consuming setup. It allows you to install your monitor in a Plug and Play compatible system
without the usual hassles and confusion. Your PC system can easily identify and configure
itself for use with your display. This monitor automatically tells the PC system its Extended
Display Identification (EDID) data using Display Data Channel (DDC) protocols so the PC
system can automatically configure itself to use the flat panel display. If your PC system
needs a video driver, following the instructions given below according to the operating
system your computer uses.
Installing the Video Driver
When prompted by the operating system for the monitor driver, insert the Driver diskette
included with this monitor. Driver installation is slightly different from one operating system
to another. Follow the directions as appropriate for the operating system you have.
Windows
®
98
1
Windows
®
98 will auto-detect your new monitor and start the “Add New Hardware
Wizard” if the drivers are not already installed. Click the NEXT button to search for
drivers.
2
Check the diskette drive box to install the drivers off the diskette provided with your
LCD monitor and click NEXT .
3
Confirm that Windows found the driver on the diskette and click NEXT again to install
the driver.
To manually install or update the driver, follow the directions below:
1
Click on START, SETTINGS, CONTROL PANEL, DISPLAY SETTINGS tab,
ADVANCED, MONITOR tab, CHANGE . This will start the “Add New Hardware
Wizard”.
2
Follow the same directions as given in the steps in the section above.
F
External
microphone jack
Connect an external microphone here. Using an
external microphone automatically disconnects the
monitor’s internal microphone.
G
Headphone jack
Connect headphones here. Connecting headphones
automatically turns the speakers off.
Table 1. Connector locations for multimedia bases ( Continued )
Item Name Description
Setting up Your Monitor
4_E50Sbody.fm Page 7 Thursday, July 12, 2001 11:39 AM

English 8
English
Windows
®
95
To determine the version of Windows
®
95 that your computer uses, right click on the “My
Computer” icon on the Windows desktop and select “Properties”. The version number can be
seen on the “General” section under “System:”. Follow the directions given below according
to the version of your Windows
®
95 operating system:
Version 4.00.950A
1
Click on START , SETTINGS , CONTROL PANEL , DISPLAY SETTINGS tab,
CHANGE DISPLAY TYPE , CHANGE , HAVE DISK .
2
Type the diskette drive letter in the box and click OK .
Version 4.00.950B
1
Click on START , SETTINGS , CONTROL PANEL , DISPLAY , ADVANCED
PROPERTIES , MONITOR tab, HAVE DISK .
2
Type the diskette letter in the box and click OK .
Self-Test Feature Check (STFC)
Your monitor provides a self test feature that allows you to check whether your monitor is
functioning properly. If your monitor and computer are properly connected but the monitor
screen remains dark and the power indicator is blinking, run the monitor self-test by
performing the following steps:
1
Turn off both your computer and the monitor.
2
Unplug the video cable from the back of the computer.
3
Turn on the monitor.
Setting up Your Monitor
4_E50Sbody.fm Page 8 Thursday, July 12, 2001 11:39 AM

English 9
If the monitor is functioning properly, you will see a white box with a red border and black
text inside as shown in the following illustration:
Figure 5. Monitor self test screen
The three boxes inside the border are red, green and blue. Failure of any of the boxes to
appear indicates a problem with your monitor. This box also appears during normal operation
if the video cable becomes disconnected or damaged.
4
Turn off your monitor and reconnect the video cable; then turn on both your computer
and the monitor.
If your monitor screen remains blank after using the previous procedure, check your video
controller and computer system; your monitor is functioning properly.
Getting Help
If your monitor does not display an image, check your cable connections and refer to
“Troubleshooting” on page 19. If you experience difficulties with the quality of the displayed
image, run Auto Adjustment (see page 11) and refer to “Adjusting Your LCD Monitor” on
page 10 or “Troubleshooting” on page 19.
Warm-up Time
All LCD monitors need time to become thermally stable the first time you turn them on each
day. Therefore, to achieve more accurate adjustments for parameters, allow the LCD monitor
to warm (be on) for at least 20 minutes before making any screen adjustments.
Check Signal Cable
No Connection
Setting up Your Monitor
4_E50Sbody.fm Page 9 Thursday, July 12, 2001 11:39 AM

English 10
English
User Controls
Your LCD Monitor allows you to easily adjust the characteristics of the image being
displayed. All of these adjustments are made using the control buttons on the front of the
monitor. While you use these buttons to adjust the controls, an on-screen menu shows you
their numeric values as they change.
Figure 6. User control locations
No. Name Description
1
AUTO
■
Activates the Auto Adjustment function.
2
EXIT
■
Exits from menus and sub-menus.
■ Exits from the On Screen Display (OSD)
3
Power
indicator
■
Glows green during normal operation.
■
Glows amber while the monitor is in a power
saving mode and if the signal cable becomes
disconnected.
4
Power button
■
Turns the monitor on and off.
5
–
/
+
Brightness
■
Moves the selector between menus and sub-
menus on the OSD.
■
Decreases or increases values of the selected
function.
■ Directly adjusts the brightness level if pressed
while the OSD is off (See the section on "Direct-
Access Features" on page 11.)
6
MENU
■ Opens the OSD system and sub-menus.
■
Selects the highlighted function.
EXIT MENUAUTO EXIT MENUAUTO
1 2 3 4 5 6
Adjusting Your LCD Monitor
4_E50Sbody.fm Page 10 Thursday, July 12, 2001 11:39 AM

English 11
Automatic Save
Whenever you open the on-screen display and allow an adjustment window to remain active
for about 3 seconds without pressing another button, the monitor automatically saves any
adjustments you have made. These changes are saved into a user area in the monitor. User
areas are reserved according to the signal frequency from your computer. The monitor can
save adjustments for up to 5 user modes. It has 12 factory preset or preload modes, one for
each signal frequency as listed in "Display Modes" on page 25.
If you have made no adjustments, the on-screen display disappears and the monitor does not
save anything. To exit without saving the changes you have made, press the EXIT button
before the 3 seconds elapse.
Direct-Access Features
The features described in this section can be accessed quickly, at the touch of one button.
Once you finish making adjustments to a feature, push the EXIT button to turn off the menu
or allow the OSD to time-out and disappear automatically
Auto Adjustment
Even though your computer system can recognize your new LCD monitor, the auto adjustment
function will optimize the display settings for use with your computer.
Follow these instructions to activate the automatic
screen adjustments for your monitor.
1
Push the AUTO button. The automatic
adjustment display appears and the slidebar
moves to indicate progress during the auto
adjustment procedure.
NOTE: 1. For Auto Adjustment to function correctly, the monitor must display a full screen,
colored image such as the Windows desktop.
2. Even though Auto Adjustment sets most image adjustments automatically,
distortions may remain depending on the video board performance. After using Auto
Adjustment, we recommend that you perfect the image by using the OSD functions.
Auto Adjustment
75
Adjusting Your LCD Monitor
4_E50Sbody.fm Page 11 Thursday, July 12, 2001 11:39 AM

English 12
English
OSD Lock/Unlock
Use this function to secure the current settings so that they cannot inadvertently be changed,
while still allowing you to adjust Brightness and Contrast. You can unlock the OSD controls at
any time by using the same procedure as described below.
1
Push and hold the MENU button for 5 seconds to Lock or Unlock the controls. When
locked, a “LOCKED!” message displays along the bottom of each OSD menu screens
except the “Brightness” and “Contrast” screens.
On Screen Display (OSD)
Figure 7. On Screen Display (OSD)
Brightness
Follow these instructions to adjust the brightness of
the monitor’s display.
1
With the menu off, push the “
–
“ or “
+
“ button
to display the brightness screen.
2
Push the “
+
“ button to increase the brightness;
push the “
–
“ button to decrease the
brightness.
Brightness
44
Exit : Exit Key
Function icons
Function name
Setting slidebar
Numeric value
indicator
Brightness
Adjusting Your LCD Monitor
4_E50Sbody.fm Page 12 Thursday, July 12, 2001 11:39 AM

English 13
Accessing the menu system
1
With the OSD off, push the MENU button to open it and display the main function
menu.
2
Use the “
–
” and “
+
” buttons to move between the function icons. As you move from
one icon to another, the function name changes to reflect the function or group of
functions represented by that icon. See the Screen controls table to view a complete
list of all the functions available for the monitor.
3
Push the MENU button once to activate the highlighted function then use the “
–
” and
“
+
” buttons to move to sub-menus, or according to the indicators on the menu, to
make your changes.
4
After selecting a function, use the “
–
” and “
+
” buttons to make the adjustments. The
setting slidebar moves and the numeric value indicator changes to reflect your
adjustments.
NOTE: The numeric value indicator is provided as a point of reference only and does
not reflect any measureable value.
5
Push the EXIT button once or twice to return to the main menu to select another
function or push the EXIT button 1 to 3 times to exit from the OSD.
OSD functions and adjustments
Table 2. Screen controls
Icon Menus and
Sub-menus
Function Descriptions
– +
Brightness
Contrast
EXIT MENUAUTO EXIT MENUAUTO EXIT MENUAUTO EXIT MENUAUTO
EXIT MENUAUTO EXIT MENUAUTO EXIT MENUAUTO EXIT MENUAUTO
Adjusting Your LCD Monitor
4_E50Sbody.fm Page 13 Thursday, July 12, 2001 11:39 AM

English 14
English

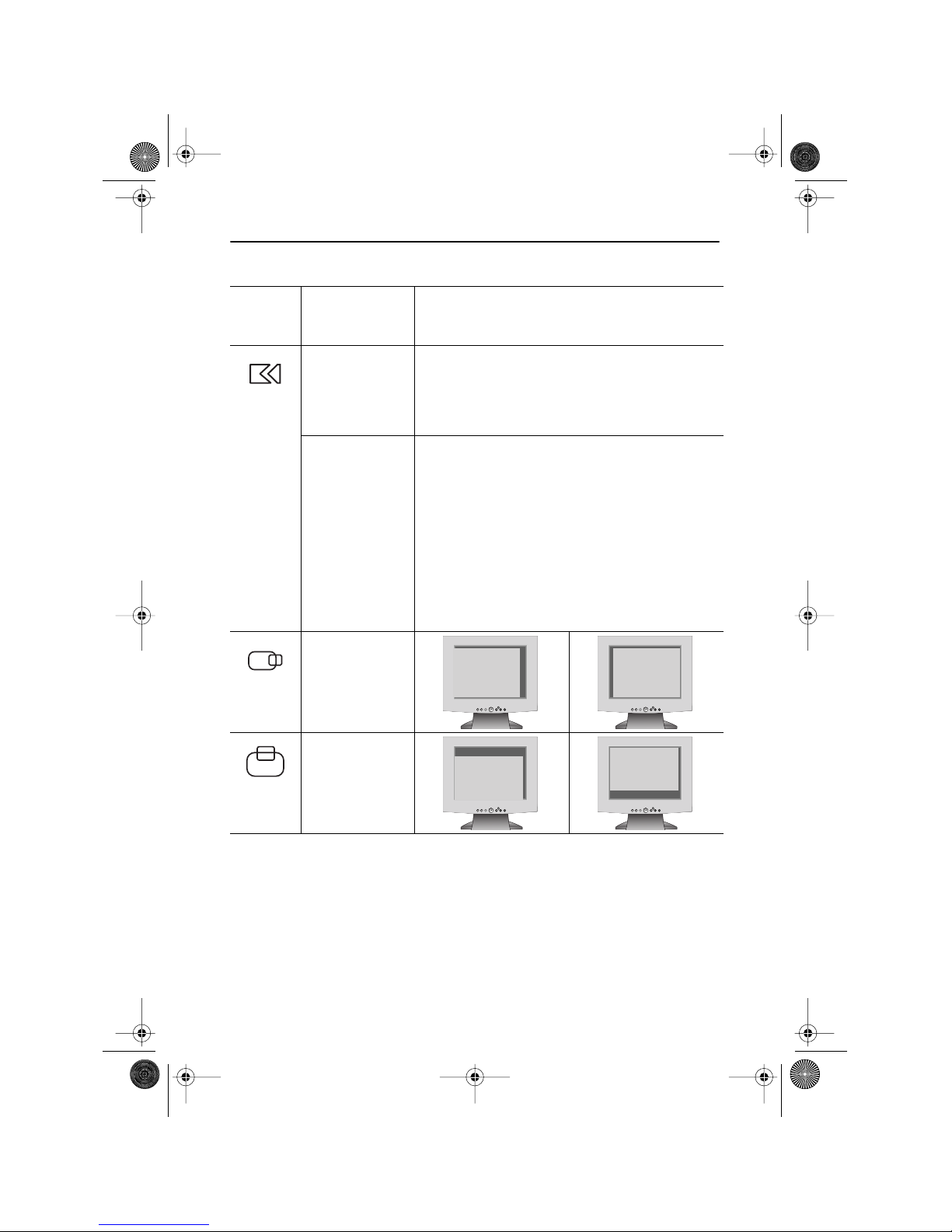

Image Lock Image Lock controls adjust for and limit the amount of
noise in the video signal which causes horizontal lines
or areas on the screen where the image appears to be
unstable and jitters or shimmers.
■
Fine
■
Coarse
The Fine and Coarse adjustments allow you to more
closely adjust your monitor to your preference.
Use the “
–
” and “
+
” buttons to adjust away
interference.
If satisfactory results are not obtained using the Fine
adjustment, use the Coarse adjustment and then use
Fine again.
This function may change the width of the display
image. Use the H-Position menu to center the display
image on the screen.
H-Position
V-Position
Table 2. Screen controls ( Continued )
Icon Menus and
Sub-menus
Function Descriptions
– +
EXIT MENUAUTO EXIT MENUAUTO EXIT MENUAUTO EXIT MENUAUTO
EXIT MENUAUTO EXIT MENUAUTO EXIT MENUAUTO EXIT MENUAUTO
Adjusting Your LCD Monitor
4_E50Sbody.fm Page 14 Thursday, July 12, 2001 11:39 AM

English 15
Reset Restores the viewing area and color settings to their
original manufacturing levels
■ Geometry
Reset
Resets the H-Position and V-Position of the viewing
area
■
Color Reset
Resets the Brightness, Contrast and Color Control
functions
Color
Temperature
Select the Color Mode you find most comfortable and
then fine tune the colors using the Color Control menus
■
Mode 1
Sets the color to the natural characteristics of the LCD
■
Mode 2
Sets the color to a warm (reddish) white
■
Mode 3
Sets the color to a cool (bluish) white
Color Control Adjusts the saturation of Red, Green and Blue in the
display area
■
R(ed)
Decreases redness Increases redness
■
G(reen)
Decreases greenness Increases greenness
■
B(lue)
Decreases blueness Increases blueness
Table 2. Screen controls ( Continued )
Icon Menus and
Sub-menus
Function Descriptions
– +
Adjusting Your LCD Monitor
4_E50Sbody.fm Page 15 Thursday, July 12, 2001 11:39 AM

English 16
English
Language:
■
English
■
Deutsch
■
Español
■
Français
■
Italiano
■
Svenska
Language sets the OSD to display in one of six
languages.
The language chosen affects only the language of the
OSD. It has no effect on any software running on the
computer.
Menu Position Each time the OSD opens it displays in the same
location on the screen. Menu Position controls that
location.
■
H-Position
■
V-Position
Menu Display
Time:
■
5 Seconds
■
10 Seconds
■
20 Seconds
■
200 Seconds
The OSD stays active for as long as it is in use. Menu
Display Time sets the length of time the OSD will
remain active after the last time you pushed a button.
Display Mode This screen shows the horizontal and vertical
frequencies, sync polarity and the display resolution of
the images received from the computer or video card.
Table 2. Screen controls ( Continued )
Icon Menus and
Sub-menus
Function Descriptions
– +
EXIT MENUAUTO EXIT MENUAUTO EXIT MENUAUTO EXIT MENUAUTO
EXIT MENUAUTO EXIT MENUAUTO EXIT MENUAUTO EXIT MENUAUTO
i
Adjusting Your LCD Monitor
4_E50Sbody.fm Page 16 Thursday, July 12, 2001 11:39 AM

English 17
Audio Controls
Figure 8. Multimedia stand audio controls
To access the On/Off, Volume, Bass and Treble functions, rotate the appropriate control
button to the right or left to adjust the function.
Table 3. Audio Control Function
No. Function Description and adjustments
1
Internal
Microphone
Picks up sound and sends it to the sound card in your PC
2
On/Off
Volume
Turns the sound on and off
■
Left: Off/ Decrease volume
■
Right: On/ Increase volume
3
Bass
Adjusts the volume of the low sound
■
Left: Decrease volume
■
Right: Increase volume
4
Treble
Adjusts the volume of the high sound
■ Left: Decrease volume ■ Right: Increase volume
5
Mic On/Off
Turns the internal microphone on or off. Push the button:
■
In: Off
■
Out: On
MIC
ON OFF
TREBLE
MIN MAX
BASS
MIN MAX
VOLUME
ON/OFF
MIN MAX
1
2 3 4 5
Adjusting Your LCD Monitor
4_E50Sbody.fm Page 17 Thursday, July 12, 2001 11:39 AM

English 18
English
PowerSaver
This monitor has a built-in power management system called PowerSaver. This system saves
energy by switching your monitor into a low-power mode when it has not been used for a
certain amount of time. The available modes are “On”, “Standby”, “Sleep”, and “Deep
Sleep”. PowerSaver operates with a VESA DPMS compliant video card installed in your
computer. You use a software utility installed on your computer to set up this feature. See
Table 4 below for details.
Table 4. Power-saving modes
NOTE: This monitor automatically returns to normal operation when horizontal and vertical
sync return. This occurs when you move the computer’s mouse or press a key on the
keyboard.
This monitor is EPA E
NERGY
S
TAR®
compliant and NUTEK/ENERGY 2000 compliant when
used with a computer equipped with VESA DPMS functionality.
For energy conservation, turn your monitor OFF when it is not needed, or when leaving it
unattended for long periods.
State Normal
Operation
Power-Saving Function mode
(EPA/NUTEK/ENERGY 2000)
Standby Mode Sleep Mode
Position A1
Deep Sleep Mode
Position A2
Horizontal Sync
Vertical Sync
Video
Active
Active
Active
Inactive
Active
Blanked
Active
Inactive
Blanked
Inactive
Inactive
Blanked
Power
Indicator Green Amber Amber Blinking (0.5 sec interval)
Amber Blinking
(1 sec interval)
Power
Consumption 25W (Nom.) Less than 3W Less than 3W Less than 3W
Appendix
4_E50Sbody.fm Page 18 Thursday, July 12, 2001 11:39 AM
