Samsung SyncMaster 743A User manual

743A • 743E • 943N
Features:
• 50,000:1 dynamic contrast ratio (743A/743E)
• 743E features height-adjust, pivot, tilt, swivel stand
• Exclusive Magic picture technologies
• 5 ms response time
• Slim and sleek designs
• Off timer saves power consumption
• Redesigned technology uses 40% less energy
• Multiscreen software auto-resizes open windows to let you
see everything at once (743A/743E)
Make more money whether your monitor’s
on or off. The Samsung 743A, 743E and
943N low power consumption LCD displays
feature backlights re-engineered to consume
up to 40% less electricity than typical
CCFL displays, plus convenient off timers.
Less power usage doesn’t mean less
performance, though. A 50,000:1 dynamic
contrast ratio ensures high levels of picture
detail (743A/743E). Fast 5 ms response time
means sharp, motion video. Exclusive Magic
technologies optimize color and brightness.
And a tilt, pivot, swivel and height-adjustable
stand adds comfort (743E). They’re the
monitors designed to save you energy,
hassle and ultimately, money.
17" and 19" LCD Displays
743A 743E 943N

17" and 19" LCD Displays
©2009 Samsung Electronics America, Inc. Samsung is a registered mark of Samsung Electronics Corp., Ltd.
Specifications and design are subject to change without notice. See www.samsung.com for detailed information.
Printed in USA. MON-743A943NDSHT-Oct09T
Product Information: 1-866-542-7214 samsung.com/monitors
Product Support: 1-800-SAMSUNG
743A
743E
943N
Features
Up to 50,000:1 Dynamic Contrast
Ratio (743A/743E)
Dynamic contrast ratio works by
continually analyzing the incoming
signal, then adjusting contrast for
optimum images. You’ll see greater
detail without the whites blowing out
and the blacks plugging up.
Height-Adjustable Stand (743E)
Work in comfort. The 743E features
an 80mm height-adjustable, pivot, tilt,
swivel stand.
Up to 5 ms Response Time
Fast pixel response gives you fast action
with virtually no blurring or ghosting.
Off-Timer Control
The auto-off timer saves energy, extends
the life of your monitor and ensures your
Samsung monitor operates at peak
efficiency for a long time to come.
MagicTune™ with Asset Management
Control all the Magic
technologies from your desktop,
with just a click or two of the mouse.
Now with MagicWizard, you can set
resolution, color image and display font,
either manually or automatically.
MagicBright 3™
Work is made easier with
rich, natural color and easily
selectable brightness modes that
include Custom, Text, Internet, Game,
Sports, Movie and Dynamic Contrast.

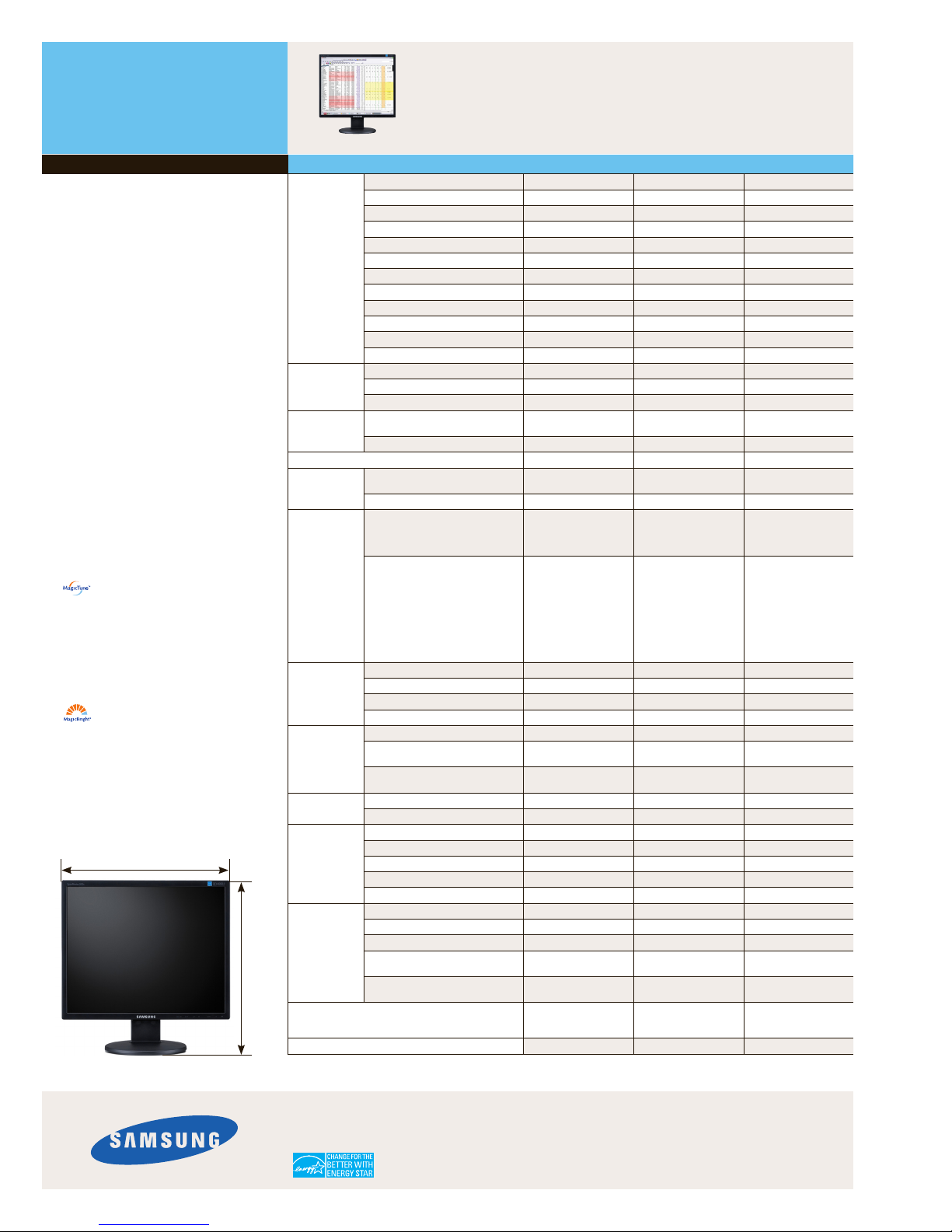

943N Dimensions
Specifications 743A 743E 943N
Display Type a-si TFT/TN a-si TFT/TN a-si TFT/TN
Viewable Size 17" 17" 19"
Native Resolution 1280 x 1024 1280 x 1024 1280 x 1024
Pixel Pitch 0.264 0.264 0.294
Aspect Ratio 5:4 5:4 5:4
Contrast Ratio (Typical/Dynamic) 1000:1/50,000 1000:1/50,000 1000:1/8000:1
Viewing Angle (Horizontal/Vertical) 170°/160° (CR>10) 170°/160° (CR>10) 170°/160° (CR>10)
Response Time 5 ms 5 ms 5 ms
Light Source CCFL CCFL CCFL
Brightness (Typical) 250 cd/m2250 cd/m2300 cd/m2
Panel Surface Matte Matte Matte
Maximum Color Supported 16.7M 16.7M 16.7M
Video Input Signal Analog Analog RGB Analog RGB, DVI Analog RGB
Frequency 30~81kHz(H)/56~75Hz(V) 30~81kHz(H)/56~75Hz(V) 30~81kHz(H)/56~75Hz(V)
Sync Separate H/V, Composite, SOG Separate H/V, Composite, SOG Separate H/V, Composite, SOG
Compatibilty PC Windows Vista Premium
Certification, XP, 2000, 98
Windows Vista Premium
Certification, XP, 2000, 98
Windows Vista Premium
Certification, XP, 2000, 98
Mac n n n
Input Connectors 15-pin D-Sub 15-pin D-Sub, DVI-D 15-pin D-Sub
Power Voltage AC 100-240 ~ VAC ( ± 10%),
60 / 50 Hz ± 3 Hz
AC 100-240 ~ VAC ( ± 10%),
60 / 50 Hz ± 3 Hz
AC 100-240 ~ VAC ( ± 10%),
60 / 50 Hz ± 3 Hz
Consumption (Max/Standby) 20 Watts/<1 watts 20 Watts/<1 watts 34 Watts/<1 watts
Controls Basic Power, Auto Adjustment,
Source, Brightness up/down,
MagicBright 3 presets, OSD
Menu
Power, Auto Adjustment,
Source, Brightness up/down,
MagicBright 3 presets, OSD
Menu
Power, Auto Adjustment,
Source, Brightness up/down,
MagicBright 3 presets, OSD
Menu
Advanced MagicBright 3, Off timer,
MagicColor, Color Effect,
Customized key, MagicWizard
& MagicTune with Asset
Management, Windows Vista
Basic, Multiscreen Software,
Safe Mode (Down Scaling
in UXGA)
MagicBright 3, Off timer,
MagicColor, Color Effect,
Customized key, MagicWizard
& MagicTune with Asset
Management, Windows Vista
Premium, Multiscreen software,
MagicRotation S/W(Pivot), Safe
Mode (Down Scaling in UXGA)
Picture (Brightness, Contrast,
Magic Bright), Color (MagicColor,
Color Tone, Color Control, Color
Effect, Gamma), Image (Coarse,
Fine, Sharpness, H position, V
position), OSD (Language, H
position, V position, Transparency,
Display Time), Setup (Auto
Source, Reset, Off Timer,
Customized Key, Image Size)
Features Plug & Play DDC 2B DDC 2B DDC 2B/DDC-CI
Stand Simple HAS (80mm) Swivel/Tilt/Pivot Simple
VESA Mount 75mm 75mm 75mm
Cabinet Color Matte Black Matte Black High-Gloss Black
Magic Technologies MagicColor (Full and Intelligent Mode) n n n
MagicTune (With On-screen Asset Management,
With MagicWizard)
n n n
MagicBright 3 (Custom, Text, Internet, Game,
Sports, Movie and Dynamic Contrast Ratio)
n n n
Operating Conditions Temperature 10°C ~ 40°C 10°C ~ 40°C 10°C ~ 40°C
Humidity 10% ~ 80%, non-condensing 10% ~ 80%, non-condensing 10% ~ 80%, non-condensing
Dimensions and
Weight
Product Dimension (With Stand, W x H x D) 14.5" x 15.2" x 7.3" 14.5" x 14.5" x 7.5" 16" x 16.3" x 7.9"
Product Dimension (Without Stand, W x H x D) 14.5" x 12.1" x 2.7" 14.5" x 12.1" x 2.6" 16" x 13.2" x 2.6"
Shipping Carton Dimension (W x H x D) 17.0" x 14.8" x 5.1" 17.6" x 15.9" x 7.8" 18.9" x 16.2" x 5.2"
Product Weight (With Stand) 7.9 lbs. 10.5 lbs. 8.4 lbs.
Shipping Weight 10.4 lbs. 13.7 lbs. 10.9 lbs.
Green Management Emission Standard TCO ‘03 TCO ‘03 TCO ‘03
RoHS Compliant n n n
Energy Star Compliant n n n
Product Recyclability CCFL panel contains mercury,
please dispose of properly
CCFL panel contains mercury,
please dispose of properly
CCFL panel contains mercury,
please dispose of properly
Packaging Recyclability All packing materials are
recyclable
All packing materials are
recyclable
All packing materials are
recyclable
Package Contents Monitor, Power Cable, 15-pin
D-sub Cable, DVI-D Cable,
Analog Manuals, Driver CD
Monitor, Power Cable, 15-pin
D-sub Cable, DVI-D Cable,
Analog Manuals, Driver CD
Monitor, Power Cable, 15-pin
D-sub Cable, DVI-D Cable,
Analog Manuals, Driver CD
Warranty 3 years parts and labor 3 years parts and labor 3 years parts and labor
16.0"
16.3"
