SyncMaster 900IFT
Owner’s
Instructions
Color Monitor
SE-900IFT-E 4/29/92 5:23 PM Page i

Great user manuals database on UserManuals.info
ii
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and servicing instructions in the literature
accompanying the appliance.
Unpacking your Monitor
Please make sure the following items are included with your computer monitor:
Monitor and Stand
Power Cord
This Manual
Warranty Card
(Not available in all
areas)
Signal Cable
CD-ROM
Adapter
SE-900IFT-E 4/29/92 5:23 PM Page ii

Great user manuals database on UserManuals.info
English English Italiano
Français Español Deutsch PortuguêsItaliano
1
Table of Contents
Preface: Safety Information . . . . . . . . . .2
Chapter One: Overview of Your Monitor 3
Front Panel.....................................................................................3
Rear Panel......................................................................................4
Chapter Two: Installation . . . . . . . . . . . . .5
Connecting Your Monitor to a Computer ..................................5
Chapter Three: Adjusting Your Monitor . .6
Overview ........................................................................................6
Brightness ..............................................................................6
Contrast...................................................................................6
Direct Access Features...............................................................7
Position....................................................................................7
Size...........................................................................................7
Pincushion/Trapezoid............................................................8
Parallel/Rotation ....................................................................8
Menu Features..............................................................................9
Color Temperature.................................................................9
Color Control...........................................................................9
Degauss.................................................................................10
Recall.....................................................................................10
Menu Position ......................................................................11
Menu Duration .....................................................................11
D-SUB/BNC ..........................................................................11
Pinbalance............................................................................12
Clear Moire...........................................................................12
Languages ............................................................................12
Display Timing ......................................................................13
Video Input Level .................................................................13
Sync. Input Type...................................................................14
Exit..........................................................................................14
PowerSaver.................................................................................15
Troubleshooting ..........................................................................16
Appendix . . . . . . . . . . . . . . . . . . . . . . . . .17
Specifications..............................................................................17

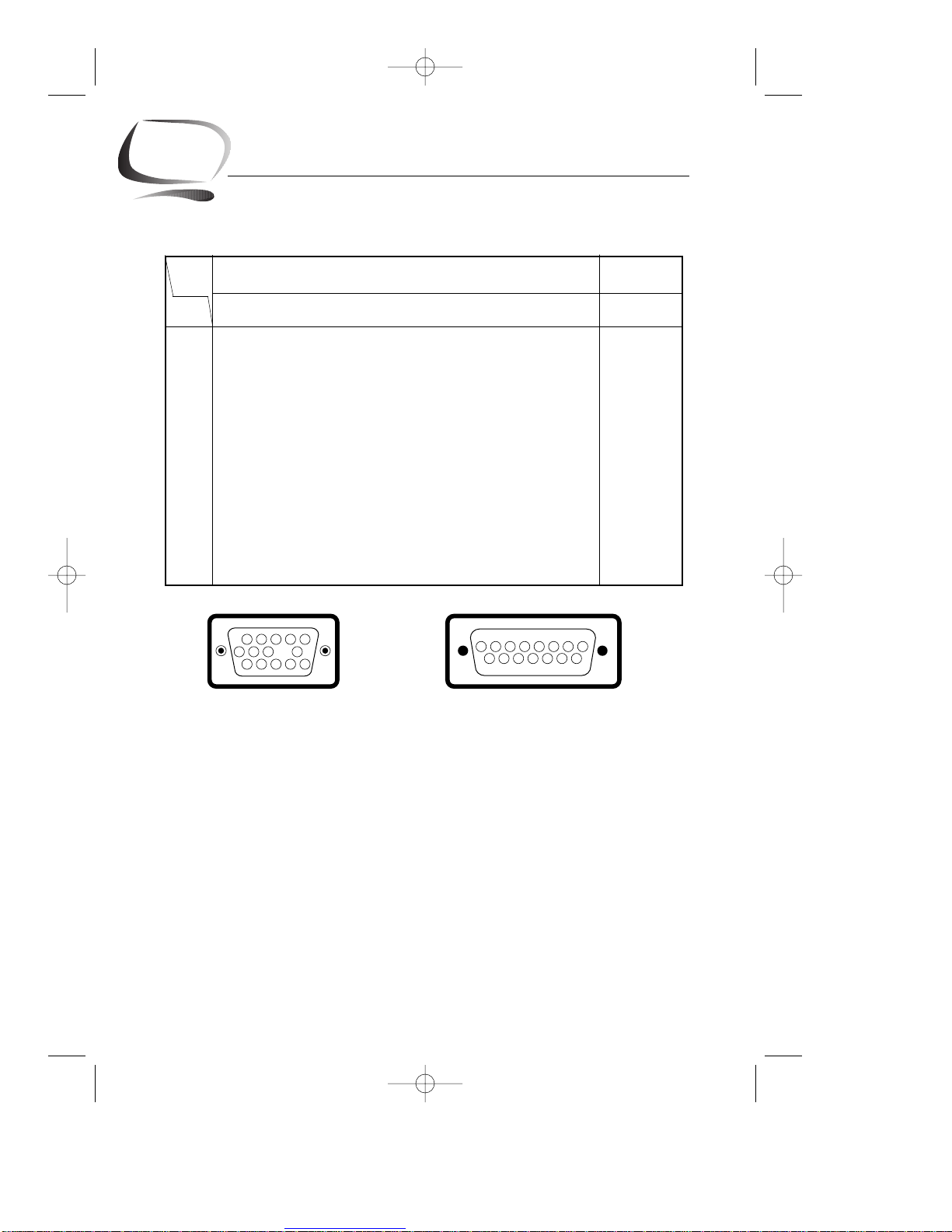

Pin Assignments .........................................................................18
Display Modes Timing Chart.....................................................19
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Regulatory Information . . . . . . . . . . . . . .iii
SE-900IFT-E 4/29/92 5:23 PM Page 1

Great user manuals database on UserManuals.info
Preface: Safety Information
2
Please read and follow these instructions
when connecting and using your
computer monitor.
1Before connecting the AC power cord to an outlet, make sure the
voltage designation on your monitor
corresponds to the local electrical
supply.
2Never insert anything metallic into the monitor openings. Doing so may
create the danger of electric shock.
3To avoid electric shock, never touch the inside of the monitor.
Only a qualified technician should
open the monitor’s case.
4Never use your monitor if the power cord has been damaged. Do not
allow anything to rest on the power
cord, and keep the cord away from
where people could trip over it.
5Be sure to hold the plug, not the cord, when disconnecting the
monitor from an electric socket.
6Openings in the monitor cabinet are provided for ventilation. To prevent
overheating, these openings should
not be blocked or covered. Also,
avoid using the monitor on a bed,
sofa, rug, or other soft surface.
Doing so may block the ventilation
openings in the bottom of the
cabinet. If you put the monitor in a
bookcase or some other enclosed
space, be sure to provide adequate
ventilation.
7Put your monitor in a location with low humidity and a minimum of
dust. Avoid places like damp
basements or dusty hallways.
8Do not expose the monitor to rain or use it near water (In kitchens, next
to swimming pools, etc.). If the
monitor accidentally gets wet,
unplug it and contact an authorized
dealer immediately. You can clean
the monitor with a damp cloth when
necessary, but be sure to unplug
the monitor first.
9Place the monitor on a solid surface and treat it carefully. The screen is
made of glass and can be damaged
if dropped or sharply hit.
10Locate your monitor near an easily accessible AC outlet.
11If your monitor does not operate normally – in particular, if there
are any unusual sounds or smells
coming from it – unplug it
immediately and contact an
authorized dealer or service center.
12High temperatures can cause problems. Don’t use your monitor
in direct sunlight, and keep it away
from heaters, stoves, fireplaces,
and other sources of heat.
13Unplug the monitor when it is going to be left unused for an
extended period of time.
14Unplug your monitor from the AC outlet before any service.
15This product has adopted the newly developed DynaFlat CDT (Color
Display Tube) with a surface treated
with High contrast Multi - Layer Film
for a high quality images. Never use
sharp, rough or metallic substances
to clean the screen.
SE-900IFT-E 4/29/92 5:23 PM Page 2

Great user manuals database on UserManuals.info
English English ItalianoFrançais Español Deutsch Português
Chapter One: Overview of Your Monitor
3
Front Panel

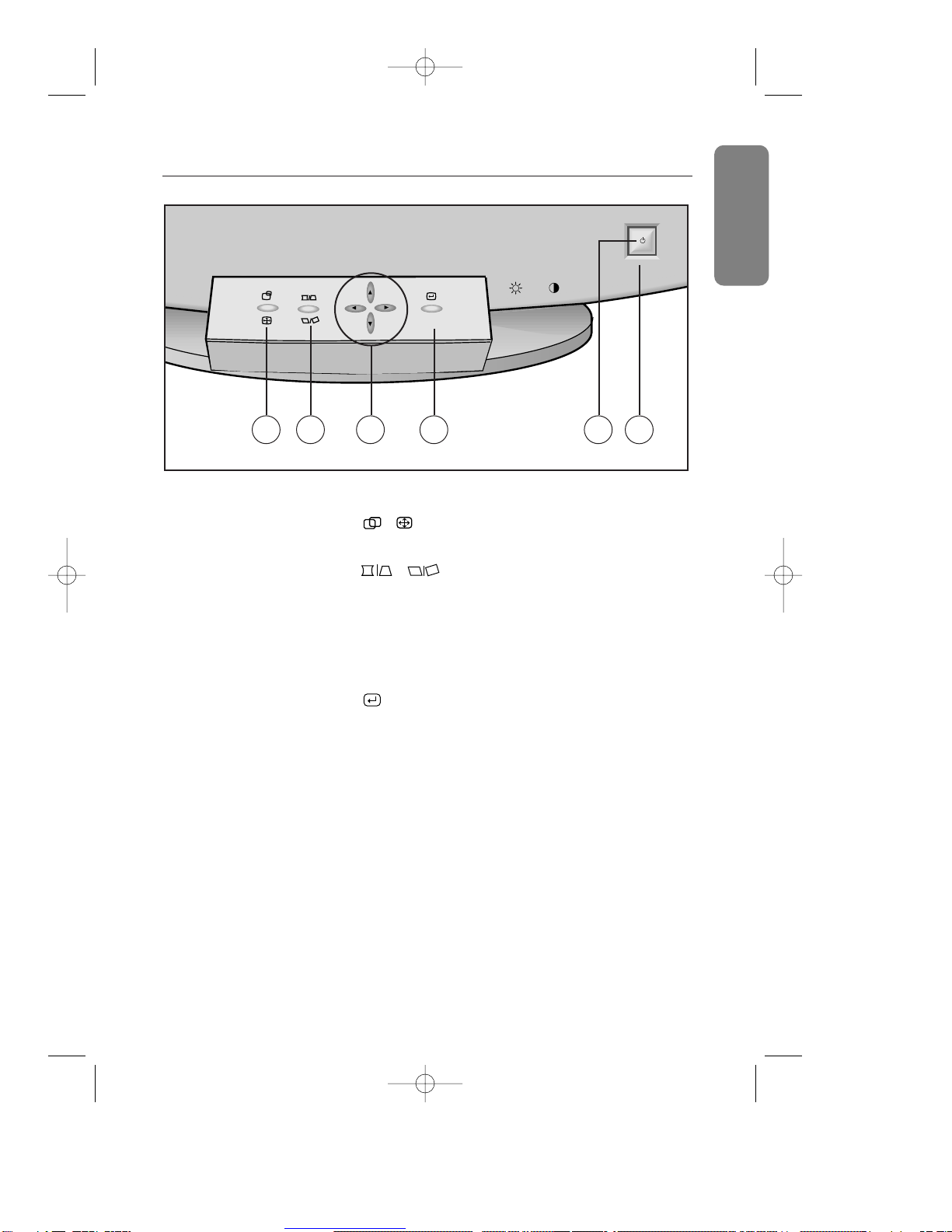

1,button Use this button to adjust the position or size.
2, button Use this button to adjust the pincushion/trapezoid or
parallel/rotation screen effects.
3▲, ▼, $, % buttons Use these buttons to choose or adjust items in the
on-screen display.
4, MENU button Use this button to activate the on-screen display, to
enter a selection in the on-screen display, or to exit
the on-screen displays.
5Power indicator This light glows green during normal operation, and
blinks amber once as your adjustments are saved.
6Power button Use this button to turn the monitor on and off.
MENU
1 2 3 4 5 6
SE-900IFT-E 4/29/92 5:23 PM Page 3

Great user manuals database on UserManuals.info
4
Chapter One: Overview of Your Monitor
Rear Panel

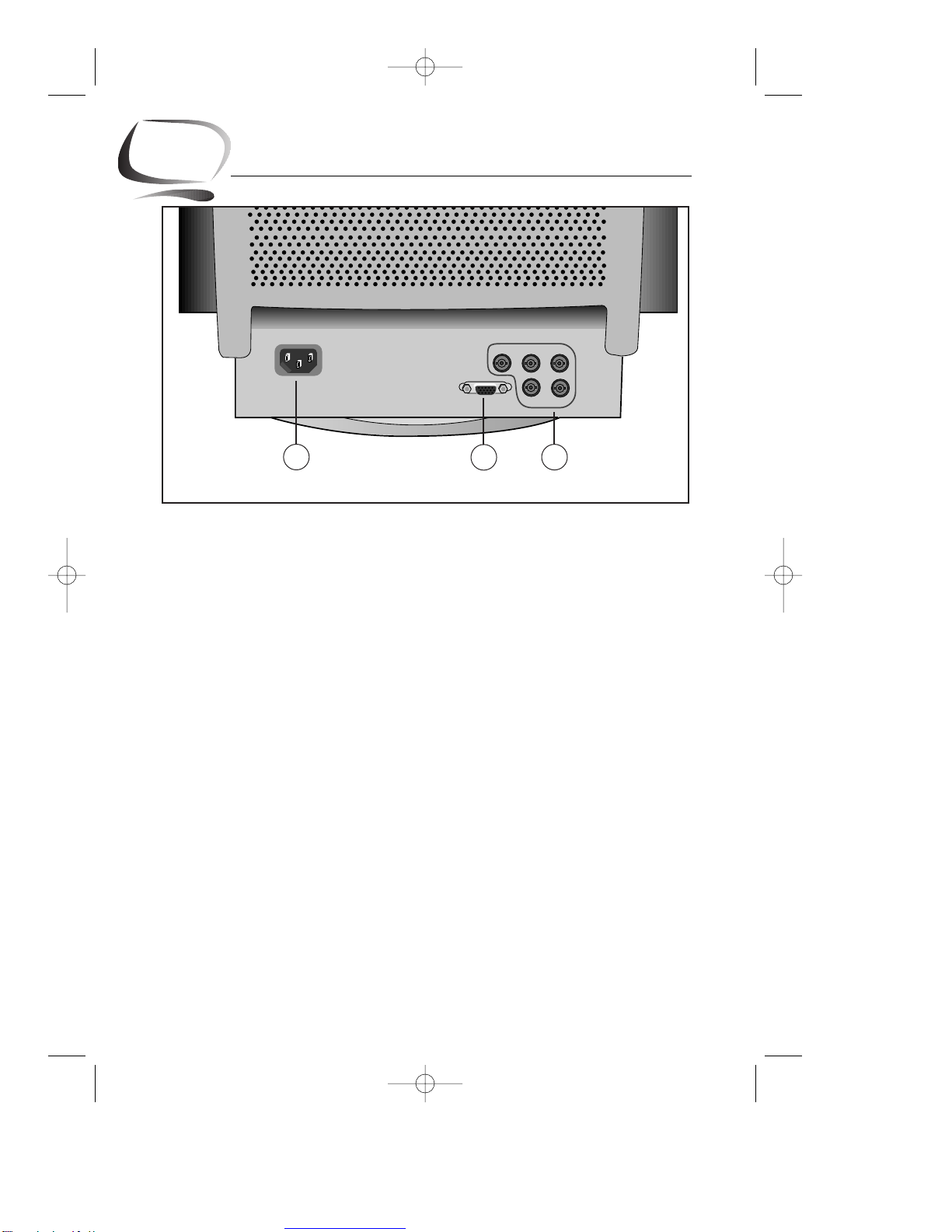

1Power port Connect the power cord here.
2Signal port Connect your signal cable here.
3BNC signal port Connect a BNC signal cable here.
(BNC signal cable not included.)
R
V
H/V
123
SE-900IFT-E 4/29/92 5:23 PM Page 4

Great user manuals database on UserManuals.info
English English ItalianoFrançais Español Deutsch Português
5
Chapter Two: Installation
Connecting Your Monitor
to a Computer

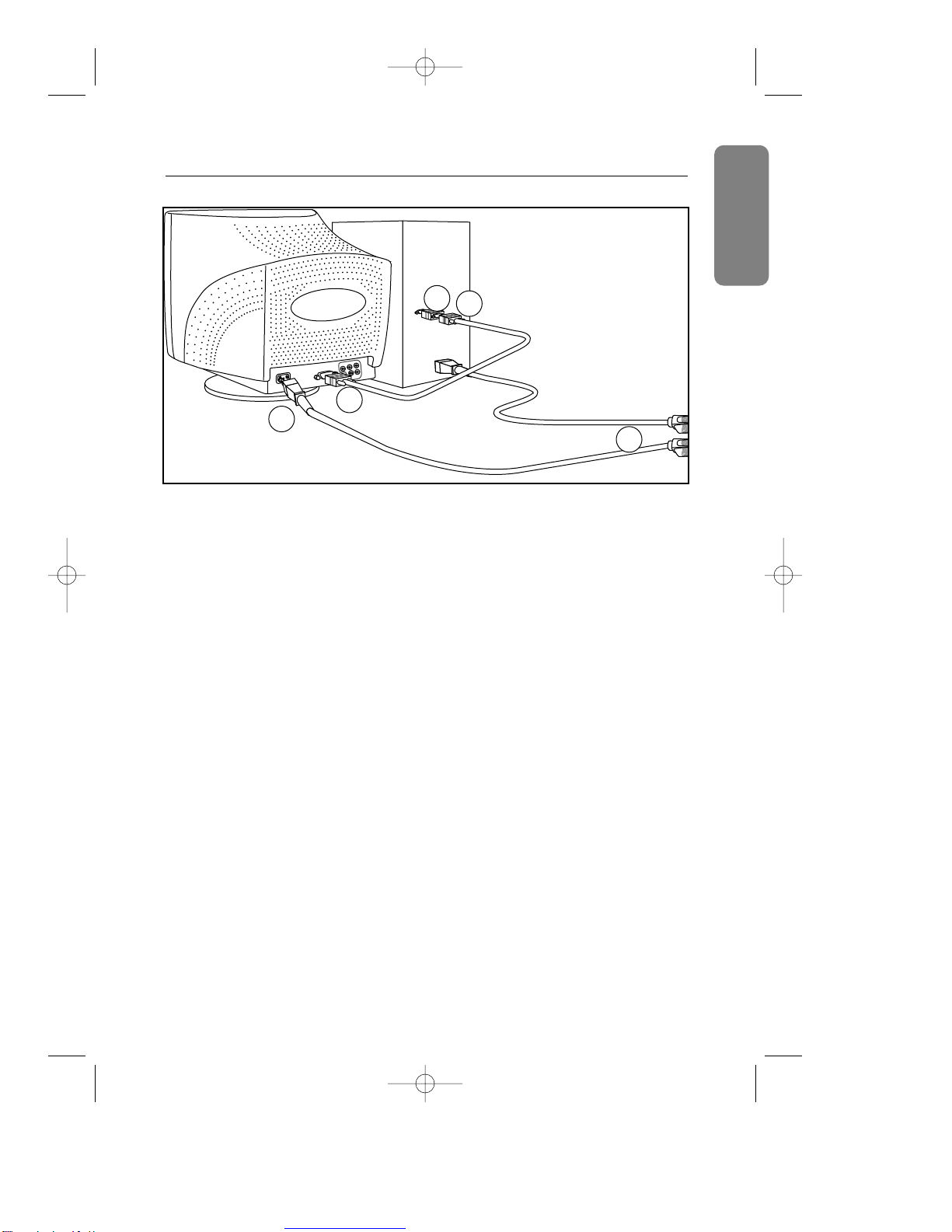

1Turn off your computer and unplug its power cord.
2Connect the signal cable to the D-SUB or BNC signal port on the
back of your monitor.
3If you are using an IBM-compatible computer, skip to step 5. If you are
using a Macintosh computer,
connect the other end of the signal
cable to a Macintosh adapter.
4Follow the instructions included with your adapter to set the pins on
your adapter, if necessary.
5Connect the signal cable (With the adapter, if necessary) to the video
port on the back of your computer.
This port might be directly attached
to your computer, or it might be
part of a video adapter, video card,
or graphics card.
6Connect the power cord for your monitor to the power port on the
back of the monitor.
7Plug the power cords of your computer and your monitor into a
nearby outlet.
8Turn on your computer and monitor. If your monitor displays an image,
installation is complete.
R
G
B
2
67
3
5
SE-900IFT-E 4/29/92 5:23 PM Page 5

Great user manuals database on UserManuals.info
6
Overview
Your Samsung SyncMaster computer monitor allows you to easily
adjust the characteristics of the image being displayed.
All of these adjustments are made using the control buttons on
the front of the monitor. These buttons operate the on-screen
menu, which shows you the monitor’s settings and allows you to
change those settings.
•The MENU ( ) button performs the following actions:
First push: Opens the on-screen menu.
Second push: Activates the highlighted menu item.
Third push: Closes the active menu and returns you to the
previous menu level.
Fourth push: Closes the on-screen menu system.
•The ▲,▼, and $,%buttons allow you to highlight and adjust
items in the menu.
•All menus automatically save your adjustments 3 seconds
after you stop adjusting the setting.

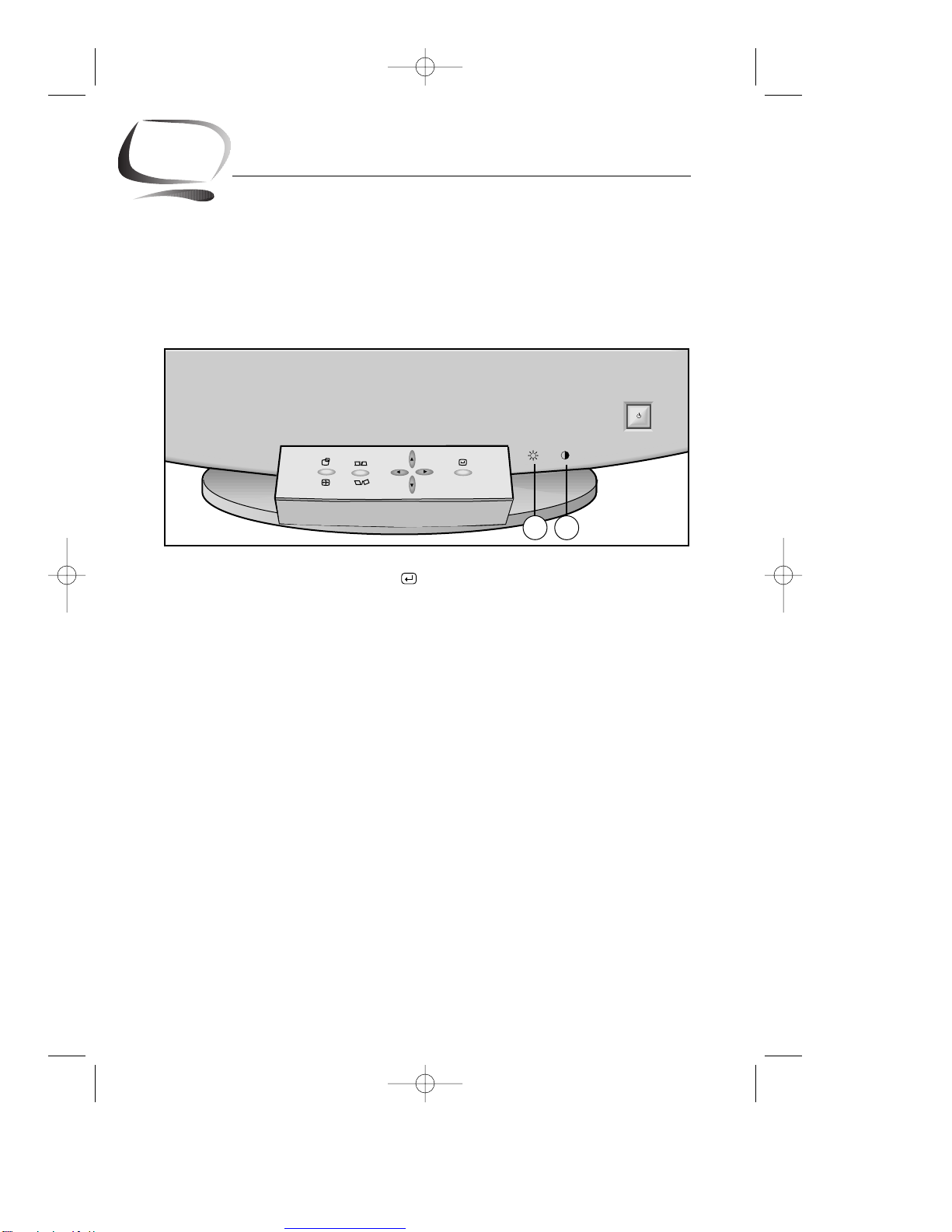

1Brightness This feature will adjust the overall brightness of the display
image. Rotate the rotary control to the left to increase the
level of brightness, or to the right to decrease the brightness.
2Contrast This feature will adjust the monitor’s contrast. Rotate the rotary
control to the left to increase the contrast between dark
colors and light colors, or move it to the right to decrease the
contrast.
Chapter Three: Adjusting Your Monitor
MENU
12
SE-900IFT-E 4/29/92 5:23 PM Page 6

Great user manuals database on UserManuals.info
English English ItalianoFrançais Español Deutsch Português
7
Chapter Three: Adjusting Your Monitor
Direct-Access Features
The features described on this page and the next page can
be accessed quickly, at the touch of one button. Once you
have adjusted one of these features, push the button once
or twice to turn off the display.

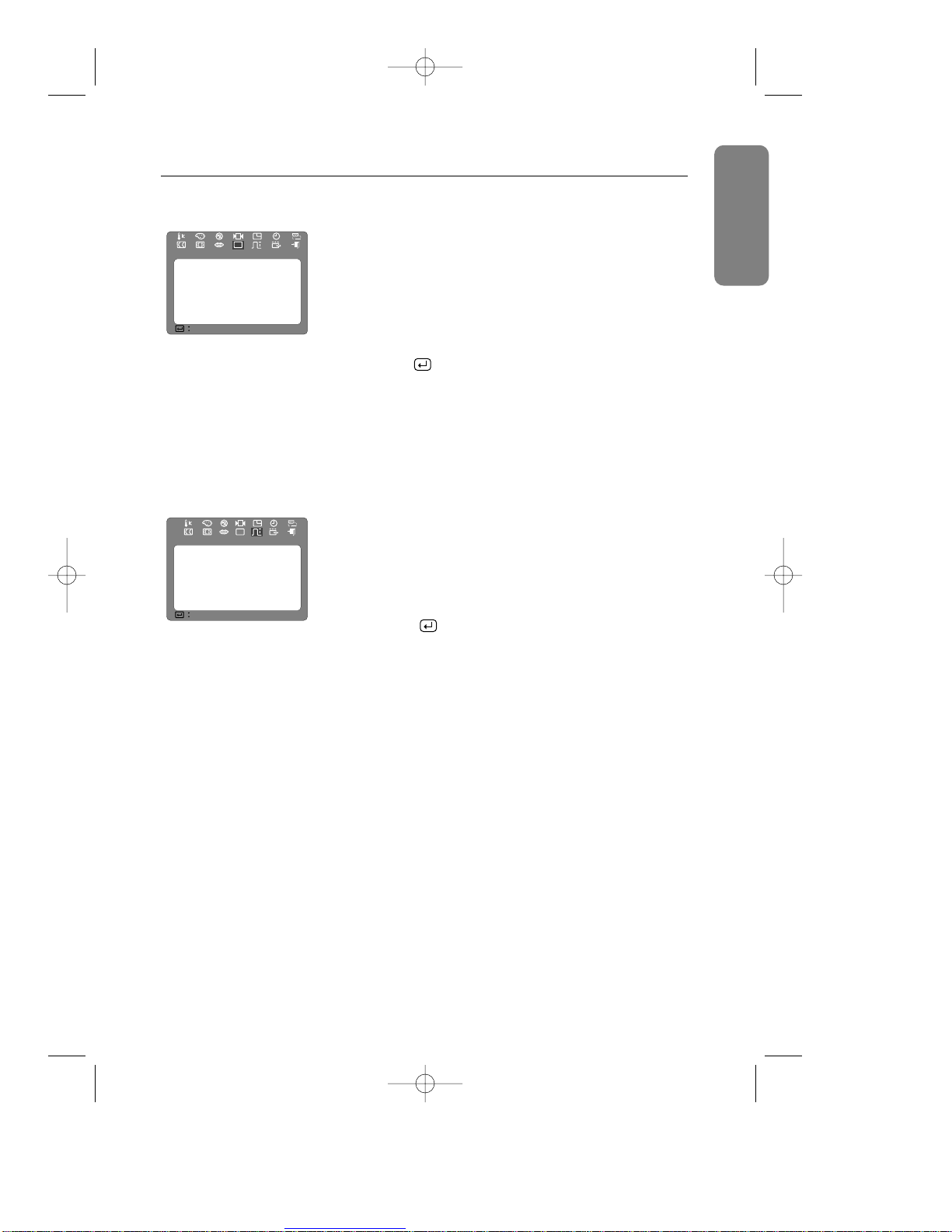

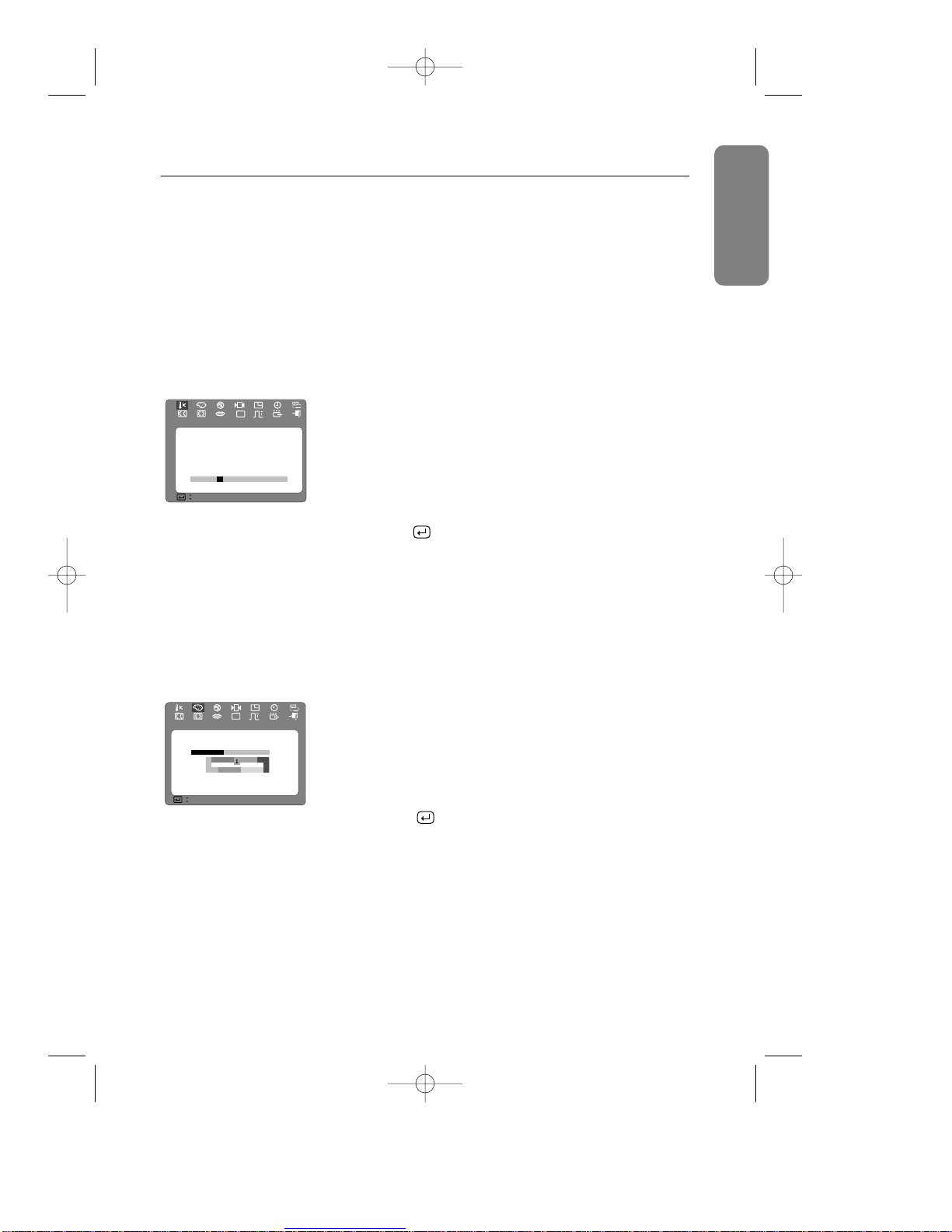

Position
Follow these instructions to change the position of the
monitor’s entire display.
1With the menu off, push the button. The position display will appear.
2Use the ▲and ▼buttons to change the vertical position of the monitor’s entire display; use the $
and %buttons to change the horizontal position of
the monitor’s entire display.
Size
Follow these instructions to change the size of the monitor’s
entire display.
1With the menu off, push the button twice. The size display will appear.
2Push the ▲or ▼buttons to change the vertical size of the monitor’s display; push the $or %buttons to
change the horizontal size of the monitor’s display.
Position
▼
▲
▲
▲
54
62
Size
54
66
SE-900IFT-E 4/29/92 5:23 PM Page 7

Great user manuals database on UserManuals.info
8
Chapter Three: Adjusting Your Monitor
Pincushion/Trapezoid
Adjust the pincushion setting when the sides of the display
are bowed in or bowed out; adjust the trapezoid setting
when the top or bottom of the display is too large or too
small.
1With the menu off, push the button. The pincushion/trapezoid screen will appear.
2Use the $button or %button to adjust the pincushion setting; use the ▲button or ▼button to
adjust the trapezoid setting.
Parallel/Rotation
Adjust the parallelogram setting when the display is leaning
left or right; adjust the rotation setting when the entire
display is tilted left or right.
1With the menu off, push the button twice. The parallelogram/rotation screen will appear.
2Use the $button or %button to adjust the parallel setting; use the ▲button or ▼button to adjust the
rotation setting.
Parallel/Rotation
54
62
▼
▲
▲
▲
Pincushion/Trapezoid
54
62
▼
▲
▲
▲
SE-900IFT-E 4/29/92 5:23 PM Page 8

Great user manuals database on UserManuals.info
English English ItalianoFrançais Español Deutsch Português
9
Chapter Three: Adjusting Your Monitor
Menu Features
The following features can all be accessed using your
monitor’s on-screen menu system. Follow the instructions
below to adjust the features.
Once you are finished making adjustments to a feature,
push the MENU button to return to the main Menu, then
push MENU again to turn off the menu.
Color Temperature
Follow these steps to change the color temperature setting.
Color temperature is a measure of the “warmth” of the
image colors.
1With the menu off, push the MENU button. Push the $button or %button until the “Color Temperature”
screen is displayed.
2Push the button to open the color temperature adjustment screen.
3Use the ▲button or ▼button to select the user color or factory color.
4Use the $button or %button to adjust the color temperature.
Color Control
You can change the settings of the saturation and hue of
the monitor’s display.
1With the menu off, push the MENU button. Push the $button or %button until the “Color Control”
screen is displayed.
2Push the button to open the color control adjust screen.
3Use the $button or %button to adjust the saturation setting; use the ▲button or ▼button to adjust the hue.
▲ ▲
▲
▲
Color Temperature
Previous Menu
▲
▲
▲
▲
G
9300
7700K
5000
Hz
User Color
Factory Color
Color Control
Previous Menu
▲
▲
G
Saturation
Hue
R:101 G: 92 B: 106
47
286
Hz
▲
▲
▲ ▲
▲
▲
SE-900IFT-E 4/29/92 5:23 PM Page 9

Great user manuals database on UserManuals.info
10
Degauss
The Degauss feature will remove color impurities caused by
magnetic fields. Do not use the Degauss feature more than
once within a 30-minute period.
1With the menu off, push the MENU button. Push the $button or %button until the “Degauss”
screen is displayed.
2Push the button to execute the degauss function. The degaussing screen will appear.
NOTE: The monitor may buzz momentarily, the image colors
may change and the image will jiggle for a few seconds.
These effects are normal.
3After a few seconds, the degauss main menu will return.
Recall
Use the recall feature to reset these monitor settings to their
original levels: position, size, pincushion, trapezoid,
parallelogram, pinbalance, rotation, and clear moire.
1With the menu off, push the MENU button. Push the $button or %button until the “Recall”
screen is displayed.
2Push the button to open the recall selection screen.
3Push the $button to select “YES”. If you don’t want to reset the monitor, use the %
button to select “NO”.
NOTE: If you have selected “YES”, all settings listed above
will be reset. All other settings will remain the same.
CAUTION: This operation resets all of the data in the user
memory area for the current timing signal.
Chapter Three: Adjusting Your Monitor
▼
▲
Recall
Previous Menu
YES NO
▲
▲
G
Hz
▲
▲
Degauss
Previous Menu
▲
▲
▲
▲
G
Degaussing...
Hz
SE-900IFT-E 4/29/92 5:23 PM Page 10

Great user manuals database on UserManuals.info
11
Menu Position
You can change the position where the menu appears on
your monitor.
1With the menu off, push the MENU button. Push the $button or %button until the “Menu Position” screen
is displayed.
2Push the button to open the menu position adjustment screen.
3Use the ▲, ▼, $or %buttons to place the menu in the position you prefer.
Menu Duration
The menu will automatically turn off if no adjustments are
made for a certain time period. You can set the amount of
time the menu will wait before it turns off.
1With the menu off, push the MENU button. Push the $button or %button until the “Menu
Duration” screen is displayed.
2Push the button to open the menu duration selection screen.
3Use the $or %buttons to select 3, 7, 10, 20, or 50 seconds. 10 seconds is the default value.
D-SUB/BNC
Use this menu to choose between the signal source
connected to the BNC connector input and the signal
source connected to the D-SUB connector input.
1With the menu off, push the MENU button. Push the $button or %button until the “D-SUB/BNC”
screen is displayed.
2Push the button to open the D-SUB/BNC selection screen.
3Use the $button or %button to select “BNC” or “D-SUB”.
NOTE: When you are finished, wait for a few seconds and
the screen will blank then display the image from the
new signal source (Other computer). A cable must
be connected to both inputs to use this function.
Chapter Three: Adjusting Your Monitor
English English ItalianoFrançais Español Deutsch Português
▼
▲
▼
▲
Menu Position
Previous Menu
▲
▲
G
Hz
▲
▲
▼ ▲
Menu Duration
Previous Menu
3 7 10 20 50
(Seconds)
▲
▲
G
Hz
▲
▲
SE-900IFT-E 4/29/92 5:23 PM Page 11

Great user manuals database on UserManuals.info
12
3
Pinbalance
Adjust the pinbalance setting when the sides of the display
are bowed towards the left or right.
1With the menu off, push the MENU button. Push the $button or %button until the “Pinbalance”
screen is displayed.
2Push the button to open the pinbalance adjustment screen.
3Use the $button or %button to adjust the pinbalance setting.
Clear Moire
A “moiré” pattern can appear on your screen, looking like
a series of concentric circles or arcs. To eliminate this
pattern, use the clear moiré adjustments.
1With the menu off, push the MENU button. Push the $button or %button until the “Clear Moire”
screen is displayed.
2Push the button to open the clear moiré adjustment screen.
3Use the ▲,▼, $or %buttons to make adjustments until the moiré effect is cleared.
Languages
Follow these steps to change the language used in the
menu. This adjustment only changes the language of the
monitor’s menu; it does not change the language of any
other software.
1With the menu off, push the MENU button. Push the $button or %button until the “Languages”
screen is displayed.
2Push the button to open the language selection screen.
3Use the ▲button or ▼ button to select the language you would like to use.
Chapter Three: Adjusting Your Monitor
▼
▲
Languages
Previous Menu
English
▲
▲
G
Hz
▲
▲
▼
▲
▼ ▲
Clear Moire
Previous Menu
0
0
▲
▲
G
Hz
▲
▲
▼
▲
Pinbalance
Previous Menu
53
▲
▲
G
Hz
▲
▲
SE-900IFT-E 4/29/92 5:23 PM Page 12

Great user manuals database on UserManuals.info
English English ItalianoFrançais Español Deutsch Português
13
Display Timing
This screen displays the settings that are available to your
monitor. This screen only displays this information;
you cannot select a new setting.
1With the menu off, push the MENU button. Push the $ button or %button until the “Display Timing” screen
is displayed.
2Push the button to display the factory timing screen.
3Use the ▲button or ▼ button to display the user and factory timings.
Video Input Level
This feature will select the video signal level.
1With the menu off, push the MENU button. Push the $button or %button until the “Video Input
Level” screen is displayed.
2Push the button to open the video input level selection screen.
3Use the $or %buttons to select 0.7 V or 1.0 V.
NOTE: Some video cards use video signals higher than 1.0 V
which causes the display to be very bright.
For those video cards, select 1.0 V.
.
Chapter Three: Adjusting Your Monitor
▼
▲
Factory Timing
Previous Menu
31k/ 70 720x 400
31k/ 60 640x 480
43k/ 85 640x 480
54k/ 85 800x 600
68k/ 85 1024x 768
▲
▲
G
Hz
▲
▲
▼
▲
Video Input Level
Previous Menu
0.7V 1.0V
▲
▲
G
Hz
▲
▲
SE-900IFT-E 4/29/92 5:23 PM Page 13

Great user manuals database on UserManuals.info
14
3
Chapter Three: Adjusting Your Monitor
Sync. Input Type
Use this menu to set your monitor to the correct type of
synchronization. Select “Separate” if the computer is
sending a separate synchronization signal.
Select “Sync. On Green” if the computer expects the
monitor to synchronize with the green signal it sends.
Refer to your computer or video card user’s manual to
determine the correct setting.
1With the menu off, push the MENU button. Push the $button or %button until the “Sync. Input Type”
screen is displayed.
2Push the button to open the sync input type selection screen.
3Use the ▲button or ▼button to select “Separate” or “Sync. On Green”.
Exit
Once you are finished making adjustments to a feature, use
this menu to turn off the on-screen menu system.
1Once you are finished making adjustments to a feature, push the MENU button.
2Push the $button or %button until the “Exit” screen is displayed.
3Push the MENU button to turn off the menu.
NOTE: An alternative method is to repeatedly push
the button until the on-screen menu disappears.
Exit
Exit
Exit
▲
▲
G
Hz
▲
▲
▼
▲
Sync. Input Type
Previous Menu
Separate
Sync. on Green
▲
▲
G
Hz
▲
▲
SE-900IFT-E 4/29/92 5:23 PM Page 14

Great user manuals database on UserManuals.info
15
Chapter Three: Adjusting Your Monitor
English English ItalianoFrançais Español Deutsch Português
PowerSaver
This monitor has a built-in power management system
called PowerSaver. This system saves energy by switching
your monitor into a low-power mode when it has not been
used for a certain amount of time. The available modes are
“On,” “Standby,” “Suspend,” and “Off”.
This system operates with a VESA DPMS compliant video
card installed in your computer. You use a software utility
installed on your computer to set up this feature. See the
table below for details.
Power Saving function mode EPA/NUTEK
State Normal Standby mode Suspend mode / Power-off Mode /
Operation Position A1 Position A2
Horizontal Sync Active Inactive Active Inactive
Vertical Sync Active Active Inactive Inactive
Video Active Blanked Blanked Blanked
Power Green Amber Amber/Green Amber
Indicator Blinking Blinking
Power 130 W (Max.) 65 W (Nominal) Less than 15 W Less than 5 W
Consumption 110 W (Nominal)
NOTE: This monitor automatically returns to normal
operation when horizontal and vertical sync return.
This occurs when you move the computer's mouse
or press a key on the keyboard.
This monitor is EPA ENERGY STAR®compliant and NUTEK
compliant when used with a computer equipped with VESA
DPMS functionality.
For energy conservation, turn your monitor OFF when it is
not needed, or when leaving it unattended for long periods.
SE-900IFT-E 4/29/92 5:23 PM Page 15

Great user manuals database on UserManuals.info
16
3
Chapter Three: Adjusting Your Monitor
Troubleshooting
Before calling for service, check the information in this
section to see if you can remedy any problems yourself.
If you do need assistance, please call the phone number
on the warranty card, the phone number on the back cover
of this manual, or contact your dealer.
There is no screen image
• Check to see that both the monitor and the computer
are plugged in and turned on.
“No Connection, Check Signal Cable”
appears
• Check the signal cable connections between the
computer and the monitor.
“Sync. Out of Range” appears
• Check the maximum resolution and the frequency
on the video port of your computer.
• Compare these values with the data in the Display
Modes Timing chart, page 19.
The image is too light or too dark
• Adjust the Brightness or Contrast settings.
The image is too large or too small
• Adjust the Size settings.
The colors are distorted with dark or
shadowed areas
• Activate the Degauss feature.
The power indicator is amber,
amber/green, or blinking
• The monitor is using its power management system.
Check the power management utility on your computer.
You need the monitor driver software
• You can download the driver from the internet at
http: //www. samsungelectronics. com .
SE-900IFT-E 4/29/92 5:23 PM Page 16

Great user manuals database on UserManuals.info
17
Appendix
English English ItalianoFrançais Español Deutsch Português
Specifications
Picture Tube • 19" (48 cm) Full square type [18" (45.8 cm) Viewable]
• Flat face, 90˚ Deflection
• Dot pitch: 0.20 (Horizontal)/0.24 (Diagonal)
• Anti-reflection coating with anti-electrostatic properties
• Medium-short persistence phosphor
Synchronization • Horizontal: 30 kHz to 96 kHz (Automatic)
• Vertical: 50 Hz to 160 Hz (Automatic)
Display Color • Unlimited colors
Maximum Resolution • Horizontal: 1600 Dots
• Vertical: 1200 Lines
Active Display • Horizontal: 13.85" ± 0.12" (352 ± 3 mm) (4:3)
12.99" ± 0.12" (330 ± 3 mm) (5:4)
• Vertical: 10.39" ± 0.12" (264 ± 3 mm)
(Active display size is dependent upon signal timing)
Input Signal,Terminated • Video signal: Analog 0.7 Vpp positive at 75 Ω
• Separate sync: TTL Level, positive or negative
• Composite sync: TTL Level, positive or negative
• Sync-on-Green: Composite sync 0.3 Vpp negative
(Video 0.7 Vpp positive)
Maximum Pixel Clock • 205 MHz
Power Supply • AC 100-240 Volt ± 10%, 60 Hz/50 Hz ± 3 Hz
Power Consumption • 130 Watt maximum
Dimensions/Weight • Unit:
18.4 x 19.4 x 19.0 in; 53.8 lbs (468.0 x 492.0 x 483.2 mm; 24.4 kg)
(W x D x H) • Carton: 22.6 x 25.8 x 22.8 in; 62.8 lbs (573.0 x 656.0 x 580.0 mm; 28.5 kg)
(All measurements are approximate.)
Environmental Considerations
• Operating Temperature: 32˚F to 104˚F (0˚C to 40˚C)
Humidity: 10% to 80%
• Storage Temperature: -4˚F to 113˚F (-20˚C to 45˚C)
Humidity: 5% to 95%
SE-900IFT-E 4/29/92 5:23 PM Page 17

Great user manuals database on UserManuals.info
18
3
Appendix
678X10
11 12 13 14 15
12345
9 10 11 12 13 14 15
1 2 3 4 5 6 7 8
Figure 1: Male Type Figure 2: Male Type
Sync 15-Pin Side of the Signal Cable Cable Adapter
Type (Figure 1) (Figure 2)
Separate Composite Sync on Apple
Pin No. Green MAC II
1 Red Red Red GND-R
2 Green Green Green+Sync Red
3 Blue Blue Blue H/V Sync
4 GND GND GND Sense 0
5 DDC Return DDC Return DDC Return Green
6 GND-R GND-R GND-R GND-G
7 GND-G GND-G GND-G Sense 1
8 GND-B GND-B GND-B Reserved
9 Reserved Reserved Reserved Blue
10 GND-Sync/Self-Raster GND-Sync/Self-Raster GND-Sync/Self-Raster Sense 2
11 GND GND GND GND
12 DDC Data DDC Data DDC Data V-Sync
13 H-Sync H/V-Sync Not Used GND-B
14 V-Sync Not Used Not Used GND
15 DDC Clock DDC Clock DDC Clock H-Sync
Pin Assignments
D-SUB Connectors
SE-900IFT-E 4/29/92 5:23 PM Page 18
