Samsung WA86C User manual

- 1 -
Contents
Contents
Interactive Display
User Manual
WA65C WA75C WA86C
© Samsung
Samsung owns the copyright for this manual. Use or reproduction of this manual in
parts or entirety without the authorization of Samsung is prohibited. Trademarks other
than Samsung are property of their respective owners.
The color and the appearance may differ depending on the product, and the content
in the manual is subject to change without prior notice to improve the performance.
Recommended hours of use per day of this product is under 16 hours. If the product
is used for longer than 16 hours a day, the warranty may be void.

- 2 -
I. Introduction
1. Product Information
1.1 Connectivity
1.2 Hardware Specification
1.3 Product Layout
2. Product Installation
3. Wall mount kit specifications (VESA)
4. Remote Control
5. Key SW Features
II. Android OS and S/W Guide
1. Getting Started (OOBE)
2. Home Screen and Widget
2.1 Widgets
2.2 System bar
3. User Account
3.1 User Log-in
3.2 User profile
3.3 Account authorize
3.4 Data Backup to Cloud Drive
3.5 Account Management Server
4. Default Apps
4.1 Note
4.2 Palette
4.3 Visualizer
4.4 Screen Share
4.5 Finder
4.6 Cloud Drive
4.7 Photo
4.8 Music
4.9 Video
5. More tools
5.1 Tool list
5.2 Tools Customize
5.3 OSD Menu
6. System Settings
6.1 Wireless & Network
6.2 Personal
6.3 Input & Output
6.4 Application
6.5 System
6.6 Administrator
6.7 About
III. Reference
1. F&Q
2. Supported Video Codec

- 3 -
I. Introduction
SAMSUNG Interactive Display that provides an engaging educational experience for
the classroom of the future. As an Android OS-based product, it offers a familiar and
intuitive user experience for teachers and students. Teachers can engage students and
boost learning thanks to the display’s excellent compatibility with Android devices and
intelligent apps that can be added to the custom home screen bar for convenience.
Content can be shared back and forth between the large display and individual Android
devices for an interactive lesson that ensures every student is included.
1. Product Information
1.1 Connectivity
Part
Description
Speaker
Speaker output (12W x 2)
The pen is magnetic. Keep it by attaching to the marked location.
Power button &
indicator
Press the button to turn on the product and press and hold the button to turn
off the product.
The power indicator is off when the product is on.
The power indicator is on when the product is off.
Power
Indicator
Light sensor
Speaker

- 4 -
In writing mode, shortly press the Power button to switch to the screen saver
mode.
In case the PIP screen is in Full Screen mode, press the Power button to display
the adjustment menu. Press again to hide.
Light sensor
The light sensor is used to detect ambient light for the Brightness Optimization
function.
• You can turn on or off the Brightness Optimization function at
[Menu]→[Settings]→[System]→[Advanced Settings]→[Brightness Optimization]
You can connect a device using a USB-C cable.
• USB-C connection allows video output and touch-based control of the device.
You must use a USB-C cable that supports video transmission. Use a cable
that supports DP ALT Mode (Video transmission).
Use a USB-C cable that is 1 m or shorter in length.
Charging is also supported up to 65 W. Charging with USB-C cable is only
available when the product is on.
An HDMI port for displaying input from an external source.
Allows touch-based control of the PC screen connected through the HDMI port.
Use the supplied USB cable to connect between the TOUCH port on the rear of
the product and the PC.
Connect to a USB memory device.
The USB ports on the product accept a maximum constant current of 1.0 A. If
the maximum value is exceeded, USB ports may not work.
Serial interface, used for mutual transfer of data between devices.
Connects to a network using a LAN cable. (1000 Mbps)
Below port: Connect RJ45 output terminal
Above port: Connect RJ45 input terminal
Allows touch-based control of the PC screen connected through the HDMI port.
Use the supplied USB cable to connect between the TOUCH port on the rear of
the product and the PC.
Connects to a source device using a HDMI cable.
Connects to a source device using a HDMI cable.
Connects to a sink device using a HDMI cable.
Used for updating OS Firmware
Carry multichannel sound via optical signals.
Audio output to the external speaker.
Microphone audio input.
VGA input port.
1.2 Hardware Specification
Item
WA65C
WA75C
WA86C
Panel
Diagonal Size
65"
75"
86”
Type
Direct, 60Hz

- 5 -
Resolution
3,840 x 2,160 (Landscape)
Brightness(Typ.)
400cd/m2
Contrast Ratio(Typ.)
1,200:1
Viewing Angle(H/V)
178:178
Response Time(G-to-G)
8ms
Feature
Orientation
Landscape
Internal
Player
(Embedded
H/W)
Processor
A55 X 4
RAM
4GB
8GB
Storage
32GB
64GB
Operating
System
Android 11 (AOSP)
Sound
Speaker Type
Built-in Speaker (12W X 2CH)
Connectivity
INPUT
RGB
1
VIDEO
HDMI 3(Rear 2, Front 1), USB C(Front), OPS
AUDIO
1(Stereo Mini Jack)
USB
5 (2.0 X1, 3.0X4)
OUTPUT
VIDEO
HDMI Out (Rear)
AUDIO
1(Stereo Mini Jack)
Touch Out
Front 1, Rear 1
INTERNAL
SENSOR
Eco Sensor
EXTERNAL
CONTROL
RS232C In/Out, RJ45 In/Out
BT/WiFi
Yes (Keyboard/Mouse)
Touch
Type
IR
# of Touch
40 points
Touch Pen Type
Passive Pen
Object Recognition Range
5mm/10mm/15mm
Touch Response Time
≤10ms
Drawing Speed
(Touch latency)
≤45ms
Haze
25%
Thickness
3.2T
Power
Type
Internal
Power Supply
AC100-240V 50/60Hz
Power
Consumption
[W/h]
Max
385W
385W
Typical
200W
200W
Rating
350W
400W
Stand-by
0.5
0.5
BTU
1313
1313
Mechanical
Dimension
(WxHxD)
Set (mm)
1488×897×88
1709×1020×88
Package
1628×1024×208
1863×1140×225
Weight (kg)
Set
33.9kg
45.5kg
Package
42.9kg
57.6kg
Color
Space Gray
VESA Mount
600 X 400
800 X 400
800 X 600
Protection Glass
Yes
Stand Type
Wall Mount
Media Player Option Type
OPS Slot support
Rotation
Landscape only
Power Cable Length
3m
Accessory
Accessory
Powe Cord, Remote Controller, HDMI Cable, Touch
Pen(2ea, Black), USB Cable, Warranty/QSG
Operation
Operation Hour
16/7
Operating Temperature
0℃~40℃
TBU

- 6 -
Humidity
10~80%
Security
802.1x(WPA2 Enterprise)
: EAP-TLS, EAP-TTLS, EAP-PEAP
1.3 Product Layout

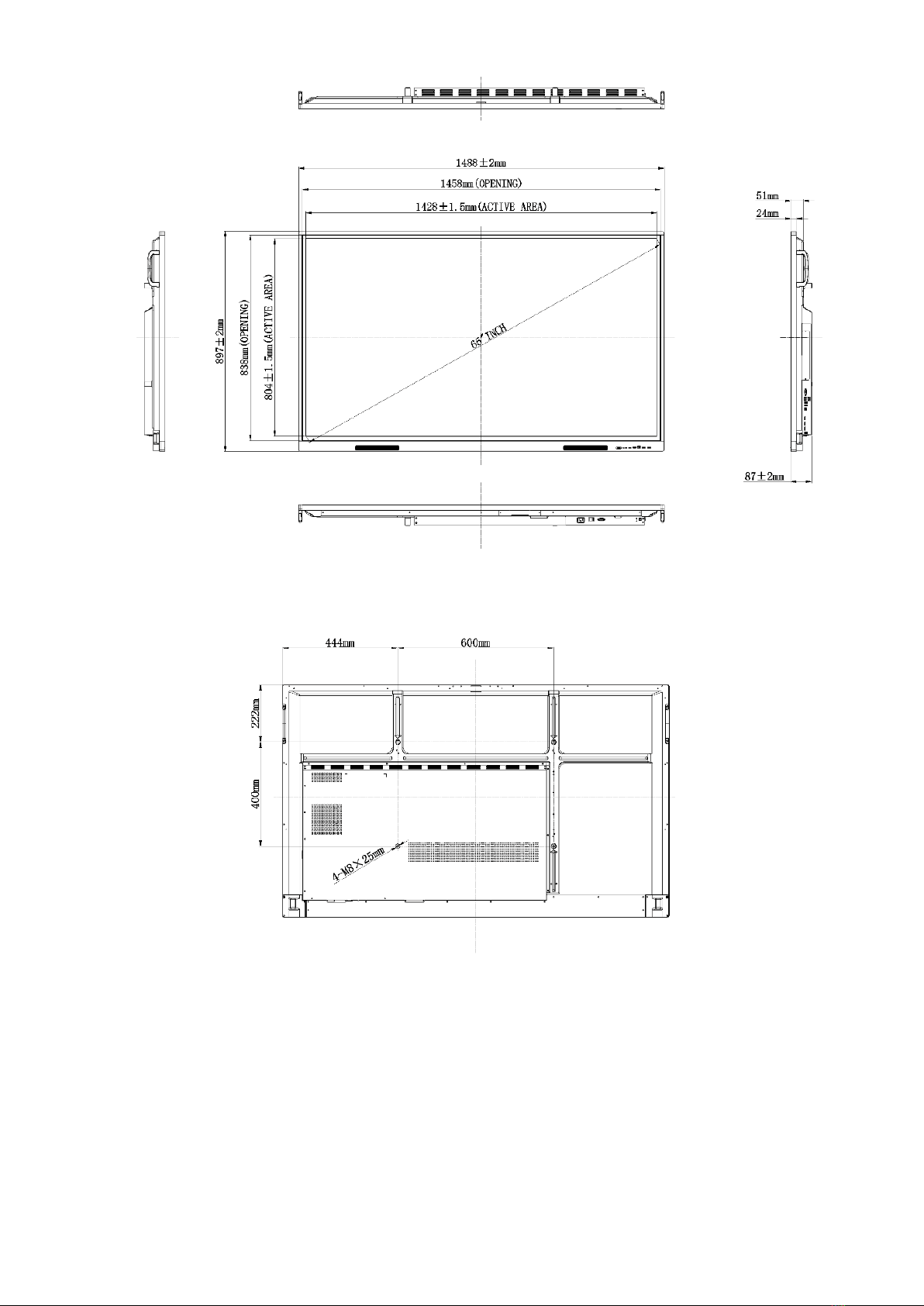

1.3.1 Mechanical layout : WA65C
1.3.1.1 Front, Top, Left & Right

- 7 -
1.3.1.2 Rear

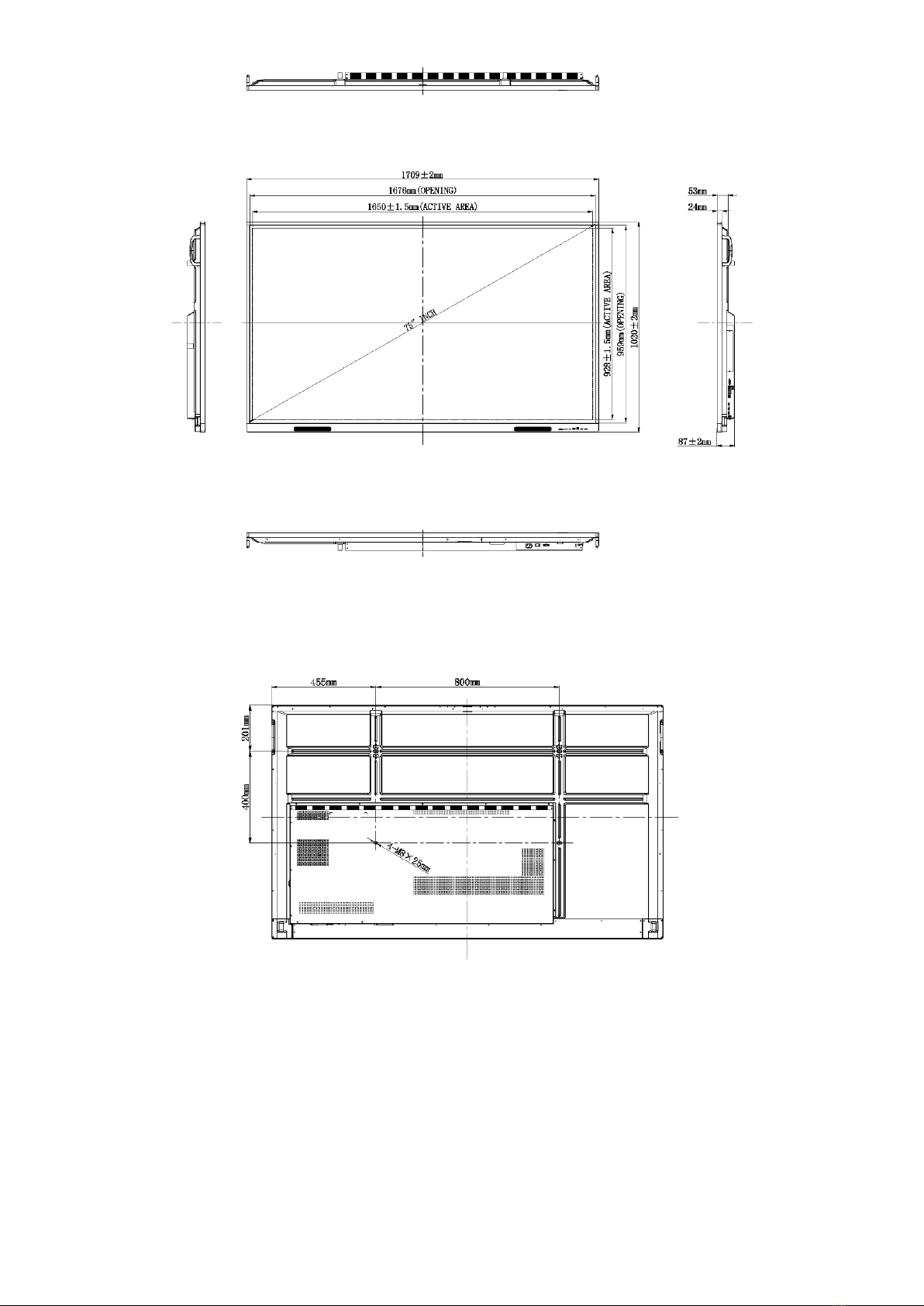

1.3.2 Mechanical layout : WA75C
1.3.2.1 Front, Top, Left & Right

- 8 -
1.3.2.2 Rear

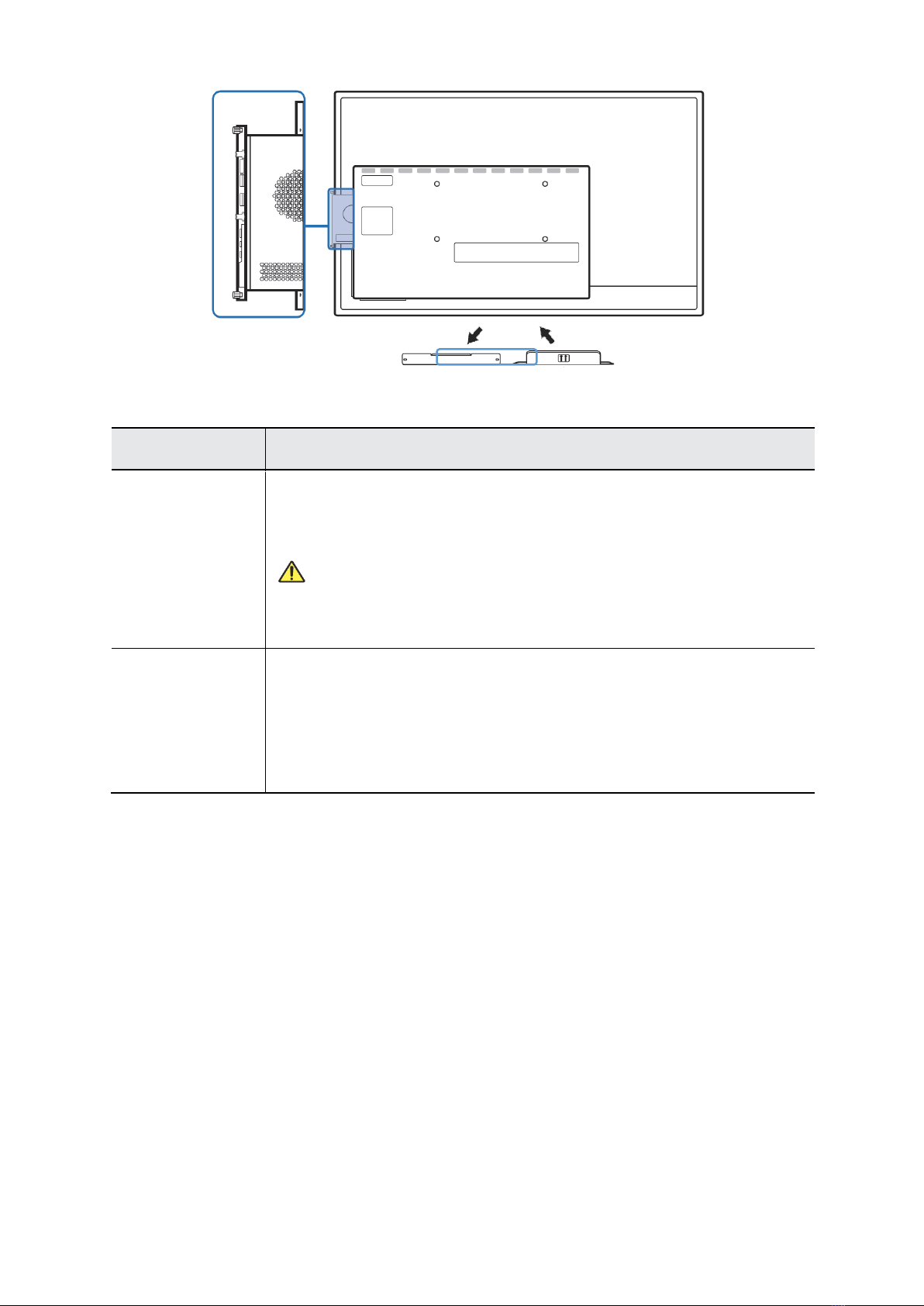

2. Product Installation

- 9 -
Part
Description
OPS Slot
It provides an OPS slot to allow a customer to mount a device for
additional computing (windows, android, etc.) if desired. OPS
module is a separate sale.
Be sure that the device must be powered off before you plug-in
OPS module
OPS stands for Open Pluggable Specification.
OPS cover needs to be removed before installing.
OPS power supply: 16V/4.5 A
Wi-Fi Slot&Module
(SI07B)
The Wi-Fi module only works when it is properly inserted into the
designated slot in the product.
Step ①: Remove Wi-Fi slot’s cover.
Step ②: Fully insert the Wi-Fi module into the slot.
Warning: The device must be powered off while installing.
3. Wall mount kit specifications (VESA)
Samsung wall mount kits contain a detailed installation manual and all parts
necessary for assembly are provided.
Do not use screws that are longer than the standard length or do not comply with the
VESA standard screw specifications.
Screws that are too long may cause damage to the inside of the product. For wall
mounts that do not comply with the VESA standard screw specifications, the length of the
screws may differ depending on the wall mount specifications.
Do not fasten the screws too firmly. This may damage the product or cause the product
to fall, leading to personal injury.
①
②
OP
Wi-Fi

- 10 -
Samsung is not liable for these kinds of accidents. Samsung is not liable for product
damage or personal injury when a non-VESA or non-specified wall mount is used or the
consumer fails to follow the product installation instructions.
Always have at least two people mount the product on a wall. Standard dimensions
for wall mount kits are shown in the table below.
Model
VESA screw hole specs (AxB) in
millimeters
C (mm)
Standard
screw
Qty.
WA65C
600 x 400
28.3 - 30.3
M8
4
WA75C
800 x 400
28.3 - 30.3
WA86C
800 x 600
28.3 - 30.3
Do not install your Wall Mount Kit while your product is turned on. It may result
in personal injury due to electric shock.
Install your wall mount on a solid wall perpendicular to the floor. To install the
product on the other wall area, contact the nearest agency. If you install the
product on a slanted wall, it may fall and result in severe personal injury.

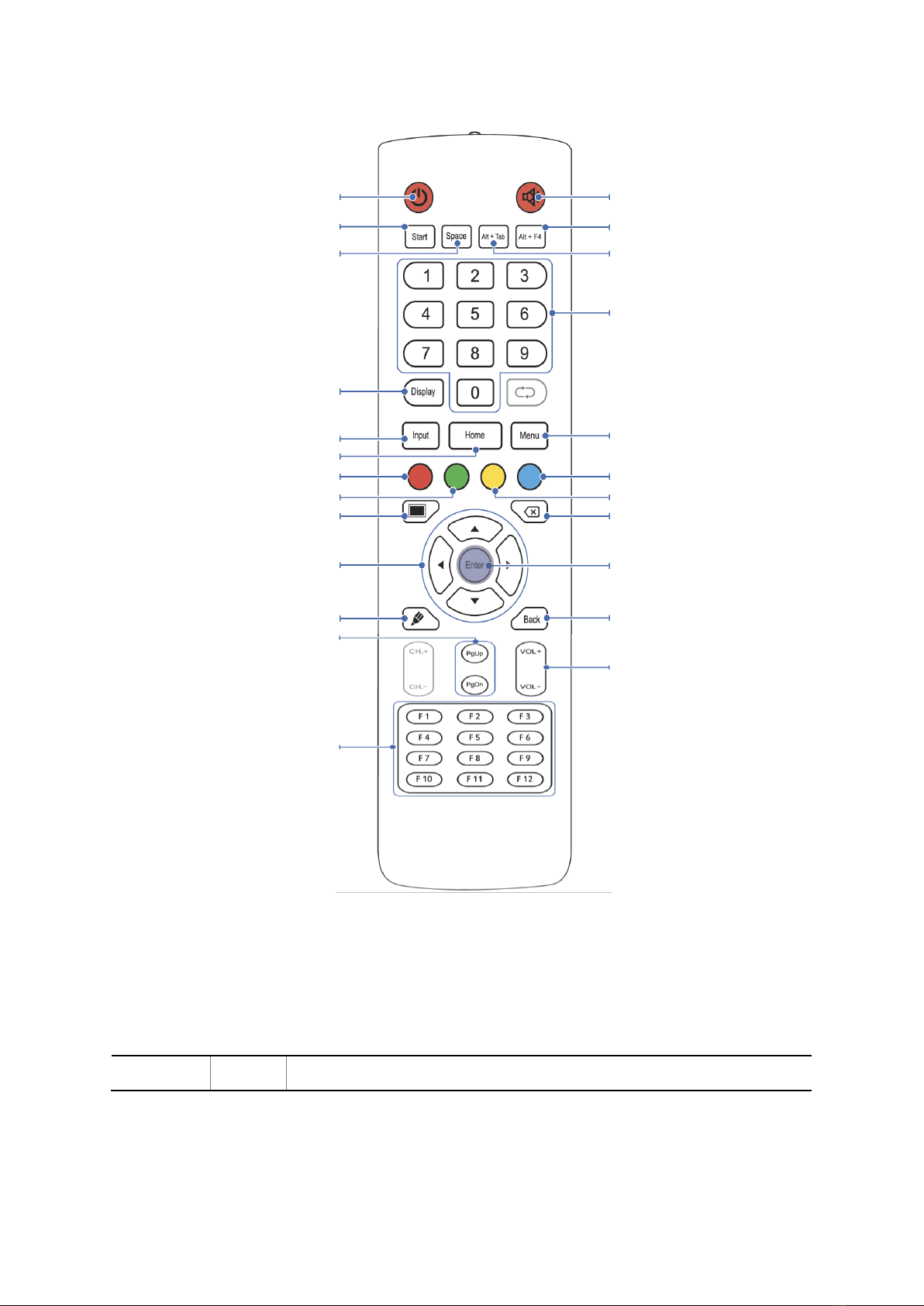

4. Remote Control
If there is other display device used in the same space as the remote control of this
product, the different display device may be unintentionally controlled.
Buttons that are not described in the image below are not supported by the product.

- 11 -
The remote control button function may vary depending on the product.
5. Key S/W Features
Name
Icon
Description
Power On/Off
Same as [Windows] button
Same as [Space bar]
Displaying Channel
Input Source
[Home] key for Android
[Menu] key
Panel On/Off
Up/Down/Left/Right
Open [Note] app
[Back] key
Enter key
Back space
[Freeze] key
[Numeric] key
[Alt+F4] to terminate Window
Mute
[Alt+Tab] to manage
Window
[Touch Lock] key
Lock Power button
[Touch Lock] & Lock Power
button
Page Up/Down
[Volume] key
Windows function key

- 12 -
User
account
Note
Basic whiteboard application with 20-points writing, dual pen and variety of tools
- Export/Import files from local storage, external storage device
(e.g. USB memory driver) and cloud storage services.
- Handwriting recognition feature transforms handwriting to texts of designed
fonts. When converted, texts can be utilize for search through embedded web
browser.
- Useful Tools like Rulers / Shapes / Sticky Notes are available.
Palette
Drawing application with many art various art tools.
Finder
Able to view files in local storage / USB / personal cloud
Browser
Web browser based on chromium web engine
Currently, Chromium version 110 and subject to update when new version is
available.
Screen
Share
Bi-direction Screen Share app to (1) to display up to 9 devices' screen on the
interactive display or (2) to broadcast its screen to connected devices (99+).
Apps available for Windows, Android, MacOS, iOS, and Chrome OS.
Visualizer
With webcam connected, Visualizer can be used to capture documents or objects
to show on large display.
WPS Office
Document viewer supporting various document types (PPT,Doc,PDF, etc).
Settings
Device Setting Menu
Menu
Able to switch between input sources, including PC, Android, HDMI, VGA
Timer/
Stopwatch
Basic Timer & Stopwatch
Calculator
Calculator application
Airclass
Interactive application between the display and connected devices for voting, hand
raising, student selection, and messaging.
Spotlight
Spotlight feature to highlight specific area of the screen.
Record
Screen recorder to record, save, and share activity on the screen.
Mark
Crop
Freeze
Mark –Annotate on top of the captured screen
Crop –insert captured screen to whiteboard
Freeze –Freezing screen and able to zoom in/out.
Screenlock
Able to quickly lock the screen. To unlock, need to enter the password which is set
through setting menu
Guided
Provides touch lock / class mode. It prohibits exiting the app
II. Android OS and SW Guide
1. Getting Started

- 13 -
When device is powered on for the first time, basic settings including Language,
Region, Network, Date & Time, Device Name are required. Users also need to agree on
Privacy & Terms in order to use the device.

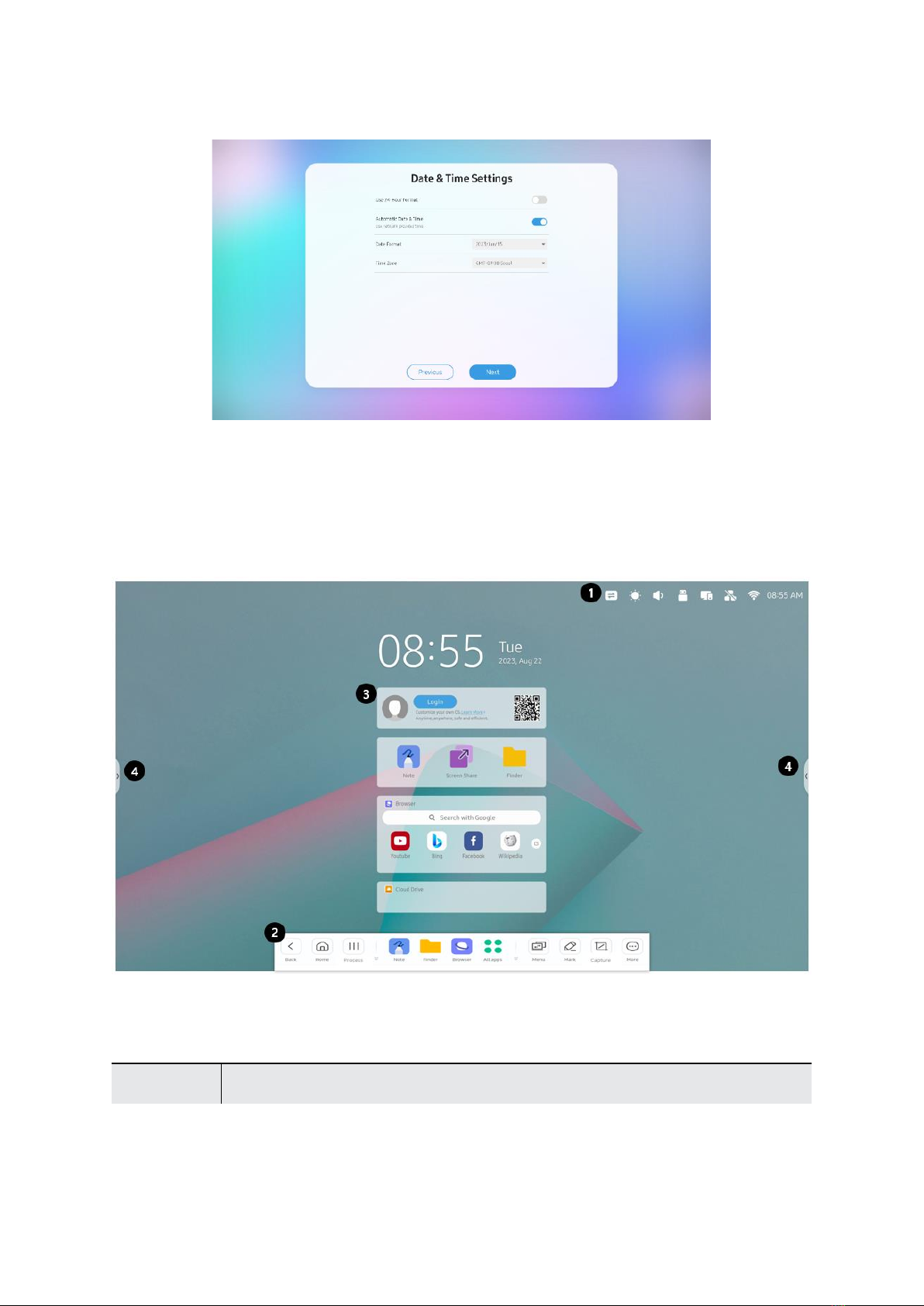

2. Home Screen and Widget
This is the Home screen that appears when the display is initiated, which provides
access to the features and settings of the display.
Item
Description
④

- 14 -
①Status Bar
Displays the status of the device as shown below.
OSD Menu
Access to source settings to change input source, display
and audio adjustments.
Brightness
Adjust system display brightness levels.
Volume
Adjust system volume levels.
USB
Direct access to the USB memory in the file manager.
Hotspot
Direct access to hotspot settings page
Lan
Direct access to wired network settings page
Wifi
Direct access to wireless network settings page
②Widgets
It provides easy access to user login, major apps, websites, and cloud storage
from the home screen.
User Login
The User Login function enables personal workspace,
automatic Cloud drive login, and personalized setting.
App Center
Provides access to basic applications such as [Note], [Screen
share], and [Finder].
Browser
Bookmarked websites are listed for easy access.
Cloud Drive
By linking a personal cloud drive (Google Drive, One Drive)
account, stored data can be easily accessed.
One Key
Operation
Able to clean account linkage, browser connection history,
etc. at once when device use is terminated.
③④System
Bar
Provides operation for running functions such as [Home], [Back], [Process], and
access to Apps and various tools.
Navigation Bar
[Back]: Return to the previous interface
[Home] : Go to Home Screen
[Process] : Show all running apps in
background
Application
Center
Provides access to all available app on the display.
Tools
Provides access to all tools available.
2.1 Widgets
2.1.1 User Account Widget
The User Login widget is displayed at the top of the main homepage widget. Click the
[Login] button or [QR Code] to go to the User login page. In addition, if you take a

- 15 -
[QR code] using a smartphone camera, you will be given the option to log in with
your smartphone.
【Widget before log-in】
After logging in, the login widget on the personalized home screen is changed to be
shown below, and the personal profile photo, User ID, [Lock], and [Logout] buttons
are provided.
【Widget after log-in】
2.1.2 App center Widget
It provides basic application execution window widgets so that [Note], [Screen share],
and [Finder] apps that are mainly used can be easily accessed from Home Screen.
.
2.1.3 Browser Widget
Provides a browser widget that allows you to easily enter a custom website bookmark
from a home screen. A bookmark may be set by clicking icon while browsing the
website.
Up to 4 of Bookmark URLs in the Browser widget may be displayed and arranged
according to the order of Bookmark URLs added in Bookmark editing mode.
2.1.4 Cloud Drive
It is a widget that allows easy entry of stored data by linking a personal cloud drive
(Google Drive, One Drive) account.

- 16 -
2.1.5 One Key Operation Widget
It automatically deletes program access records and account linkage records when
the device is terminated, or provides a function that makes it easy to change the
source to OPS and terminate the device in the form of a home screen widget.
The default settings are hidden on the home screen.
Item
Description
Privacy Clear
Delete program access history, account linkage history, etc.
Switch PC
Change source to OPS device
Shutdown
Device Power off
2.2 System bar
It provides operation for running functions such as [Home], [Back], [Process], etc.,
and access to Apps and various tools. Click the button on the left or right side of
the Home Screen or scroll up the bottom to retrieve it.
2.2.1 Navigation buttons
Through the [Home], [Back] button, you can move to the Home Screen or return to the
previous screen. When clicking [Process], it provides process management functions s
uch as running app list, movement, and termination, and multi-
app placement functions.

- 17 -
When you click icon in the Process window, you can place the dual app screen
as shown.
2.2.2 Apps buttons
Provides execution and management functions for the entire app list.
Item
Description
①Default
Shortcut
Note, Finder, Browsers are displayed as default
②All apps
By clicking all apps, users can see all the installed applications
Default Apps included: [Browser],[Cloud Drive],[Finder], [Note],
[Keeper[,[Palette],[PIP],[Settings[,[Visualizer],[WPS Office], etc.
Apps additionally installed by users are also displayed as icons
here and can be opened.
③Customizing
Apps icon
Through the steps below, frequently used apps can be placed in the
system bar.
Step1: Open [All apps], press and hold the required app icon.
Step2: Drag and place the App shortcut icon to the desired location
Up to 3 app shortcuts can be placed in the system bar.

- 18 -
Apps running in the background are marked by the name of the app in Bold.

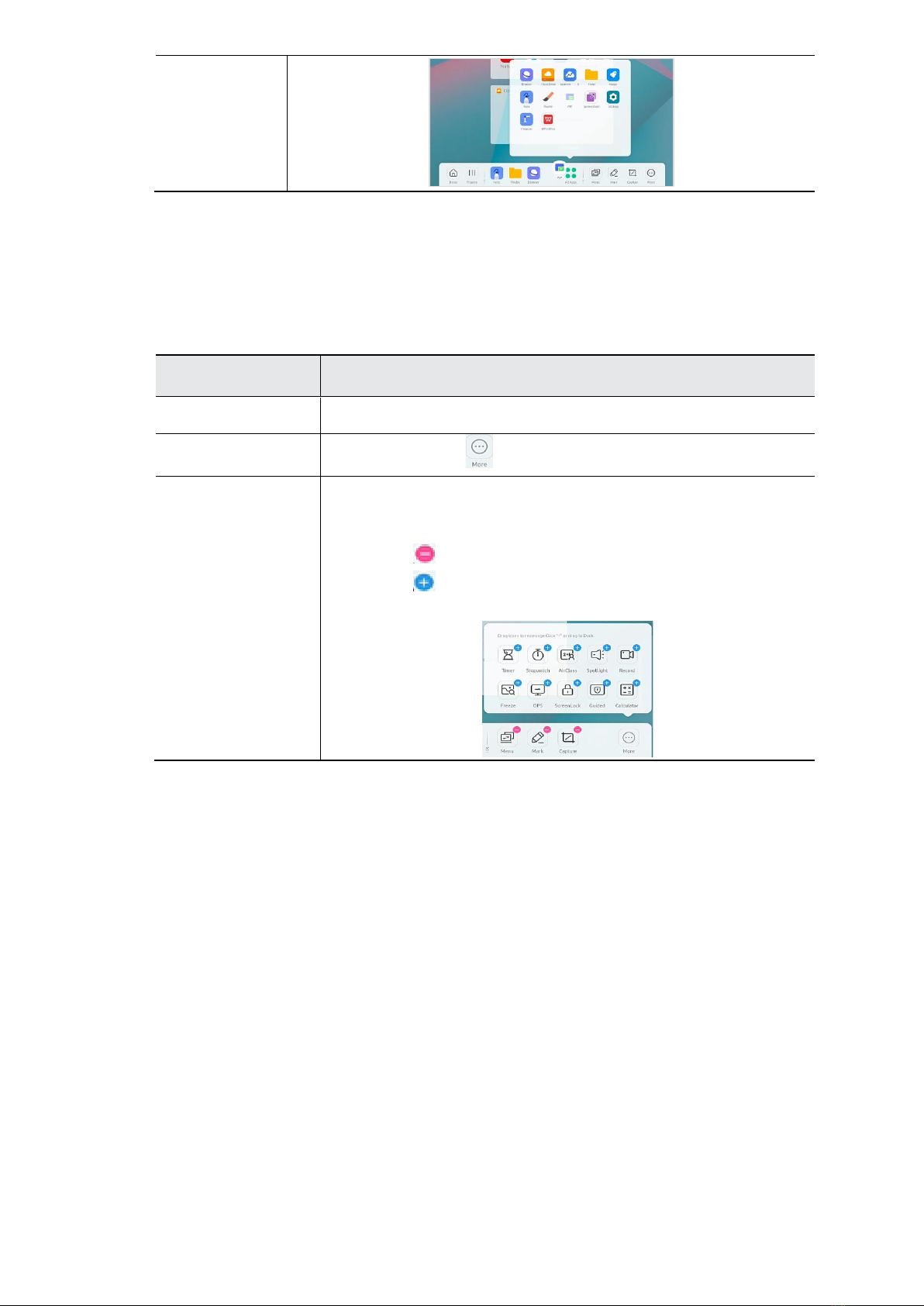

2.2.3 Useful tools
For the convenience of using the product, various and useful tools can be provided, and
shortcut icons can be placed in the system bar for easy accessibility.
Item
Description
①Default Shortcut
Menu, Mark, Capture are displayed as default
②All apps
By clicking [More] , users can see all the tools provided.
③Replace Shortcut
The frequently used tool can be placed in the system bar through the
procedure below.
Step 1: Long press any tool icon to enter into editing state
Step 2: Click to remove the display in System bar
Step 3: Click to add the display in System bar

Up to 4 tools can be placed.
3. User Account

- 19 -

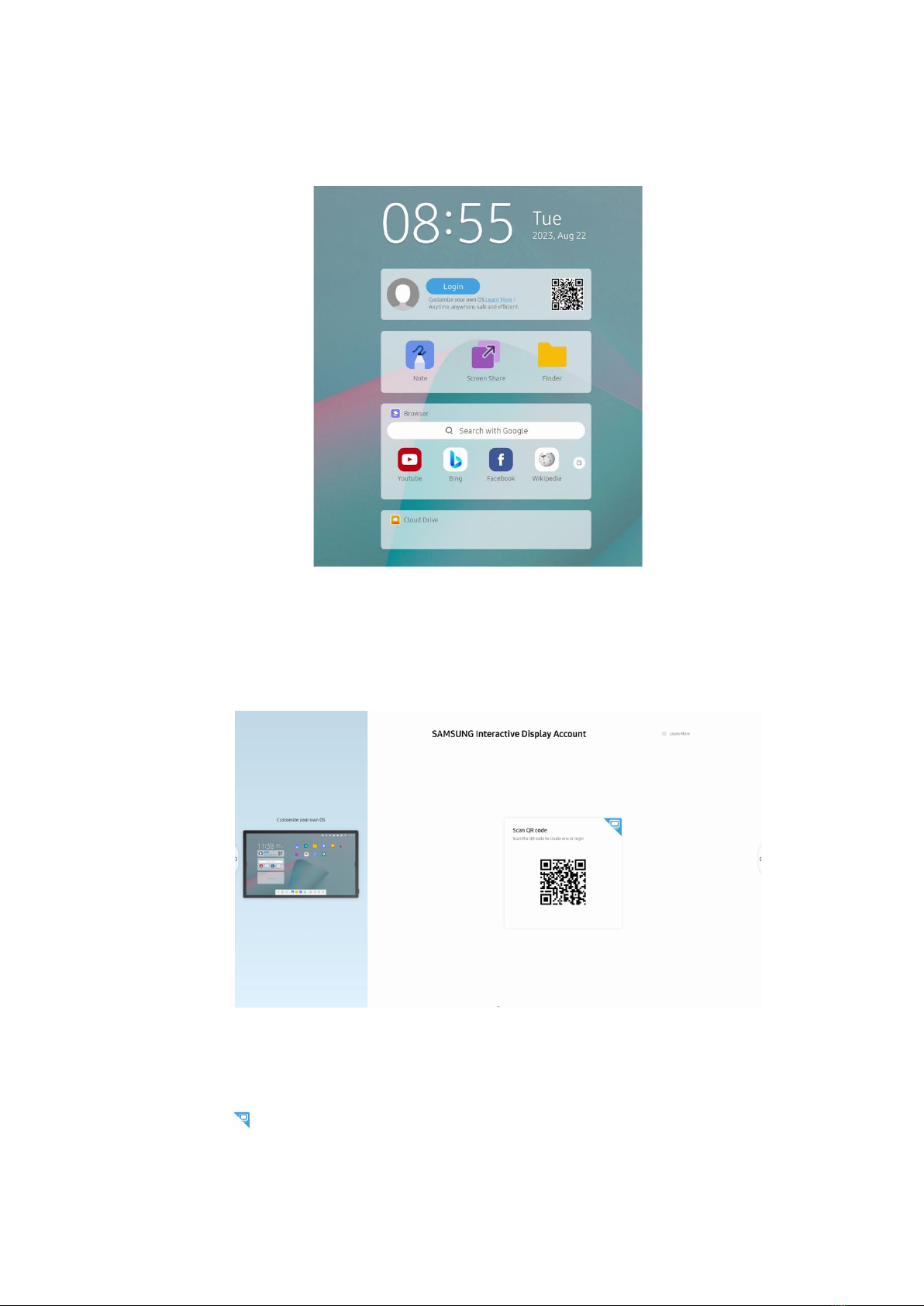

3.1 User Log-in
In the log-in widget on the main [Home Screen], click the [Login] button or click
the [QR code] to go to the log-in page.
There is no problem to use Interactive Display even if you do not log in as a user.
3.1.1 User Log-in page
Upon entering the user login page, the QR code is displayed so that the user can
log in through the smartphone QR code scan function.
To log-in with the QR code, open the camera app on your smartphone and scan the
QR code. Open the URL connected to the QR code and log-in through user
authentication on smartphone.
Click icon if you want to log in with your user ID and password or otherwise.

- 20 -

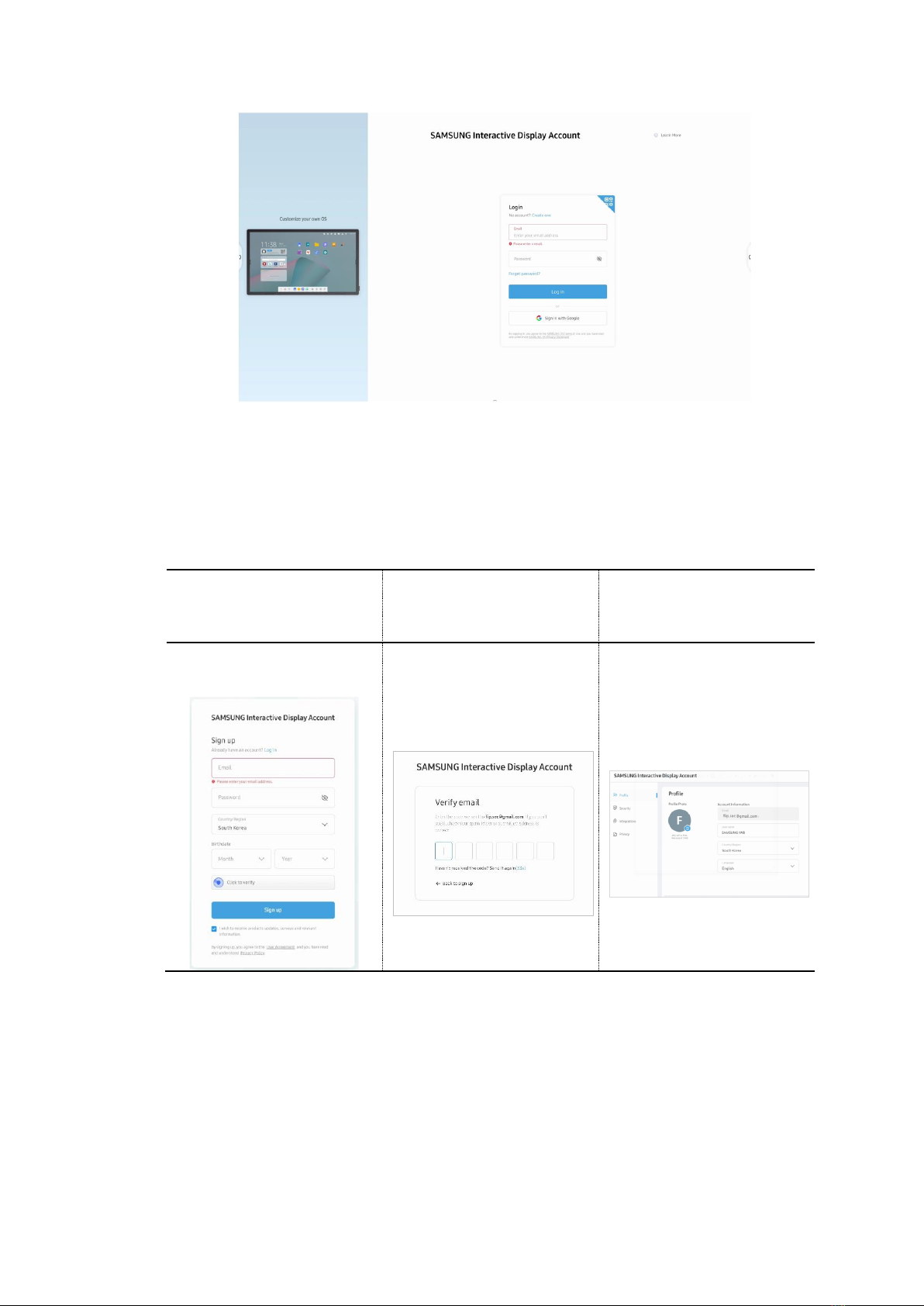

You can log in by entering your registered user ID and password, or you can log in
using your Google account or Microsoft account.
3.1.2 New account registration
If you do not have a registered account, you can register your account and log in
through the following procedure. To create new account, select [Create one] on user
log-in page.
Step#1 Sign up
Step#2 Verification code
Step#3 Log-in
Enter information with email
address
Enter 6-digit code received
by e-mail.
Verify that the login is
successful.
3.1.3 Auto Login (Single Sign-On)
When a user logs in using his or her Google account or MS account, Cloud Drive such
as Google Drive or One Drive is automatically logged in. In addition, other websites
connected to Google accounts or MS accounts could be automatically logged in as
well.
