Thank you for purchasing a Samsung product.
Free Standing Appliance
This manual is made with 100% recycled paper.
DA68-03316A-00.indb 1DA68-03316A-00.indb 1 2015. 3. 10.  7:152015. 3. 10.  7:15

English - 2
SAFETY INFORMATION
• Before operating the
appliance, please read
this manual thoroughly
and retain it for your
reference.
• Because these following
operating instructions
cover various models,
the characteristics of
your refrigerator may
differ slightly from those
described in this manual.
• Use this appliance only for
its intended purpose as
described in this instruction
manual.
This appliance is not
intended for use by persons
(including children) with
WARNING
WARNING
reduced physical, sensory
or mental capabilities, or
lack of experience and
knowledge, unless they have
been given supervision or
instruction concerning use
of the appliance by a person
responsible for their safety.
• This appliance can be used
by children aged from 8 years
and above and persons with
reduced physical, sensory
or mental capabilities or
lack of experience and
knowledge if they have
been given supervision or
instruction concerning use of
the appliance in a safe way
and understand the hazards
involved.
safety information
contents
SAFETY INFORMATION ………………………………………………………………… 2
SETTING UP YOUR SIDE-BY-SIDE REFRIGERATOR ……………………………… 13
OPERATING THE SAMSUNG SIDE-BY-SIDE REFRIGERATOR …………………… 22
TROUBLESHOOTING …………………………………………………………………… 28
DA68-03316A-00.indb 2DA68-03316A-00.indb 2 2015. 3. 10.  7:152015. 3. 10.  7:15

English - 3
SAFETY INFORMATION
Children shall not play with
the appliance. Cleaning and
user maintenance shall not
be made by children without
supervision.
Important safety symbols and
precautions :
WARNING
Hazards or unsafe
practices that may
result in severe
personal injury or
death.
CAUTION
Hazards or unsafe
practices that may
result in minor
personal injury or
property damage.
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions
carefully.
Unplug the power plug
from the wall socket.
Make sure the machine
is grounded to prevent
electric shock.
Call the contact center
for help.
Note.
These warning signs are here
to prevent injury to you and
others.
Please follow them explicitly.
After reading this section,
keep it in a safe place for
future reference.
• This refrigerator must be
properly installed and located
in accordance with the manual
before it is used.
• Use this appliance only for
its intended purpose as
described in this instruction
manual.
• We strongly recommend that
any servicing be performed by
a qualified individual.
• R-600a or R-134a can be
used as a refrigerant. Check
the compressor label on the
rear of the appliance and the
rating label inside the fridge to
see which refrigerant is used
for the refrigerator.
DA68-03316A-00.indb 3DA68-03316A-00.indb 3 2015. 3. 10.  7:152015. 3. 10.  7:15

English - 4
• In case of R-600a
refrigerant, this gas
is natural gas with
high environmental
compatibility that
is, however, also
combustible.
When transporting and
installing the appliance,
care should be taken to
ensure that no parts of
the refrigerating circuit
are damaged.
• Refrigerant squirting out of the
pipes could ignite or cause an
eye injury.
If a leak is detected, avoid
any naked flames or potential
sources of ignition and air the
room in which the appliance is
standing for several minutes.
• In order to avoid the
creation of a flammable
gas-air mixture if a
leak in the refrigerating
circuit occurs, the size
of the room in which the
appliance may be sited
depends on the amount
of refrigerant used.
• Never start up an appliance
showing any signs of damage.
If in doubt, consult your dealer.
• The room must be 1m3in
WARNING
size for every 8g of R-600a
refrigerant inside the
appliance.
• The amount of refrigerant in
your particular appliance is
shown on the identification
plate inside the appliance.
• Please dispose of the
packaging material for this
product in an environmentally
friendly manner.
• This appliance is not
intended for use by persons
(including children) with
reduced physical, sensory
or mental capabilities, or
lack of experience and
knowledge, unless they have
been given supervision or
instruction concerning use
of the appliance by a person
responsible for their safety.
• Children should be supervised
to ensure that they do not play
with the appliance.
DA68-03316A-00.indb 4DA68-03316A-00.indb 4 2015. 3. 10.  7:152015. 3. 10.  7:15

English - 5
SAFETY INFORMATION
CE Notice
This product has been
determined to be in
compliance with the Low
Voltage Directive (2006/95/
EC), the Electromagnetic
Compatibility Directive
(2004/108/EC), RoHS Directive
(2011/65/EU), Commission
Delegated Regulation (EU)
No 1060/2010 and the Eco-
Design Directive(2009/125/EC)
implemented by Regulation (EC)
No 643/2009 of the European
Union.
(For products sold in European
Countries only)
SEVERE WARNING
SIGNS
• Do not install the
refrigerator in a damp
place or place where it
may come in contact
with water.
- Deteriorated insulation of
electrical parts may cause an
electric shock or fire.
• Do not place this refrigerator
in direct sunlight or expose to
the heat from stoves, room
heaters or other appliance.
WARNING
• Do not plug several appliances
into the same multiple power
board.
The refrigerator should always
be plugged into its own
individual electrical which has
a voltage rating that matched
the rating plate.
- This provides the best
performance and also
prevents overloading house
wiring circuits, which could
cause a fire hazard from
overheated wires.
• Make sure that the power plug
is not squashed or damaged
by the back of the refrigerator.
• Do not bend the power cord
excessively or place heavy
articles on it.
- This constitutes a fire hazard.
• Have the power cord repaired
or replaced immediately by
the manufacturer or its service
agent if power cord has
become frayed or damaged.
• Do not use a cord that shows
cracks or abrasion damage
along its length or at either
end.
• If the power cord is damaged,
have it replaced immediately
by the manufacturer or its
service agent.
DA68-03316A-00.indb 5DA68-03316A-00.indb 5 2015. 3. 10.  7:152015. 3. 10.  7:15

English - 6
• When moving the refrigerator,
be careful not to roll over or
damage the power cord.
• Do not insert the power plug
with wet hands.
• Unplug the refrigerator before
cleaning and making repairs.
• Do not use a wet or damp
cloth when cleaning the plug.
• Remove any foreign matter
or dust from the power plug
pins.
- Otherwise there is a risk of
fire.
• If the refrigerator is
disconnected from the power
supply, you should wait for
at least ten minutes before
plugging it back.
• If the wall socket is loose, do
not insert the power plug.
- There is a risk of electric
shock or fire.
• The appliance must be
positioned so that the plug is
accessible after installation.
• The refrigerator must be
grounded.
- You must ground the
refrigerator to prevent any
power leakages or electric
shocks caused by current
leakage from the refrigerator.
• Never use gas pipes,
telephone lines or other
potential lightening rods as
ground.
- Improper use of the ground
plug can result in electric
shock.
• Do not dissemble or repair the
refrigerator by yourself.
- You run risk of causing a fire,
malfunction and/or personal
injury.
• If you smell pharmaceutical or
smoke, pull out power plug
immediately and contact your
Samsung electronics service
center.
• Keep ventilation opening in
the appliance enclosure or
mounting structure clear of
obstruction.
• Do not use mechanical
devices or any other means
to accelerate the defrosting
process, other than those
recommended by the
manufacturer.
• Do not damage the refrigerant
circuit.
• Do not place or use electrical
appliance inside the
refrigerator/freezer, unless they
are of a type recommended
by the manufacturer.
DA68-03316A-00.indb 6DA68-03316A-00.indb 6 2015. 3. 10.  7:152015. 3. 10.  7:15

English - 7
SAFETY INFORMATION
• The appliance is not intended
for use by children or infirm
persons without supervision.
• Children should be supervised
to ensure that they do not play
with the appliance.
• Do not let children hang on
the door.
If not, a serious injury may
occur.
• Do not touch the inside walls
of the freezer or products
stored in the freezer with wet
hands.
- This may cause frostbite.
• If the refrigerator is not to be
used for a long period of time,
pull out the power plug.
- Deterioration in the insulation
may cause fire.
• Do not store articles on the
top of the appliance.
- When you open or close the
door, the articles may fall and
cause personal injury and/or
material damage.
CAUTION SIGNS
• This product is intended
only for the storage
of food in a domestic
environment.
• Manufacturer’s recommended
storage times should be
adhered to. Refer to relevant
instructions
• Bottle should be stored tightly
together so that they do not
fall out.
• Do not place carbonated
or fizzy drinks in the freezer
compartment
• Do not put bottles or glass
containers in the freezer.
- When the contents freeze, the
glass may break and cause
personal injury.
• Do not spray inflammable gas
near the refrigerator.
- There is a risk of explosion or
fire.
• Do not directly spray
water inside or outside the
refrigerator.
- There is a risk of fire or electric
shock.
• Do not store volatile or
flammable substances in the
refrigerator.
CAUTION
DA68-03316A-00.indb 7DA68-03316A-00.indb 7 2015. 3. 10.  7:152015. 3. 10.  7:15

English - 8
- The storage of benzene,
thinner, alcohol, ether, LP gas
and other such products may
cause explosions.
• If you have a long vacation
planned, you must empty the
refrigerator and turn it off.
• Do not store pharmaceuticals
products, scientific materials
or temperature-sensitive
products in the refrigerator.
- Products that require strict
temperature controls must not
be stored in the refrigerator.
• Do not put a container filled
with water on the refrigerator.
- If spilled, there is a risk of fire
or electric shock.
• Do not apply strong shock
or excessive force onto the
surface of glass.
- Broken glass may result in a
personal injury and/or property
damage.
CAUTION SIGNS FOR
CLEANING
• Never put fingers or
other objects into the
dispenser hole and ice
chute.
- It may cause personal injury or
material damage.
• Do not use a wet or damp
cloth when cleaning the plug,
remove any foreign material
or dust from the power plug
pins.
- Otherwise there is a risk of
fire.
• If the refrigerator is
disconnected from the power
supply, you should wait for
at least five minutes before
plugging it back.
CAUTION
DA68-03316A-00.indb 8DA68-03316A-00.indb 8 2015. 3. 10.  7:152015. 3. 10.  7:15

English - 9
SAFETY INFORMATION
WARNING SIGNS FOR
DISPOSAL
• When disposing of this
or other refrigerator/s,
remove the door/door
seals, door latch so that
small children or animals
cannot become trapped
inside.
• Leave the shelves in place so
that children may not easily
climb inside.
• R-600a or R-134a is used as
a refrigerant.
Check the compressor label
on the rear of the appliance
or the rating label inside the
fridge to see which refrigerant
is used for your refrigerator.
When this product contains
flammable gas(Refrigerant
R-600a) contact your local
authority in regard to safe
disposal of this product.
• Cyclopentane is used as a
insulation blowing gas. The
gases in insulation material
require special disposal
procedure.
Please contact your local
authorities in regard to the
environmentally safe disposal
of this product. Ensure that
none of the pipes on the
WARNING
back of the appliances are
damaged prior to disposal.
The pipes shall be broke in the
open space.
• In the event of a power
failure, call the local
office of your Electricity
Company and ask how
long it is going to last.
Most power failures that are
corrected in an hour or two
will not affect your refrigerator
temperatures.
However, you should minimize
the number of door openings
while the power is off.
But should the power failure last
more than 24hours, remove all
frozen food.
For doors or lids fitted with locks
and keys, the keys be kept out
of the reach of children and not
in the vicinity of the refrigerating
appliance, in order to prevent
children from being locked
inside.
CAUTION
DA68-03316A-00.indb 9DA68-03316A-00.indb 9 2015. 3. 10.  7:152015. 3. 10.  7:15

English - 10
ADDITIONAL TIPS
FOR PROPER USAGE
• Allow the appliance to stand
for 2hours after installation.
• To get best performance of
product,
- Do not place foods too closely
in front of the vents at the
rear of the appliance as it can
obstruct free air circulation in
the freezer compartment.
- Wrap the food up properly or
place it in airtight containers
before put it into the fridge
freezer
- Do not put any newly
introduced food for freezing
near to already frozen food.
• Do not place carbonated
or fizzy drinks in the freezer
compartment
• Please observe maximum
storage times and expiry
dates of frozen goods.
• There is no need to disconnect
the refrigerator from the power
supply if you will be away for
less than three weeks.
But, remove all the food if you
are going away for the three
weeks or more.
Unplug the refrigerator and
clean it, rinse and dry.
• Most power failures that are
corrected in an hour or two
will not affect your refrigerator
temperatures.
However, you should minimize
the number of door openings
while the power is off.
But should the power failure
last more than 24hours,
remove all frozen food.
• If the key is provided with
refrigerator, the keys should
be kept out of the reach of
children and not in the vicinity
of the appliance.
• The appliance might
not operate consistently
(possibility of defrosting of
contents or temperature
becoming too warm in the
frozen food compartment)
when sited for an extended
period of time below the
cold end of the range of
temperatures for which the
refrigerating appliance is
designed.
• Do not store food which goes
bad easily at low temperature,
such as bananas, melons.
• Place the ice tray at the
originally provided position
by manufacturer in order to
achieve optimal ice-freezing.
• Your appliance is frost free,
DA68-03316A-00.indb 10DA68-03316A-00.indb 10 2015. 3. 10.  7:152015. 3. 10.  7:15

English - 11
SAFETY INFORMATION
which means there is no
need to manually defrost
your appliance, as this will be
carried out automatically.
• Temperature rising during the
defrost can comply with ISO
requirement.
But If you want to prevent an
undue rise in the temperature
of the frozen food while
defrosting the appliance,
please wrap the frozen food
in several layers of paper such
as newspaper.
• Any increase in temperature of
frozen food during defrosting
can shorten its storage life.
• The temperature of two
star section (sections) or
compartment (compartments)
which have two star symbol
( ) is slightly higher than
other freezer compartment
(compartments).
The two star section
(sections) or compartment
(compartments) is (are) based
on the instruction and/or the
condition as delivered.
Saving Energy Tips
- Install the appliance in a
cool, dry room with adequate
ventilation. Ensure that it is
not exposed to direct sunlight
and never put it near a direct
source of heat (radiator, for
example).
- Never block any vents or
grilles on the appliance.
- Allow warm food to cool
down before placing it in the
appliance.
- Put frozen food in the
refrigerator to thaw.
You can then use the low
temperatures of the frozen
products to cool food in the
refrigerator.
- Do not keep the door of the
appliance open for too long
when putting food in or taking
food out. The shorter time for
which the door is open, the
less ice will form in the freezer.
- Clean the rear of the
refrigerator regularly.
Dust increases energy
consumption.
- Do not set temperature colder
than necessary.
- Ensure sufficient air exhaust
at the refrigerator base
and at the back wall of the
DA68-03316A-00.indb 11DA68-03316A-00.indb 11 2015. 3. 10.  7:152015. 3. 10.  7:15

English - 12
refrigerator.
Do not cover air vent
openings.
- Allow clearance to the right,
left, back and top when
installing. This will help reduce
power consumption and keep
your energy bills lower.
- For the most efficient use
of energy, please keep the
all inner fittings such as
baskets, drawers, shelves
on the position supplied by
manufacturer.
This appliance is intended
to be used in household and
similar applications such as
- staff kitchen areas in shops,
offices and other working
environments;
- farm houses and by clients
in hotels, motels and other
residential type environments;
- bed and breakfast type
environments;
- catering and similar non-retail
applications.
DA68-03316A-00.indb 12DA68-03316A-00.indb 12 2015. 3. 10.  7:152015. 3. 10.  7:15

English - 13
SETTING UP
GETTING READY TO INSTALL
THE REFRIGERATOR
Congratulations on the purchase of your Samsung
Side-By-Side Refrigerator. We hope you will enjoy
the many state-of-the-art features and efficiencies
that this new appliance has to offer.
Selecting the best location for the
refrigerator
• Select a location with easy access to the water
supply.
• Select a location without direct exposure to
sunlight.
• Select a location with level (or nearly level)
flooring.
• Select a location with enough space for the
refrigerator doors to open easily.
• Overall space required in use.
Refer to drawing and dimension as below.
• Please ensure that appliance can be moved freely
in the event of maintenance & service.
• Allow clearance to the right, left, back and
top when installing.
This will help reduce power consumption
and keep your energy bills lower.
• Do not install the refrigerator where the
temperature will go below 50°F (10°C).
• Make sure you disconnect the water supply line
BEFORE removing the freezer door.
See the next section on “Separating the Water
Line” to avoid damage.
When installing, servicing or cleaning behind
the refrigerator, be sure to pull the unit
straight out and push back in straight after
finishing.
setting up your side-by-side
refrigerator
25mm
25mm
at least 50mm
at least 50mm
at least 50mm
at least 50mm
CAUTION
DA68-03316A-00.indb 13DA68-03316A-00.indb 13 2015. 3. 10.  7:152015. 3. 10.  7:15

English - 14
1. With the Freezer door closed, remove the upper
hinge cover 1using a screwdriver, and then
disconnect the wires by gently pulling them apart
2.
2. Remove hinge screws 3and the ground screw
4by turning counter-clockwise, and take off the
upper hinge 5. Be careful that the door does not
fall on you as you are removing it
3. Next, remove the door from the lower hinge 6
by carefully lifting the door straight up 7.
Be careful not to pinch the water tubing and
wire harness on the door.
4. Remove the lower hinge 8using a hex wrench.

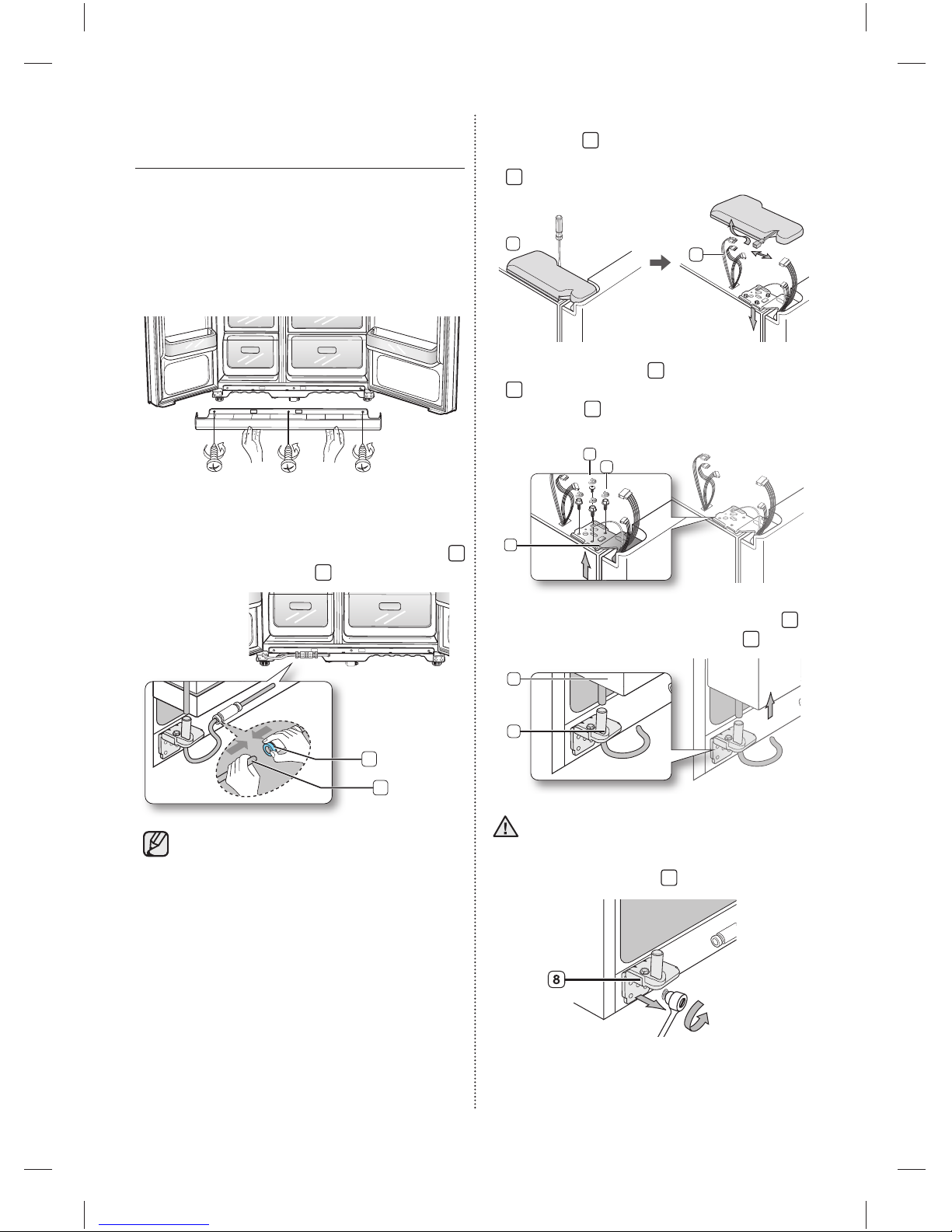

REMOVING THE
REFRIGERATOR DOORS
If your entrance won’t allow the refrigerator to pass
easily through it, you can remove the doors.
1. Removing the Front Leg Cover
First, open both the freezer and refrigerator doors,
and then take off the front leg cover by turning the
three screws counter-clockwise.
Separating the Water Supply Line
from the Refrigerator
1. Remove the water line by pressing the coupler 1
and pulling the water line 2away.
Do not cut the water line. Gently separate it
from the coupler.
2. Removing the freezer door
A few things to mention first.
• Make sure that you lift the door straight up so the
hinges are not bent or broken.
• Be careful not to pinch the water tubing and wire
harness on the door.
• Place doors on a protected surface to prevent
scratching or damage.
1
2
2
1
3
4
5
7
6
DA68-03316A-00.indb 14DA68-03316A-00.indb 14 2015. 3. 10.  7:152015. 3. 10.  7:15

English - 15
SETTING UP

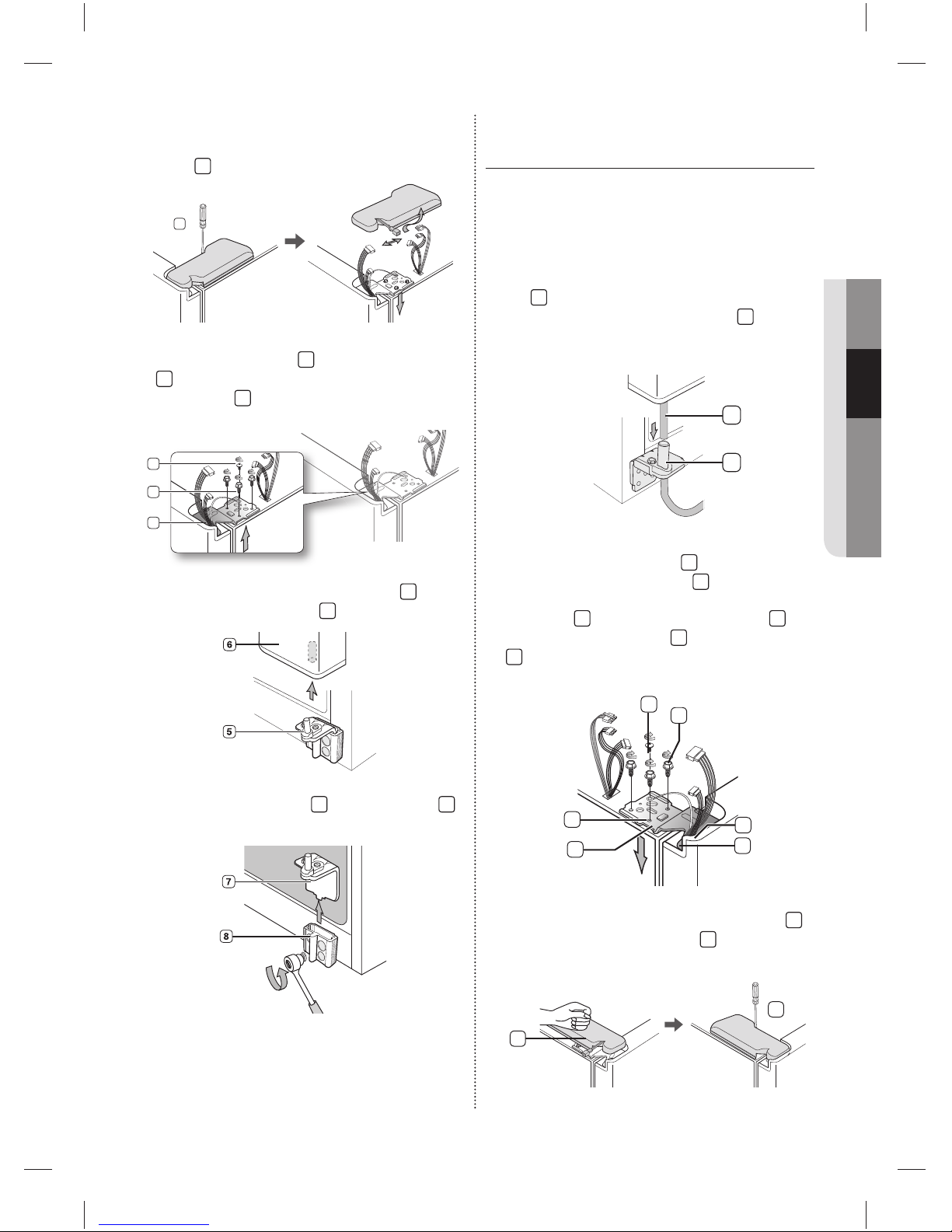

REATTACHING THE
REFRIGERATOR DOORS
Once you have safely placed your refrigerator where
you plan for it to stay, it is time to put the doors back
on.
Reattaching the Freezer Door
1. Replace the freezer door by inserting the water
line 1back into the lower corner of the door and
then into the hole on the lower hinge 2.
Gently pull the water line back down so that it
runs straight, with no kinks or bends.
2. Insert the upper hinge shaft 3into the hole on
the corner of the freezer door 4.
Make sure the hinge is level between the upper
hinge hole 5and the hole of the cabinet 6and
reattach the hinge screws 7and ground screw
8by turning in a clockwise direction.
Reconnect the wires.
3. Place the front part of the upper hinge cover 9
on the front of the upper hinge 10 and reattach
with the screw.
Removing the Fridge Door
1. With the door closed, remove the upper hinge
cover 1using a screwdriver.
2. Remove hinge screws 2and the ground screw
3by turning counter-clockwise, and take off the
upper hinge 4. Be careful that the door does not
fall on you as you are removing it
3. Remove the door from the lower hinge 5by
lifting the door straight up 6.
4. Remove the lower hinge 7from the bracket 8
by gently lifting the lower hinge upwards.
1
4
2
3
10
9
4
5
6
7
8
3
1
2
DA68-03316A-00.indb 15DA68-03316A-00.indb 15 2015. 3. 10.  7:152015. 3. 10.  7:15

English - 16
Reattaching the Water Supply Line
1. Insert the water line 2into the coupler 1.
2. The Water Line must be fully Inserted to the
center of transparent coupler to prevent water
leakage from the dispenser.
3. Insert the clip in the install pack and check that it
holds the line firmly.
Reattaching the Front Leg Cover
Before attaching the cover, check water
connector for leakage.
Replace the front leg cover by turning the
three screws clockwise, as shown in the
figure.
Reattaching the Fridge Door
1. Insert the lower hinge 1back into the lower
hinge bracket 2.
2. Fit the hole in the corner of the fridge door 3
over the lower hinge 4.
3. Insert the upper hinge shaft 5into the hole
on the hinge 6. Make sure the hinge is level
between the upper hinge hole 7and the hole on
the top of the cabinet 8.
Then, reattach hinge screws 9and the ground
screw 10 by turning it in a clock wise direction.
4. Place the front part of the upper hinge cover 11
on the front of the upper hinge 12 and reattach it
with the screw.
1
2
3
4
12
11
1
2
Center of transparent
Center of transparent
coupler
coupler
clip A (1/4”)
clip A (1/4”)
(6.35mm)
(6.35mm)
DA68-03316A-00.indb 16DA68-03316A-00.indb 16 2015. 3. 10.  7:152015. 3. 10.  7:15

English - 17
SETTING UP
MAKING MINOR ADJUSTMENTS
TO THE DOORS
Remember, a level refrigerator is necessary for
getting the doors perfectly even.
If you need help, review the previous section on
levelling the refrigerator.
In the process for adjusting both the doors is the
same. Open the doors and adjust them, one at a
time, as follows:
1. Unscrew the
nut 1from the
lower hinge until it
reaches the upper
end of the bolt 2.
When you
release the nut 1, make sure that you use
the Allen wrench provided 3to loosen the
bolt 2in a counter-clockwise direction.
You should then be able to unscrew the nut
1with your fingers.
2. Adjust the
height difference
between the doors
by turning the
bolt 2clockwise
or counter
clockwise .
When you turn clockwise , the door
will move up.
3. After adjusting the
doors, turn the
nut 1clockwise
until it
reaches the lower
end of the bolt,
then tighten the
bolt again with the wrench 3to fix the nut in
place 1.
If you do not secure the nut firmly, the bolt
may release.
LEVELLING THE
REFRIGERATOR
Now that the doors are back on the refrigerator, you
will want to make sure the refrigerator is level so you
can then make final adjustments.
If the refrigerator is not level, it will not be possible to
get the doors perfectly even.
The front of the refrigerator is also adjustable.
When the Freezer door is lower than
the fridge
Insert a flat-blade screwdriver into a notch on the
Leg, turn it clockwise or counter clockwise to level
the freezer.
When the Freezer door is higher than
the fridge
Insert a flat-blade screwdriver into a notch on the
Leg, turn it clockwise or counter clockwise to level
the freezer.
Refer to the next section for the best way to
make very minor adjustments to the doors.
Leg
Leg
Screw Driver
Screw Driver
Screw Driver
Screw Driver
Leg
Leg
Adjustment part
Adjustment part
When the door of the freezer is
When the door of the freezer is
higher than the fridge
higher than the fridge
3
2
1
Wrench
Wrench
Bolt
Bolt
Nut
Nut
3
2
Wrench
Wrench
Bolt
Bolt
3
2
1
Wrench
Wrench
Bolt
Bolt
Nut
Nut
DA68-03316A-00.indb 17DA68-03316A-00.indb 17 2015. 3. 10.  7:152015. 3. 10.  7:15

English - 18

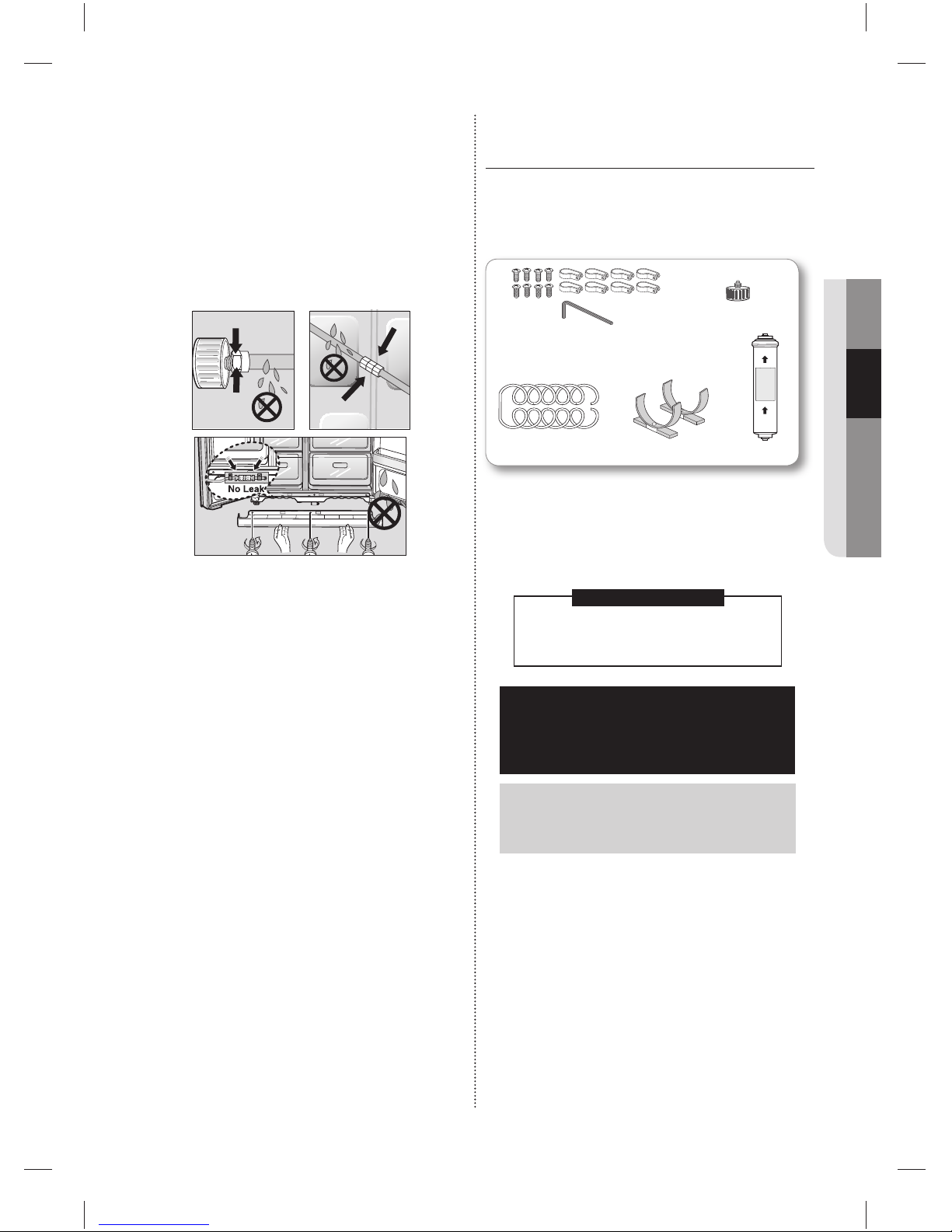

4. After connecting the water supply to the water
filter, turn your main water supply back on and
dispense about 1l to clear and prime the water
filter.
Connecting the water line to the
refrigerator
1. Remove the dust cap from the water line on the
rear of the unit and fit a compression nut from the
install kit.
2. Remove the water pipe from the install kit and fit
a compression nut to one end.
3. Join the two pipes together using the
compression joint from the install kit ensuring that
the joint is water tight.
4. Join the other end of the install pipe to the main
water supply and turn on the water to check for
leaks.
Only connect the water line to a drinkable
water source. If you have to repair or
disassemble the water line, cut off 6.5mm
of the plastic tubing to make sure you get a
snug, leak-free connection.
Before being used, the leakage in these
places should be examined
CHECKING THE WATER
DISPENSER LINE (OPTIONAL)
A water dispenser is just one of the helpful features on
your new Samsung refrigerator. To help promote better
health, the Samsung water filter removes unwanted
particles from your water. However, it does not sterilize
or destroy microorganisms. You will need to purchase
a water purifying system to do that. In order for the
icemaker to operate properly, water pressure of 138
~862 Kpa is required. Under normal conditions, a
170 cc paper cup can be filled in 10 seconds. If
the refrigerator is installed in an area with low water
pressure (below 138 Kpa), you can install a booster
pump to compensate for the low pressure. Make sure
the water storage tank inside the refrigerator is properly
filled. To do this, press the water dispenser lever until
the water runs from the water outlet.
Water Line installation Kits are included. You
can find it in one of the freezer drawers.
The new hose-sets supplied with the
appliance are to be used and that old hose-
sets should not be reused.
INSTALLING THE WATER
DISPENSER LINE
For Interior model
Parts for water line Installation
Connecting to the water supply line
1. First, shut off the main water supply line.
2. Locate the nearest cold, drinking water line.
3. Follow the water line installation instructions in
the installation kit.
1
Water line fixer and screws
Water line fixer and screws
2
Pipe connector
Pipe connector
3
Water line
Water line
4
Water Filter
Water Filter
CAUTION
The water line must be connected to the cold
water pipe. If it is connected to the hot water
pipe, it may cause the purifier to malfunction.
Close Main
Close Main
Water pipe
Water pipe
Close Main
Close Main
Water pipe
Water pipe
No gap
No gap
Remove
Remove
cap
cap
Water Line
Water Line
from unit
from unit
Water Line
Water Line
from Kit
from Kit
No gap
No gap
Loosen a
Loosen a
CAUTION
DA68-03316A-00.indb 18DA68-03316A-00.indb 18 2015. 3. 10.  7:152015. 3. 10.  7:15

English - 19
SETTING UP
INSTALLING THE WATER
DISPENSER LINE
For Exterior model
Parts for water line Installation
Connecting to the water supply line
Connect the water pipe with coupler and tap.
1. Close the main water tap.
2. Connect coupler “A” to the tap.
Select the location where the purifier
is to install. (Model with the purifier)
- If you wish to reassemble the water inlet
and outlet sides of the purifier during purifier
installation, see the reference illustration.
- Cut the water line attached to the purifier to the
appropriate place after measuring the distance
between the purifier and the cold water tap.
• Samsung Warranty does not cover WATER LINE
INSTALLATION.
• The cost of connection to a water supply is at the
customer expense, unless included in the delivery
charge (refer to the delivery agreement with the
seller)
• Please contact Plumber or Authorised Installer for
the installation if needed.
• If Water leakage occurs due to improper
installation, Please contact installer.
Water line fixer and screws
Water line fixer and screws
Pipe connector
Pipe connector
Water line
Water line
Purifier lock-clip
Purifier lock-clip
Purifier
Purifier
CAUTION
The water line must be connected to the cold water
pipe. If it is connected to the hot water pipe, it may
cause the purifier to malfunction.
WARRANTY INFORMATION
This water line installation is not covered by the
refrigerator or ice maker manufacturer’s warranty.
Follow these instructions carefully to minimise the risk of
expensive water damage.
Note:
If the coupler does not fit on the current tap, go the
nearest authorised service dealer and purchase the right
couplers fittings.
DA68-03316A-00.indb 19DA68-03316A-00.indb 19 2015. 3. 10.  7:152015. 3. 10.  7:15

English - 20
Remove any residual matter inside
the purifier. (Model with the purifier)
- Open the main water tap to check whether water
is running through the water tube on the water
inlet side of the purifier.
- If water does not come out through the line,
check whether the tap is open.
- Leave the tap open until clean water is running
out and any residual matter that built up during
manufacturing has been removed.
Attach the purifier lock-clip.
- Hold the purifier lock-clip in the appropriate
position (under the sink for example) and fix it
tightly into place where to screw.
Secure the purifier in position.
- Fix the purifier in position, as shown in the figure
on the right.
Replacement Instructions
1. Shut off water supply.
2. Note the Flow direction on the filter.
3. Insert water supply tube into the inlet side of the
filter until the tube stop.
4. After inserting tube, put together the clip strongly.
The Clip fix the tube.
5. Turn on the water and check for leaks. If leaks
occur, repeat step 1,2,3,4. If leaks persist,
discontinue use and call your supporting dealer.
6. Flush filter for 5 minutes before use.
COUPLER “A”
COUPLER “A”
TAP
TAP
COUPLER
COUPLER
SIDE OF
SIDE OF
PURIFIER
PURIFIER
WATER INLET
WATER INLET
SIDE OF PURIFIER
SIDE OF PURIFIER
LINE OUTLET
LINE OUTLET
90 degree
90 degree
PURIFIER WATER
PURIFIER WATER
CAUTION
Locking Clip
Locking Clip
Insert Locking Clip After
Insert Locking Clip After
tube seated
tube seated
WATER SUPPLY
WATER SUPPLY
INLET SIDE
INLET SIDE
PERMEAT
PERMEAT
FLOW DIRECTION
FLOW DIRECTION
Note : You must also ensure
that the cut is square and not
at any sort of angle as this
could cause a leak
WATER LINE
WATER LINE
PURIFIER
PURIFIER
WATER
WATER
OUTLET SIDE OF
OUTLET SIDE OF
PURIFIER
PURIFIER
Purifier lock-clip
Purifier lock-clip
WATER TUBE
WATER TUBE
Purifier lock-clip
Purifier lock-clip
PURIFIER
PURIFIER
DA68-03316A-00.indb 20DA68-03316A-00.indb 20 2015. 3. 10.  7:152015. 3. 10.  7:15
