Samsung SR-608EV User manual

REFRIGERA TOR
Model :
REFRIGERATOR CONTENTS
SERVICE
Manual
1. Safety Precautions And Warnings
2. Product Specifications
3. Electrical Part Specifications & Standard
4. Electric Diagram
5. Outer Package Specification
6. Air Circulation Route
7. Functions And Directions
8. Circuit Operating Theory
9. Failure Diagnosis And Repairment
10. Disassemble & Assemble Drawing And
Part Lists
11. Disassemble & Assemble Method
12. Packing Method
13. PCB Diagram
14. PCB Specifications
15. Main Components Specifacations
“A”: WITH DISPENSER
SR-608EV
SR-648EV
SR-688EV
WITHOUT DISPENSER
SR-606EV
SR-646EV
SR-686EV
Model : SR-608EV
SR-648EV
SR-688EV
"A"

Samsung Electronics 1
1. Safety precautions and warnings
Read all instructions before using this appliance in order to aboid risk of accident or possible damage.
Warning/Caution Description of symbols
Indicates prohibition
Do not disassemble
Do not contant
Adhere the instruction strictly
Unplug from the electrical outlet
Earth the appliance to avoid the
risk of an electric shock
Do not plug multiple
electrical appliances into
the same outlet.
• This may cause abnormal
heating or a fire hazard.
Do not attempt to make
repairs yourself.
• This could lead to fire hazard or
abnormal operation causing
severe personal injury.
Make sure the power cord is
not crushed or damaged.
• Repair immediately all power cords or
outlets that have become frayed or
otherwise damaged.
Check the operating
environment.
• Do not install the refrigerator in a
hurnid (with condensation) location
or on an unstable surface.
Do not attempt to make
repairs yourself.
• This could lead to fire hazard or
abnormal operation causing
severe personal injury.
Make sure the power cord is
not crushed or damaged.
• Repair immediately all power cords or
outlets that have become frayed or
otherwise damaged.
WarningThis symbol is intended to
alert the user to the
possible death or injury.
Caution This symbol is intended to
alart the user to the
possible injury or damage.
Warning
Prohibition Do not disassemble
Earth Unplug

2 Samsung Electronics
Caution
Do not store bottled food
or drinks in the freezer
compartment.
• Bottles may explode
causing personal injury.
Do not store food in an
unstable manner.
• Opening the door may
trigger loose items to slip
and cause injury.
Do not store anything other
than food in the refrigerator.
• Medical supplies which need
to be under strict temperature
control should not be stored in
the refrigerator.
Do not put anything on top
of the refrigerator.
• Opening or closing the door
may trigger loose items to
slip and cause injury.
When replacing electric
components, be sure to
use rated components.
• Check the model, rated
voltage, rated current,
operating temperature etc.
of the component.
When servicing the refrigerator,
completely remove dust or
foreign substances from the
housing, electric connections
and etc.
•Thiscanprotectagainsttheriskoffirehazard
causedbytrackingandshortcircuit.
When servicing the refrigerator,
completely remove dust or foreign
substances from the housing,
electric connections and etc.
• This can protect against the risk
of fire hazard caused by
tracking and short circuit.
After servicing the refrigerator,
be sure to check the
components are reassembled
in a correct manner.
• Theservicedunitshouldbe
reassembledandreturnedtoitsoriginal
assemblystate.
Check the electrical parts for the
trace of moisture penetration.
• When the trace of moisture
penetration is detected, replace
the part or try insulation tapping.
Prohibition
Prohibition
Prohibition Prohibition

Samsung Electronics 7
6. Air circulation route
Freezer cooling fan
Freezer cooling device
Refrigerator cooling fan
Refrigerator cooling device
Swing fan
Freezer
Special
Refrigerator
Vegetable

Samsung Electronics 3
2. Product Specifications
SR-606EV
504
153
351
SR-608EV
499
153
346
SR-646EV
544
165
379
SR-648EV
538
165
373
SR-686EV
581
165
416
SR-688EV
575
165
410
105kg 106kg 106kg 107kg 108kg 109kg
ITEM
Model Name
STANDARD
115/60, 127/60, 240/50. 220/50,60
165W
378W
Occassional cooling type refrigerator
HFC-134a
155gr
(4 STAR)
Total
Freezer
Refrigerator
Net Capacity
( l /CU.FT)
Net dimension (W x H x D)
Regular Frequency
Electric Metor Regular Power
Electric Heating Equipment power
Sort of Refrigerator
Cooling Mass
Cooling Mass Sealed Quanlty
Freezer performance
Net weight
840X726X1753.5 840X726X1803.5 840X726X1847.5
3. Electrical part specifications & standard
ITEM STANDARD
Freol α-15C(ESTER)/265CC
Split Fin Type
Split Fin Type
Forced & Natural Convection Type
Molecular Sieve XH-9
0.82 X 2500 4.26kg/cm2
HFC-134a/155gr
ON(˚C)
–20˚C
–17˚C
–14˚C
OFF(˚C)
–22˚C
–19.0˚C
–16˚C
Condenser
Dryer
Capilary tube
Refrigerant
Type
Freezer
Temperature Refrigeration Cycle
High
Mid
Low
Model
Starting type
Oil charge
Freezer
Refrigerator
Compressor
Evaporator
SK182C-L2W
CSR
SK182P-L2W
CSR
SK190H-L2U
RSCR SK190Q-L2U RSCR

8 Samsung Electronics
7. Function and Directions
7-1 The outer size
Model A B C D Remark
SR-606EA 1066.5 580 1736.5 1753.5 ‘a’ applied
SR-608EA 1066.5 580 1736.5 1753.5 ‘b’ applied
SR-646EA 1096.5 600 1766.5 1803.5 ‘a’ applied
SR-648EA 1096.5 600 1766.5 1803.5 ‘b’ applied
SR-686EA 1140.5 600 1810.5 1847.5 ‘a’ applied
SR-688EA 1140.5 600 1810.5 1847.5 ‘b’ applied
a
b

Samsung Electronics 9

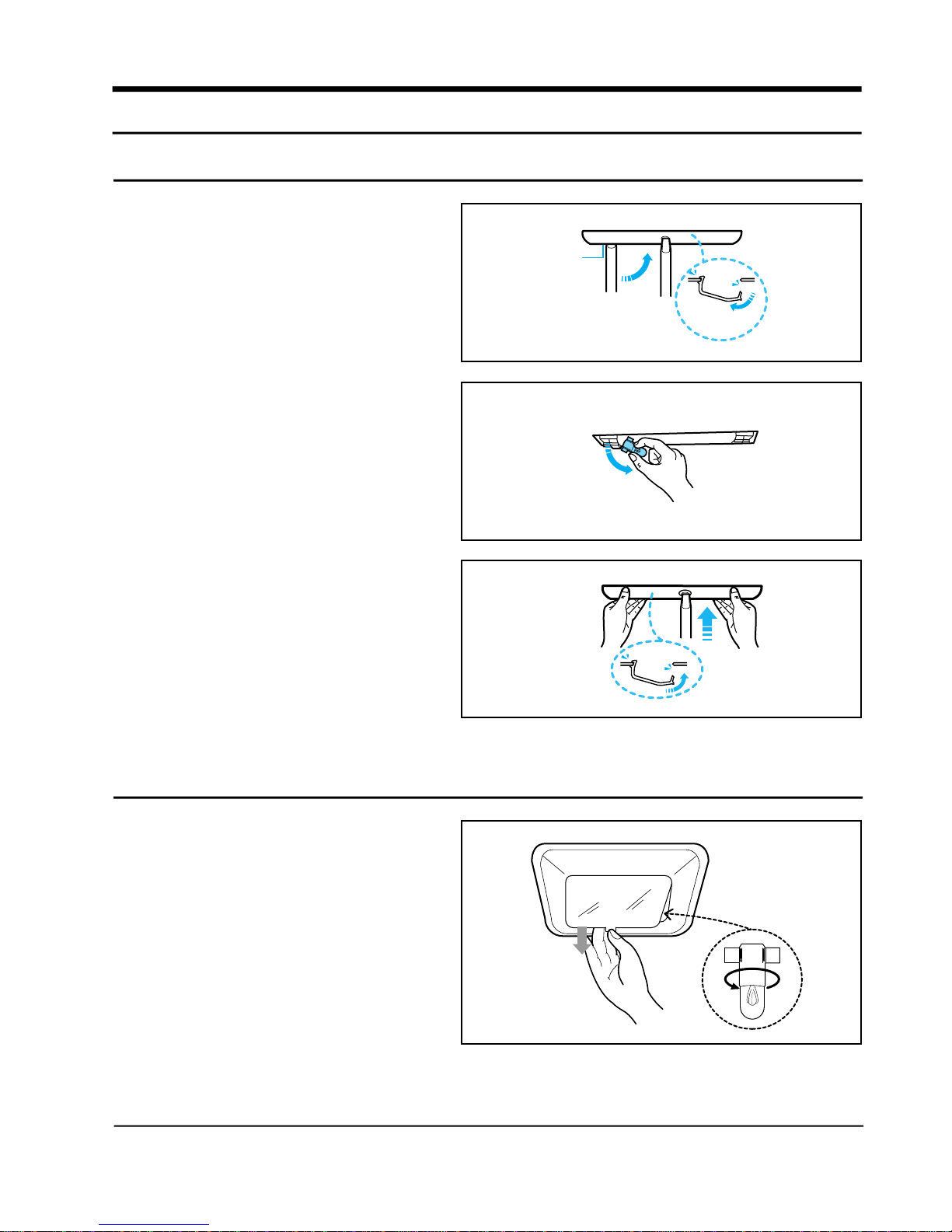

7-2 The name of each parts and disassemble method
• Push to direction and apart to direction .
Freezer shelf
• Up the front of shelf to direction then
pull and apart to direction .
Shelf REF.
• Pull with both hands as showed.
• The height can be adjusted according to the
stored bowls.
Chilled room shelf
• Pull to the arrow direction
then up and apart at the
locking point.
Vegetable box and cover
• Up the cover and apart then pull out the
vegetable box at the mid-point and up and
and pull to apart.
• Up and apart as showed.
(concerned model : SR-
5066/5466/5866)
1
2
12
1
2
1
2

10 Samsung Electronics
7-3 Freezing cycle
COMPRESSOR →SUB CONDENSER →CLUSTER PIPE →HOT PIPE →DRYER →CAPILLARY
TUBE →REFRIGERATOR EVAPORATOR →FREEZER EVAPORATOR →ACCUMULATOR
→SUCTION PIPE →COMPRESSOR

Samsung Electronics 11
7-4 PANEL display
7-5 Temperature control
1) Freezer temperature control
1. It consists of five steps as follows and selected by one button.
Mid ÆMid.High ÆHigh ÆLow ÆLow.Mid
2. It is circulated and displayed one by one by pressing the button.
3. At first power on it is selected ”Mid”
Category
Indicator Lamp
Reference Temp.
Initial power on
Mid
–18˚C –19.5˚C
Mid·High
Pressed once
–21˚C
High
Pressed twice
–15˚C
Low
Pressed 3 times
–16.5˚C
Low·Mid
Pressed 4 times Remark
2) Temperature control in the refrigerating compartment
1) Select the 5 stages of ‘Mid’–‘Mid · High’–‘High’–‘Low’–‘Low · Mid’ with a button.
2) Whenever the temperature control button of refrigerator is pressed, it continues of light from
‘Mid’–‘Mid · High’–‘High’–‘Low’–‘Low · Mid’.
3) When power turns on “Mid” is automatically selected.
Category
Indicator Lamp
Reference Temp.
Initial power on
Mid
3˚C 1˚C
Mid·High
Pressedonce
–1˚C
High
Pressed twice
6˚C
Low
Pressed 3 times
4.5˚C
Low·Mid
Pressed 4 times Remark
DOOR
ALARM DOOR FREE QUICK
FRE. QUICK FRE.
FRE, CONTROL HI-MOISTURE
LO
HI
LO
HI
QUICK REF.
REF.
CONTROL
QUICK REF.
FRE
CONTROL

12 Samsung Electronics
7-6. Power freeze and Power
• Selected by additional quick freeze & refrigeration button.
• The lamp of quick freeze and refrigeration circulated ever ytime it pushed.
• No change of setting temperature occured during quick free ze and refrigeration selected.
• Temperature of freezer and r efrigerator can be re-setted while quick freeze and refrigeration opera tes.
1) Quick freeze
(1)Comp. and F-fan runs continuously for two and a half hour s when quick freeze selected. ( one
minute after selection )
(2) During quick freezing the refrigerator controlled by se tted notch.
2) Quick refrigeration
(1) Comp. and R-fan runs until the temperature of refrigerat or reaches -4 ˚C when quick refrigeration
selected.
(2) After the temperature reaches -4 ˚C the ’HIGH’ notch runs for an hour and finish quick
refrigeration.
(3) Unless the temperature of refrigerator reaches -4 ˚C within two and a half hours quick
refrigeration stopped.
3) When quick freeze and refrigeration selected at the same time
(1) Each function applied at the same time. Quick freeze ru ns Comp. and F-fan for two and a half
hours and quick refrigeration runs Comp. and R-fan for two a nd a half hours with no relation of
each other.
7-7 Alarming
1) Button touch ( ”Ding-Dong ” sound)
(1)Everytime the button pushed, the input confirmation, ”Ding-Dong ”, sounds.
(2) Not sounds, if two keys are pushed at the same time or w rongly handled.
2) Door-Open warning ( ”Ding-Dong ” sound)
(1)Two minutes after door opened, ten times of alarming soun ds.
(2) If door opened continuously, ten times of alarming sound s with one minute cycle.
(3)Alarming stopped just after door closed.
3) Forced operating and defrosting ( ”Beep” sound)
(1) If forced function selected the ”beep” sounds.
(2) Alarming sounds untill the forced operating canceled by automatically ( 24Hr ) or manualy.
(3) Alarming sounds untill the forced defrosting canceled by automatically ( 24Hr ) or manualy.

Samsung Electronics 13
7-8 Defrosting
1) From the first power on, defrosting started after 4 hours of total Comp on time.
2) After that defrosting cycle can be varied from 6 hours to 32hours. (Comp on time)
7-10 Self diagnosis
1) Self diagnosis at first power on
(1) As the power applied to the refrigerator first time, all displays show and run the self diagnosis.
(2) If no problems founded display returns to normal model.
(3) If problem is founded, on and off the related display lamp and start alarming.
(4) Lamp displayed until the problem solved or self diagnosis cancelled.
(5) After problem solved the display mode return to normal.
7-9 Testing
• Testing is for PCB, product, function and service.
• After testing, turn the power on to start self diagnosis.
1) Forced operating
(1) As the button on PCB pushed once, Comp starts immediately without 5 minutes delay.
(2)If forced operating selected the notch of freezer and refrigerator fixed to ”HIGH” and ”MID-
HIGH”. Then Comp and F-fan is controlled to pull-down and R-fan is controlled to ”MID-HIGH”
notch.
(3) Pull-down maintained just for 24 hours during forced operating, after that automatically defrost
freezer and refrigerator and then starts normal operating.
(4) Turn the power off or select test cancel mode to cancel the forced operating.
(5)Alarming (0.25 sec on/0.75 sec off) continues until the forced operating finished. It continues
without any relations to alarming key selection or cancel.
2) Forced defrosting
(1) Push the test button one more time to run the forced defrosting of refrigerator.
(2) One more push in the above status will run defrosting of freezer and refrigerator simultaneously.
(3) Forced operating cancelled automatically by starting foced defrosting and return to normal
operating after completion of defrosting.
3) Test cancel mode
(1) One more push in the status of forced defrosting of F/R will run normal operating.
(2) Alarming stopped in the test cancel mode.

14 Samsung Electronics
(6) When refrigerator repaired, sure to power off and on to run self diagnosis.
(7) Refer to belows for problems and related displays.
No
1
2
3
4
5
6
7
Symptom
• R-room left sensor housing
disconnection.
• Faulty connection.
• Wire open or short.
• Faulty sensor.
• R-room left right sensor
housing disconnection.
• Faulty connection.
• Wire open or short.
• Faulty sensor.
• R-room defrost sensor
housing disconnection.
• Faulty connection.
• Wire open or short.
• Faulty sensor.
• Room-Temp sensor housing
disconnection.
• Faulty connection.
• Wire open or short.
• Faulty sensor.
• F-room sensor housing
disconnection.
• Faulty connection
• Wire open or short.
• Faulty sensor.
• R-room defrost sensor
housing disconnection.
• Faulty connection.
• Wire open or short.
• Faulty sensor.
• Faulty geared-motor
• Faulty reed-switch
housing disconnection.
• Faulty connection.
Remark
R1-Sensor temperature is
over +50˚C or below –50˚C.
R2-Sensor temperature is
over +50˚C or below –50˚C.
RD-Sensor temperature is
over +50˚C or below –50˚C.
Room-Temp Sensor
temperature is over +50˚C
or below –50˚C.
F-Sensor temperature is
over +50˚C or below –50˚C.
F-Sensor temperature is
over +50˚C or below –50˚C.
Square wave not detected
by reed-S/W.
Item
R1-Sensor
R2-Sensor
RD-Sensor
Room-Temp.
Sensor
F-Sensor
FD-Sensor
Geared-
Motor
Display LED
Refrigerator “Low”
Refrigerator
“Low · Mid”
Refrigerator “Mid”
Freezer “Low”
Freezer “Low”
Freezer “Mid”
Refrigerator “High”
(Self-diagnosis Display Table)

Samsung Electronics 15
7-11 Load status display
1) Press power F/R key for five seconds then press temperature control key in the refrigerator after
temperature display lamps on and off three times.
2) This mode shows which load is being sourced signal from MICOM currently. This doesn’ t mean
the load is operating but just show MICOM signal output. The Compressor may not operate due
to the open wire or relay missing though the display shows the Compressor operating.
3) Load status display return to normal mode after sixty seconds.
4) Follows are load status and related display.
No
1
2
3
4
5
6
7
8
9
10
11
12
Display LED
Freezer “Low”
Freezer “Low · Mid”
Freezer “Mid”
Freezer “Mid · High”
Freezer “High”
Refrigerator
“Low · Mid”
Refrigerator “Mid”
Refrigerator
“Mid · High”
Refrigerator “High”
Quick Freezing
Quick Refrigeration
High humidity
refrigeration
Display
Relevant LED ON during
Compressor operation
Relevant LED ON during F-FAN
operation
Relevant LED ON during freezer
defrost heater on
Relevant LED ON during freezer
bulb ON
Relevant LED ON during
Compressor Cooling Fan oeration
Relevant LED ON during F-FAN
operation
Relevant LED ON during
refrigerator defrost
Relevant LED ON during
refrigerator bulb ON
Relevant LED ON during
refrigerator brade rotation
Relevant LED ON with initial
power input
Relevant LED ON when ROOM
temperature is over 35˚C
Relevant LED On when ROOM
temperature is below 20˚C
Remark
Item
COMP
F-FAN
Freezer defrost Heater
Freezer bulb
COMP. Cooling Fan
R-FAN
Refrigerator defrost
Heater
Refrigerator bulb
GEARED-Motor
Initial Mode
Overload
Low temp.
Refrigerator Subordinate
Mode Display
Freezer Subordinate
(Load Status Display Table)

Samsung Electronics 41
11-1 Refrigerator inside lamp replacement
11. Disassemble and assemble method
1) Remove the screw with (+) driver and
push the cover to the arrow direction and
apart.
2) Remove out the lamp to the arrow direction
and replace with new one. ( Left & Right )
3) Insert the front of the cover first and screw
it.
11-2 Freezer inside lamp replacement
• Grab the the salient part of cover and pull
it down to apart. Replace the 220V/15W
lamp and insert front of cover first and
then fix it.

42 Samsung Electronics
11-3 Disassemble of refrigerator cooling part
1) Remove foods and shelves inside the
refrigerator.
2) Pull out the chilled room box to the arrow
direction and pul it up to apart at the locking
point.
3) Push the right arrow part of the chilled room
inside and apart the chilled room cover.
4) Up the cover of vegetable box and pull apart
then pull it out.
5) Remove the screws with (-) driver.
6) Release the locking part using (-) driver as
shown.
7) Pull out the cover front part.
2 screws

Samsung Electronics 43
8) Disassemble the wire housing of motor in the
center.
9) Pull the housing part and disassemble the wire
terminal.
10) Remove screws of duct and pull apart.
11) Release wire terminal on top of the left.
12) Remove screws of evap. Cover rear and release
the locking part of both left and right using (-)
driver. latch
Remove 2
screws
Remove 2 screws

44 Samsung Electronics
♦ Cooling cycle unit assembly in the refrigerating compartment
♦ Cooling cycle unit cover assembly in the refrigerating compartment
(Groove for preventing
small ice when
defrosting)

Samsung Electronics 45
♦ Rotating duct assembly in the refrigerating compartment

11-4 Disassemble of cooling part in the freezing room
46 Samsung Electronics
1) Pull out the shelf.
2) Remove screws of evap cover and pull apart.
3) Disconnect the each terminal of wire housing
on top of the left side.
4) Remove screws of evap. Cover rear and
release the locking point using (-) driver.
Residual spread preventer
1
2

Samsung Electronics 47
♦ Assembly of the cooling cycle unit in the freezer
Maintains 45˚
(Coolant & noise
reduction)
