OWNER’S
INSTRUCTIONS
SR -V52/V57 : TYPE A
SR-519/569 :TYPE B, C
ENGLISH
REFRIGERATOR
Before operating the unit, please read this manual throughly, and retain for future reference.
SR-V52/57 (ENG) 11/15/59 4:28 PM Page 1

1
Uniform supply of cold in refrigerating room!
• Food can be refrigerated more freshly and evenly
by supplying cold even to the corners by means
of rotating wings to distribute cold, which are
installed to the cold outlet of the refrigerating
room. (Rotating cooling system).
Uniform supply of cold in the freezing room!
• Foods can be freezed more evenly by the air
shower function to jet cold evenly in the freezing
room.
Being fresh by Bio deodorizer!
• Bio deodorizer that remove every kinds of foods
smell in refrigerator maintains the origin flavor of
foods newly.
Rapid opening and closing by rail system!
• Vegetables and fruits can be rapidly accessible to
prevent loss of cold by employing a rail style
design in high-humidity vegetable room and
high-umidity special room which operates
smoothly only by pulling and pushing a handle
effortlessly.
Even slightly opened door is closed automati-
cally by itself!
• In case of slight opening of refrigerator door, it
will be closed automatically by employing
energy-saving, automatic closing function.
FEATURE
SUPER X-FLOW
X-Flow cooling system is a new rotating
cooling system that refrigerates the inside of
refrigerator quickly and uniformly by rotating
wings tramsmitting cold in all the corners.
TYPE A only: Please refer to page 11.
CONTENTS
FEATURE..........................................................1
WARNING FOR SAFETY ................................2
CAUTION FOR SAFETY..................................4
PREPARATIONS PRIOR TO USE...................6
HOW TO STORE FOODS CORRECTLY........7
INSTALLATION METHOD................................8
HOW TO USE FREEZING ROOM...................9
HOW TO USE FEFRIGERATING ROOM......11
HOW TO DISASSEMBLE ACCESSORIES...14
CLEANING METHODŒ.................................16
PROCEDURE OF INSTALLATION................18
CAUTIONS WHEN USING.............................19
CHECK PRIOR TO SERVICE REQUEST.....20
ANSWER TO THE QUESTION......................22
SR-V52/57 (ENG) 11/15/59 4:28 PM Page 2

2

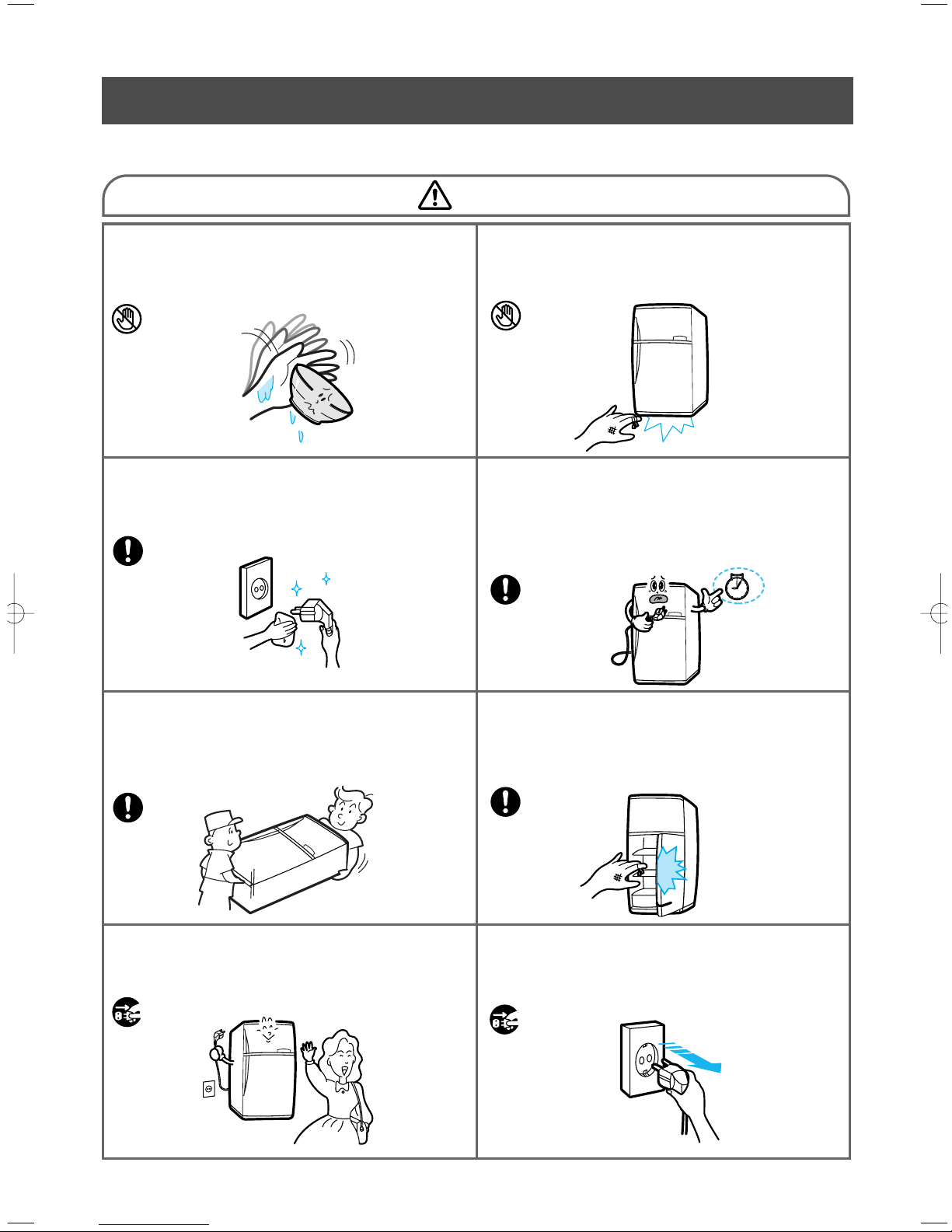

WARNING FOR SAFETY
This is to prevent users or other persons from being wounded or injured, by using the present product
properly. Be sure to observe these contents for safety. (After reading these contents, please keep in such a
safe place as to look up)
WARNING
WARNING
CAUTION
Represents the contents that
death or heavy injury of a person
is foreseen.
Represents the contents that
injury of a person or damage of
material is foreseen.
Represents the contents of progibition.
Represents the progibition of disassembly.
Represents the progibition of contact.
Represents what has to be observed.
Represents that a power plug has to be
separated from the plug socket.
Represents earth for prevention of electric
shock.

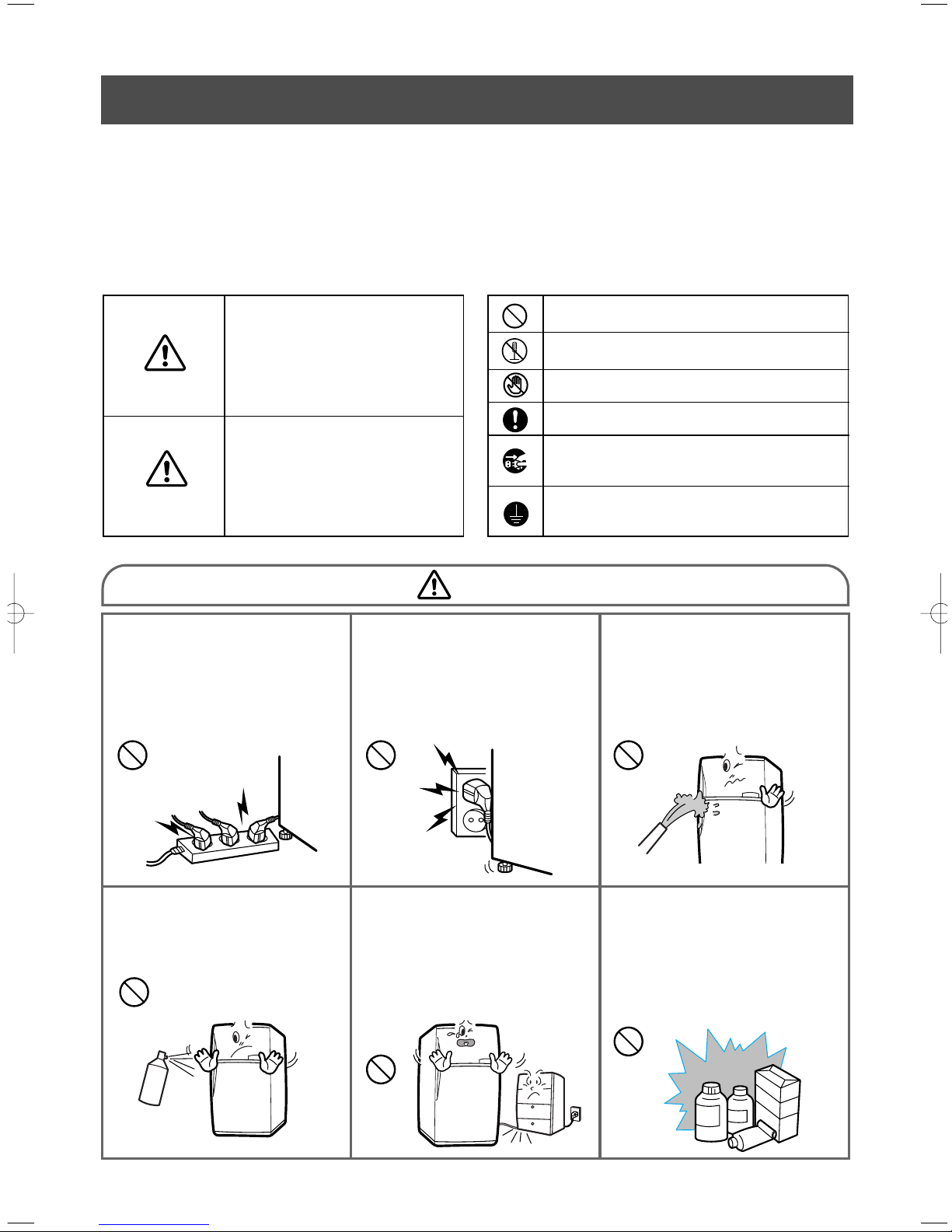

Do not insert the power plugs
for many products at the same
time.
• May cause abnormal generation
of heat or fire.
Do not spray inflammable gas
near the refrigerator.
• May cause explosion or fire.
Set the power plug free from the
back side of the refrigerator.
• Damaged power plug may cause
fire due to overheating.
Do not bend the power cord with
excessive force or do not have
the power cord pressed by
heavy article.
• May cause fire or electric shock.
Do not directly spray water inside
or outside of the refrigerator
• May cause fire or electric shock.
Do not store a volatile and
inflammable substance in the
refrigerator.
• Storage of benzene, thinner,
alcohol, ether, LP gas, etc., may
cause explosion.
Contents of Caution/Warning Contents of indication
SR-V52/57 (ENG) 11/15/59 4:28 PM Page 3

3
WARNING
Do not put a container filled with
water on the product.
• If water poured, it cause bad
insulation of the electric parts
which may lead to fire or electric
shock.
Do not disassemble, repair or
alter.
• It may cause fire or abnormal
operation which leads to injury.
If and when gas leaks, immediately ventilate
without touching the refrigerator and the plug.
• Explosion of gas may cause fire and a burn.
Dispose refrigerator after door or door's packing is
removed, if disposition is required.
• It is dangerous for child to enter the refrigerator for
play-in with door closed.
Do not install the refrigerator in
the wet place or the place which
water splashes.
• Deterioration of insulation of
electric parts may cause electric
shock or fire.
Pull the power plug out for
exchanging the interior lamp of
the refrigerator.
• It may cause electric shock.
Do not insert the power plug with
the wet hand.
• May cause electric shock.
Be sure to earth.
• If earthing is not done, it will cause
breakdown and electric shock.
(Please refer to page 6).
SR-V52/57 (ENG) 11/15/59 4:28 PM Page 4

4

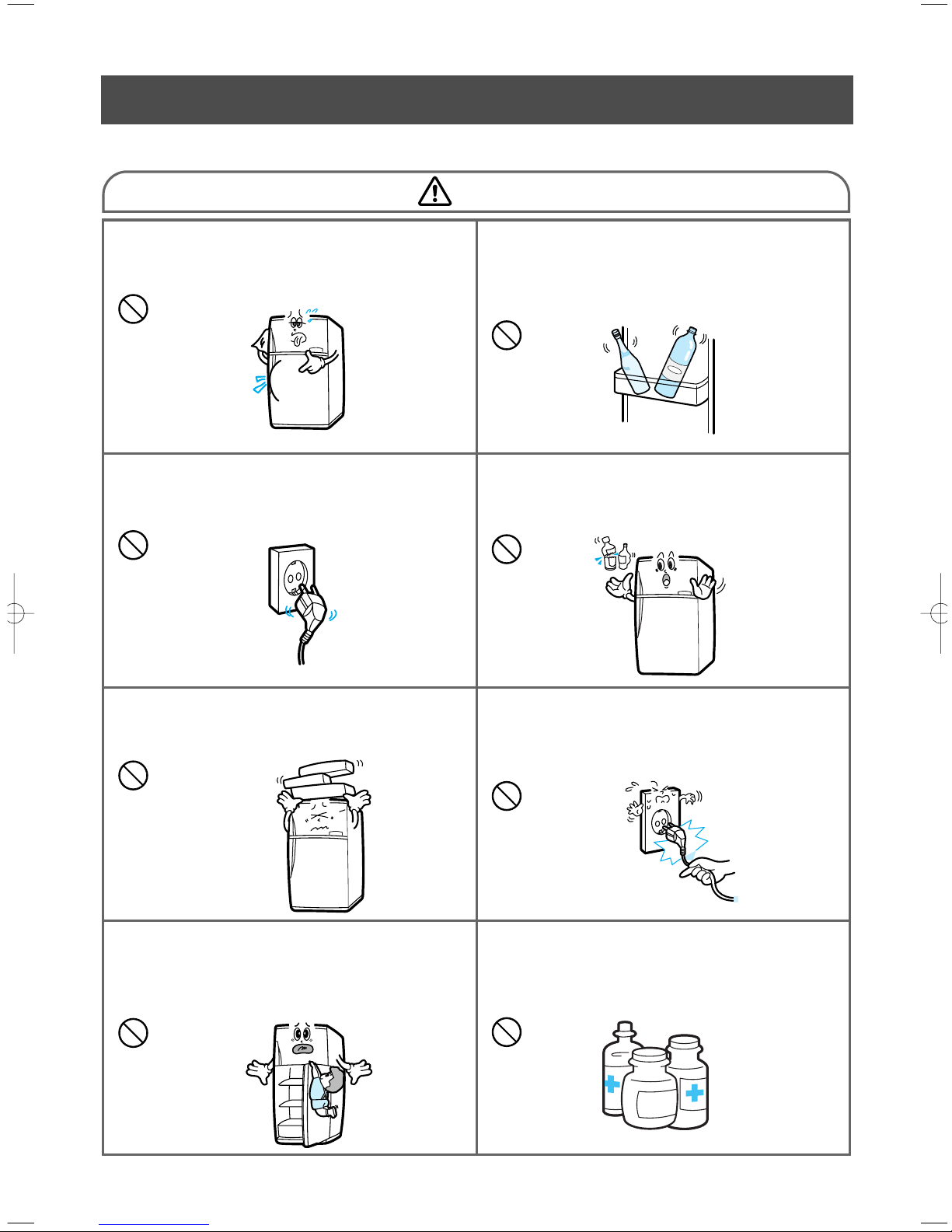

CAUTION FOR SAFETY
CAUTION
Do not store too much foodstuffs therein.
• Opening of the door may cause pouring over which
may inflict a wound.
If the hole of the power plug socket is loose, do
not insert the power plug.
• It may cause electric shock and fire.
Do not store articles on the product.
• Opening or closing of the door may cause throwing
down which may inflict a wound.
Do not let a child be hung down from the door.
• Injury may occurs, when the product falls down or a
finger is jammed in the door.
Do not store narrow and lengthy bottles or foods
in a small multi-purpose room.
• It may hurt you when refrigerator door is opened and
closed resulting in falling stuff down.
Do not put bottles or kinds of glass in the freezing
room.
• Freezing of the contents may inflict a wound.
Do not pluck out the power cord by pulling the
portion of it.
• Damage of the cord portion may cause fire and
electric shock.
Do not store pharmaceutical products, scientific
materials, etc., in the refrigerator.
• The products which temperature control shall be
strict shall not be stored in the refrigerator.
SR-V52/57 (ENG) 11/15/59 4:28 PM Page 5

5
CAUTION
Do not touch the container and the food stuffs of
the freezing room with the wet hand.
• It may cause frostbite.
Please wipe out foreign materials of the metal
option of the power plug cleanly.
• Use of it as it is may cause fire.
Move it by catching the upper handle of rear side
and the lower handle of front side.
• Slippery is caused to hurt, when other part is
grasped.
If the refrigerator is not to be used for a long time,
pull out the power plug.
• Due to deterioration of insulation, may cause fire.
Do not enter the hand into the bottom surface of
the product.
• Sharp edge may inflict a wound.
If you want to insert the power plug again, please
insert it five minutes after pulling out of the plug
socket.
• Abnormal operation of freezing device may cause
breakdown of it.
Use handle when opening and closing the refriger-
ator door.
• In case of using other parts than handle, it may hurt
you with your finger jammed.
When abnormal sound, smell or smoke is noticed,
pull a power plug off immediately, then call service
center.
Afterfive minutes
SR-V52/57 (ENG) 11/15/59 4:28 PM Page 6

6

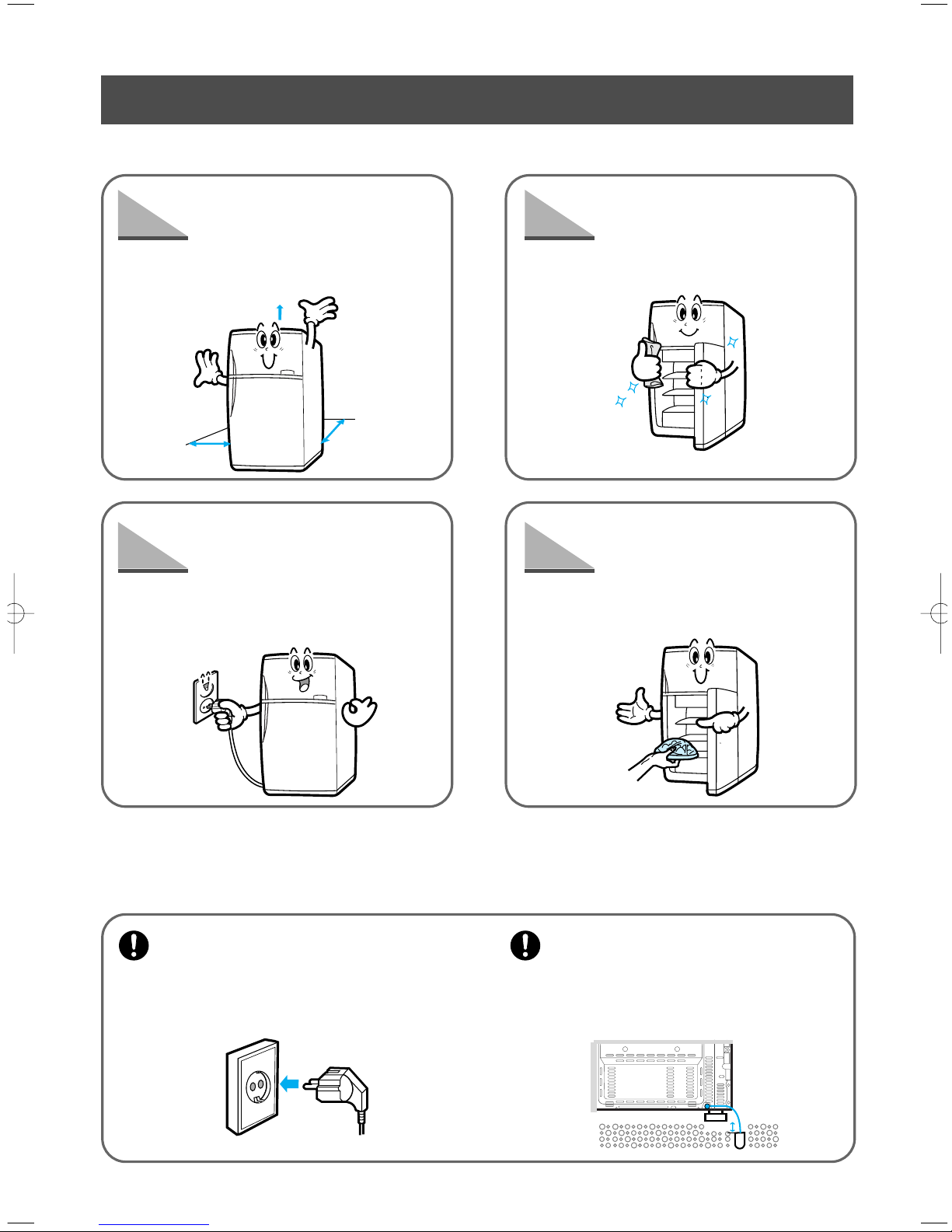

PREPARATIONS PRIORTO USE
1 2
3 4
5cm
5cm
30cm
25cm
The refrigerator should be installed
on flat floor leaving adequate
space.
Insert a power plug into the exclu-
sive receptacle.
• Earth connection should be done.
• It is recommended to connect
power one hour after installation.
Clean up the refrigerator
• Wipe out the inner and outer parts
of the unit with a dish clothe which
was squeezed dry.
Put foods into the refrigerator.
• It is recommended to put foods into
the unit after plugging-in 2 or 3
hours before stuffing to allow
cooling in the unit.
Grounding method
• Grounding should be done to prevent short circuit or electric shock resulting from the electricity leaking from the
refrigerator.
• Do not ground with gas pipe, telephone line or lightning arrester without fail because of being very dangerous
when lightning strikes.
In case of the exclusive electric outlet with a
grounding terminal.
• In case of electric outlet with a grounding terminal,
it does not require a separate grounding connection.
In case of the electric outlet without a
grounding terminal.
• Connect the "grounding wire" to the copper
plate, and bury it in the wet ground 25cm
deeper.
• Unusual noises or poor cooling may arise when
the unit is not levelled.
SR-V52/57 (ENG) 11/15/59 4:28 PM Page 7

7

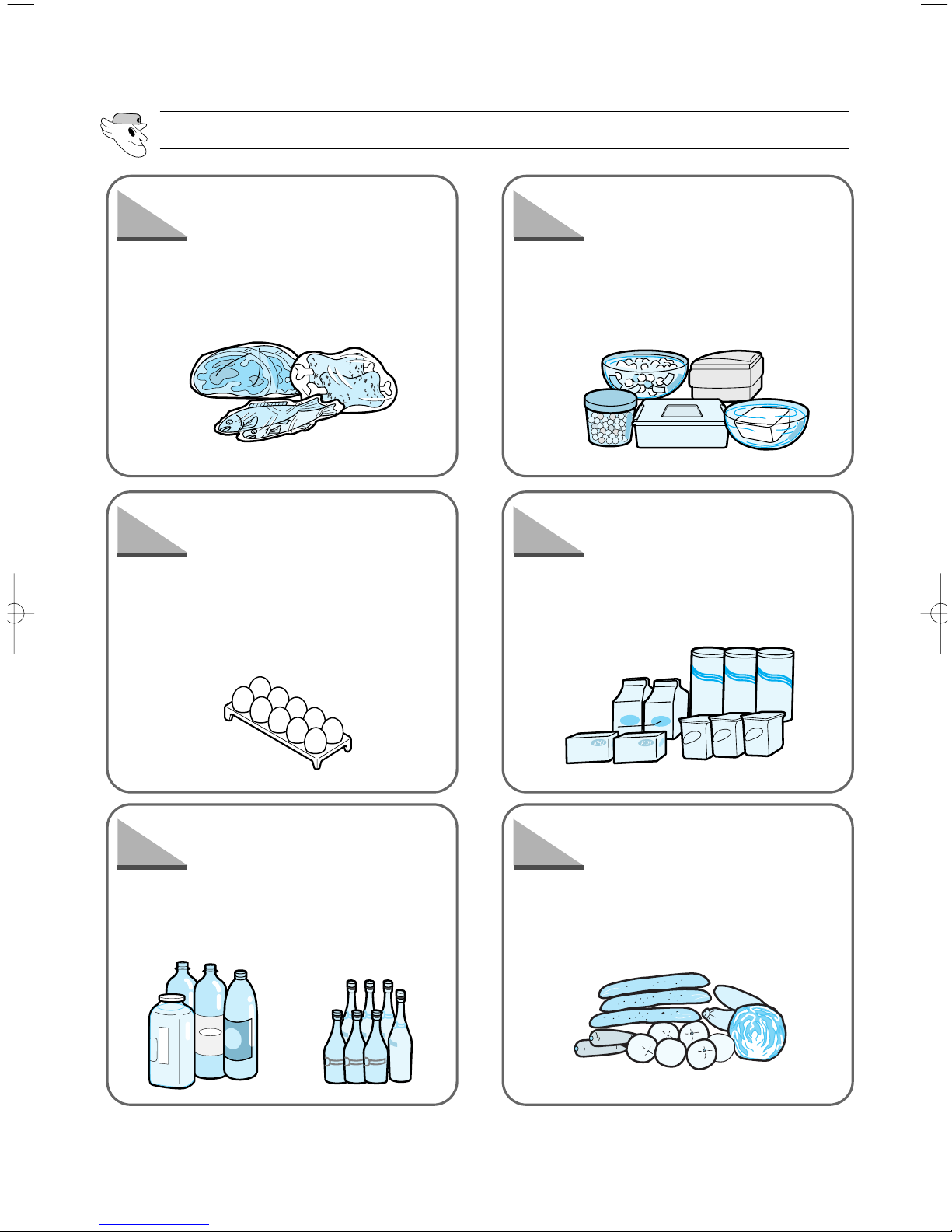

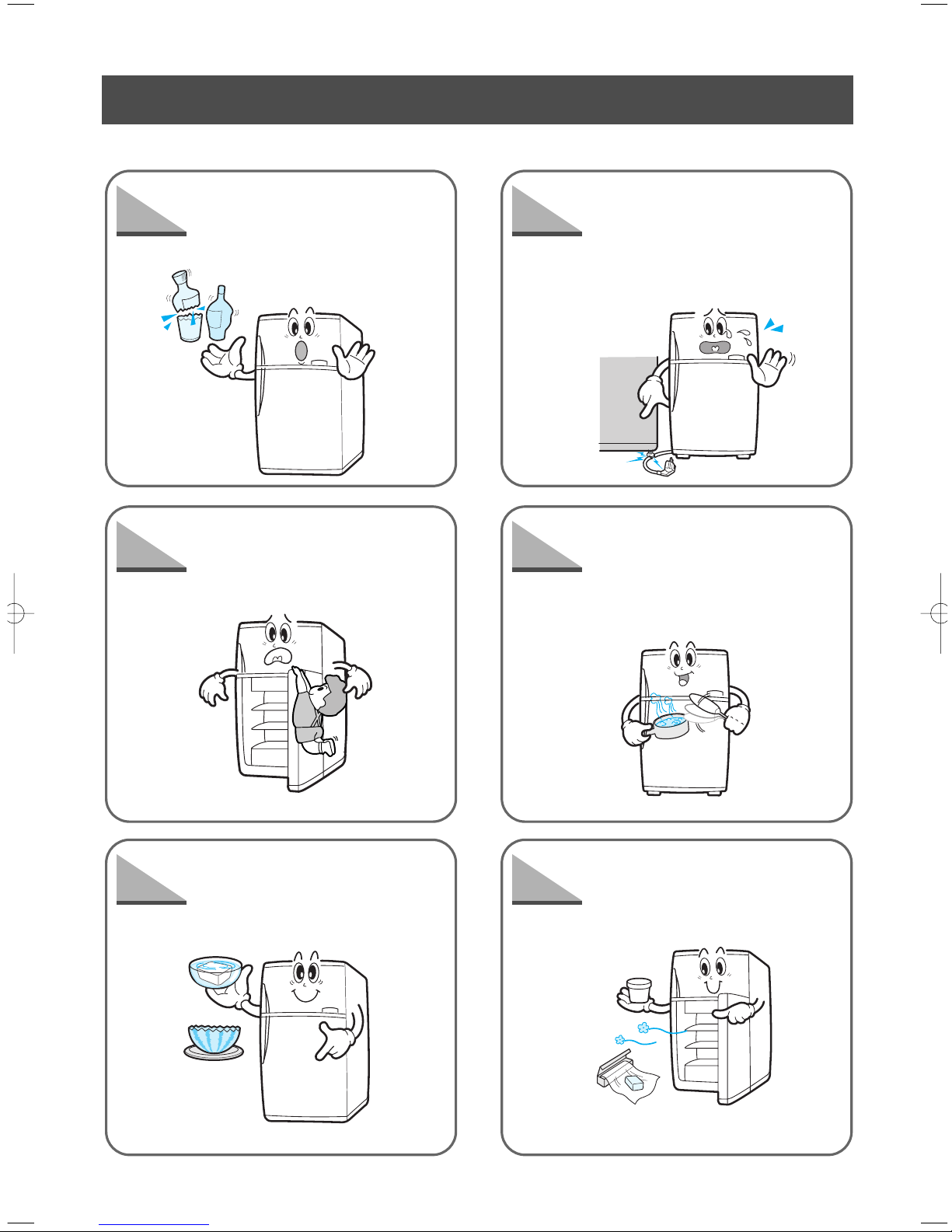

HOWTO STORE FOODS CORRECTLY
Store watery foods in front of shelf of refrigerat-
ing room.
Do not store the foods which are perishable at
low temperature.
• i.e.: Banana, Pineapple, Tomato etc
It is recommeded to store in a vessel with cover
or after wrapping-up with a vinyl sheet.
Cool the hot foods, then store them.
• Electric charges will reduce and cooling will be
much effective provided that hot foods are cooled.
Put foods at proper space.
• In case of cooling outlet plugged, storing effect of
food decreases because of poor circulation of cold.
SR-V52/57 (ENG) 11/15/59 4:28 PM Page 8

8

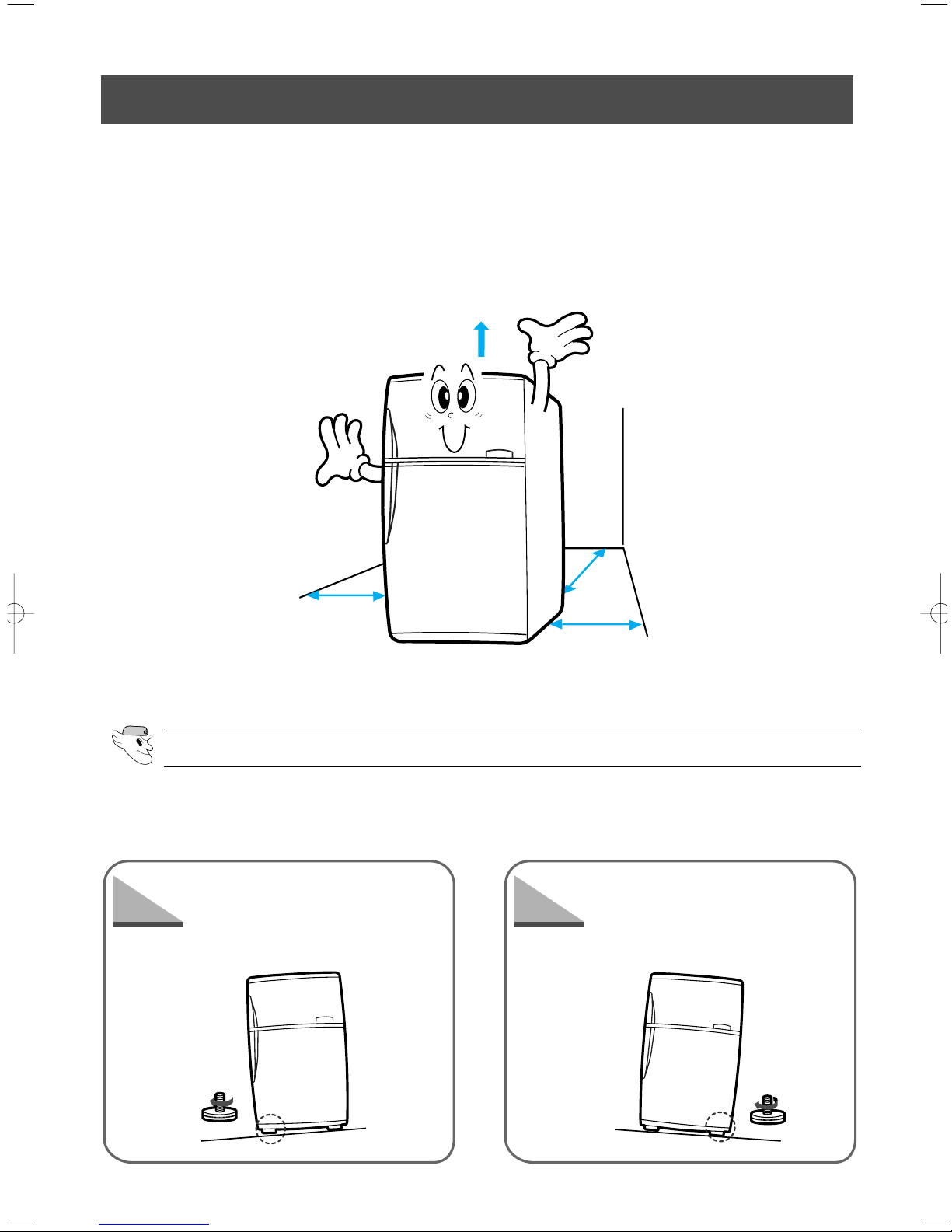

INSTALLATION METHOD
1 2
5cm
5cm 5cm
30cm
Allowing a 5cm space on the right, left and back sides when installing the unit, makes you have an advantage in
saving power consumption.
When you install the front of the unit on a little higher level, its door can be easily opened and closed.
When the door is sagged to the
left, downward.
Turn the left adjusting leg the the
arrow direction and level the unit.
When the door is sagged to the
right, downward.
Turn the right adjusting leg to the
arrow direction and level the unit.
LEVELTHE REFRIGERATOR
SR-V52/57 (ENG) 11/15/59 4:28 PM Page 9

9

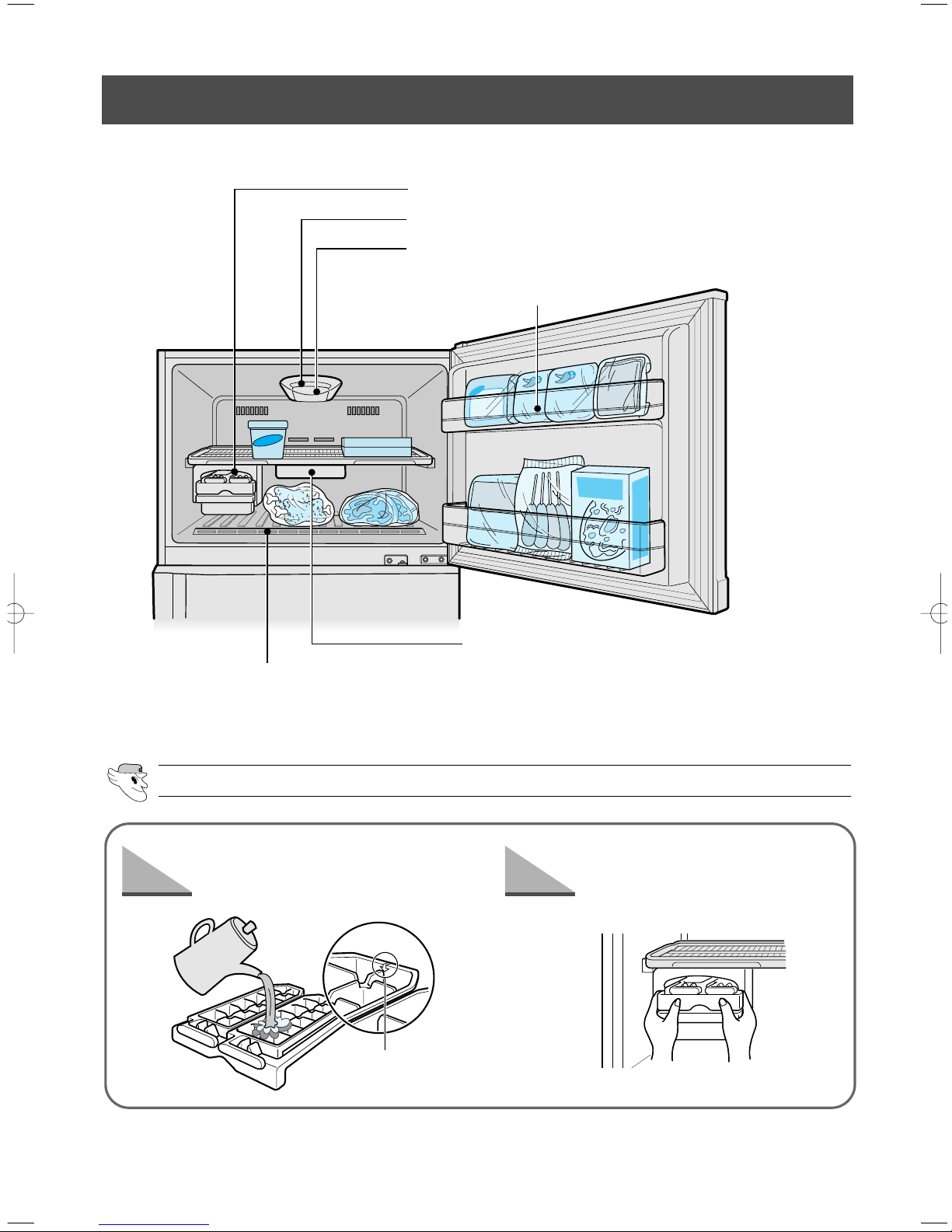

HOWTO USE FREEZING ROOM
1 2
ICE BOX
Temperature controller in freezing room
Indoor light in freezing room
Drying room
Airshower: Function of airshower-foods can be
frozen more evenly by function of jetting cold
uniformly in freezing room.
Suction inlet of cold
HOW TO PRODUCE ICE
Pour water into ice box at a level of
water(Arrow). Put the ice box in the air shower shelf of the freezing room.
Water level
SR-V52/57 (ENG) 11/15/59 4:28 PM Page 10

10
HOW TO CONTROLTEMPERATURE IN FREEZING ROOM
HIGH:
When storing much quantity of foods to be frozen, or producing ice quickly.
• Adjust the temperature controller in the freezing room to the 'HIGH" position.
HIGH to LOW:
When using in average.
• Adjust the temperature controller in the freezing room between "HIGH" and "LOW" position.
LOW:
When storing few quantity of foods to be frozen.
•Adjust the temperature controller in the freezing room to the "LOW" position.
• Put the foods to be stored for a long time in the freezing room, such as ice cream, fish,
and meat, etc.
• It is recommended to store the dried foods in the dry room, such as dried fish, pepper powder
which dislike humidity.
In the following case, smell may arise from ice.
• Storing the uncovered meat or fish.
• Storing the uncovered dried foods such as dried cuttle fish, anchovy, laver and other dried fish.
• Storing foods packed with the smelling package such as vinyl.
REFERENCE
SR-V52/57 (ENG) 11/15/59 4:28 PM Page 11

11
HOWTO USE REFRIGERATING ROOM
3
1
2
6
4
5
Temperature controller in refrigerating room
(HIGH-LOW)
TYPE A
(X-Flow System)
TYPE B
(Multi Flow System) TYPE C
(Multi Flow System+Wire Shelf)
REFERENCE
Freqrent opening of refrigerator door may produce dew inside of the unit.
SR-V52/57 (ENG) 11/15/59 4:28 PM Page 12

12
HOW TO CONTROL TEMPERATURE IN REFRIGERATING ROOM
HIGH:
When storing much quantity of foods to be refrigerated or not being cold enough.
• Adjust the temperature controller in refrigerating room to the "HIGH" position.
HIGH to LOW:
When using in average.
• Adjust the temperature controller in refrigerating room between "HIGH" and "LOW" position.
LOW:
When the food refrigerated are frozen, or the foods are in a small quantity.
• Adjust the temperature controller in refrigerating room to the "LOW" position.
REFERENCE
In case surrounding temperature is less than 5˚C, the temperature should be lower than
average to prevent the stored foods against getting frozen.
SR-V52/57 (ENG) 11/15/59 4:29 PM Page 13

13

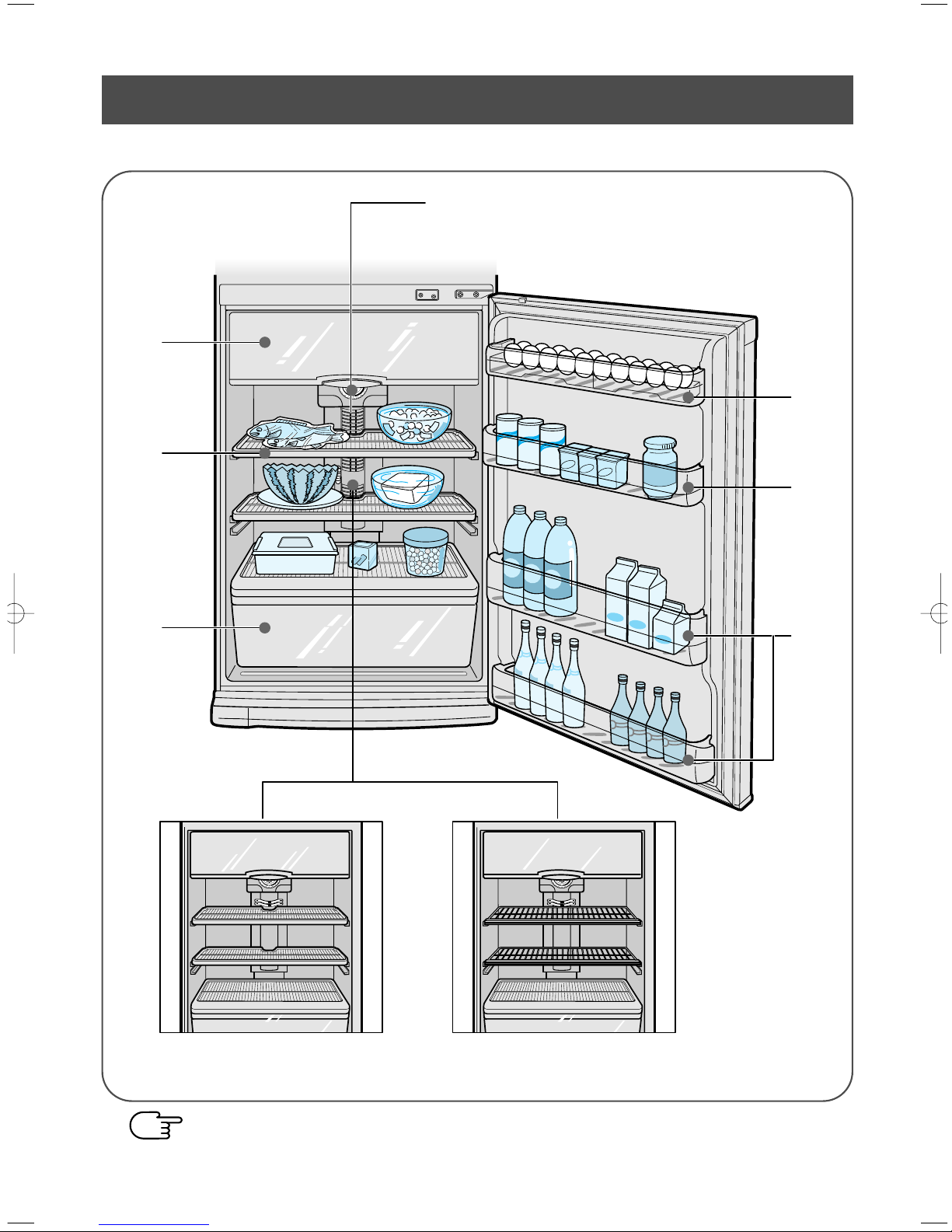

HOW TO STORE FOODS FOR REFRIGERATION
1 2
5 6
3 4
milk
Butter Butter
milk
High-humidity special room
• Store the foods which are just ready
for cooking such as meat, fish and
raw fish, and are slightly frozen.
Egg tray
• Store eggs.
• Egg tray may be used as a multipur-
pose room only by removing the egg
tray.
Jumbo Guard bottle
• store beer, 1L milk, juice in the lower
part, and 1.5L or 2.0L vessel or
water bottle in the upper part.
Shelf of refrigerating room
• Store the side dishes contained in
storage vessels and other storage
foods at suitable intervals.
Guard variety
• Store the small-packed storage
foods like butter, milk, yogurt etc. and
beverages.
High-humidity vegetable room
• The rail style high-humidity vegetable
box is a cased indirect cooling sys-
tem to reach the foods with cold. So
that origin moisture is maintained for
a ling time.
Upper part Lower part
SR-V52/57 (ENG) 11/15/59 4:29 PM Page 14

14

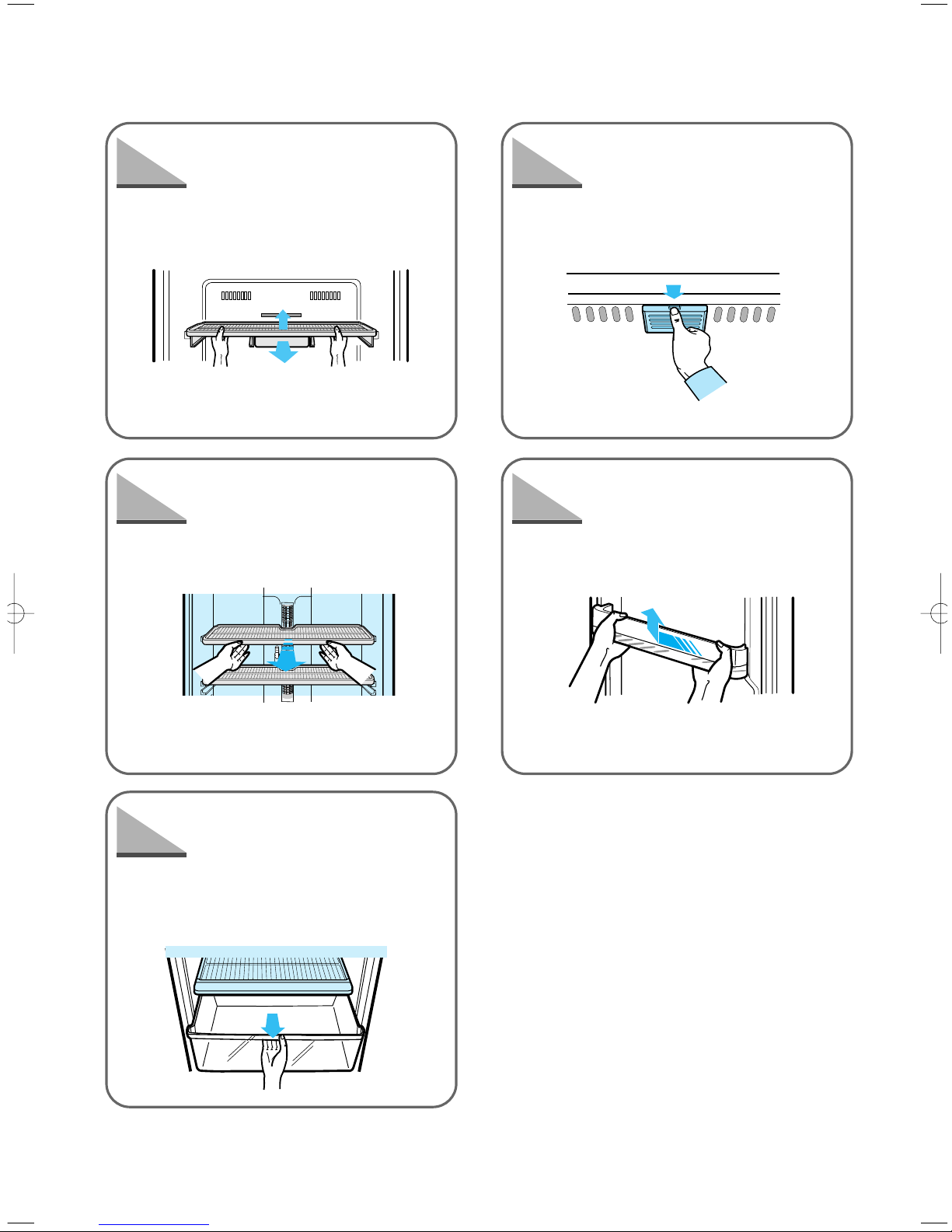

HOWTO DISASSEMBLE ACCESSORIES
13
4
5
2
6
1
1
2
1
Shelf of High humidity special room
• Lift upward the special room cover, and push
the right side(No. ➀) inward to remove, and
remove the left side(No. ➁) toward arrow, then
pull it.
• While removing the special room shelf toward
arrow, lift it upward at the hanging point for
removal.
• Lift slightly the front part of special room shelf,
and insert roller between rails, then push it.
• Insert the left part (No. ➀) of special room as
direction of arrow, and pull the right hanging
part(No. ➁) inward as direction of arrow until
inserting.
Procedure of disassemble Procedure of assemble
SR-V52/57 (ENG) 11/15/59 4:29 PM Page 15

15
2 3
6
4 5

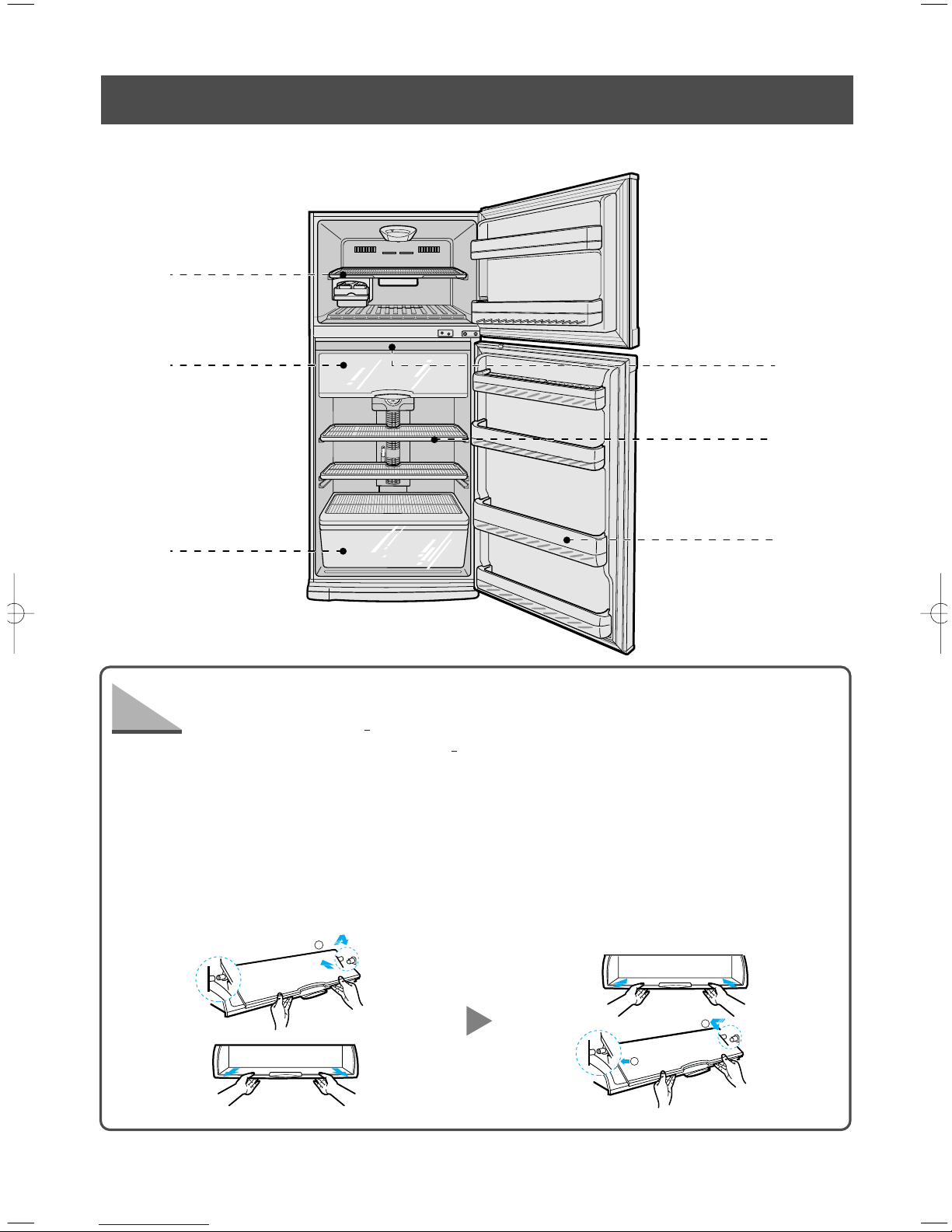

Shelf of freezing room
• First, remove ice box, and lift the
front part of the shelf and pull out to
remove it.
Shelf of refrigerating room
• Hod the front part of the shelf in
refrigerating room, and pull it forward
until removing.
Cover and box of vegetable room
• Lift upward and remove the veg-
etable box, and pull the vegetable
box forward to the middle, then
remove it raising it upward.
Bio deodorizing device
• Press and remove downward the end
part of hanging jaw in front of Bio
deodorizing device located on the top
of refrigerating room.
Beverage room
• Lift it upward, then remove it.
SR-V52/57 (ENG) 11/15/59 4:29 PM Page 16

16
CLEANING METHOD
1 2
1
4
5
6
7
2
3
Ice cube maker
• Clean up the ice cube maker with
water after pulling it out.
Suction inlet of cooling air in freez-
ing room.
• Wipe the suction inlet with a dried
cloth according to vertical texture not
to cover with alien substance.
SR-V52/57 (ENG) 11/15/59 4:29 PM Page 17

17
3 4
5 6
7
Shelf of refrigerting room.
• Remove the shelf of refrigerating
room, then clean it up using water
and detergent.
Guard bottle
• Wash to guard bottle with water after
pulling it out.
High-humidity ware vegetable
• Wipe out the vegetable drawer using
a wet cloth after pulling it out.
Bio Deodorizer
• If the refrigerating room smells bad,
please seperate the Bio deodorizer,
soak the catalyst in pure water and
dry it to sunlight before use.
Rubber packing
• Clean up the rubber packing with a
dish cloth which is wet with detergent,
and between grooves with a wooden
chopstick wrapped up by a cut of
cloth.
• Disconnect the power plug and open the door for
dry when cleaning or out of operating for a long
time.
• Do not spray water for clean-up, and do not use
benzene or thinner, either.
CATALYST
Warning
SR-V52/57 (ENG) 11/15/59 4:29 PM Page 18

18
PROCEDURE OF INSTALLATION
1 2
3 4
1 2
GAS
CAUTIONS WHEN INSTALLING
REPLACING METHOD OF INDOOR LIGHT
Do not put the inflammables into
the unit.
• Flammable sprays may cause fire.
• Plugging-out is dangerous while leaking gas.
• Poor circulation of air may affect cooling function
because heat does not escape.
• Do not put things on the top
of the refrigerator because
they are liable for dropping
down.
Do not store goods on the top or
rear.
Indoor light of freezing room.
• insert driver into the rear groove of
light cover, and pull it forward,
Avoid heat sources or moisture.
• Rusting or decolorating may
happen.
Install the unit in the place where
surrounding temperature is low.
• Cooling efficiency gets better.
• The unit should be away from the
direct sunray.
Indoor light of refrigerating room.
• Remove the shelf of special room.
• Pluck out the power cord, first.
then remove it downward.
After replacing the light, insert the front part first,
and then the rear part by fixing the groove.
Press the top of the light cover with driver, and
pull it forward lowering a little, then replace the
indoor light after removing the cover.
CAUTION
SR-V52/57 (ENG) 11/15/59 4:29 PM Page 19

19
CAUTIONS WHEN USING
1 2
5 6
3 4
Do not put bottles or kinds of glass
in the freezinng room.
• Freezing of the contents may inflict a
wound.
Do not let a child be hung down
from the door.
Store watery foods in front of shelf
of refrigerating room.
Do not bend the power cord with
excessive force or donot have the
power cord pressed by heavy
article.
Cool the hot foods, then store them.
• Electric charges will reduce and
cooling be much effective provided
that hot foods are coolded.
Foods should be stored in a vessel
with cover or after wrapping-up
with a vinyl sheet.
SR-V52/57 (ENG) 11/15/59 4:29 PM Page 20
