Samsung SCC-B5367 User manual

ENG
DIGITAL COLOR DOME
CAMERA
user manual
SCC-B5367
SCC-B5369
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service,
please register your product at
www.samsungsecurity.com
ENG FRE
GER
SPA
ITA

2– DIGITAL COLOR DOME CAMERA
Safety information
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol indicates that dangerous voltage consisting a risk of electric shock is
present within this unit.
This exclamation point symbol is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the
appliance.
WARNING
To prevent damage which may result in fire or electric shock hazard, do not expose this appliance to rain
or moisture.
WARNING
Be sure to use only the standard adapter that is specified in the specification sheet. Using any other adapter
could cause fire, electrical shock, or damage to the product
Incorrectly connecting the power supply or replacing battery may cause explosion, fire, electric shock, or
damage to the product.
Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause abnormal heat
generation or fire.
Securely plug the power cord into the power receptacle. Insecure connection may cause fire.
When installing the camera, fasten it securely and firmly. A falling camera may cause personal injury.
Do not place conductive objects (e.g. screwdrivers, coins, metal things, etc.) or containers filled with water
on top of the camera. Doing so may cause personal injury due to fire, electric shock, or falling objects.
Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric shock.
•
1.
2.
3.
4.
5.
6.
7.
C
A
1
.
2
.
3
.
1
.
2
.
3
.
4
.
5
.
6
.
7
.
8
.
9
.

English – 3
ENG
Safety information
S
n
t
e
r
If any unusual smells or smoke come from the unit, stop using the product. In such case, immediately
disconnect the power source and contact the service center. Continued use in such a condition may cause
fire or electric shock.
If this product fails to operate normally, contact the nearest service center. Never disassemble or modify
this product in any way. (SAMSUNG is not liable for problems caused by unauthorized modifications or
attempted repair.)
When cleaning, do not spray water directly onto parts of the product. Doing so may cause fire or electric shock.
CAUTION
Do not drop objects on the product or apply strong shock to it. Keep away from a location subject to
excessive vibrationor magnetic interference.
Do not install in a location subject to high temperature (over 50°C), low temperature (below -10°C), or high
humidity. Doing so may cause fire or electric shock.
If you want to relocate the already installed product, be sure to turn off the power and then move or reinstall
it.
Remove the power plug from the outlet when then there is a lightning. Neglecting to do so may cause fire or
damage to the product.
Keep out of direct sunlight and heat radiation sources. It may cause fire.
Install it in a place with good ventilation.
Avoid aiming the camera directly towards extremely bright objects such as sun, as this may damage the
CCD image sensor.
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases,
shall be placed on the apparatus.
The Mains plug is used as a disconnect device and shall stay readily operable at any time.
1.
2.
3.
1.
2.
3.
4.
5.
6.
7.
8.
9.

4– DIGITAL COLOR DOME CAMERA
Safety information
WARNING
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers, or other apparatus (including
amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with cart, stand, tripod, bracket, or table specified by the manufacturer, or
sold with the apparatus.
Unplug this apparatus when a card is used. Use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.

English – 5
ENG
e
n
d
v
e
o
r
Contents
Introduction
Features 6
Product & Accessories 7
Part Names and Functions 8
Installation
Before installation 11
Installation procedure 11
Adjusting the camera direction 13
How to use OSD Menu
Using Icons in the Menu 14
Main Menu 14
Profile 15
Camera Setup 17
Intelligence 25
Privacy Zone Setup
27
Other Set 29
System Information 29
Language 29
Specifications
Specifications 31

6– DIGITAL COLOR DOME CAMERA
Introduction
FEATURES
High Resolution
This camera has realized high resolution of 600 lines using the top-notch full digital image processing and
special algorithm technologies.
VPS(Virtual Progressive Scan)
This is an advanced technology that reproduces a sharp progressive image. This is appropriate to high
quality recording and file transfer via the Internet.
Intelligent Motion Detection & Tracking
This is an intelligent function that automatically detects a motion of an object. You can set a virtual fence so it
displays an alert if an object passes / enters /exits the virtual fence or virtual area.
WDR
WDR extends the contrast range as it takes a picture of each of dark and bright areas before compositing
the two, which is useful if you take a picture of windows inside a building. Namely, it improves the picture
quality of the outdoor scenery as well as indoor.
XDR (eXtended Dynamic Range)
Actively controls the gamma compensation in the way it operates the ambient luminance contrast in a
certain pixel unit to determine the optimal visibility.
DAY/NIGHT
This function can make the IR Cut filtering function inactive under the illumination below the normal value.
High Sensitivity
It implements images of high sensitivity using the up-to-date SONY Super-HAD Progressive CCD.
Low Illumination
It uses the digital signal technologies such as low illumination and Day/Night functions that make your camera
identify objects even in the worst environment.
Superior Backlight Adjustment
When an object has a bright illumination or sunlight behind it, this camera automatically improves the
shaded object picture quality.
Digital Power Synchronization
The full digital Line Lock function directly adjusts the vertical camera synchronization to enhance the
operationability and reliability of this camera.
❖
•
❖
•
❖
•
❖
•
❖
•
❖
•
❖
•
❖
•
❖
•
❖
•
P
❖
❖
❖
❖


English – 7
ENG
Introduction
d
g
Output Signal Setting
You can set the following Video output signals: Image reversion (Horizontal, Vertical, or both), Privacy,
Horizontal/Vertical profiling, and digital zooming.
OSD(On Screen Display) Menu
OSD menu is provided to display the status of camera and to configure the functions interactively.
Coaxial Cable Communication
This is a remote control function that overlaps the coaxial cable (for a transfer of the video signal) with the control
signal. In installation or repair, this helps you control the communication controller (optional) without additional cabling.
PRODUCT & ACCESSORIES
Product & Accessories
❖
•
❖
•
❖
•
❖
Accessories •
Main Product •
Camera
Test Monitor Cable Tab screw User’s Manual
Note :
The test monitor cable is used to test the camera by connecting to a portable display. If you really want to connect the camera
to a monitoring display, use the BNC cable.

–

8– DIGITAL COLOR DOME CAMERA
Introduction

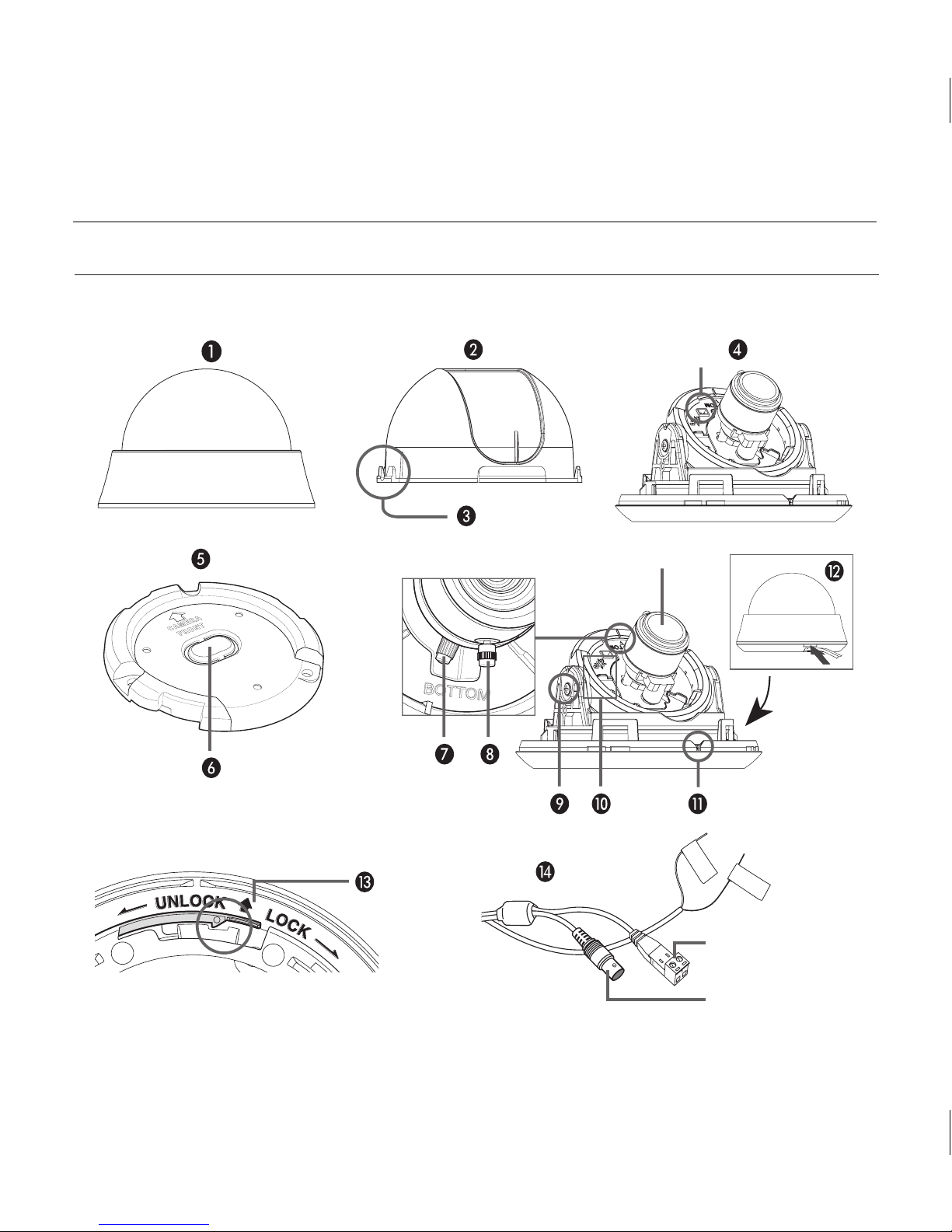

PART NAMES AND FUNCTIONS
Components of your camera❖
EXT.D/N
GND
렌즈
전원 커넥터
비디오 커넥터
테스트 모니터 출력
Lens
Power connector
Video connector
Test moniter output

English – 9
ENG
Introduction
No Name Brief description
1 Cover dome Covers the inner cover, lens, and main body to protect them.
2 Inner cover Covers the main body to protect it.
3 Wing locker Push a long thin screwdriver into its narrow spot and press it outward when you want to
remove the inner cover.
4 Main body Includes a lens, a switch board, a PCB board, screws, and such.
5 Mount bracket Used as a ceiling or wall fixture. It is fixed using three long tab screws provided in the
package.
6 Ceiling mount opener Remove it for line connection to the ceiling when it is installed on the ceiling.
7 Zoom lever Using this lever, the lens zoom can be adjusted and fixed.
8 Focus lever The lens focus can be adjusted by rotating it left or right. Rotate it clockwise for fixing.
9 Tilt fixing screw Using this screw, the slope of the lens can be adjusted and fixed.
10 5-way Switch This switch is used to set and adjust the settings of the camera’s functions.
11 Groove mark To attach the Main body to the Mount bracket, align this groove mark on the Main body with
the wide groove in the CAMERA FRONT side on the Mount bracket.
12 Locker Used to open or close the Cover dome. To open the cover dome, press the locker.
13 Lock releaser Push it outward and rotate the main body in UNLOCK direction when you want to remove the Mount bracket from the Main body or to remove the installed camera from the Mount
bracket.
14 Cable
Connect the Video connector to BNC cable and Power connector to power adapter.
EXT. D/N is a port for DAY/NIGHT conversion.
High(DC +3V ~ +5V): DAY(COLOR) Mode.
Low(0V): NIGHT (BW) Mode.

10 – DIGITAL COLOR DOME CAMERA
Introduction

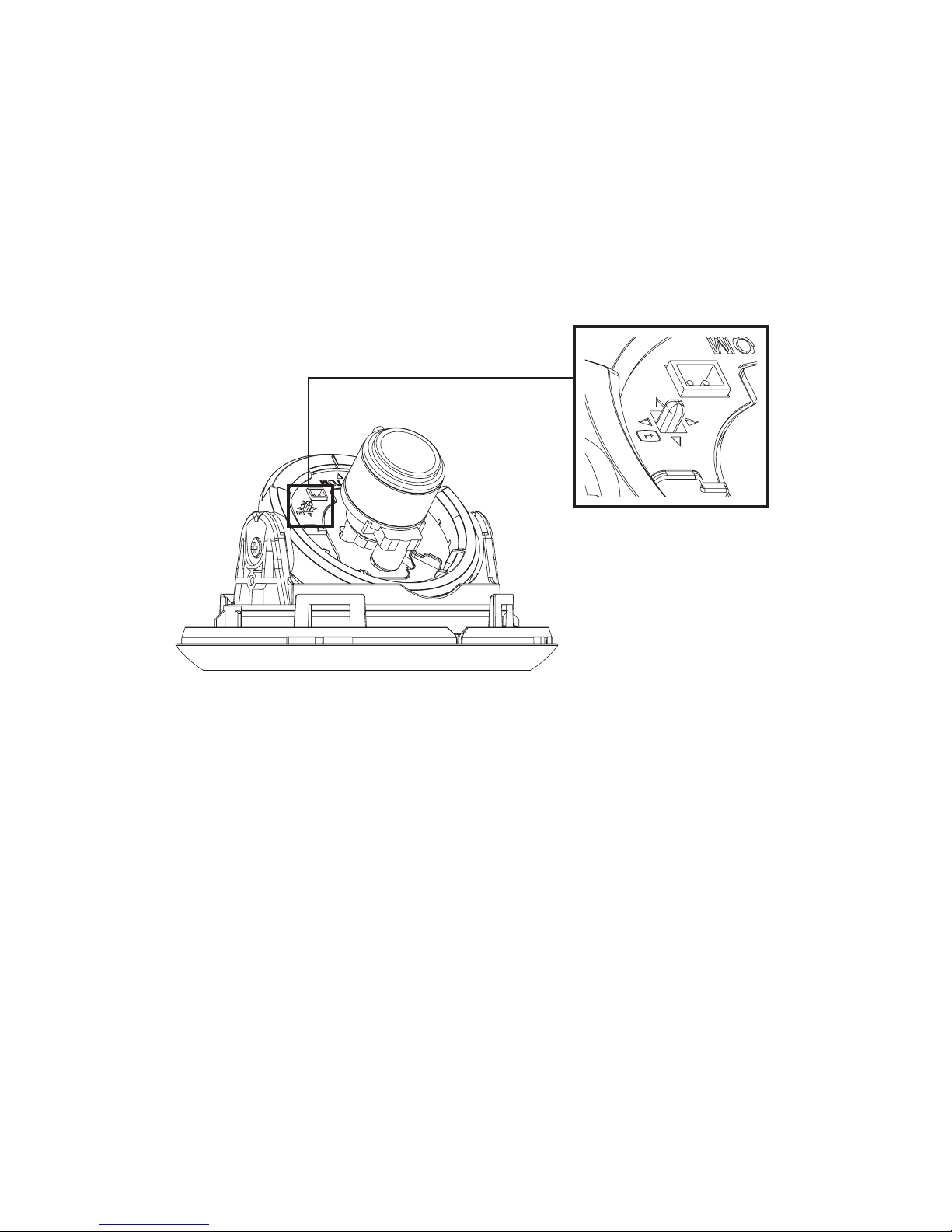

SETUP Switch
This switch is used to set the function or property. When this switch is pressed for at least 2 seconds, the
MAIN MENU appears.
ef (Left/Right) : By pressing this switch left or right, you can move left or right on the menu or change the
displayed value.
cd (Up/Down) : By pressing this switch up or down, you can move up or down on the menu.
: When you press this switch in the menu, the selected function is confirmed. To enter a submenu, press
this button.
•
Setting switches❖
B
B
e
I
N

English – 11
ENG
h
e
s
Installation
BEFORE INSTALLATION
Before installing your camera, you have to read the following cautions.
You have to check whether the location (ceiling or wall) can bear five times the weight of your camera.
Don’t let the cable to be caught in improper place or the electric line cover to be damaged. Otherwise it
may cause a breakdown or fire.
When installing your camera, don’t allow any person to approach the installation site. If you have any
valuable things under the place, move them away.
INSTALLATION PROCEDURE



•
•
•
Ceiling mount
opener

12 – DIGITAL COLOR DOME CAMERA
Installation
❶ Press the Locker button on the bottom of your camera and remove the Cover dome from the Main body
using the other hand. The Main body and Inner cover will be exposed to you.
❷ To install and adjust your camera, you have to first remove the Inner cover. To remove the Inner cover from
the Main body, push a long thin screwdriver into the narrow spot of the Wing locker and press it outward to
remove the cover.
❸ Remove the Mount bracket from the Main body by rotating the Main body in the UNLOCK direction while
pushing the Lock releaser outward. If it is not easily done, rotate the Mount bracket in the LOCK direction
while holding small holes on the Mount bracket.
❹ Fix the Mount bracket to the location (ceiling or wall) with supplied three screws.
Note :
The CAMERA FRONT sign on the Mount bracket should face the camera monitoring area.
❺ When you install the Mount bracket on the ceiling, remove the Ceiling mount opener by pressing it hard to
connect the line attached on your camera through the hole in the ceiling. Otherwise, you can use the empty
space opposite to the CAMERA FRONT sign for line connection.
❻ Now attach the Main body to the Mount bracket by rotating it in the LOCK direction after aligning the Groove
mark on the Main body with the wide groove around the CAMERA FRONT inlay.
❼ Adjust the camera direction. For more details on the direction control, see “Adjusting the camera direction,”
on the same page. When required to adjust the zoom and focus for your camera, see “Connecting cables
and changing the settings,” on page 10.
❽ Attach the Inner cover to the Main body by pressing it until a “click” sound is heard after aligning two screw
holes on the Wing lockers of the Inner cover with two screw holes on the Main body’s left and right sides.
❾ Finally attach the Cover dome to the Main body by pressing it until a “click” sound is heard after aligning the
bump inside the Cover dome with the Groove mark on the Main body.

–
A
W
le
f
In
c
o
u
n
c
a
In
fr
o
u
n
p
r
u
s
T
o
Z
o
o
n
le
n

English – 13
ENG
Installation
o
y
v
e
e
ADJUSTING THE CAMERA DIRECTION
When the camera is fixed on the ceiling, you can adjust the camera viewing angle. You can rotate your camera
leftward or rightward (Panning), and can change the slope of your camera upward or downward (Tilting).
In case of panning, the rotation limit of your camera is set to 355 degree (100 degree clockwise and 255 degree
counterclockwise). The rotation is stopped by the Stopper inside of the camera. For panning control, first
unfasten two screws located on the bottom and rotate in the direction you want, and then fasten them to fix the
camera.
In case of tilting, you can change the slope of your camera
from zero to 90 degree. However if the slope angle is
under 17 degree, you can encounter a partial image hide
problem. To fix the location after adjusting the tilting angle,
use the Tilt fixing screws.
To adjust the focus and zoom of your camera, use the
Zoom lever and Focus lever. When you install the camera
on the inclined ceiling or wall, you can rotate the camera
lens to see a correct direction image.
Panning
Tilting
Lens rotation

14 – DIGITAL COLOR DOME CAMERA
USING ICONS IN THE MENU
(EXIT)
Exits the menu setting.
Before you exits the menu setting, select SAVE to
save your settings, or select QUIT to cancel.
(RET)
Returns to the previous menu.
(HOME)
Returns to the main menu.
(SAVE)
Used to save your settings of MASK AREA,
PRIVACY ZONE and more.
Once you save your settings, they will remain
even if you select QUIT in the menu.
(DEL)
Used to deletes your settings of MASK AREA,
PRIVACY ZONE and more.
Once you delete your settings, they will not be
restored even if you select QUIT in the menu.
•
•
•
•
•
MAIN MENU
ÃÃMAIN MENUÃÃ
PROFILE 
CAMERA SET
INTELLIGENCE
PRIVACY ZONE
OTHER SET
SYSTEM INFO
LANGUAGE

PROFILE
You can set a mode according to the camera
installation conditions.
CAMERA SET
Configure Camera related functions and data.
INTELLIGENCE
You can configure the settings of motion
detection, tracking and more.
PRIVACY ZONE
You can configure the privacy related settings.
OTHER SET
You can configure for Factory Defaults, and more.
SYSTEM INFO.
Displays the system information including the
camera version and communication settings.
LANGUAGE
Select a preferred one from the supported
languages.
•
•
•
•
•
•
•
How to use OSD Menu
P
In

English – 15
ENG
How to use OSD Menu
r
e.
PROFILE
e PROFILE f
Ã
STANDARD
ITS
BACKLIGHT
DAY/NIGHT
GAMING
CUSTOM

In the PROFILE menu, you can configure the following camera settings at once.
CAMERA SET Menu
STANDARD ITS BACKLIGHT DAY/NIGHT GAMING
Previous
Menu Sub-menus
VPS OFF ON OFF OFF OFF
IRIS ALC ALC ALC ALC ALC
ALC -- ---
LENSDCDC DCDCDC
LEVEL 0 0 0 0 0
BACKLIGHT OFF OFF OFF OFF OFF
WDR - - WDR - -
WEIGHT User setting
allowed
User setting
allowed MID User setting allowed
User setting
allowed
WDR LEVEL User setting
allowed
User setting
allowed 0User setting allowed
User setting
allowed
WHITE BAL User setting
allowed
User setting
allowed
User setting
allowed
User setting
allowed
User setting
allowed
MOTION (F.FAST)--- (F.FAST)--- NORM (F.FAST)--- SLOW
DNR MID MID MID MID MID
SHUTTER OFF AUTO1/250 OFF OFF OFF
SENS-UP AUTOx4 AUTOx2 AUTOx4 AUTOx4 AUTOx4

16 – DIGITAL COLOR DOME CAMERA
How to use OSD Menu
CAMERA SET Menu
STANDARD ITS BACKLIGHT DAY/NIGHT GAMING
Previous
Menu Sub-menus
XDR MID MID MID MID MID
DAY/NIGHT AUTO AUTO DAY AUTO DAY
NIGHT-- ---
BURST OFF ON OFF OFF OFF
WHITE BAL DAY DAY/NIGHT DAY DAY/NIGHT DAY
DAY -- ---
MODE ATW2 ATW1 ATW1 ATW1 ATW1
RED00 000
BLUE 0 0 0 0 0
NIGHT-- ---
BRIGHTNESS User setting
allowed MID User setting allowed MID User setting allowed
MODE OFF ATW2 OFF ATW2 OFF
RED User setting
allowed 0User setting allowed 0User setting allowed
BLUE User setting
allowed 0User setting allowed 0User setting allowed
DETAIL 2 2 2 2 2
ITS
It will be set automatically so you can easily check the traffic conditions.
BACKLIGHT
It will be set automatically so you can distinguish the object from the background in a severe backlighting scene.
DAY/NIGHT
It will be set automatically so it optimizes to the day or night conditions, respectively.
GAMING
It will be set automatically to help you take a picture in a regular indoor lighting condition.
❖
❖
❖
❖
C

English – 17
ENG
How to use OSD Menu
CAMERA SETUP
eCAMERA SETf
CAMERA ID OFF
VPS OFF
IRIS ALC
MOTION (F.FAST)---
DNR MID
SHUTTER OFF
SENS-UP AUTO X4
FLICKERLESS OFF
XDR MID

d
c
DAY/NIGHT AUTO
WHITE BAL 
DIGITAL ZOOM OFF
DETAIL [2]
V-SYNC (INT)---
AGC COLOR SUP LOW
REVERSE H/V
POSI/NEGA +
PIP OFF

d
c
DIS OFF

Setup the general functions of zoom camera module.
Use the cdef switch to select a menu item.
CAMERA ID [OFF, ON]
CAMERA ID
ABCDEFGHIJKLMNOPQRSTUVWXYZ0
123456789 :?-+*()/
SP
ffee SP LOCATION
CAMERA-1..................
...........................

The CAMERA ID menu is used for you to assign
a unique name to a camera. If you press the
SETUP switch with the CAMERA ID menu
selected, you will see the appropriate screen.
You can enter up to 54 alphanumeric or
special characters for the CAMERA ID. Select
LOCATION and press the SETUP switch to
move the display position of the CAMERA ID.
VPS [OFF, ON]
If you set the VPS (Virtual Progressive Scan)
option, the camera will display the image in
progressive format.
IRIS [ALC]
The IRIS menu is used if you want to adjust the
intensity of radiation incoming to the camera.
❖
❖
❖

18 – DIGITAL COLOR DOME CAMERA
How to use OSD Menu
ALC (Automatic Light Control)
①If you press the SETUP switch with an ALC-
based sub menu selected, you will see the
appropriate screen.
ALC
LEVEL [00]----I----
BACKLIGHT OFF

The LEVEL menu is used to adjust the
overall brightness, where “+” will increase the
brightness and “–” will decrease it.
② If you set the BACKLIGHT option to BLC,
you will see a menu where you can set the
BLC area.
you can set the desired BLC zone by defining
the size and location.
ALC
LEVEL [00]----I----
BACKLIGHT BLC
AREA USER
<SIZE>
<LOCATION>

•
If you use an ordinary camera in a scene
with an intensive backlight, the object will be
displayed dark on the monitor affected by the
backlight. To solve this problem, you can use
the BLC(Back Light Compensation) function
to improve the sharpness of the image in
such a high contrast scene.
③
If you set the BACKLIGHT option to WDR, you will
see a menu where you can set the WDR options.
You can adjust the shutter speed in WDR LEVEL
and the brightness in WEIGHT.
You can also select any of OUTDOOR, and
INDOOR in WHITE BAL.
ALC
LENS DC
LEVEL [ 00]----I----
BACKLIGHT WDR
WEIGHT MID
WDR LEVEL [ 0]----I----
WHITE BAL INDOOR

WDR(Wide Dynamic Range) extends the gain range of
the screen that is mostly useful if you take a simultaneous
picture of both indoor and outside of the window.
Namely, it improves the sharpness of the
picture in outdoor scenery as well as indoor.
Note :
If you use the VPS (Virtual Progressive Scan) function, the CCD
reads differently so you can not use WDR simultaneously.
If you set VPS to ON, WDR will be automatically set to OFF.

–
❖

English – 19
ENG
How to use OSD Menu
e
e
w
ill
E
L
u
s
C
D
F
.
AGC
[OFF, VERY LOW, LOW, MID, HIGH, VERY
HIGH, USER, FIX]
The AGC (Auto Gain Control) menu is used to
set the AGC level of the camera. When the AGC
is active, the camera automatically increases the
sensitivity by amplifying the Video signal when
the strength of the signal falls below the normal
value.
If OFF or FIX mode is selected in the SENS-UP
menu, you can specify the AGC level.
If you press the SETUP switch with a USER
sub menu selected, you will see the appropriate
screen.
AGC USER
LEVEL [16]

In USER mode, you can break down the level in
16 steps from VERY LOW to VERY HIGH to your
preference.
❖
AGC FIX
LEVEL [01]

If you press the SETUP switch with a FIX sub
menu selected, you will see the appropriate screen.
As a fixed value of the AGC gain is used in FIX
mode, you can select one of the 16 detailed levels
from VERY LOW to VERY HIGH before fixing it.
FIX mode is not available if you set the
BACKLIGHT function to WDR.
Note :
If the DAY/NIGHT menu of the CAMERA SET is set to
AUTO, the AGC menu will be deactivated.
If FLICKERLESS is set to ON, the AGC FIX mode will be disabled.
MOTION [S.SLOW, SLOW, NORM, FAST, F.FAST]
The MOTION menu is used to adjust the strength
of the AGC level for a control of the camera motion.
This is available only if the SENS-UP menu is set
to AUTO.
You can select one from S.SLOW, SLOW, NORM,
FAST and F.FAST for the AGC level.
If you monitor a fast moving object in a low contrast
scene, select F.FAST while select S.SLOW for a
hardly moving object in the same lighting condition.

–
–
❖

20 – DIGITAL COLOR DOME CAMERA
How to use OSD Menu
Note :
If the DAY/NIGHT menu of the CAMERA SET is set to
AUTO, the MOTION menu will be deactivated.
DNR
[OFF,LOW,MID,HIGH, USER(1~16)]
You can configure the DNR (Digital Noise
Reduction) related settings.
Reduces the noise on the screen.
This is especially useful for a severely distorted
screen.
You can set the level if you set DNR to USER.
SHUTTER
[OFF, AUTO 1/100(PAL:1/120), AUTO 1/250,
AUTO 1/500, AUTO 1/1000, AUTO 1/2000, AUTO
1/4000, AUTO 1/10K , 1/100(PAL:1/120), 1/250,
1/500, 1/1000, 1/2000, 1/4000, 1/10K]
The SHUTTER menu is used to configure settings
of the fixed / auto high-speed electronic shutter.
You can select one of 7 options from 1/100(PAL:1/120)
to 1/10K for the fixed high speed electronic shutter,
which is mostly used for imaging a fast moving object.
The auto high speed electronic shutter operates
as the fixed high speed shutter in a high contrast
scene but automatically focuses the target if the
iris opens fully in a low contrast scene like in ELC
mode. When it gets brighter back, the mode will
switch to the fixed high speed electronic shutter
mode.
However, the auto high speed shutter operates
properly only in a camera featuring a DC or VIDEO lens.

–
❖
❖
Note :
If the SENS-UP function is set to AUTO, only items of
OFF and AUTO are available in the SHUTTER menu.
If the SENS-UP mode is set to FIX, the SHUTTER menu
will be deactivated.
If the FLICKERLESS function is set to ON, the SHUTTER menu
will be deactivated.
SENS-UP
[OFF, AUTO X2, AUTO X4, AUTO X6, AUTO
X8, AUTO X12, AUTO X16, AUTO X24, AUTO
X32, AUTO X48, AUTO X64, AUTO X96, AUTO
X128, AUTO X256, AUTO X512, FIX X2, FIX
X4, FIX X6, FIX X8, FIX X12, FIX X16, FIX X24,
FIX X32, FIX X48, FIX X64, FIX X96, FIX X128,
FIX X256, FIX X512]
Automatically detects the ambient level of
darkness in the dark or low contrast scene to
extend the accumulated time, keeping the image
bright and sharp; It can be also used as FIX mode.
Note :
If the SHUTTER menu is set to fixed electronic shutter
mode, the SENS-UP menu will not be available.
If FLICKERLESS is set to ON, the FIX mode of the SENS-
UP menu will be disabled.
If the SHUTTER menu is set to AUTO, the SENS-UP
menu can be set to either OFF or AUTO mode.
If the BACKLIGHT function is set to WDR, the SENS-UP menu
can not be set to FIX.

–
–
–
❖

–
–
–
–
❖

❖
❖
•
•
