Supreme Resolution WDR Camera SHC-735 User’s Manual
Thank you for purchasing a SAMSUNG CCD CAMERA.
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
ENGLISH
www.samsungtechwin.com
www.samsungcctv.com
•SAMSUNG TECHWIN CO.,LTD.
145-3, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, 462-120, Korea
TEL : [phone]~8 FAX : [phone]
•SAMSUNG OPTO-ELECTRONICS UK,LTD.
Samsung House, 1000 Hillswood Drive, Hillswood Business
Park Chertsey Surrey KT16 OPS
TEL : [phone] FAX : [phone]
•SAMSUNG TECHWIN AMERICA,LTD.
1480 Charles Willard St. Carson, CA 90746, UNITED STATES
TEL : [phone] FAX : [phone]
SALES NETWORK
P/No. : Z6806-0828-01F
VAN 08. 10

This installation should be made by a qualified service person and
should conform to all local codes.
The lightning flash with an arrowhead symbol, within an equilateral triangle is
intended to alert the user to the presence of uninsulated “dangerous voltage”
within the product's enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.

COLOR CCD CAMERACOLOR CCD CAMERA User’s ManualUser’s Manual
98
Precautions
Do not install under extreme
temperature conditions.
Use only under temperature conditions
between -10˚C and +50˚C. Provide good
ventilation when using in high temperature
conditions.
Do not install in high humidity
environment.
May lower image quality.
Do not install under unstable
lighting conditions.
Severe lighting changes or flickering may
hinder normal camera operation.
Avoid touching the camera lens.
The lens is the most important component
of the camera. Be careful not to smear it
with fingerprints.
Do not drop the camera or
subject it to physical shock.
May cause a product malfunction.
Never keep the camera face to
strong light directly.
May damage the CCD.
Do not expose the camera to
radioactivity.
Radioactivity exposure may damage the
CCD.
Do not expose the camera to
rain or other types of liquids.
Wipe dry any liquids. Liquids may contain
minerals that are corrosive to electronic
components.
• Exposure to a spotlight or an object emitting strong light may cause smear or
blooming.
• Ensure that the power source complies with normal specifications before
supplying it to the camera.
Notes

COLOR CCD CAMERACOLOR CCD CAMERA User’s ManualUser’s Manual
1110
1. Ultra High Resolution
WDR Color CCD Camera SHC-735
2. Auto Iris Lens Connector Plug
3. C-Mount Adapter
4. Instruction Manual
Front View
OverviewComponents and Accessories
Tripod Mounting Bracket Screw Hole
Used to fix the Tripod Mounting Bracket to the top of the camera.
C-Mount Lens Adapter
Install this adapter to use a C-Mount Lens.
Back Focus Control Lever
Adjust focus by this Back Focus Lever.

COLOR CCD CAMERACOLOR CCD CAMERA User’s ManualUser’s Manual
1312
Overview
Bottom View
Side View
Auto Iris Lens Connector
Used to connect Auto Iris Lens plug.
Tripod Mounting Bracket Screw Hole
Used to fix the camera on a bracket or tripod.
The screw sizes for this hole are as follows:
1/4"-20 UNC (20 THREAD)
L:4.5mm±0.2mm (ISO standard),
or 0.197" (ASA standard)
L
You can separate the Tripod Mounting Bracket and
install it on the top or bottom of the camera.
Make sure to use the Tripod Mounting Bracket when
fixing the camera to a bracket or tripod. Otherwise the
camera may not be secure, or the internal circuitry of
the camera may be damaged.

COLOR CCD CAMERACOLOR CCD CAMERA User’s ManualUser’s Manual
1514
The lens is not supplied with this camera. Purchase a lens suitable for your
environment. This camera accepts the auto iris lens and both C-and CS-mount lens.
1. Strip the insulation of the auto iris lens cable 8mm from the end.
2. Strip the insulation of the core of the auto iris lens cable to expose a 2mm length.
When Using Auto Iris Lens
Installation Procedures
Rear View
approx. 8mm
approx. 2mm
Function Setup Button
SET Button : Displays the menu on the screen. Press this button to confirm
status or after changing a selected item.
Up and Down Button : Used to move the cursor up or down in the menu
screen to select a desired menu item.
Left and Right Button : Used to move the cursor left or right in the menu
screen or to change the value of the selected item.
D & N Input Port
You can switch to Day & Night Mode by connecting an external signal to this port.
MD Output Port
Motion detection signals are output through this port.

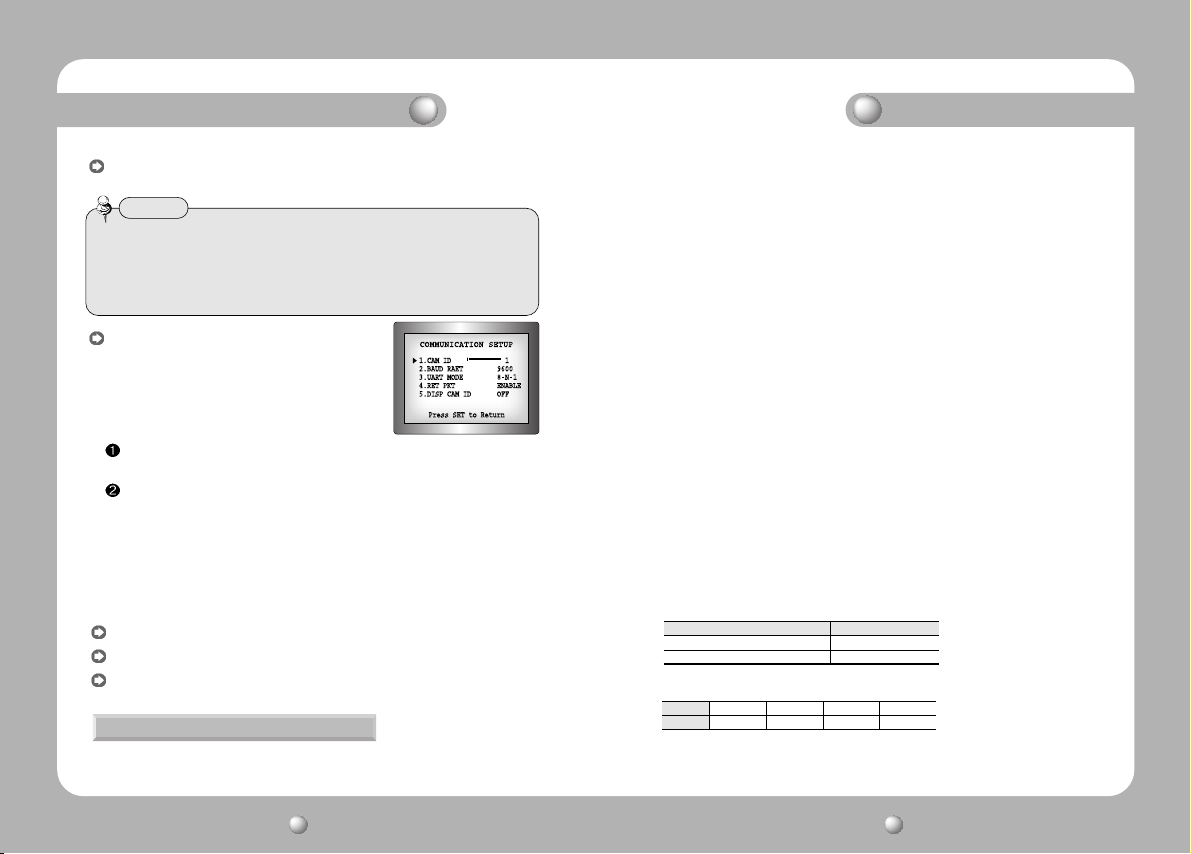

RS-485 Control Port
You can control SETUP MENU through this port by using external controllers like a
Remote controller that RS-485 Communication is supported. For details, see page 21.
Video OUT Port
Video signals are output through this port. Connect this port to the Video IN port of a monitor.
Power LED
When power is properly connected, this LED comes on.
Power IN Port
Connect the power as specified for each model here.
Overview
Lens
• It is recommended to use the DC type Auto Iris Lens to effectively enjoy the major
functions of this camera.
• Keep the lens surface clean, since if it is contaminated with dirt or fingerprints the
picture quality suffers.
Notes
*High Voltage Type
(SHC-735PH)

• Use the lens connector shown in the following figure. If the dimensions of the
connector are not correct, it may damage the camera, or the lens may not be
installed firmly.
• If the lens is too heavy, the camera becomes unbalanced and there may be
problems. Use a lens that weighs less than 450g.
• When adjusting the Automatic Level Control (ALC) of an auto iris lens, use Av
mode if available. If you use the Pk mode, the picture brightness may change
continuously.
Notes
COLOR CCD CAMERACOLOR CCD CAMERA User’s ManualUser’s Manual
1716
Installation Procedures
Before installing a lens, identify whether the lens to be installed is a C-Mount or CS-Mount.
This camera is set for a CS-Mount Lens by default. To install a C-Mount Lens, a
simple modification is required.
• When Using a CS Mount Lens
Remove the protective glass cover at the front of this product and turn the CS-
Mount Lens clockwise to install it. And set focus of camera using Back Focus
Control Lever of camera side after combining CS-Mount lens.
When Using C/CS Mount Lens
C-Mount Lens: 10mm or less
CS-Mount Lens: 5mm or less
3. Remove the cover of the auto iris lens connector plug and solder the lens cable to
the connector pin of the plug.
4. Fit the cover of the auto iris lens connector
plug, remove the protective glass cover
from the front of the camera, and fasten
the auto iris lens by turning it clockwise.
• For a Video Drive Lens
Pin 1: Red (Power)
Pin 2: NC
Pin 3: White (Video Signal)
Pin 4: Black (Ground)
• For a DC Drive Lens
Pin 1: Damping -
Pin 2: Damping +
Pin 3: Drive +
Pin 4: Drive -
5. Set focus of camera using Back Focus Control
Lever of camera side after combining Auto
Iris lens.
Back Focus Control Lever
No. 3 Pin
No. 1 Pin
connector
Lens cable
No. 4 Pin
No. 2 Pin

COLOR CCD CAMERACOLOR CCD CAMERA User’s ManualUser’s Manual
1918
Connect the Video OUT port on the rear panel of the camera to a monitor.
• Make sure to turn off the device to be connected before making any connections.
• Turn the 75 /Hi-Z switches of interim display devices to the Hi-Z position, and
the switches of any final device to the 75Ωposition.
• Since the connection procedure may differ depending on the type of monitor or
peripheral device to be connected, refer to the User Manual for the device to be
connected.
CCD Camera
CCD Camera
Intermediate End monitor
Monitor
• When Using a C Mount Lens
1. Remove the protective glass cover at the front
of this product and turn the C-Mount Adapter
clockwise to install it.
2. Turn the C-Mount lens clockwise to install it.
3. Set focus of camera using Back Focus Control Lever of camera side after combining
C-Mount lens.
Installation Procedures
Connecting a Monitor
Connecting Power
Since power specifications differ depending on the model, make sure to check your
model name and specifications before connecting power. You can connect power as
shown in the following figure.
For AC / DC power
High Voltage Type (AC230V, 50Hz)
• Since the power specification supports
both AC and DC, connect AC 24V,
500mA Adaptor or DC 12V, 500mA
Adaptor.
• Use AC230V, 50Hz power source For
SHC-735PH.
