Samsung SNV-5084 User manual

NETWORK CAMERA
User Manual SNV-5084

Copyright
©2014 Samsung Techwin Co., Ltd. All rights reserved.
Trademark
is the registered logo of Samsung Techwin Co., Ltd.
The name of this product is the registered trademark of Samsung Techwin Co., Ltd.
Other trademarks mentioned in this manual are the registered trademark of their respective company.
Restriction
Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this document shall
be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung Techwin.
Disclaimer
Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no
formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s own
responsibility. Samsung Techwin reserves the right to change the contents of this document without prior notice.
Design and specifications are subject to change without prior notice.
The default password can be exposed to a hacking thread so it is recommended to change the password
after installing the product.
Note that the security and other related issues caused by the unchanged password shall be responsible
for the user.
Network Camera
User Manual

English _3
●OVERVIEW
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings, Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/ accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lighting storms or when unused for
long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.
overview

overview
4_ overview
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC
OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS
ON THE EQUIPMENT.
Apparatus shall not be exposed to dripping or splashing and that no objects
filled with liquids, such as vases, shall be placed on the apparatus.
To prevent injury, this apparatus must be securely attached to the Wall/ceiling
in accordance with the installation instructions.
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the product.

English _5
●OVERVIEW
Class construction
An apparatus with CLASS construction shall be connected to a MAINS
socket outlet with a protective earthing connection.
Battery
Batteries(battery pack or batteries installed) shall not be exposed to excessive
heat such as sunshine, fire or the like.
Disconnection Device
Disconnect the main plug from the apparatus, if it’s defected. And please call
a repair man in your location.
When used outside of the U.S., it may be used HAR code with fittings of
an approved agency is employed.
CAUTION
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock do not perform any servicing other than
that contained in the operating instructions unless you are qualified to do so.
The CVBS out terminal of the product is provided for easier installation, and is
not recommended for monitoring purposes.
Please use the input power with just one camera and other devices must not
be connected.
The ITE is to be connected only to PoE networks without routing to the
outside plant.

overview
6_ overview
Please read the following recommended safety precautions carefully.
yDo not place this apparatus on an uneven surface.
yDo not install on a surface where it is exposed to direct sunlight, near
heating equipment or heavy cold area.
yDo not place this apparatus near conductive material.
yDo not attempt to service this apparatus yourself.
yDo not place a glass of water on the product.
yDo not install near any magnetic sources.
yDo not block any ventilation openings.
yDo not place heavy items on the product.
User’s Manual is a guidance book for how to use the products.
The meaning of the symbols are shown below.
yReference : In case of providing information for helping of product’s usages
yNotice : If there’s any possibility to occur any damages for the goods and
human caused by not following the instruction
Please read this manual for the safety before using of goods and keep it in
the safe place.

English _7
●OVERVIEW
CONTENTS
OVERVIEW
3
3Important Safety Instructions
9Product Features
10 Recommended PC Specifications
10 Recommended Micro SD/SDHC/
SDXC Memory Card Specifications
11 What’s Included
13 At a Glance
INSTALLATION &
CONNECTION
16
16 Installation
25 Inserting/Removing a Micro SD
Memory Card
27 Memory Card Information
(Not Included)
28 Connecting with other Device
NETWORK CONNECTION
AND SETUP
34
34 Connecting the Camera Directly
to Local Area Networking
35 Connecting the Camera Directly
to a DHCP Based DSL/Cable
Modem
36 Connecting the Camera Directly
to a PPPoE Modem
37 Connecting the Camera to a
Broadband Router with the
PPPoE/Cable Modem
38 Buttons used in IP Installer
39 Static IP Setup
43 Dynamic IP Setup
44 Port Range Forward (Port Mapping)
Setup
46 Connecting to the Camera from a
Shared Local PC
46 Connecting to the Camera from a
Remote PC via the Internet

overview
8_ overview
SETUP SCREEN
64
64 Setup
64 Video & Audio Setup
79 Network Setup
90 Event Setup
106 System Setup
APPENDIX
114
114 Specification
119 Product Overview
120 Troubleshooting
122 Open Source Announcement
WEB VIEWER
47
47 Connecting to the Camera
49 Login
50 Installing Silverlight Runtime
53 Installing STW WebViewer Plugin
55 Using the Live Screen
58 Playing the recorded video

English _9
●OVERVIEW
PRODUCT FEATURES
•Dustproof/Waterproof (IP66)
The dustproof and waterproof design makes you feel at ease when installing the product
outdoors or exposing it to rain.
•HD Video Quality
•Multi-Streaming
This network camera can display videos in different resolutions and qualities
simultaneously using different CODECs.
•Web Browser-based Monitoring
Using the Internet web browser to display the image in a local network environment.
•Alarm
If an event occurs, the event-related video will be transferred to the FTP/email specified
by the user or saved to the Micro SD memory, or the event signal will be sent to the Alarm
Out port.
•Tampering Detection
Detects tempering attempts on video monitoring.
•Motion Detection
Detects motion from the camera’s video input.
•Intelligent Video Analysis
Analyzes video to detect logical events of specified conditions from the camera’s video
input.
•Face Detection
Detects faces from the camera’s video input.
•Audio Detection
Detects sound louder than a certain level specified by user.
•Auto Detection of Disconnected Network
Detects network disconnection before triggering an event.
•ONVIF Compliance
This product supports ONVIF Profile-S.
For more information, refer to www.onvif.org.

overview
10_ overview
RECOMMENDED PC SPECIFICATIONS
•CPU : Intel Core 2 Duo 2.4 GHz or higher (for using 1280x1024 30 fps)
Intel Core i7 2.8 GHz or higher (for using 1280x1024 60 fps)
`Web Plug-in is optimized to SSE 4.1 Instruction Set.
•Resolution : 1280X1024 pixels or higher (32 bit color)
•RAM : 2GB or higher
•Supported OS : Windows XP / VISTA / 7, MAC OS X 10.7
•Supported Browser : Microsoft Internet Explorer (Ver. 10 ~ 7)
Mozilla Firefox (Ver. 19 ~9) ※Windows Only
Googlec Chrome 15.0 (Ver. 25 ~ 15) ※Windows Only
Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) ※Mac OS X only
`Windows 8 is supported only in the Desktop mode.
`Neither a beta test version unlike the version released in the company website nor the developer version will
be supported.
`For IPv6 connection, Window 7 or higher is recommended.
`For Mac OS X, only the Safari browser is supported.
•Video Memory : 256MB or higher
J
`If the driver of the video graphic adapter is not installed properly or is not the latest version, the
video may not be played properly.
`For a multi-monitoring system involving at least 2 monitors, the playback performance can be
deteriorated depending on the system.
RECOMMENDED MICRO SD/SDHC/SDXC MEMORY CARD
SPECIFICATIONS
•4GB ~ 64GB
•For your camera, we recommend you use a memory card from the following manufacturers:
Micro SD/SDHC/SDXC Memory Card : Sandisk, Transcend
•For the framerate below 30 fps, it is recommended to use the specification memory card
of Class 6 or higher.
•For the framerate over 31 fps, it is recommended to use the specification memory card of
Class 10 UHS or higher.

English _11
●OVERVIEW
WHAT’S INCLUDED
Please check if your camera and accessories are all included in the product package.
Appearance Item Name Quantity Description
Mircro SD
AC 24V / DC 12V
RESET
VIDEO
F
W
AF
T
N
+ -
AC 24V / DC 12V
RESET
VIDEO
F
W
AF
T
N
+ -

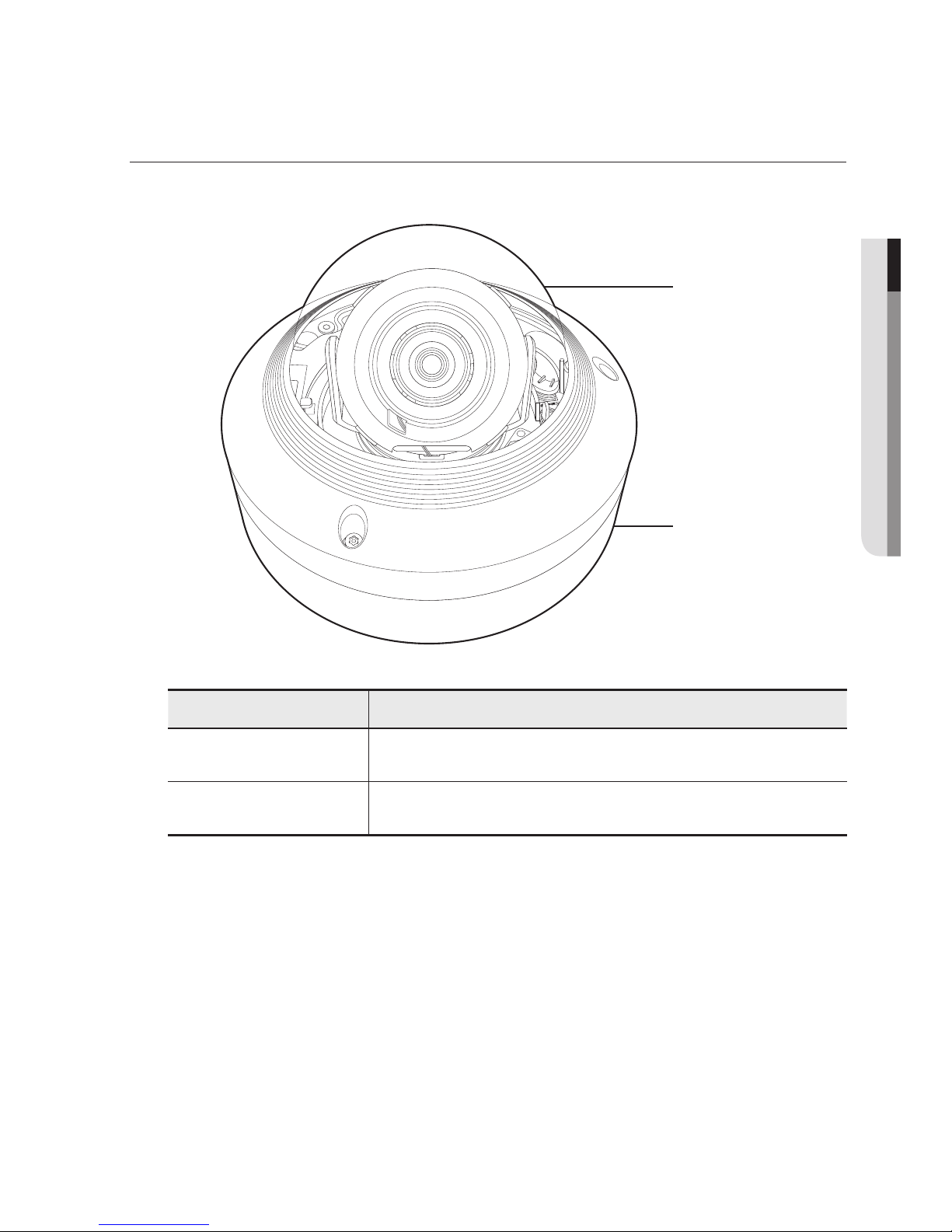

Camera 1
Instruction book,
Installer S/W CD,
CMS S/W DVD
2
Quick Guide
(Optional) 1
Warranty card
(Optional) 1
Cable for the testing monitor 1Used to test the camera connection to a
portable display device
Power Terminal Block 1Plugged in the power plug
Template 1 Product installation guide

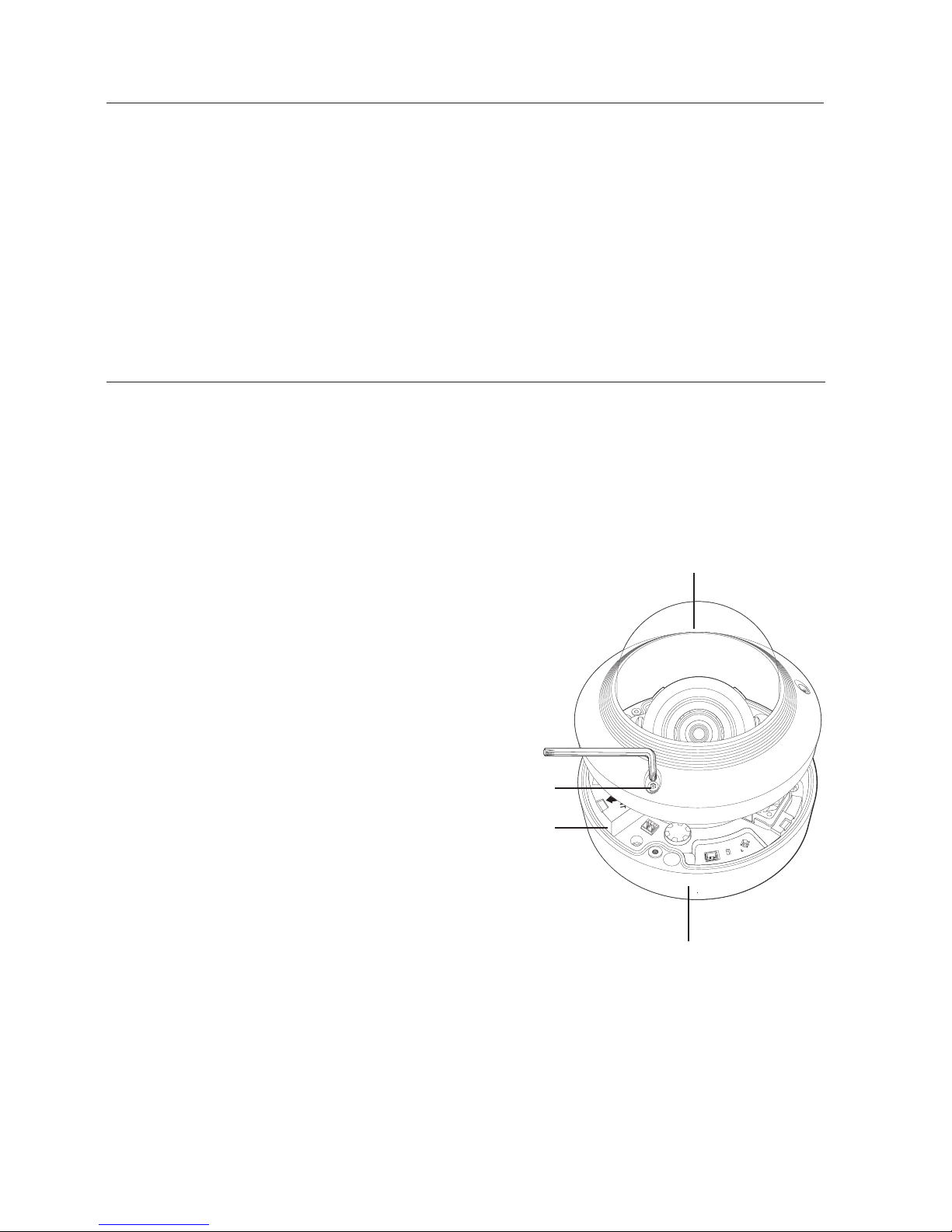

L Wrench 1Use the L-Wrench when detaching or
attaching the dome cover

overview
12_ overview
Appearance Item Name Quantity Description
CAUTION: B e ware of the
Rated Volta ge and Pola rity
of the power c onnecti on.
Power Cable 1 Used to plug into the power port
Audio/alarm cable 1
Used to connect with the
audio and alarm port
Cable bush 1
Used to connect the LAN cable with a
diameter of Ø7~8.5.
Tapping Screw 3
Used for installation on the
wall or ceiling
Plastic Anchor 3
For fixing a screw,
Inserted in a hole
(reinforced anchoring force)
Machine Screws 3
Used for assembling the dome case when
installing the product on the pipe, wall mount,
etc. or blocking a hole.
Drill bit 1
Use the L-Wrench when detaching or
attaching the dome cover, or installing the
camera
Options (not included)
Indoor Buried Housing Housing for installing indoor buried type
cameras

English _13
●OVERVIEW
AT A GLANCE
Appearance
Item Description
a
Dome cover Case cover used to protect the lens and the main unit.
b
Camera Case Housing part that covers the camera body.
Mircro SD
AC 24V / DC 12V
RESET
VIDEO
F
W
AF
T
N
+ -
AC 24V / DC 12V
RESET
VIDEO
F
W
AF
T
N
+ -
a
b

overview
14_ overview
Components
Item Description
a
Lens Lens for the camera.
b
Power Port Port for power terminal block.
c
Test Monitor Out Output port for test monitoring the video output. Use the test monitor cable
to connect to a mobile display and check the test video.
d
Reset Button
The button restores all camera settings to the factory default.
Press and hold for about 5 seconds to reboot the system.
JIf you reset the camera, the network settings will be adjusted so that
DHCP can be enabled. If there is no DHCP server in the network, you
must run the IP Installer program to change the basic network settings
such as IP address, Subnet mask, Gateway, etc., before you can
connect to the network.
AC 24V / DC 12V
RESET
VIDEO
F
W
AF
T
N
+ -
a
b d ec f hg

English _15
●OVERVIEW
Item Description
e
Zoom/Focus Control
Button
TZoom in (Tele)
WZoom out (Wide)
N Focusing on a near object (Near)
FFocusing on a far object (Far)
Focus Control Press this button for automatic focus control.
f
Micro SD Memory
Card Compartment Compartment for the Micro SD memory card.
g
Audio and alarm
cable port
Plug in the audio and alarm cable to this port to connect with external alarm
device/microphone/speaker.
h
Network Port Used to connect the PoE or Ethernet cable for network connection.

16_ installation & connection
installation & connection
Precautions before installation
Ensure you read out the following instructions before installing the camera:
•It must be installed on the area (ceiling or wall) that can withstand 5 times the weight
of the camera including the installation bracket.
•Stuck-in or peeled-off cables can cause damage to the product or a fire.
•For safety purposes, keep anyone else away from the installation site.
And put aside personal belongings from the site, just in case.
INSTALLATION
J
`This camera is waterproof and in compliance with the IP66 spec, but the jack connected to the
external cable is not. You are recommended to install this product below the edge of eaves to
prevent the cable from being externally exposed.
Disassembling
1. With the provided L-wrench and
drill bit, loosen 3 bolts on the dome
cover counter clockwise to remove
the cover.
RESET
VIDEO
F
W
AF
T
N
AC 24V / DC 12V
+ -
RESET
VIDEO
F
W
AF
T
N
AC 24V / DC 12V
RESET
VIDEO
F
W
AF
T
N
+ -
Bolts
Dome cover
Camera Case
Camera Body

English _17
●INSTALLATION & CONNECTION
Installation
1. Drill a hole (diameter : 6mm, depth : min
55mm) of the case bottom and insert the
provided plastic anchor to the end.
2. Fit the bottom hole to the anchor hole and
insert and fix the taping screw (M4.5xL50).
3. Connect and arrange the necessary cables
lest that they should be damaged or twisted
while installing the camera.
4. Adjust the lens in a desired direction by
referring to the “Adjusting the monitoring direction for the camera" section. (page
24)
5. Close the dome cover.
`To ensure waterproofing, tight up the fixing bolts using the L-wrench and drill bit.
AC 24V / DC 12V
RESET
VIDEO
F
W
AF
T
N
+ -
AC 24V / DC 12V
RESET
VIDEO
F
W
AF
T
N
+ -
AC 24V / DC 12V
RESET
VIDEO
F
W
AF
T
N
+ -
AC 24V / DC 12V
RESET
VIDEO
F
W
AF
T
N
+ -

installation & connection
18_ installation & connection

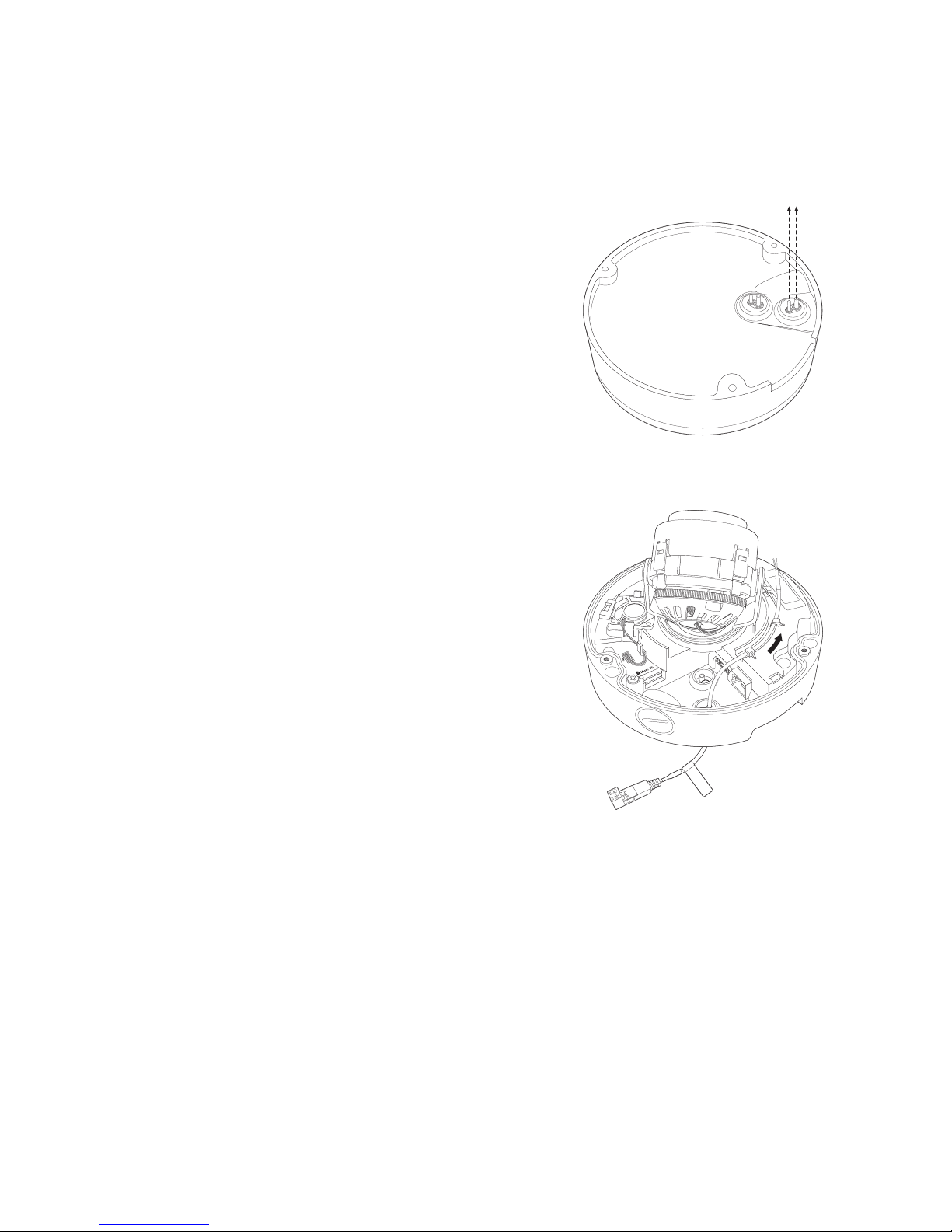

Connecting waterproof power cable and LAN cable
1. Remove the dome cover and the case.
2. Pull out the long projected part of the rubber plug on
the bottom and remove it as shown in the figure.
J
`Use an appropriate cable bush for the LAN cable to be
connected.
-Basic camera : Use the cable with a diameter of Ø5~6.5.
-Components provided : Use the cable with a diameter of
Ø7~8.5.
3. Insert the power cable into the small hole made by
removing the projected part of the rubber plug in step
2 above, and lay the cable along the long groove.
4. Connect the power cable with the power terminal
block.
CAUTION: Be ware ofthe
Rated Voltage andPolarity
of the power connection.

English _19
●INSTALLATION & CONNECTION

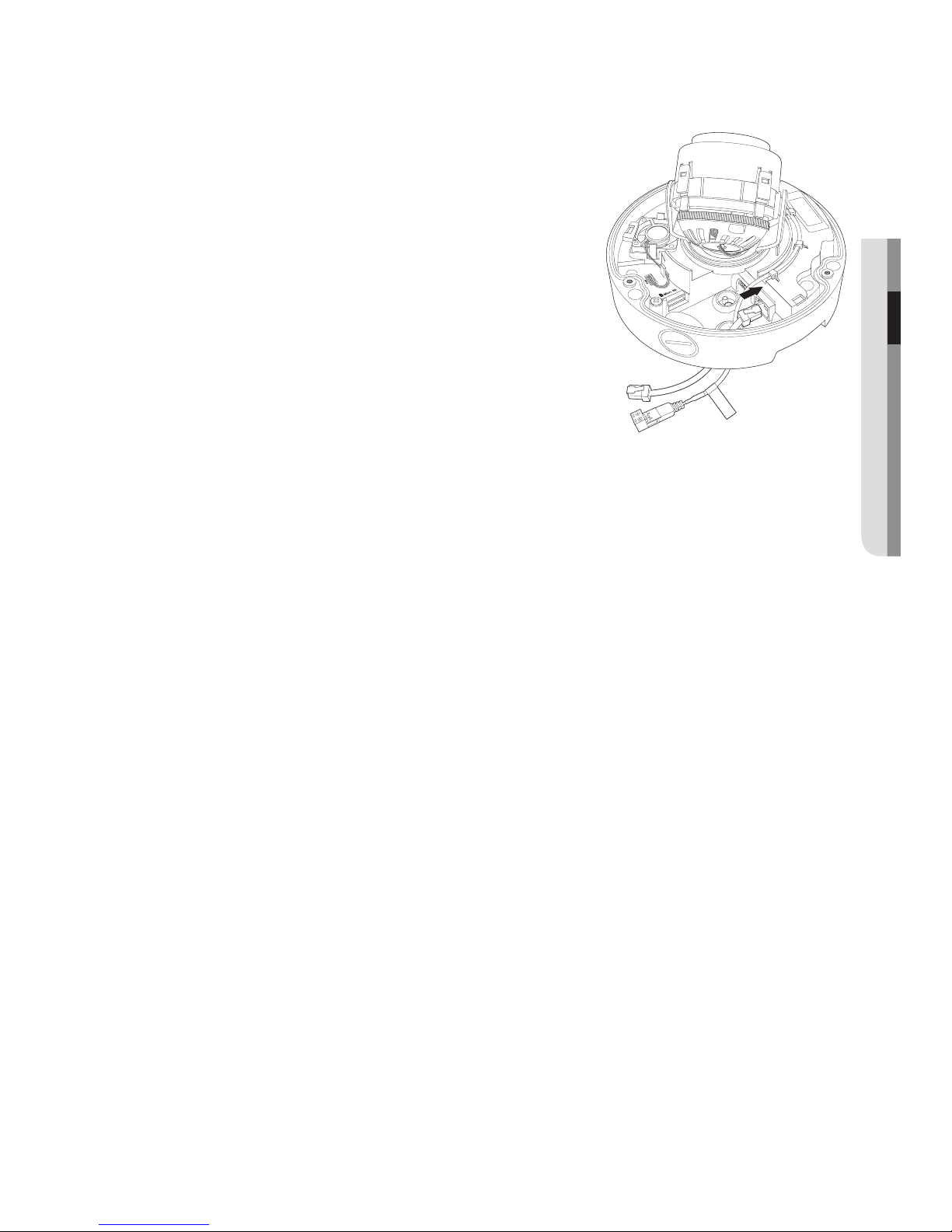

5. Insert the LAN cable into the large hole made by
removing the projected part of the rubber plug in step
2 above.
6. Remove the sheath with a cable cutter, and align the
cables.
7. Connect the LAN cable with a LAN connector, and
insert it into the LAN tool.
8. Connect the finished cable to the Ethernet port.
CAUTION: Be ware ofthe
Rated Voltage andPolarity
of the power connection.

installation & connection
20_ installation & connection

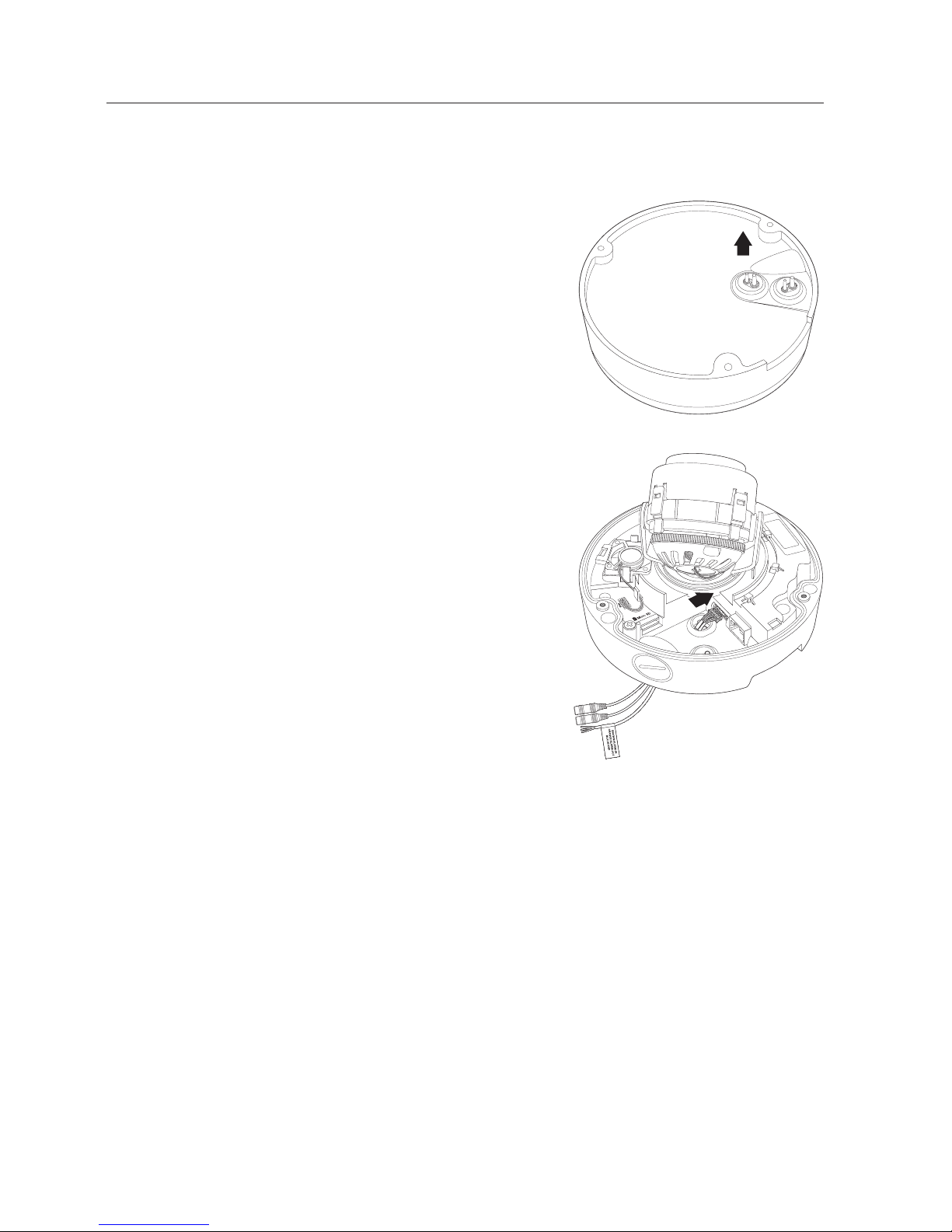

Connecting alarm cable
1. Remove the dome cover and the case.
2. Pull out the rubber plug on the bottom as shown in
the figure.
3. Insert the alarm cable into the hole made by
removing the rubber plug in step 2, and connect the
cable with the PCB alarm terminal.
4. Align the cable so that it should not be damaged or
jammed when installing the camera.
5. Put the rubber plug of the alarm cable into the hole.
6. Adjust the lens in a desired direction by referring to
the “Adjusting the monitoring direction for the
camera” section.
(page 24)
7. Attach the dome cover.
