Samsung SCD-1020P User manual

High Resolution Day & Night Dome Camera
User Manual SCD-1020P/1020PD
SCD-1040P/1040PD
Please read the operation manual carefullly before use..
SCD-1020_1040_ENG.indd 1
2012-8-27 10:06:49

High Resolution Day & Night Dome Camera
User Manual
Copyright
©2012 Samsung Techwin Co., Ltd. All rights reserved.
Trademark
is the registered logo of Samsung Techwin Co., Ltd.
The name of this product is the registered trademark of Samsung Techwin Co., Ltd.
Other trademarks mentioned in this manual are the registered trademark of their respective company.
Restriction
Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this document
shall be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung Techwin.
Disclaimer
Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but
no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on
the user’s own responsibility. Samsung Techwin reserves the right to change the contents of this document
without prior notice.
 Design and specifications are subject to change without prior notice.
SCD-1020_1040_ENG.indd 2
2012-8-27 10:06:49

Before operating the camera, confirm the camera model and correct input power voltage.
To help you understand this manual thoroughly, we’ll introduce our model description.
■ SCD-1020/1040 SERIES
  •PALMODEL
SCD-1020P/1040P
SCD-1020PD/1040PD
•POWERSUPPLY
SCD-1020P/1040P: DC12V, AC24V
SCD-1020PD/1040PD: DC12V
SCD-1020_1040_ENG.indd 3
2012-8-27 10:06:50

4_ safety information
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK) NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
This symbol indicates that dangerous voltage consisting a risk of electric
shock is present within this unit.
This exclamation point symbol is intended to alert the user to
the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
WARNING
 To prevent damage which may result in fire or electric shock hazard, do not expose this appliance to
rain or moisture.
 To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the
installation instructions.
WARNING
1. Be sure to use only the standard adapter that is specified in the specification sheet. Using any
other adapter could cause fire, electrical shock, or damage to the product.
2. Incorrectly connecting the power supply or replacing battery may cause explosion, fire, electric
shock, or damage to the product.
safety information
SCD-1020_1040_ENG.indd 4
2012-8-27 10:06:50

English_5
●sAfeTy INfORmATION
3. Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause abnormal
heat generation or fire.
4. Securely plug the power cord into the power receptacle. insecure connection may cause fire.
5. When installing the camera, fasten it securely and firmly. The fall of camera may cause personal injury.
6. Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or containers filled with
water on top of the camera. doing so may cause personal injury due to fire, electric shock, or falling
objects.
7. Do not install the unit in humid, dusty, or sooty locations. doing so may cause fire or electric shock.
8. If any unusual smells or smoke come from the unit, stop using the product. in such case, immediately
disconnect the power source and contact the service center. continued use in such a condition may
cause fire or electric shock.
9. If this product fails to operate normally, contact the nearest service center. never disassemble or modify
this product in any way. (samsung is not liable for problems caused by unauthorized modifications or
attempted repair.)
10.
When cleaning, do not spray water directly onto parts of the product. doing so may cause
fire or electric shock.
CAUTION
1. Do not drop objects on the product or apply strong shock to it. Keep away from a location subject to
excessive vibrationor magnetic interference.
2. Do not install in a location subject to high temperature (over 55°C), low temperature (below -10°C), or
high humidity. Doing so may cause fire or electric shock.
3. If you want to relocate the already installed product, be sure to turn off the power and then move or
reinstall it.
4. Remove the power plug from the outlet when then there is a lightning. Neglecting to do so may cause
fire or damage to the product.
5. Keep out of direct sunlight and heat radiation sources. It may cause fire.
6. Install it in a place with good ventilation.
7. Avoid aiming the camera directly towards extremely bright objects such as sun, as this may damage the
CCD image sensor.
8. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as
vases, shall be placed on the apparatus.
SCD-1020_1040_ENG.indd 5 2012-8-27 10:06:50

6_ safety information
9. The Mains plug is used as a disconnect device and shall stay readily operable at any time.
10. Do not expose the camera to radioactivity. Radioactivity exposure may damage the CCD.
Correct disposal of batteries in this product
(Applicable in the European Union and other European countries with separate battery return systems.)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be
disposed of with other household waste at the end of their working life. Where marked, the chemical symbols
Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC
Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health
or the environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of waste
and recycle them through your local, free battery return system.
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories
(e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their
working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal,
please separate these items from other types of waste and recycle them responsibly to promote the sustainable
reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government
office, for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
Samsung Techwin cares for the environment at all product manufacturing stages to
preserve the environment, and is taking a number of steps to provide customers
with more environment-friendly products.The Eco mark represents Samsung
Techwin’s will to create environment-friendly products, and indicates that the
product satisfies the EU RoHS Directive.
safety information
SCD-1020_1040_ENG.indd 6 2012-8-27 10:06:50

English_7
●sAfeTy INfORmATION
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into
your outlet, consult an electrician for replacement of the obsolete outlet.
10.Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus.
13. Unplug this apparatus when a card is used. Use caution when moving the
cart/ apparatus combination to avoid injury from tip-over.
14.Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
Apparatus shall not be exposed to dripping or splashing and no objects
filled with liquids, such as vases, shall be placed on the apparatus
important safety instructions
SCD-1020_1040_ENG.indd 7 2012-8-27 10:06:50

8_ contents
INTRODUCTION
9
9Features
10 What’s included
11
Component names and functions
INSTALLATION
12
12 Before Installation
12 Installation
14 Adjust the panning and tilting while
watching the monitor
CONNECTION
15
15 Connecting to Monitor
15 Connecting to Power
16 Using Coaxial Communications
SETUP
18
18 Menu Configuration
18 Menu Setup
TROUBLESHOOTING
27
27 Troubleshooting
SPECIFICATIONS
28
28 Specifications
30 Dimension
contents
SCD-1020_1040_ENG.indd 8
2012-8-27 10:06:50

English_9
●INTRODUCTION
FEATURES
High Resolution
By adopting a diagonal 6mm(1/3”) 470,000 pixel SONY CCD, the camera produces clear
picture quality with a horizontal resolution of 600TV lines in color mode and 650TV lines for
BW.
Excellent Sensitivity
The built-in high sensitivity COLOR CCD produces a clear image.
0.15Lux(50IRE, @F1.2)
SSNR (Samsung Super Noise Reduction) Function
The high-performance B2 DSP chip effectively removes low-light gain noise and afterimage
to provide clear images even in dark environments.
Day & Night
This camera has a function that automatically selects the mode that is appropriate for
daytime or night-time conditions. The COLOR mode operates in daytime conditions to provide
optimum colors, and B/W mode operates in night-time conditions to enhance the definition of the
image.
Defog
The camera is able to recognize the concerntration of fog in the image, and automatically defog,
correct image of the bad weather such as fog, rain, mist, fumes, etc to make it clear.
SSDR (Samsung Super Dynamic Range)
For images with high contrast between bright and dark areas from difficult lighting conditions
such as backlighting, this camera selectively illuminates darker areas while retaining the
same light level for brighter areas to even out the overall brightness.
Miscellaneous Functions
HLC(High Light Compensation), FLIP
, SHARPNESS and PRIVACY functions are provided.
introduction
SCD-1020_1040_ENG.indd 9 2012-8-27 10:06:50

10_ introduction
Communication
Coaxial communication methods are supported.
- Protocol : Pelco Coaxitron
OSD
The camera control is convenient by using 14 different foreign language O.S.D.
English, French, German, Spanish, Italian, Czech, Danish, Polish, Portuguese, Russian,
Romanian, Serbian, Swedish, Turkish
introduction
WHAT’S INCLUDED
Check if the following items are included in the product package.
CAMERA User Manual Quick Setup Guide M4 Tapping Screw 3EA
* The illustration above may not be exactly same as the real parts, for reference only.
)JHI3FTPMVUJPO%BZ/JHIU%PNF$BNFSB
6TFS.BOVBM SCD-1020P/1020PD
SCD-1040P/1040PD
Pleaseread the operation manual carefullly before use..
High Resolution Day & Night Dome Camera
Quick Set-up Guide
SCD-1020P/1020PD
SCD-1040P/1040PD
SCD-1020_1040_ENG.indd 10
2012-8-27 10:06:53

English_11
●INTRODUCTION
1Dome Cover
2Pan Base : Control panning angle of camera.
3Lens Module : SCD-1020P - f=3.6mm, F2.0
SCD-1040P - f=8.0mm, F2.0
4Video Output Terminal to Monitor
5
Function Setup switch : Display the menu on the screen and move the cursor to four directions to confirm
status or after changing a selected item.
6Rotate Base : Control rotating angle of camera.
7Video Output Jack
8Power Input Terminal
COMPONENT NAMES AND FUNCTIONS
FRONT
1
3
2
4
5
6
7
8
SCD-1020_1040_ENG.indd 11
2012-8-30 11:30:39

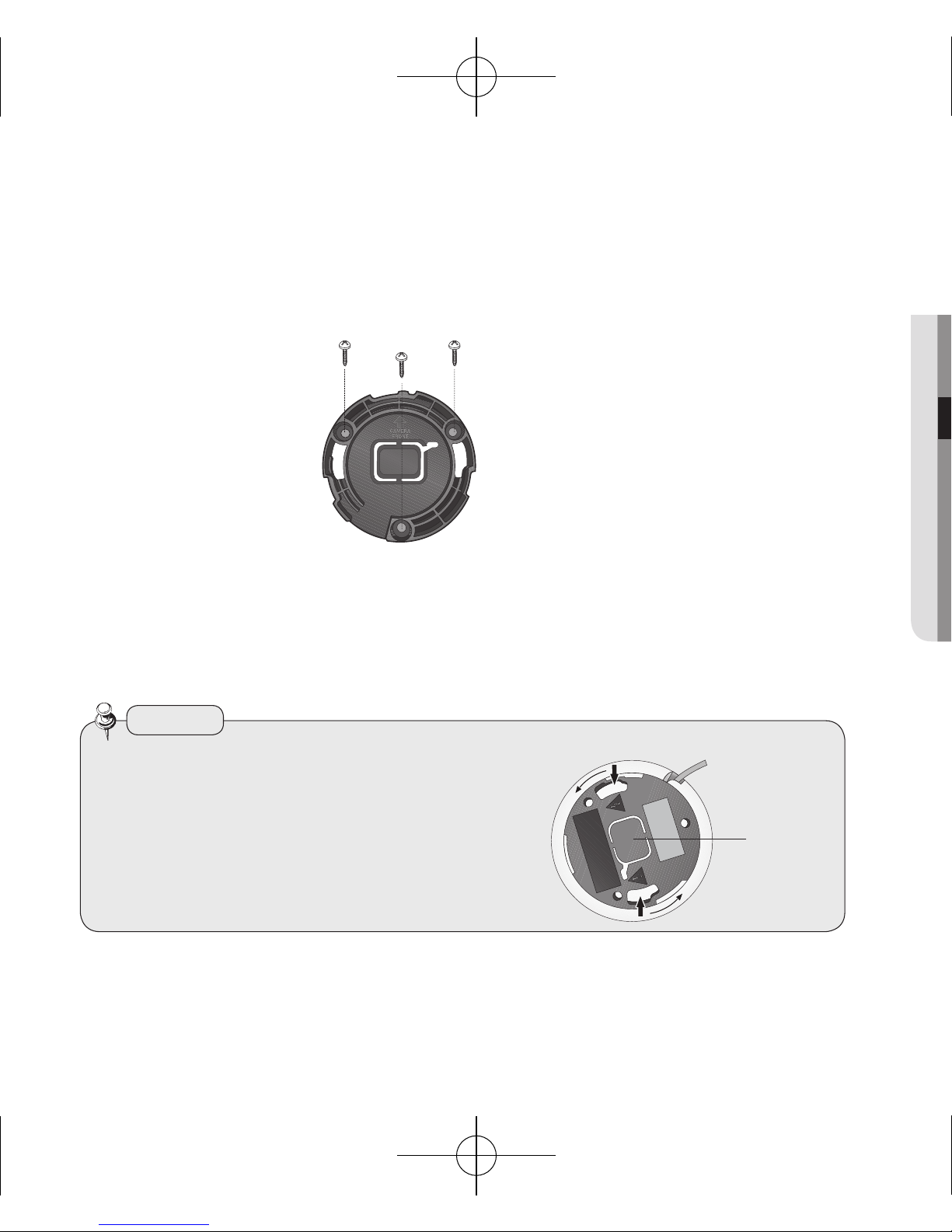

12_ installation
installation

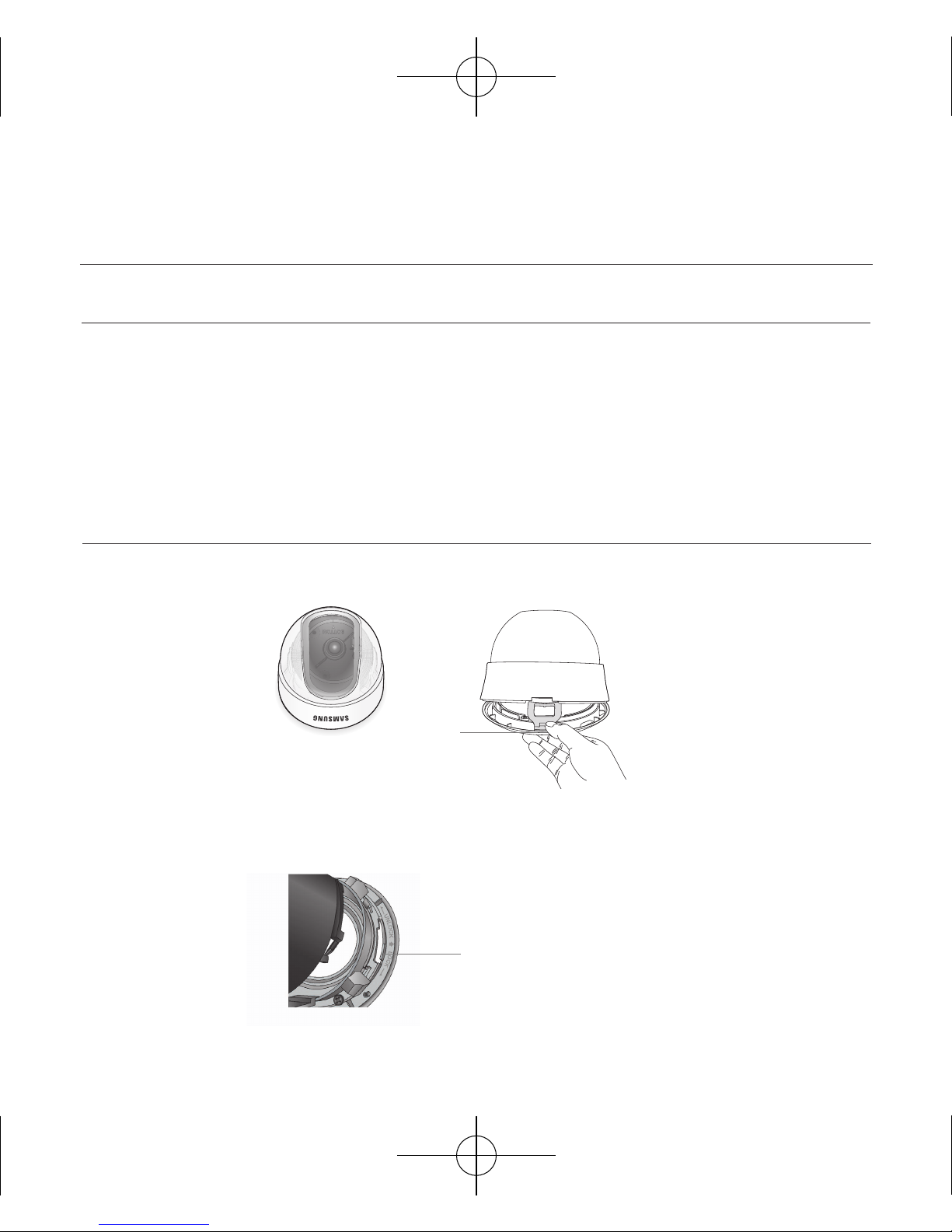

BEFORE INSTAllATION
Before installing your camera, you have to read the following cautions：
• You have to check whether the location (ceiling or wall) can bear five times the weight of your camera.
• Don’t let the cable to be caught in improper place or the electric line cover to be damaged. Otherwise
it may cause a breakdown or fire.
• When installing your camera, don’t allow any person to approach the installation site. If you have any
valuable things under the place, move them away.
INSTAllATION
1) Press the Locker button at the bottom of your camera and remove the Cover dome from the Main
body using the other hand. The Main body and Inner cover will be exposed to you.
2) Remove the Mount bracket from the Main body by rotating the Main body in the UNLOCK direction
while pushing the Lock releaser outward. If it is not easily done, rotate the Mount bracket in the
LOCK direction while holding small holes on the Mount bracket.
LOCK
LOCK
SCD-1020_1040_ENG.indd 12
2012-8-30 11:30:58

●INSTAllATION
English_13
3) Place the separated ceiling bracket so that the “Front” side faces the area to be monitored and install it
with the M4 tapping screws.
4) To combine the main body with the ceiling bracket, make sure that the LOCK at the bottom of the
camera matched with the protruding part of the mount bracket and rotate it anti-clockwise.
5) Adjust the camera lens to face the area to be monitored.
6) Finally attach the Cover dome to the Main body by pressing it until a “click” sound is heard after aligning
the bump inside the Cover dome with the groove mark on the Main body.
• The installation should be done by qualified service personnel or
system installers.
• If the ceiling material is not strong enough to hold the installation
screws, the camera may fall off. Reinforce the ceiling as needed.
• To change the position of the cable, take away the Hole Cover
and pass the cable through.
Notes
Original position of
the cable
Hole Cover
SCD-1020_1040_ENG.indd 13
2012-8-30 11:31:01

14_ installation
installation
1) You can adjust the camera to point in any direction by using the pan, Tilt, Rotate mechanism.
 •Pan Base can rotates by +118°~ -231°（total 349°)
 •Tilt Base covers 90˚ angle（0°~90°）。
 •Rotate Base moves by +120°~ -218°（total 338°)
2) Methods of adjustment
 •The case of wall installation
1 After mounting the camera on a wall, adjusting the panning angle so that the camera can face the direction
to monitor when tilted.
2Adjust the tilting angle by rotating the tilt base.
3Loosen the rotate base hold screw and adjust rotate base for the best view.
4Tighten the rotate base hold screw.
 •The case of ceiling installation
1After mounting the camera on a ceiling, adjusting the panning angle to the correct viewing position by
rotating the pan base.
2Adjust the tilting angle by rotating the tilt base.
3Loosen the rotate base hold screw and adjust rotate base for the best view.
4Tighten the rotate base hold screw.
90˚
120˚
118˚ 231˚
218˚
Pan Base
Tilt Base
ADjUST ThE PANNINg AND TIlTINg whIlE wATChINg ThE MONITOR
Rotate Base
SCD-1020_1040_ENG.indd 14
2012-8-30 11:31:12

●CONNECTION
English_15
CONNECTING TO MONITOR
Connect the Video Output jack to the VIDEO-IN jack of monitor.
As the connecting method varies with the instruments, refer to the manual supplied with the
instrument.
Only connect the cable when the power is turned off.
CONNECTING TO POWER
Connect the adaptor to the power input connector as shown in the figure below.
The recommended adaptor specification for SCD-1020P/1040P is DC12V/500mA or AC24V/500mA,
for SCD-1020PD/1040PD is DC12V/500mA.
---- Power Input Terminal
connection
CCTVCamera
Monitor
SCD-1020_1040_ENG.indd 15
2012-8-27 10:08:27

16_ connection
connection
When the resistance value of copper wire is at [20°C(68°F)]
Copper wire size (AWG)
#24 (0.22mm2)#22 (0.33mm2)#20 (0.52mm2)#18 (0.83mm2)
Resistance (Ω/m) 0.078 0.050 0.030 0.018
Voltage Drop (V/m) 0.028 0.018 0.011 0.006
As shown in the table above, voltage decreases as the wire gets longer. Therefore use of an excessively
long adaptor output line for connection to the camera may affect the performance of the camera.
* Standard voltage for camera operation：
SCD-1020P/1040P: DC 12V ±10%, AC 24V ± 10%
SCD-1020PD/1040PD: DC 12V ±10%
* There may be some deviation in voltage drop depending on the type of wire and the manufacturer.
`Be sure to connect power only after all the installation is complete.
`Note that AC / DC adaptor is not supplied with camera.
M
USING COAXIAL COMMUNICATIONS
Coaxial Communications System
OSD Control method
CAMERA DVR CONTROLLER
SET MENU/ENTER OSD KEY
UP UP KEY JOYSTICK UP
DOWN DOWN KEY JOYSTICK DOWN
LEFT LEFT KEY JOYSTICK LEFT
RIGHT RIGHT KEY JOYSTICK RIGHT
SCD-1020_1040_ENG.indd 16
2012-8-27 10:08:27

●CONNECTION
English_17
-Video Cable
The camera's video output port is connected to the monitor with a BNC coaxial cable, shown
below : If the distance between the camera and the monitor exceeds the recommended
maximum, please use an auxiliary video amp.
MENU
SEARCH
MULTI
REC
MENU
PRESET
GROUP
TRACK
CAM
12345
67890
MON
CLOSE OPEN
NEAR FAR
WIDE TELE
PTZ DVR MTX SETUP
ESC
FUNC ENTER
1234
5678
9101112
13 14 15 16
ALARMHDDNETWORKBACKUP REC
DVDRECORDER
REC
ZOOM
MODE
FREEZE
AUDIO
BACKUP
ALRAM
SEARCH
TELEWIDEVIEW
MENU
RETURN
USB
OPEN/CLOSE
DVR
• : BNC
•---- : RS-485
`It is recommended that pure copper coax cable is used and not copper coated steel, as
this will cause issues with the communication over the coaxial cable.
`To ensure picture quality, only single-channel video output connector can be used while
camera connected to other video equipments.
M
Distance Recommended Cable Specification
300m 3C2V(RG-59/U)
450m 5C2V(RG-6/U)
600m 7C2V(RG-11/U)
SCD-1020_1040_ENG.indd 17
2012-8-27 10:08:29

18_ setup
setup
MENU CONFIGURATION
MAIN SETUP
EXPOSURE
● BRIGHTNESS ● AGC ● RETURN
DEFOG
● AUTO ● OFF ● MANUAL
WHITE BAL
●ATW ●OUTDOOR ●INDOOR
●MANUAL
●AWC →SET
BACKLIGHT
●OFF ● HLC ● USER BLC
SSNR
●ON ●OFF
DAY/NIGHT
●AUTO ●COLOR ●B/W
SPECIAL
●MONITOR ● CAM TITLE ● PRIVACY
● SYNC ● REVERSE ●SHARPNESS
●COAX
●SSDR ●LANGUAGE
●RETURN
EXIT
●SAVE ●NOT SAVE ●RESET
MENU SETUP
Use the Function Setup switch within the camera.
Function Setup switch
SCD-1020_1040_ENG.indd 18
2012-8-30 11:30:40

●SETUP
English_19
1. Press the Function Setup switch.
Main setup menu is displayed on the monitor screen.
2. Select a desired function using the Function Setup switch.
Place the cursor over a desired item.
3. Set up a selected item by using the Function Setup switch.
4. To finish the setting, select ‘EXIT’ and press the Function Setup switch.
`An item with the icon also has sub menus. To select a sub menu, select an item with the
icon and press the Function Setup switch.
`An item with the - - - icon is unavailable due to function settings.
EXPOSURE
1. When the SETUP menu screen is displayed, select EXPOSURE by using the Function Setup
switch so that the arrow indicates 'EXPOSURE'.
2. Select a desired mode using the Function Setup switch.
BRIGHTNESS : Adjusts the video brightness.
AGC (AUTO GAIN CONTROL)（OFF/LOW/MID/HIGH)
:
The higher the gain level, the brighter the screen- but the
higher the noise.
RETURN：
Select this to save the changes in the EXPOSURE menu and return to the SETUP menu.
MAIN SETUP
▶1.EXPOSURE
2.DEFOG OFF
3.WHITE BAL ATW
4.BACKLIGHT OFF
5.SSNR ON
6.DAY/NIGHT AUTO
7.SPECIAL
8.EXIT SAVE
Change the status
using the Function
Setup switch left/right.
Select the function
using the Function
Setup switch up/
down.
M
EXPOSURE SETUP
 1.
BRIGHTNESS
IIIIIIIII*IIIIIIII
10
2.AGC MIDDLE
3.RETURN
SCD-1020_1040_ENG.indd 19
2012-8-27 10:08:30

20_ setup
setup
DEFOGGING
Through the defogging function, camera can automatically recognize fog concentration of the image, defog,
self correct in hazy, rainy, flue gas and other inclement weather to get a clear image.
1. When the SETUP menu screen is displayed, select ‘DEFOG’ by using the Function Setup switch.
2. Select a desired mode.
AUTO:
The camera will automatically correct image according
to the defogging level (low, middle, high) set by the user.
Manual: The camera will adjust the definition of the image
according to user's preferences through the defogging level
(low, middle, high).
OFF: Turn off Defogging function.
` Defogging and SSDR function cannot be run simultaneously. When defogging function is set to AUTO
or MANUAL mode, SSDR function is not available. When SSDR functions is turned on, defogging
would become inactive.
WHITE BAL(WHITE BALANCE)
Use the White Balance function to adjust the screen color.
1. When the SETUP menu screen is displayed, select ‘White Bal’ by
using the Function Setup switch so that the arrow indicates ‘White
Bal’.
2. Select a desired mode using the Function Setup
switch.
※ Select one of the following 5 modes, as appropriate for your
purpose.
ATW: Select this when the color temperature is between 1,700°K and 11,000°K.
OUTDOOR : Select this when the color temperature is between 1,700°K and 11,000°K.(sodium light
inclusion)
M
DEFOG SETUP
 1.
LEVEL
MIDDLE
2.RETURN
WB MANUAL
RED GAIN
IIIIII*IIIIIIIIIIIIIIIIIIII
106
BLUE GAIN
IIIIIIIIIIIIIIIII*IIIIIIIIII
259
Press SET to Return
SCD-1020_1040_ENG.indd 20
2012-8-27 10:08:30
