Samsung SND-L5083R User manual

NETWORK CAMERA
User Manual SND-L5013/SND-L5083R/
SNO-L5083R/SNV-L5083R

Copyright
©2015 Samsung Techwin Co., Ltd. All rights reserved.
Trademark
is the registered logo of Samsung Techwin Co., Ltd.
The name of this product is the registered trademark of Samsung Techwin Co., Ltd.
Other trademarks mentioned in this manual are the registered trademark of their respective company.
Restriction
Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this document shall
be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung Techwin.
Disclaimer
Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no
formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s own
responsibility. Samsung Techwin reserves the right to change the contents of this document without prior notice.
Design and specifications are subject to change without prior notice.
The initial administrator ID is “admin” and the password should be set when logging in for the first time.
Please change your password every three months to safely protect personal information and to prevent
the damage of the information theft.
Please, take note that it’s a user’s responsibility for the security and any other problems caused by
mismanaging a password.
Network Camera
User Manual

English _3
●OVERVIEW
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings, Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/ accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lighting storms or when unused for
long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.
overview

overview
4_ overview
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC
OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS
ON THE EQUIPMENT.
Apparatus shall not be exposed to dripping or splashing and that no objects
filled with liquids, such as vases, shall be placed on the apparatus.
To prevent injury, this apparatus must be securely attached to the Wall/ceiling
in accordance with the installation instructions.
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the product.

English _5
●OVERVIEW
Battery
Batteries(battery pack or batteries installed) shall not be exposed to excessive
heat such as sunshine, fire or the like.
Disconnection Device
Disconnect the main plug from the apparatus, if it’s defected. And please call
a repair man in your location.
When used outside of the U.S., it may be used HAR code with fittings of
an approved agency is employed.
CAUTION
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock do not perform any servicing other than
that contained in the operating instructions unless you are qualified to do so.
Please use the input power with just one camera and other devices must not
be connected.
The ITE is to be connected only to PoE networks without routing to the
outside plant.

overview
6_ overview
Please read the following recommended safety precautions carefully.
yDo not place this apparatus on an uneven surface.
yDo not install on a surface where it is exposed to direct sunlight, near
heating equipment or heavy cold area.
yDo not place this apparatus near conductive material.
yDo not attempt to service this apparatus yourself.
yDo not place a glass of water on the product.
yDo not install near any magnetic sources.
yDo not block any ventilation openings.
yDo not place heavy items on the product.
User’s Manual is a guidance book for how to use the products.
The meaning of the symbols are shown below.
yReference : In case of providing information for helping of product’s usages
yNotice : If there’s any possibility to occur any damages for the goods and
human caused by not following the instruction
Please read this manual for the safety before using of goods and keep it in
the safe place.

English _7
●OVERVIEW
CONTENTS
OVERVIEW
3
3Important Safety Instructions
9Product Features
10 Recommended PC Specifications
11 Recommended Micro SD/SDHC
Memory Card Specifications
11 NAS recommended specs
12 What’s Included
15 At a Glance (SND-L5013)
18 At a Glance (SND-L5083R)
21 At a Glance (SNO-L5083R)
24 At a Glance (SNV-L5083R)
INSTALLATION &
CONNECTION
27
27 Installation (SND-L5013/
SND-L5083R)
29 Installation (SNO-L5083R)
33 Installation (SNV-L5083R)
40 Inserting/Removing a Micro SD
Memory Card
43 Memory Card Information
(Not Included)
44 Connecting with other Device
NETWORK CONNECTION
AND SETUP
49
49 Connecting the Camera Directly
to Local Area Networking
50 Connecting the Camera Directly
to a DHCP Based DSL/Cable
Modem
51 Connecting the Camera Directly
to a PPPoE Modem
52 Connecting the Camera to a
Broadband Router with the
PPPoE/Cable Modem
53 Buttons used in IP Installer
54 Static IP Setup
58 Dynamic IP Setup
59 Port Range Forward (Port Mapping)
Setup
61 Connecting to the Camera from a
Shared Local PC
61 Connecting to the Camera from a
Remote PC via the Internet

overview
8_ overview
WEB VIEWER
62
62 Connecting to the Camera
64 Password setting
64 Login
65 Installing STW WebViewer Plugin
67 Using the Live Screen
70 Playing the recorded video
SETUP SCREEN
77
77 Setup
77 Basic Setup
87 Video & Audio setup
96 Network Setup
105 Event Setup
111 NAS (Network Attached Storage)
guide
121 System Setup
126 Viewing profile information
APPENDIX
127
127 Specification
132 Product Overview
136 Troubleshooting
138 Open Source Announcement

English _9
●OVERVIEW
PRODUCT FEATURES
•Dustproof/Waterproof (IP66) (SNO-L5083R/SNV-L5083R)
The dustproof and waterproof design makes you feel at ease when installing the product
outdoors or exposing it to rain.
•IR mode (SND-L5083R/SNO-L5083R/SNV-L5083R)
If the IR indicator turns on, the product switches to the IR mode for preventing an object
from being too bright, which helps you identify the object in near distance.
•Visibility: 15m (SND-L5083R)
In B/W mode, the IR indicator turns on with the effective visibility of 15m at 0 Lux.
•Visibility: 20m (SNO-L5083R/SNV-L5083R)
In B/W mode, the IR indicator turns on with the effective visibility of 20m at 0 Lux.
•HD Video Quality
•Multi-Streaming
This network camera can display videos in different resolutions and qualities
simultaneously using different CODECs.
•Web Browser-based Monitoring
Using the Internet web browser to display the image in a local network environment.
•Alarm
When an event occurs, video is either sent to the email address registered by the user, sent
to the FTP server, saved in a Micro SD card or NAS.
•Tampering Detection
Detects tempering attempts on video monitoring.
•Motion Detection
Detects motion from the camera’s video input.
•ONVIF Compliance
This product supports ONVIF Profile-S&G.
For more information, refer to www.onvif.org.

overview
10_ overview
RECOMMENDED PC SPECIFICATIONS
•CPU : Intel Core 2 Duo 2.4 GHz or higher
`Web Plug-in is optimized to SSE 4.1 Instruction Set.
•Resolution : 1280X1024 pixels or higher (32 bit color)
•RAM : 2GB or higher
•Supported OS : Windows XP / VISTA / 7 / 8 / 8.1, MAC OS X 10.7 ~ 10.10
•Supported Browser : Microsoft Internet Explorer (Ver. 8~11),
Mozilla Firefox (Ver. 9~35), Google Chrome (Ver. 15~40),
Apple Safari (Ver. 8.0.2(Mac OS X 10.10), 7.0.6(Mac OS X 10.9), 6.0.2(Mac OS X 10.8,
10.7 only), 5.1.7) ※Mac OS X only
`Windows 8 is supported only in the Desktop mode.
`Neither a beta test version unlike the version released in the company website nor the developer version will
be supported.
`For IPv6 connection, Window 7 or higher is recommended.
`For Mac OS X, only the Safari browser is supported.
•Video Memory : 256MB or higher
J
`If the driver of the video graphic adapter is not installed properly or is not the latest version, the
video may not be played properly.
`For a multi-monitoring system involving at least 2 monitors, the playback performance can be
deteriorated depending on the system.

English _11
●OVERVIEW
RECOMMENDED MICRO SD/SDHC MEMORY CARD
SPECIFICATIONS
•Recommended capacity : 4GB ~ 32GB
•For your camera, we recommend you use a memory card from the following manufacturers:
Micro SD/SDHC Memory Card : Sandisk, Transcend
•Memory cards with a specification of Class 10 + UHS-1 or higher are recommended.
NAS RECOMMENDED SPECS
•Recommended capacity : 200GB or higher is recommended.
•Simultaneous access : One unit of NAS can accept a maximum of sixteen camera
accesses.
•For this camera, you are recommended to use a NAS with the following manufacturer’s
specs.
Recommended products Available sizes
Netgear NAS A maximum of 16 cameras can access simultaneously.
Synology NAS A maximum of 16 cameras can access simultaneously.
J
`When you use Netgear’s NAS equipment, do not allocate the capacity for use.
`If you use NAS equipment for purposes other than video saving, the number of accessible
cameras may be reduced.

overview
12_ overview

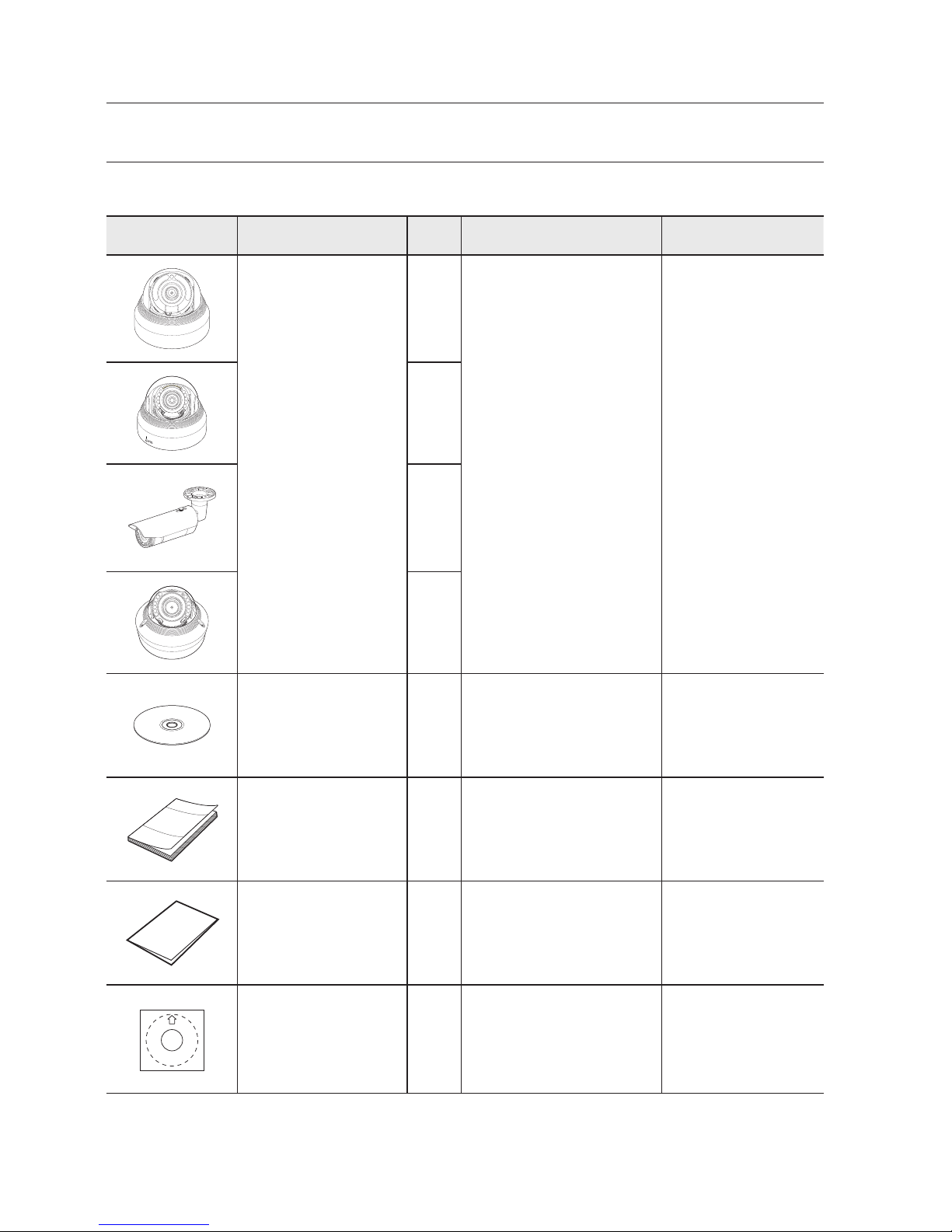

WHAT’S INCLUDED
Please check if your camera and accessories are all included in the product package.
Appearance Item Name Quantity Description Model Name
NETWORK
ACT LINK
FRONT
NETWORK
ACT LINK
FRONT
Camera
1
SND-L5013 or
SND-L5083R or
SNO-L5083R or
SNV-L5083R
NETWORK
ACT LINK
FRONT
FRONT
ACT
LINK
NETWORK
1
1
FRONT
ACT LINK
NETWORK
1
Instruction book,
Installer S/W CD 1
SND-L5013/
SND-L5083R/
SNO-L5083R/
SNV-L5083R
Quick Guide
(Optional) 1
SND-L5013/
SND-L5083R/
SNO-L5083R/
SNV-L5083R
Warranty card
(Optional) 1
SND-L5013/
SND-L5083R/
SNO-L5083R/
SNV-L5083R
Template 1Product installation guide
SND-L5013/
SND-L5083R/
SNO-L5083R/
SNV-L5083R

English _13
●OVERVIEW
Appearance Item Name Quantity Description Model Name
Tapping Screw
2
Useful for installation on the
ceiling, wall, etc.
SND-L5013/
SND-L5083R
3SNO-L5083R/
SNV-L5083R
Sunshield 1It protects the camera from the
direct sunlight. SNO-L5083R
Sunshield Hold 1It fixes the sunshield with the
camera. SNO-L5083R
RJ45 waterproof accessory 1Used to install in humid places SNO-L5083R
L Wrench 1
Used to control the direction of
the camera / Used to remove
and replace the dome cover
SNO-L5083R/
SNV-L5083R
Card-type moisture
absorbent
3
Attached when installed.
SNO-L5083R
1SNV-L5083R

overview
14_ overview
Appearance Item Name Quantity Description Model Name
Audio cable 1Used to connect with the audio
port SNV-L5083R
Cable bush 1Used to connect the LAN cable
with a diameter of Ø7~8.5. SNV-L5083R
Machine Screws 3
Used for assembling the dome
case when installing the product
on the pipe, wall mount, etc. or
blocking a hole.
SNV-L5083R
Options (not included)
Indoor Buried Housing Housing for installing indoor
buried type cameras
SND-L5083R/
SNV-L5083R

English _15
●OVERVIEW

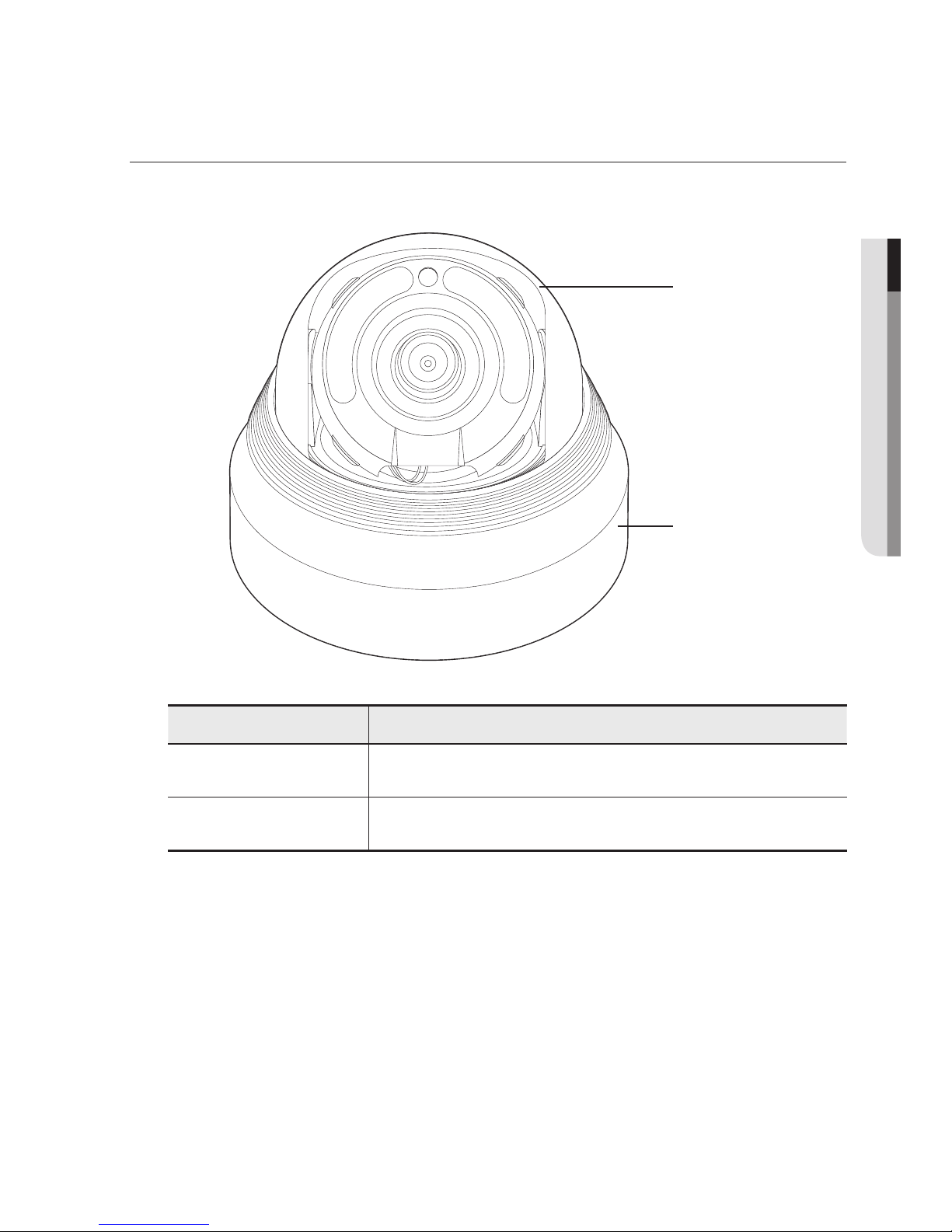

AT A GLANCE (SND-L5013)
Appearance
Item Description
a
Dome cover Case cover used to protect the lens and the main unit.
b
Camera Case Housing part that covers the camera body.
NETWORK
ACT LINK
FRONT
NETWORK
ACT LINK
FRONT
a
b

overview
16_ overview
Components
NETWORK
ACT LINK
RESET
c d e
a
NETWORK
ACT LINK
FRONT
b

English _17
●OVERVIEW
Item Description
a
Internal Cover It is a cover to protect the main body.
b
Lens Lens for the camera.
c
Reset Button
The button restores all camera settings to the factory default.
Press and hold for about 5 seconds to reboot the system.
JIf you reset the camera, the network settings will be adjusted so that
DHCP can be enabled. If there is no DHCP server in the network, you
must run the IP Installer program to change the basic network settings
such as IP address, Subnet mask, Gateway, etc., before you can
connect to the network.
d
Micro SD Memory
Card Compartment Compartment for the Micro SD memory card.
e
PoE Connector Connects to the network and supplies power through Ethernet cable.

overview
18_ overview
AT A GLANCE (SND-L5083R)
Appearance
Item Description
a
Dome cover Case cover used to protect the lens and the main unit.
b
Camera Case Housing part that covers the camera body.
NETWORK
ACT LINK
FRONT
FRONT
ACT
LINK
NETWORK
a
b

English _19
●OVERVIEW
Components
FRONT
ACT
LINK
NETWORK
c
d
b
N
F
RESET
ACT
LINK
NETWORK
i h g
f
e
a

overview
20_ overview
Item Description
a
Internal Cover It is a cover to protect the main body.
b
Illumination Sensor Detects incoming light to control the IR LED.
c
IR LED These infrared LED’s are controlled by the illumination sensor.
d
Lens Lens for the camera.
e
Zoom control lever
TZoom in (Tele)
WZoom out (Wide)
By rotating it to the right or the left, the lens zoom can be adjusted. By
rotating it clockwise, the zoom can be fixed.
f
Focus control lever
N Focusing on a near object (Near)
FFocusing on a far object (Far)
By rotating it to the right or the left, the focus can be controlled. By rotating it
clockwise, the focus can be fixed.
g
PoE Connector Connects to the network and supplies power through Ethernet cable.
h
Micro SD Memory
Card Compartment Compartment for the Micro SD memory card.
i
Reset Button
The button restores all camera settings to the factory default.
Press and hold for about 5 seconds to reboot the system.
JIf you reset the camera, the network settings will be adjusted so that
DHCP can be enabled. If there is no DHCP server in the network, you
must run the IP Installer program to change the basic network settings
such as IP address, Subnet mask, Gateway, etc., before you can
connect to the network.
