Samsung SNF-7010 User manual

NETWORK CAMERA
User Manual SNF-7010/SNF-7010V
/SNF-7010VM

Copyright
©2014 Samsung Techwin Co., Ltd. All rights reserved.
Trademark
is the registered logo of Samsung Techwin Co., Ltd.
The name of this product is the registered trademark of Samsung Techwin Co., Ltd.
Other trademarks mentioned in this manual are the registered trademark of their respective company.
Restriction
Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this document shall
be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung Techwin.
Disclaimer
Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no
formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s own
responsibility. Samsung Techwin reserves the right to change the contents of this document without prior notice.
Design and specifications are subject to change without prior notice.
The default password can be exposed to a hacking thread so it is recommended to change the password
after installing the product.
Note that the security and other related issues caused by the unchanged password shall be responsible
for the user.
Network Camera
User Manual

English _3
●OVERVIEW
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings, Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/ accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lighting storms or when unused for
long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.
overview

overview
4_ overview
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC
OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS
ON THE EQUIPMENT.
Apparatus shall not be exposed to dripping or splashing and that no objects
filled with liquids, such as vases, shall be placed on the apparatus.
To prevent injury, this apparatus must be securely attached to the Wall/ceiling
in accordance with the installation instructions.
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the product.

English _5
●OVERVIEW
Class construction
An apparatus with CLASS construction shall be connected to a MAINS
socket outlet with a protective earthing connection.
Battery
Batteries(battery pack or batteries installed) shall not be exposed to excessive
heat such as sunshine, fire or the like.
Disconnection Device
Disconnect the main plug from the apparatus, if it’s defected. And please call
a repair man in your location.
When used outside of the U.S., it may be used HAR code with fittings of
an approved agency is employed.
CAUTION
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock do not perform any servicing other than
that contained in the operating instructions unless you are qualified to do so.
Please use the input power with just one camera and other devices must not
be connected.
The ITE is to be connected only to PoE networks without routing to the
outside plant.

overview
6_ overview
Please read the following recommended safety precautions carefully.
Do not place this apparatus on an uneven surface.
Do not install on a surface where it is exposed to direct sunlight, near
heating equipment or heavy cold area.
Do not place this apparatus near conductive material.
Do not attempt to service this apparatus yourself.
Do not place a glass of water on the product.
Do not install near any magnetic sources.
Do not block any ventilation openings.
Do not place heavy items on the product.
User’s Manual is a guidance book for how to use the products.
The meaning of the symbols are shown below.
Reference : In case of providing information for helping of product’s usages
Notice : If there’s any possibility to occur any damages for the goods and
human caused by not following the instruction
Please read this manual for the safety before using of goods and keep it in
the safe place.

English _7
●OVERVIEW
CONTENTS
OVERVIEW
3
3Important Safety Instructions
9Product Features
10 Recommended PC Specifications
10 Recommended Micro SD/
SDHC/SDXC Memory Card
Specifications
11 What’s Included
13 At a Glance
INSTALLATION &
CONNECTION
16
16 Installation
19 Inserting/Removing a Micro SD
Memory Card
20 Memory Card Information (Not
Included)
21 Connecting with other Device
NETWORK CONNECTION
AND SETUP
25
25 Connecting the Camera Directly
to Local Area Networking
26 Connecting the Camera Directly
to a DHCP Based DSL/Cable
Modem
27 Connecting the Camera Directly
to a PPPoE Modem
28 Connecting the Camera to a
Broadband Router with the
PPPoE/Cable Modem
29 Buttons used in IP Installer
30 Static IP Setup
34 Dynamic IP Setup
35 Port Range Forward (Port Mapping)
Setup
37 Connecting to the Camera from a
Shared Local PC
37 Connecting to the Camera from a
Remote PC via the Internet

overview
8_ overview
SETUP SCREEN
55
55 Setup
55 Video & Audio Setup
68 Network Setup
79 Event Setup
89 System Setup
APPENDIX
96
96 Specification
101 Product Overview
103 Troubleshooting
105 Open Source Announcement
WEB VIEWER
38
38 Connecting to the Camera
40 Login
41 Installing Silverlight Runtime
44 Installing STW WebViewer Plugin
46 Using the Live Screen
49 Playing the recorded video

English _9
●OVERVIEW
PRODUCT FEATURES
• Fisheye lens
This lens has 180˚ vision and it can record video panoramically.
If you use Smart Viewer on your PC, you can view corrected video in real time.
• Dustproof/Waterproof (IP66) (SNF-7010V)
The dustproof and waterproof design makes you feel at ease when installing the product
outdoors or exposing it to rain.
• HD Video Quality
• Multi-Streaming
This network camera can display videos in different resolutions and qualities
simultaneously using different CODECs.
• Web Browser-based Monitoring
Using the Internet web browser to display the image in a local network environment.
• Alarm
If an event occurs, the event-related video will be automatically transferred to the FTP/email
specified by the user or saved to the Micro SD memory.
• Screen change detection feature
If the monitoring is interrupted in any way, the camera will trigger the event alarm.
• Video Motion Detection
Detects a motion from the video before triggering an event.
• Audio Detection
Detects sound louder than a certain level specified by user.
• Auto Detection of Disconnected Network
Detects network disconnection before triggering an event.
• ONVIF Compliance
This product supports ONVIF Profile-S.
For more information, refer to www.onvif.org.
J
This piece of equipment is a high resolution video transmission tool that supports a resolution of 2
mega pixels or higher. When you transmit high resolution video with a resolution higher than what is
supported by the RFC2435 (RTP payload format for JPEG), the existing low resolution spec, it uses
the Onvif JPEG extension header method for transmission of high resolution video.
Thus, when you transmit high resolution video to external equipment or S/W using Onvif, you need
to check whether your client equipment or S/W supports the most up-to-date spec, Onvif JPEG
extension header method.

overview
10_ overview
RECOMMENDED PC SPECIFICATIONS
•CPU : Intel Core 2 Duo 2.4 GHz or higher
Intel Core i7 2.8 GHz or higher
Web Plug-in is optimized to SSE 4.1 Instruction Set.
•Resolution : 2048X1536 pixels or higher (32 bit color)
•RAM : 2GB or higher
•Supported OS : Windows XP / VISTA / 7 / 8, MAC OS X 10.8, 10.7
•Supported Browser : Microsoft Internet Explorer (Ver. 10 ~ 7)
Mozilla Firefox (Ver. 19 ~9) ※Windows Only
Google Chrome (Ver. 25 ~ 15) ※Windows Only
Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) ※Mac OS X only
Windows 8 is supported only in the Desktop mode.
Neither a beta test version unlike the version released in the company website nor the developer version will
be supported.
For IPv6 connection, Window 7 or higher is recommended.
For Mac OS X, only the Safari browser is supported.
•Video Memory : 256MB or higher
J
If the driver of the video graphic adapter is not installed properly or is not the latest version, the
video may not be played properly.
For a multi-monitoring system involving at least 2 monitors, the playback performance can be
deteriorated depending on the system.
RECOMMENDED MICRO SD/SDHC/SDXC MEMORY CARD
SPECIFICATIONS
•4GB ~ 64GB
•For your camera, we recommend you use a memory card from the following
manufacturers:
Micro SD/SDHC/SDXC Memory Card : Sandisk, Transcend
•It is recommended a memory card of specification Class 6 or higher is used.

English _11
●OVERVIEW
WHAT’S INCLUDED
Please check if your camera and accessories are all included in the product package.
Appearance Item Name Quantity Description Model Name
Camera
1
SNF-7010 or
SNF-7010V or
SNF-7010VM
1
1
Instruction book,
Installer S/W CD,
CMS S/W DVD
2
SNF-7010/
SNF-7010V/
SNF-7010VM
Quick Guide
(Optional) 1
SNF-7010/
SNF-7010V/
SNF-7010VM
Warranty card
(Optional) 1
SNF-7010/
SNF-7010V/
SNF-7010VM
L Wrench 1 To remove/fix the cover top
SNF-7010/
SNF-7010V/
SNF-7010VM

overview
12_ overview

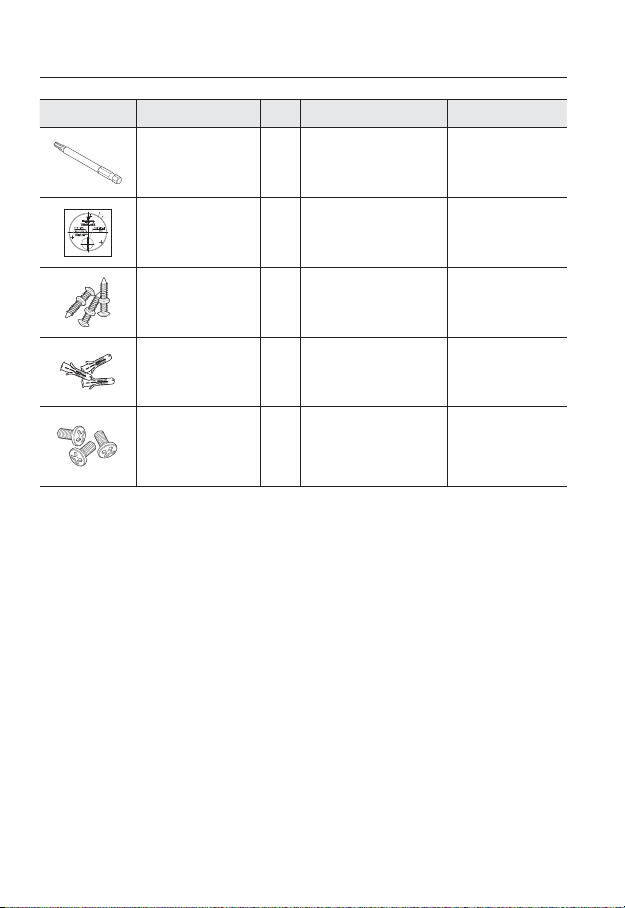

Appearance Item Name Quantity Description Model Name
Drill bit 1
Use the Drill bit when detaching
or attaching the dome cover, or
installing the camera
SNF-7010/
SNF-7010V/
SNF-7010VM
132
128
(절단선)
Template 1 Product installation guide
SNF-7010/
SNF-7010V/
SNF-7010VM
Tapping Screw 3 Used for installation on the
wall or ceiling
SNF-7010/
SNF-7010V/
SNF-7010VM
Plastic Anchor 3
For fixing a screw,
Inserted in a hole
(reinforced anchoring force)
SNF-7010/
SNF-7010V/
SNF-7010VM
Machine Screws 3
Used for assembling the dome
case when installing the product
on the pipe, wall mount, etc. or
blocking a hole.
SNF-7010/
SNF-7010V/
SNF-7010VM

English _13
●OVERVIEW
AT A GLANCE
Appearance

b
c



<SNF-7010>

c



<SNF-7010V>

overview
14_ overview
Item Description

Cover top
SNF-7010 Case cover used to protect the main unit.
SNF-7010V /
SNF-7010VM Case cover used to protect the lens and the main unit.
b
Microphone hole A microphone is embedded.
It is applicable only to the SNF-7010 model.
c
Power Port Used to plug the power cable.

Network Port Used to connect the PoE or Ethernet cable for network connection.

Audio Out Jack Used to connect to speakers. (green)

Audio In Jack Used to connect to a microphone. (pink)

M12 Female
connector cable
Connect to the M12 Male connector cable for power supply and network
connections.

c



<SNF-7010VM>

English _15
●OVERVIEW

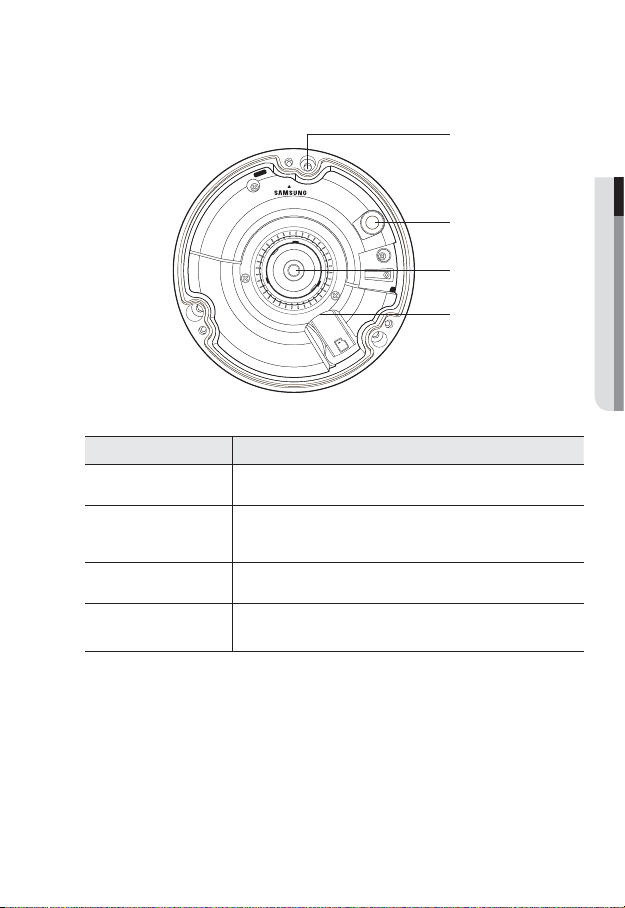

Inside
Item Description

Camera fixing hole Hole used for securing the camera onto a ceiling.
b
MIC The MIC is built into the camera.
It is applicable only to the SNF-7010 model.
c
Fisheye lens This lens has 180˚ vision and it can record video panoramically.

Micro SD Memory
Card Compartment Compartment for the Micro SD memory card.
MIC
RESET

b
c


16_ installation & connection
installation & connection
INSTALLATION
J
This camera(SNF-7010V/SNF-7010VM) is waterproof and in compliance with the IP66 spec, but
the jack connected to the external cable is not. You are recommended to install this product below
the edge of eaves to prevent the cable from being externally exposed.
Precautions before installation
Ensure you read out the following instructions before installing the camera:
•Select an installation site that can hold at least 5 times the camera’s weight.
•Stuck-in or peeled-off cables can cause damage to the product or a fire.
•For safety purposes, keep anyone else away from the installation site.
And put aside personal belongings from the site, just in case.
Disassembling
1. Using the L-wrench provided, loosen 3 screws by
turning them counterclockwise and separate the
cover top.
Note that it is not necessary to loosen the screws completely.

English _17
●INSTALLATION & CONNECTION
Installing the camera on the ceiling or a wall
1. Select a location where you want to install
the camera.
2. Insert the provided screw into the camera
hole and turn it clockwise.
3. Close the cover top and turn it clockwise using the L-wrench.
J
When you fix the cover, if you do not align it with the direction of the MIC, it won’t assemble
properly. (SNF-7010)
If the cover is not fixed tightly, you may encounter a problem with waterproofing. (IP66)
(SNF-7010V/SNF-7010VM)
MIC
RESET
Fixing Hole
RESET
<SNF-7010V/SNF-7010VM>
RESET
MIC
<SNF-7010>
Microphone hole
MIC

installation & connection
18_ installation & connection
Outdoor installation (SNF-7010V/SNF-7010VM)
When you install the camera outdoors, it should be waterproofed with waterproof butyl
rubber tape (which can be purchased in stores) so that water does not leak from the gap of
the cable connected in the outdoor area.

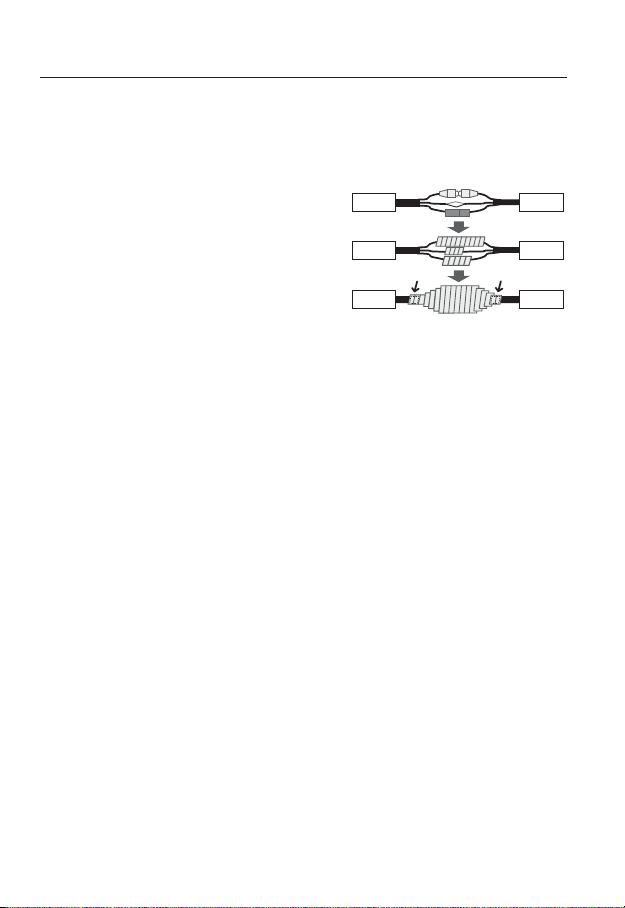

1. Connect the power, audio I/O and LAN
cables.
2. Wrap the black cable jacket (Area A) and the
cable connection area with waterproof (butyl
rubber) tape so that more than half of the
butyl rubber tape is overlapped.
J
If the cable jacket is not waterproofed properly,
then it can directly cause leakage. Make sure to
protect the cable with a dense layer of taping.
Waterproof butyl tape is made of butyl rubber that can be stretched to twice its normal length.
Camera
Camera
Camera
System
System
System
AA

English _19
●INSTALLATION & CONNECTION
INSERTING/REMOVING A MICRO SD MEMORY CARD
J
Disconnect the power cable from the camera before inserting the Micro SD memory card.
Do not insert the Micro SD memory card while it’s upside down by force.
Otherwise, it may damage the Micro SD memory card.
Inserting a Micro SD Memory Card
Push the Micro SD memory card in the direction of the arrow shown in the diagram.
Removing a Micro SD Memory Card
Gently press down on the exposed end of the memory card as shown in the diagram to
eject the memory card from the slot.
MIC
RESET
MIC
RESET

installation & connection
20_ installation & connection
J
Pressing too hard on the Micro SD memory card can cause the card to shoot out uncontrollably
from the slot when released.
Before removing your Micro SD memory card, turn off the camera or go to <Storage>, turn the
device off, and press the [Apply ( )] button. (Page 80)
If you turn off the camera or remove the Micro SD memory card that contains data from the
product, the data may be lost or damaged.
MEMORY CARD INFORMATION (NOT INCLUDED)
What is a memory card?
The memory card is an external data storage device that has been developed to offer an
entirely new way to record and share video, audio, and text data using digital devices.
Selecting a memory card that’s suitable for you
Your camera supports Micro SD/SDHC/SDXC memory cards.
You may, however, experience compatibility issues depending on the model and make of
the memory card.
For your camera, we recommend you use a memory card from the following
manufacturers:
Micro SD/SDHC/SDXC Memory Card : Sandisk, Transcend
Memory cards of 4GB ~ 64GB is recommended for using with this camera.
Playback performance can be affected depending on the speed of memory card, so use
the high-speed memory card.
It is recommended a memory card of specification Class 6 or higher is used.
Memory Card Components
Micro SD/SDHC/SDXC
Contacts
