Samsung SCC-B5397P User manual

ENG
DIGITAL COLOR DOME
CAMERA
user manual
SCC-B5397
SCC-B5399
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service,
please register your product at
www.samsungsecurity.com
ENG FRE
GER
SPA
ITA

2– DIGITAL COLOR DOME CAMERA
Safety information
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol indicates that dangerous voltage consisting a risk of electric shock is
present within this unit.
This exclamation point symbol is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the
appliance.
WARNING
To prevent damage which may result in fire or electric shock hazard, do not expose this appliance to rain
or moisture.
WARNING
Be sure to use only the standard adapter that is specified in the specification sheet. Using any other adapter
could cause fire, electrical shock, or damage to the product
Incorrectly connecting the power supply or replacing battery may cause explosion, fire, electric shock, or
damage to the product.
Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause abnormal heat
generation or fire.
Securely plug the power cord into the power receptacle. Insecure connection may cause fire.
When installing the camera, fasten it securely and firmly. A falling camera may cause personal injury.
Do not place conductive objects (e.g. screwdrivers, coins, metal things, etc.) or containers filled with water
on top of the camera. Doing so may cause personal injury due to fire, electric shock, or falling objects.
Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric shock.
•
1.
2.
3.
4.
5.
6.
7.
CA
1.
2.
3.
1.
2.
3.
4.
5.
6.
7.
8.
9.

English – 3
ENG
Safety information
S
nt
er
If any unusual smells or smoke come from the unit, stop using the product. In such case, immediately
disconnect the power source and contact the service center. Continued use in such a condition may cause
fire or electric shock.
If this product fails to operate normally, contact the nearest service center. Never disassemble or modify
this product in any way. (SAMSUNG is not liable for problems caused by unauthorized modifications or
attempted repair.)
When cleaning, do not spray water directly onto parts of the product. Doing so may cause fire or electric shock.
CAUTION
Do not drop objects on the product or apply strong shock to it. Keep away from a location subject to
excessive vibrationor magnetic interference.
Do not install in a location subject to high temperature (over 50°C), low temperature (below -10°C), or high
humidity. Doing so may cause fire or electric shock.
If you want to relocate the already installed product, be sure to turn off the power and then move or reinstall
it.
Remove the power plug from the outlet when then there is a lightning. Neglecting to do so may cause fire or
damage to the product.
Keep out of direct sunlight and heat radiation sources. It may cause fire.
Install it in a place with good ventilation.
Avoid aiming the camera directly towards extremely bright objects such as sun, as this may damage the
CCD image sensor.
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases,
shall be placed on the apparatus.
The Mains plug is used as a disconnect device and shall stay readily operable at any time.
1.
2.
3.
1.
2.
3.
4.
5.
6.
7.
8.
9.

4– DIGITAL COLOR DOME CAMERA
Safety information
WARNING
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers, or other apparatus (including
amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with cart, stand, tripod, bracket, or table specified by the manufacturer, or
sold with the apparatus.
Unplug this apparatus when a card is used. Use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.

English – 5
ENG
e
nd
ve
or
Contents
Introduction
Features 6
Product & Accessories 7
Part Names and Functions 8
Installation
Before installation 11
Installation procedure 11
Adjusting the camera direction 13
How to use OSD Menu
Using Icons in the Menu 14
Main Menu 14
Profile 15
Camera Setup 17
Intelligence 25
Privacy Zone Setup
27
Other Set 28
System Information 29
Language 29
Specifications
Specifications 31

6– DIGITAL COLOR DOME CAMERA
Introduction
FEATURES
High Resolution
This camera has realized high resolution of 600 lines using the top-notch full digital image processing and special algorithm
technologies.
VPS(Virtual Progressive Scan)
This is an advanced technology that reproduces a sharp progressive image. This is appropriate to high quality recording and file
transfer via the Internet.
Intelligent Motion Detection & Tracking
This is an intelligent function that automatically detects a motion of an object. You can set a virtual fence so it displays an alert if an object
passes / enters /exits the virtual fence or virtual area.
WDR
WDR extends the contrast range as it takes a picture of each of dark and bright areas before compositing the two, which is useful if
you take a picture of windows inside a building. Namely, it improves the picture quality of the outdoor scenery as well as indoor.
XDR (eXtended Dynamic Range)
Actively controls the gamma compensation in the way it operates the ambient luminance contrast in a certain pixel unit to determine
the optimal visibility.
DAY/NIGHT
This function can make the IR Cut filtering function inactive under the illumination below the normal value.
High Sensitivity
It implements images of high sensitivity using the up-to-date SONY Super-HAD Progressive CCD.
Low Illumination
It uses the digital signal technologies such as low illumination and Day/Night functions that make your camera identify objects even in the
worst environment.
Superior Backlight Adjustment
When an object has a bright illumination or sunlight behind it, this camera automatically improves the shaded object picture quality.
Digital Power Synchronization
The full digital Line Lock function directly adjusts the vertical camera synchronization to enhance the operationability and reliability of
this camera.
Output Signal Setting
You can set the following Video output signals: Image reversion (Horizontal, Vertical, or both), Privacy, Horizontal/Vertical profiling,
and digital zooming.
OSD(On Screen Display) Menu
OSD menu is provided to display the status of camera and to configure the functions interactively.
Coaxial Cable Communication
This is a remote control function that overlaps the coaxial cable (for a transfer of the video signal) with the control signal. In installation or repair, this
helps you control the communication controller (optional) without additional cabling.
❖
•
❖
•
❖
•
❖
•
❖
•
❖
•
❖
•
❖
•
❖
•
❖
•
❖
•
❖
•
❖
•
C

English – 7
ENG
Introduction
f
e
f
s
Components
Checking components in the package
Camera
Test Monitor Cable User’s Guide
Image Part name Standard Quantity Usage
Plastic anchor HUD 5 4 (EA)
Attach each piece to screw connection holes for
strengthening connection
ASSY screw
machine
BH M5 X L6.
(White+o-ring)
8Used for filling in the holes when installing
pipe and wall mount
ASSY screw
tapping
TH M4xL30 (Black+
o-ring)
4Used when installing your camera on the
ceiling or wall。
L-Wrench TROX T-20 1 Used for assembling/disassembling the
Dome cover
Template 1 Used for guiding the installation
Gasket-pipe hole T2.5 W56 1 Used to make a wiring hole when installing
the camera on the ceiling or wall
NOTE
The test monitor cable is used to test the camera by connecting to a portable display. If you
really want to connect the camera to a monitoring display, use the BNC cable. 。
–
–

8– DIGITAL COLOR DOME CAMERA
Introduction
1
24
Lens
910
11
3
8
12
Video connector
Power connector
5
66
7
7
1.Dome cover: Covers the inner cover, lens, and
main body to protect them.
2.Cover screw: Use it to assemble or
disassemble both dome cover and case.
3.Inner cover: Covers the main body to protect it.
4.Wing locker: Push a long thin screwdriver into
its narrow spot and press it outward when you want
to remove the inner cover.
5.Main body: Includes a lens, a switch board, a
PCB board, screws, and such.
6.Screws for assembly and disassembly: Using
these 2 screws, the Main
body is closely connected to the Case.
7.Hooker: By pulling the left/right levers in the
arrow direction, the Main body can be detached
from the Case.
8.Case: Used as a ceiling or wall fixture. It is
fixed using four screws provided in the package.
9.Zoom lever: Using this lever, the lens zoom can
be adjusted and fixed.
10.Focus lever: Using this lever, the lens focus can
be adjusted and fixed.
11.Tilt fixing screw: Using this screw, the slope of
the lens can be adjusted and fixed.
12.Cable: Connect the Video connector to BNC
cable and Power connector to power adapter.

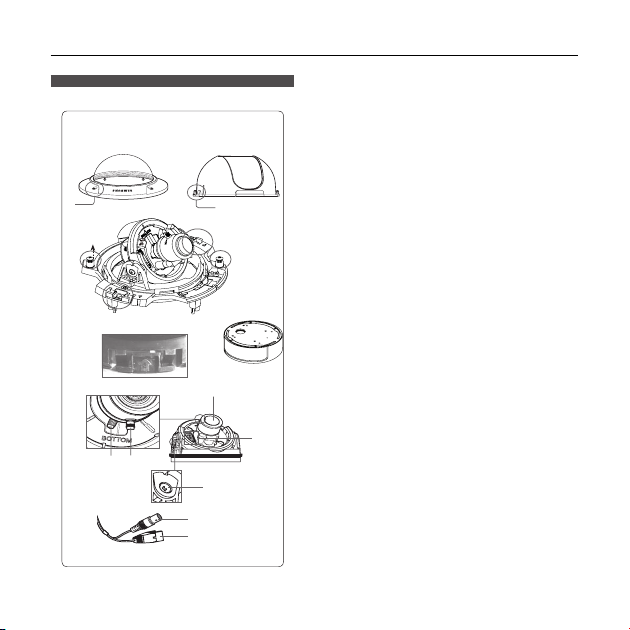

Components of your camera
Your camera has the following components:
•
❖

English – 9
ENG
Introduction
SETUP Switch
This switch is used to set the function or property. When this switch is pressed for at least 2 seconds, the
MAIN MENU appears.
ef (Left/Right) : By pressing this switch left or right, you can move left or right on the menu or change the
displayed value.
cd (Up/Down) : By pressing this switch up or down, you can move up or down on the menu.
: When you press this switch in the menu, the selected function is confirmed. To enter a submenu, press
this button.
•
Setting switches❖

10 – DIGITAL COLOR DOME CAMERA
Installation
C
B
A
Bottom of camera
Installing camera
Before installation
Before installing your camera, you have to read the following cautions:

You have to check whether the location (ceiling or wall) can bear five times the weight of your camera.

Don’t let the cable to be caught in improper place or the electric line cover to be damaged. Otherwise it may
cause a breakdown or fire. You can use wall mount adaptor (SADT-102WM), and pole mount adaptor (SADT-
100PM) for installing the camera on the wall or pipeline.

When installing your camera, don’t allow any person to approach the installation site. If you have any valuable
things under the place, move th
em away.
About the installation holes
A:Use these holes when directly installing your camera on the ceiling or
wall.
While those are not used, fill in the holes using the screw machine (M5
X L6.) for waterproofing.
B: Use four holes when directly installing your camera on the junction box
You can use the 4 1/8 diameter round type junction box for assembly.
(The junction box, gasket, and cover are separately purchased items.)
C: Use these holes when installing the wall mount adapter (SADT-
102WM)
While those are not used, fill in the holes using the screw machine (M5
X L6.)
for waterproofing.
The holes that are not used should be tightly
sealed up using the screws provided for
waterproofing. When the screws don’t have rubber
rings inside or are not closely attached, note that it
can cause waterproofing problem.
For attaching screws, see page 16
“Disassembling/assembling the Main body from
the Case.”
I
Be
are
To
1.
2.

English – 11
ENG
Installation
n

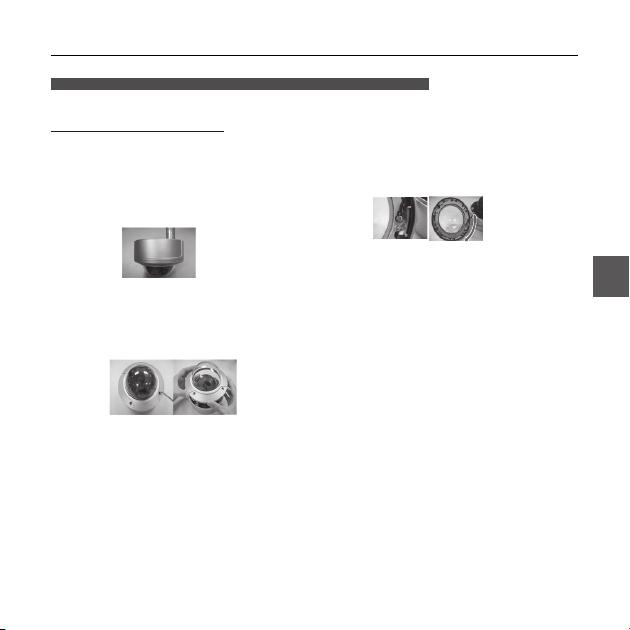

Installing on a pipe
Before installation, you have to be familiar with the above cautions and fill in the holes that
are not used for installation.
To install your camera bottom on a pipe
1. After connecting the power and video cables,
throw them inside the pipeline and screw the male
thread pipe into the female pipe thread in your
camera tightly to fix the Main body. (In this case,
be sure to tape with Teflon tape before assembly for
waterproofing. Be careful for the wiring cable not to
be stuck in the connection area.)
2. Adjust the angle of the camera in search of a better
view.
1) Separate the Dome cover using the L-Wrench
provided. (To make loose the screws, rotate
counterclockwise.)
2) Adjust the lens direction. For more information,
see page 17 “Adjusting the camera direction.”
3. Attach the Dome cover. (Screw the connection bolts
tightly using the L-Wrench for waterproofing.)
To change the SAMSUNG logo position, move the
location of the connection rubber band as show
below and rotate for assembly. (The rotation limit
is 180 degree.)

12 – DIGITAL COLOR DOME CAMERA
Installation
U
•
•
•
•
•
H
Adjusting the camera direction
When the camera is fixed on the ceiling, you can adjust the camera viewing angle.
You can rotate your camera leftward or rightward (Panning), and can change the
slope of your camera upward or downward (Tilting).
In case of panning, the rotation limit of your camera is set to 355 degree (100
degree clockwise and 255 degree counterclockwise). The rotation is stopped by
the Stopper inside of the camera. For panning control, first unfasten two screws
located on the bottom and rotate in the direction you want, and then fasten them to
fix the camera.
In case of tilting, you can change the slope of your camera from zero to 90 degree.
However if the slope angle is under 17 degree, you can encounter a partial image
hide problem. To fix the location after adjusting the tilting angle, use the Tilt fixing
screws.
To adjust the focus and zoom of your camera, use the Zoom lever and Focus
lever. When you install the camera on the inclined ceiling or wall, you can rotate the
camera lens to see a correct direction image.
Panning
Tilting
Lens rotation

English – 13
ENG
USING ICONS IN THE MENU
(EXIT)
Exits the menu setting.
Before you exits the menu setting, select SAVE to
save your settings, or select QUIT to cancel.
(RET)
Returns to the previous menu.
(HOME)
Returns to the main menu.
(SAVE)
Used to save your settings of MASK AREA,
PRIVACY ZONE and more.
Once you save your settings, they will remain
even if you select QUIT in the menu.
(DEL)
Used to deletes your settings of MASK AREA,
PRIVACY ZONE and more.
Once you delete your settings, they will not be
restored even if you select QUIT in the menu.
•
•
•
•
•
MAIN MENU
MAIN MENU
PROFILE 
CAMERA SET
INTELLIGENCE
PRIVACY ZONE
OTHER SET
SYSTEM INFO
LANGUAGE

PROFILE
You can set a mode according to the camera
installation conditions.
CAMERA SET
Configure Camera related functions and data.
INTELLIGENCE
You can configure the settings of motion
detection, tracking and more.
PRIVACY ZONE
You can configure the privacy related settings.
OTHER SET
You can configure for Factory Defaults, and more.
SYSTEM INFO.
Displays the system information including the
camera version and communication settings.
LANGUAGE
Select a preferred one from the supported
languages.
•
•
•
•
•
•
•
How to use OSD Menu
e.
e
0
by
ws
to
e.
e
g
us
e

14 – DIGITAL COLOR DOME CAMERA
How to use OSD Menu
PROFILE
e PROFILE f

STANDARD
ITS
BACKLIGHT
DAY/NIGHT
GAMING
CUSTOM

In the PROFILE menu, you can configure the following camera settings at once.
CAMERA SET Menu
STANDARD ITS BACKLIGHT DAY/NIGHT GAMING
Previous
Menu Sub-menus
VPS OFF ON OFF OFF OFF
IRIS ALC ALC ALC ALC ALC
ALC -- ---
LENSDCDC DCDCDC
LEVEL 0 0 0 0 0
BACKLIGHT OFF OFF WDR OFF OFF
WDR -- ---
WEIGHT User setting
allowed
User setting
allowed MID User setting allowed
User setting
allowed
WDR LEVEL User setting
allowed
User setting
allowed 0User setting allowed
User setting
allowed
WHITE BAL User setting
allowed
User setting
allowed
User setting
allowed
User setting
allowed
User setting
allowed
MOTION (F.FAST)--- (F.FAST)--- NORM (F.FAST)--- SLOW
DNR MID MID MID MID MID
D
W
❖
❖
❖
❖

English – 15
ENG
How to use OSD Menu
CAMERA SET Menu
STANDARD ITS BACKLIGHT DAY/NIGHT GAMING
Previous
Menu Sub-menus
SHUTTER OFF AUTO1/250 OFF OFF OFF
SENS-UP AUTOx4 AUTOx2 AUTOx4 AUTOx4 AUTOx4
XDR MID MID MID MID MID
DAY/NIGHT AUTO AUTO DAY AUTO DAY
NIGHT-- ---
BURST OFF ON OFF OFF OFF
WHITE BAL DAY DAY/NIGHT DAY DAY/NIGHT DAY
DAY -- ---
MODE ATW2 ATW1 ATW1 ATW1 ATW1
RED00 000
BLUE 0 0 0 0 0
NIGHT-- ---
BRIGHTNESS User setting
allowed MID User setting allowed MID User setting allowed
MODE OFF ATW2 OFF ATW2 OFF
RED User setting
allowed 0User setting allowed 0User setting allowed
BLUE User setting
allowed 0User setting allowed 0User setting allowed
DETAIL 2 2 2 2 2
ITS
It will be set automatically so you can easily check the traffic conditions.
BACKLIGHT
It will be set automatically so you can distinguish the object from the background in a severe backlighting scene.
DAY/NIGHT
It will be set automatically so it optimizes to the day or night conditions, respectively.
GAMING
❖
❖
❖
❖

16 – DIGITAL COLOR DOME CAMERA
How to use OSD Menu
CAMERA SETUP
eCAMERA SETf
CAMERA ID OFF
VPS OFF
IRIS ALC
MOTION (F.FAST)---
DNR MID
SHUTTER OFF
SENS-UP AUTO X4
FLICKERLESS (OFF)---
XDR MID

d
c
DAY/NIGHT AUTO
WHITE BAL 
DIGITAL ZOOM OFF
DETAIL [2]
V-SYNC INT
AGC COLOR SUP LOW
REVERSE H/V
POSI/NEGA +
PIP OFF

d
c
DIS OFF

Setup the general functions of zoom camera module.
Use the cdef switch to select a menu item.
CAMERA ID [OFF, ON]
CAMERA ID
ABCDEFGHIJKLMNOPQRSTUVWXYZ0
123456789 :?-+*()/
SP
ffee SP LOCATION
CAMERA-1..................
...........................

The CAMERA ID menu is used for you to assign
a unique name to a camera. If you press the
SETUP switch with the CAMERA ID menu
selected, you will see the appropriate screen.
You can enter up to 54 alphanumeric or
special characters for the CAMERA ID. Select
LOCATION and press the SETUP switch to
move the display position of the CAMERA ID.
VPS [OFF, ON]
If you set the VPS (Virtual Progressive Scan)
option, the camera will display the image in
progressive format.
IRIS [ALC]
The IRIS menu is used if you want to adjust the
intensity of radiation incoming to the camera.
❖
❖
❖
•

English – 17
ENG
How to use OSD Menu
e.
n
ALC (Automatic Light Control)
①If you press the SETUP switch with an ALC-
based sub menu selected, you will see the
appropriate screen.
ALC
LEVEL [00]----I----
BACKLIGHT OFF

The LEVEL menu is used to adjust the
overall brightness, where “+” will increase the
brightness and “–” will decrease it.
② If you set the BACKLIGHT option to BLC,
you will see a menu where you can set the
BLC area.
you can set the desired BLC zone by defining
the size and location.
ALC
LEVEL [00]----I----
BACKLIGHT BLC
AREA USER
<SIZE>
<LOCATION>

•
If you use an ordinary camera in a scene
with an intensive backlight, the object will be
displayed dark on the monitor affected by the
backlight. To solve this problem, you can use
the BLC(Back Light Compensation) function
to improve the sharpness of the image in
such a high contrast scene.
③
If you set the BACKLIGHT option to WDR, you will
see a menu where you can set the WDR options.
You can adjust the shutter speed in WDR LEVEL
and the brightness in WEIGHT.
You can also select any of OUTDOOR, and
INDOOR in WHITE BAL.
ALC
LENS DC
LEVEL [ 00]----I----
BACKLIGHT WDR
WEIGHT MID
WDR LEVEL [ 0]----I----
WHITE BAL INDOOR

WDR(Wide Dynamic Range) extends the gain range of
the screen that is mostly useful if you take a simultaneous
picture of both indoor and outside of the window.
Namely, it improves the sharpness of the
picture in outdoor scenery as well as indoor.
Note :
If you use the VPS (Virtual Progressive Scan) function, the CCD
reads differently so you can not use WDR simultaneously.
If you set VPS to ON, WDR will be automatically set to OFF.

–

18 – DIGITAL COLOR DOME CAMERA
How to use OSD Menu
AGC
[OFF, VERY LOW, LOW, MID, HIGH, VERY
HIGH, USER, FIX]
The AGC (Auto Gain Control) menu is used to
set the AGC level of the camera. When the AGC
is active, the camera automatically increases the
sensitivity by amplifying the Video signal when
the strength of the signal falls below the normal
value.
If OFF or FIX mode is selected in the SENS-UP
menu, you can specify the AGC level.
If you press the SETUP switch with a USER
sub menu selected, you will see the appropriate
screen.
AGC USER
LEVEL [16]

In USER mode, you can break down the level in
16 steps from VERY LOW to VERY HIGH to your
preference.
❖
AGC FIX
LEVEL [01]

If you press the SETUP switch with a FIX sub
menu selected, you will see the appropriate screen.
As a fixed value of the AGC gain is used in FIX
mode, you can select one of the 16 detailed levels
from VERY LOW to VERY HIGH before fixing it.
FIX mode is not available if you set the
BACKLIGHT function to WDR.
Note :
If the DAY/NIGHT menu of the CAMERA SET is set to
AUTO, the AGC menu will be deactivated.
If FLICKERLESS is set to ON, the AGC FIX mode will be disabled.
MOTION [S.SLOW, SLOW, NORM, FAST, F.FAST]
The MOTION menu is used to adjust the strength
of the AGC level for a control of the camera motion.
This is available only if the SENS-UP menu is set
to AUTO.
You can select one from S.SLOW, SLOW, NORM,
FAST and F.FAST for the AGC level.
If you monitor a fast moving object in a low contrast
scene, select F.FAST while select S.SLOW for a
hardly moving object in the same lighting condition.

–
–
❖

❖
❖

English – 19
ENG
How to use OSD Menu
n.
s
d.
ST]
n.
M,
st
n.
Note :
If the DAY/NIGHT menu of the CAMERA SET is set to
AUTO, the MOTION menu will be deactivated.
DNR
[OFF,LOW,MID,HIGH, USER(1~16)]
You can configure the DNR (Digital Noise
Reduction) related settings.
Reduces the noise on the screen.
This is especially useful for a severely distorted
screen.
You can set the level if you set DNR to USER.
SHUTTER
[OFF, AUTO 1/100(PAL:1/120), AUTO 1/250,
AUTO 1/500, AUTO 1/1000, AUTO 1/2000, AUTO
1/4000, AUTO 1/10K , 1/100(PAL:1/120), 1/250,
1/500, 1/1000, 1/2000, 1/4000, 1/10K , EXT]
The SHUTTER menu is used to configure settings
of the fixed / auto high-speed electronic shutter.
You can select one of 7 options from 1/100(PAL:1/120)
to 1/10K for the fixed high speed electronic shutter,
which is mostly used for imaging a fast moving object.
The auto high speed electronic shutter operates
as the fixed high speed shutter in a high contrast
scene but automatically focuses the target if the
iris opens fully in a low contrast scene like in ELC
mode. When it gets brighter back, the mode will
switch to the fixed high speed electronic shutter
mode.
However, the auto high speed shutter operates
properly only in a camera featuring a DC or VIDEO lens.

–
❖
❖
Note :
If the SENS-UP function is set to AUTO, only items of
OFF and AUTO are available in the SHUTTER menu.
If the SENS-UP mode is set to FIX, the SHUTTER menu
will be deactivated.
If the FLICKERLESS function is set to ON, the SHUTTER menu
will be deactivated.
SENS-UP
[OFF, AUTO X2, AUTO X4, AUTO X6, AUTO
X8, AUTO X12, AUTO X16, AUTO X24, AUTO
X32, AUTO X48, AUTO X64, AUTO X96, AUTO
X128, AUTO X256, AUTO X512, FIX X2, FIX
X4, FIX X6, FIX X8, FIX X12, FIX X16, FIX X24,
FIX X32, FIX X48, FIX X64, FIX X96, FIX X128,
FIX X256, FIX X512]
Automatically detects the ambient level of
darkness in the dark or low contrast scene to
extend the accumulated time, keeping the image
bright and sharp; It can be also used as FIX mode.
Note :
If the SHUTTER menu is set to fixed electronic shutter
mode, the SENS-UP menu will not be available.
If FLICKERLESS is set to ON, the FIX mode of the SENS-
UP menu will be disabled.
If the SHUTTER menu is set to AUTO, the SENS-UP
menu can be set to either OFF or AUTO mode.
If the BACKLIGHT function is set to WDR, the SENS-UP menu
can not be set to FIX.

–
–
–
❖

–
–
–
–

20 – DIGITAL COLOR DOME CAMERA
How to use OSD Menu
FLICKERLESS [OFF, ON]
If set to ON, the shutter speed will be fixed to
1/100(PAL:1/120) second. This will prevent possible screen
distortion due to a mismatch between the vertical sync
frequency and the blinking frequency of the lighting.
Note :
If the SHUTTER menu is set to AUTO or FIX mode, the
FLICKERLESS menu will not be available.
If the SENS-UP function is set to FIX mode, the Flickerless
menu will be deactivated.
If AGC is set to FIX mode, the FLICKERLESS function will
be disabled.
XDR (eXtended Dynamic Range)
[OFF, LOW, MID, HIGH]
Actively controls the gamma compensation in the
way it operates the ambient luminance contrast
in a certain pixel unit to determine the optimal
visibility.
Select one from OFF, LOW, MID and HIGH.
Closing to HIGH will increase the compensation
level.
DAY/NIGHT
[DAY,NIGHT,AUTO,EXT]
DAY
If set to DAY, it will be fixed to DAY mode
regardless of the ambient conditions.
NIGHT
If set to NIGHT, it will be fixed to Black-and-White
mode regardless of the ambient conditions.
❖

–
–
–
❖
❖
•
•
If you press the SETUP switch with a NIGHT sub
menu selected, you will see a menu where you can
set Burst to OFF/ON.
If BURST is set to ON, the Burst signal will output
together with the black-and-white composite video
signal. If BURST is set to OFF, the Burst signal does
not output.
You can set the BURST option to OFF/ON, or
select to output the Burst signal in NIGHT mode.
AUTO
The camera will automatically switch between
DAY and NIGHT mode, according to the lighting
condition.
If you press the SETUP switch with an AUTO-
based sub menu selected, you will see the
appropriate screen.
AUTO
BURST OFF
DAYÆNIGHT
BRIGHTNESS MID
DWELL TIME 2S
NIGHTÆDAY
BRIGHTNESS MID
DWELL TIME 5S
MASK AREA 1 2

You can set the BURST option to OFF/ON, or
select to output the Burst signal in NIGHT mode.
The BRIGHTNESS of DAYÆNIGHT sets the
brightness degree of color to BW switching,
for which you can select from LOW, MID, and
•
