NETWORK CAMERA
User Manual SNP-6201/SNP-6201H

Copyright
©2013 Samsung Techwin Co., Ltd. All rights reserved.
Trademark
is the registered logo of Samsung Techwin Co., Ltd.
The name of this product is the registered trademark of Samsung Techwin Co., Ltd.
Other trademarks mentioned in this manual are the registered trademark of their respective company.
Restriction
Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this document shall
be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung Techwin.
Disclaimer
Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no
formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s own
responsibility. Samsung Techwin reserves the right to change the contents of this document without prior notice.
Design and specifications are subject to change without prior notice.
The default password can be exposed to a hacking thread so it is recommended to change the password
after installing the product.
Note that the security and other related issues caused by the unchanged password shall be responsible
for the user.
Network Camera
User Manual

English _3
●OVERVIEW
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings, Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/ accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lighting storms or when unused for
long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.
overview

overview
4_ overview
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC
OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS
ON THE EQUIPMENT.
Apparatus shall not be exposed to dripping or splashing and that no objects
filled with liquids, such as vases, shall be placed on the apparatus.
To prevent injury, this apparatus must be securely attached to the Wall/ceiling
in accordance with the installation instructions.
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

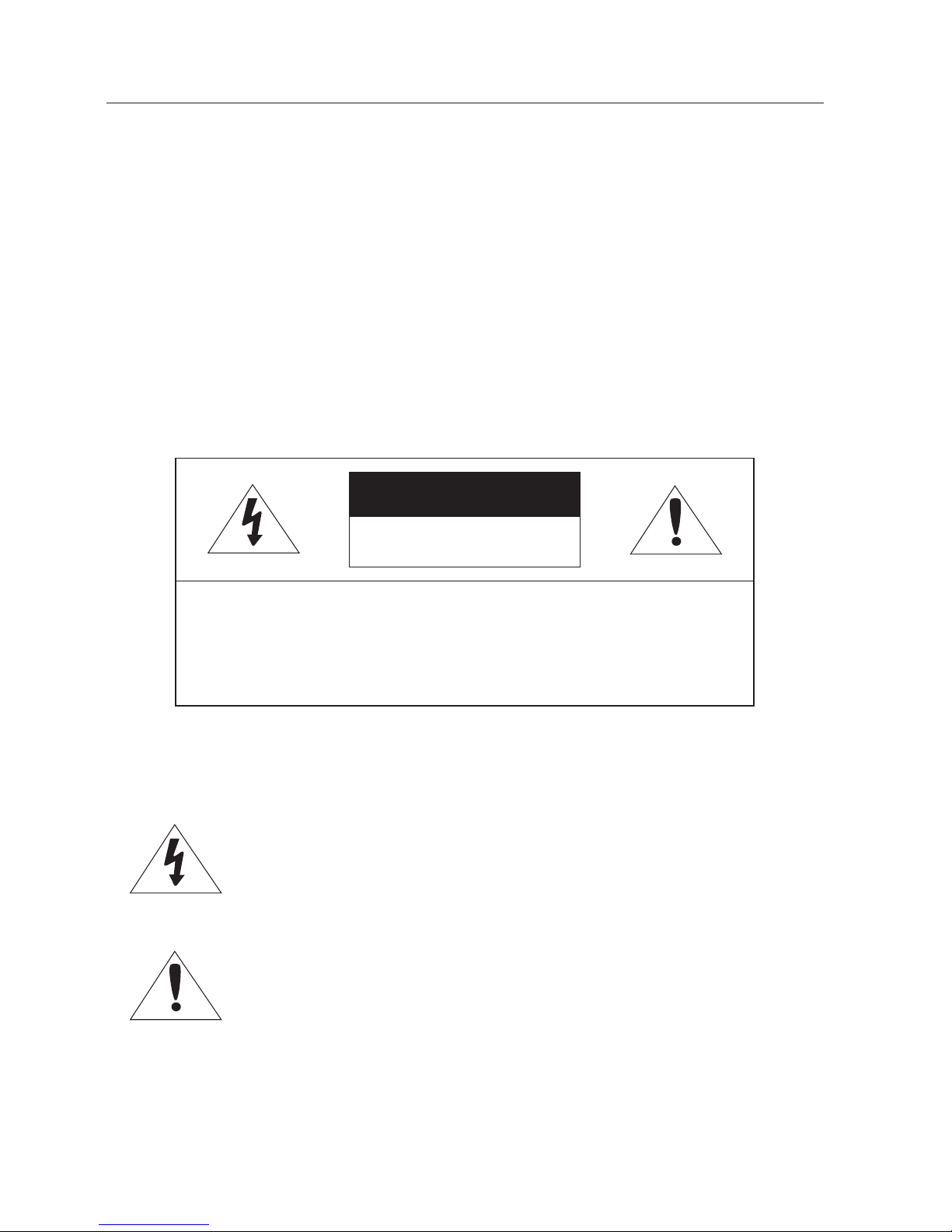

EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the product.

English _5
●OVERVIEW
Battery
Batteries(battery pack or batteries installed) shall not be exposed to excessive
heat such as sunshine, fire or the like.
CAUTION
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock do not perform any servicing other than
that contained in the operating instructions unless you are qualified to do so.
The CVBS out terminal of the product is provided for easier installation, and is
not recommended for monitoring purposes.
Please use the input power with just one camera and other devices must not
be connected.
The ITE is to be connected only to PoE networks without routing to the
outside plant.

overview
6_ overview
Please read the following recommend safety precautions carefully.
yDo not place this apparatus on an uneven surface.
yDo not place this apparatus near conductive material.
yDo not attempt to service this apparatus yourself.
yDo not install near any magnetic sources.
yDo not block any ventilation openings.
yDo not place heavy items on the product.
yDo not expose the camera to radioactivity.
User’s Manual is a guidance book for how to use the products.
The meaning of the symbols are shown below.
yReference : In case of providing information for helping of product’s usages
yNotice : If there’s any possibility to occur any damages for the goods and
human caused by not following the instruction
Please read this manual for the safety before using of goods and keep it in
the safe place.

English _7
●OVERVIEW
CONTENTS
OVERVIEW
3
3Important Safety Instructions
9Product Features
10 Recomended PC Specifications
10 Recomended SD/SDHC Memory
Card Specifications
11 What’s Included
13 At a Glance (SNP-6201)
16 At a Glance (SNP-6201H)
INSTALLATION &
CONNECTION
20
21 Connecting with other Device
24 Installation
35 Inserting/Removing a SD Memory
Card
36 Memory Card Information (Not
Included)
NETWORK CONNECTION
AND SETUP
37
37 Connecting the Camera Directly
to Local Area Networking
38 Connecting the Camera Directly
to a DHCP Based DSL/Cable
Modem
39 Connecting the Camera Directly
to a PPPoE Modem
40 Connecting the Camera to a
Broadband Router with the
PPPoE/Cable Modem
41 Buttons used in IP Installer
42 Static IP Setup
46 Dynamic IP Setup
47 Port Range Forward (Port
Mapping) Setup
49 Connecting to the Camera from a
Shared Local PC
49 Connecting to the Camera from a
Remote PC via the Internet

overview
8_ overview
SETUP SCREEN
64
64 Setup
64 Audio & Video Setup
85 Network Setup
94 Event Setup
108 System Setup
APPENDIX
114
114 DIP Switch Setting
124 Camera Wiring
125 Specification
130 Product Overview
132 Troubleshooting
134 Open source license notification
on the product
WEB VIEWER
50
50 Connecting to the Camera
51 Login
52 Installing ActiveX
53 Installing Silverlight Runtime
55 Using the Live Screen
59 Playing the recorded video

English _9
●OVERVIEW
PRODUCT FEATURES
•Full HD Video Quality
•Multi-Streaming
This network camera can display videos in different resolutions and qualities
simultaneously using different CODECs.
•Web Browser-based Monitoring
Using the Internet web browser to display the image in a local network environment.
•Alarm
If an event occurs, the event-related video will be transferred to the FTP/email specified
by the user or saved to the SD memory, or the event signal will be sent to the Alarm Out
port.
•Tampering Detection
Detects tempering attempts on video monitoring.
•Motion Detection
Detects motion from the camera’s video input.
•Intelligent Video Analysis
Analyzes video to detect logical events of specified conditions from the camera’s video
input.
•Face Detection
Detects faces from the camera’s video input.
•Audio Detection
Detects sound louder than a certain level specified by user.
•Auto Detection of Disconnected Network
Detects network disconnection before triggering an event.
•ONVIF Compliance
This product supports ONVIF Profile-S.
For more information, refer to www.onvif.org.

overview
10_ overview
RECOMENDED PC SPECIFICATIONS
•CPU : Intel Core 2 Duo 2.6GHz or higher
•Resolution : 1280X1024 pixels or higher
•RAM : 2GB or higher
•Supported OS : Windows XP / VISTA / 7, MAC OS X 10.7
•Supported Browser : Microsoft Internet Explorer (Ver. 10 ~ 7)
Mozilla Firefox (Ver. 19 ~9) ※Windows Only
Google Chrome (Ver. 25 ~ 15) ※Windows Only
Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) ※Mac OS X only
`Neither a beta test version unlike the version released in the company website nor the developer version will
be supported.
`It is recommended to connect to IPv6 in Windows 7.
`For Mac OS X, only the Safari browser is supported.
•Video Memory : 256MB or higher
J
`If the driver of the video graphic adapter is not installed properly or is not the latest version, the
video may not be played properly.
`For a multi-monitoring system involving at least 2 monitors, the playback performance can be
deteriorated depending on the system.
`It is advisable to use Intel Core 2 Duo 2.93GHz or higher in a multi-browser environment.
RECOMENDED SD/SDHC MEMORY CARD SPECIFICATIONS
•4GB ~ 32GB
•For your camera, we recommend you use a memory card from the following
manufacturers:
SD/SDHC Memory Card : Sandisk, Transcend
•It is recommended to use memory cards of at least class 6 speed.

English _11
●OVERVIEW
WHAT’S INCLUDED
Please check if your camera and accessories are all included in the product package.
Appearance Item Name Quantity Description Model Name
Camera 1
SNP-6201 or
SNP-6201H
Instruction book,
Installer S/W CD,
CMS S/W DVD
2
Quick Guide
(Optional) 1
Warranty card
(Optional) 1
Cable for the testing
monitor 1
Used to test the camera
connection to a portable display
device

overview
12_ overview
Appearance Item Name Quantity Description Model Name
Installation base 1If installing it indoors or in a
ceiling housing
SNP-6201
Tapping Screw 4Used for installation on the
ceiling
Template 1Product installation guide
Insulation Sheet 1 Use when installing the camera
at highly humid place
Hexagon screw 3Used for attaching the
installation base to the camera
SNP-6201H
L Wrench 1
Used for fixing the installation
base after attaching it to the
camera
Installation base 1Bracket for mounting outdoors

English _13
●OVERVIEW

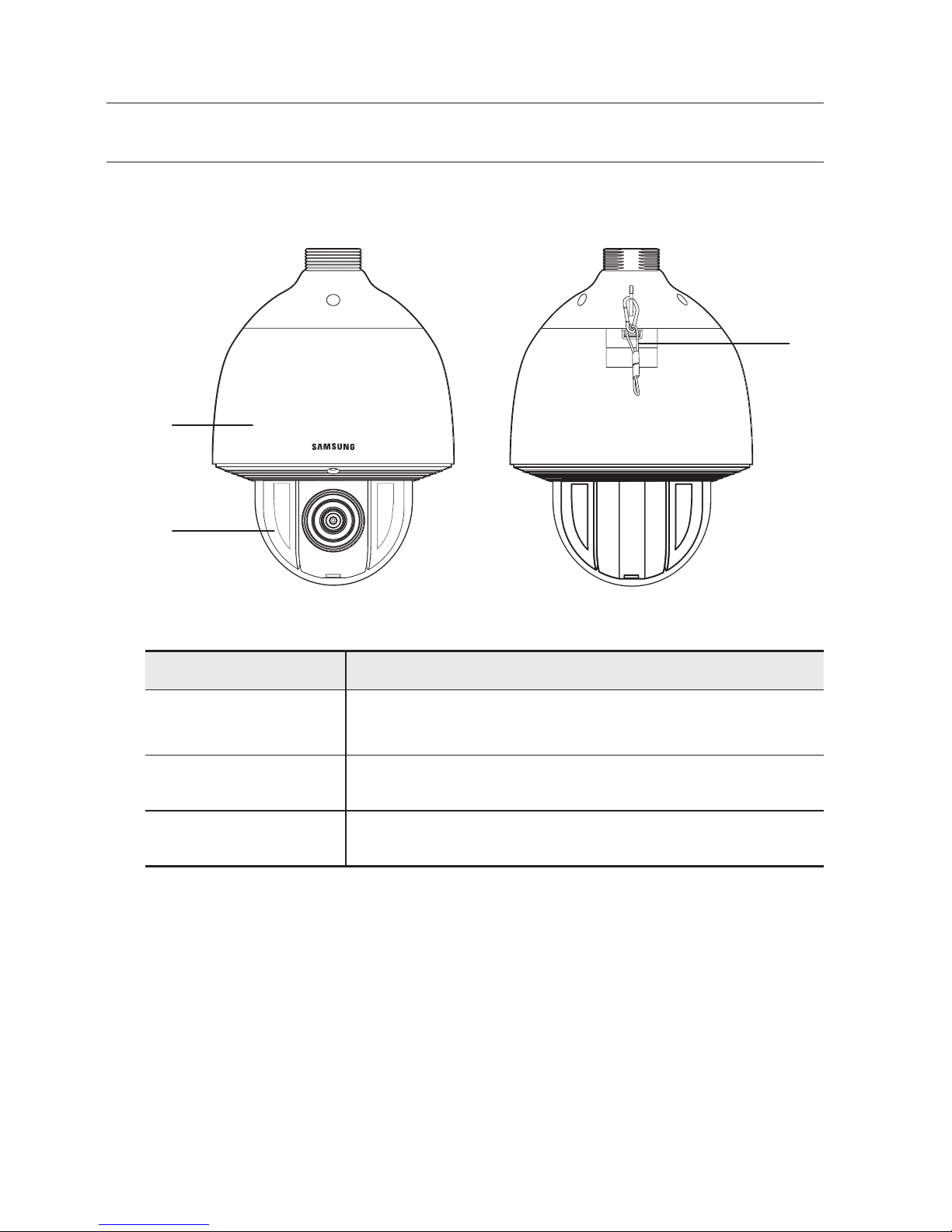

AT A GLANCE (SNP-6201)
Appearance
Item Description
a
Main unit Protects the internal PTZ mechanism from the direct sunlight or external
impact.
b
Dome Cover Dome cover for the lens and unit protection.
c
SD Memory Card
Compartment Compartment for the SD memory card.
d
After Service Port
(A/S port) This is for the repair purpose only that is not available for the user.
e
Reset Button Pressing and holding this button for about 5 seconds will reset all camera
settings to the factory default.
a
b
e
d
c

overview
14_ overview
Bottom View of Installation
Base
Item Description
a
Safety Cable
Connection Ring
Connect the cable to prevent the product from dropping during installation to
the ring.
b
Alarm I/O Port Used to connect the alarm I/O cable.
c
Video Out Port Analog video output port. (for installation)
d
Audio Input Port Used to connect the audio input cable.
e
Audio Output Port Used to connect the audio output cable.

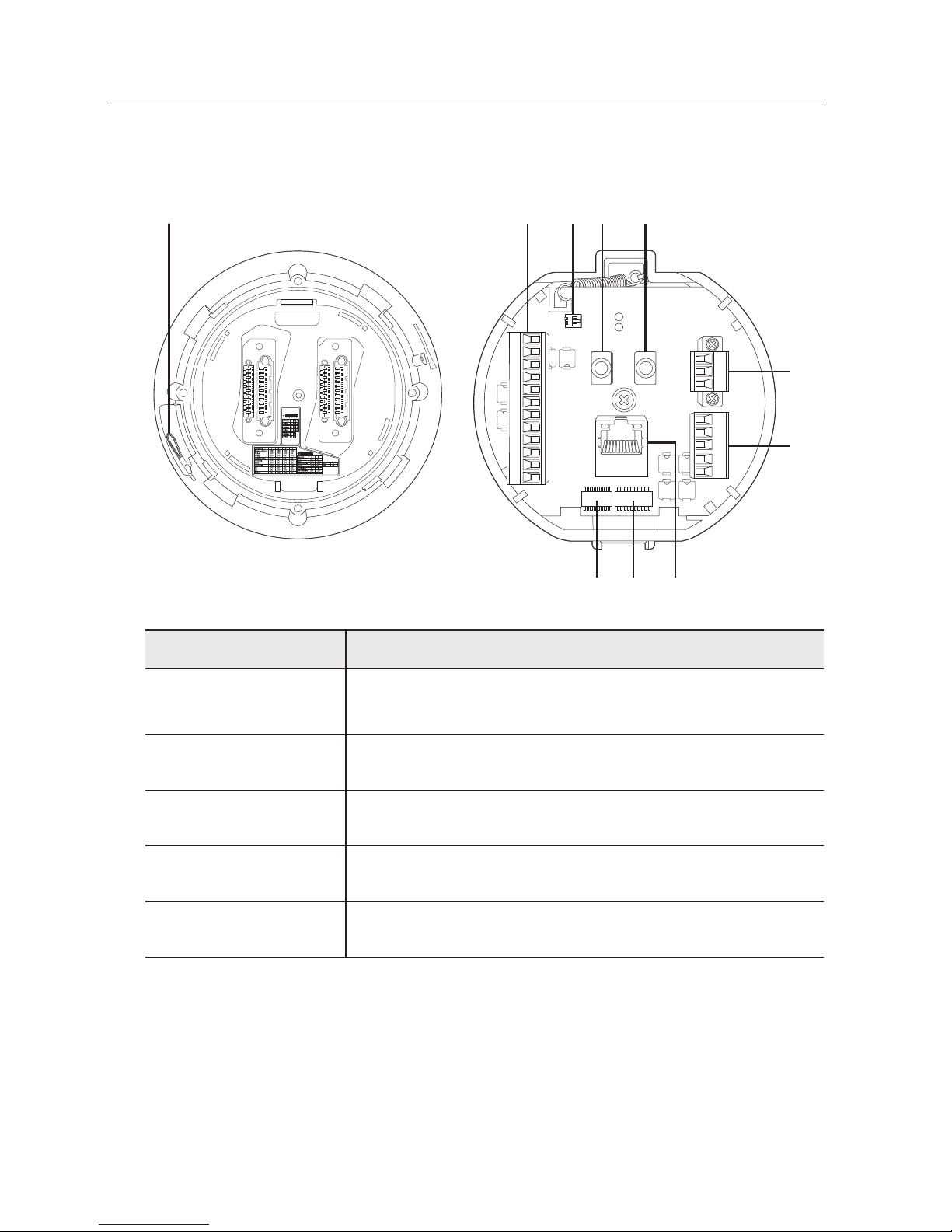

Inner View of Installation Base
a
AC- FG AC-
AUDIO OUT
AUDIO IN
GND
1.COM
1.NO 1.NCIN1 IN2 GND IN3 IN4
2.COM
2.NO
2.NC
IN5 IN6 GND IN7 IN8
f
g
h
d
b c e
i j

English _15
●OVERVIEW
Item Description
f
Power Port Used to connect the power.
g
Communications
Ports Used for RS-485/422 communications.
h
ID Setup Switch Specify the camera ID.
i
Communications
Setup Switch Set the transfer rate and protocols.
j
Network
Connections
You can use a PoE+ or an Ethernet cable to connect this terminal to the
network.

overview
16_ overview
AT A GLANCE (SNP-6201H)
Appearance
Item Description
a
Main unit Protects the internal PTZ mechanism from the direct sunlight, rain or
external impact.
b
Dome Cover Dome cover for the lens and unit protection.
c
Safety Cable The cable prevents the product from dropping during installation.
c
a
b

English _17
●OVERVIEW
Inside
Item Description
a
SD Memory Card
Compartment Compartment for the SD memory card.
b
Reset Button Pressing and holding this button for about 5 seconds will reset all camera
settings to the factory default.
c
After Service Port
(A/S port) This is for the repair purpose only that is not available for the user.
c
b
a

overview
18_ overview
Bottom View of Installation
Base
Item Description
a
Safety Cable
Connection Ring
Connect the cable to prevent the product from dropping during installation to
the ring.
b
Alarm I/O Port Used to connect the alarm I/O cable.
c
Video Out Port Analog video output port. (for installation)
d
Audio Input Port Used to connect the audio input cable.
e
Audio Output Port Used to connect the audio output cable.
Inner View of Installation Base
a
AC- FG AC-
AUDIO OUT
AUDIO IN
GND
1.COM
1.NO 1.NCIN1 IN2 GND IN3 IN4
2.COM
2.NO
2.NC
IN5 IN6 GND IN7 IN8
f
g
h
d
b c e
i j

English _19
●OVERVIEW
Item Description
f
Power Port Used to connect the power.
g
Communications
Ports Used for RS-485/422 communications.
h
ID Setup Switch Specify the camera ID.
i
Communications
Setup Switch Set the transfer rate and protocols.
j
Network
Connections
You can use a PoE+ or an Ethernet cable to connect this terminal to the
network.

20_ installation & connection
installation & connection

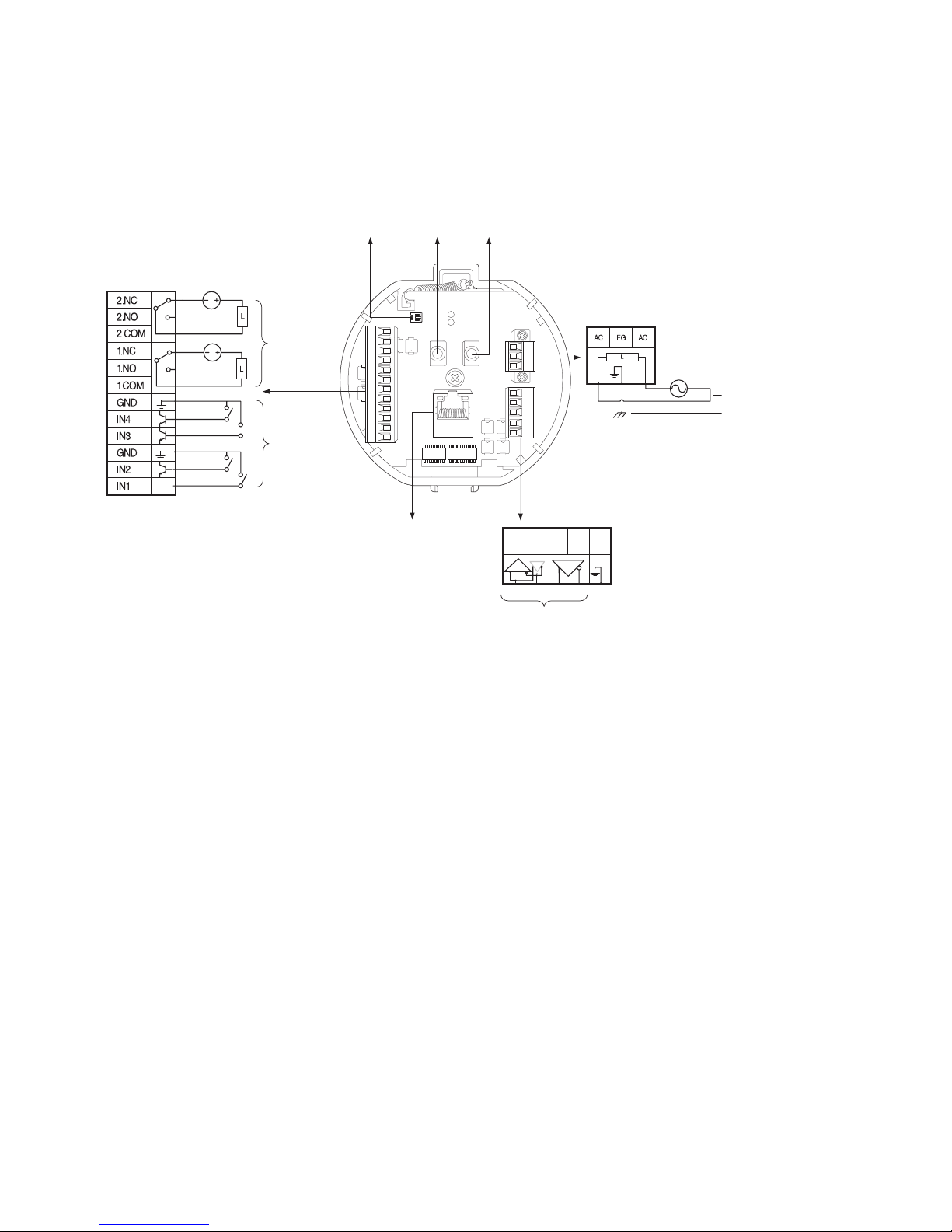

`Camera Wiring Interface Board
For the camera wiring, please refer to the picture below.
J
`Select Normal Open in the setup menu.
-The sensor input is activated during a short for contact type, or when it is at “Low” level for
the active type.
`Select Normal Close from the Setup menu.
-The sensor input is activated when open for the contact type or when in high impedance
state (open collector) for the active type.
`The maximum power capacity of the alarm outputs is DC +40V and 80 mA.
`When connecting alarm input and output cables, be sure to connect one cable to each
terminal respectively.
`To connect products over the camera’s capacity, please use an additional relay device.
`Connecting the power connector and GND incorrectly to the alarm out port may lead to fire
and damage the camera.
AC- FG AC-
AUDIO OUT
AUDIO IN
GND
1.COM
1.NO 1.NCIN1 IN2 GND IN3 IN4
2.COM
2.NO
2.NC
IN5 IN6 GND IN7 IN8
D+ D- TX+ TX- GND
ETHERNET
Refer to Control Signal
Connection Diagram
Audio
IN
Video
Output
Audio
OUT
AC24V 2.5A
Power Input
Ground
Power Supply
Communications
Alarm Input
Alarm
output
Alarm
