Samsung SF-555P User manual

Trademarks
• SmarThru, MailBox, Image Manager, Scan Manager, Copy Manager, Image Viewer, AnyPage
are trademarks of Samsung Electronics.
• Acrobat Reader is a trademark of Adobe Systems Inc.
• Other names and trademarks mentioned in this guide are trademarks of their respective
holders.
About This User’s Guide
Your product is packaged with two or three User’s Guides:
• Your MFP User’s Guide(s), which provides you with all of the detailed
information you will need to install, and use the product as a printer, scanner,
copier, and fax (Available features vary depending on your MFP type.) This
Guide also provides information to maintain and troubleshoot your product.
• This User’s Guide, which provides the basic description on using the supplied
multifunctional application, Samsung SmarThru, which allows you to scan and
edit images, and send e-mail and fax on your computer. You will also find a brief
description on the automatic text recognition programme, AnyPage.

II
Samsung SmarThru
Introduction
–––––––––––––––––––––––––––––––––––––––––– 1.1
Programmes within Samsung SmarThru ––––––––––––––––– 1.2
Running Samsung SmarThru
–––––––––––––––––––––––––– 1.3

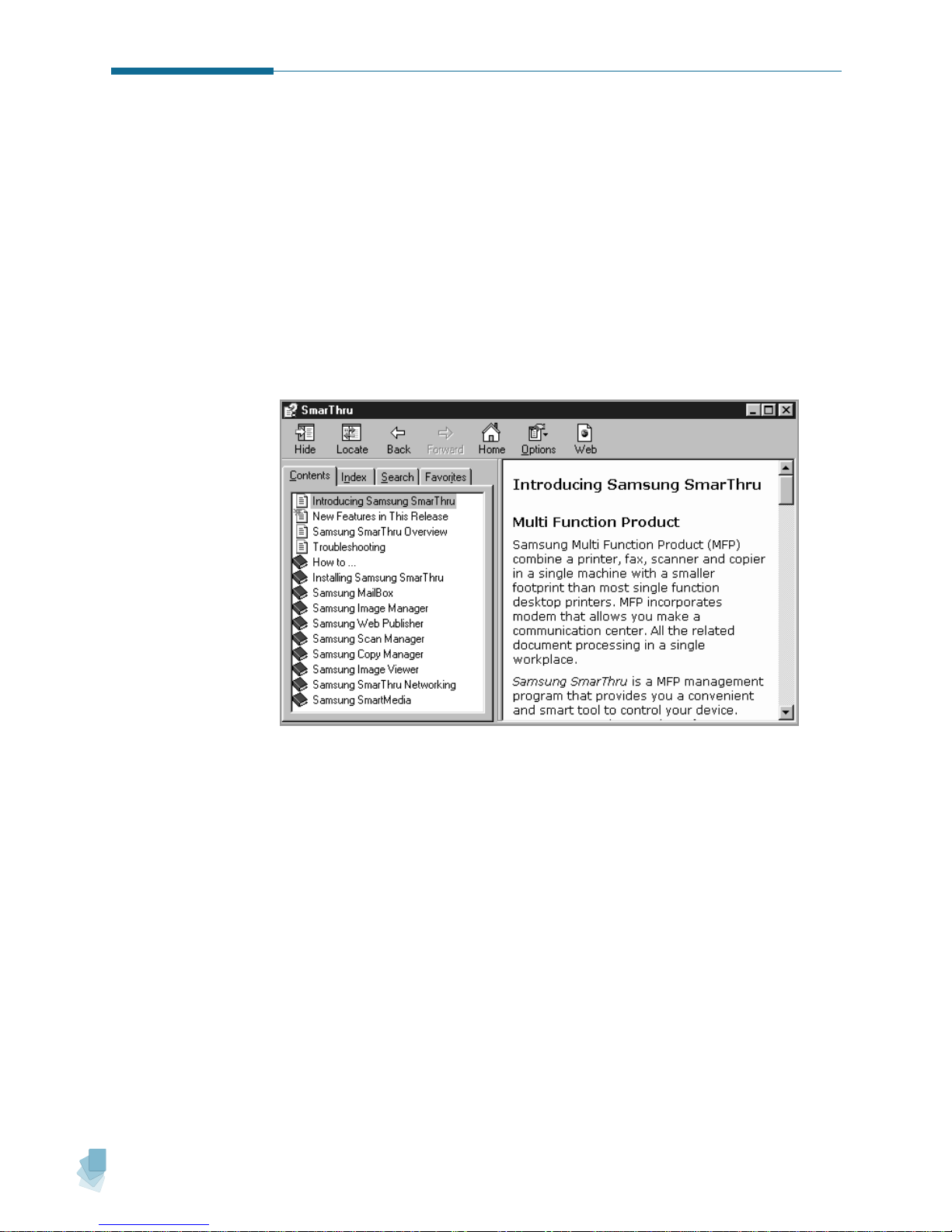

Getting Help
––––––––––––––––––––––––––––––––––––––––– 1.6
Contents
Getting Started
Scan Wizard
Overview
––––––––––––––––––––––––––––––––––––––––––––– 2.1
Scanning
Overview
––––––––––––––––––––––––––––––––––––––––––––– 2.3
Scanning with the Scan Manager
––––––––––––––––––––––––– 2.4
Features of the Scan Manager Window
–––––––––––––––––––– 2.7
Selecting Scan Options
––––––––––––––––––––––––––––––––– 2.8
Features of the Samsung TWAIN Window
–––––––––––––––––– 2.9
Copying
Copying a Document ––––––––––––––––––––––––––––––––– 2.10
Scanning to E-mail
Scanning a Document to E-mail ––––––––––––––––––––––– 2.14
Scanning to Fax
Scanning a Document to Fax
––––––––––––––––––––––––––– 2.17
Scanning to Web
Scanning Images for Publishing to the Web ––––––––––––– 2.23
Scanning to OCR
Scanning with Automatic Text Recognition
–––––––––––––––– 2.27
Configuring Automatic Text Recognition
–––––––––––––––––– 2.30
1
2
Scan Wizard

III
Scanning to SmartMedia
Samsung SmartMedia –––––––––––––––––––––––––––––––– 2.32
Scanning to SmartMedia
–––––––––––––––––––––––––––––– 2.32
Remote Scan Service
Remote Scan Service ––––––––––––––––––––––––––––––––– 2.34
Setting Up a Server Station
––––––––––––––––––––––––––– 2.35
Setting Up a Client Station
–––––––––––––––––––––––––––– 2.38
Working with Image Manager
Overview
––––––––––––––––––––––––––––––––––––––––––––– 3.1
Opening the Image Manager Window
––––––––––––––––––––– 3.2
Using Programs Bar in the Image Manager
–––––––––––––––– 3.4
Image Manager Toolbar Overview
–––––––––––––––––––––––– 3.6
Editing Images
–––––––––––––––––––––––––––––––––––––––– 3.8
Working with Images In Browse Mode
––––––––––––––––––– 3.14
Web Publisher
Overview
–––––––––––––––––––––––––––––––––––––––––––– 3.17
Creating a New Project
–––––––––––––––––––––––––––––––– 3.18
Samsung Web Publisher Window
–––––––––––––––––––––––– 3.18
Creating Upload Account
––––––––––––––––––––––––––––––– 3.19
Uploading a Project
––––––––––––––––––––––––––––––––––– 3.20
Image Viewer
Overview
–––––––––––––––––––––––––––––––––––––––––––– 3.21
Viewing Images with the Image Viewer
–––––––––––––––––– 3.21
Associating File Types with the Image Viewer
––––––––––––– 3.22
Image Manager
3

IV
Mailbox
Overview –––––––––––––––––––––––––––––––––––––––––––– 4.1
Activating the SmarThru E-Mail Service ––––––––––––––––– 4.3
Activating the SmarThru Fax Service ––––––––––––––––––– 4.6
Features of the Mailbox Window –––––––––––––––––––––––– 4.9
Working with E-mail Messages
New Message Window –––––––––––––––––––––––––––––––– 4.12
Creating and Sending E-mail Messages –––––––––––––––– 4.14
New Message Toolbars ––––––––––––––––––––––––––––––– 4.16
Using Message Template ––––––––––––––––––––––––––––– 4.17
Using HTML Stationery Template –––––––––––––––––––––– 4.18
Reading Incoming Message ––––––––––––––––––––––––––– 4.22
Browsing E-mail Messages –––––––––––––––––––––––––––– 4.23
Finding Messages –––––––––––––––––––––––––––––––––––– 4.25
Using Address Book
Overview ––––––––––––––––––––––––––––––––––––––––––– 4.26
Address Book Objects –––––––––––––––––––––––––––––––– 4.27
Opening the Address Book ––––––––––––––––––––––––––– 4.28
Adding Contact Information to Address Book ––––––––––– 4.30
Organising Address Book Items ––––––––––––––––––––––– 4.32
Working with Fax Messages
Overview ––––––––––––––––––––––––––––––––––––––––––– 4.33
Creating and Sending a Fax –––––––––––––––––––––––––– 4.34
Sending a Fax from a Windows Application ––––––––––––– 4.40
Browsing Fax Messages –––––––––––––––––––––––––––––– 4.41
Using Fax Cover Page Editor –––––––––––––––––––––––––– 4.42
Remote Fax Service (SmarThru networking only) ––––––– 4.43
Fax Log Viewer –––––––––––––––––––––––––––––––––––––– 4.49
Fax Queue Browser –––––––––––––––––––––––––––––––––– 4.50
Mailbox
4

V
Overview ––––––––––––––––––––––––––––––––––––––––––––– 5.1
Running AnyPage Lite
–––––––––––––––––––––––––––––––––– 5.2
How To Recognise a Text or Table
–––––––––––––––––––––––– 5.3
AnyPage Lite Window Overview
–––––––––––––––––––––––– 5.10
Using AnyPage Lite OCR Application
5
Troubleshooting ––––––––––––––––––––––––––––––––––––––– 6.1
Index
–––––––––––––––––––––––––––––––––––––––––––––––– 6.3
Appendix
6
Additional Mailbox Features
Viewing News on Internet News Servers ––––––––––––––– 4.51
Creating Message Digests –––––––––––––––––––––––––––– 4.54
Using Message Collections –––––––––––––––––––––––––––– 4.56
Using Conversation Threads –––––––––––––––––––––––––– 4.57
SmarThru Status Window –––––––––––––––––––––––––––– 4.57
Automatic Message Processing –––––––––––––––––––––––– 4.58
All SmarThru Data Backup –––––––––––––––––––––––––––– 4.60
SmarThru Configuration
Opening the SmarThru Configuration Dialogue Box ––––– 4.61

chapter
1
1
Getting Star
Getting Started ted
Samsung SmarThru is the accompanying software for
Samsung multi-function product (MFP). This chapter
introduces you to the Samsung SmarThru software. Topics
included in this chapter are:
Samsung SmarThru
◆ Introduction
◆ Programmes within Samsung SmarThru
◆ Running Samsung SmarThru
◆ Getting Help
Note
To use the Samsung SmarThru software, you must
install the SmarThru CD-ROM that was shipped with
your MFP. For information on installing the SmarThru
CD-ROM, refer to the Product User’s Guide.

1.1
Getting Started
Introduction
SmarThru is the accompanying software for Samsung multifunction
product (MFP). With the SmarThru, you can enjoy all the MFP
capabilities, such as printing, multi-page scanning, and copying. If you
activate the SmarThru e-mail or fax services, you can send or receive
e-mail or fax messages using your SmarThru system. The SmarThru
system gives you the ability to keep your e-mail and fax correspondence
in a single place, and to send the same messages via fax and over the
Internet at the same time.
With the SmarThru, scanning becomes a pleasure. You can save scanned
images in a dedicated storage area for subsequent editing, sending via
e-mail or fax, printing, and processing by other programmes of your
choice.
The SmarThru contains a powerful image editor that allows to alter
images: applying various visual effects, changing colours, adding
annotations, etc.
AnyPage OCR software (included in the package) gives you the ability to
convert scanned images into text documents, suitable for editing with
your favorite text editor. Using AnyPage OCR, you can automatically
recognise all incoming fax messages.
Samsung SmarThru

1.2
Getting Started
Programmes within Samsung SmarThru
Here you can find a quick reference to SmarThru software. The main
SmarThru programme integrates three components: Image Manager,
Scan Wizard, and Mailbox if activated.
Image Manager
Image Manager is intended for storing and editing images.
Scan Wizard
Scan Wizard is intended for the quick launch of several scanning
procedures.
Scan Manager
It scans documents to the Image Manager’s database.
Copy Manger
It copies documents by scanning and subsequent printing.
AnyPage
AnyPage is an optical character recognition(OCR) programme. Using the
AnyPage you can convert scanned document to a text file, which can be
edited afterwards.
Mailbox
(available only when you activate the SmarThru message system.)
Mailbox is intended for storing fax and e-mail messages sent and received
using the SmarThru system.
New Message (available only when you activate the SmarThru message system.)
This programme is intended for creating, editing, and sending e-mail
and/or fax messages, and for reading incoming messages.
Fax Manager (available only when activate the SmarThru fax service.)
This is a wizard for creating and sending fax messages.
Fax Cover Page Editor (available only when activate the SmarThru fax service.)
The editor is intended for creating and editing fax cover pages (the very
first page of a fax). Cover pages contain information specific to a
particular message, such as recipient’s name, phone number, subject, etc.
SmarThru Engine
SmarThru engine is the core of SmarThru message system. It must be
running to send and receive fax and e-mail messages.

1.3
Getting Started
Running Samsung SmarThru
Image Manager, Scan Wizard, and Mailbox if activated, are integrated in
the Samsung SmarThru 3 window.
To open the Image Manager, the Scan Wizard, or the Mailbox, run the
SmarThru 3 in the following ways:
• From the desktop window,
double-click the SmarThru 3
icon.
• From the Start menu, click Programs, select Samsung SmarThru
and then SmarThru 3.
The Samsung SmarThru 3 window opens.
Double click.
Toolbar
Plugin Bar
Image Manager
Scan Wizard
Status Bar

1.4
The Image Manager window appears as shown below. For further
information on the Image Manager, see chapter 3 “Image Manager.”
Getting Started
SmarThru mail
engine icon
To open the Scan Wizard:
Select one of the following:
• In the Samsung SmarThru 3 window, click the Scan Wizard icon in
the plugin bar on the left of the SmarThru window.
• In the Samsung SmarThru 3 window, click the View menu, click
Switch to and then select Scan Wizard.
• From the Start menu, click Programs, select Samsung SmarThru
and then Scan Wizard.
See the previous page to view the Scan Wizard window. For further
information on the Scan Wizard, see chapter 2 “Scan Wizard”.
To open the Image Manager:
Select one of the following:
• In the Samsung SmarThru 3 window, click the Image Manager icon
in the plugin bar on the left of the SmarThru window.
• In the Samsung SmarThru 3 window, click the View menu, click
Switch to and then select Image Manager.
• From the taskbar at the bottom right corner of the desktop window,
right-click on the SmarThru mail engine icon and select Image
Manager from the pop-up menu.
Click it to open the
Image Manager.

1.5
Getting Started
If you want to use the SmarThru e-mail or fax message system, you
have to enable the services and configure the Internet or Fax gate. See
page 4.3. After you activate the service(s), you can see the Mailbox in
the SmarThru 3 window.
To open the Mailbox:
Select one of the following:
• In the Samsung SmarThru 3 window, click the Mailbox icon in the
plugin bar on the left of the SmarThru window.
• In the Samsung SmarThru 3 window, click the View menu, click
Switch to and then select Mailbox. The Mailbox window appears as
shown below. For further information on the Mailbox, see “Mailbox” on
page 4.1.
Click it to open
the Mailbox.

1.6 Getting Started
Getting Help
Samsung SmarThru contains a detailed on-line help document. If you
encounter problems while using the SmarThru, please consult the on-line
help. SmarThru Help is accessible on every SmarThru programme
window and dialogue box.
Click Help on the menu bar of the programme windows and the dialogue
boxes.
When you access the SmarThru Help, you can further select Contents
view, Index view or Search view to find the desired item quickly.

chapter
2
2
Scan Wizard is an easy-to-use and convenient tool to
manage your scan work. This chapter provides
information on the following topics:
Scan Wizard
◆ Overview
Scanning
◆ Overview
◆ Scanning with the Scan Manager
◆ Features of the Scan Manager Window
◆ Selecting Scan Options
◆ Features of the Samsung TWAIN Window
Copying
◆ Copying a Document
Scanning to E-mail
◆ Scanning a Document to E-mail
Scanning to Fax
◆ Scanning a Document to Fax
Scanning to Web
◆ Scanning Image for Publishing to the Web
Scanning to OCR
◆ Scanning with Automatic Text Recognition
◆ Configuring Automatic Text Recognition
Scanning to SmartMedia
◆ Samsung SmartMedia
◆ Scanning to SmartMedia
Remote Scan Service
◆ Remote Scan Service
◆ Setting Up a Server Station
◆ Setting Up a Client Station
Scan
Scan Wizar Wizard d

2.1
Scan Wizard
Scan Wizard
Overview
Samsung Scan Wizard is an easy-to-use and convenient tool to manage
your work.
To launch the Scan Wizard, run the SmarThru 3 by double-clicking the
SmarThru 3 icon in the desktop window and then click the Scan Wizard
icon in the plugin bar on the left pane of the SmarThru 3 window. For
further details, see page 1.4.
Appears only if your MFP
supports SmartMedia.
Appears only if you activate
the SmarThru fax services.
Plugin Bar
Appears only if you
activate the SmarThru
e-mail or fax services.

2.2 Scan Wizard
Notes:
• The Scan to OCR service and the OCR Options menu are available only if
you have the OCR programme installed.
• The Scan to SmartMedia service is available only if your MFP supports
Samsung SmartMedia devices.
• The Scan to FAX service is available only if you activated the SmarThru
fax service.
Additionally the Options menu of the Scan Wizard window provides
access to the following items:
Scan Manager which lets you scan documents and images
quickly and easily.
Copy Manager which lets you use your MFP as a copier device.
Scan Manager which lets you scan documents and then
launches the mail program currently configured in your PC to
send just scanned documents via e-mail. If you activate the
SmarThru e-mail service, the SmarThru mail system launches.
Scan Manager which lets you scan documents and then
launches the SmarThru fax system which helps you send
electronic faxes.
Scan Manager which lets you scan images for further publishing
to the Web.
If the scanned document should be passed to the OCR
programme for text recognition, click Scan to OCR.
Allows you to scan an image and save it into a Samsung
SmartMedia device.
Samsung Scan Wizard contains the following services:
Opens the SmarThru Configuration
window and shows the Scan Options
dialogue which allows you to select
scan source, etc.
Invokes the Automatic Recognition
Configuration dialogue box that lets you
change the text recognition parameter.

2.3
Scan Wizard
Overview
Scanning is the process of converting an image into computer-usable
information by digitising the image. Scanners and digital cameras are
devices that have the technology to transfer an external image to digital
information, that can be saved as a file, printed, faxed, or otherwise
manipulated on your computer.
To scan a document, insert the document into MFP, and run the Scan
Manager module. You can do it either from the Scan Wizard programme,
or from the Image Manager. In the Scan Wizard, click the Scan button.
In the Image Manager, select Scan... from the File menu. In both cases,
scanned images will be stored in the Image Manager database.
The type of documents you can scan include photos, drawings, magazine
pages, newspaper articles, and any type of single page image.
Scanning
Note: Colour scan function may be unavailable depending on the type of your product.

2.4 Scan Wizard
4. Choose the scan settings and then click Scan. For more information
on the scan settings, refer to “Features of the Scan Manager Window”
on page 2.7.
Choose appropriate scan settings.
Scanning with the Scan Manager
The Scan Manager can convert a photo or paper document into a digital
image. To scan a document with the Scan Manager, use the following
steps:
1. Load a document(s) you want to scan into your MFP.
2. Run the SmarThru 3 and open the Scan Wizard. See page 1.4.
3. Select Scan in the Scan Wizard window.
Click.
Note: If the system
is short of memory,
high resolution
scanning may not
be achieved. Lower
the resolution and
try again.

2.5
Scan Wizard
5. A progress bar informs you of the scan progress. When the scan is
completed, the scanned image is briefly displayed in the preview area.
Preview area
6. The Scan Manger window closes automatically and the Image Manager
is automatically launched.
The scanned image is saved in the Incoming folder of the Image
Manager with a system-assigned name.
For information on working with the images in this browse mode, see
page 3.14.

2.6 Scan Wizard
7. To open the image for editing, double-click on the image, or click
on the toolbar. The opened image will replace the contents of the
current folder.
For information on editing images with the Image Manager, refer to
“Working with Image Manager” on page 3.1.
