Samsung Galaxy Tab GT-P7500 User manual

7. Level 2Repair
7-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Be careful not to scratch cover. Follow the numbered sequence when you disjoint
Be careful not to damage the FPCBs Be careful not to damage the FPCBs
7-1. Disassembly and assembly Instructions
7-1-1. Disassembly
Carefully release the screws
at 2different locations
(Torque 1.1 ± 0.1 kgf.cm) (Size:1.4*2.0)
1Disengage the rear cover with the front
cover by using the hook
2
3Separate the 30 PIN I/F connector, TSP
connector, LCD connector from the PBA.
4
1
2
3
4
30 PIN I/F TSP LCD
◆blue:L2.5
Release the screw at 2points (Size:)(Torque:
1.1±0.1 kgf.cm)

7. Level 2Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
7-2
Be careful not to damage the FPCBs Be careful not to scratch cover
Be careful not to damage the wires Be careful not to damage the FPCBs
Open the black thin bar and Separate the
LCD FPCB from the Front.

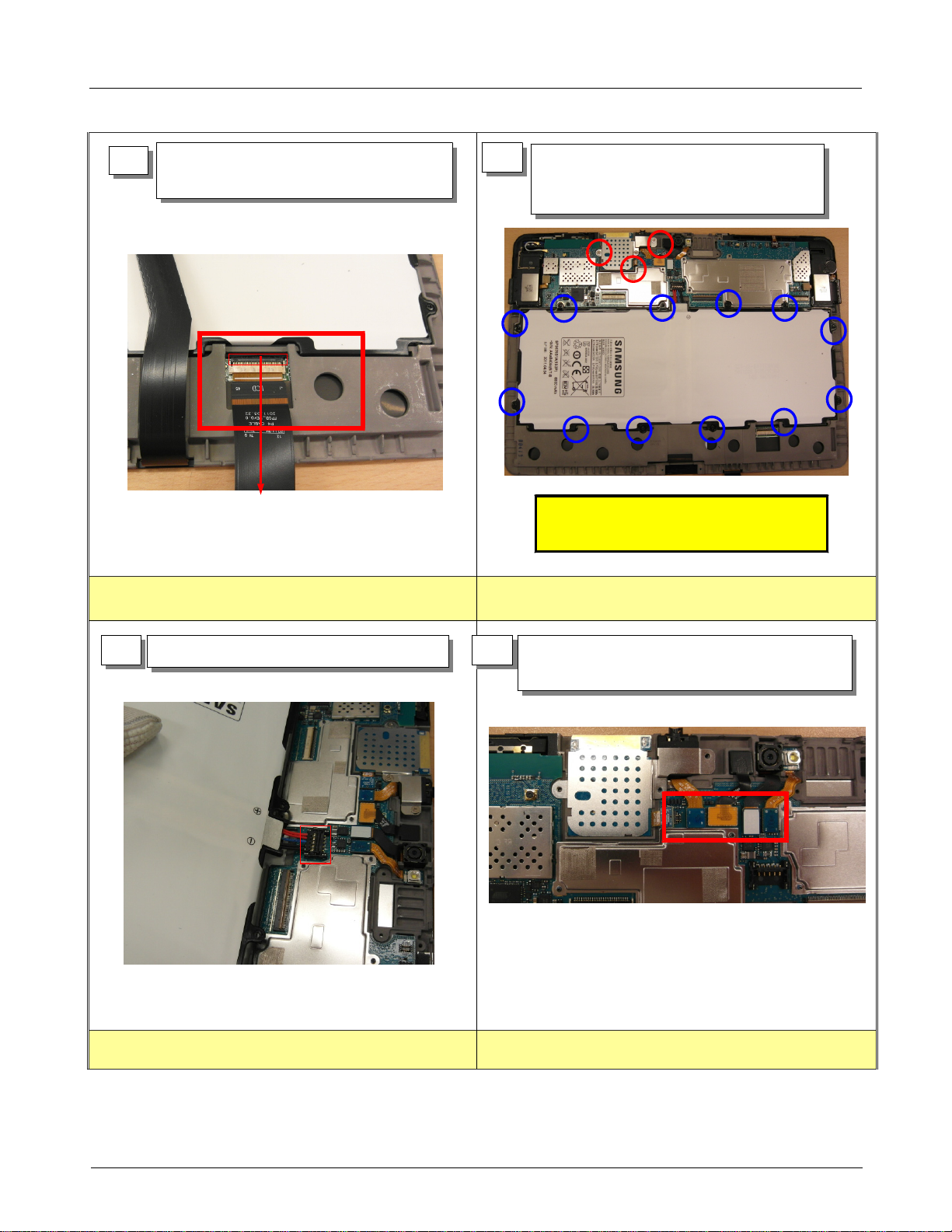

5Carefully release the screws at 13 different
locations from the Front.
(Torque 1.1 ± 0.1 kgf.cm)
6
Separate the Battery from PBA
7Separate all connector(E/J, 2M, 3M Camera,
Sensor) ribbons from the PBA.
8
◆blue:L2.5 (10Point)
◆red:L2 (3Point)

7. Level 2Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
7-3
Be careful not to damage the FPCBs Be careful not to scratch cover
Separate the SPK Module, GPS CABLE,
SIDE KEY from the PBA
9Separate the PBA from Ass'y
10
뷖뷟뷢뷓뷛뷔
뷢뷟뷚뷜뷽뷲븂뷺뷳붻뷺뷳뷴븁붼 뷢뷟뷚뷜뷽뷲븂뷺뷳붻븀뷷뷵뷶븁붼
뷢뷘뷔뷚뷔뷧

7. Level 2Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
7-4
Be careful not to scratch cover Be careful not to damage the FPCBs
Be careful not to damage the FPCBs Be careful not to damage the wires
7-1-2. assemble
Insert the PBA in the hook
1Attach the SPK Module, GPS CABLE,
SIDE KEY
2
Attach the E/J, 2M, 3M Camera, Sensor.
3Attach the battery
4
뷖뷟뷢뷓뷛뷔
뷢뷟뷚뷜뷽뷲븂뷺뷳붻뷺뷳뷴븁붼 뷢뷟뷚뷜뷽뷲븂뷺뷳붻븀뷷뷵뷶븁붼
뷢뷘뷔뷚뷔뷧

7. Level 2Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
7-5
Be careful not to scratch cover
screw:1.4*2.0, 1.4*2.5 (Torque 1.1 ± 0.1, '+' type) Be careful not to damage the FPCBs
Be careful not to damage the FPCBs Be careful not to damage the FPCBs
screws at 13 points
6
◆blue:L2.5 (10Point)
◆red:L2 (3Point)
Put the LCD FPCB and Close the black
thin bar
5
7
◆blue:L2.5
screws at 2Points 8Insert the 30 PIN I/F, TSP, LCD Connector
and Close the black thin bar
30 PIN I/F TSP LCD

7. Level 2Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
7-6
Follow the order (Torque 1.1 ± 0.1, '+' type)(Size: 1.4*2.0)
Be careful not to scratch rear cover
Joint the Rear and the Front.
9
1
Screws at 2points
Attach screw sheet
10
23

8. Level 3Repair
8-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
8-1. Block Diagram

Level 3Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
8-2

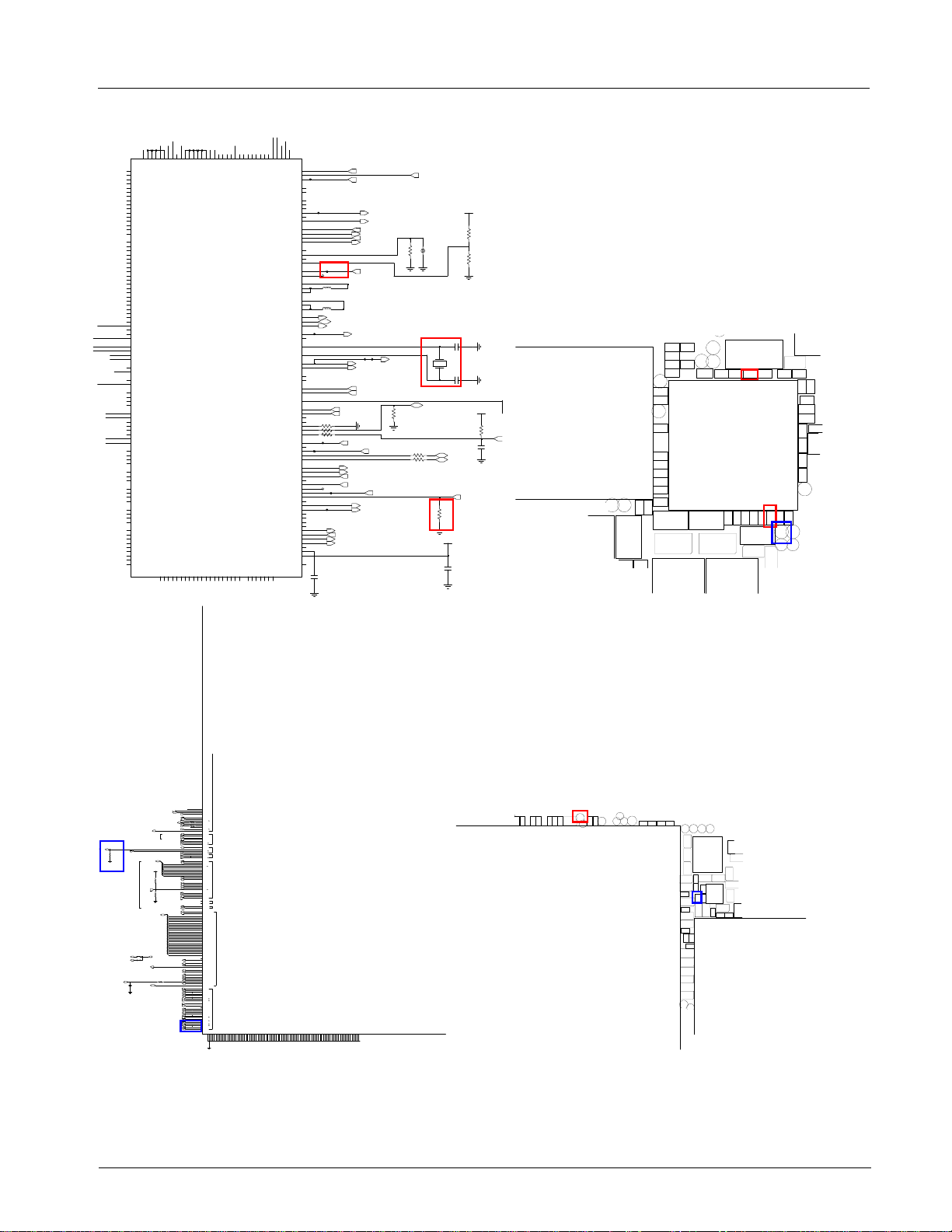

8-2. PCB Diagrams
8-2-1. Top

Level 3Repair
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
8-3
8-2-2. Bottom
ANT104
BH100BH101BH102
BH103
BH104
BH105
BH106
BH107
BH108
BH109
BTC700
