Samsung POWERbot SR2AJ90 Series User manual

SR2AJ90U Series
SR2AJ90W Series
POWERbot
user manual
imagine the possibilities
Thank you for purchasing a Samsung product.
English
Before operating this unit, please read the instructions carefully.
For indoor use only.
SR2AJ90@@U_EN_00740B-01_USA.indd 1 2016-02-04 오전 10:20:38

ENGLISH-02
Contents 03 Safety information
10 Installation
Accessories
12 Charging
Automatic charging / Recharging / Low
battery
14 Using POWERbot
Selecting cleaning modes / Using Energy-
saving mode
17 Using the remote control
19 Name of each part
Top / Bottom / Display panel
21 Cleaning and maintaining
Cleaning the dustbin / Cleaning the sensors and
the camera / Cleaning the Pet brush / Cleaning
the Driving wheel
23 Setting time/schedule
Setting the time / Setting the schedule
24 Samsung Smart Home App
Preparing the network / Using the Samsung
Smart Home app
32 Notes and cautions
Charging / In use / Cleaning and maintenance /
About battery
34 Information codes
36 Troubleshooting
38 Open Source Announcement
39 Specifications
SR2AJ90@@U_EN_00740B-01_USA.indd 2 2016-02-04 오전 10:20:38

ENGLISH-03
Safety information
SAFETY INFORMATION
WARNING
• Before operating the appliance, please read this manual thoroughly and retain it
for your reference.
WARNING
• Because these following operating instructions cover various models, the
characteristics of your vacuum cleaner may differ slightly from those described in
this manual.
CAUTION/WARNING SYMBOLS USED
WARNING
Indicates that a danger of death or serious injury exists.
CAUTION
Indicates that a risk of personal injury or material damage exists.
OTHER SYMBOLS USED
NOTE
Indicates that a risk of personal injury or material damage exists.
This Smart Robot vacuum supports from Samsung Smart Home.
More detailed information, please visit Samsung.com/Smarthome.
State of California Proposition 65 Warning (US only)
WARNING
This product contains chemicals known to the State of California to cause
cancer and reproductive toxicity.
L i - i o n
For battery recycling go to call2recycle.org;
or call 1-800-822-8837
SR2AJ90@@U_EN_00740B-01_USA.indd 3 2016-02-04 오전 10:20:38

ENGLISH-04
Safety information
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should be observed, including the
following:
READ ALL INSTRUCTIONS BEFORE USING YOUR POWERbot.
Unplug from outlet when not in use and before conducting maintenance.
WARNING: to reduce the risk of fire, electric shock, or injury:
GENERAL
•Use only as described in this manual.
•Do not operate POWERbot or the adapter / docking station if it has been damaged in
any way.
•If the vacuum cleaner is not working as it should, has been dropped, damaged, left
outdoors, or dropped in water, return it to a customer care center.
•Do not handle the adapter / docking station or POWERbot with wet hands.
•Use only on dry, indoor surfaces.
•This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
•Children shall not play with the appliance. Cleaning and user maintenance shall not be
made by children without supervision.
Adapter / Docking station
•Do not modify the polarized plug to fit a non-polarized outlet or extension cord.
•Do not use outdoors or on wet surfaces.
•Unplug the adapter / docking station from the outlet when not in use and before
servicing.
•Use only the adapter / docking station supplied by the manufacturer to recharge.
•Do not use with a damaged cord or plug or a loose power outlet.
•Do not pull or carry by the cord, use the cord as a handle, close the door on the cord,
or pull the cord around sharp edges or corners. Keep the cord away from heated
surfaces.
•Do not use extension cords or outlets with inadequate current carrying capacity.
•Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.
•Do not mutilate or incinerate batteries as they will explode at high temperatures.
•Do not attempt to open the adapter / docking station. Repairs should only be carried
out by a qualified customer care center.
SR2AJ90@@U_EN_00740B-01_USA.indd 4 2016-02-04 오전 10:20:38

ENGLISH-05
•Do not expose the adapter / docking station to high temperatures or allow moisture or
humidity of any kind to come into contact with the adapter / docking station.
POWERbot
•Do not pick up hard or sharp objects such as glass, nails, screws, coins, and etc.
•Do not use without a filter in place. When servicing the unit, never put fingers or other
objects into the fan chamber in case the unit accidentally turns on.
•Do not put any objects into openings. Do not use with any openings blocked; keep
openings free of dust, lint, hair, and anything that may reduce air flow.
•Do not pick up toxic materials (chlorine bleach, ammonia, drain cleaner, etc.).
•Do not pick up anything that is burning or smoke, such as cigarettes, matches, or hot
ashes.
•Do not use to pick up flammable or combustible liquids such as gasoline, nor use on
areas where they may be present.
•Locations with candles or desk lamps on the floor.
•Locations with unattended fires (fire or embers).
•Locations with distilled alcohol, thinner, ashtrays with burning cigarettes, etc.
•Do not use POWERbot in an enclosed space filled with vapours given off by oil based
paint, paint thinner, moth proofing substances, flammable dust, or other explosive or
toxic vapours.
•Leaks from battery cells can occur under extreme usage or temperature conditions.
If the liquid gets on skin, wash quickly with water. If the liquid gets into the eyes,
flush them immediately with clean water for a minimum of 10 minutes. Seek medical
attention.
SAVE THESE INSTRUCTIONS
POLARIZED PLUG INSTRUCTIONS
•To reduce the risk of electric shock, this appliance has a polarized plug (one blade is
wider than the other). This plug will fit in a polarized outlet only one way. If the plug
does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified
electrician to install a proper outlet. Do not modify the plug in any way.
SR2AJ90@@U_EN_00740B-01_USA.indd 5 2016-02-04 오전 10:20:38

ENGLISH-06
Safety information
REGULATORY NOTICE
1. FCC Notice
CAUTION
FCC CAUTION:
•Any changes or modifi cations not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
•This device complies with Part 15 of FCC Rules. Operation is Subject to following two
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received including interference that
cause undesired operation.
•For product available in the USA/Canada market, only channel 1 ~ 11 can be operated.
Selection of other channels is not possible.
FCC STATEMENT:
•This equipment has been tested and found to comply within the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
•This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following
measures:
– Reorient or relocate the receiving antenna
– Increase the separation between the equipment and receiver
– Connect the equipment into an outlet on a diff erent circuit from that to which the
receiver is connected
– Consult the dealer or an experienced radio/TV technician for help.
FCC RADIATION EXPOSURE STATEMENT:
•This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance
of 20cm between the radiator and your body. This device and its antenna(s) must not
be co-located or operation in conjunction with any other antenna or transmitter.
SR2AJ90@@U_EN_00740B-01_USA.indd 6 2016-02-04 오전 10:20:38

ENGLISH-07
2. IC Notice
•The term “IC” before the radio certifi cation number only signifi es that Industry Canada
technical specifi cations were met. Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
•This Class B digital apparatus complies with Canadian ICES-003.
•Cet appareil numérique de la classe B est conforme á la norme NMB-003 du Canada.
•For product available in the USA/Canada market, only channel 1 ~ 11 can be operated.
Selection of other channels is not possible.
IC RADIATION EXPOSURE STATEMENT:
•This equipment complies with IC RSS-102 radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body. This device and its
antenna(s) must not be co-located or operation in conjunction with any other antenna or
transmitter.
Open Source License Notice
•This device uses open source software. Open Source Licenses are available on the
product menu.
•Tap “Settings > Network > Software Update > Legal Information” on the device for more
details.
SR2AJ90@@U_EN_00740B-01_USA.indd 7 2016-02-04 오전 10:20:38

ENGLISH-08
WARNING Power related
fPlease prevent any risk of electric shock or
fire.
– Do not damage the power cord.
– Do not pull the power cord too hard or touch
the power plug with wet hands.
– Do not use a power source other than 100-
240 V~ and also do not use a multi outlet to
supply power to number of devices at the same
time. (Do not leave the cord carelessly on the
floor.)
– Do not use a damaged power plug, power cord
or loose power outlet.
fClean dust or any foreign matters on the pin
and contact part of the power plug.
– There is a risk of electric shock or malfunction.
WARNING Before use
fDo not use POWERbot near combustible
materials.
– Place near candle, desktop lamps, fireplace or
near combustible materials such as gasoline,
alcohol, thinners etc.
fThe POWERbot is intended for household
use therefore do not use it in an attic,
basement, storage, industrial building, out of
indoor space, places with moisture (such as
bathroom, laundry), on the table or shelves.
– The POWERbot can be damaged or
malfunction.
fBe sure POWERbot does not pass through or
touch any kind of liquids.
– The POWERbot can be severely damaged and
it may contaminate other areas if the wheels
pass through liquid.
fDo not spill any liquids on the docking station.
– There is a risk of fire or electric shock.
fDo not use the docking station for anything
other than its intended purpose.
– There is a risk of fire or severe damage to the
docking station.
fAlways keep the cliff sensor clean for your
safety.
WARNING In use
fIf any abnormal sounds, smells or smoke
come from POWERbot, immediately shut
off the emergency switch at the bottom of
POWERbot and contact a service center.
WARNING Cleaning and
maintenance
fWhen power cord is damaged, contact a
service center to get it replaced by certified
repairman.
– There is a risk of fire or electric shock.
fPlease check with a Samsung Electronics
service center when exchanging batteries.
– Using batteries from other products can cause
malfunction.
Safety information
SR2AJ90@@U_EN_00740B-01_USA.indd 8 2016-02-04 오전 10:20:39

ENGLISH-09
CAUTION Before use
fInsert the dustbin before using POWERbot.
fBe careful with the followings for proper
automatic recharging.
– Always turn on the power of the docking
station.
– Install the docking station where POWERbot
can easily find.
– Do not leave any object in front of the docking
station.
fWhen installing the docking station, do not
leave the cord carelessly on the floor since
POWERbot may get tangled by it.
fDo not use POWERbot on black colored
floors.
– The POWERbot may not be able to operate
normally.
fDo not pick up POWERbot by the dustbin
holder.
fDo not place any objects within 0.5 m to both
sides and 1 m to the front of the docking
station.
fMake sure the docking station's charging
contact is not damaged or have any foreign
matters on it.
fDo not install the docking station in an area
with a dark floor.
– If the floor around the docking station is dark,
recharging is hindered.
fMove any obstacles that may disturb
POWERbot's movement (such as children's
indoor swing or slides) before cleaning.
CAUTION In use
fUsing POWERbot on thick carpet may
damage both POWERbot and the carpet.
– The POWERbot cannot pass over carpet that is
thicker than 1 cm.
fDo not use POWERbot on tables or other
high surfaces.
– There is a risk of damage if it falls.
fThe POWERbot may bump into chair, desk
legs therefore move them away for faster and
efficient cleaning.
fWhen POWERbot is operating, do not lift it up
or carry it to another area.
fDo not hold by driving wheels of POWERbot
when carrying it to another area.
fDo not put any objects on top of POWERbot
since it may cause malfunction.
fRemove any large papers or plastic bags
immediately when using POWERbot since
they may block the intake.
fDo not aim the red pointer directly at people
or animals.
CAUTION Cleaning and
maintenance
fPrevent any damage to POWERbot by
complying the followings.
– Do not clean POWERbot by spraying water
directly onto it or use benzene, thinner, acetone
or alcohol to clean it.
fDo not disassemble or repair POWERbot.
This should only be done by a certified
repairman.
fAlways keep the obstacle sensor and cliff
sensor clean.
– If foreign matter accumulates, sensors may
malfunction.
SR2AJ90@@U_EN_00740B-01_USA.indd 9 2016-02-04 오전 10:20:39

ENGLISH-10
Installation
The docking station must be plugged in and turned on at all times.
1Connect the
adapter jack
to the docking
station
2Connect the
power cord to
the adapter
When using the adapter,
the side with the sticker
attached must face down.
3Connect the
power plug to
the outlet
The power indicator lamp
(Red) will turn on.
DC-IN
DC-IN
Power lamp (Red)
About 1 m
About 0.5 m
About 0.5 m
Install the docking station in a place
without obstacles and danger of
falling.
SR2AJ90@@U_EN_00740B-01_USA.indd 10 2016-02-04 오전 10:20:39

ENGLISH-11
Accessories
Remote control Batteries (AAA type) User manual Spare filter (Option)
Cleaning brush Power cord Adapter
Note
fInstall the docking station in a place where the floor and wall are level.
fIt is best to install the docking station along the grain of wooden floors.
fIf the emergency switch is off, the POWERbot will not charge even if it is docked on the docking
station.
fAlways turn on the power of the docking station.
– If power is not supplied to the docking station, the POWERbot cannot find it and cannot automatically
recharge.
– If the POWERbot is left detached from the docking station, the battery will drain naturally.
fIf the POWERbot is in sleep mode, power will not come on even if the emergency switch is turned
off and then on. Press and hold the [Start/Stop] button on the POWERbot to turn off the sleep
mode.
SR2AJ90@@U_EN_00740B-01_USA.indd 11 2016-02-04 오전 10:20:40

ENGLISH-12
Charging light turns green during charging.
It takes approximately 160 minutes to
completely charge the POWERbot when
charging it for the first time after purchase.
Once charged, the POWERbot can be used
for approximately 60 minutes.
Charging
1Turn on the
emergency
switch on the
bottom
You must turn on the
emergency switch to turn on
the POWERbot.
2Manually charge
the POWERbot by
placing it on the
docking station
Make sure the charging pins
on the POWERbot and the
docking station are aligned.
3Check the charging
status
For SR2AJ90U Series,
“ ”appears in
the sequence to show charging
progress. All the icons appear when
charging is complete.
For SR2AJ90W Series,
" " will turn on according to
charging progress and "FULL" will
turn on when charging is complete.
WARNING
• Rated input voltage of this product
is 100-240 V~.
<SR2AJ90U Series>
<SR2AJ90W Series>
SR2AJ90@@U_EN_00740B-01_USA.indd 12 2016-02-04 오전 10:20:40

ENGLISH-13
When the battery indicator blinks
during cleaning, the POWERbot
will return to the docking station to
charge itself automatically.
Automatic charging
Manually charge the POWERbot by
placing it on the docking station.
Low battery
Steps to take if recharging not occuring:
Check the installation status of the
docking station when:
fthe docking station is located in a place where the
POWERbot cannot easily access it.
fthe distance between the docking station and
POWERbot is over 16.5 ft (5 m).
– It may take a long time for POWERbot to
return to the docking station for recharging
Manually charge the POWERbot when:
fthe docking station is located in a corner
fthe battery is fully exhausted
fthe POWERbot is immobilized by an obstacle
(furniture etc.)
fthe POWERbot can't climb a threshold near the
docking station (The maximum height of a threshold
the POWERbot can climb is about 0.6 inches
(1.5 cm).)
fthe battery indicator blinks
fthe POWERbot is set to the Spot clean or Manual
clean mode
You can command the POWERbot
to recharge at the docking station
while it is in cleaning.
Recharging
<SR2AJ90U
Series>
<SR2AJ90W
Series>
SR2AJ90@@U_EN_00740B-01_USA.indd 13 2016-02-04 오전 10:20:40

ENGLISH-14
Using POWERbot
You must turn on the emergency switch on the bottom of the unit before using POWERbot.
Turning the power on/off
Press the button for more than
3 seconds
Starting Auto clean mode
Press and release this button. Cleans space
dividing until the battery is depleted .
 Stop cleaning: Press and release the button
Recharging
fRecharging
You can command POWERbot to recharge at the
docking station automatically while it is cleaning
by pressing this button.
<SR2AJ90U Series> <SR2AJ90W Series>
Starting Spot clean mode
Press and release this button. The POWERbot
cleans a localized area intensely.
<SR2AJ90U Series> <SR2AJ90W Series>
WARNING
• When POWERbot is not used for
60 minutes, power will turn off
automatically.
SR2AJ90@@U_EN_00740B-01_USA.indd 14 2016-02-04 오전 10:20:41

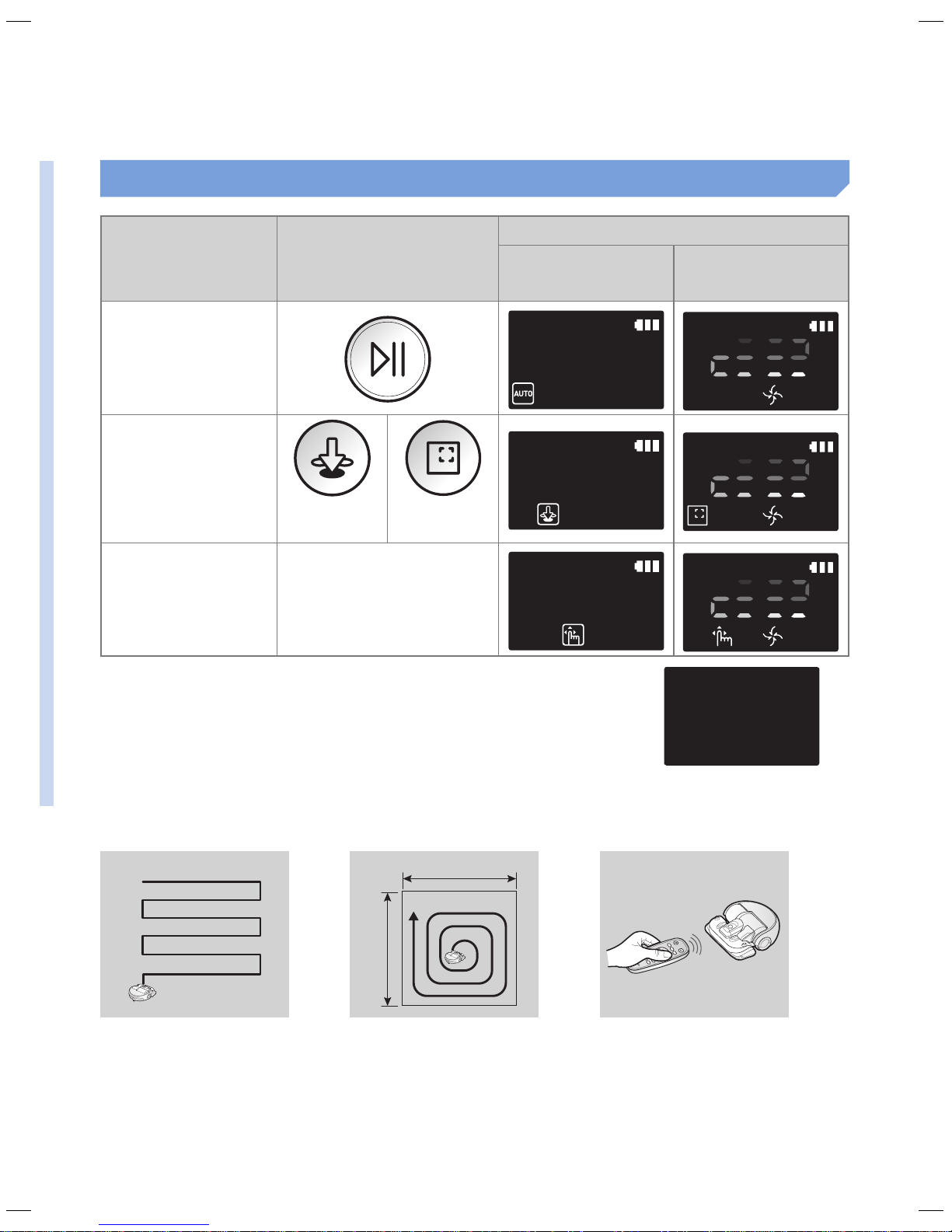

ENGLISH-15
Cleaning mode How to select
Displayed icon
SR2AJ90U
Series
SR2AJ90W
Series
Auto clean
Spot clean
<SR2AJ90U
Series>
<SR2AJ90W
Series>
Manual clean
 The movement and
direction of the POWERbot
is controlled by the remote
control.
 When the POWERbot is being charged, you can select the Auto clean mode
only.
 If the POWERbot fails to return to the charger, it will be turned into the sleep
mode. Then the display panel of the main body will be turned off. Press [Start/
Stop] or [Power] button to cancel the sleep mode.
 Charging and cleaning times may differ according to conditions of use. <Displayed icons in the sleep
mode>
Cleaning method for each modes
About 59 inches (1.5 m)
About 59 inches (1.5 m)
Auto clean
Cleans space dividing until the
battery is depleted .
Spot clean
Cleans a localized area intensely.
It can be used to clean bread or
cookie crumbs.
Manual clean
You can control the POWERbot
with the remote control and direct it
to clean a desired spot.
Selecting cleaning modes
SR2AJ90@@U_EN_00740B-01_USA.indd 15 2016-02-04 오전 10:20:42

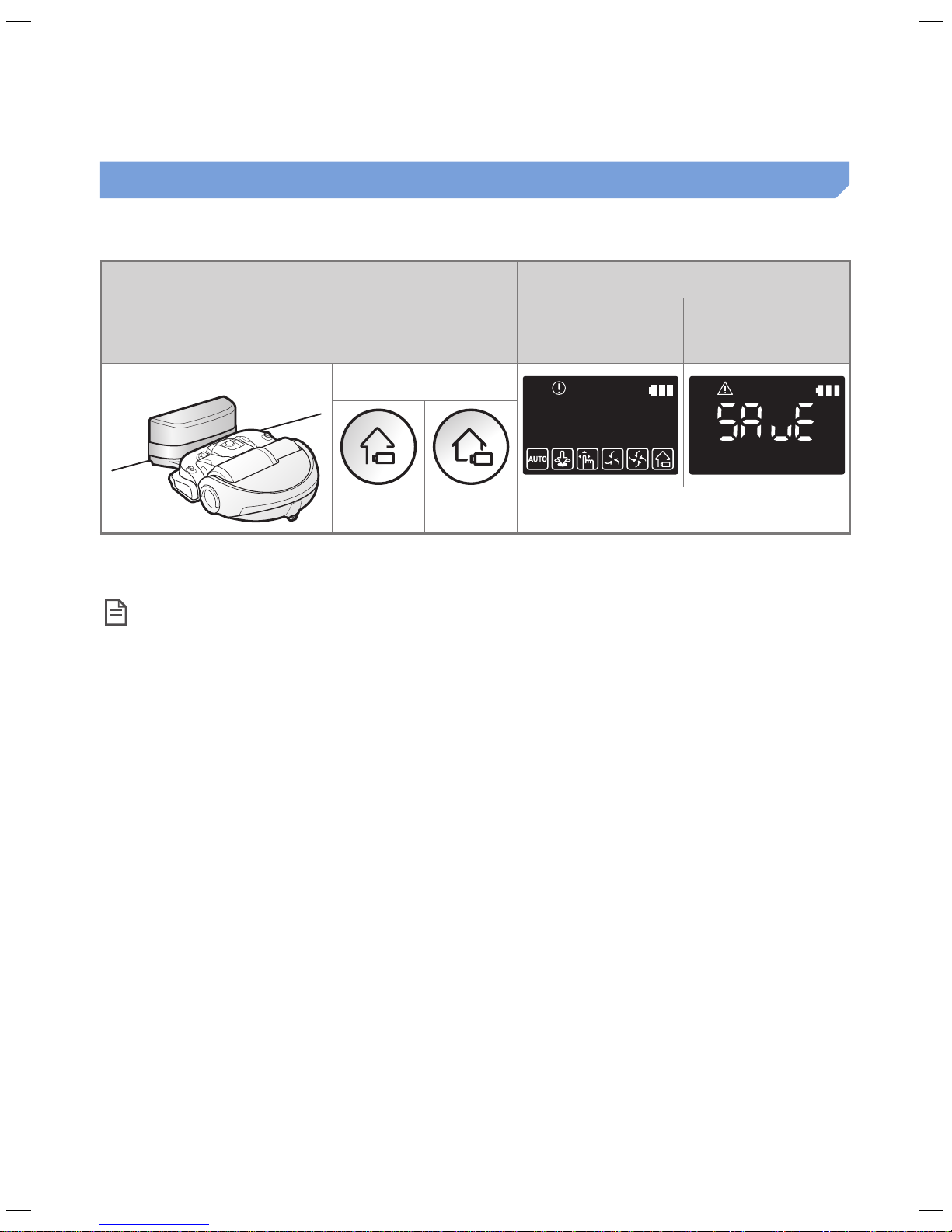

ENGLISH-16
Using POWERbot
Using Energy-saving mode
You may select the Energy-saving mode when you go out for a long time or want to save energy.
You can select or cancel the Energy-saving mode only while the POWERbot is docked on the docking station.
How to select or cancel
Displayed icon
SR2AJ90U
Series
SR2AJ90W
Series
Press for 5 sec.
<SR2AJ90U
Series>
<SR2AJ90W
Series>
 About 3 seconds later, the previous
indicator will appear.
 When the POWERbot is in the Energy-saving mode, the green lamp of the docking station will blink.
Note
fIf you select the Auto/Manual clean mode, the Energy-saving mode will be cancelled.
fIf the power of the docking station is off, the Energy-saving mode will be cancelled.
SR2AJ90@@U_EN_00740B-01_USA.indd 16 2016-02-04 오전 10:20:42

ENGLISH-17
Using the remote control
1 Power/Recharging
[A Type] [B Type]
Power Turn POWERbot's power on/off
Recharging Select to recharge POWERbot at the docking station
while it is cleaning.
Start/Stop Select to start or stop cleaning
2 Cleaning modes
Auto clean Cleans space dividing until the battery is depleted.
Spot clean Select to clean a localized area intensely
3 Suction modes
Silence mode Select to clean with lower operational noise
Normal mode Select to clean with normal suction power
4 Additional functions
Sound Each time you press this button, Sound Effects 
Mute is selected in this sequence.
Smart control -
Select to turn on or off the smart control
 Wi-Fi connection should be done to control the
POWERbot using Samsung Smart Home app.
SR2AJ90@@U_EN_00740B-01_USA.indd 17 2016-02-04 오전 10:20:43

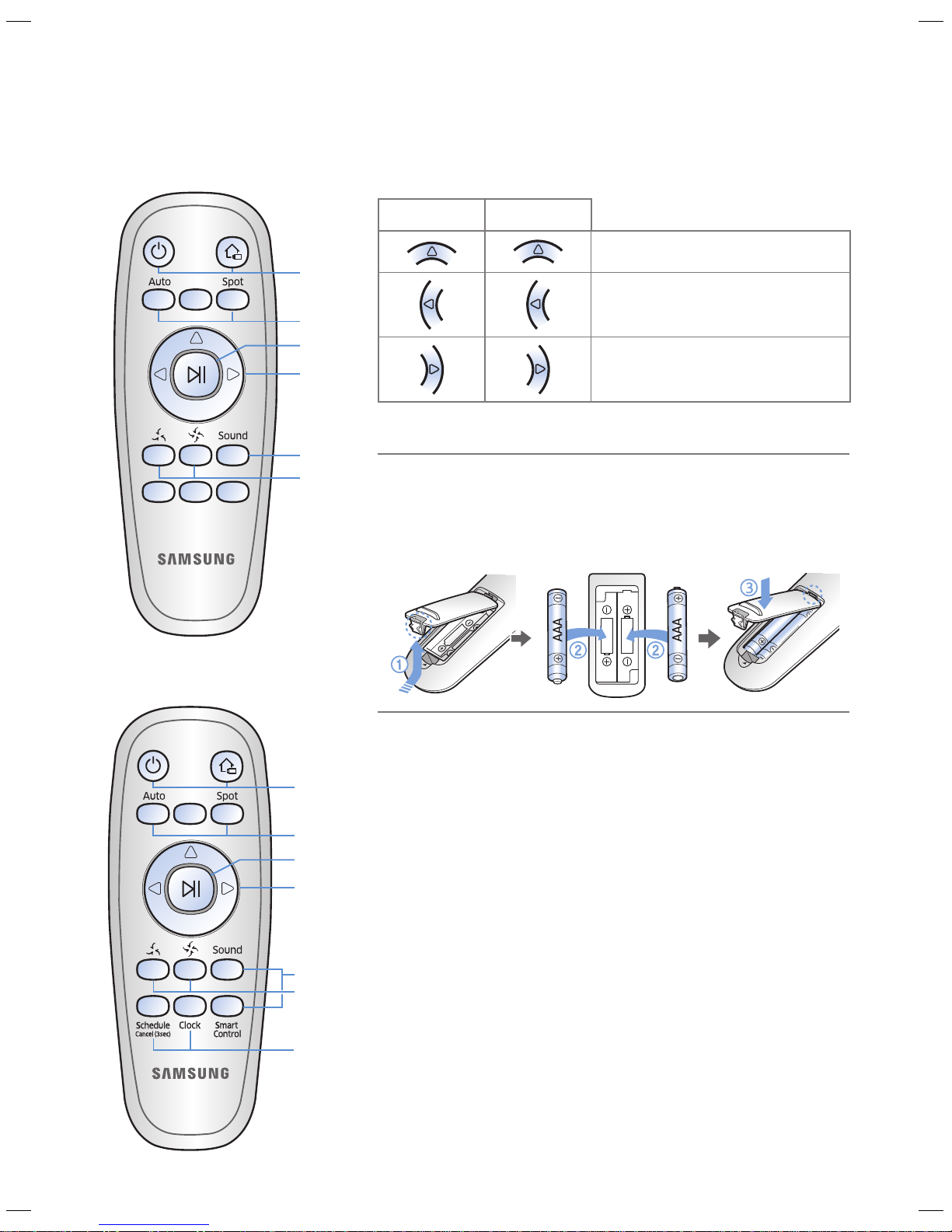

ENGLISH-18
[A Type]
[B Type]
5 Direction control
[A Type] [B Type]
Select to move forward
Select to turn left
Select to turn right
 Moving backward is not available
Inserting batteries
Open the battery cover by lifting it up while pressing the locking tab,
and then insert the batteries as shown in the illustration. Then, close
the cover until it clicks into place.
1
1
2
5
3
4
1
1
2
5
3
Refer to page 23
4
Using the remote control
SR2AJ90@@U_EN_00740B-01_USA.indd 18 2016-02-04 오전 10:20:43

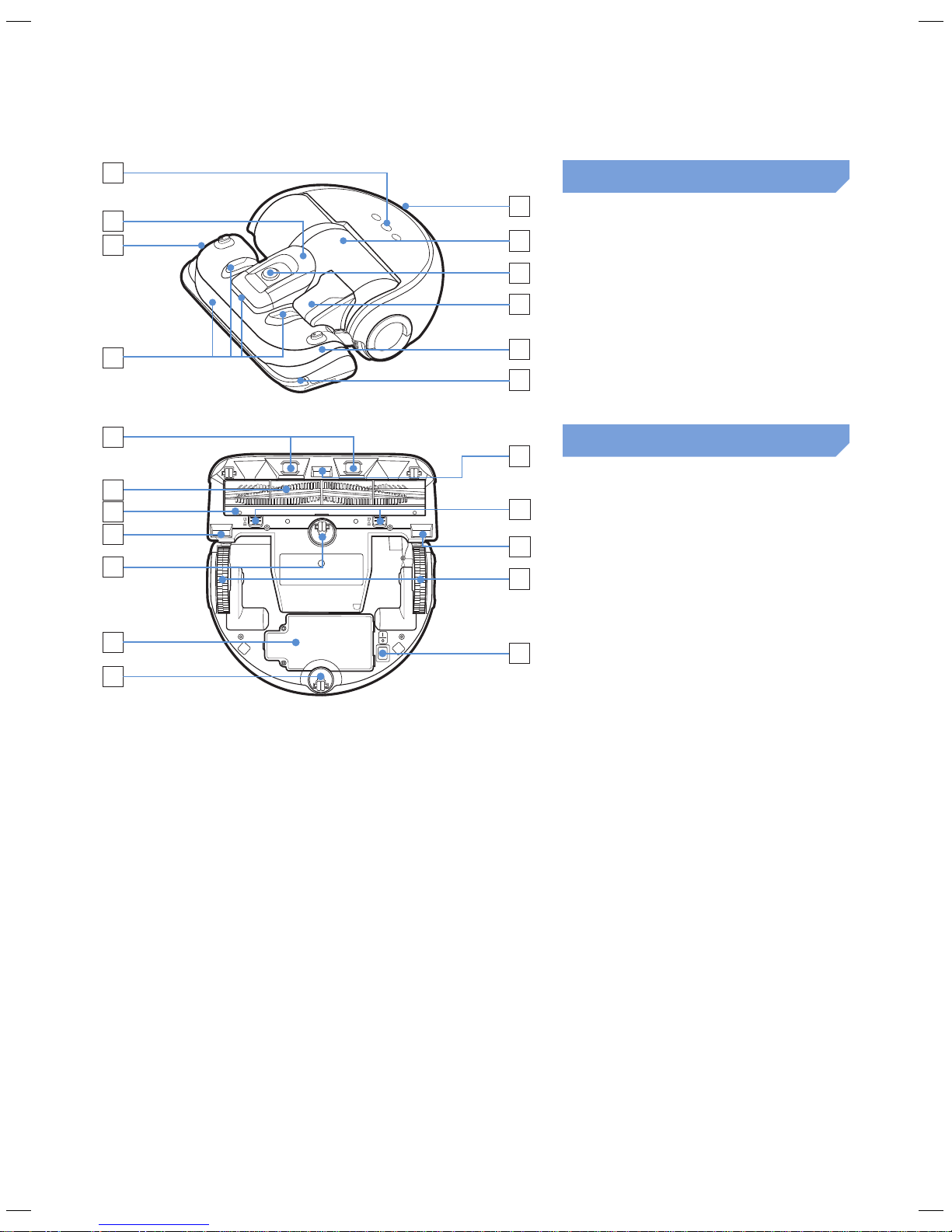

ENGLISH-19
Name of each part
1
4
5
3
3
6
7
8
2
3
Top
1. Display panel
2. Dustbin holder
3. Remote control signal receiver
4. Obstacle sensor
5. Dustbin
6. Camera
7. Dustbin handle
8. Bumper sensor
1
4
2
6
5
5
4
7
4
8
9
3
Bottom
1. Charge pins
2. Pet brush
3. Pet brush cover
4. Cliff sensor
5. Roller
6. Battery cover
7. Pet brush cover button
8. Driving wheel
9. Emergency switch
SR2AJ90@@U_EN_00740B-01_USA.indd 19 2016-02-04 오전 10:20:44

ENGLISH-20
8 94 765
1
2
10
3
11
12
Display panel
<SR2AJ90U Series>
1. Mute
2. Information indicator
3. Battery indicator
4. Auto clean
5. Spot clean
6. Manual clean
7. Silence mode
8. Normal mode
9. Recharging
10. Spot cleaning button
11. Start/Stop button
12. Recharging button
811109
5
4
3
13
14
1
6
2
12
7
<SR2AJ90W Series>
1. Mute
2. Information indicator
3. Smart Control
4. Wi-Fi indicator
5. Battery indicator
6. One-time/Daily schedule
7. Number display
8. Spot clean
9. Manual clean
10. Silence mode
11. Normal mode
12. Spot cleaning button
13. Start/Stop button
14. Recharging button
Name of each part
SR2AJ90@@U_EN_00740B-01_USA.indd 20 2016-02-04 오전 10:20:44
