Samsung SC07M25 Series User manual

Vacuum cleaner
User manual
SC07M25, SC05M25 Series
• Before operating this unit, please read the instructions carefully.
• For indoor use only.
1_VC2500_EN_00759K-01_EU_EE.indd 1 2017-07-05 오후 3:03:06

English
2
Contents
PREPARATION
Safety information 3
Important safety instructions 4
INSTALLATION
Name of the parts 10
Accessories 11
OPERATIONS
Using the vacuum cleaner 12
Using the body 12
Using the handle 12
Using the brushes 13
MAINTENANCE
Cleaning and maintaining 14
When to empty the dust bag 14
Cleaning the inlet lter 14
Cleaning the dust bag 14
Cleaning the outlet lter 15
Cleaning the cyclone lter 15
Cleaning the brush 16
Cleaning the pipe 16
Cleaning the hose 16
Storing the vacuum cleaner 16
APPENDICES
Notes and cautions 17
In use 17
Cleaning and maintenance 17
Troubleshooting 18
Product che 19
1_VC2500_EN_00759K-01_EU_EE.indd 2 2017-07-05 오후 3:03:07

English
3
PREPARATION
• Before operating the appliance, please read this manual thoroughly and
retain it for your reference.
• Because these following operating instructions cover various models, the
characteristics of your vacuum cleaner may differ slightly from those
described in this manual.
Caution/Warning symbols used
WARNING
Indicates that a danger of death or serious injury exists.
CAUTION
Indicates that a risk of personal injury or material damage exists.
Other symbols used
NOTE
Indicates that the following text contains additional important information.
• For information on Samsung’s environmental commitments and product
specic regulatory obligations e.g. REACH visit: samsung.com/uk/
aboutsamsung/samsungelectronics/corporatecitizenship/data_corner.htm
Safety information
PREPARATION
1_VC2500_EN_00759K-01_EU_EE.indd 3 2017-07-05 오후 3:03:07

English
4
PREPARATION
Important safety instructions
When using an electrical appliance, basic precautions should be observed,
including the following:
WARNING
This vacuum cleaner is designed for household use only.
Use the vacuum cleaner only for its intended use as described in these
instructions.
Always install the lters in the correct position as shown in this manual.
Failure to meet these requirements could cause damage to the internal
parts and void your warranty.
Please contact the manufacturer or service agent for a replacement.
General
• Read all instructions carefully. Before switching on, make sure that the
voltage of your electricity supply is the same as that indicated on the
rating plate on the bottom of the cleaner.
• This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
• Children should be supervised to ensure that they do not play with the
appliance. Do not allow the vacuum cleaner to run unattended at any
time.
1_VC2500_EN_00759K-01_EU_EE.indd 4 2017-07-05 오후 3:03:07

English
5
PREPARATION
Power related
• Switch the vacuum cleaner off on the body of the machine before
unplugging from the electrical outlet. Disconnect the plug from the
electrical outlet before emptying the dust bag. To avoid damage, please
remove the plug by grasping the plug itself, not by pulling on the cord.
• The plug must be removed from the socket outlet before cleaning or
maintaining the appliance.
• Slide to the Min. position before inserting a plug into the electrical outlet
• The use of an extension cord is not recommended.
• Please prevent any risk of electric shock or re.
– Do not damage the power cord.
– Do not pull the power cord too hard or touch the power plug with wet
hands.
– Do not use a power source other than the national rated voltage and
also do not use a multi-outlet to supply power to number of devices at
the same time.
– Do not leave the power cord carelessly on the oor.
– Do not use a damaged power plug, power cord or loose power outlet.
– Turn off the power before connecting or disconnecting the power plug
to the power outlet and make sure your ngers don’t come in contact
with the pins of the power plug.
– Do not disassemble or modify the vacuum cleaner. When power cord is
damaged, contact the manufacturer or service agent to get it replaced
by certied repairman.
– Clean dust or any foreign matters on the pin and contact part of the
power plug.
• Unplug the cleaner when not in use. Turn off the power switch before
unplugging.
• If the supply cord is damaged, it must be replaced by the manufacturer
or its service agent or a similarly qualied person in order to avoid a
hazard.
1_VC2500_EN_00759K-01_EU_EE.indd 5 2017-07-05 오후 3:03:07

English
6
PREPARATION
In use
• Don’t carry the vacuum cleaner by holding the hose. Use the handle on
the vacuum cleaner set for lifting or carrying vacuum cleaner.
• Unplug the cleaner when not in use. Turn off the power switch before
unplugging.
• Do not use outdoors, or on wet rugs or surfaces.
• Do not use the vacuum cleaner when rug or oor is wet.
• Do not use this product outdoors since it’s designed for household use
only.
– There is a risk of malfunction or damage.
 Outdoor cleaning : Stone, Cement
 A billiard room : Powder of a chalk
 An aseptic room of a hospital
• Do not use the vacuum cleaner to suction up liquids(such as water),
blades, pins or embers.
– There is a risk of malfunction or damage.
• Be sure children do not touch the vacuum cleaner when you use it.
– The children may get burned if the body is overheated.
• Do not mount or make any physical impacts on the body.
– It may result in injury or damage.
• Do not use the vacuum cleaner to pick up matches, live ashes or cigarette
butts. Keep the vacuum cleaner away from stoves and other heat sources.
Heat can deform and discolour the plastic parts of the unit.
1_VC2500_EN_00759K-01_EU_EE.indd 6 2017-07-05 오후 3:03:07

English
7
PREPARATION
• Avoid picking up hard, sharp objects with the vacuum cleaner as they
may damage the cleaner parts.
• Do not block the suction or the exhaust port.
• Do not use the vacuum cleaner without a dust bag and lters in place.
• Do not use worn, deformed or damaged lters and insert lter properly
without gap between lter and cover lter.
– It can be a reason of penetration of dust and debris into motor.
• If your vacuum cleaner is not operating correctly, switch off the power
supply and consult an authorized service agent.
• If there’s any gas leak or when using combustible sprays such as a
dust remover, do not touch the power outlet and open the windows to
ventilate the room.
– There is a risk of explosion or re.
• Do not use this vacuum cleaner to clean building waste and debris, toner
of laser printer. Regularly keep the lters in clean conditions to prevent
of collecting ne dust in them.
• Dry carpet cleaners or fresheners, powders and ne dust such as our
should be only vacuumed in very small amounts.
• Use extra care when cleaning on stairs.
• Do not use to suction up water.
• Do not immerse in water for cleaning.
• The hose should be checked regularly and must not be used if damaged.
• Hold plug when rewinding onto cord reel. Do not allow plug to whip
when rewinding.
1_VC2500_EN_00759K-01_EU_EE.indd 7 2017-07-05 오후 3:03:07

English
8
PREPARATION
Cleaning and maintenance
• Do not lift or carry the vacuum cleaner putting a brush in the groove for
storage.
• Use a dry cloth or towel to clean the body and make sure to unplug
the vacuum cleaner before cleaning. Do not spray water directly or use
volatile materials (such as benzen, thinner or alcohol) or combustible
sprays (such as a dust remover) for cleaning.
– If water or other liquid gets into the product and causes malfunction,
turn off the vacuum cleaner, unplug the power plug and then consult a
service agent.
• Do not use alkaline or industrial detergents, air fresheners or (acetic)
acids to clean the washable parts of the vacuum cleaner. (Refer to the
following table.)
– It may cause damage, deformation or discoloration of the plastic parts.
Available detergent Neutral detergent Kitchen cleaner
Unavailable detergent Alkaline detergent Bleach, Mold cleaner, etc.
Acid detergent Parafn oil, Emulsier, etc.
Industrial detergent NV-I, PB-I, Opti, Alcohol, Acetone,
Benzene, Thinner, etc.
Air freshener Air freshener(Spray)
Oil Animal or vegetable oil
Etc. Edible acetic acid, Vinegar, Glacial
acetic acid, etc.
• Do not stand on the hose assembly. Do not put weight on the hose.
1_VC2500_EN_00759K-01_EU_EE.indd 8 2017-07-05 오후 3:03:07

English
9
PREPARATION
CAUTION
In use
• Do not use the pipe for anything other than its intended purpose.
– It may result in injury or damage.
• When you lift up the body cover of the product while using the vacuum
cleaner, safety device will be activated and there might be changes in
operating noise.
– Operating noise may change when you hold the body cover of the
product while using the vacuum cleaner, but the circular tube on bottom
of the dust bag prevents dust from spilling out.
• Do not pull the power cord beyond the yellow mark and hold the power
cord with one hand when rewinding it.
– If you try to pull it beyond the yellow mark, power cord can be
damaged and if you don’t hold the power cord while rewinding, it may
lose control and cause injury or damage to people or objects around it.
• If any abnormal sounds, smells or smoke come from the vacuum cleaner,
immediately unplug the power plug and contact a service agent.
– There is a risk of re or electric shock.
• Do not use the vacuum cleaner in any places near heating appliances
(such as stove), combustible spray or ammable materials.
– It may cause re or deformation of the product.
• Empty the dust bag before it is full in order to maintain the best
efciency.
Cleaning and maintenance
• Unplug the vacuum cleaner if you do not use it for a long time.
– It may cause electric shock or re.
1_VC2500_EN_00759K-01_EU_EE.indd 9 2017-07-05 오후 3:03:07

English
10
INSTALLATION
Name of the parts
Product design may differ depending on the models.
01 Pipe
02 Handle
03 Hose
04 Dust bag
05 Power button
06 Cord rewind button / Carry handle
07 Power cord
08 Outlet lter
INSTALLATION
03
01
02
08
06 07
05
04
1_VC2500_EN_00759K-01_EU_EE.indd 10 2017-07-05 오후 3:03:07

English
11
INSTALLATION

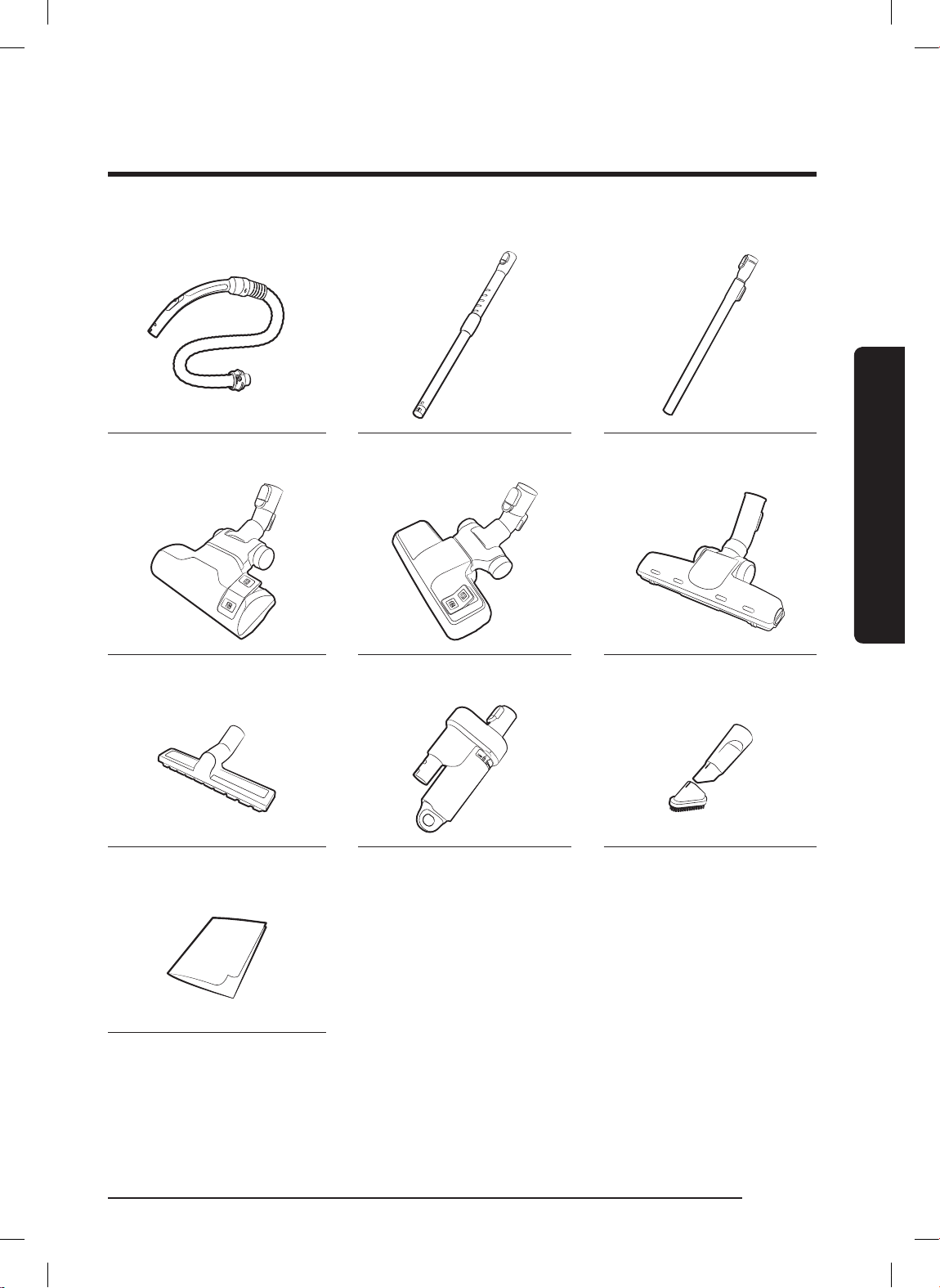

Accessories
Accessories may differ depending on the models.
Hose Pipe Pipe
2-step brush 2-step brush Pet Brush
Porch brush EzClean Cyclone 2-in-1 accessory
User manual
1_VC2500_EN_00759K-01_EU_EE.indd 11 2017-07-05 오후 3:03:08

English
12
OPERATIONS

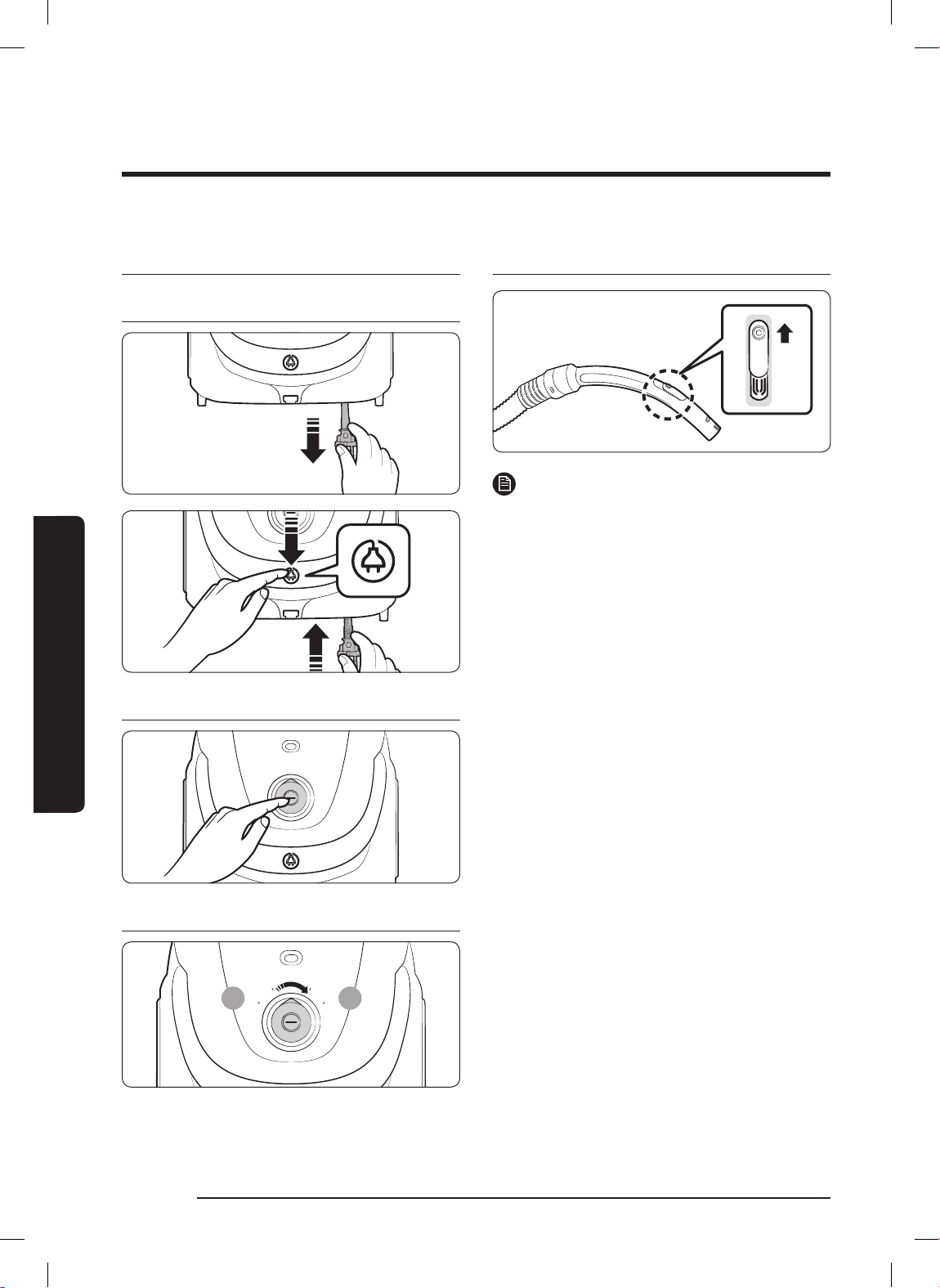

Using the vacuum cleaner
Suction control may differ depending on the models.
OPERATIONS
Using the body
Power cord
On/Off
Suction
MIN MAX
0201
01 Low power
02 High power
Using the handle
NOTE
• To vacuum fabrics, push the cover
downward to reduce suction.
• The handle does not control the power
of the product.
1_VC2500_EN_00759K-01_EU_EE.indd 12 2017-07-05 오후 3:03:08

English
13
OPERATIONS
Using the brushes
❶ ❶❷ ❷ ❸
❺
❻
❹

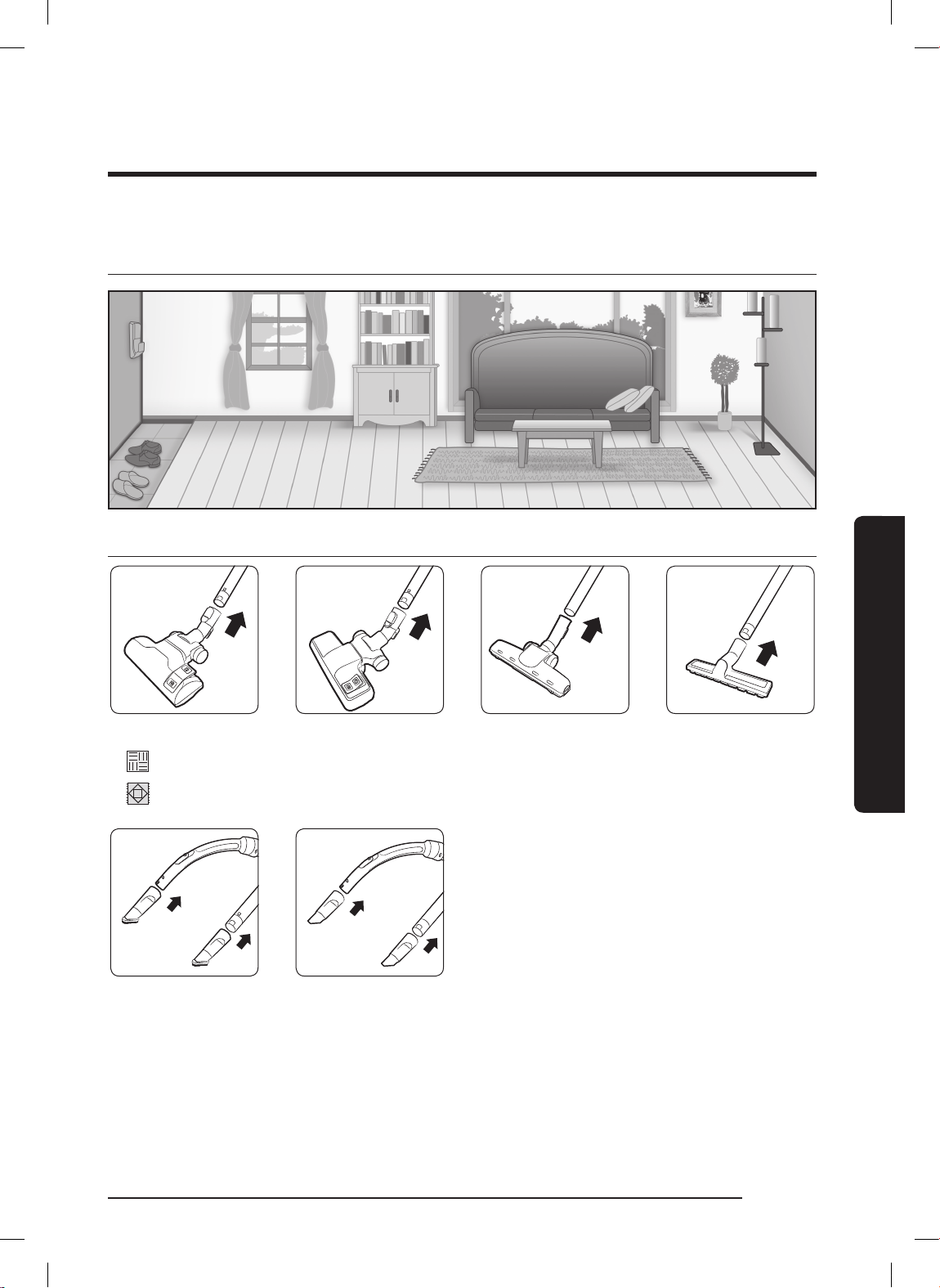

Where to use the brushes
❶2-step brush
 Floor
Carpet
❷2-step brush ❸Pet brush ❹Porch brush
❺Dusting brush ❻Crevice tool
1_VC2500_EN_00759K-01_EU_EE.indd 13 2017-07-05 오후 3:03:09

English
14
MAINTENANCE
Cleaning and maintaining
You must unplug the vacuum cleaner before cleaning it.
MAINTENANCE

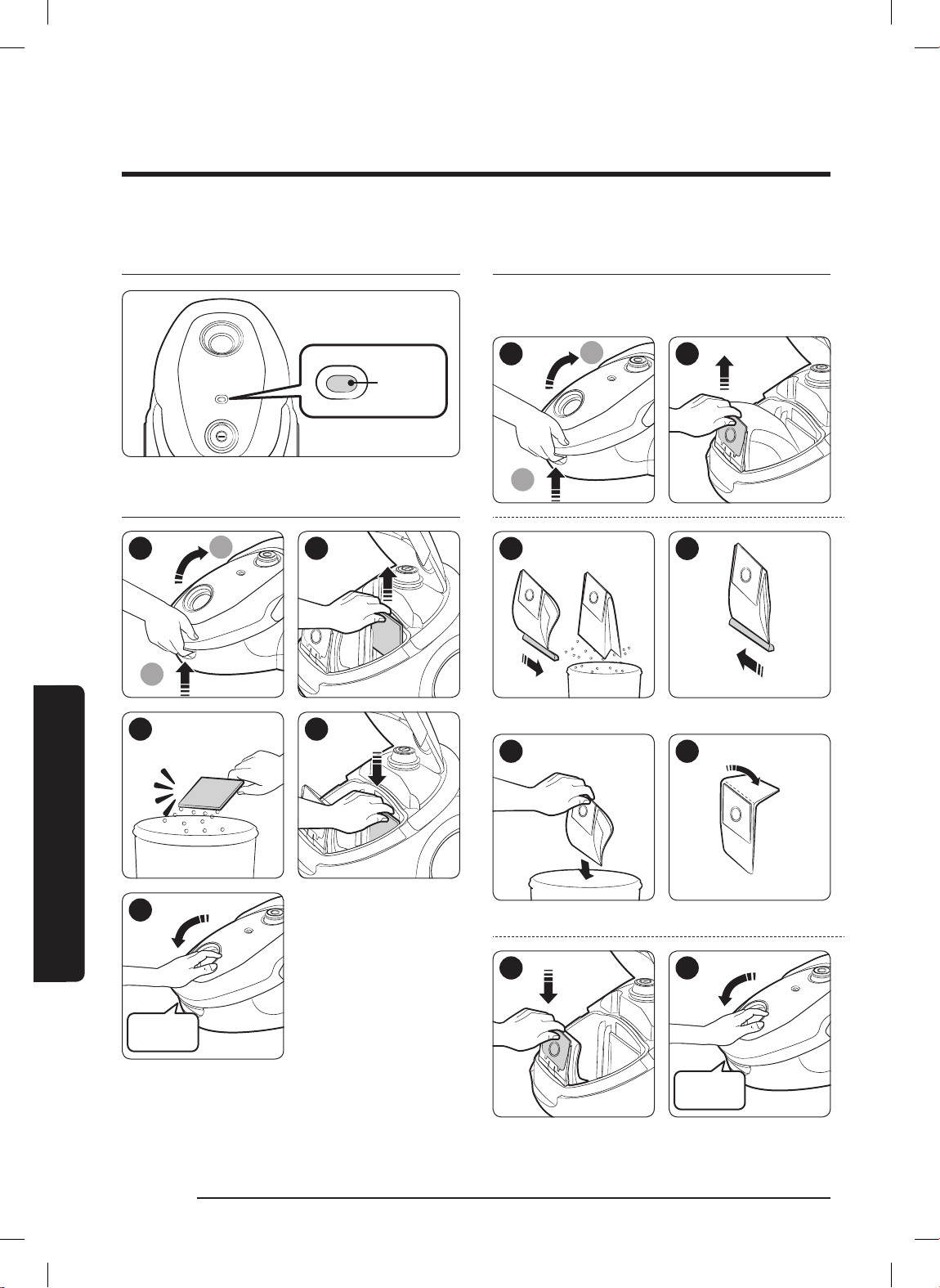

When to empty the dust bag
Red
Cleaning the inlet lter
1
01
02 2
3 4
Click
5
Cleaning the dust bag
Clean or replace the dust bag if there is a
lot of dust in the bag.
1
01
02 2
3
Cloth Bag
4
3
Paper bag
4
5
Click
6
1_VC2500_EN_00759K-01_EU_EE.indd 14 2017-07-05 오후 3:03:10

English
15
MAINTENANCE
Cleaning the outlet lter
1
01
02
2
3 4
5
Click
6

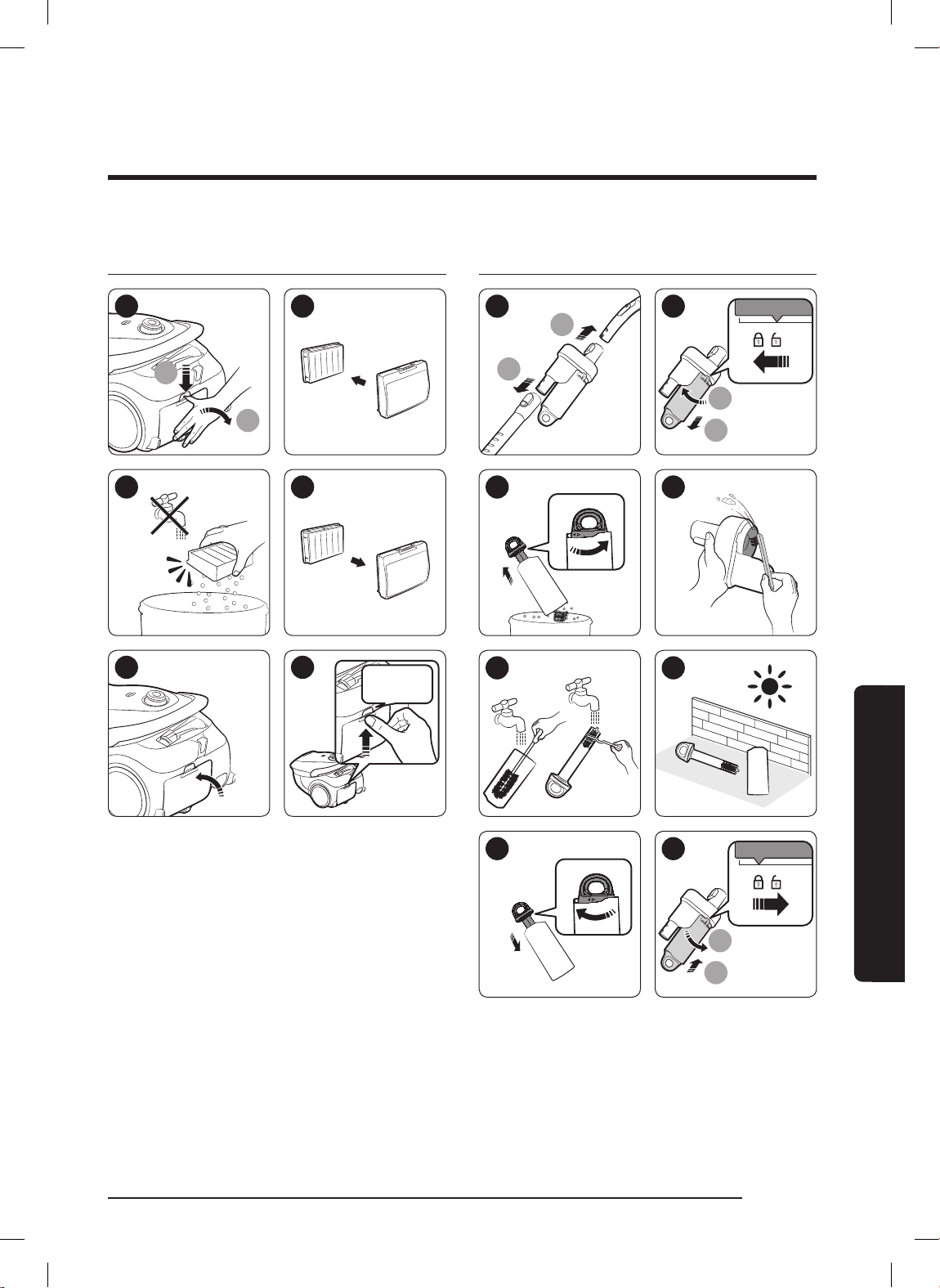

Cleaning the cyclone lter
1
01
02
LOCK
▼▼
UNLOCK
2
01
02
UNLOCK
3 4
5 6
LOCK
UNLOCK
7
LOCK
▼▼
UNLOCK
8
02
01
1_VC2500_EN_00759K-01_EU_EE.indd 15 2017-07-05 오후 3:03:12

English
16
MAINTENANCE
Cleaning the brush
2-step brush
 Cleaning method for the 2-step and
Porch brushes is the same.
12
34
Pet brush
Cleaning the pipe
Cleaning the hose
Storing the vacuum cleaner
1_VC2500_EN_00759K-01_EU_EE.indd 16 2017-07-05 오후 3:03:13

English
17
APPENDICES
In use
NOTE
• Product features may vary according to model.
• When you use the dusting brush or crevice tool, you may feel vibration from the
vacuum cleaner.
• The operating noise may change once the safety device is activated to prevent the dust
bag from getting detached.
– The circular tube on bottom of the dust bag prevents dust from spilling out.
CAUTION
• When removing the power plug from the electrical outlet, grasp the plug, not the cord.
• Make sure you don't open the body cover by pressing the button under the cover when
carrying the vacuum cleaner.
• For storage of the product, park the oor nozzle in the small groove on the bottom of
the body.
Cleaning and maintenance
NOTE
• Do not wash the outlet lter with water.
• To maintain the best performance of the outlet lter, replace it once a year.
• To prevent oors from scratches, inspect condition of the brush and replace it if it is
worn down.
• Replacement lters are available at your local Samsung service agent.
• Hold the power cord and then press the Cord rewind button since you can get injured if
the power cord may lose control while rewinding it.
• If the power cord is not rewinding well, press the Cord rewind button again after pulling
the power cord about 2 ~ 3 m.
• When suction power is noticeably reduced continuously, please clean the inlet lter by
referring to the "Cleaning the inlet lter" section.
CAUTION
• When suction is noticeably reduced continuously or vacuum cleaner abnormally
overheats, please clean the outlet lter.
• Suction may reduce noticeably due to wrong reassembling of the inlet lter.
• Please contact a nearest service agent if you cannot remove foreign matters from the
hose.
• Store the vacuum cleaner in the shade to prevent deformation or discoloration.
Notes and cautions
APPENDICES
1_VC2500_EN_00759K-01_EU_EE.indd 17 2017-07-05 오후 3:03:13

English
18
APPENDICES
Troubleshooting
Symptom Checklist
Motor does not start. • Check the cable, the power plug and outlet.
Suction force is gradually
decreasing.
• Check if there is any blockage, and remove it if required.
• Please check the lters, and if required, clean as illustrated
in this manual.
– If lters are out of condition, replace them with new
ones.
Cord does not rewind
fully.
• Pull the power cord out 2 - 3 m and press the Cord rewind
button.
Body overheating • Check the lters, and clean as illustrated in this manual if
required.
Static electricity
discharge.
• Reduce suction.
• This may also occur when air in the room is very dry.
Ventilate the room so that air humidity becomes normal.
During using, stop the
unit.
• This vacuum cleaner has a special thermostat that protects
the motor in case of its overheating. If the vacuum cleaner
suddenly shuts off, turn off the switch and unplug the
vacuum cleaner. Check the vacuum cleaner for possible
source of overheating such as a full dust bag, a blocked
hose, pipe, or clogged lter. If these conditions are found,
x them and wait at least 30 minutes before attempting to
use the vacuum cleaner.
• This Vacuum cleaner is approved the following.
– Electromagnetic Compatibility Directive : 2004/108/EEC
– Low Voltage Directive : 2006/95/EC
1_VC2500_EN_00759K-01_EU_EE.indd 18 2017-07-05 오후 3:03:13

English
19
APPENDICES
Product che
[English]
According to Commission Regulation (EU) No 665/2013 and No 666/2013
A
Supplier Samsung Electronics., Co. Ltd
B
Model SC07M25E0WB SC07M25E0WR SC07M25F0WP SC07M25G0WC SC07M25H0WB SC07M25J0WP SC07M25K0WN SC07M25L0WC SC05M25W
C
Energy
Efciency
Class
A A+
D
Annual Energy
Consumption
(kWh/yr)
28.0 22.0
E
Carpet
Cleaning
Performance
Class
D C
F
Hardoor
Cleaning
Performance
Class
A A
G
Dust Re-
Emission Class
A A
H
Sound Power
Level (dBA)
79 79
I
Rated Input
Power (W)
700 500
J
Type General purpose vacuum cleaner
1 Indicative annual energy consumption (kWh per year), based on 50 cleaning
tasks. Actual annual energy consumption will depend on how the appliance is
used.
2 Measurements for power consumption and performance are based on methods
in EN60312-1 and EN60704.
1_VC2500_EN_00759K-01_EU_EE.indd 19 2017-07-05 오후 3:03:13

1_VC2500_EN_00759K-01_EU_EE.indd 20 2017-07-05 오후 3:03:13
