Samsung SC20F70 Series User manual

English
Vacuum Cleaner
user manual
Thank you for purchasing a Samsung product.
To receive a more complete service,
please register your product at
www.samsung.com/register
✻Please read the User Manual thoroughly before operating the vacuum.
✻For indoor use only.
SC20F70 Series
SC07F80 Series

Contents
YOUR VACUUM CLEANER
07
BEFORE USING THE VACUUM
CLEANER
08
08 Assembly
09 Using the UV brush (Option)
09 Installing the Dust Sensor (Option)
10 Using accessory
OPERATING CLEANER
12
12 Power cord
12 Check filter
12 ON/OFF
13 Power control
14 Dust Sensor (Option)
MAINTENANCE
15
15 Cleaning the dust bin and grille
18 Cleaning the outlet filter
19 Maintain floor tools
TROUBLESHOOTING
22

Safety information _03
Safety information
SAFETY INFORMATION
WARNING
• Before operating the appliance, please read this manual thoroughly and retain it
for your reference.
WARNING
• Because the following operating instructions cover various models, the
characteristics of your vacuum cleaner may differ slightly from those described in
this manual.
CAUTION/WARNING SYMBOLS USED
WARNING Indicates that a risk of death or serious injury exists.
CAUTION Indicates that a risk of personal injury or material damage exists.
OTHER SYMBOLS USED
Represents something you must NOT do.
Represents something you must follow.
Indicates that you must disconnect the power plug from the socket.
WARNING
This vacuum cleaner is designed for household use only.
Do not use this vacuum cleaner to clean building waste or debris.
Regularly keep the filters in clean conditions to prevent of collecting fine dust in
them.
Do not use this vacuum cleaner with any of the filters removed.
Failure to meet these requirements could cause injury, damage the vacuum
cleaner and void your warranty.

04_ Safety information
IMPORTANT SAFEGUARDS
GENERAL
• Read all instructions carefully. Before switching on, make sure
that the voltage of your electricity supply is the same as that
indicated on the rating plate on the bottom of the cleaner.
• WARNING : Do not use the vacuum cleaner when rug or floor is
wet. Do not use to suck up water.
• Close supervision is necessary when any appliance is used by
or near children. Do not allow the vacuum cleaner to be used
as a toy. Do not allow the vacuum cleaner to run unattended at
any time. Use the vacuum cleaner only for its intended use as
described in these instructions.
• Do not use the vacuum cleaner without a dust bin.
Empty the dust bin before it is full in order to maintain the best
efficiency.
• Do not use the vacuum cleaner to pick up matches, live ashes or
cigarette butts. Keep the vacuum cleaner away from stoves and
other heat sources. Heat can deform and discolour the plastic
parts of the unit.
• Avoid picking up hard, sharp objects with the vacuum cleaner as
they may damage the cleaner parts.
Do not stand on the hose assembly. Do not put weight on the
hose.
Do not block the suction or the exhaust port.
• Switch the vacuum cleaner off on the body of the machine
before unplugging from the electrical outlet. Disconnect the plug
from the electrical outlet before emptying the dust bin. To avoid
damage, please remove the plug by grasping the plug itself, not
by pulling on the cord.
• This appliance can be used by children aged from 8 years and
above and people with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.

Safety information _05
Children shall not play with the appliance. Cleaning and user
maintenance shall not be done by children without supervision.
• Children should be supervised to ensure that they do not play
with the appliance.
• The plug must be removed from the socket outlet before
cleaning or maintaining the appliance.
• The use of an extension cord is not recommended.
• If your vacuum cleaner is not operating correctly, switch off the
power supply and consult an authorized service agent.
• If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person in
order to avoid a hazard.
• Don’t carry the vacuum cleaner by holding the hose.
Use the handle on the vacuum cleaner set.
• Unplug the cleaner when not in use.
Turn off the power switch before unplugging.
UV BRUSH
• Since the UV rays from the UV Brush damage skin and eyes,
never allow the rays to make contact with skin or eyes and
do not let children or the elderly use the UV Brush. If used
incorrectly it may cause damage to a persons eyesight.
• If the transparent window is broken and the UV rays are exposed
directly, turn the power off and contact the service center.
• Do not use the UV Brush for purposes other than the sterilization
of mattresses, bedclothes, beds, cushions and so on made from
material. The company will not be held liable for any loss due to
accidents from using the UV Brush for purposes other than its
original purpose as listed above.
• Do not sit on the UV Brush or drop it, and avoid imparting
impacts on the product. Failing to do so may result in injury or
product damage.
• Do not touch the power terminals on the back of the UV Brush
with a metal pin or rod. This may result in electric shock or fire.

06_ Safety information
• When the UV lamp is out of order, never disassemble or modify
the product yourself.
Please contact the manufacturer or service center for a
replacement.
• Since an internal discharge occurs within the UV Brush, never
use the product near an inflammable spray or substance.
• Take care not to touch the UV lamp window after using the
UV Brush for an extended period of time as the surface of the
window may be hot.
• The UV Brush may start slowly at a low temperature due to the
inherent characteristics of UV lamps. Please keep the UV Brush
indoors.

Your vacuum cleaner _07
01 YOUR VACUUM CLEANER
Your vacuum cleaner
Handle
Handle
Hose
Hose
Cyclone
Cyclone
Combination accessory
Combination accessory
Pipe
Pipe
2-Step brush
2-Step brush
OPTION (Depending on model) *
SC20F70U / SC07F80U Series
Power turbo plus * Parquet master * Mini turbo * Pipe * Handle *
Cover battery * Dust sensor * Furniture brush * UV brush * 2-in-1 accessory *

08_ Before using the vacuum cleaner
ASSEMBLY
Connecting the Hose
Connecting the handle and pipe
Connecting the brush
Before using the vacuum cleaner

Before using the vacuum cleaner _09
02
BEFORE USING THE VACUUM CLEANER
USING THE UV BRUSH (OPTION)
Connecting the brush into the hose
handle
There will be a “clicking” sound when the UV
brush has been installed securely on the hose
handle.
For safety reasons, UV brushing only runs for 30 minutes and then stops operating.
To resume the operation, press the [BRUSH ON/OFF] button again.
CAUTION
The UV brush, which is assembled into the hose handle (not directly connected to
the pipe), is dedicated for bedclothes.
INSTALLING THE DUST SENSOR (OPTION)
Assemble the dust sensor
between the brush and the pipe
between the pipe and the hose

10_ Before using the vacuum cleaner

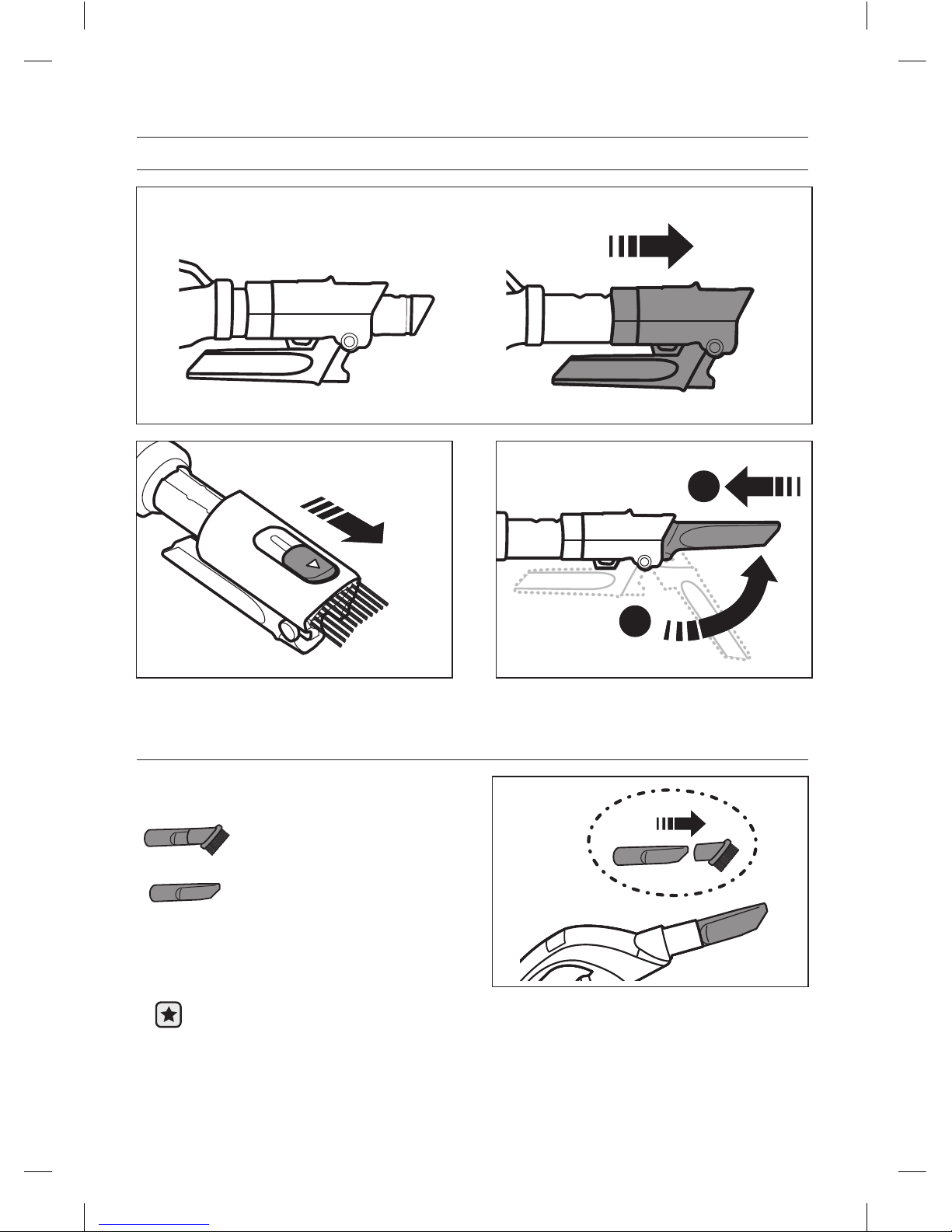

USING ACCESSORY
Combination accessory (Option)
Dusting brush Crevice tool
1
2
Accessories (Option)
Install the accessory to the handle.
Dusting brush
Crevice tool
Dusting brush - For cleaning moldings, carved articles. etc.
Crevice tool - For cleaning in folds, crevices and corners.

Before using the vacuum cleaner _11
02
BEFORE USING THE VACUUM CLEANER
Pipe
Adjust the length of the pipe by sliding the
length control button located in the center of
the telescopic pipe.
For storage, park the floor nozzle
Do not pick up a machine while the
floor nozzle parked.
CAUTION

12_ Operating cleaner
POWER CORD
CAUTION
When removing the plug from the electrical outlet, grasp the plug,
not the cord.
CHECK FILTER ON/OFF
The filter light is illuminated when the dust
pack requires checking or emptying.
Operating cleaner

Operating cleaner _13
03
OPERATING CLEANER

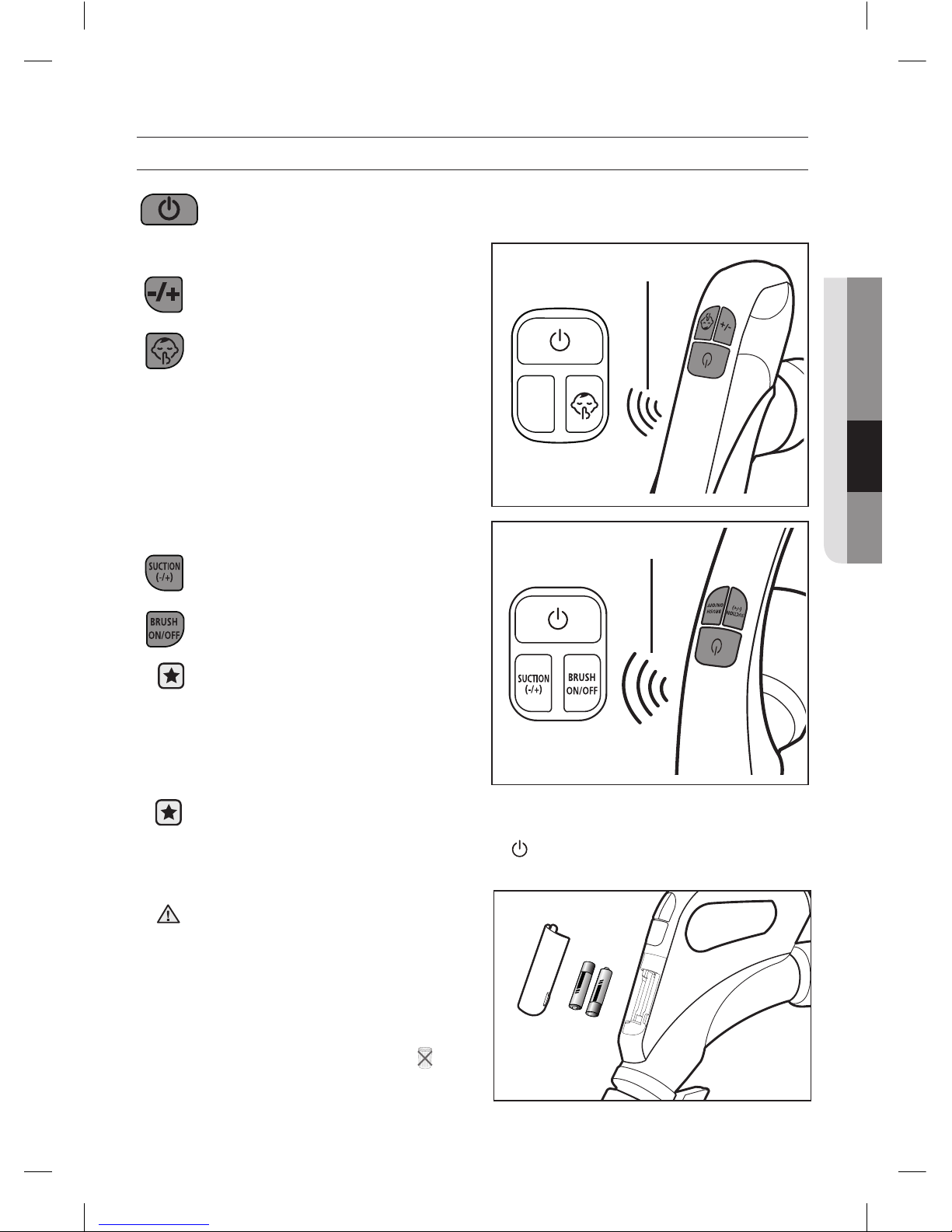

POWER CONTROL
Hose (controlled by radio frequency signals)
ON/OFF
SC20F70H / SC07F80H Series
Select a lower power / higher power
Select a quiet mode
Transmitter
Transmitter
-/+
SC20F70U / SC07F80U Series
Select a lower power / higher power
UV brush ON/OFF
• UV sterilization cannot be
activated by itself.
• Press the [SUCTION (-/+)] and
[BRUSH ON/OFF] for operation.
Transmitter
Transmitter
• Don’t cover the handle transmitter when you use a handle control.
• If no button is pressed for 30 minutes while cleaning, the power will shut off as
a precaution. If this happens, press the button on the main unit or replug the
power cord in again.
CAUTION
1. Never disassemble or recharge
the batteries.
2. Never heat up the batteries or
throw them into a fire.
3. Do not reverse (+), (-) poles.
4. Dispose of the batteries property.
BATTERY TYPE : AAA Size
BATTERY TYPE : AAA Size

14_ Operating cleaner
DUST SENSOR (OPTION)
Dust Sensor Operations
• Indicates the amount of dust being picked
up and passing by the sensor which assist
the user to clean more efficiently.
• The dust sensor is activated au tomatically
when the cleaner runs and is turned off
when the cleaner is stopped.
Green : Amount of dust passing
sensor is small.
Red : Amount of dust passing
sensor is large.
If the red light does not light
up when cleaning a dusty
location
- Clean the sensors (2EA) with a
dry cloth.
- Take care when you use the
cleaner because the dust
sensor may malfunction or may
break due to an impact.
Installing the Batteries
If the dest sensor does not work, change the
batteries.
BATTERY TYPE : AAA Size

Maintenance _15
04 MAINTENANCE
CLEANING THE DUST BIN AND GRILLE
Empty the dust bin, if dust reaches 'MAX'
or Check filter ( ) light is illuminating. 1
Take the dust bin out by lifting the handle. 2
Push the button aside. 3
Turn the grille and take out it. 4
Maintenance

16_ Maintenance
Push the button.
Separate the dust bin from body. 5
Clean the dust bin and body with water. 6
Leave the dust bin and body in the shade
until completely dry. 7
Install the grille and turn to clockwise.
12
CAUTION

Maintenance _17
04 MAINTENANCE
CLEANING THE DUST FILTER
1 2
Pull the dust bin cover to open. Remove the filter from the dust bin.
3 4
Shake the filter to remove dust, then wash
the filter.
Let the filter dry for more than 12 hours.
5
Put the filter into the dust bin.
Make sure the filter is completely dry before putting it back into the vacuum cleaner.
Allow 12 hours for it to dry.
Do not use wet filter.
Replace the dust filter if it becomes damaged or deformed.
The dust bin cover will not close if the filter is not installed correctly.

18_ Maintenance
CLEANING THE OUTLET FILTER
1 2
Take the dust bin out by lifting the handle. Pull out the HEPA Filter.
3 4
Shake the HEPA Filter to clean. Install the filter and holder in main body.
• The filter can be replaced and
separated from holder by pulling.
• Clean the outlet filter when suction is noticeably reduced continuously or the
vacuum cleaner abnormal overheads.
Note: HEPA Filters are not washable.
Replace filter if cleaning does not resolve the problem.
• Recommend that HEPA Filter should be changed once in 6 month.

Maintenance _19
04 MAINTENANCE
MAINTAIN FLOOR TOOLS
2-Step Brush
• Adjust the inlet lever according to the floor
surface.
Carpet
Floor
• Remove waste matter completely if the
inlet is blocked.
Power Turbo Plus Brush (Optional Accessory)
1 2
341
2
Frequent vacuuming of hair or pet fur may reduce cleaning effectiveness over time due to
matters tangled around the drum. In this case, clean the drum with care.

20_ Maintenance
To remove dust from the dust bin of the UV brush (Option)
When the dust bin is filled, turn the [Dust
Removal] switch to empty the dust bin. Dust bin
Dust Removal
Dust Removal
• While the cleaner is operating (suction),
the vacuum will suck the material from the
dust bin to the main unit.
• While the [Dust Removal] switch is in the
position, the suction power of the
cleaner is reduced.
Cleaning the UV brush (Cleaning the drum) (Optional Accessory)
Frequent vacuuming of hair or pet fur may
reduce cleaning efficiency overtime due to
matters tangled around the drum. In this
case, clean the drum with care.
