Samsung SC61 Series User manual

Vacuum Cleaner
user manual
✻Before operating this unit, please read the instructions carefully.
✻For indoor use only. English
Thank you for purchasing a Samsung product.
To receive a more complete service,
please register your product at
www.samsung.com/register
SC61 Series
DJ68-00660G(0.0).indb 1DJ68-00660G(0.0).indb 1 13. 5. 16.  11:3513. 5. 16.  11:35

safety information
SAFETY INFORMATION
• Before operating the appliance, please read this manual thoroughly and
retain it for your reference.
• Because these following operating instructions cover various models,
the characteristics of your vacuum cleaner may differ slightly from those
described in this manual.
WARNING
WARNING
CAUTION/WARNING SYMBOLS USED
WARNING Indicates that a danger of death or serious injury exists.
CAUTION Indicates that a risk of personal injury or material damage exists.
OTHER SYMBOLS USED
Represents something you must NOT do.
Represents something you must follow.
Indicates that you must disconnect the power plug from the socket.
IMPORTANT SAFEGUARDS
• Read all instructions carefully. Before switching on, make sure
that the voltage of your electricity supply is the same as that
indicated on the rating plate on the bottom of the cleaner.
• WARNING:
Do not use the vacuum cleaner when rug or floor is wet.
Do not use to suck up water.
• Close supervision is necessary when any appliance is used by
or near children. Do not allow the vacuum cleaner to be used
as a toy. Do not allow the vacuum cleaner to run unattended at
any time. Use the vacuum cleaner only for its intended use as
described in these instructions.
• Do not use the vacuum cleaner without a dust bag.
2_ safety information
DJ68-00660G(0.0).indb 2DJ68-00660G(0.0).indb 2 13. 5. 16.  11:3513. 5. 16.  11:35

Change the dust bag before it is full in order to maintain the best
efficiency.
• Do not use the vacuum cleaner to pick up matches, live ashes
or cigarette butts. Keep the vacuum cleaner away from stoves
and other heat sources. Heat can deform and discolour the
plastic parts of the unit.
• Avoid picking up hard, sharp objects with the vacuum cleaner
as they may damage the cleaner parts. Do not stand on the
hose assembly. Do not put weight on the hose. Do not block the
suction or the exhaust port.
• Switch the vacuum cleaner off on the body of the machine
before unplugging from the electrical outlet. Disconnect the plug
from the electrical outlet before changing the dust bag or dust
container. To avoid damage, please remove the plug by grasping
the plug itself, not by pulling on the cord.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
Children should be supervised to ensure that they do not play
with the appliance.
• The plug must be removed from the socket outlet before
cleaning or maintaining the appliance.
• The use of an extension cord is not recommended.
• If your vacuum cleaner is not operating correctly, switch off the
power supply and consult an authorized service agent.
• If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person in
order to avoid a hazard.
• Don’t carry the vacuum cleaner by holding the hose.
Use the handle on the vacuum cleaner set.
• Unplug the cleaner when not in use. Turn off the power switch
before unplugging.
safety information _3
DJ68-00660G(0.0).indb 3DJ68-00660G(0.0).indb 3 13. 5. 16.  11:3513. 5. 16.  11:35

contents
ASSEMBLING THE CLEANER
05
05 Assembling the Cleaner
OPERATING THE CLEANER
06
06 Power cord
06 On/Off Switch
06 Power control
MAINTAIN TOOLS AND FILTER
08
08 Using accessory
10 Maintain floor tools
11 Check filter indicator
12 Changing the dust bag
12 Cleaning inlet filter
12 Cleaning outlet filter
13 Change the battery (Optional)
TROUBLESHOOTING
14
4_ contents
DJ68-00660G(0.0).indb 4DJ68-00660G(0.0).indb 4 13. 5. 16.  11:3513. 5. 16.  11:35

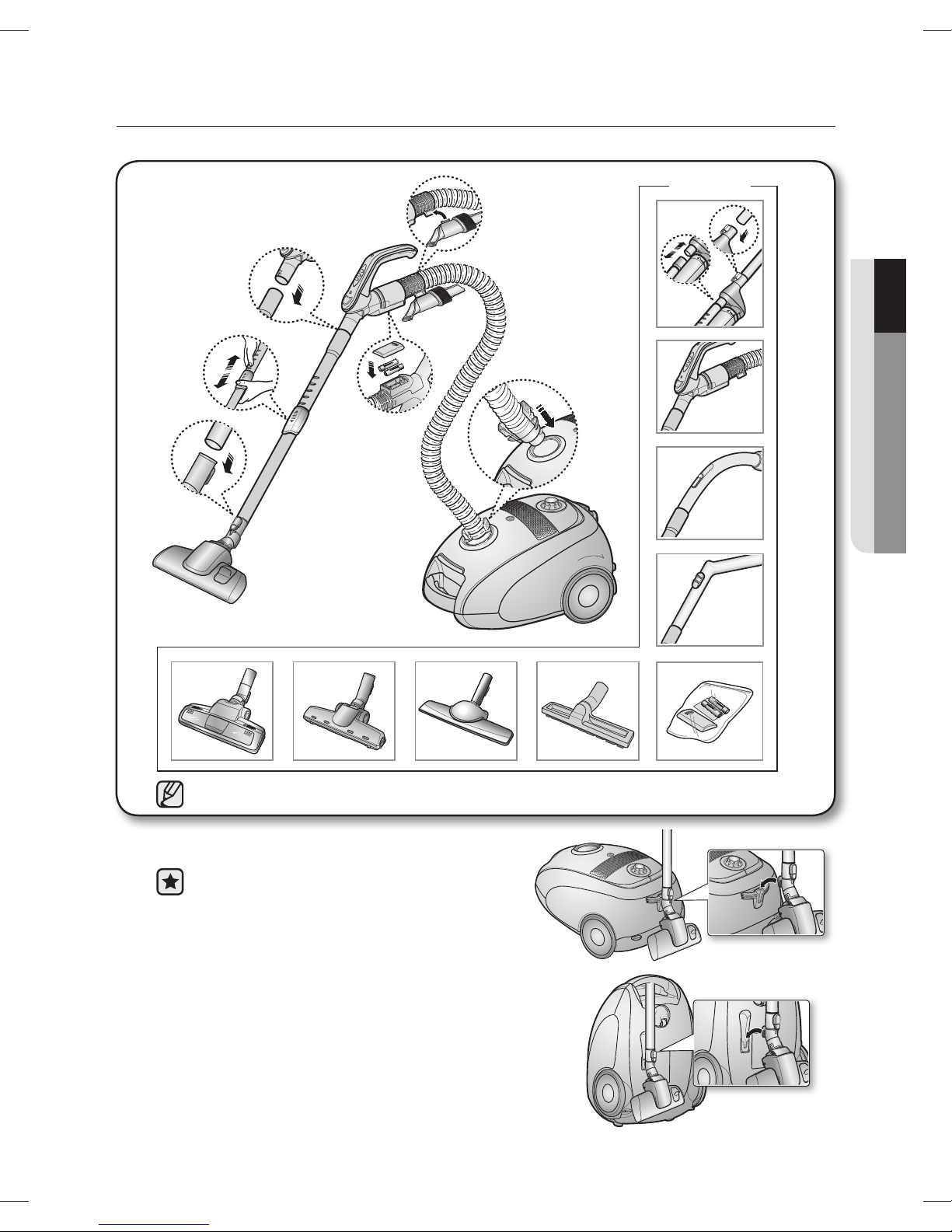

assembling the cleaner
assembling the cleaner _5
01 ASSEMBLING THE CLEANER
OPTION
OPTION
• For storage, park the floor nozzle.
• Features may vary according to model.
DJ68-00660G(0.0).indb 5DJ68-00660G(0.0).indb 5 13. 5. 16.  11:3513. 5. 16.  11:35

- HOSE
1. Vacuum cleaner ON/OFF
Press the ON/OFF button to operate the vacuum cleaner.
Press again to stop the vacuum cleaner.
2. Vacuum cleaner MIN/MID
Press the MIN/MID button to operate the vacuum at a low
level (for curtain cleaning, etc.).
Press again to operate the vacuum in a MID mode.
3. Using at MAX
Press the MAX button to operate the vacuum at maximum
intake.

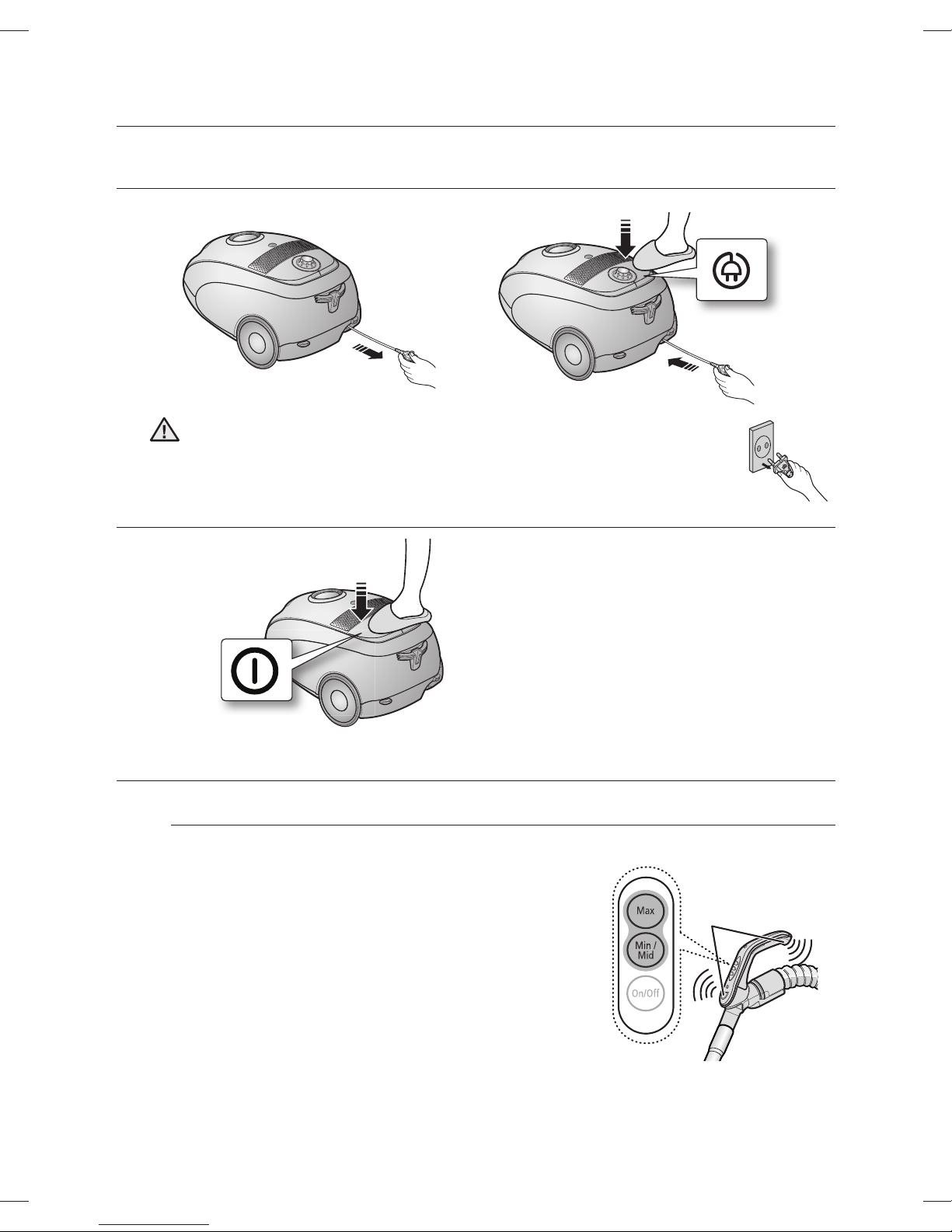

operating the cleaner
POWER CORD
• When removing the plug from the electrical outlet, grasp the plug, not the cord.
POWER CONTROL
Remote-control type (OPTIONAL)
ON/OFF SWITCH
6_ operating the cleaner
SENDER
HANDLE CONTROL
[The cleaner is controlled by using
infrared signals.]
CAUTION
DJ68-00660G(0.0).indb 6DJ68-00660G(0.0).indb 6 13. 5. 16.  11:3513. 5. 16.  11:35

operating the cleaner _7
02 OPERATING THE CLEANER
- BODY
Press the power ON/OFF button repeatedly to start and to
stop the vacuum cleaner.
(OFF →ON →OFF) 2
1
If the remote handle control is not working, the cleaner
can be operated using the ON/OFF button on the body
of the machine.
1The ON/OFF button operates the vacuum cleanner or stops it.
2The INFRARED light indicates the part that receives the infra-red signal from the
handle control.
Body-control type (OPTIONAL)
- HOSE
To reduce suction for leaning draperies, small rugs, and other light
fabrics, pull the tap air until the hole is open
OPTION
OPTION
- BODY (VOLUME TYPE ONLY)
To control power level, just slide the power control bottom
right and left.
MIN = For delicate fabrics, e.g.net curtains.
MAX = For hard floors and heavily soiled carpets.
DJ68-00660G(0.0).indb 7DJ68-00660G(0.0).indb 7 13. 5. 16.  11:3513. 5. 16.  11:35

8_ maintain tools and filter
maintain tools and filter
USING ACCESSORY
Pipe
• Adjust the length of the telescopic pipe by sliding the length
control button located in the center of the telescopic pipe
back and forth.
• To check for blockages, separate the telescopic pipe and
adjust to shorten. This allows for easier removal of waste
clogging the tube.
Accessory (Optional)
• Push the accessory on to the end of the
hose handle.
• Pull out and turn the dusting brush for
cleaning delicate areas.
• To use the upholstery tool, push the
accessory on to the end of the hose
handle in the opposite direction.
DJ68-00660G(0.0).indb 8DJ68-00660G(0.0).indb 8 13. 5. 16.  11:3513. 5. 16.  11:35

maintain tools and filter _9
03 MAINTAIN TOOLS AND FILTER

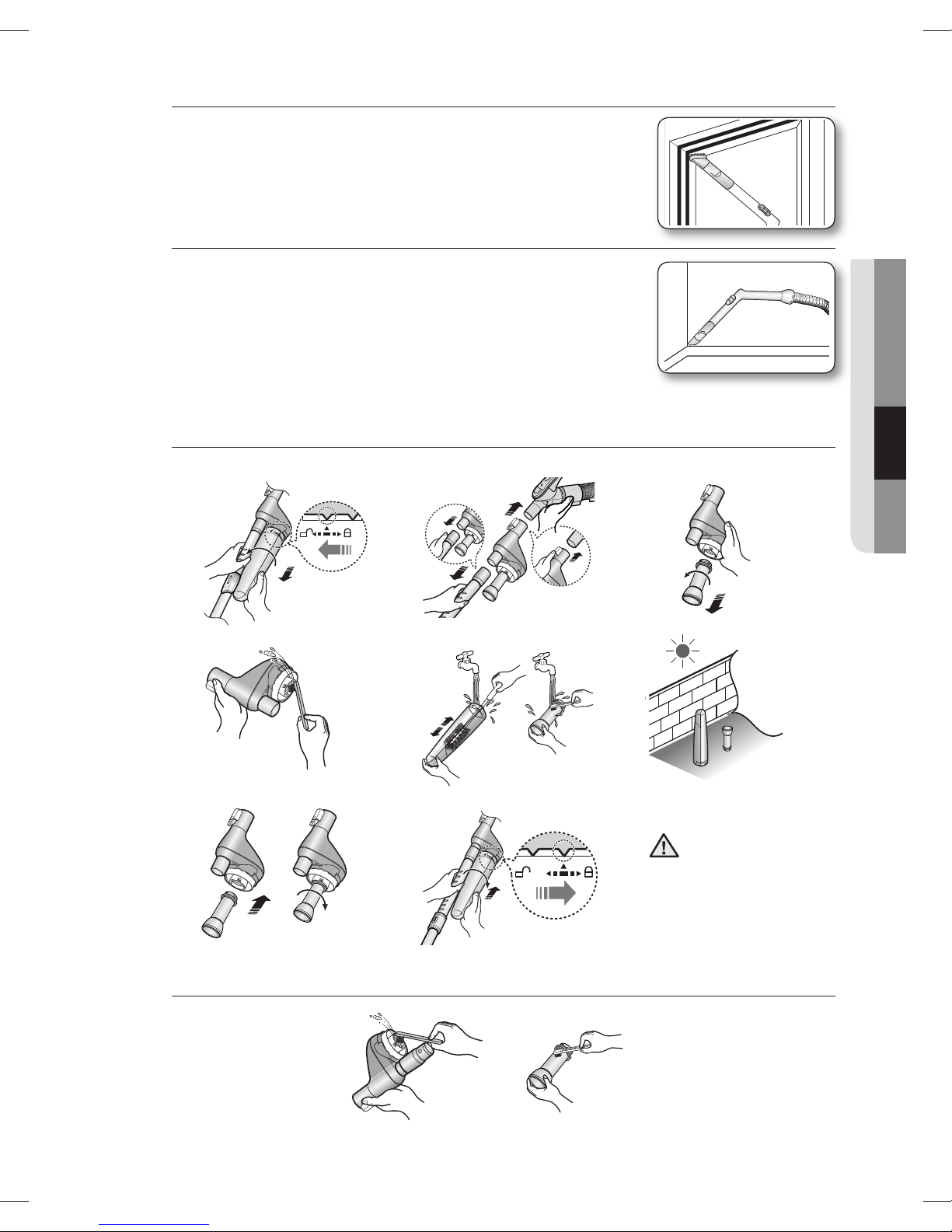

Accessory (Optional)
• Dusting brush for furniture. shelves, books, etc.
• Crevice tool for radiators, crevices, corners, between cushions.
1 2 3
4 5 6
78
CLEANING THE CYCLONE FILTER (Optional)
- CLEANING THE INNER PART OF CYCLONE FILTER
• It is necessary to use
Cyclone Filter while
cleaning.
CAUTION
DJ68-00660G(0.0).indb 9DJ68-00660G(0.0).indb 9 13. 5. 16.  11:3513. 5. 16.  11:35

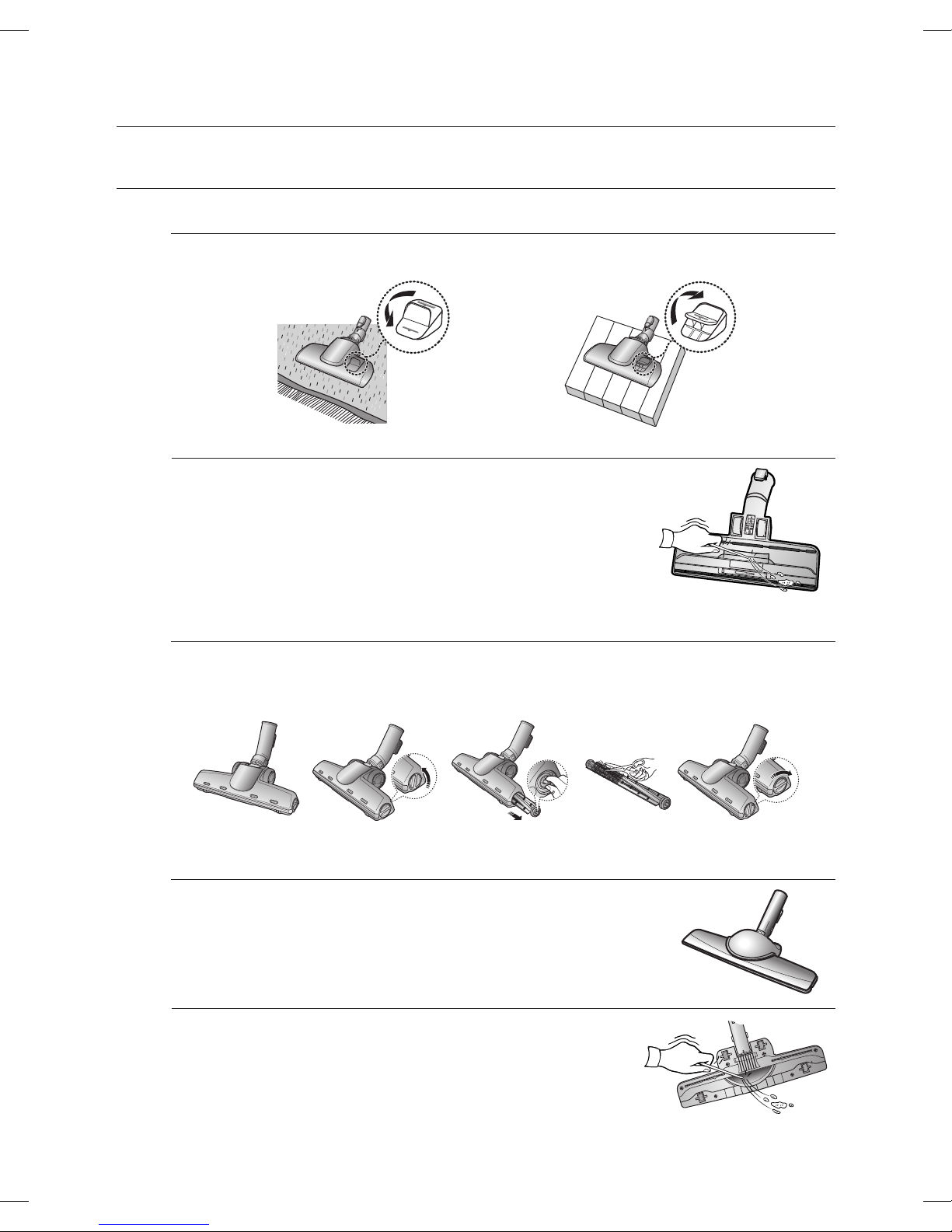

MAINTAIN FLOOR TOOLS
2-Step Brush (Option)
• Adjust the inlet lever according to the floor surface.
Carpet Cleaning Floor Cleaning
• Remove waste matter completely if the inlet is blocked.
maintain tools and filter
10_ maintain tools and filter
Parquet brush (Option)
Vacuum dust in wide area at once
• Remove waste matter completely if the inlet is blocked.
Pet Brush (Option)
For improved pick-up of pet hair and fibre on carpets.
Frequent vacuuming of hair or pet fur may cause a falling-off of the rotation due to matters tangled
around the drum. In this case, clean the drum with care.
DJ68-00660G(0.0).indb 10DJ68-00660G(0.0).indb 10 13. 5. 16.  11:3513. 5. 16.  11:35

maintain tools and filter _11
03 MAINTAIN TOOLS AND FILTER

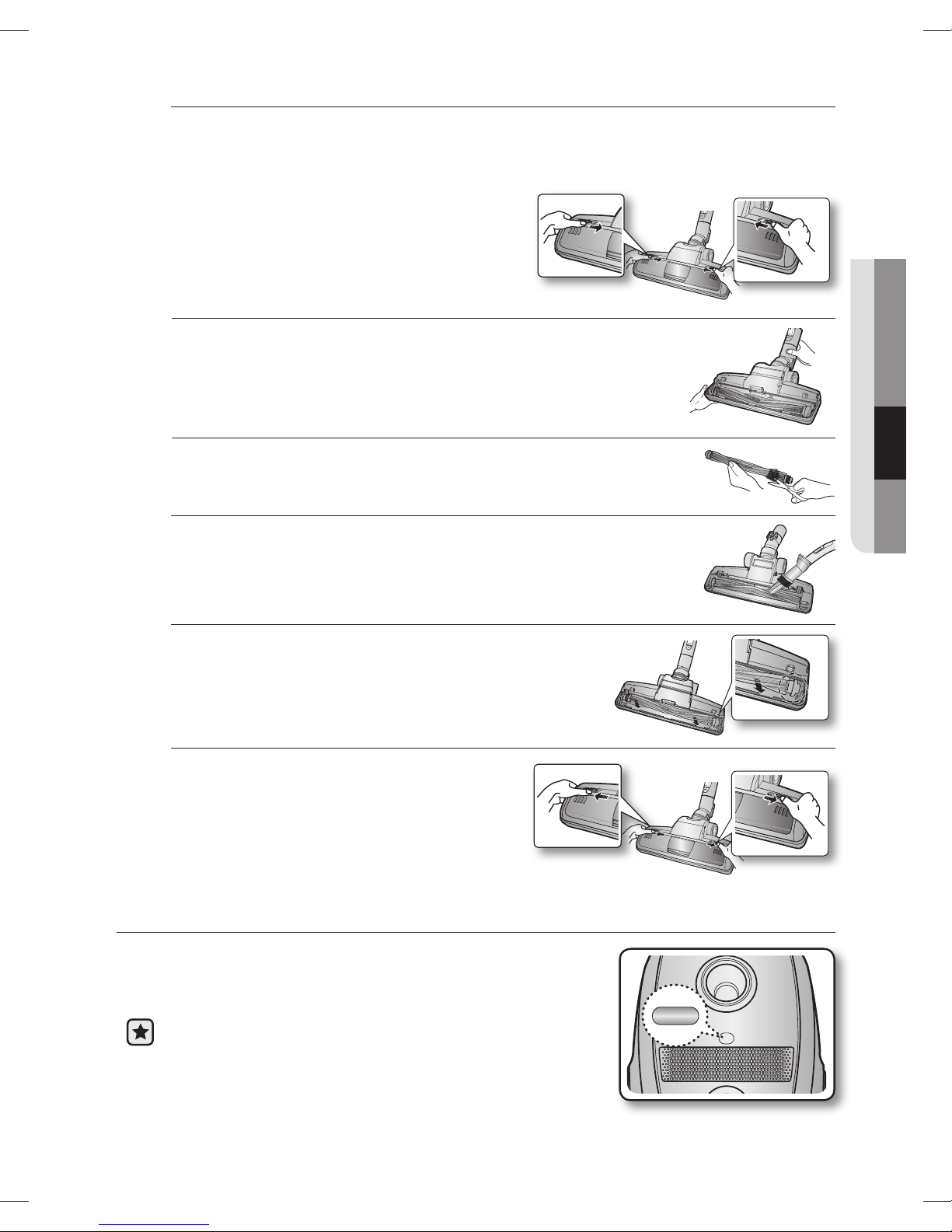

CHECK FILTER INDICATOR
If the “Filter Check” indicator turns to red color while you
are cleaning, the dust bag requires replacement.
If the “Filter Check” indicator continues to display red
color even after having changed bag into new one, turn
the cleaner off and check if there is any clogging in the
hose,tube,floor nozzle,or on the inlet/outlet filter.
Power Turbo Plus (Option)
For improved pick-up of pet hair and fibre on carpets.
Frequent vacuuming of hair or pet fur may cause a falling-off of the rotation due to matters tangled
around the drum. In this case, clean the drum with care.
1. Push the Open button on the transparent screen
cover to separate the cover.
2. Remove the brushbar from the transparent screen.
3. Remove waste matter such as dust and hair tangled around the brushbar
using scissors.
4. Remove dust inside the brush housing using a dry duster or crevice tool.
5. Insert brushbar into rotating belt and assemble.
6. Click the transparent screen cover back into place
to reassemble.
DJ68-00660G(0.0).indb 11DJ68-00660G(0.0).indb 11 13. 5. 16.  11:3513. 5. 16.  11:35

maintain tools and filter
CHANGING THE DUST BAG
1
1
2
2
3
3
12_ maintain tools and filter
4
4
CLEANING INLET FILTER
1
1
Don’t throw away the filter.
2
2
3
3
4
4
CLEANING OUTLET FILTER
2
2
1
1
3
3
Replacement filters are available at your local Samsung distributor.
OPTIONAL
• For Cloth Bag
After using, if the cloth bag is full of dust, clean the cloth bag
and use it again.
You can purchase dust bags in the shops where you bought this
vacuum cleaner.
Paper bag can be used as you prefer (Micro-bag:VP-78M,
Paper-bag:VP-77)
OPTIONAL
DJ68-00660G(0.0).indb 12DJ68-00660G(0.0).indb 12 13. 5. 16.  11:3613. 5. 16.  11:36

maintain tools and filter _13
03 MAINTAIN TOOLS AND FILTER

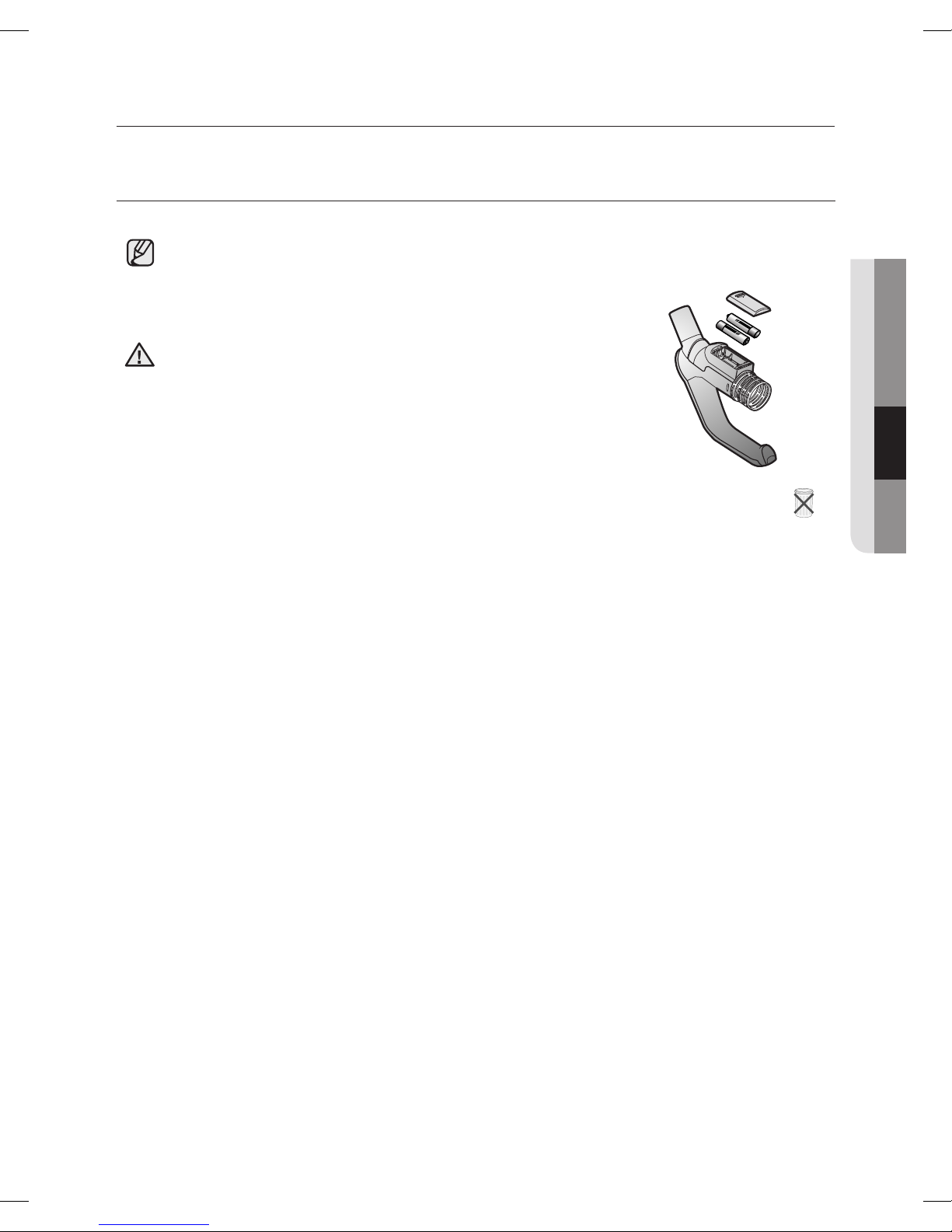

CHANGE THE BATTERY (OPTIONAL)
1. When the vacuum cleaner dows not work, replace the batteries. If the problem persists, please
contact our authorized dealer.
2. Use 2 batteries of size AA.
1. Never disassemble or recharge the batteries.
2. Never heat up the batteries or throw them into fire.
3. Do not reverse (+), (-) poles
4. Dispose of the batteries property.
WARNING
maintain tools and filter
BATTERY TYPE : AA Size
DJ68-00660G(0.0).indb 13DJ68-00660G(0.0).indb 13 13. 5. 16.  11:3613. 5. 16.  11:36

troubleshooting
PROBLEM SOLUTION
Motor dows not start. • Check cable, pulg and socket.
• Leave to cool.
Suction force is gradually
decreasing. • Check for blockage and remove.
Cord does not rewind fully. • Pull the cord out 2-3m and push down the cord rewind button.
Vacuum cleaner dows not
pick up dirt. • Check hose and replace if required.
Low or decreasing suction • Please check filter and, if required, clean as illustrated in the
instructions.
14_ troubleshooting
DJ68-00660G(0.0).indb 14DJ68-00660G(0.0).indb 14 13. 5. 16.  11:3613. 5. 16.  11:36

memo
DJ68-00660G(0.0).indb 15DJ68-00660G(0.0).indb 15 13. 5. 16.  11:3613. 5. 16.  11:36

SC61 Series
DJ68-00660G(0.0).indb 16DJ68-00660G(0.0).indb 16 13. 5. 16.  11:3613. 5. 16.  11:36

ƊǞ Ƚ Ɖɀžƾ ȼ ŴǀżǍŵ ȔǾƵŸ ǀžNjų ǎżǍƙ ȲƾƫůȁȚ ǟűǍȽƁɀ ƊǞ Ƚ Ɖɀžƾ ȼ ŴȝƾƆƄƶƙ ǝŻǾŸ ƾƷŽ ǝƴƂŴȖ ȸLj

DJ68-00660G(0.0).indb 1DJ68-00660G(0.0).indb 1 13. 5. 16.  11:3613. 5. 16.  11:36

ȜǍżnjž
DJ68-00660G(0.0).indb 2DJ68-00660G(0.0).indb 2 13. 5. 16.  11:3613. 5. 16.  11:36

ƾƷŲǾǧȘȶȔƾƭųLjȚȯƾƪƄżȚ_Ȉȋ
ƾƷŲǾǧȘȶȔƾƭųLjȚȯƾƪƄżȚ
ǀƴƳƪƓȚǚƑȚ
ǚƵƯƁǽȱǍƤȚ
ǏƃƲƓȚȶǏŮƾƲŽȚȶǚƃƳŽȚǜžǚżǑƇźȚ 
t
ȢǍƃƁǟƄŲǝżǍůȚ 
t
ƾȹƸƆƁȤNjůǒƱƈƶůǓƱƪŽȚȜǞŻǝƄŽȚȥƼŮǛŻȶȢȚNjƉſȚȱƾƶƀȴƾżȚȣȘƾƛNjżƺů 
t
ǚžƾżǚƳƪŮǗƴƁǽǙƴƉŽȚǙƴƉŽȚȬƾűȤȘȤȥǟƴŸǓưǤȚȶȤƾƄžȖȊǟŽȘǜƁǍƄžǖƴƃůǀźƾƉƙȟȤƾƈƴŽǙƴƉŽȚƿƇŴȚ 
t
ȡƾŴȶLjȚǓƲƄƴůǽǀƸǣƾŮǍƷƳŽȚǀƉƶƳƓȚǍžLjȚȳǎŽȚȣȘǝŽNjƃƄŴȚȶȳǞŶǍƒȚǑƇźȚ 
t
ƾȹƸƆƁȤNjůǚƲůȶȖǀƬƱƈƶžǓƱƪŽȚȜǞŻȝȚȢƾŵȤȁȚǠźlj dž ǤǞžǞƀƾƵżǍžLjȚȳǎŽȚȣȘǝƱƸƮƶůȶljŵǍƓȚǑƇźȔƾűǍŽȚ 
t
DJ68-00660G(0.0).indb 3DJ68-00660G(0.0).indb 3 13. 5. 16.  11:3613. 5. 16.  11:36

ȈȊNljŵǍƓȚȶȝȚȶȢLjȚǀſƾƸǧ
ƾȹƲƴƭžƾƵƷƶƇŵȜȢƾŸȘȶȖƞƄƁȤƾƭƃŽȚǙƱŮǛƲůǽ.Ȉ
ƾȹƲƴƭžȤƾƶŽȚǠźƾƵƷƸžȤȶȖƞƄƁȤƾƭƃŽȚƞƈƉƄŮǛƲůǽ.ȉ
ȶƞƃƭƲŽȚǏƳƯůǽ.Ȋ
ǛƸƴŴǚƳƪŮƞƄƁȤƾƭƃŽȚǜžǑƴƈů.ȋ
ǍƁnjƎ
ljŵǍƓȚȶȝȚȶȢLjȚǀſƾƸǧ
 AAǛƆŲǀƁȤƾƭƃŽȚȬǞſ
NjƵƄƯƓȚƾƶƴƸżǞŮȲƾƫůǽȚȔƾűǍŽȚȆǀƴƳƪƓȚȤȚǍƵƄŴȚǀŽƾŲǠźȶȝƾƁȤƾƭƃŽȚȲNjƃƄŴƾźȆǚƵƯůǽǀƸǣƾŮǍƷƳŽȚǀƉƶƳƓȚǁſƾżȚȣȘ.Ȉ
.AAǛƆƇŮƞƄƁȤƾƭŮȳNjƈƄŴȚ.ȉ
ȸȤƾƸƄųȚǀƁȤƾƭƃŽȚǍƸƸưů
ljŵǍƓȚȶȝȚȶȢLjȚǀſƾƸǧ ȇȊ
DJ68-00660G(0.0).indb 4DJ68-00660G(0.0).indb 4 13. 5. 16.  11:3613. 5. 16.  11:36
