Samsung SS6AK60 Series User manual

Vacuum cleaner
User manual
SS6AK60 / SS6AM60 Series
• Before operating this unit, please read the instructions carefully.
• For indoor use only.
1_Stick_VS6000_EN_00745D-03_AA.indd 1 2017-08-23 오후 3:31:36

English
2
Contents
PREPARATION
Important safety instructions 3
INSTALLATION

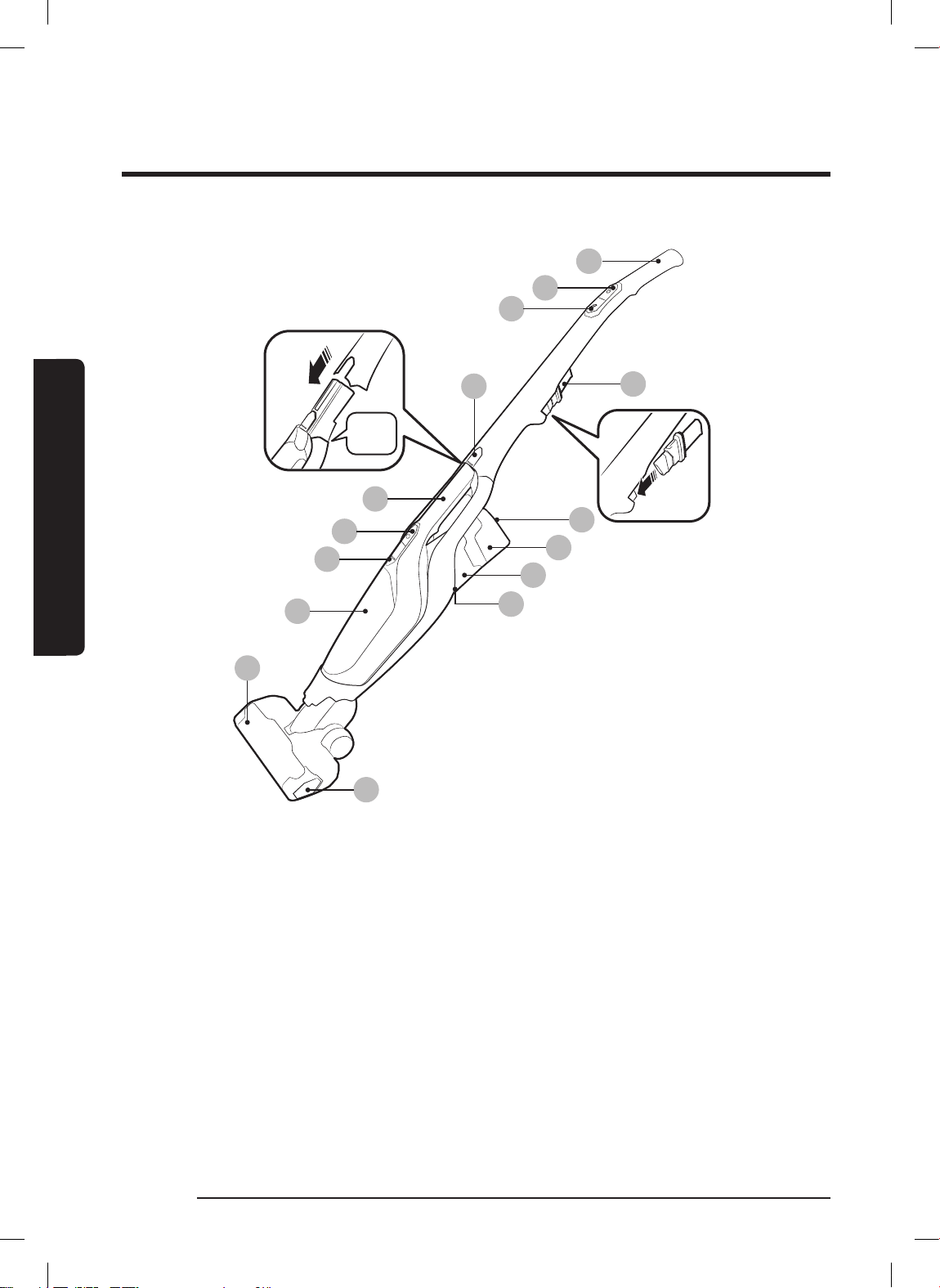

Name of the parts 12
OPERATIONS
Using the vacuum cleaner 13

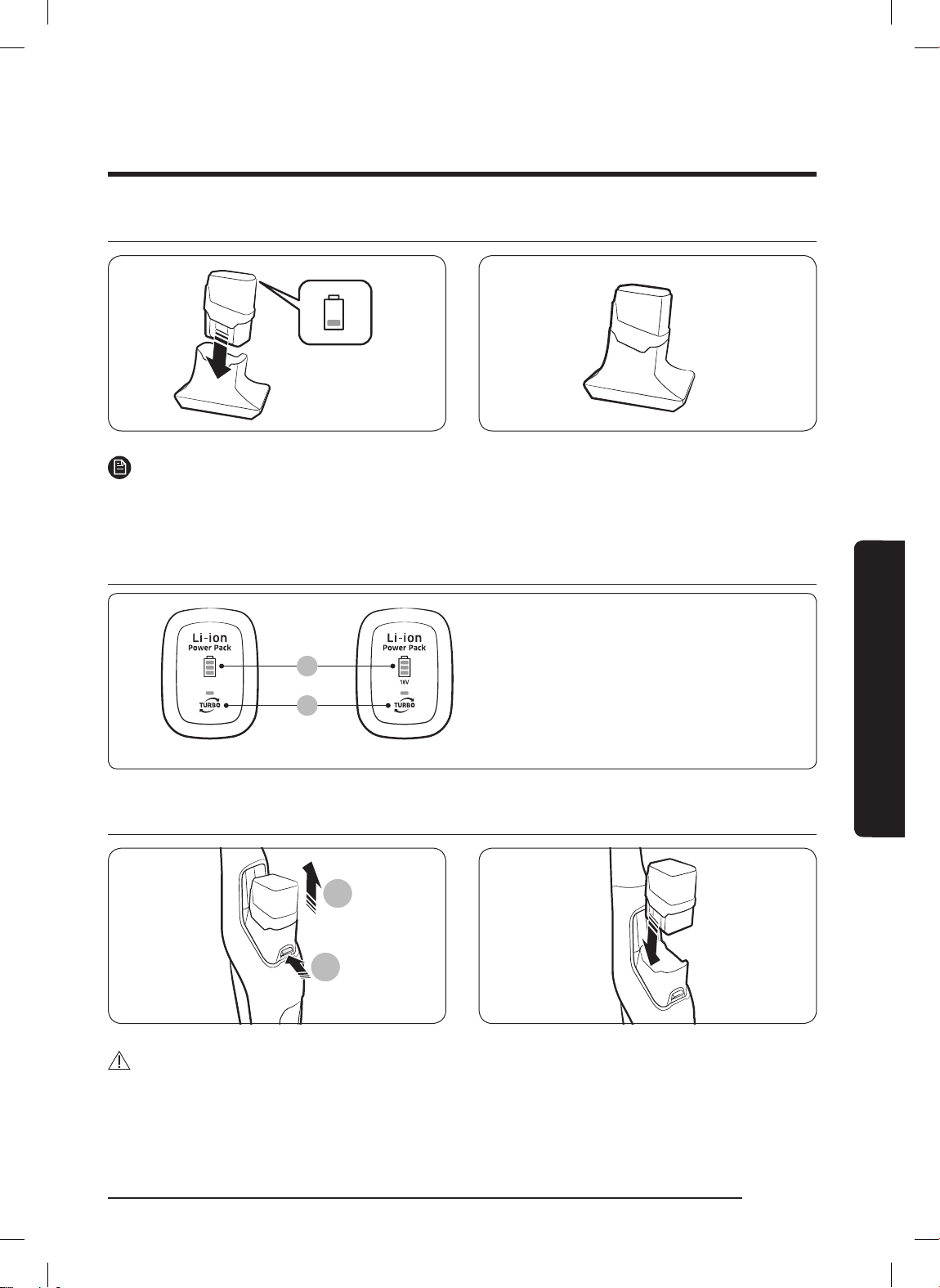

Charging the stick vacuum cleaner 13
Assembling and Disassembling a battery 13
Using the stick vacuum cleaner 14
Using the handy vacuum cleaner 14
Using the crevice tool and dusting brush 15
Using the Long Reach Tool (option) 15
MAINTENANCE
Maintaining the vacuum cleaner 16

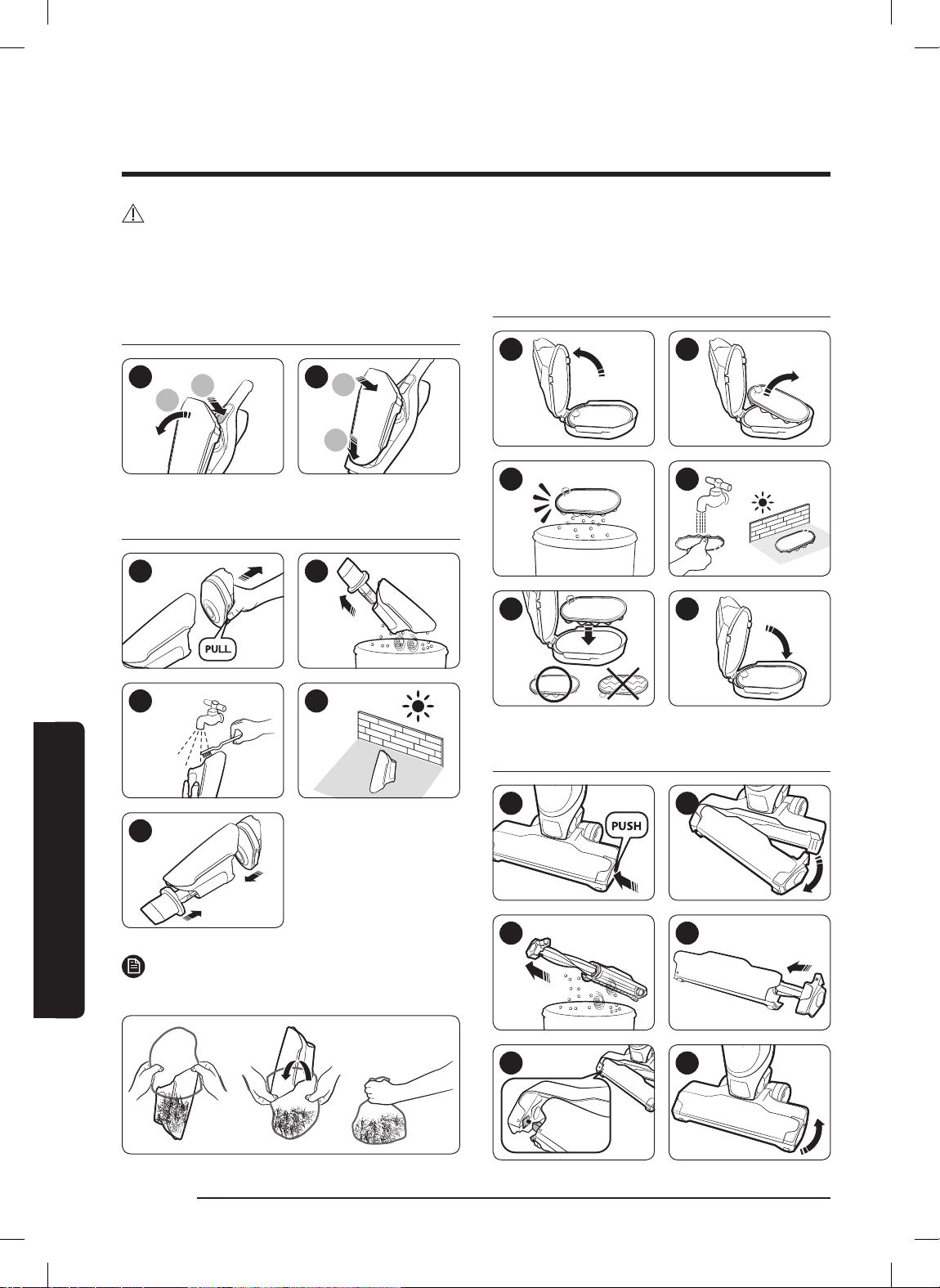

Disassembling / Assembling the dustbin 16
Cleaning the dustbin 16
Cleaning the sponge lter 16
Cleaning the air intake 16
APPENDICES
Notes and cautions 17
Battery usage 17
Operation 17
Maintenance 18
Troubleshooting 19

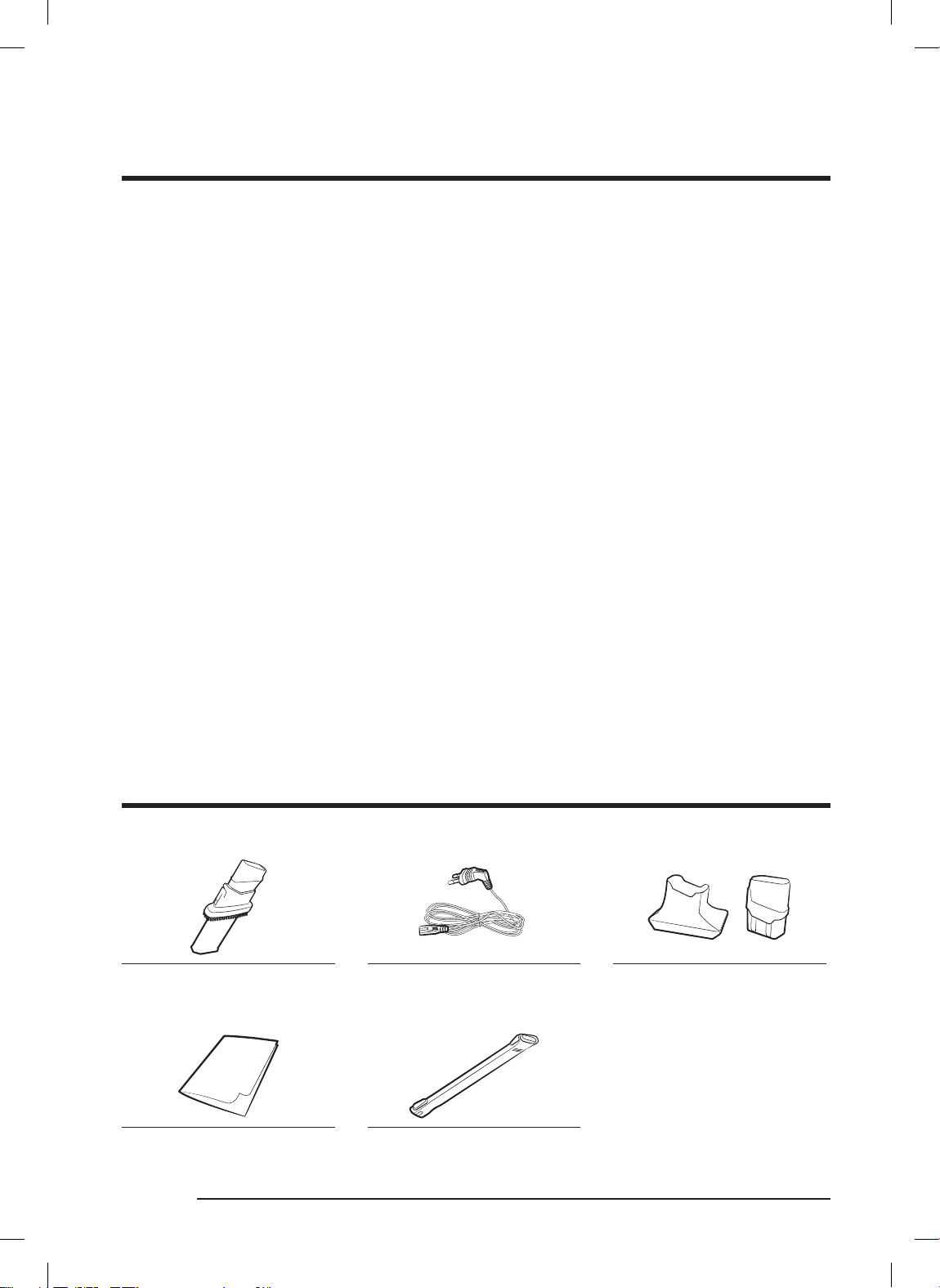

Accessories
Crevice tool / Dusting
brush Power cord Charger / battery
User manual Long Reach Tool (option)
1_Stick_VS6000_EN_00745D-03_AA.indd 2 2017-08-23 오후 3:31:36

English
3
PREPARATION
• Before operating the appliance, please read this manual thoroughly and
retain it for your reference.
• Because these following operating instructions cover various models, the
characteristics of your vacuum cleaner may differ slightly from those
described in this manual.
Caution/Warning symbols used
WARNING
Indicates that a danger of death or serious injury exists.
CAUTION
Indicates that a risk of personal injury or material damage exists.
Other symbols used
NOTE
Indicates that the following text contains additional important information.
State of California Proposition 65 Warning (US only)
WARNING
This product contains chemicals known to the State of California to cause
cancer and birth defects or other reproductive harm.
L i - i o n
For battery recycling go to call2recycle.org;
or call 1-800-822-8837
Important safety instructions
PREPARATION
1_Stick_VS6000_EN_00745D-03_AA.indd 3 2017-08-23 오후 3:31:36

English
4
PREPARATION
Failure to meet these requirements could cause damage to the internal
parts and void your warranty.
General
• Use only as described in this manual. Use only manufacturer’s
recommended attachments.
• If appliance is not working as it should, has been dropped, damaged, left
outdoors, or dropped into water, return it to a service center.
• Read all instructions carefully. Before switching on, make sure that the
voltage of your electricity supply is the same as that indicated on the
rating plate on the bottom of the cleaner.
• WARNING : Do not use the vacuum cleaner when rug or oor is wet.
• Close supervision is necessary when any appliance is used by or near
children. Do not allow the vacuum cleaner to be used as a toy. Do not
allow the vacuum cleaner to run unattended at any time. Use the vacuum
cleaner only for its intended use as described in these instructions.
• Do not use the vacuum cleaner without a dustbin.
• Empty the dustbin before it is full in order to maintain the best efciency.
• Do not use the vacuum cleaner to pick up matches, live ashes or cigarette
butts. Keep the vacuum cleaner away from stoves and other heat sources.
Heat can deform and discolour the plastic parts of the unit.
• Avoid picking up hard, sharp objects with the vacuum cleaner as they
may damage the cleaner parts.
• Do not block the suction or the exhaust port.
1_Stick_VS6000_EN_00745D-03_AA.indd 4 2017-08-23 오후 3:31:36

English
5
PREPARATION
• Switch the vacuum cleaner off on the body of the machine before
unplugging from the electrical outlet. Disconnect the plug from the
electrical outlet before emptying the dustbin. To avoid damage, please
remove the plug by grasping the plug itself, not by pulling on the cord.
• This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
• Children should be supervised to ensure that they do not play with the
appliance.
• The plug must be removed from the socket outlet before cleaning or
maintaining the appliance.
• The use of an extension cord is not recommended.
• If your vacuum cleaner is not operating correctly, switch off the power
supply and consult an authorized service agent.
• If the supply cord is damaged, it must be replaced by the manufacturer
or its service agent or a similarly qualied person in order to avoid a
hazard.
• Unplug the cleaner when not in use. Turn off the power switch before
unplugging.
• Do not use to suction up water
• Do not immerse in water for cleaning.
• Please contact the manufacturer or service agent for a replacement.
1_Stick_VS6000_EN_00745D-03_AA.indd 5 2017-08-23 오후 3:31:36

English
6
PREPARATION
Battery charger
• Do not modify the polarized plug to t a non-polarized outlet or
extension cord.
• Do not use outdoors or on wet surfaces.
• Unplug the charger from the outlet when not in use and before servicing.
• Use only the charger supplied by the manufacturer to recharge.
• Do not use with a damaged cord or plug.
• Do not pull or carry by the cord, use the cord as a handle, close the door
on the cord, or pull the cord around sharp edges or corners. Keep the
cord away from heated surfaces.
• Do not use extension cords or outlets with inadequate current carrying
capacity.
• Do not unplug by pulling on the cord. To unplug, grasp the plug, not the
cord.
• Do not mutilate or incinerate batteries as they will explode at high
temperatures.
• Do not attempt to open the charger. Repairs should only be carried out
by a qualied customer care centre.
• Do not expose the charger to high temperatures or allow moisture or
humidity of any kind to come into contact with the charger.
Stick vacuum cleaner
• Do not pick up hard or sharp objects such as glass, nails, screws, coins,
and etc.
• Do not use without a lter in place. When servicing the unit, never put
ngers or other objects into the fan chamber in case the unit accidentally
turns on.
1_Stick_VS6000_EN_00745D-03_AA.indd 6 2017-08-23 오후 3:31:36

English
7
PREPARATION
• Do not put any objects into openings. Do not use with any openings
blocked; keep openings free of dust, lint, hair, and anything that may
reduce air ow.
• Do not pick up toxic materials (chlorine bleach, ammonia, drain cleaner,
etc.).
• Do not pick up anything that is burning or smoking, such as cigarettes,
matches, or hot ashes.
• Do not use to pick up ammable or combustible liquids such as gasoline,
nor use on areas where they may be present.
• Do not use STICK vacuum cleaner in an enclosed space lled with
vapours given off by oil based paint, paint thinner, moth proong
substances, ammable dust, or other explosive or toxic vapours.
• Leaks from battery cells can occur under extreme usage or temperature
conditions. If the liquid gets on skin, wash quickly with water. If the
liquid gets into the eyes, ush them immediately with clean water for a
minimum of 10minutes. Seek medical attention.
Power related
WARNING
• Do not bend the power cord with excessive force or do not put heavy
object on the power cord.
– Otherwise, electric shock or re may occur.
• If there is dust, water, etc. on the pin or contact point of the power plug,
wipe them carefully.
– Otherwise, abnormal operation or electric shock may occur.
1_Stick_VS6000_EN_00745D-03_AA.indd 7 2017-08-23 오후 3:31:36

English
8
PREPARATION
• Do not use a power source other than national rated voltage, do not use a
multi outlet to supply power for multiple electronic appliances and do not
leave the power cord carelessly on the oor.
– Otherwise, electric shock or re may occur.
• Do not use a damaged power plug, power cord or loose power outlet.
– Otherwise, electric shock or re may occur.
• If the power cord is damaged, replace the power cord with a new one by
a certied repairman.
– Otherwise, electric shock or re may occur.
Operation
WARNING
• Do not touch the terminal of a charger with chop sticks, driver, etc.
– Otherwise, fatal damage to the charger may occur.
• Make sure that the terminal of a charger should not come into contact
with a conductor such as a bracelet, watch, metal rod, nail, etc.
• Make sure that any liquid such as water or juice is not allowed to enter
the charger.
– Otherwise, electric shock or re may occur.
• Do not use a charger for other purposes.
– Otherwise, fatal damage to the charger or re may occur.
• Do not vacuum liquid, blade, pin, ember, etc. during the cleaning.
– Otherwise, abnormal operation or product damage may occur.
• Do not step on the product body or do not give a shock to the product.
– Otherwise, an injury or product damage may occur.
• The air intake and air outlet should not be blocked during the cleaning.
– Otherwise, product malfunction or re may occur due to overheating of
the product.
1_Stick_VS6000_EN_00745D-03_AA.indd 8 2017-08-23 오후 3:31:36

English
9
PREPARATION
• This product is intended for household use, so do not use this product for
a heavy duty.
– Otherwise, abnormal operation or product damage may occur.
– Outdoor cleaning: stone and cement
– Billiards: chalk powder
– Hospital aseptic room
• Do not use the product near a heating appliance such as a heater,
combustible spray and ammable materials.
– Otherwise, re or product deformation may occur.
• Before using the product, the sponge lter should be inserted.
– Otherwise, dust can enter the motor inside the main body and it may
cause product damage.
• When there is gas leakage or combustible spray is used, do not touch the
power outlet with with hands and open the window for ventilation.
– Otherwise, explosion or re may occur.
• When a strange sound, smell, smoke arises, turn off the product
immediately and contact a service center.
– Otherwise, electric shock or re may occur.
CAUTION
• Before using the stick vacuum cleaner, check that the handy vacuum
cleaner is assembled to the main body correctly.
– When the handy vacuum cleaner is not assembled to the main body, the
stick vacuum cleaner does not work.
• Do not use the product near a combustible material.
– In a place where candlelight or desk lamp is placed on the oor.
– In a place where heating is turned on without supervision or an ember
exists.
– In a place where combustible materials such as gasoline, alcohol,
thinner, ashtray with unextinguished cigarette, etc. exist.
1_Stick_VS6000_EN_00745D-03_AA.indd 9 2017-08-23 오후 3:31:36

English
10
PREPARATION
• Make sure a child does not step onto the charger or sit on the charger.
– Otherwise, the child may fall and be injured or fatal product damage
may occur.
• Before plugging or unplugging the charger, turn off the main body and
handy vacuum cleaner and make sure that the pin of power plug should
not come into contact with your hands.
– Otherwise, re or electric shock may occur.
Maintenance
WARNING
• Do not use the vacuum cleaner for other than cleaning purpose.
– Otherwise, an injury or product damage may occur.
• When removing foreign matters inside the product, you should turn
off the the vacuum cleaner rst and use a tool to remove the foreign
matters.
– If the product operates while you are removing the foreign matters, an
injury or product damage may occur.
• When cleaning the exterior of the product, turn off the product rst and
then wipe it with dry towel. Do not spray water directly onto the product
or wipe it with volatile materials such as benzene, thinner or alcohol.
– If water gets into the product and an error occurs, turn off the product
and contact a service center.
• After unplugging the product, clean the charger.
1_Stick_VS6000_EN_00745D-03_AA.indd 10 2017-08-23 오후 3:31:37

English
11
PREPARATION
• When cleaning the washable parts, do not use alkaline detergent, acid,
industrial detergent, air freshener, acetic acid, etc.
– Otherwise, product damages such as plastic breakage, deformation,
discoloration, printing deterioration, etc. may occur.
Washable Parts Dustbin, sponge
Available detergent Neutral Dish washing detergent
Prohibited
detergent
Alkaline Lox, mold cleaner, etc.
Acid Parafn oil, an emulsier, etc.
Industrial cleaners NV-I, PB-I, Opti, alcohol, acetone, benzene,
thinner, etc.
Air freshener Jet spray air fresheners (coffee avor, herb,
etc.)
Oils Animal oils, vegetable oils
Etc. Edible acetic acid, vinegar, glacial acetic
acid, etc.
CAUTION
• Do not push the stick vacuum cleaner while it stands as it may fall.
– Otherwise, an injury, product damage, or oor damage may occur.
Save these instructions
Polarized plug instructions
• To reduce the risk of electric shock, this appliance has a polarized plug
(one blade is wider than the other). This plug will t in a polarized outlet
only one way. If the plug does not t fully in the outlet, reverse the plug.
If it still does not t, contact a qualied electrician to install a proper
outlet. Do not modify the plug in any way.
1_Stick_VS6000_EN_00745D-03_AA.indd 11 2017-08-23 오후 3:31:37

English
12
INSTALLATION
Name of the parts
INSTALLATION
01 Air intake
02 Dustbin
03 Dustbin release button
04 Handy vacuum cleaner power button
05 Handy vacuum cleaner
06 Handy vacuum cleaner release button
07 Turbo button
08 Power button
09 Handle
10 Crevice tool / Dusting brush
11 LED display
12 Battery
13 Air outlet
14 Battery release button
15 Air intake release button
"Click"
02
04
03
05
06
08
07
13
14
12
11
09
10
15
01
 Battery Spec
SS6AK60 series : Lithium-ion 21.6 V , 1800 mAh, 6 cell
SS6AM60 series : Lithium-ion 18.0 V , 1800 mAh, 5 cell
 Those two batteries are not compatible with each other.
1_Stick_VS6000_EN_00745D-03_AA.indd 12 2017-08-23 오후 3:31:37

English
13
OPERATIONS
Using the vacuum cleaner
Charging the stick vacuum cleaner
NOTE
• Assemble the battery into the charger completely.
• Battery level indicator blinks while the battery is charging.
LED display
SS6AK60 Series SS6AM60 Series
01
02
01 Battery level indicator
02 Turbo mode indicator
Assembling and Disassembling a battery
01
02
CAUTION
• Before disassembling the battery from a charger, turn off the stick
vacuum cleaner.
OPERATIONS
1_Stick_VS6000_EN_00745D-03_AA.indd 13 2017-08-23 오후 3:31:37

English
14
INSTALLATION
Using the stick vacuum cleaner

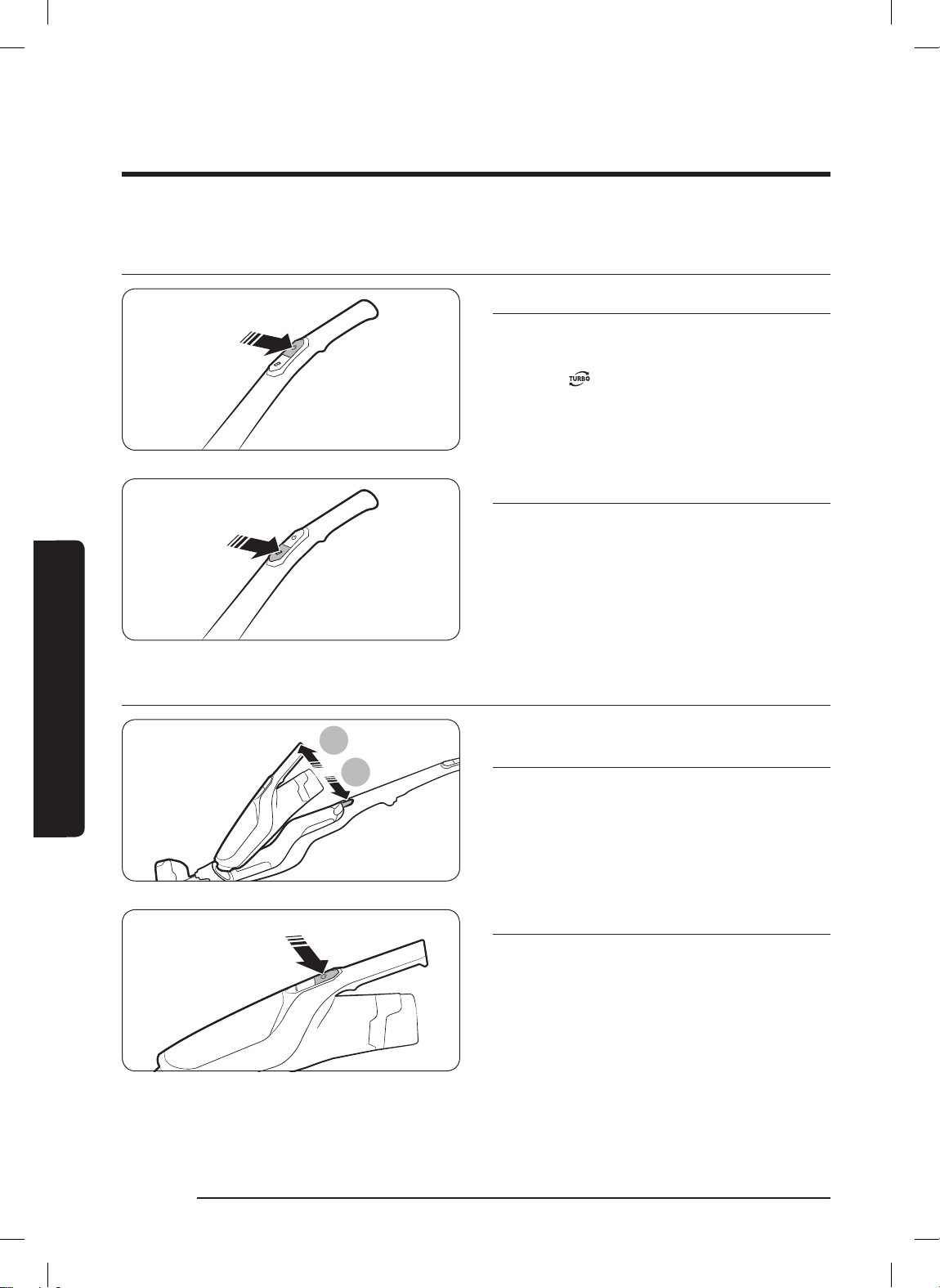

Power on/off
The stick vacuum cleaner starts operating
in Turbo mode.
Press the button to convert operation
mode. (Normal/Turbo)
Using the Turbo mode
Using the handy vacuum cleaner
01
02
Disassembling the handy vacuum
cleaner from the main body
Power on/off
The handy vacuum cleaner starts operating
in Turbo mode. The operation mode
cannot be changed.
1_Stick_VS6000_EN_00745D-03_AA.indd 14 2017-08-23 오후 3:31:37

English
15
INSTALLATION

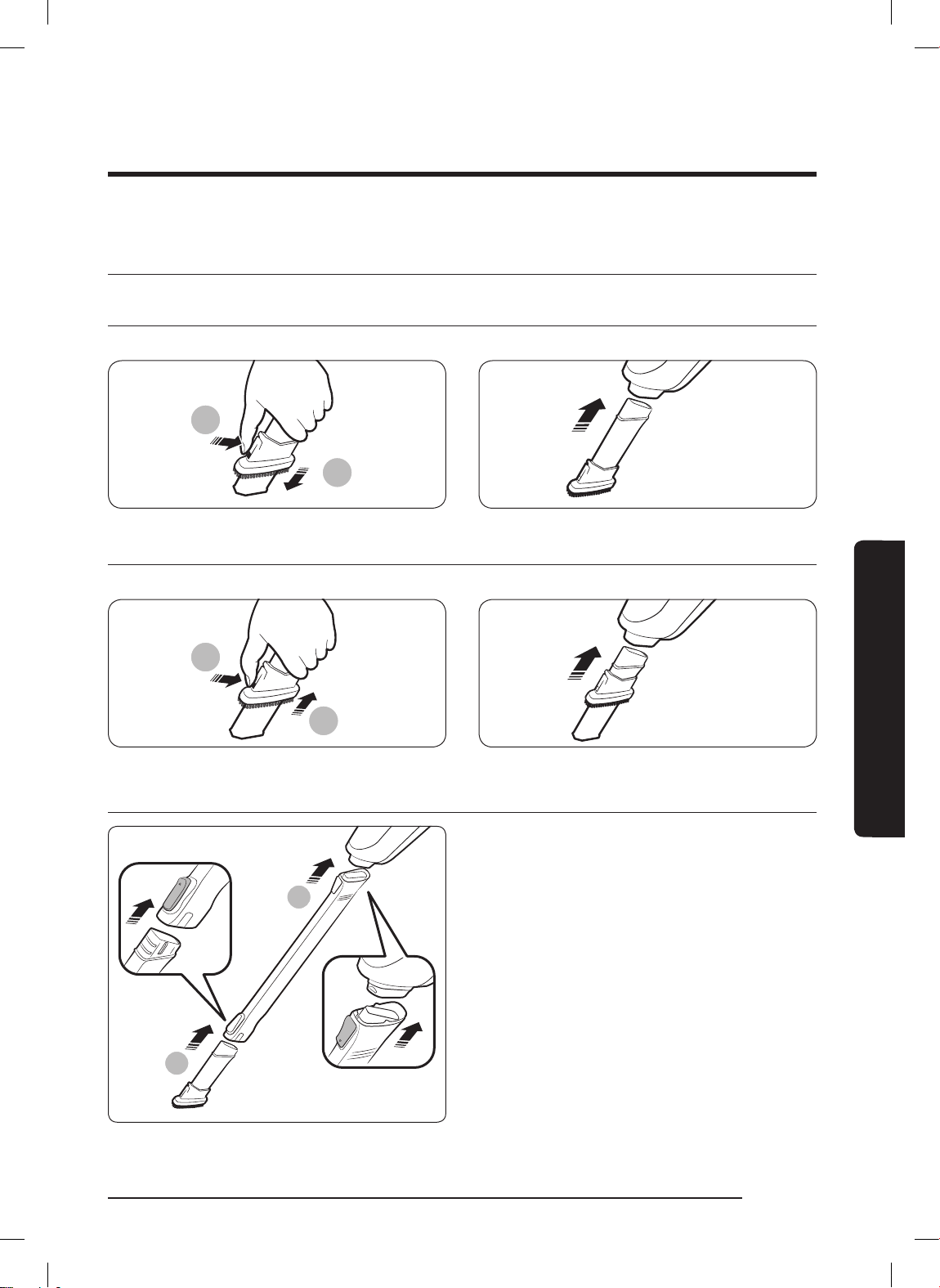

Using the crevice tool and dusting brush
Dusting brush
When removing ne dust on curtain, furniture, sofa etc.
01
02
Crevice tool
When removing ne dust on groove of window frames, chink, corner etc.
01
02
Using the Long Reach Tool (option)
02
01
When cleaning a place which is narrow
and deep or hard to reach by hand such as
under furniture or a ceiling
1_Stick_VS6000_EN_00745D-03_AA.indd 15 2017-08-23 오후 3:31:37

English
16
MAINTENANCE
Maintaining the vacuum cleaner
CAUTION
• Before cleaning the stick vacuum cleaner, turn off the vacuum cleaner.
MAINTENANCE
Disassembling / Assembling
the dustbin
01
02
1
01
02
2
Cleaning the dustbin
1 2
3 4
5
NOTE
• Emptying the dustbin in a simple way
Cleaning the sponge lter
1 2
3 4
56
Cleaning the air intake
1 2
3 4
5 6
1_Stick_VS6000_EN_00745D-03_AA.indd 16 2017-08-23 오후 3:31:39

English
17
APPENDICES
Battery usage
NOTE
• When a vacuum cleaner does not
work after charging a battery,
change the battery. If it still does
not work with the new battery,
contact a service center.
• The battery warranty period
is 6 months from the date of
purchase.
CAUTION
• Do not disassemble a battery or a
charger.
• Do not apply heat to a battery
and do not put a battery on the
re.
• As the battery is manufactured
only for this product, do not use
the battery for other electronic
appliances or other purposes.
• Removing a battery during
operation may cause product
malfunction.
• If the battery is removed
while vacuum cleaner motor is
operating, the battery may not
work for 30seconds after being
replaced due to safety reasons.
• If battery charging time and
battery usage time are reduced
with battery use, replace the
exhausted battery with a new
one.
• Use a battery with genuine logo (
) only.
• Before assembling the battery
into a charger or a vacuum
cleaner, check that the battery is
placed in the correct direction.
• When discarding a dead battery,
put it into the battery collection
box.
• When a vacuum cleaner is not
going to be used for a long time,
disassemble the battery from a
vacuum cleaner.
Operation
NOTE
• Please charge the battery for the
following cases.
– When a battery is used for the
rst time after purchase or the
battery is not used for a long
time.
– When battery level indicator is
on the lowest indication.
Notes and cautions
APPENDICES
1_Stick_VS6000_EN_00745D-03_AA.indd 17 2017-08-23 오후 3:31:39

English
18
MAINTENANCE
• When you are away from
home for a long period of time,
unplug the battery charger and
disassemble the battery from
the charger. When a battery is
not being charged, it will be
discharged.
CAUTION
• After the handy vacuum cleaner
is assembled to the main
body, the stick vacuum cleaner
operates.
• After using the handy vacuum
cleaner, assemble it to the main
body.
• Before assembling the handy
vacuum cleaner to the main body,
the handy vacuum cleaner should
be turned off.
• After assembling the handle
to the vacuum cleaner, do not
disassemble the handle again.
– Otherwise, it may cause an
injury to you.
• When the brush is rotating, do
not touch the brush.
– Otherwise, your hand can be
caught and it may cause an
injury.
Maintenance
NOTE
• Sometimes the wheel of air intake
may scratch oor. Therefore,
before using the stick vacuum
cleaner, check the wheel status of
air intake.
– When there are foreign matters
which cannot be removed easily
on the wheel of air intake,
contact a service center.
CAUTION
• Drying the parts of the stick
vacuum cleaner in the sun
for long hours may cause
deformation or discoloration.
Therefore, after cleaning the parts
of the stick vacuum cleaner, dry
them in the shade.
• Do not clean the air intake of the
stick vacuum cleaner with water
as it may cause deformation or
discoloration of parts.
1_Stick_VS6000_EN_00745D-03_AA.indd 18 2017-08-23 오후 3:31:39

English
19
MAINTENANCE
Troubleshooting
If the requested service is proved as not product malfunction, the service fee will be
charged. Therefore, please read the user manual carefully.
Problem Solutions
The stick vacuum
cleaner does not work.
• Check the battery level and charge the battery.
• Check that the product is turned off and press the power
button to turn on.
• If the product has not been used for a long time, charge
the product.
The stick vacuum
cleaner does not stop
even though I pressed
the power button.
• Check whether the handy vacuum cleaner is turned on. If
so, press the power button of the handy vacuum cleaner
rst and then press the power button of the stick vacuum
cleaner.
Suction force decreases
suddenly and vibrating
sound is generated
from the stick vacuum
cleaner.
• Check whether the air intake is clogged with foreign
matters or dustbin is fully lled. If so, remove them.
• Check whether the lter is dirty and clean the lter by
referring to the 'Maintaining the stick vacuum cleaner'
section of this manual.
• Check the battery level and charge the battery.
The vacuum cleaner
cannot be charged.
• Check current power voltage of the stick vacuum cleaner.
It should be national rated voltage.
• Check that the stick vacuum cleaner is turned on and then
check the LED of the battery level indicator is turned on.
• Check the status of charger terminal and remove the
foreign matters (dust) on the charger terminal with a
cotton swab or soft cloth.
The brush inside the air
intake does not rotate.
• Check whether the air intake is clogged with foreign
matters and remove them.
• Check the stick vacuum cleaner is turned on and then turn
off and turn on the vacuum cleaner again.
Odor is generated from
the air outlet of the stick
vacuum cleaner.
• Frequently empty the dustbin and clean the lter.
–As your stick vacuum cleaner is a new product, it
may have slight odor for the rst 3 months from the
purchase.
–Accumulated dirt in the dustbin or dust on the lter may
generate an odor.
1_Stick_VS6000_EN_00745D-03_AA.indd 19 2017-08-23 오후 3:31:39

1_Stick_VS6000_EN_00745D-03_AA.indd 20 2017-08-23 오후 3:31:40
