Samsung SW17H90 Series User manual

English
Vacuum Cleaner
user manual
✻Please read the User Manual thoroughly before operating the vacuum.
✻For indoor use only.
SW17H90***Series
Thank you for purchasing a Samsung product.
DJ68-00712E (EN)-00.indd 1 2015. 1. 9. �� 1:02

Contents
YOUR VACUUM CLEANER
07
BEFORE USING THE VACUUM
CLEANER
08
08 Trio System
09 Assembly
10 Wet accessory (Option)
12 Accessory
OPERATING CLEANER
14
14 Power cord
14 On/Off
15 Power control
16 Spray extraction
MAINTENANCE
18
18 Cleaning the dust bin and grille
20 Cleaning the dust filter
22 Cleaning the outlet filter
23 Maintain floor tools
TROUBLESHOOTING
25
DJ68-00712E (EN)-00.indd 2 2015. 1. 9. �� 1:02

ENGLISH-03
Safety information
SAFETY INFORMATION
WARNING
• Before operating the appliance, please read this manual thoroughly and retain it
for your reference.
WARNING
• Because the following operating instructions cover various models, the
characteristics of your vacuum cleaner may differ slightly from those described in
this manual.
CAUTION/WARNING SYMBOLS USED
WARNING Indicates that a risk of death or serious injury exists.
CAUTION Indicates that a risk of personal injury or material damage exists.
OTHER SYMBOLS USED
Represents something you must NOT do.
Represents something you must follow.
Indicates that you must disconnect the power plug from the socket.
WARNING
This vacuum cleaner is a vacuum cleaner with an installed Waterfilter system for
extraction cleaning, wet vacuuming and dry vacuuming. It is intended only for use in
private households. The vacuum cleaner is to be used exclusively according to the
specifications of this user manual.
Failure to meet these requirements could cause injury, damage the vacuum
cleaner and void your warranty.
DJ68-00712E (EN)-00.indd 3 2015. 1. 9. �� 1:02

ENGLISH-04
IMPORTANT SAFEGUARDS
GENERAL
• Read all instructions carefully. Before switching on, make sure
that the voltage of your electricity supply is the same as that
indicated on the rating plate on the bottom of the cleaner.
• Close supervision is necessary when any appliance is used by
or near children. Do not allow the vacuum cleaner to be used
as a toy. Do not allow the vacuum cleaner to run unattended at
any time. Use the vacuum cleaner only for its intended use as
described in these instructions.
• Do not use the vacuum cleaner without a dust bin and dust filter.
Empty the dust bin before it is full in order to maintain the best
efficiency.
• Do not use the vacuum cleaner to pick up matches, live ashes or
cigarette butts. Keep the vacuum cleaner away from stoves and
other heat sources. Heat can deform and discolour the plastic
parts of the unit. Also do not use your vacuum cleaner to pick up
sugar, salt, washing powder, chemical, dust of building materials
(e.g. cement, metal shavings and so on).
• Avoid picking up hard, sharp objects with the vacuum cleaner as
they may damage the cleaner parts.
Do not stand on the hose assembly.
Do not put weight on the hose.
Do not block the suction or the exhaust port.
• Switch the vacuum cleaner off on the body of the machine
before unplugging from the electrical outlet. Disconnect the plug
from the electrical outlet before emptying the dust bin.
To avoid damage, please remove the plug by grasping the plug
itself, not by pulling on the cord.
• This appliance can be used by children aged from 8 years and
above and people with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
DJ68-00712E (EN)-00.indd 4 2015. 1. 9. �� 1:02

ENGLISH-05
Cleaning and user maintenance shall not be done by children
without supervision.
• Children should be supervised to ensure that they do not play
with the appliance.
• The plug must be removed from the socket outlet before
cleaning or maintaining the appliance.
• The use of an extension cord is not recommended.
• If your vacuum cleaner is not operating correctly, switch off the
power supply and consult an authorized service agent.
• If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person in
order to avoid a hazard.
• Don’t carry the vacuum cleaner by holding the hose.
Use the handle on the vacuum cleaner set.
• Unplug the cleaner when not in use.
Turn off the power switch before unplugging.
• Never set the vacuum cleaner in an upright position during
operation or storage, it may cause a back flow of water.
• Do not overly stretch or bend the hose and tube system.
• Nozzles and tubes should not be held near the head during
operation – injuries could result.
• Before cleaning, servicing, filling, emptying or in the event of
malfunction, turn off all switches and unplug the mains plug.
DJ68-00712E (EN)-00.indd 5 2015. 1. 9. �� 1:02

ENGLISH-06
SAFETY INSTRUCTIONS SPECIFICALLY FOR SPRAY
EXTRACTION AND WET VACUUMING:
• Never point the cleaning jet at other people or animals, nor at
electrical sockets or appliances.
• Persons with sensitive skin should avoid direct contact with the
cleaning solution.
• If the cleaning solution contacts any mucous membranes (eyes,
mouth, etc.), flush immediately with plenty of water.
• Do not use extension cords in wet areas.
• Empty all containers after wet/damp operation. Chemical
substances (cleaners for carpets or hard floors) should be kept
out of reach of children.
• Do not spray water on wood furniture and floor.
• Do not use any chemical substances for wet cleaning except the
assigned detergent.
Samsung carpet cleaner and floor cleaner are available at your
local Samsung distributor.
• Store the vacuum cleaner at indoor temperature.
DJ68-00712E (EN)-00.indd 6 2015. 1. 9. �� 1:02

ENGLISH-07
01 YOUR VACUUM CLEANER
Your vacuum cleaner
Handle
Hose
Cyclone
Pipe
2-Step brush
Accessory
Wet Accessory
3-In-1 accessory Parquet
master(option)
Mini turbo(option) Built-in-Brush Sofa Brush(option)
Cover battery Detergent Tube set Towel
Water Dispenser
DJ68-00712E (EN)-00.indd 7 2015. 1. 9. �� 1:02

ENGLISH-08

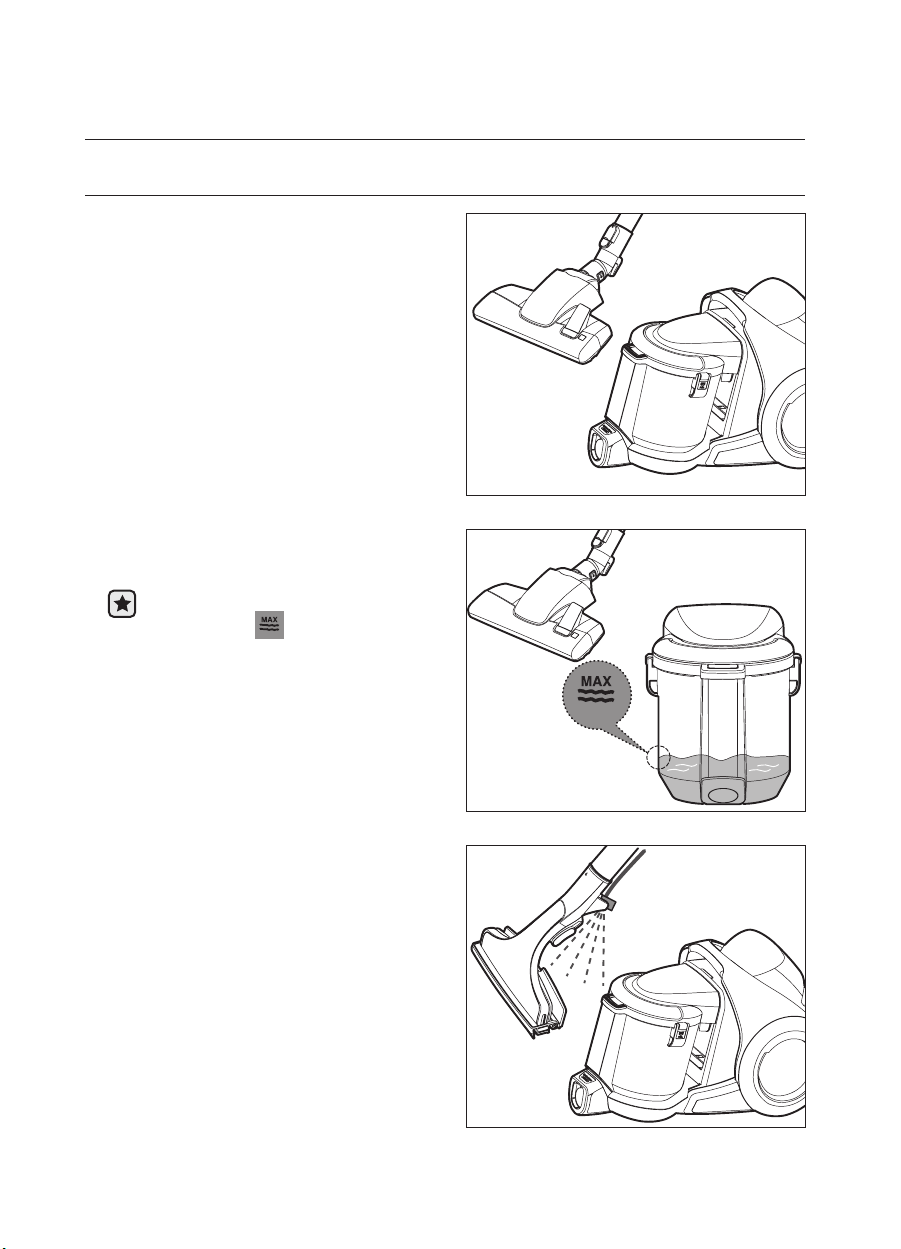

TRIO SYSTEM
Dry cleaning
Water-filter cleaning
• Fill the dust bin with the fresh
water to ' ' for water-filter
cleaning.
Wet cleaning
Before using the vacuum cleaner
DJ68-00712E (EN)-00.indd 8 2015. 1. 9. �� 1:02

ENGLISH-09
02
BEFORE USING THE VACUUM CLEANER

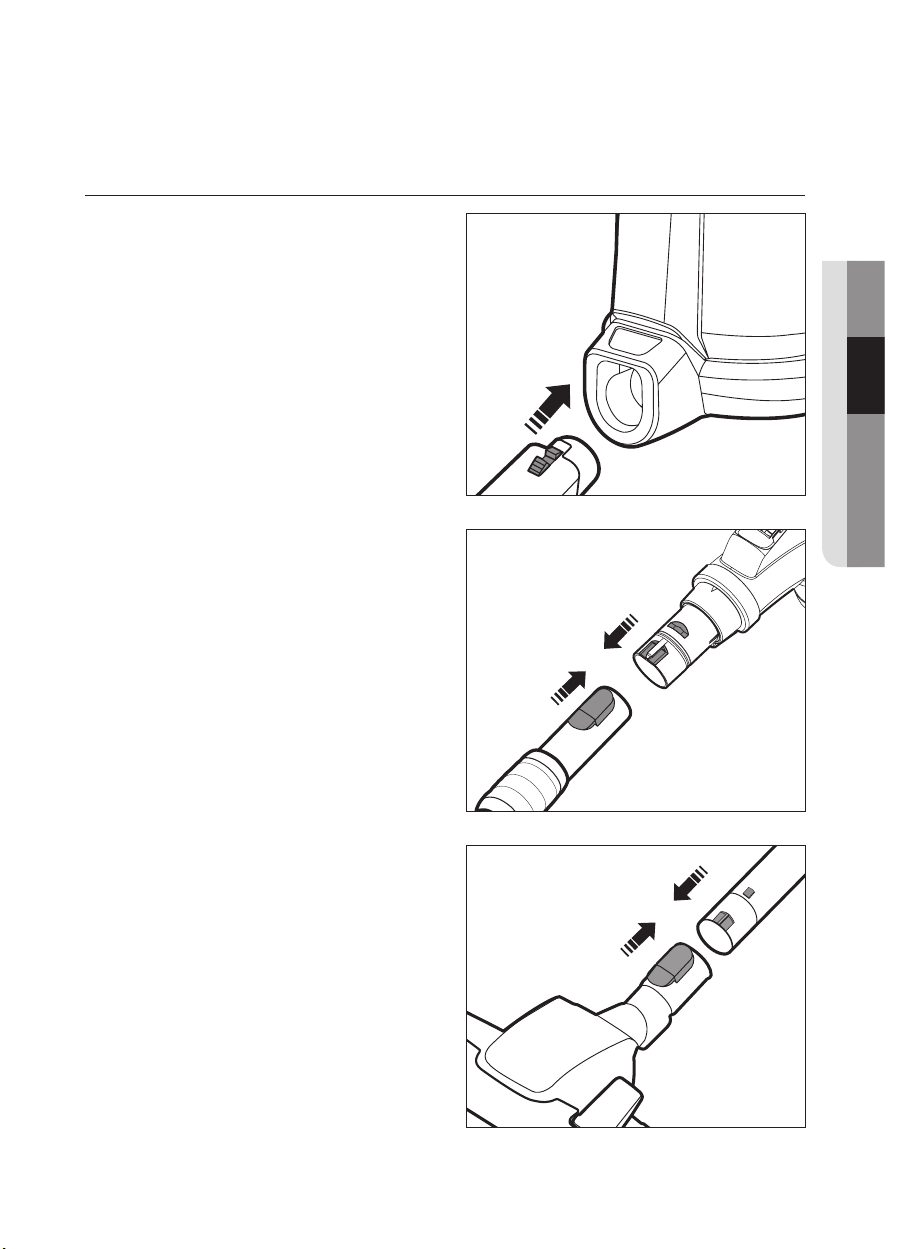

ASSEMBLY
Connecting the Hose
Connecting the handle and pipe
Connecting the brush
DJ68-00712E (EN)-00.indd 9 2015. 1. 9. �� 1:02

ENGLISH-10

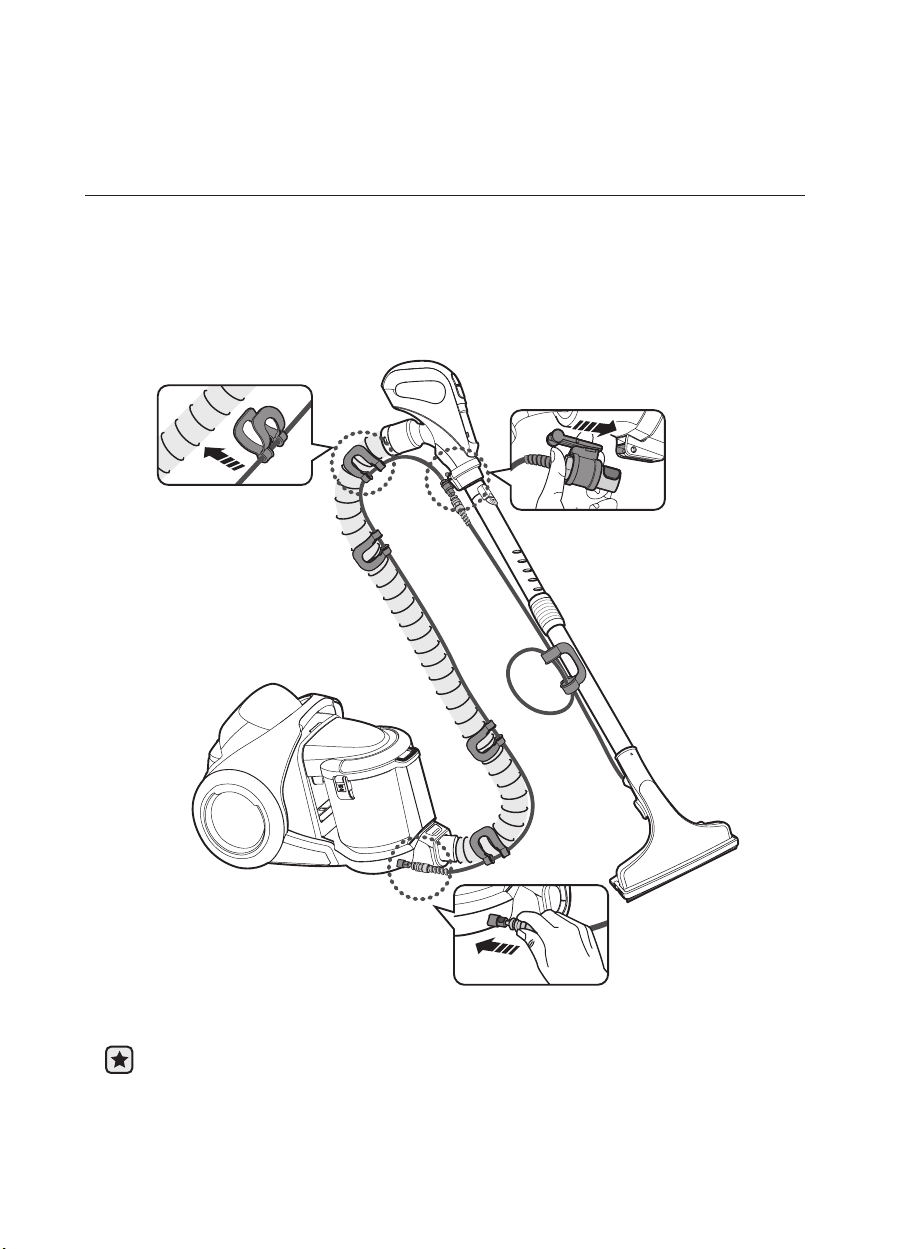

WET ACCESSORY (OPTION)
• To separate the quick coupling, press the yellow button .
Connect the tube with the
holder to the suction hose.
Connect the spray tube
using the quick coupling
on the unit.
Assemble the connector with the
handle.
DJ68-00712E (EN)-00.indd 10 2015. 1. 9. �� 1:02

ENGLISH-11
02
BEFORE USING THE VACUUM CLEANER

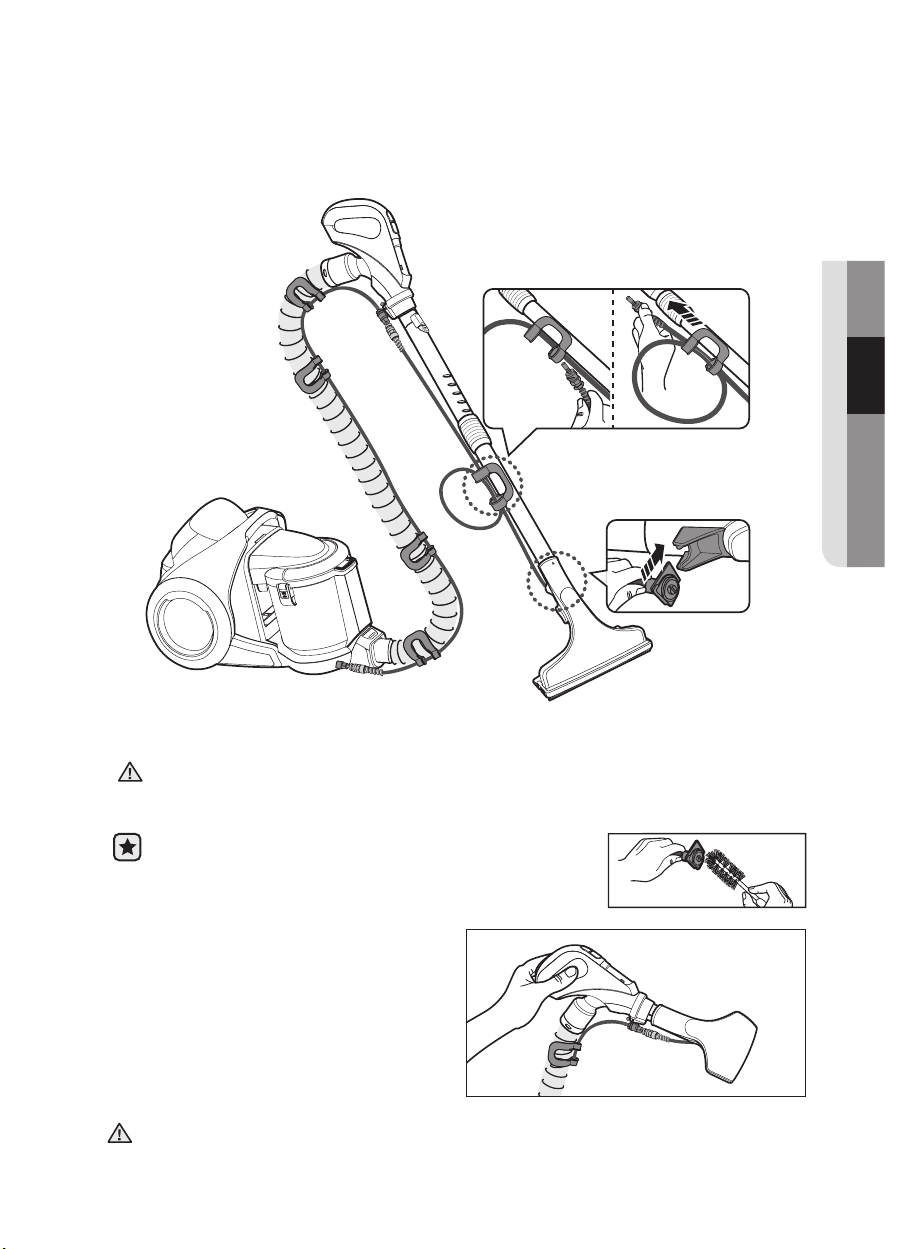

If the tube get twisted, reassemble the tube holder.
When water cleaning is not used, disconnect the spray tube from the suction
hose or pipe.
• For spraying water smoothly, clean the nozzle hole
with a slender tool.
To use the wet sofa brush, connect this
directly to the handle of the suction hose.
Never spray water to the wood or leather materials.
CAUTION
CAUTION
Connect the nozzel to
the built-in-brush.
The coupling of tube should be
passed through holes of the holder.
DJ68-00712E (EN)-00.indd 11 2015. 1. 9. �� 1:02

ENGLISH-12

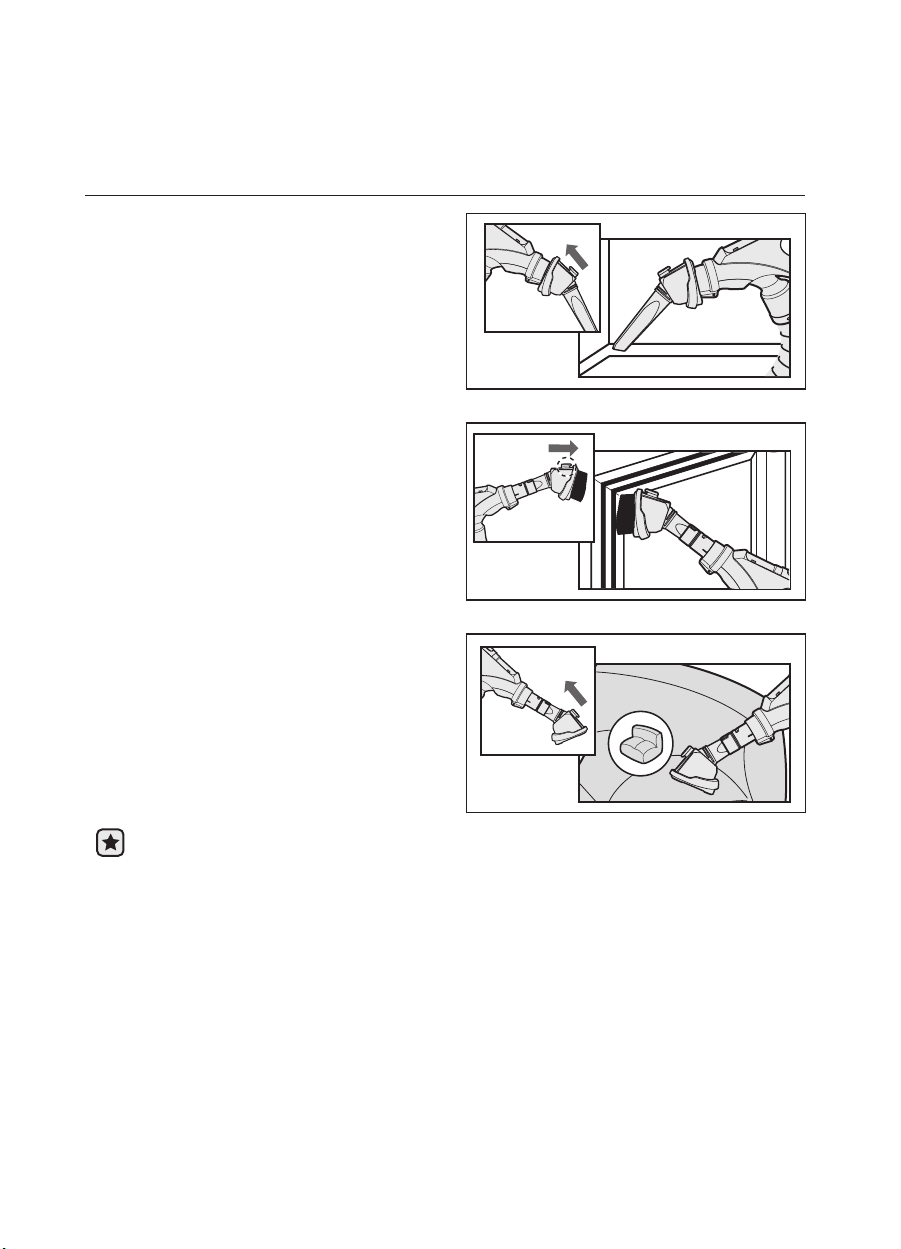

ACCESSORY
Use the crevice tool
Use the dusting brush
Use the upholstery tool
• To use 3-in-1 accessory , connect it directly to the handle of the suction hose.
DJ68-00712E (EN)-00.indd 12 2015. 1. 9. �� 1:02

ENGLISH-13
02
BEFORE USING THE VACUUM CLEANER
Pipe
Adjust the length of the pipe by sliding the
length control button located in the center of
the telescopic pipe.
For storage, park the floor nozzle
Do not pick up a machine while the
floor nozzle parked.
Never set the cleaner in an upright
position during operation or storage.
CAUTION
CAUTION
DJ68-00712E (EN)-00.indd 13 2015. 1. 9. �� 1:02

ENGLISH-14

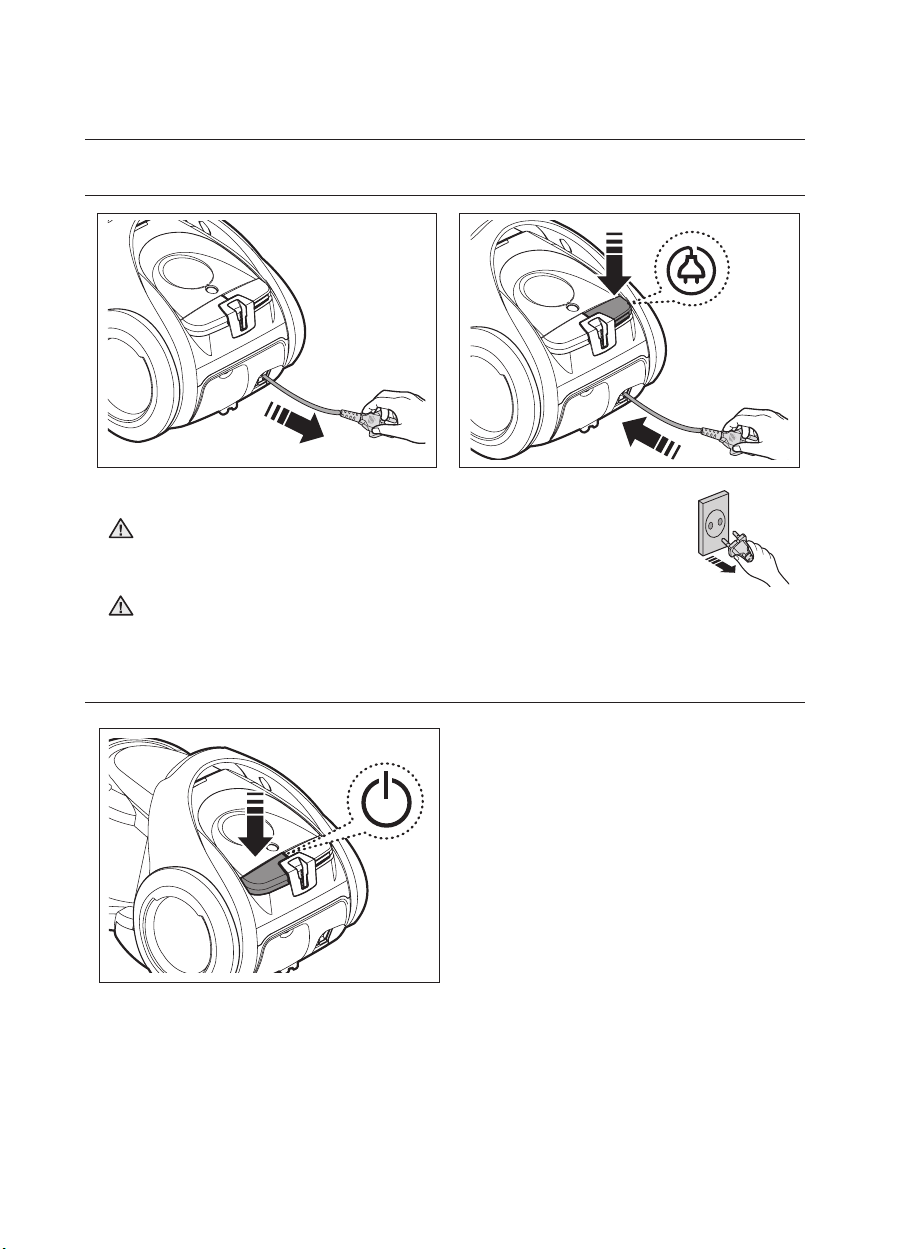

POWER CORD
CAUTION
When removing the plug from the electrical outlet, grasp the plug,
not the cord.
WARNING Never touch the electrical outlet or plug with wet hands.
ON/OFF
Operating cleaner
DJ68-00712E (EN)-00.indd 14 2015. 1. 9. �� 1:02

ENGLISH-15
03
OPERATING CLEANER

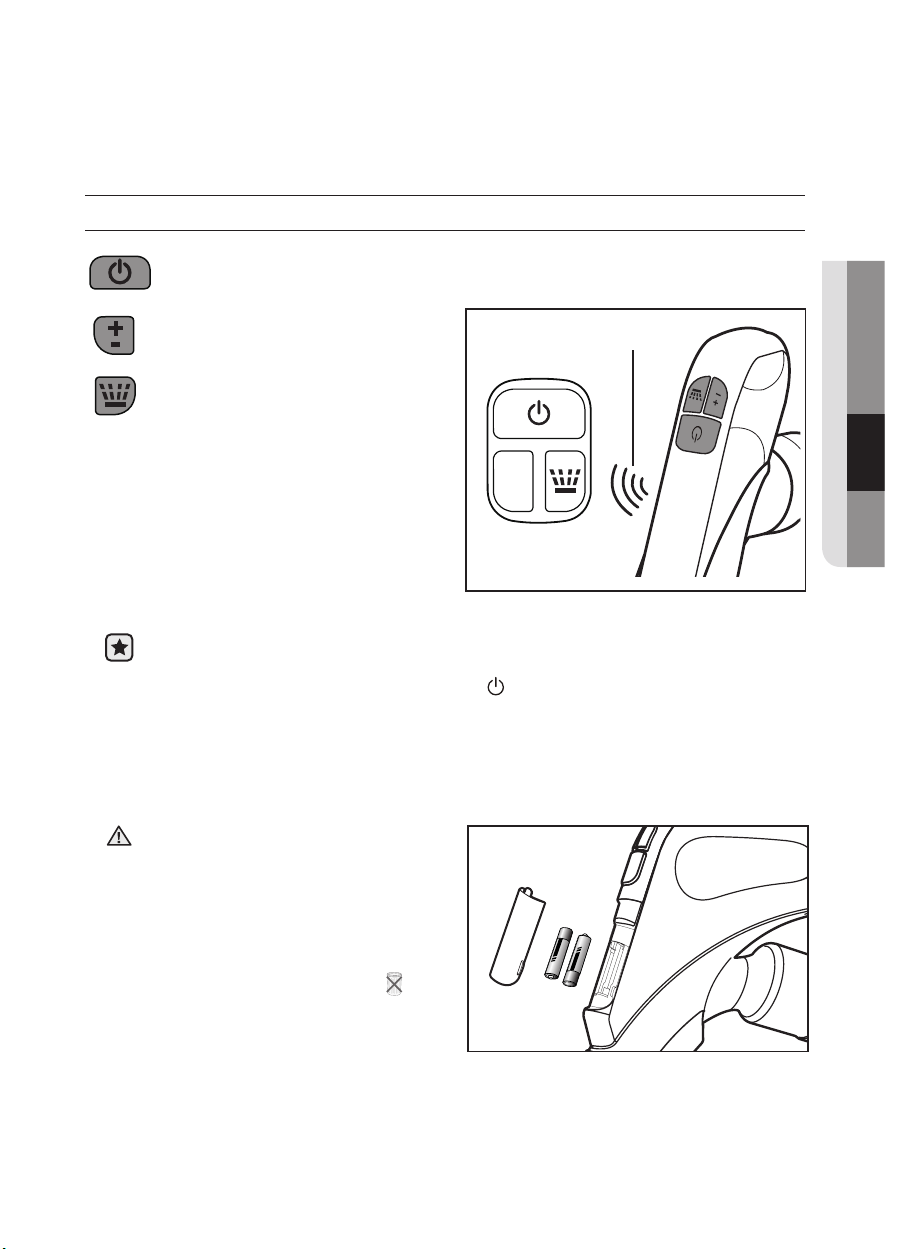

POWER CONTROL
Hose (controlled by radio frequency signals)
ON/OFF
Select a lower power / higher power
Pump ON/OFF
Transmitter
+
-
• Don’t cover the handle transmitter when you use a handle control.
• If no button is pressed for 30 minutes while cleaning, the power will shut off as
a precaution. If this happens, press the button on the main unit or replug the
power cord in again.
• When you use the pump , the extraction will shut off in 30 seconds as a
precaution. Press the pump button to stop the pump immediately.
If you want to use this mode sequentially , press the pump button again.
CAUTION
1. Never disassemble or recharge
the batteries.
2. Never heat up the batteries or
throw them into a fire.
3. Do not reverse (+), (-) poles.
4. Dispose of the batteries property.
BATTERY TYPE : AAA Size
DJ68-00712E (EN)-00.indd 15 2015. 1. 9. �� 1:02

ENGLISH-16

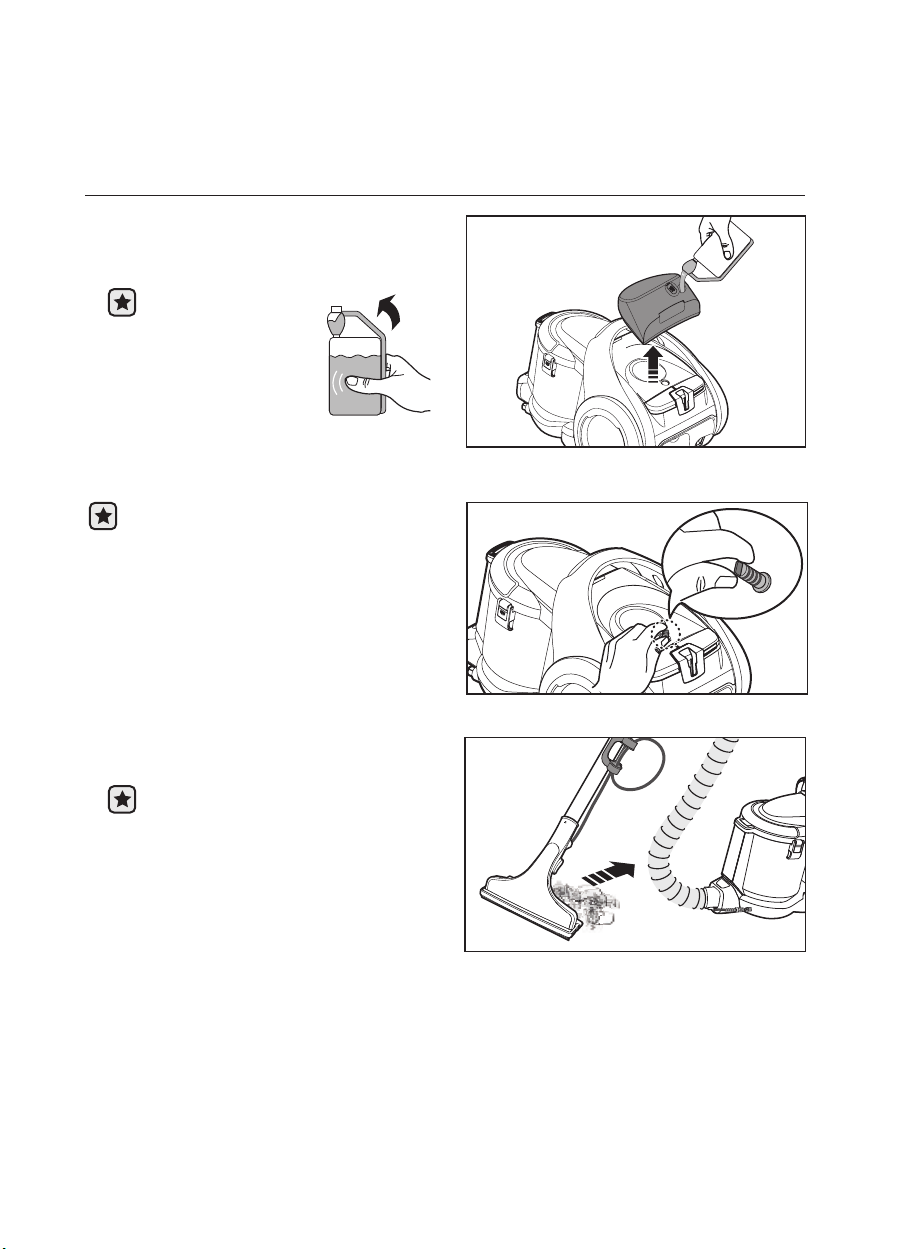

SPRAY EXTRACTION
Fill the empty water dispenser fresh water
(lukewarm, not exceeding 30 °C).
Add the SAMSUNG
cleaning agent.
Dillution can be
made easier with
the attached
measuring cup.
Dose : 12ml with
1.5ℓ water
• For fresh water supply, clean the
water filter regularly.
Removing the moisture inside the pipe and
hose.
• For better suction of water and
dust, clean the floor by pulling
the built-in brush toward you.
• After water cleaning is
completed, keep the operation
for more than 10seconds to
remove the remaining moisture
inside the pipe and hose.
DJ68-00712E (EN)-00.indd 16 2015. 1. 9. �� 1:02

ENGLISH-17
03
OPERATING CLEANER
Built-in-Brush
To use the built-in-brush on the carpet floor,
pull out the side buttons.
Push the side buttons, to use the built-in-
brush on the hard floor.
To clean the window, push the towel towards
the bottom and wet the towel.
The towel can be fixed by the
fixture.
CAUTION
When clean the window, never spray
the water directly. It may cause
damaging to wallpaper or paintings.
DJ68-00712E (EN)-00.indd 17 2015. 1. 9. �� 1:02

ENGLISH-18
CLEANING THE DUST BIN AND GRILLE
Empty out the dust from the dust bin, if dust
reaches ' '. Empty out the water from dust bin,
if dust reaches ' '.
Fill the dust bin with the fresh
water to ' ' for water-filter
cleaning.
1
Take the dust bin out by lifting the handle.
Unless lots of water soaks through
the dust filter, it will still function
properly as it will evaporate
naturally.
2
Pull each two holder and separate dust bin
cover. 3
Turn the grille and take out it.
The float ball valve is in the grille.
It may make a noise.
4
Maintenance
DJ68-00712E (EN)-00.indd 18 2015. 1. 9. �� 1:02

ENGLISH-19
04 MAINTENANCE
Separate and clean the dust bin duct. 5
Clean the dust bin and body with water. 6
Leave the dust bin and body in the shade
until completely dry. 7
Install the grille and turn to clockwise.
CAUTION
DJ68-00712E (EN)-00.indd 19 2015. 1. 9. �� 1:02

ENGLISH-20
CLEANING THE DUST FILTER
• When suction is noticeably reduced continuously.
• When the sponge is heavily polluted.
Remove the fixed frame and open the dust
pack cover.
Separate the sponge from the dust pack.
Wash the sponge and the filter inside the dust
pack with water.
• Please replace the filter 1~2 times a year.
• Replacement filters are available at your local Samsung service center.
DJ68-00712E (EN)-00.indd 20 2015. 1. 9. �� 1:02
