Samsung SC21K51 Series User manual

Vacuum cleaner
User manual
SC21K51 Series
• Before operating this unit, please read the instructions carefully.
• For indoor use only.
1_VC5100_EN_00744H-03_SA.indd 1 2017-07-17 오후 5:05:15

English
2
Contents
PREPARATION
Safety information 3
Safety information 3
Important safety instructions 4
INSTALLATION
Name of the parts 10
Accessories 11
OPERATIONS
Using the vacuum cleaner 12

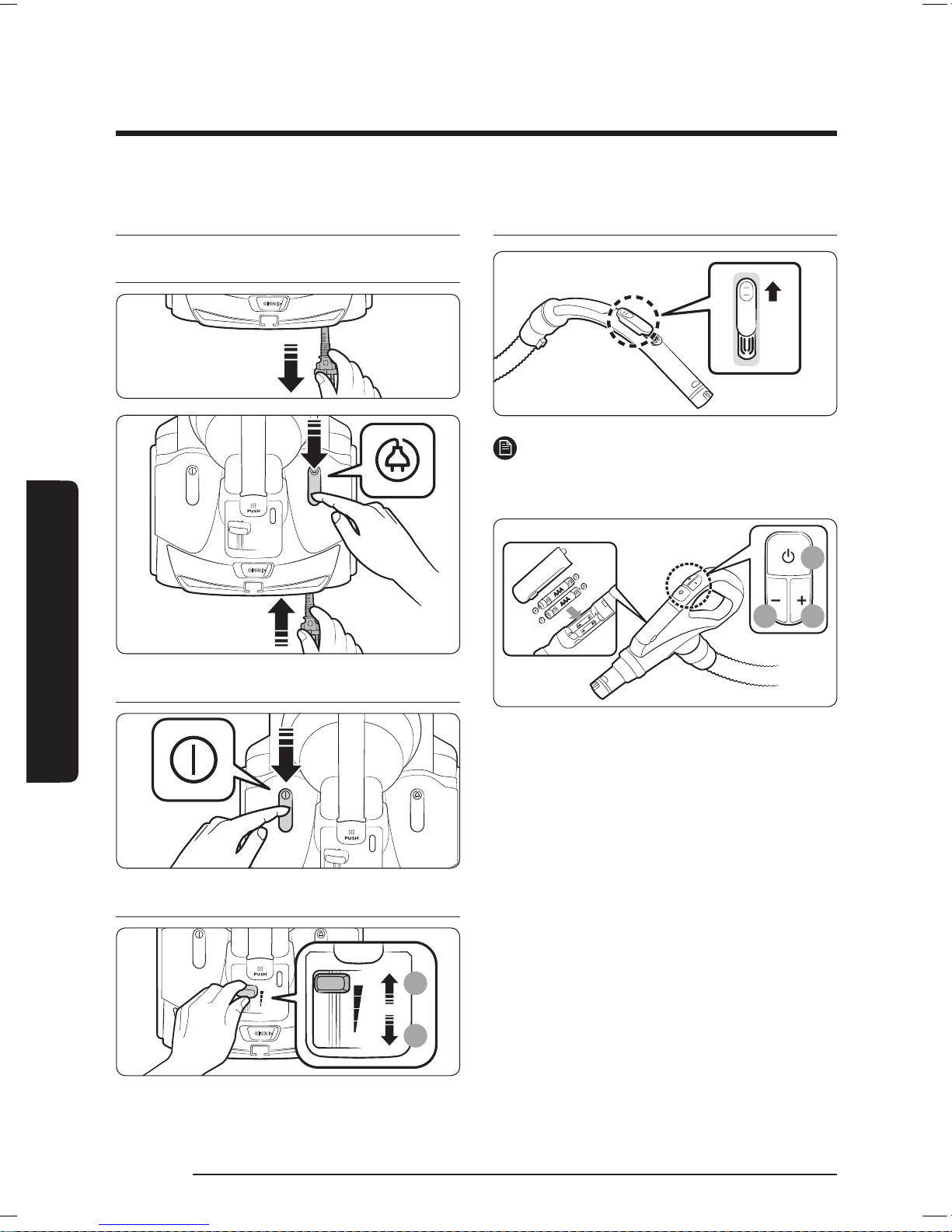

Using the body 12
Using the handle control 12

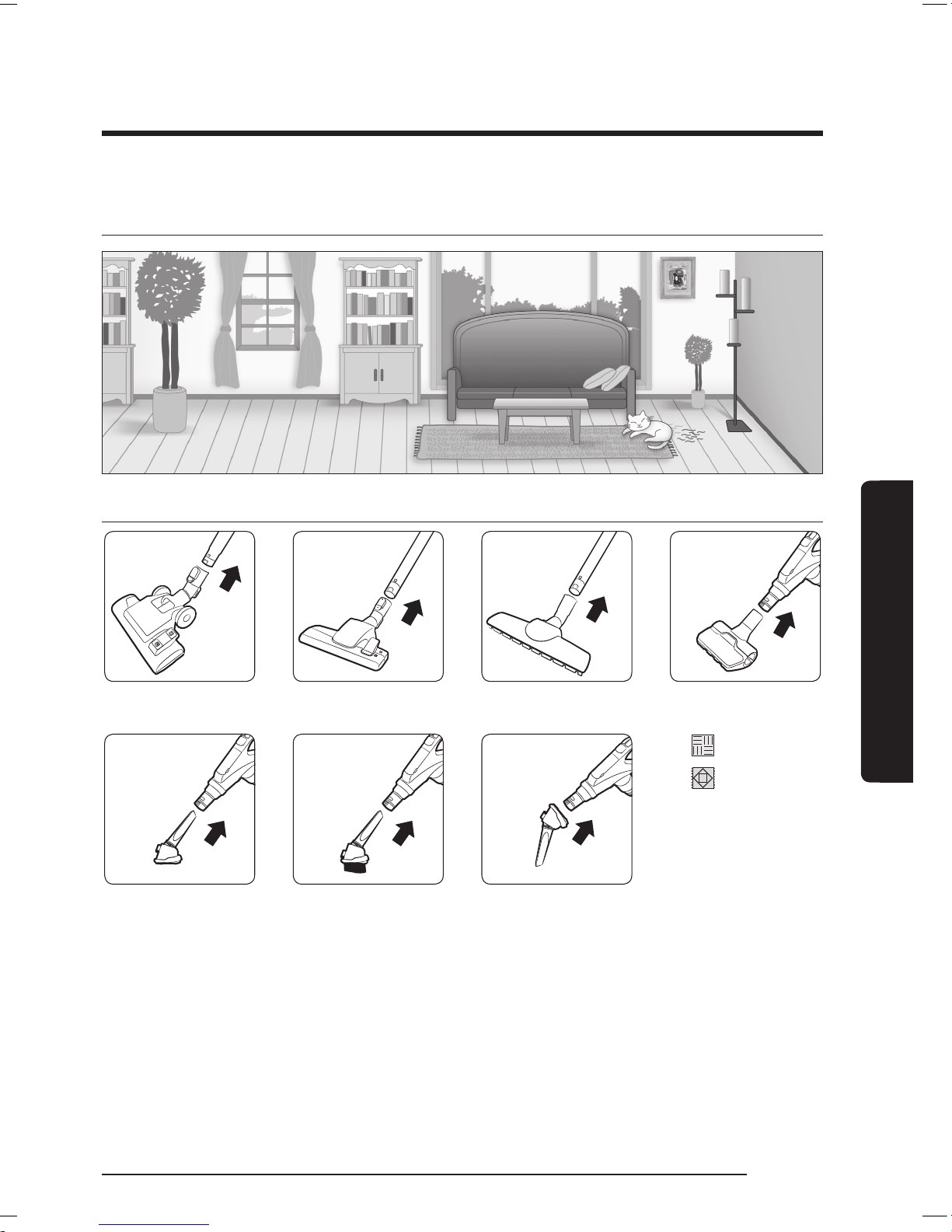

Using the brushes 13
MAINTENANCE
Cleaning and maintaining 14

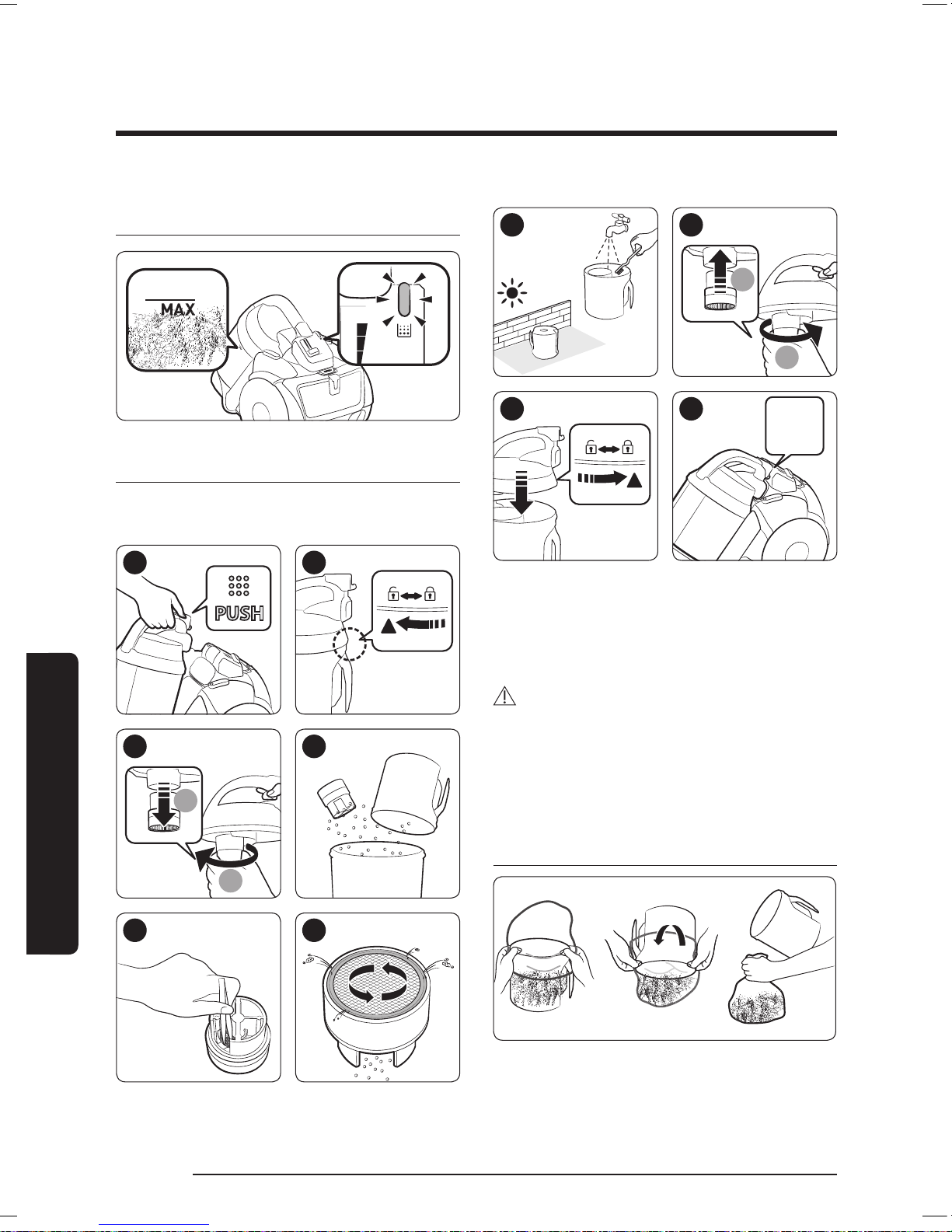

When to empty the dust bin 14
Cleaning the dust bin 14

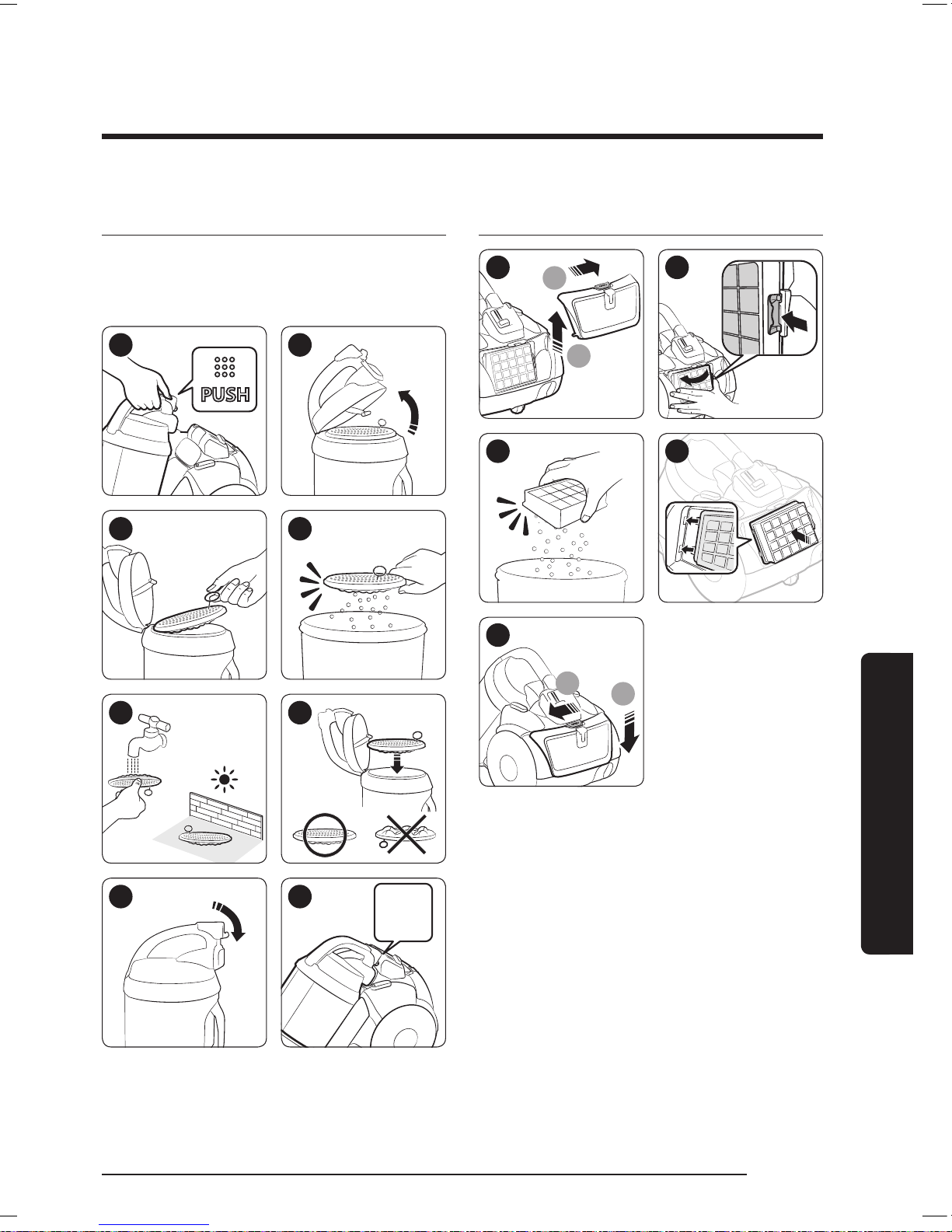

Cleaning the dust lter 15
Cleaning the outlet lter 15

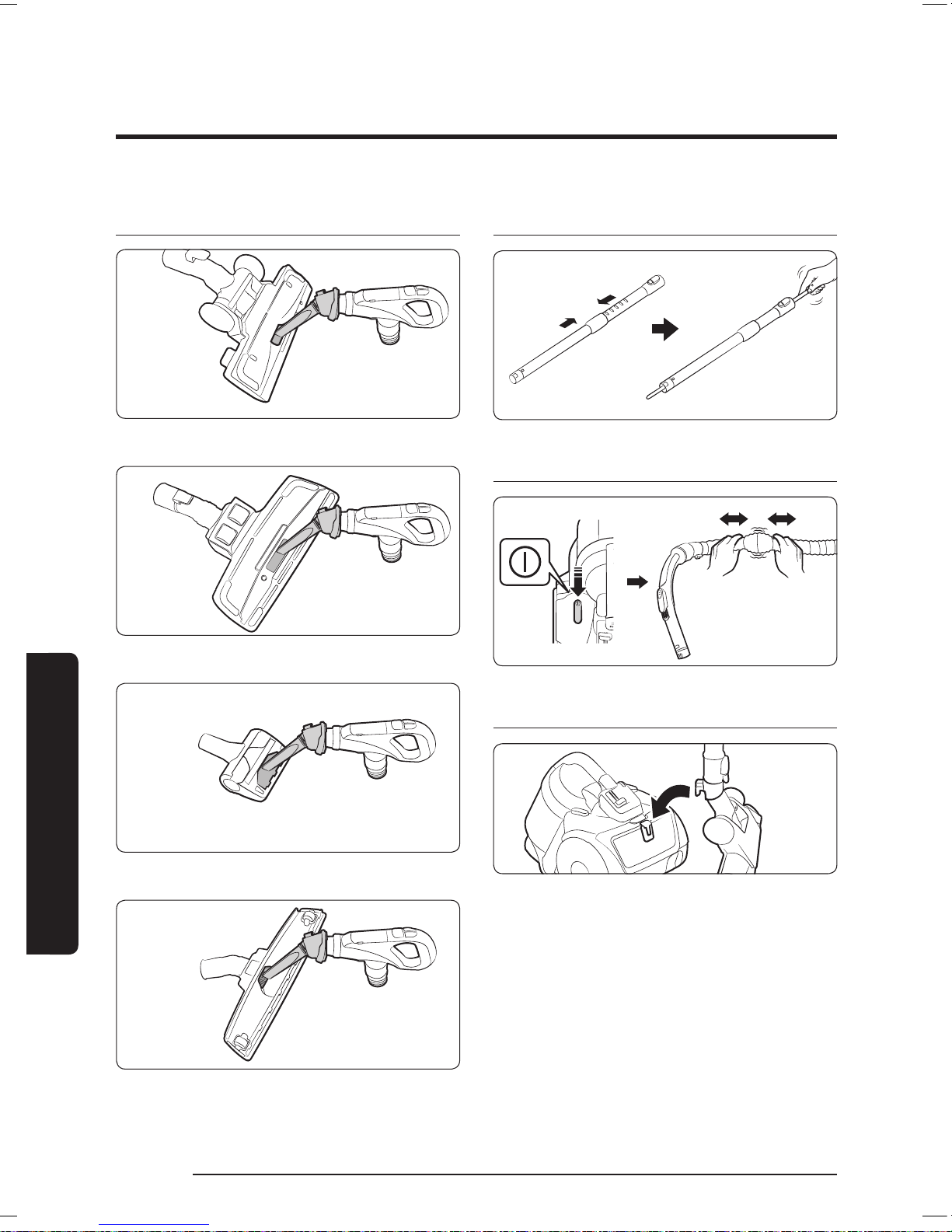

Cleaning the brush 16
Cleaning the pipe 16
Cleaning the hose 16
Storing the vacuum cleaner 16
APPENDICES
Notes and cautions 17
In use 17
Cleaning and maintenance 18
Troubleshooting 19
1_VC5100_EN_00744H-03_SA.indd 2 2017-07-17 오후 5:05:15

English
3
PREPARATION
Safety information
WARNING
• Before operating the appliance, please read this manual thoroughly and
retain it for your reference.
WARNING
• Because these following operating instructions cover various models, the
characteristics of your vacuum cleaner may differ slightly from those
described in this manual.
Caution/Warning symbols used
WARNING
Indicates that a danger of death or serious injury exists.
CAUTION
Indicates that a risk of personal injury or material damage exists.
Other symbols used
NOTE
Indicates that the following text contains additional important information.
Safety information
PREPARATION
1_VC5100_EN_00744H-03_SA.indd 3 2017-07-17 오후 5:05:15

English
4
PREPARATION
Important safety instructions
When using an electrical appliance, basic precautions should be observed,
including the following:
WARNING
This vacuum cleaner is designed for household use only.
Do not use this vacuum cleaner to clean building waste and debris.
Regularly keep the lters in clean conditions to prevent of collecting ne
dust in them. Replace if the lter is deformed.
Do not use this vacuum cleaner with any of the lters removed.
Always clean the dust bin & lters after vacuuming carpet cleaners or
fresheners, powders and ne dust.
Failure to meet these requirements could cause damage to the internal
parts and void your warranty.
General
• Read all instructions carefully. Before switching on, make sure that the
voltage of your electricity supply is the same as that indicated on the
rating plate on the bottom of the cleaner.
• WARNING : Do not use the vacuum cleaner when rug or oor is wet.
• Close supervision is necessary when any appliance is used by or near
children. Do not allow the vacuum cleaner to be used as a toy. Do not
allow the vacuum cleaner to run unattended at any time. Use the vacuum
cleaner only for its intended use as described in these instructions.
• Do not use the vacuum cleaner without a dust bin.
• Empty the dust bin before it is full in order to maintain the best
efciency.
• Do not use the vacuum cleaner to pick up matches, live ashes or cigarette
butts. Keep the vacuum cleaner away from stoves and other heat sources.
Heat can deform and discolour the plastic parts of the unit.
1_VC5100_EN_00744H-03_SA.indd 4 2017-07-17 오후 5:05:15

English
5
PREPARATION
• Avoid picking up hard, sharp objects with the vacuum cleaner as they
may damage the cleaner parts.
• Do not stand on the hose assembly. Do not put weight on the hose.
• Do not block the suction or the exhaust port.
• Switch the vacuum cleaner off on the body of the machine before
unplugging from the electrical outlet. Disconnect the plug from the
electrical outlet before emptying the dust bin. To avoid damage, please
remove the plug by grasping the plug itself, not by pulling on the cord.
• This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
• Children should be supervised to ensure that they do not play with the
appliance.
• The plug must be removed from the socket outlet before cleaning or
maintaining the appliance.
• The use of an extension cord is not recommended.
• If your vacuum cleaner is not operating correctly, switch off the power
supply and consult an authorized service agent.
• If the supply cord is damaged, it must be replaced by the manufacturer
or its service agent or a similarly qualied person in order to avoid a
hazard.
• Don’t carry the vacuum cleaner by holding the hose. Use the handle on
the vacuum cleaner set.
• Unplug the cleaner when not in use. Turn off the power switch before
unplugging.
1_VC5100_EN_00744H-03_SA.indd 5 2017-07-17 오후 5:05:16

English
6
PREPARATION
• Do not use to suck up water.
• Do not immerse in water for cleaning.
• The hose should be checked regularly and must not be used if damaged.
• Please contact the manufacturer or service agent for a replacement.
Power related
• Please prevent any risk of electric shock or re.
– Do not damage the power cord.
– Do not pull the power cord too hard or touch the power plug with wet
hands.
– Do not use a power source other than the national rated voltage and
also do not use a multi outlet to supply power to number of devices at
the same time.
– Do not leave the power cord carelessly on the oor.
– Do not use a damaged power plug, power cord or loose power outlet.
– Turn off the power before connecting or disconnecting the power plug
to the power outlet and make sure your ngers don’t come in contact
with the pin of the power plug.
– Do not disassemble or modify the vacuum cleaner. When power cord is
damaged, contact the manufacturer or service agent to get it replaced
by certied repairman.
– Clean dust or any foreign matters on the pin and contact part of the
power plug.
• If there’s any gas leak or when using combustible sprays such as a
dust remover, do not touch the power outlet and open the windows to
ventilate the room.
– There is a risk of explosion or re.
1_VC5100_EN_00744H-03_SA.indd 6 2017-07-17 오후 5:05:16

English
7
PREPARATION
In use
• Do not use this product outdoors since it’s designed for household use
only.
– There is a risk of malfunction or damage.
 Outdoor cleaning : A stone, Cement
 A billiard room : Powder of a chalk
 An aseptic room of a hospital
• Do not use the vacuum cleaner to suck up liquids(such as water), blades,
pins or embers.
– There is a risk of malfunction or damage.
• Be sure children do not touch the vacuum cleaner when you use it.
– The children may get burn if the body is overheated.
• Do not mount or make any physical impacts on the body.
– It may result in injury or damage.
• Use the carrying handle for lifting or carrying the vacuum cleaner.
Cleaning and maintenance
• Do not lift or carry the vacuum cleaner putting a brush in the groove for
storage.
• Use a dry cloth or towel to clean the body and make sure to unplug
the vacuum cleaner before cleaning. Do not spray water directly or use
volatile materials(such as benzen, thinner or alcohol) or combustible
sprays(such as a dust remover) for cleaning.
– If water or other liquid gets into the product and cause malfunction,
turn off the vacuum cleaner, unplug the power plug and then consult a
service agent.
1_VC5100_EN_00744H-03_SA.indd 7 2017-07-17 오후 5:05:16

English
8
PREPARATION
• Do not use alkaline or industrial detergents, air fresheners or (acetic)
acids to clean the washable parts of the vacuum cleaner. (Refer to the
following table.)
– It may cause damage, deformation or discoloration of the plastic parts.
The washable parts Dust bin of the body, Dust lter,
Sponge lter,
Available detergent Neutral detergent Kitchen cleaner
Unavailable detergent Alkaline detergent Bleach, Mold cleaner, etc.
Acid detergent Parafn oil, Emulsier, etc.
Industrial detergent NV-I, PB-I, Opti, Alcohol, Acetone,
Benzene, Thinner, etc.
Air freshener Air freshener(Spray)
Oil Animal or vegetable oil
Etc. Edible acetic acid, Vinegar, Glacial
acetic acid, etc.
1_VC5100_EN_00744H-03_SA.indd 8 2017-07-17 오후 5:05:16

English
9
PREPARATION
CAUTION
In use
• Do not use the pipe for anything other than its intended purpose.
– It may result in injury or damage.
• When you lift up the handle of dust bin while using the vacuum cleaner,
safety device will be activated and there might be changes in operating
noise.
– Operating noise may change when you hold the handle of the dust bin
while using the vacuum cleaner, but the circular tube on bottom of the
dust bin prevents dust from spilling out.
• Do not pull the power cord beyond the yellow mark and hold the power
cord with one hand when rewinding it
– If you try to pull it beyond the yellow mark, power cord can be
damaged and if you don’t hold the power cord while rewinding, it may
lose control and cause injury or damage to people or objects around it.
• If any abnormal sounds, smells or smoke come from the vacuum cleaner,
immediately unplug the power plug and contact a service agent.
– here is a risk of re or electric shock.
• Do not use the vacuum cleaner in any places near heating appliances
(such as stove), combustible spray or ammable materials.
– It may cause re or deformation of the product.
Cleaning and maintenance
• Unplug the vacuum cleaner if you do not use it for a long time.
– It may cause electric shock or re.
1_VC5100_EN_00744H-03_SA.indd 9 2017-07-17 오후 5:05:16

English
10
INSTALLATION
Name of the parts

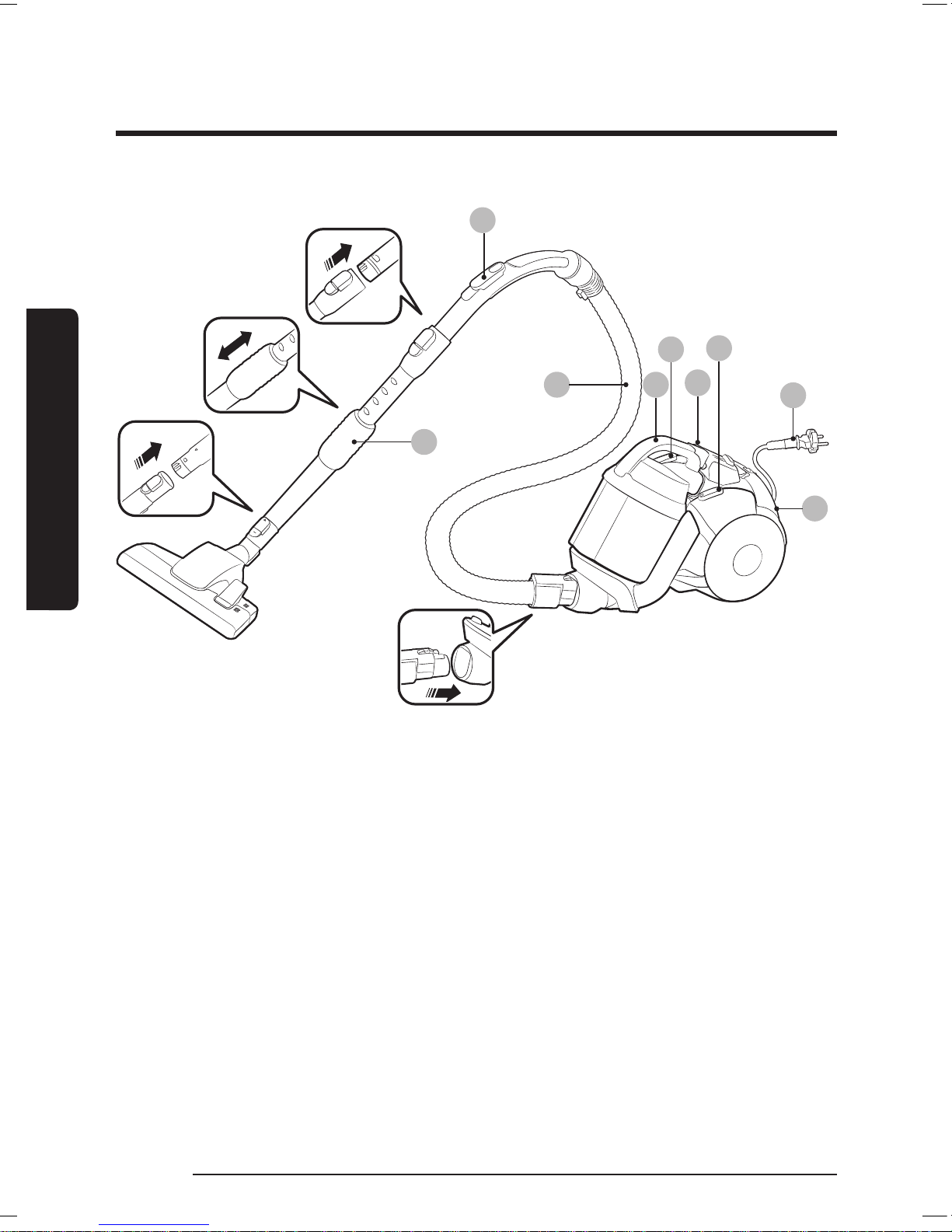

01 Pipe
02 Handle control
03 Hose
04 Dust bin
05 Cord rewind button
06 Filter light
07 Power button
08 Power cord
09 Outlet lter
INSTALLATION
02
03 04 06
07
08
09
01
05
1_VC5100_EN_00744H-03_SA.indd 10 2017-07-17 오후 5:05:16
