Vacuum cleaner
User manual
VS20A95**** Series
• Before operating this unit, please read the instructions carefully.
• For indoor use only
VS9500_EN_00859G-00_SA.indd 1 2021-12-08 오후 3:58:58

English
2
Contents
PREPARATION
Safety information 3
DESCRIPTION

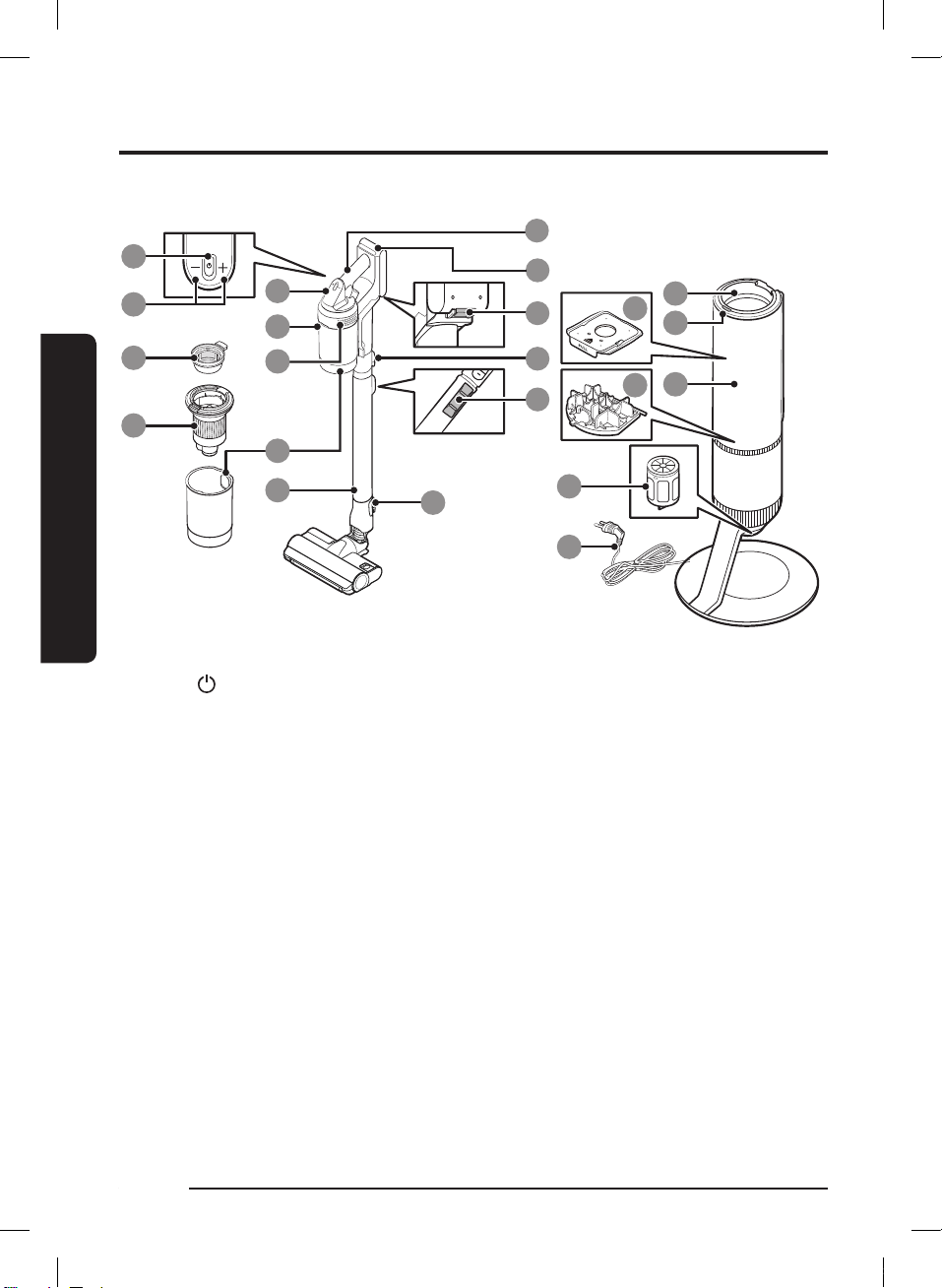

Parts overview 12

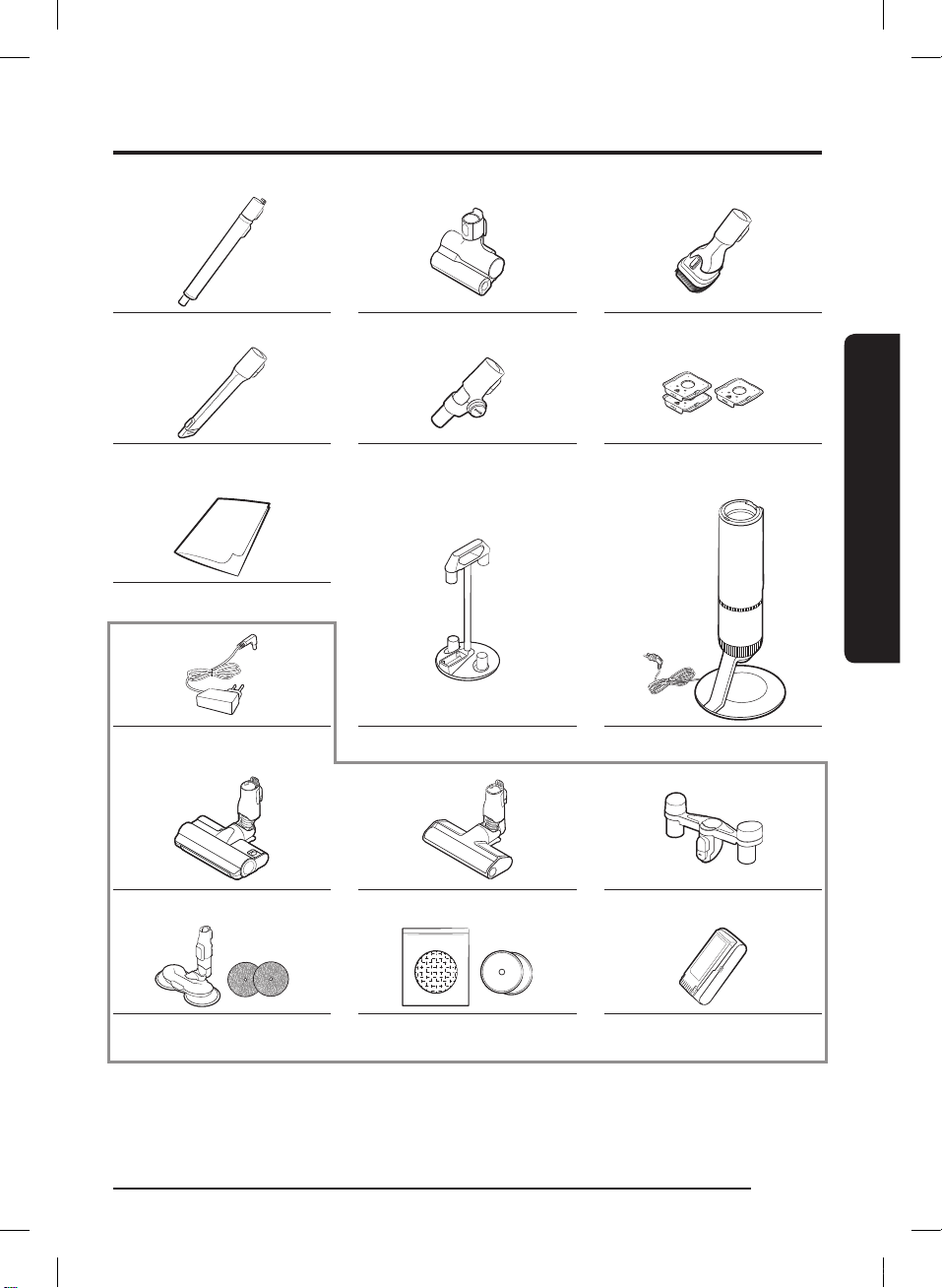

Accessories 13
OPERATION
Clean Station 14
Installing the Clean Station 14
Using the Clean Station 14
Vacuum cleaner 15
Charging the battery 15
Using the vacuum cleaner 16
Using the Accessory Cradle 18
Using the accessories 19
MAINTENANCE
Maintenance 21
Cleaning the Clean Station 21
Cleaning the vacuum cleaner 22
APPENDIX
Notes and cautions 25
Installation 25
Battery usage 25
Operation 26
Maintenance 29
Troubleshooting 30
Product specication
Charging and cleaning time may differ depending on the brushes and the conditions of use.
Model VS20A95**** Series
Power consumption (Vacuum cleaner) Based on a handy vacuum cleaner: 580 W
Battery specication Li-ion 25.2 V, 2200 mAh, 7 cell
Weight (Vacuum cleaner) 2.7 kg (Jet Dual Brush)
Size Vacuum cleaner Width 250 mm x Depth 210 mm x Height 1,000 mm
Clean Station Width 300 mm x Depth 300 mm x Height 850 mm
Charging time 3.5 hours
Cleaning time
(Default: [MID])
Combination Tool/
Extension Crevice Tool
Approx. 60 min. [MIN]/ Approx. 30 min. [MID]/
Approx. 10 min. [MAX]/ Approx. 3 min. [JET]
Jet Dual Brush Approx. 42 min. [MIN]/ Approx. 24 min. [MID]/
Approx. 14 min. [MAX]/ Approx. 8 min. [JET]
Slim Action Brush Approx. 50 min. [MIN]/ Approx. 25 min. [MID]/
Approx. 15 min. [MAX]/ Approx. 9 min. [JET]
Wet Brush Approx. 100 min.
 Cleaning time doubles when you use two batteries consecutively.
VS9500_EN_00859G-00_SA.indd 2 2021-12-08 오후 3:58:58

English
3
PREPARATION
• Before operating the appliance, please read this manual thoroughly and
retain it for your reference.
• Because the following operating instructions cover various models, the
characteristics of your vacuum cleaner may differ slightly from those
described in this manual.
Caution/Warning symbols used
WARNING
Indicates that a danger of death or serious injury exists.
CAUTION
Indicates that a risk of personal injury or material damage exists.
Other symbols used
NOTE
Indicates that the following text contains additional important information.
Safety information
PREPARATION
VS9500_EN_00859G-00_SA.indd 3 2021-12-08 오후 3:58:58

English
4
PREPARATION
Failure to meet these requirements could cause damage to the internal parts
of the vacuum and void your warranty.
General
• Read all instructions carefully. Before switching the vacuum on, make sure
that the voltage of your electricity supply is the same as that indicated on
the rating plate at the rear of the handy vacuum cleaner (battery contact
side).
• WARNING : Do not use the vacuum cleaner on a wet rug or oor.
• Close supervision is necessary when any appliance is used by or near
children. Do not allow the vacuum cleaner to be used as a toy. Do not
allow the vacuum cleaner to run unattended at any time. Use the vacuum
cleaner only for its intended purpose as described in these instructions.
• Do not use the vacuum cleaner without a Dustbin.
• Empty the Dustbin before it is full to maintain the highest efciency.
• Do not use the vacuum cleaner to pick up matches, live ashes or cigarette
butts. Keep the vacuum cleaner away from stoves and other heat sources.
Heat can deform and discolor the plastic parts of the unit.
• Avoid picking up hard, sharp objects with the vacuum cleaner as they may
damage the vacuum's parts.
• Do not block the suction or the exhaust port.
• To avoid damage, remove the plug by grasping the plug, not by pulling
the cord.
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Children should not clean or perform maintenance on the vacuum without
adult supervision.
• Children should be supervised to ensure that they do not play with the
appliance.
VS9500_EN_00859G-00_SA.indd 4 2021-12-08 오후 3:58:58

English
5
PREPARATION
• The battery must be removed from the main unit before cleaning or
performing maintenance on the vacuum.
• The use of an extension cord is not recommended.
• If your vacuum cleaner is not operating correctly, switch off the power
supply and consult an authorized Samsung service agent.
• If the supply cord is damaged, it must be replaced by the manufacturer
or its service agent or a similarly qualied person to avoid any electrical
hazards.
• Do not use to suction up water.
• Do not immerse in water for cleaning.
• Please contact Samsung or a Samsung service center for a replacement if
one is needed.
VS9500_EN_00859G-00_SA.indd 5 2021-12-08 오후 3:58:58

English
6
PREPARATION
Clean Station
• Do not modify the polarized plug to t a non-polarized outlet or extension
cord.
• Do not use outdoors or on wet surfaces.
• Unplug the Clean Station from the outlet when not in use and before
servicing.
• Use only the Clean Station supplied by the manufacturer to recharge.
• Do not use with a damaged cord or plug.
• Do not pull or carry by the cord, use the cord as a handle, close a door on
the cord, or pull the cord around sharp edges or corners. Keep the cord
away from heated surfaces.
• Do not use extension cords or outlets with inadequately rated current.
• Do not charge a non-rechargeable battery.
• Do not unplug by pulling on the cord. To unplug, grasp the plug, not the
cord.
• Do not mutilate or incinerate batteries as they will explode at high
temperatures.
• Do not attempt to open the Clean Station. Repairs should be only carried
out by a qualied Samsung service center.
• Do not expose the Clean Station to high temperatures or allow moisture or
humidity of any kind to come into contact with the Clean Station.
Installation
• If you have a problem with installing the Clean Station, contact a Samsung
service center.
Injury or product malfunction from not installing the Clean Station may
not be compensated.
VS9500_EN_00859G-00_SA.indd 6 2021-12-08 오후 3:58:58

English
7
PREPARATION
Vacuum cleaner
• Do not pick up hard or sharp objects such as glass, nails, screws, coins, etc.
• Do not use without a lter in place. When servicing the unit, never put
ngers or other objects into the fan chamber in case the unit accidentally
turns on.
• Do not put any objects into openings. Do not use with any openings
blocked. Keep openings free of dust, lint, hair, and anything that may
reduce air ow.
• Do not pick up toxic materials (chlorine bleach, ammonia, drain cleaner,
etc.).
• Do not pick up anything that is burning or smoking, such as cigarettes,
matches, or hot ashes.
• Do not use the vacuum cleaner in an enclosed space lled with vapours
given off by oil based paint, paint thinner, moth proong substances,
ammable dust, or other explosive or toxic vapours.
VS9500_EN_00859G-00_SA.indd 7 2021-12-08 오후 3:58:58

English
8
PREPARATION
Power related
WARNING
• Do not bend the power cord with excessive force or put heavy objects on
the power cord.
– Electric shock or re may occur.
• When the vacuum is used in a veranda or an area where water is used,
make sure water does not come into contact with the power cord or the
power plug.
• If there is dust, water, etc. on a pin or contact point of the power plug pin,
wipe them carefully.
– Abnormal operation or electric shock may occur.
• Do not pull the power cord and do not touch the power plug with wet
hands.
– Electric shock or re may occur.
• Do not plug the Clean Station into a power source with the incorrect
voltage. Do not plug the Clean Station into a multi-plug outlet or power
strip.
– Electric shock or re may occur.
• Do not use a damaged power plug, power cord, or loose power outlet.
– Electric shock or re may occur.
• If the power cord is damaged, have a Samsung authorized service center
replace the power cord with a new power cord.
– Electric shock or re may occur.
VS9500_EN_00859G-00_SA.indd 8 2021-12-08 오후 3:58:58

English
9
PREPARATION
Operation
WARNING
• The Clean Station should be placed and used on a stable oor.
– If the product falls over, an injury or product and oor damage may
occur.
• Do not place or use the product on an uneven oor, a carpet, a living room
table, or a desk etc.
– If the product falls over, an injury or product and oor damage may
occur.
• Do not place the product at a wall behind which pipes (gas or water etc.)
or electrical cables are installed.
• Do not cause a short circuit by touching the charging terminal with chop
sticks, metal screw drivers, etc.
– Product malfunction or electric shock may occur.
• Make sure that the charging terminals of the vacuum cleaner and the
Clean Station do not come into contact with a conductor such as a
bracelet, watch, metal rod, nail, etc.
• Make sure that any liquid such as water or juice is not allowed to enter
the vacuum cleaner or the Clean Station.
– Electric shock or re may occur.
• As the Clean Station is designed for the use of Samsung Jet cordless
vacuum cleaner only, do not use the Clean Station for other electronic
appliances and other purposes.
– Severe damage to the Clean Station or re may occur.
• Do not vacuum liquid, blades, pins, embers, our, etc. during cleaning.
– Abnormal operation or product damage may occur.
• Do not use the vacuum cleaner to pick up liquid such as spilled beverages
or pet waste.
• The brush and air outlet should not be blocked during cleaning.
– Product malfunction or re may occur due to overheating of the
product.
VS9500_EN_00859G-00_SA.indd 9 2021-12-08 오후 3:58:58

English
10
PREPARATION
• This product is intended for household use only. (Do not use this product
for experimental, commercial, or industrial cleaning.)
– Abnormal operation or product damage may occur.
– Outdoor cleaning: stone and cement powder
– Billiards: chalk powder
– Hospital aseptic room
• Do not ride on the product or give a severe shock to the product.
– An injury or product damage may occur.
• Before carrying the Accessory Cradle, detach the charger rst.
– The charging terminal or the power cord is damaged and electric shock
may occur.
• Do not use the product near heating appliances such as heaters, or in
areas containing combustible sprays, or ammable materials.
– Fire or product deformation may occur.
• When using the vacuum cleaner, be careful not to hurt yourself on the
moving or spinning parts.
– Be careful not to suction body parts (Hair, hands, etc.) into the spin
brush (drum).
• When cleaning the wall or ceiling, you should use both hands.
– If you clean with one hand, you can damage your wrist or drop the
vacuum and cause an injury or damage the vacuum.
• Make sure lters are inserted correctly.
– Suction power may decrease.
– If dust enters inside the motor of the vacuum cleaner, product damage
may occur.
– The product may not operate.
• When picking up sharp objects such as sand with the vacuum cleaner, they
may scratch the inner part of the Dustbin.
• If there is a gas leak or combustible spray such as a dust remover is used,
do not touch the power outlet and open the window for ventilation.
– An explosion or re may occur.
VS9500_EN_00859G-00_SA.indd 10 2021-12-08 오후 3:58:59

English
11
PREPARATION
• If the product makes a strange sound or emits a smell or smoke, turn off
the product immediately, and then contact a Samsung service center.
– Electric shock or re may occur.
Maintenance
WARNING
• Before removing foreign matter inside the product, turn off the product
rst.
– If the product is on while you are removing the foreign matter, you can
hurt yourself or damage the product.
• When cleaning the exterior of the product, turn off the product rst
and then wipe it with a dry towel. Do not spray water directly onto the
product or wipe it with volatile materials such as benzene, thinner, or
alcohol.
– If water gets into the product and an error occurs, turn off the product
and contact a Samsung service center.
• Before cleaning the Clean Station, unplug the product.
• When cleaning the washable parts, do not use alkaline detergent, acid,
industrial detergent, air freshener, acetic acid, etc.
– Product damage such as plastic breakage, deformation, discoloration,
printing deterioration, etc. may occur.
Washable Parts Dustbin, Washable Micro Filter, Fine Dust Filter,
Metal Mesh Grille Filter, dry cloth
Acceptable
detergent Neutral Dish washing detergent
Prohibited
detergent
Alkaline Lox, mold cleaner, etc.
Acid Parafn oil, an emulsier, etc.
Industrial
cleaners
NV-I, PB-I, Opti, alcohol, acetone, benzene,
thinner, etc.
Air
freshener Jet spray air fresheners (coffee avor, herb, etc.)
Oils Animal oils, vegetable oils
Etc. Edible acetic acid, vinegar, glacial acetic acid, etc.
VS9500_EN_00859G-00_SA.indd 11 2021-12-08 오후 3:58:59

English
12
DESCRIPTION
Parts overview
DESCRIPTION
01 Power( ) button
02 Suction power control button
03 Washable Micro Filter
04 Metal Mesh Grille Filter
05 Display
06 Dustbin release button
07 Fine Dust Filter
08 Dustbin
09 Adjustable pipe
10 Handle
11 Battery level indicator
12 Battery release button
13 Pipe release button
14 Pipe length adjustment button
15 Brush release button
16 Dustbin joint
17 Clean Station START/STOP Button
18 Dust bag
19 Clean Station front cover
20 Clean Station Premotor Filter
21 Clean Station Fine Dust Filter
22 Power cord
 The wave pattern on the exterior of the product is a natural appearance due to the use of
pearl plastic materials and its pearl distribution. In addition, the shining pearl used in the
material gives an excellent gloss coating, no extra coating necessary.
01
03
04
05
12
15
14
22
16
19
13
06
09
07
08
10
02
17
20
18
21
11
VS9500_EN_00859G-00_SA.indd 12 2021-12-08 오후 3:58:59

English
13
DESCRIPTION
Accessories
The accessories with the ' * ' mark may differ depending on the models.
Adjustable pipe Pet Tool Combination Tool
Extension Crevice Tool Flexible Tool Dust bag: 3 units
(Inside the unit:1, Spare:2)
User manual
*Charger Accessory Cradle Clean Station
*Jet Dual Brush *Slim Action Brush *Accessory Cradle Holder
*Wet Brush/
Multi-use wet pad
*Single-use wet pad/
Attachable pad
*Battery
(VS20A959***: 2 units)
* Optional
 VS20A958*** model: The additional battery and charger can be purchased separately.
 The Wet Brush includes a multi-use wet pad and a single-use wet pad.
 The Wet Brush and Jet Dual Brush are only compatible with VS20A95**** model.
VS9500_EN_00859G-00_SA.indd 13 2021-12-08 오후 3:59:02

English
14
OPERATION
Clean Station
Installing the Clean Station
1 Run the power cord of the Clean Station along the round groove at the bottom.
– Make sure the power cord is correctly placed so that the Clean Station stands without tilting.
2 Before plugging in the Clean Station, arrange the power cord neatly.
3 When plugging in the Clean Station, the status indicator turns blue for 5 seconds and goes off.
Using the Clean Station
Status indicator /
(START/STOP)
button
• After inserting the vacuum cleaner into the Clean Station, press the START/STOP button to
empty the Dustbin.
– Press the START/STOP button again to stop its operation.
• Close the bottom cover of the Dustbin before using the vacuum as the bottom cover is open
after emptying Dustbin at the Clean Station.
OPERATION
 For detailed information,
please refer to the QR code.
VS9500_EN_00859G-00_SA.indd 14 2021-12-08 오후 3:59:04

English
15
OPERATION
Vacuum cleaner
Charging the battery
 When the battery level indicator turns red or the [Low battery] message appears on the
display, charge the battery.
 You cannot use the vacuum cleaner while charging.
 Make sure the back of the battery is correctly placed onto the vacuum charging part.
 Check that the battery level indicator is displayed while charging.
 When charging starts, the battery level indicator turns on (red, orange, or yellow depending
on charging progress), it rises gradually, and changes to green when the charging is complete.
CAUTION
• Before ejecting the battery, the vacuum must be turned off.
– If the battery is forcibly ejected while the vacuum is operating, the vacuum may
malfunction.
• Be careful not to drop the battery. If you do, you can injure yourself or damage the battery.
Inserting the battery
‘Click’
Push the battery to the end until you hear it
click.
Ejecting the battery
Press the battery release button at the rear of
the handle to eject the battery.
Charging the additional battery
• Charge the additional battery at the
additional battery charging slot at the
bottom of the Accessory Cradle.
– Push the battery in rmly.
 VS20A958*** model: To charge the battery
at the Accessory Cradle, a charger needs to
be purchased separately. (VCA-SAPA95)
VS9500_EN_00859G-00_SA.indd 15 2021-12-08 오후 3:59:05

English
16
OPERATION
Using the vacuum cleaner
Control Part
01
02
 Before using the product, you have to select a language for the rst time. Use (+) or (-) button
to select a language and hold the (+) button for 3 seconds to complete the setting.
– Press and hold the (+) button for 3 seconds while using the vacuum to enter the language
setting mode later.
 To set the Energy Saving mode, press and hold the (+) button for 5 seconds while the vacuum
is on the Clean Station.
– To cancel the Energy Saving mode, press and hold the (+) button for 5 seconds.
– The Energy Saving mode is automatically exited if the vacuum is used.
01 Power ( ) on / off: Press the ( ) button to start cleaning in [MID] mode.
– When the Wet Brush is assembled, the vacuum starts cleaning in the Wet Brush mode.
02 Suction power mode control part: You can change the suction power mode.
– You can change the 4steps [MIN, MID, MAX, JET] of the suction power with the (+) and (-)
button.
NOTE
• When the vacuum is in the Wet Brush mode, only the (+) button works.
• While using the Wet Brush, the language setting is not supported.
• If the brush clings to the oor or does not turn properly depending on the oor material (a
carpet, a mat, bedding, etc.), adjust the suction power mode to [MIN] or [MID].
VS9500_EN_00859G-00_SA.indd 16 2021-12-08 오후 3:59:06

English
17
OPERATION
Display Part
• Suction power mode
– Displays the suction power mode you have selected as [MIN], [MID], [MAX] or [JET].
• [WET]: Wet Brush mode
– When the Wet Brush is assembled, the Wet Brush mode is displayed.
– Press the (+) button to spray water. While holding the (+) button, water is sprayed for a
maximum of 2 seconds.
• Check messages
Display Explanation
Low battery Displays when battery is low.
Object stuck in brush/tool Error displays when something is caught in the brush or tool.
Filter not inserted Error displays when 'Micro Filter' is missing.
Clogged Error displays when the vacuum cleaner is clogged.
Check brush, tool, or lter Alerts the user to check the brush, tool, or lter in order to
solve the clogging error.
Clean Micro lter
Alerts and recommends the user to regularly check and wash
the Micro Filter. (Refer to the 'Cleaning the vacuum cleaner'
section.)
Energy Saving on Displays when the Energy Saving Mode is on.
Energy Saving off Displays when the Energy Saving Mode is off.
VS9500_EN_00859G-00_SA.indd 17 2021-12-08 오후 3:59:06

English
18
OPERATION
Using the Accessory Cradle
Before charging the additional battery, plug in the charger.
3
1
2
4
4
+
3
1 2
or
or
or
 Accessory Cradle  Accessory Cradle +
Accessory Cradle
Holder
• When accessories are detached to be stored, dust may fall from the suction part of the
vacuum cleaner.
– After cleaning, shorten the pipe length and operate the vacuum in [MAX] mode for
10seconds.
– If the pad is wet and stored with the Wet Brush, the wall near the wet pad can be
contaminated or begin to smell. After cleaning the pad, dry the pad completely.
– When detaching the brush, press the release button on the brush.
VS9500_EN_00859G-00_SA.indd 18 2021-12-08 오후 3:59:07

English
19
OPERATION
Using the accessories
Detaching the accessories
• When detaching the adjustable pipe or the
brush, press the release button on the back.
• Before detaching the accessories, operate
in [MAX] mode for more than 10 seconds
to remove foreign matter remaining in the
accessories.
1
2
‘Click’
Combination Tool
Use to remove dust from curtains, furniture,
sofas, etc.
1
2
‘Click’
Extension Crevice Tool
Use to remove dust in grooves of window
frames, narrow openings, corners, etc..
Flexible Tool
Use to clean hard to reach places such as
upper or rear parts of furniture or ceilings.
NOTE
• The Flexible Tool can be connected to the
Combination Tool and the Extension Crevice
Tool.
VS9500_EN_00859G-00_SA.indd 19 2021-12-08 오후 3:59:08
