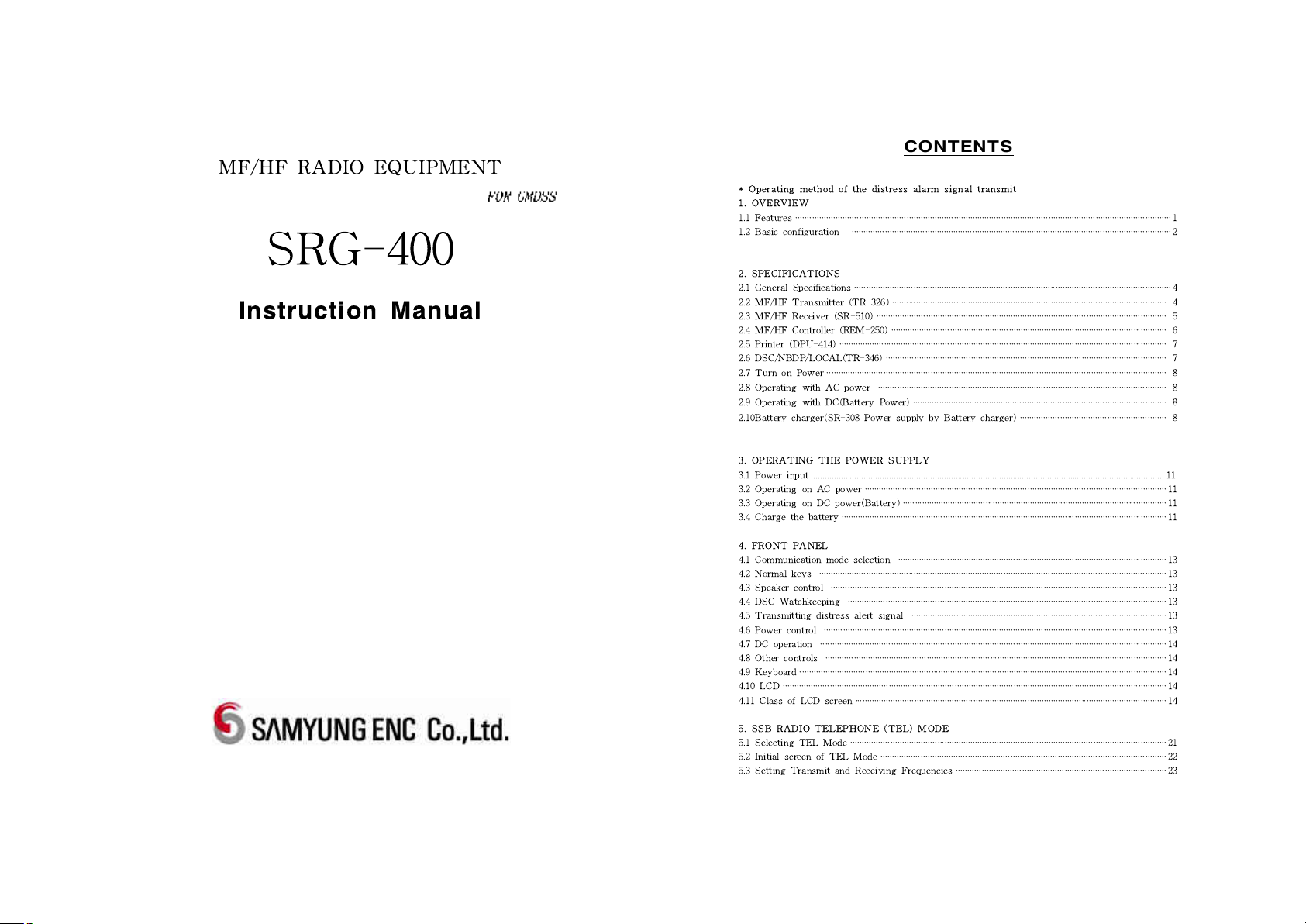

Samyung ENC SRG-400 User manual
MF/HF RADIO EQUIPMENT
SRG-400
Instruction Manual
CONTENTS
* Operating method of the distress alarm signal transmit
. OVERVIEW
1.1 Features ·······························································································································································1
1.2 Basic configuration ·······································································································································2
2. SPECIFICATIONS
2.1 General Specifications ······································································································································4
2.2 MF/HF Transmitter TR-326) ···················································································································· 4

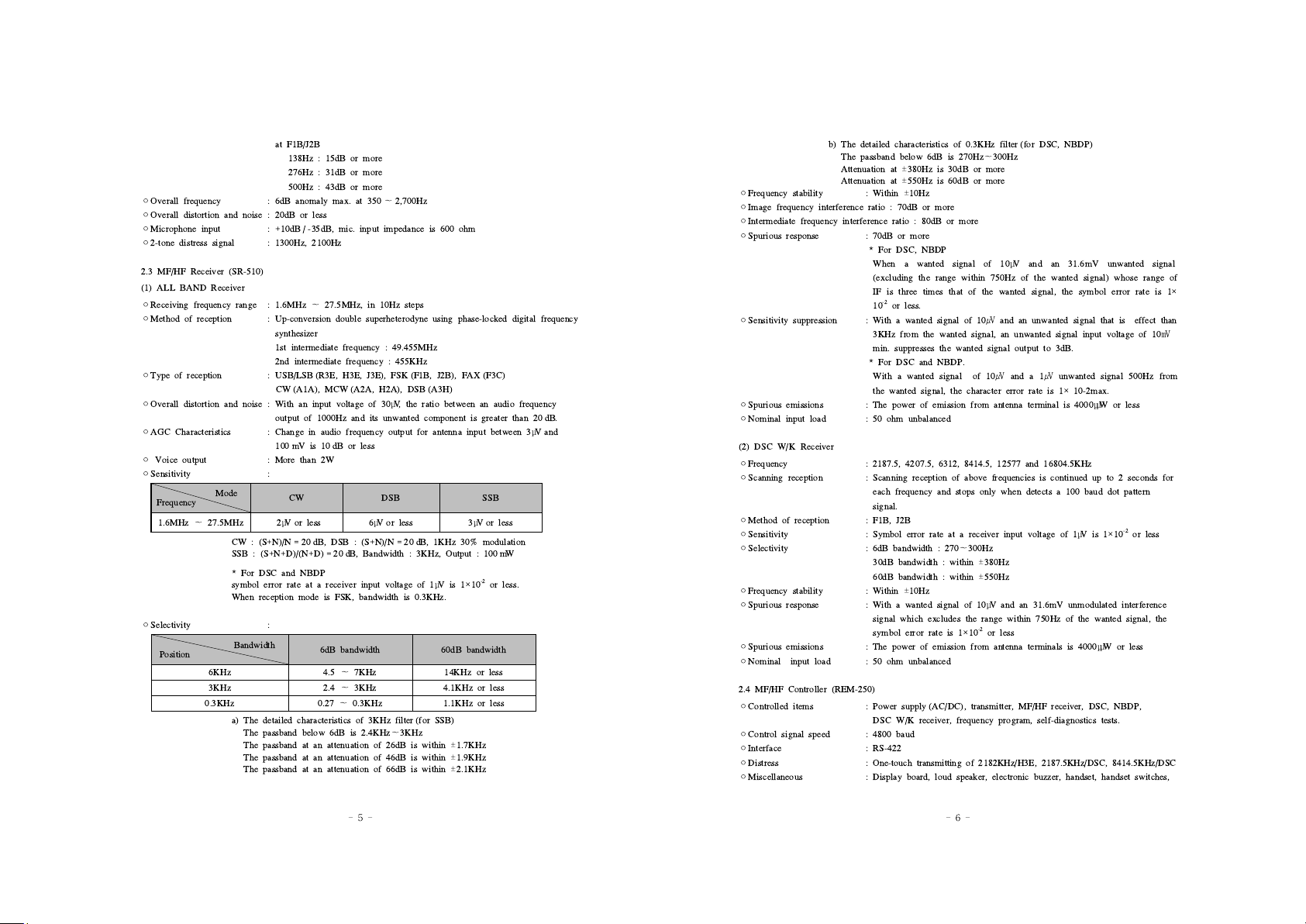

2.3 MF/HF Receiver SR-510) ··························································································································· 5
2.4 MF/HF Controller REM-250) ····················································································································· 6
2.5 Printer DPU-414) ··········································································································································· 7
2.6 DSC/NBDP/LOCAL TR-346) ······················································································································· 7
2.7 Turn on Power ················································································································································ 8
2.8 Operating with AC power ·························································································································· 8
2.9 Operating with DC Battery Power) ··········································································································· 8
2.10Battery charger SR-308 Power supply by Battery charger) ······························································ 8

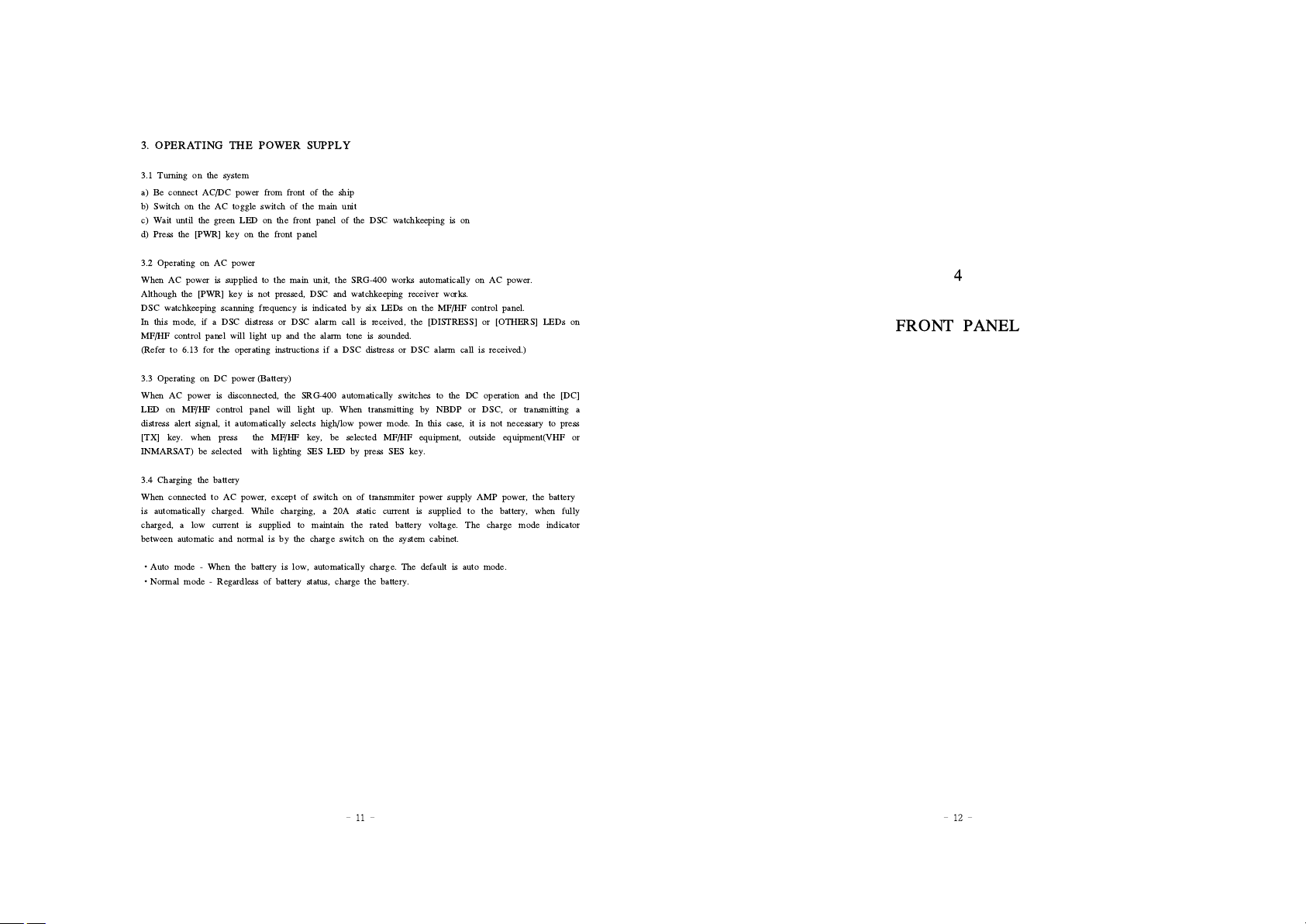

3. OPERATING THE POWER SUPPLY
3.1 Power input ........................................................................................................................................................ 11
3.2 Operating on AC power ································································································································11
3.3 Operating on DC power Battery) ················································································································11
3.4 Charge the battery ··········································································································································11
4. FRONT PANEL
4.1 Communication mode selection ··················································································································13
4.2 Normal keys ···················································································································································13
4.3 Speaker control ··············································································································································13
4.4 DSC Watchkeeping ·······································································································································13
4.5 Transmitting distress alert signal ············································································································13
4.6 Power control ·················································································································································13
4.7 DC operation ···················································································································································14
4.8 Other controls ·················································································································································14
4.9 Keyboard ····························································································································································14
4.10 LCD ···································································································································································14
4.11 Class of LCD screen ····································································································································14

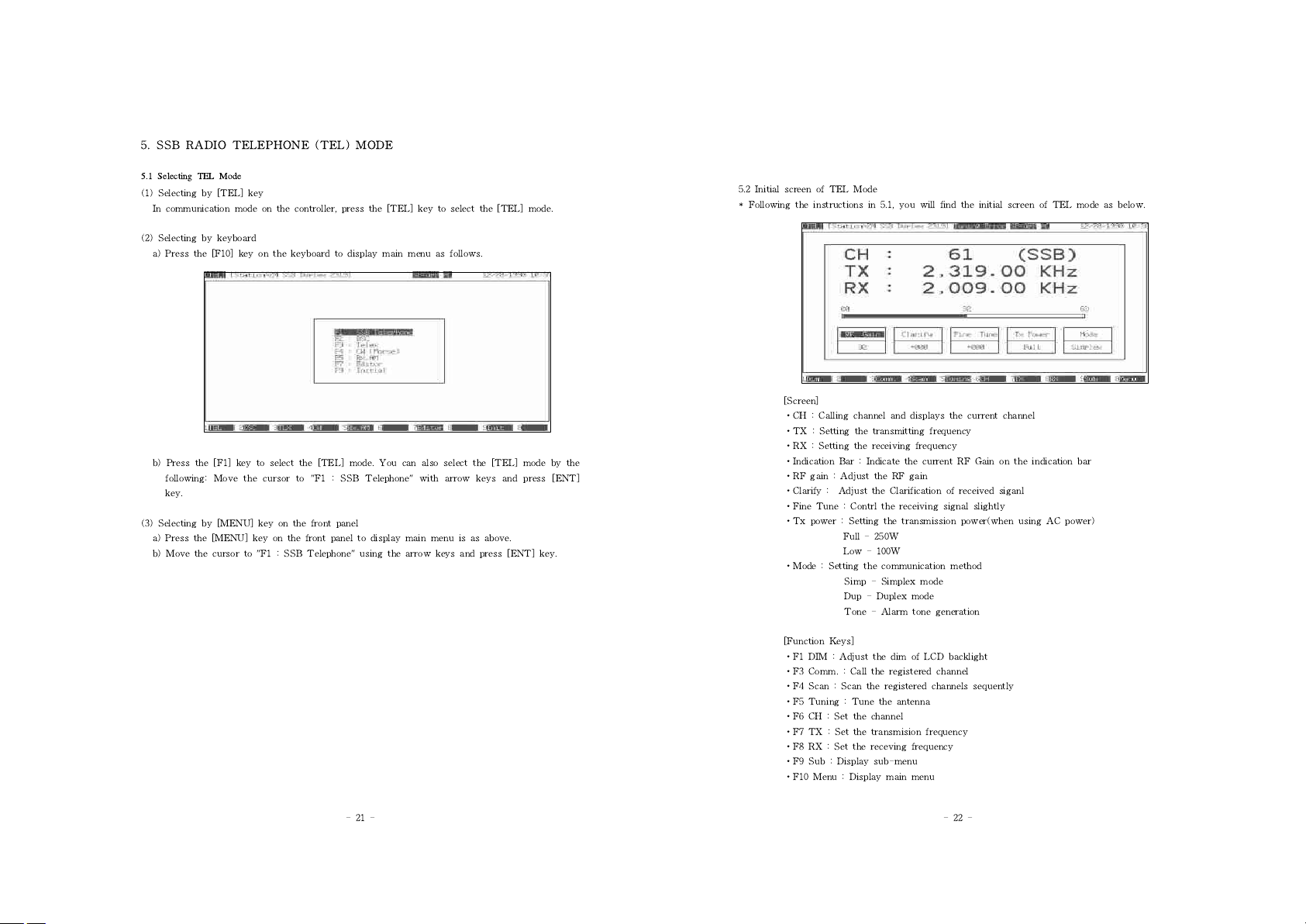

5. SSB RADIO TELEPHONE (TEL) MODE
5.1 Selecting TEL Mode ······································································································································21
5.2 Initial screen of TEL Mode ·························································································································22
5.3 Setting Transmit and Receiving Frequencies ·························································································23

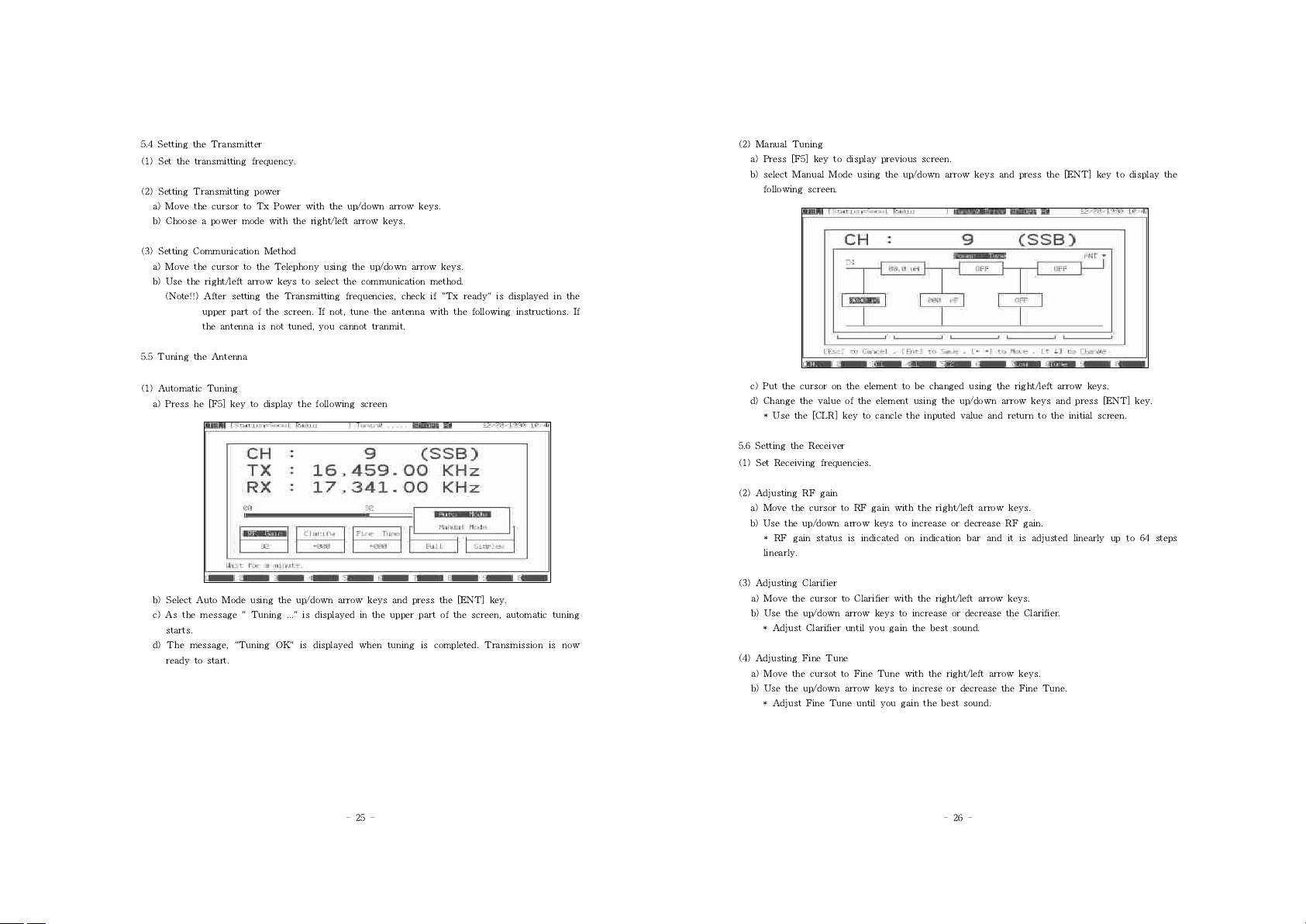

5.4 Setting Transmitter ········································································································································25
5.5 Tuning the Antenna ·······································································································································25
5.6 Setting Receiver ··············································································································································26
5.7 Communications ···············································································································································28
5.8 Scanning the received signal.......................................................................................................................28
5.9 Registering stations and frequencies ·········································································································28
5.10 Printing out station and frequency ··········································································································29
6. DSC MODE
6.1 Selecting DSC mode ·······································································································································32

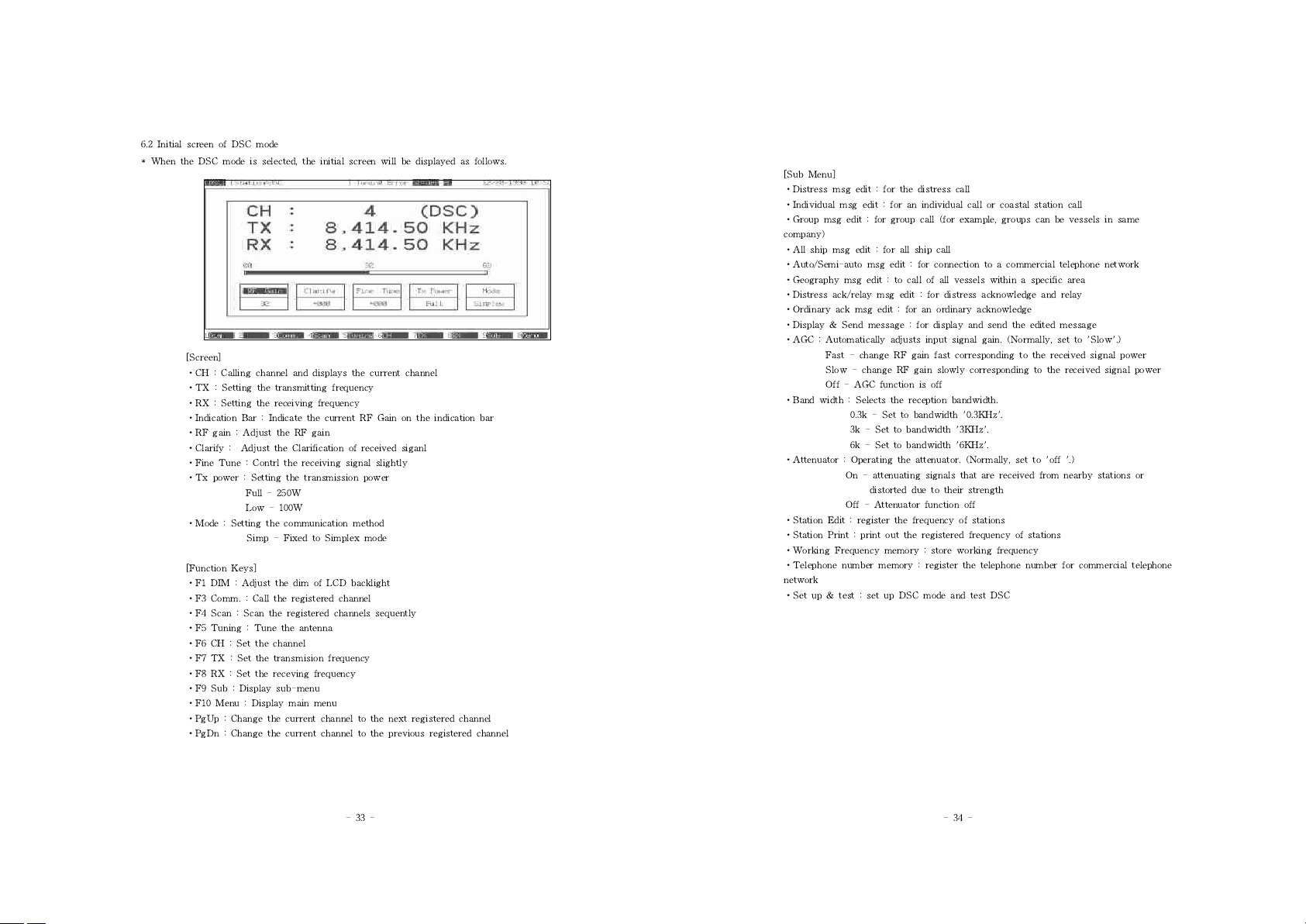

6.2 Initial screen of DSC mode ··························································································································32
6.3 Setting the transmitting and receiving frequencies ···············································································35
6.4 Setting Transmitter ········································································································································36
6.5 Tuning the Antenna ·······································································································································37
6.6 Setting Receiver ··············································································································································38
6.7 Distress Call ·····················································································································································40
6.8 Individual call ···················································································································································43
6.9 Group Call ·························································································································································46
6.10 All ship call ····················································································································································49
6.11 Auto/Semi-auto Call ·····································································································································52
6.12 Geography call ···············································································································································55
6.13 Distress Acknowledge and Distress Relay ····························································································58
6.14 Ordinary acknowledge ··································································································································61
6.15 Display and send message ·························································································································64
6.16 Scanning the received signal ·····················································································································64
6.17 Registering station and frequencies ·········································································································65
6.18 Printing out station and frequency ··········································································································66
6.19 Register working frequency ·······················································································································66
6.20 Register telephone number ·························································································································67
6.21 DSC initial setting ········································································································································67
6.22 DSC mode test ··············································································································································68
7. TELEX(NBDP) MODE
7.1 Selecting TELEX mode ·································································································································72
7.2 Initial screen of TELEX NBDP) mode ·····································································································73
7.3 Setting the transmitting and receiving frequencies ···············································································74
7.4 Setting Transmitter ········································································································································76
7.5 Tuning the Antenna ·······································································································································76
7.6 Setting Receiver ··············································································································································77
7.7 [ARQ] mode ······················································································································································79
7.8 [FEC] mode ·······················································································································································81
7.9 Scanning the received signal ·······················································································································84
7.10 Registering station and frequencies ·········································································································84
7.11 Printing out station and frequency ··········································································································85
7.12 Registering Macro Command ·····················································································································86
7.13 Set up TELEX mode ···································································································································86
7.14 The test of TELEX mode ··························································································································88
7.15 NAVTEX Marine transportation broadcast) receiving ········································································89
8. RADIOTELEGRAPHY (CW) MODE
8.1 Selecting Radiotelegraphy CW) Mode ·····································································································91
8.2 Initial screen of CW mode ···························································································································91
8.3 Setting Transmit /Receiving frequencies ·································································································93
8.4 Setting Transmitter ········································································································································94
8.5 Tuning the Antenna ·······································································································································94
8.6 Setting the Receiver ·······································································································································95
8.7 Communications ···············································································································································97
8.8 Scanning the received signal ·······················································································································97
8.9 Registering stations and frequencies ·········································································································97
8.10 Printing out station and frequency ··········································································································98
9. AM RECEPTION MODE
9.1 Selecting AM Reception Mode ··················································································································101
9.2 Initial screen of AM Reception Mode ·····································································································101
9.3 Setting Transmit and Receiving frequencies ····················································································103
9.4 Setting the Receiver ·····································································································································104
9.5 Scanning the received signal ·····················································································································105
9.6 Registering stations and frequencies. ······································································································105
9.7 Printing out station and frequency ··········································································································106
0. EDITOR MODE
10.1 Selecting Editor mode ································································································································106
10.2 Initial screen of Editor ·······························································································································107
10.3 Editing ····························································································································································108
. SENDING DISTRESS SIGNALS
11.1 Sending 2182KHz distress alert signal ·································································································114
11.2 Testing 2182KHz distress alert signal ··································································································114
11.3 Sending 2187.5KHz or 8414.5KHz distress alert message ·······························································114
2. INITIAL SETTING MODE
12.1 Selecting initial setting mode ··················································································································116
12.2 Menu of the initial setting mode ············································································································116
12.3 Self Test ························································································································································117
12.4 Date Set ·························································································································································117
12.5 Time Set ························································································································································118
12.6 Watch Keeper Scanning frequency set ·································································································118
12.7 Watch Keeper Scanning speed set ········································································································119
12.8 Speaker Set ···················································································································································119
12.9 Language Set ···············································································································································120
12.10 Dimmer set ·················································································································································120
12.11 Memory clear ·············································································································································121
12.12 Clear data for storage ······························································································································121
12.13 ROM Version ·············································································································································121
1
OVERVIEW
- 1 -

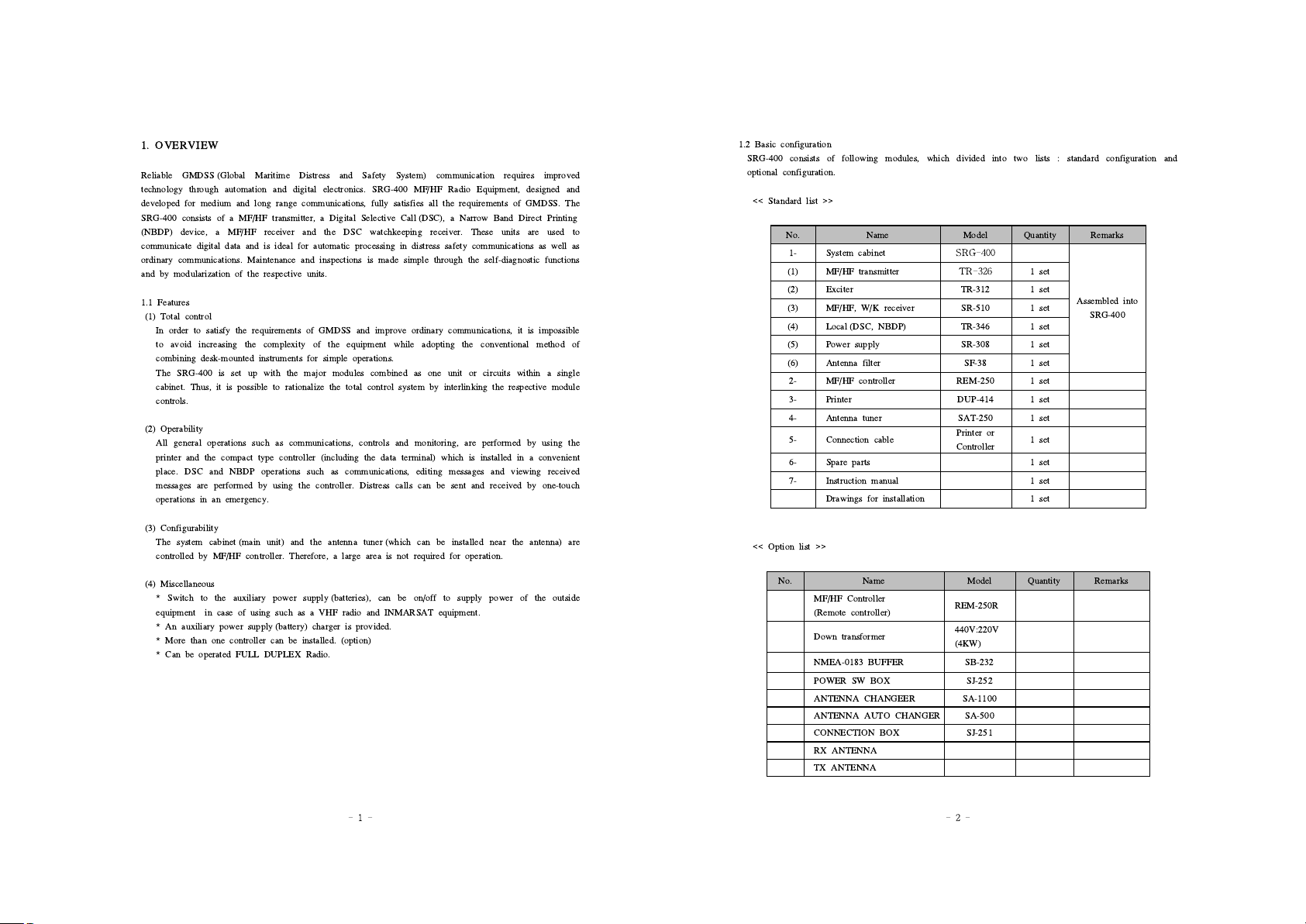

1. OVERVIEW
Reliable GMDSS (Global Maritime Distress and Safety System) communication requires improved
technology through automation and digital electronics. SRG-4 MF/HF Radio Equipment, designed and
developed for medium and long range communications, fully satisfies all the requirements of GMDSS. The
SRG-4 consists of a MF/HF transmitter, a Digital Selective Call (DSC), a Narrow Band Direct Printing
(NBDP) device, a MF/HF receiver and the DSC watchkeeping receiver. These units are used to
communicate digital data and is ideal for automatic processing in distress safety communications as well as
ordinary communications. Maintenance and inspections is made simple through the self-diagnostic functions
and by modularization of the respective units.
1.1 Features
(1) Total control
In order to satisfy the requirements of GMDSS and improve ordinary communications, it is impossible
to avoid increasing the complexity of the equipment while adopting the conventional method of
combining desk-mounted instruments for simple operations.
The SRG-4 is set up with the major modules combined as one unit or circuits within a single
cabinet. Thus, it is possible to rationalize the total control system by interlinking the respective module
controls.
(2) Operability
All general operations such as communications, controls and monitoring, are performed by using the
printer and the compact type controller (including the data terminal) which is installed in a convenient
place. DSC and NBDP operations such as communications, editing messages and viewing received
messages are performed by using the controller. Distress calls can be sent and received by one-touch
operations in an emergency.
(3) Configurability
The system cabinet (main unit) and the antenna tuner (which can be installed near the antenna) are
controlled by MF/HF controller. Therefore, a large area is not required for operation.
(4) Miscellaneous
* Switch to the auxiliary power supply (batteries), can be on/off to supply power of the outside
equipment in case of using such as a VHF radio and INMARSAT equipment.
* An auxiliary power supply (battery) charger is provided.
* More than one controller can be installed. (option)
* Can be operated FULL DUPLEX Radio.
- 2 -
1.2 Basic configuration
SRG-4 consists of following modules, which divided into two lists : standard configuration and
optional configuration.
<< Standard list >>
No.
Name
Model
Quantity
Remarks
1-
System cabinet
SRG-400
Assembled into
SRG-4
(1)
MF/HF transmitter
TR-326
1 set
(2)
Exciter
TR-312
1 set
(3)
MF/HF, W/K receiver
SR-51
1 set
(4)
Local (DSC, NBDP)
TR-346
1 set
(5)
Power supply
SR-3 8
1 set
(6)
Antenna filter
SF-38
1 set
2-
MF/HF controller
REM-25
1 set
3-
Printer
DUP-414
1 set
4-
Antenna tuner
SAT-25
1 set
5-
Connection cable
Printer or
Controller
1 set
6-
Spare parts
1 set
7-
Instruction manual
1 set
Drawings for installation
1 set
<< Option list >>
No.
Name
Model
Quantity
Remarks
MF/HF Controller
(Remote controller)
REM-25 R
Down transformer
44 V:22 V
(4KW)
NMEA- 183 BUFFER
SB-232
POWER SW BOX
SJ-252
ANTENNA CHANGEER
SA-11
ANTENNA AUTO CHANGER
SA-5
CONNECTION BOX
SJ-251
RX ANTENNA
TX ANTENNA
- 3 -
2
SPECIFICATIONS
- 4 -
2. SPECIFICATIONS
2.1 General Specifications
※
SRG-4 MF/HF Radio equipment has been tested according to the IMO Performance Standard for
GMDSS.
◦
Frequency range : Transmitting 1.6MHz
～
27.5MHz, 1 Hz Steps
Receiving 1.6MHz
～
27.5MHz, 1 Hz Steps
◦
Frequency stability : Synthesizer method, Within
±
1 Hz ( .3ppm max.)
◦
Frequency selection : All ITU channels (maritime service)
Calling 2 User memory channels (editable on data terminal screen), or
setting frequency directly by keyboard. One-touch selection of 2182
㎑
(H3E), 2187.5, 42 7.5, 6312, 8414.5, 12577, 168 4.5
㎑
(F1B/J2B).
◦
Frequency switching time : Between channels : within 5 seconds,
Between bands : within 15 seconds
◦
Type of emission : 2182kHz (H3E), USB (J3E), FSK (F1B/J2B), CW (A1A)
◦
Communication method : Simplex and duplex
◦
Ambient temperature : temperature -15
℃
～
+55
℃
humidity 93% at +4
℃
oscillation full amplitude 3.2mm at 5
～
12.5Hz
full amplitude .8mm at 12.5
～
25Hz
full amplitude .2mm at 25
～
5 Hz
◦
Power supply : AC1
～
12 / 2
～
24 V, 5 /6 Hz
±
6% single-phase, 3.3KVA max.
DC24V-25%
～
+3 %, 4 A max.
◦
Dimensions : 525(W) X 735(H) X 42 (D) (unit : mm)
◦
Weight : 15 Kg approx.
2.2 MF/HF Transmitter (TR-326)
◦
Frequency range : 1.6MHz - 27.5MHz
◦
Continuous work : 8 hours continuous work at 1min. transmitting, 4min. stand-by
◦
Output power : using 5 ohm dummy load
a) AC operation
1.6MHz
～
27.5MHz, 25 W pep
b) DC operation
1.6MHz
～
27.5MHz, 75W (6 W pep or more)
◦
Output power control : High (25 W), Low (1 W)
◦
Modulation method : Low-power stage balanced modulation
◦
Frequency stability : Within
±
1 Hz ( .3ppm max.)
◦
Occupied bandwidth : Within 3KHz at J3E, H3E
Within .5KHz at F1B / J2B, A1A
◦
Carrier attenuation : 4 dB or more (at J3E)
◦
Spurious attenuation : at J3E
1.5
～
4.5KHz : 31dB or more
4.5
～
7.5KHz : 38dB or more
7.5KHz
～
: 43dB or more
- 5 -
at F1B/J2B
138Hz : 15dB or more
276Hz : 31dB or more
5 Hz : 43dB or more
◦
Overall frequency : 6dB anomaly max. at 35
～
2,7 Hz
◦
Overall distortion and noise : 2 dB or less
◦
Microphone input : +1 dB / -35dB, mic. input impedance is 6 ohm
◦
2-tone distress signal : 13 Hz, 21 Hz
2.3 MF/HF Receiver (SR-51 )
(1) ALL BAND Receiver
◦
Receiving frequency range : 1.6MHz
～
27.5MHz, in 1 Hz steps
◦
Method of reception : Up-conversion double superheterodyne using phase-locked digital frequency
synthesizer
1st intermediate frequency : 49.455MHz
2nd intermediate frequency : 455KHz
◦
Type of reception : USB/LSB (R3E, H3E, J3E), FSK (F1B, J2B), FAX (F3C)
CW (A1A), MCW (A2A, H2A), DSB (A3H)
◦
Overall distortion and noise : With an input voltage of 3
μ
V, the ratio between an audio frequency
output of 1 Hz and its unwanted component is greater than 2 dB.
◦
AGC Characteristics : Change in audio frequency output for antenna input between 3
μ
V and
1 mV is 1 dB or less
◦
Voice output : More than 2W
◦
Sensitivity :
Mode
Frequency
CW
DSB
SSB
1.6MHz
～
27.5MHz
2
μ
V or less
6
μ
V or less
3
μ
V or less
CW : (S+N)/N = 2 dB, DSB : (S+N)/N = 2 dB, 1KHz 3 % modulation
SSB : (S+N+D)/(N+D) = 2 dB, Bandwidth : 3KHz, Output : 1 mW
* For DSC and NBDP
symbol error rate at a receiver input voltage of 1
μ
V is 1
×
1 -2 or less.
When reception mode is FSK, bandwidth is .3KHz.
◦
Selectivity :
Bandwidth
Position
6dB bandwidth
6 dB bandwidth
6KHz
4.5
～
7KHz
14KHz or less
3KHz
2.4
～
3KHz
4.1KHz or less
.3KHz
.27
～
.3KHz
1.1KHz or less
a) The detailed characteristics of 3KHz filter (for SSB)
The passband below 6dB is 2.4KHz
～
3KHz
The passband at an attenuation of 26dB is within
±
1.7KHz
The passband at an attenuation of 46dB is within
±
1.9KHz
The passband at an attenuation of 66dB is within
±
2.1KHz
- 6 -
b) The detailed characteristics of .3KHz filter (for DSC, NBDP)
The passband below 6dB is 27 Hz
～
3 Hz
Attenuation at
±
38 Hz is 3 dB or more
Attenuation at
±
55 Hz is 6 dB or more
◦
Frequency stability : Within
±
1 Hz
◦
Image frequency interference ratio : 7 dB or more
◦
Intermediate frequency interference ratio : 8 dB or more
◦
Spurious response : 7 dB or more
* For DSC, NBDP
When a wanted signal of 1
μ
V and an 31.6mV unwanted signal
(excluding the range within 75 Hz of the wanted signal) whose range of
IF is three times that of the wanted signal, the symbol error rate is 1
×
1 -2 or less.
◦
Sensitivity suppression : With a wanted signal of 1
㎶
and an unwanted signal that is effect than
3KHz from the wanted signal, an unwanted signal input voltage of 1
㎷
min. suppresses the wanted signal output to 3dB.
* For DSC and NBDP.
With a wanted signal of 1
㎶
and a 1
㎶
unwanted signal 5 Hz from
the wanted signal, the character error rate is 1
×
1 -2max.
◦
Spurious emissions : The power of emission from antenna terminal is 4
μμ
W or less
◦
Nominal input load : 5 ohm unbalanced
(2) DSC W/K Receiver
◦
Frequency : 2187.5, 42 7.5, 6312, 8414.5, 12577 and 168 4.5KHz
◦
Scanning reception : Scanning reception of above frequencies is continued up to 2 seconds for
each frequency and stops only when detects a 1 baud dot pattern
signal.
◦
Method of reception : F1B, J2B
◦
Sensitivity : Symbol error rate at a receiver input voltage of 1
μ
V is 1
×
1 -2 or less
◦
Selectivity : 6dB bandwidth : 27
～
3 Hz
3 dB bandwidth : within
±
38 Hz
6 dB bandwidth : within
±
55 Hz
◦
Frequency stability : Within
±
1 Hz
◦
Spurious response : With a wanted signal of 1
μ
V and an 31.6mV unmodulated interference
signal which excludes the range within 75 Hz of the wanted signal, the
symbol error rate is 1
×
1 -2 or less
◦
Spurious emissions : The power of emission from antenna terminals is 4
μμ
W or less
◦
Nominal input load : 5 ohm unbalanced
2.4 MF/HF Controller (REM-25 )
◦
Controlled items : Power supply (AC/DC), transmitter, MF/HF receiver, DSC, NBDP,
DSC W/K receiver, frequency program, self-diagnostics tests.
◦
Control signal speed : 48 baud
◦
Interface : RS-422
◦
Distress : One-touch transmitting of 2182KHz/H3E, 2187.5KHz/DSC, 8414.5KHz/DSC
◦
Miscellaneous : Display board, loud speaker, electronic buzzer, handset, handset switches,
- 7 -
key jack, dimmer
◦
Dimensions : 295mm(W), 215mm(D), 75mm(H)
◦
Weight : 3Kg approx.
◦
Main processor : 8 486
◦
ROM : 2. MB FLASH-ROM
◦
RAM : 4. MB equipment
◦
Display : CCFL back-light LCD
◦
Input : Keyboard 86 key (IBM compatible)
◦
Interface : RS-422 interface - 1 channel equipment
Printer interface - 1 channel equipment (based on Centronics interface)
2.5 Printer (DPU-414)
(1) Specifications of DPU-414
◦
Print method : Thermal serial dot matrix
◦
Total dots : 9
×
32 dots / line
◦
Dots per character : 9
×
7 dot wide
◦
Space between characters : 1 dot
◦
Characters per line : 4 characters (standard size), 8 characters (small size)
◦
Line feed direction : Forward, forward / reverse logical seek
◦
Length of a line : 89.6mm
◦
Printing speed : 52.5 cps max.(standard size), 8 cps max.(small size)
◦
Dimensions : 16 mm
×
17 mm
×
66.5mm
◦
Weight : 58 g approx.
◦
Average life : 5 , lines approx. when print "8" fully with 1 % darkness.
(2) Bit-image graphics mode
◦
Total dots : 8
×
32 dots / line
◦
Line feed direction : Forward logical seek
(3) Ambient
◦
Temperature :
℃
～
4
℃
◦
Humidity : 3
％～
8
％
RH (at no condensation)
(4) Print paper
◦
Model No. : TP411-28CL (TP-411L)
◦
Width : 112mm
◦
Diameter : 48mm
◦
Length : 28m approx.
2.6 DSC/NBDP/LOCAL (TR-346)
(1) DSC
◦
Protocol : Complied with CCIR 493-3 and 541-2 standards
◦
Emission : F1B/J2B 1 baud
◦
Modulator : Output frequency : 17 Hz
±
85Hz
- 8 -
Output level : Maximum + 1 dBm (6 ohm unbalanced / balanced)
◦
Demodulator : Input frequency : 17 Hz
±
85Hz
Input level : -2 dBm
～
+5dBm (6 ohm unbalanced / balanced)
◦
Processor : 1 -bit error detection code as specified in CCIR 493-3 standard
Clock generator : crystal oscillator
Clock frequency : 1 , KHz
Clock stability : within
±
5
×
1 -6
(2) NBDP
◦
Protocol : Complied with CCIR 625, 476-4, 49 , 491, 492-3 and CCITT F13
◦
Calling mode : Individual and group calling with 5-digit and 9-digit select call number
◦
Operating mode : ARQ (automatic repetition request)
CFEC (collective forward error correction : more than one receiving station)
SFEC (selective forward error correction : one receiving station)
◦
Status displays : POWER ON, STAND-BY, CALLED, CALLING, FREE, SIGNAL, ARQ,
CFEC, SFEC, SEND, RECEIVER, PHASING, REPHASING, REPEAT,
ERR, etc.
◦
Coding : 7-bit code 4B/3Y constant ratio mark signal (B : 1785Hz, Y : 1615Hz)
◦
Memory capacity : Memory capacity of modem is 2kB with 1 -hours capacitor backup
◦
System parameter : All system parameters from operator data terminal are written to EEPROM
◦
Center frequency : 17 Hz
◦
Frequency shift range :
±
85Hz
◦
Modulation method : Phase-continuous AFSK
◦
Modulation speed : 1 baud (ARQ, FEC mode)
◦
Frequency deviation : .5Hz or less
◦
Demodulation input : +1 dBm
～
-25dBm, 6 ohm unbalanced / balanced
◦
Modulation output : +1 dBm
～
-2 dBm, 6 ohm unbalanced / balanced
- 9 -
2.7 Turn ON POWER
a) Connect AC & DC POWER from Ditribution of power.
b) Turn on the AC lever switch of main unit.
c) Waitting for until turn lighting green LED lighter of DSC WATCHKEEPING part from Front PANEL of the
REMOTE CONTROLLER.
d) Push the
【
PWR
】
Key of Front PANEL.
2.8 Operating with AC POWER
Be Operated AC POWER automatically for the first time when AC POWER is connected from AC POWER.
Can be operated DSC & WATCH KEETING RECEIVER even if didn't push SWITCH of
【
PWR
】
. and be
Displayed SCANNING FREQUINCY by 6EA lighting DIODE on the DSC WKR of MF/HF CONTROLLER
PANEL.
As on this condition, be sounding with turn light lighting DIODE of
【
DISTRESS
】
or
【
OTHERS
】
on the
PANEL with item of receiving signal when be received distress or Alert Calling Signal by DISGITAL select
Calling.( The operating method when be received distress alert calling signal, Comparison DISTRESS or
ALERT Calling Signal unit.)
2.9 Operaing with DC(BATTERY) POWER
Can be changed to DC power MODE automatically, be lighted DC LED of main unit when AC power supply
became OFF. Can't connect All system power including in WATCHKEEPING receiver when changed to DC
MODE. Be turn off all displayer except of DC LED DISPLAYER of controller front panel. At that time, can be
select euipment of using DSC POWER with using MF/HF Key and SES Key. be selected MF/HF Equipment as
push the MF/HF Key, Be selected external equipment(VHF or INMARSAT) with lrighting SES LED displyer
when push the SES Key.
2.1 BATTERY CHAGER(SR-3 8 POWER SUPPLY BATTERY CHARGER)
Can be charger Battery Charging automatically exept of became turning on the transmitter output AMF
POWER. be charger for 2 A constant-current when charging circuit didn't arrived to selected voltage of battery
voltage. When battery voltage become selected voltage , constant-voltage control circuit is reduce charging-
current.
Charging MODE of two serial of AUTO & NORMAL charger to CHARGER SWITCH of SYSTEM CABINET.
AUTO MODE --- Be Chargerd at battery discharging only, can be keeping for full charging always.
Be selected this MODE as generally
NORMAL MODE --- Be charging even if charging condition of battery no concern.
OFF --- Be discharging even if charging condition of battery no concern.
Have check maintenance with using battery for long time will be using of battery . have maintenance with
BATTERY manuals.
- 10 -
3
OPERATING THE POWER SUPPLY
- 11 -
3. OPERATING THE POWER SUPPLY
3.1 Turning on the system
a) Be connect AC/DC power from front of the ship
b) Switch on the AC toggle switch of the main unit
c) Wait until the green LED on the front panel of the DSC watchkeeping is on
d) Press the [PWR] key on the front panel
3.2 Operating on AC power
When AC power is supplied to the main unit, the SRG-4 works automatically on AC power.
Although the [PWR] key is not pressed, DSC and watchkeeping receiver works.
DSC watchkeeping scanning frequency is indicated by six LEDs on the MF/HF control panel.
In this mode, if a DSC distress or DSC alarm call is received, the [DISTRESS] or [OTHERS] LEDs on
MF/HF control panel will light up and the alarm tone is sounded.
(Refer to 6.13 for the operating instructions if a DSC distress or DSC alarm call is received.)
3.3 Operating on DC power (Battery)
When AC power is disconnected, the SRG-4 automatically switches to the DC operation and the [DC]
LED on MF/HF control panel will light up. When transmitting by NBDP or DSC, or transmitting a
distress alert signal, it automatically selects high/low power mode. In this case, it is not necessary to press
[TX] key. when press the MF/HF key, be selected MF/HF equipment, outside equipment(VHF or
INMARSAT) be selected with lighting SES LED by press SES key.
3.4 Charging the battery
When connected to AC power, except of switch on of transmmiter power supply AMP power, the battery
is automatically charged. While charging, a 2 A static current is supplied to the battery, when fully
charged, a low current is supplied to maintain the rated battery voltage. The charge mode indicator
between automatic and normal is by the charge switch on the system cabinet.
∙
Auto mode - When the battery is low, automatically charge. The default is auto mode.
∙
Normal mode - Regardless of battery status, charge the battery.
- 12 -
4
FRONT PANEL
- 13 -
4. FRONT PANEL
4.1 Communication mode selection
Composed of 4 switches as below, which set up the communication mode
[TEL] : communication through SSB radio telephone
[DSC] : communication through DSC digital selective call)
[TLX] : communication through NBDP narrow band direct printing)
[CW] : communication through Morse telegraph
4.2 Normal keys
Composed of keys for normal operation.
Further information of these keys is in the operation part of each chapter through the manual.
[0]-[9], [.] : Number keys & dot key
[#] : Calling ITU channel or user's channel
[MENU] : Calling the main menu
[
▲
][
▼
][
◀
][
▶
] : Select the transmit or receive channel, select the item or move the cursor
[ENT] : Enter key
[CLR] : Abort the present setting or return to previous menu
[SCAN] : Scanning
4.3 Speaker control
[SP ] : Turn the speaker on or off
[Vol
▲
] [Vol
▼
] : Control the speaker volume Adjust the AF gain)
4.4 DSC Watchkeeping
2187.5 - 16804.5 : Display the present scanning frequency
[DISTRESS] :
When receiving a DSC signal by watchkeeping receiver, this LED lights up and an alarm
tone sounds
[OTHERS] :
When receiving a DSC signal except distress call , this LED lights up and an alarm
tone sounds
[STOP] : Press this key to stop the alarm tone, distress transmitter and turn off the [DITRESS],
[OTHERS] LEDs
4.5 Transmitting distress alert signal
[2182] : press this key and Tx/Rx frequencies are automatically set to 2182KHz and
communication mode [H3E]
[SEND] : transmit the Distress Call
4.6 Power control
[POWER] : supply power to the main unit and controller even though this switch is off, when
the breaker of the main unit is on, DSC and watchkeeping receiver will work)
- 14 -
[TX] : supply high-voltage power to the transmitter when this switch is on, the battery charger
is turned off)
4.7 DC operation
[SES] LED : when operating on DC power, indicates the supply of power to outer device
[DC] LED : Indicates operation on DC power
[SES] : when operating on DC power, turn ON/OFF to control power supply to external device
[MF/HF] :
when operation on DC power, turn ON/OFF to control power supply to MF/HF
telephone device
4.8 Other controls
[FUNC] : Function key
[BK] LED : lights up when you hold the key on the mic during the communication
[TX] LED : Indicates high voltage power supply to transmitter
[LCD CONTRAST] Knob : Control the LCD contrast attached to back of the controller)
4.9 Keyboard
Function keys F1-F10 : perform the functions displayed on bottom of the screen
[ESC] : abort the settings or return to previous menu similar to [CLR] key on front panel)
[ENTER] : Enter Key similar to [ENT] key on front panel)
[
→
,
←
,
↑
,
↓
] : select the transmitting or receiving channel, select the items under DSC mode or
move cursor similar to [
▲
][
▼
][
◀
][
▶
] keys on front panel)
4.1 LCD
Normally displays next information
* Communication mode
* Simplex / duplex
* Transmit frequencies, type of emission, power mode AC/DC)
* Reception mode, Bandwidth, AGC, Noise Blanker, Status of Attenuator and speaker
* Levels of transmitting power and receiving signal power indicate by the bar graph)
* Each information according to keys further informations of this lie on the operation part of
each chapter through the manual)
4.11 Class of LCD screen
<< MAIN MENU >>
◎
F1 : SSB Telephone
◎
F2 : DSC
◎
F3 : Telex
◎
F4 : CW Morse)
◎
F5 : Rx. AM
◎
F7 : Editor
◎
F9 : Initial
- 15 -
- 16 -
- 17 -
- 18 -
- 19 -
- 20 -
5
SSB RADIO TELEPHONE (TEL) MODE
- 21 -
5. SSB RADIO TELEPHONE (TEL) MODE
5.1 Selecting TEL Mode
1) Selecting by [TEL] key
In communication mode on the controller, press the [TEL] key to select the [TEL] mode.
2) Selecting by keyboard
a) Press the [F10] key on the keyboard to display main menu as follows.
b) Press the [F1] key to select the [TEL] mode. You can also select the [TEL] mode by the
following: Move the cursor to "F1 : SSB Telephone" with arrow keys and press [ENT]
key.
3) Selecting by [MENU] key on the front panel
a) Press the [MENU] key on the front panel to display main menu is as above.
b) Move the cursor to "F1 : SSB Telephone" using the arrow keys and press [ENT] key.
- 22 -
5.2 Initial screen of TEL Mode
* Following the instructions in 5.1, you will find the initial screen of TEL mode as below.
[Screen]
∙
CH : Calling channel and displays the current channel
∙
TX : Setting the transmitting frequency
∙
RX : Setting the receiving frequency
∙
Indication Bar : Indicate the current RF Gain on the indication bar
∙
RF gain : Adjust the RF gain
∙
Clarify : Adjust the Clarification of received siganl
∙
Fine Tune : Contrl the receiving signal slightly
∙
Tx power : Setting the transmission power when using AC power)
Full - 250W
Low - 100W
∙
Mode : Setting the communication method
Simp - Simplex mode
Dup - Duplex mode
Tone - Alarm tone generation
[Function Keys]
∙
F1 DIM : Adjust the dim of LCD backlight
∙
F3 Comm. : Call the registered channel
∙
F4 Scan : Scan the registered channels sequently
∙
F5 Tuning : Tune the antenna
∙
F6 CH : Set the channel
∙
F7 TX : Set the transmision frequency
∙
F8 RX : Set the receving frequency
∙
F9 Sub : Display sub-menu
∙
F10 Menu : Display main menu
- 23 -
∙
PgUp : Change the current channel to the next registered channel
∙
PgDn : Change the current channel to the previous registered channel
[Sub Menu]
∙
AGC : Automatically adjusts input signal gain. Normally, set to 'Slow'.)
Fast - change RF gain fast corresponding to the received signal power
Slow - change RF gain slowly corresponding to the received signal power
Off - AGC function is off
∙
Band width : Selects the reception bandwidth.
0.3k - Set to bandwidth '0.3KHz'.
3k - Set to bandwidth '3KHz'.
6k - Set to bandwidth '6KHz'.
∙
Attenuator : Operating the attenuator. Normally, set to 'off '.)
On - attenuating signals that are received from nearby stations or
distorted due to their strength
Off - Attenuator function off
∙
Station Edit : register the frequency of stations
∙
Station Print : print out the registered frequency of stations
5.3 Setting Transmit and Receiving Frequencies
* Frequencies are set by KHz
1) Setting Transmitting frequencies
a) Press the [F7] key on the keyboard.
b) Input frequencies with the numerical keys.
* Use the right/left arrow keys to move the cursor.
c) Press the [ENT] key.
Note!!) Keep frequencies between 1600KHz and 27500KHz.
2) Setting Receiving frequencies
a) Press the [F8] key on the keyboard.
b) Input frequencies with the numerical keys.
* Use the right/left arrow keys to move the cursor.
c) Press the [ENT] key.
Note!!) Keep frequencies between 90KHz and 29999.9KHz.
- 24 -
3) Setting Transmit/Receive frequencies using 'COMM'.
a) Press the [F3] key on the keyboard to display the following screen.
b) Select the desired station with the arrow keys and press the [ENT] key. Then, information
of the selected station is shown as follows.
* Use the [CLR] key to return to the previous screen.
c) Move the cursor to desired channel and press the [ENT] key. Then, the initial screen of
TEL mode is shown and Transmit/Receive frequencies are set as registered channel.
* Use the [CLR] key to return to the previous screen.
4) Setting Transmit/Receive frequencies using 'Channel'
a) Press [F6] key or '/' key on the keyboard or press '#' key on the front panel.
b) Enter ITU channel or user channel with the numerical keys.
c) Press the [ENT] key.
- 25 -
5.4 Setting the Transmitter
1) Set the transmitting frequency.
2) Setting Transmitting power
a) Move the cursor to Tx Power with the up/down arrow keys.
b) Choose a power mode with the right/left arrow keys.
3) Setting Communication Method
a) Move the cursor to the Telephony using the up/down arrow keys.
b) Use the right/left arrow keys to select the communication method.
Note!!) After setting the Transmitting frequencies, check if "Tx ready" is displayed in the
upper part of the screen. If not, tune the antenna with the following instructions. If
the antenna is not tuned, you cannot tranmit.
5.5 Tuning the Antenna
1) Automatic Tuning
a) Press he [F5] key to display the following screen
b) Select Auto Mode using the up/down arrow keys and press the [ENT] key.
c) As the message " Tuning ..." is displayed in the upper part of the screen, automatic tuning
starts.
d) The message, "Tuning OK" is displayed when tuning is completed. Transmission is now
ready to start.
- 26 -
2) Manual Tuning
a) Press [F5] key to display previous screen.
b) select Manual Mode using the up/down arrow keys and press the [ENT] key to display the
following screen.
c) Put the cursor on the element to be changed using the right/left arrow keys.
d) Change the value of the element using the up/down arrow keys and press [ENT] key.
* Use the [CLR] key to cancle the inputed value and return to the initial screen.
5.6 Setting the Receiver
1) Set Receiving frequencies.
2) Adjusting RF gain
a) Move the cursor to RF gain with the right/left arrow keys.
b) Use the up/down arrow keys to increase or decrease RF gain.
* RF gain status is indicated on indication bar and it is adjusted linearly up to 64 steps
linearly.
3) Adjusting Clarifier
a) Move the cursor to Clarifier with the right/left arrow keys.
b) Use the up/down arrow keys to increase or decrease the Clarifier.
* Adjust Clarifier until you gain the best sound.
4) Adjusting Fine Tune
a) Move the cursot to Fine Tune with the right/left arrow keys.
b) Use the up/down arrow keys to increse or decrease the Fine Tune.
* Adjust Fine Tune until you gain the best sound.
- 27 -

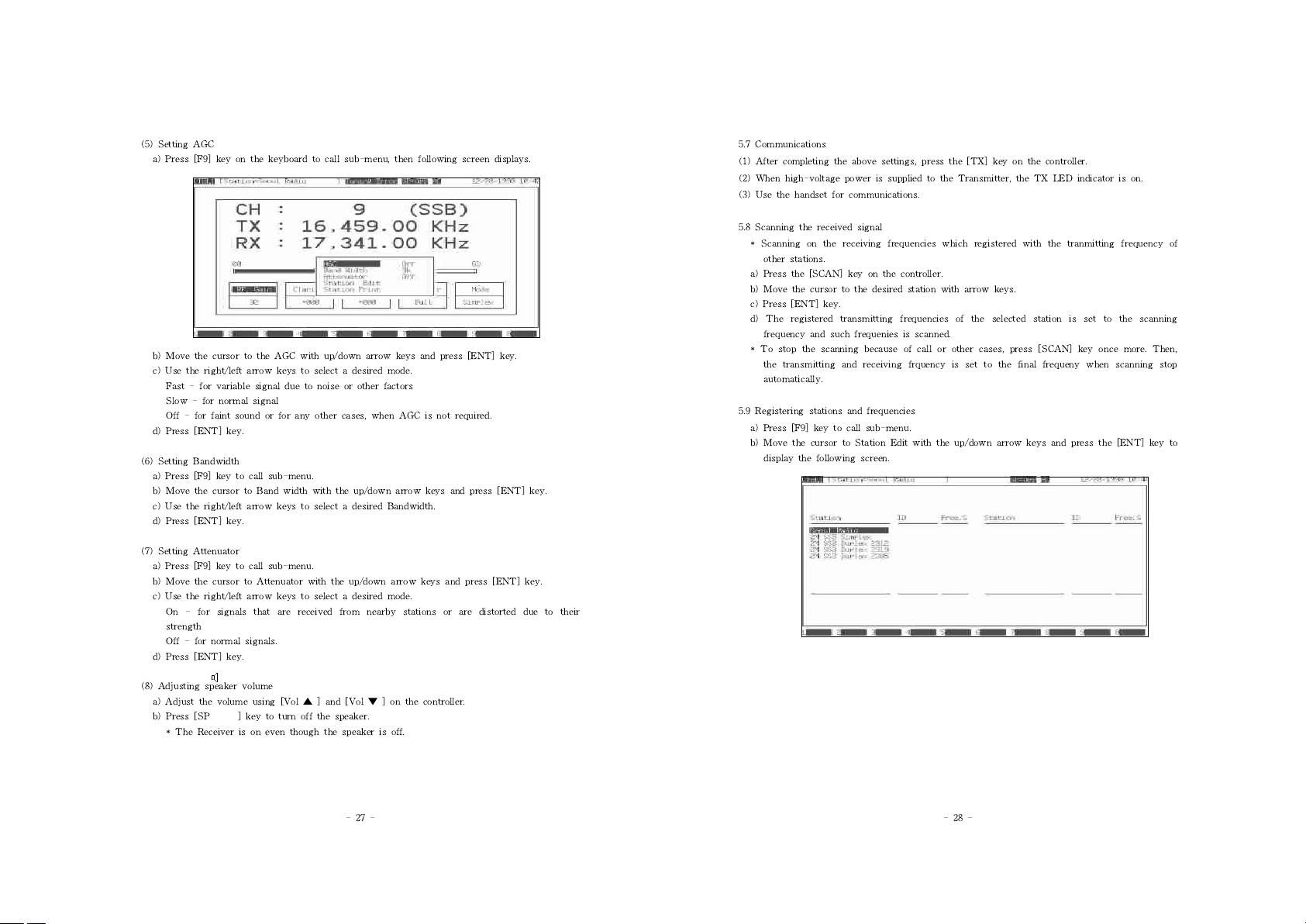

5) Setting AGC
a) Press [F9] key on the keyboard to call sub-menu, then following screen displays.
b) Move the cursor to the AGC with up/down arrow keys and press [ENT] key.
c) Use the right/left arrow keys to select a desired mode.
Fast - for variable signal due to noise or other factors
Slow - for normal signal
Off - for faint sound or for any other cases, when AGC is not required.
d) Press [ENT] key.
6) Setting Bandwidth
a) Press [F9] key to call sub-menu.
b) Move the cursor to Band width with the up/down arrow keys and press [ENT] key.
c) Use the right/left arrow keys to select a desired Bandwidth.
d) Press [ENT] key.
7) Setting Attenuator
a) Press [F9] key to call sub-menu.
b) Move the cursor to Attenuator with the up/down arrow keys and press [ENT] key.
c) Use the right/left arrow keys to select a desired mode.
On - for signals that are received from nearby stations or are distorted due to their
strength
Off - for normal signals.
d) Press [ENT] key.
8) Adjusting speaker volume
a) Adjust the volume using [Vol
▲
] and [Vol
▼
] on the controller.
b) Press [SP ] key to turn off the speaker.
* The Receiver is on even though the speaker is off.
- 28 -
5.7 Communications
1) After completing the above settings, press the [TX] key on the controller.
2) When high-voltage power is supplied to the Transmitter, the TX LED indicator is on.
3) Use the handset for communications.
5.8 Scanning the received signal
* Scanning on the receiving frequencies which registered with the tranmitting frequency of
other stations.
a) Press the [SCAN] key on the controller.
b) Move the cursor to the desired station with arrow keys.
c) Press [ENT] key.
d) The registered transmitting frequencies of the selected station is set to the scanning
frequency and such frequenies is scanned.
* To stop the scanning because of call or other cases, press [SCAN] key once more. Then,
the transmitting and receiving frquency is set to the final frequeny when scanning stop
automatically.
5.9 Registering stations and frequencies
a) Press [F9] key to call sub-menu.
b) Move the cursor to Station Edit with the up/down arrow keys and press the [ENT] key to
display the following screen.
- 29 -
c) Move the cursor to a desired station with the up/down arrow keys and press the [ENT]
key to display following screen.
d) Move the cursor to Station and press the [ENT] key.
e) Enter the name of a station and press the [ENT] key.
f) Move the cursor to ID and press the [ENT] key.
g) Enter an ID and press the [ENT] key.
h) Move the cursor to the Tx of the desired channel and press the [ENT] key.
i) Enter Transmission frequency and press the [ENT] key.
j) Move the cursor to the Rx of the desired channel and press the [ENT] key.
k) Enter the Reception frequency and press the [ENT] key.
l) Press the [CLR] key to return to sub-menu.
5.10 Printing out station and frequency
a) Press [F9] key to call sub-menu.
b) Move the cursor to Station Print with the up/down arrow keys and press the [ENT] key
to display the following screen.
c) Move the cursor to a desired station with the up/down arrow keys and press the [ENT]
key to print out the frequencies of the station.
- 30 -
d) Press [F5] key to print out the registered frequencies.
- 31 -
6
DSC MODE
- 32 -
6. DSC MODE
6.1 Selecting DSC mode
1) Selecting by [DSC] key
In the communication mode on the controller, press the [DSC] key.
2) Selecting by keyboard
a) Press the F10 key on the keyboard to display the main menu as follows.
b) Press the [F2] key to select DSC mode. Or move the cursor to "F2 : DSC" using the
arrow keys and press the [ENT] key.
3) Selecting by [MENU] key on front panel
a) Press the [MENU] key on front panel to display main menu as above.
b) Move the cursor to "F2 : DSC" using the arrow keys and press the [ENT] key.
Note!!) DSC Mode has 20 transmitted files, 20 received files, and 20 received distress call
files.
File No.
Contents
1-20
Transmitted file
21-40
Received file
41-60
Receive Distress Call file
- 33 -
6.2 Initial screen of DSC mode
* When the DSC mode is selected, the initial screen will be displayed as follows.
[Screen]
∙
CH : Calling channel and displays the current channel
∙
TX : Setting the transmitting frequency
∙
RX : Setting the receiving frequency
∙
Indication Bar : Indicate the current RF Gain on the indication bar
∙
RF gain : Adjust the RF gain
∙
Clarify : Adjust the Clarification of received siganl
∙
Fine Tune : Contrl the receiving signal slightly
∙
Tx power : Setting the transmission power
Full - 250W
Low - 100W
∙
Mode : Setting the communication method
Simp - Fixed to Simplex mode
[Function Keys]
∙
F1 DIM : Adjust the dim of LCD backlight
∙
F3 Comm. : Call the registered channel
∙
F4 Scan : Scan the registered channels sequently
∙
F5 Tuning : Tune the antenna
∙
F6 CH : Set the channel
∙
F7 TX : Set the transmision frequency
∙
F8 RX : Set the receving frequency
∙
F9 Sub : Display sub-menu
∙
F10 Menu : Display main menu
∙
PgUp : Change the current channel to the next registered channel
∙
PgDn : Change the current channel to the previous registered channel
- 34 -
[Sub Menu]
∙
Distress msg edit : for the distress call
∙
Individual msg edit : for an individual call or coastal station call
∙
Group msg edit : for group call for example, groups can be vessels in same
company)
∙
All ship msg edit : for all ship call
∙
Auto/Semi-auto msg edit : for connection to a commercial telephone network
∙
Geography msg edit : to call of all vessels within a specific area
∙
Distress ack/relay msg edit : for distress acknowledge and relay
∙
Ordinary ack msg edit : for an ordinary acknowledge
∙
Display & Send message : for display and send the edited message
∙
AGC : Automatically adjusts input signal gain. Normally, set to 'Slow'.)
Fast - change RF gain fast corresponding to the received signal power
Slow - change RF gain slowly corresponding to the received signal power
Off - AGC function is off
∙
Band width : Selects the reception bandwidth.
0.3k - Set to bandwidth '0.3KHz'.
3k - Set to bandwidth '3KHz'.
6k - Set to bandwidth '6KHz'.
∙
Attenuator : Operating the attenuator. Normally, set to 'off '.)
On - attenuating signals that are received from nearby stations or
distorted due to their strength
Off - Attenuator function off
∙
Station Edit : register the frequency of stations
∙
Station Print : print out the registered frequency of stations
∙
Working Frequency memory : store working frequency
∙
Telephone number memory : register the telephone number for commercial telephone
network
∙
Set up & test : set up DSC mode and test DSC
Table of contents
Popular Transceiver manuals by other brands
Kenwood
Kenwood ProTalk TK-3301 Service manual
ELECRAFT
ELECRAFT K3S installation instructions
Kenwood
Kenwood SKY COMMAND SYSTEM II quick start guide
Technisonic Industries Limited
Technisonic Industries Limited TDFM-600 Installation and operating instructions
Kenwood
Kenwood TK-7189 Service manual
marine rescue
marine rescue sMRT V100 user manual
Delta Electronics
Delta Electronics Single Mode SFP Transceiver LCP-1250B4MDRx Specification sheet
Galaxy
Galaxy DX 929 owner's manual
Covalue
Covalue DR7800 instruction manual
Comnet
Comnet FDX60M1A-M Installation and operation manual
Adeunis RF
Adeunis RF ARF8170BA-B03 quick start guide
Midland
Midland 70-066 Service manual
