Sandaster SUNM01 User manual

Manual
1.Installationguide
2.Maintenance
3.Safetyinstruction
4.Troubleshootingguide
5.Productspecifications

Installationguide
1.Removecontentsfrompackage.
2.Toinstalltheunitonwood,acousticaltile,orothersimilarceilings,mount2metal
hooksthathavediametersofatleast2.5mmandthreadnumbersofatleast6and
hangtheunitbyitsbracketsonthehooks.
3.Forsufficientairflow,theintakeandventingholesshouldbeatleast12in.from
surroundingobstructions.
4.SANDASTERrecommendsthattheunitbeplacedat1to2ft.abovetheobjecttobe
illuminated.
5.ConnnecttheunittothespecifiedDCpowersupply.
6.Plugthepowersupplyintoanoutletwithrightspecifications.
7.TheapplicationofproductfollowtheUser’sGuide.

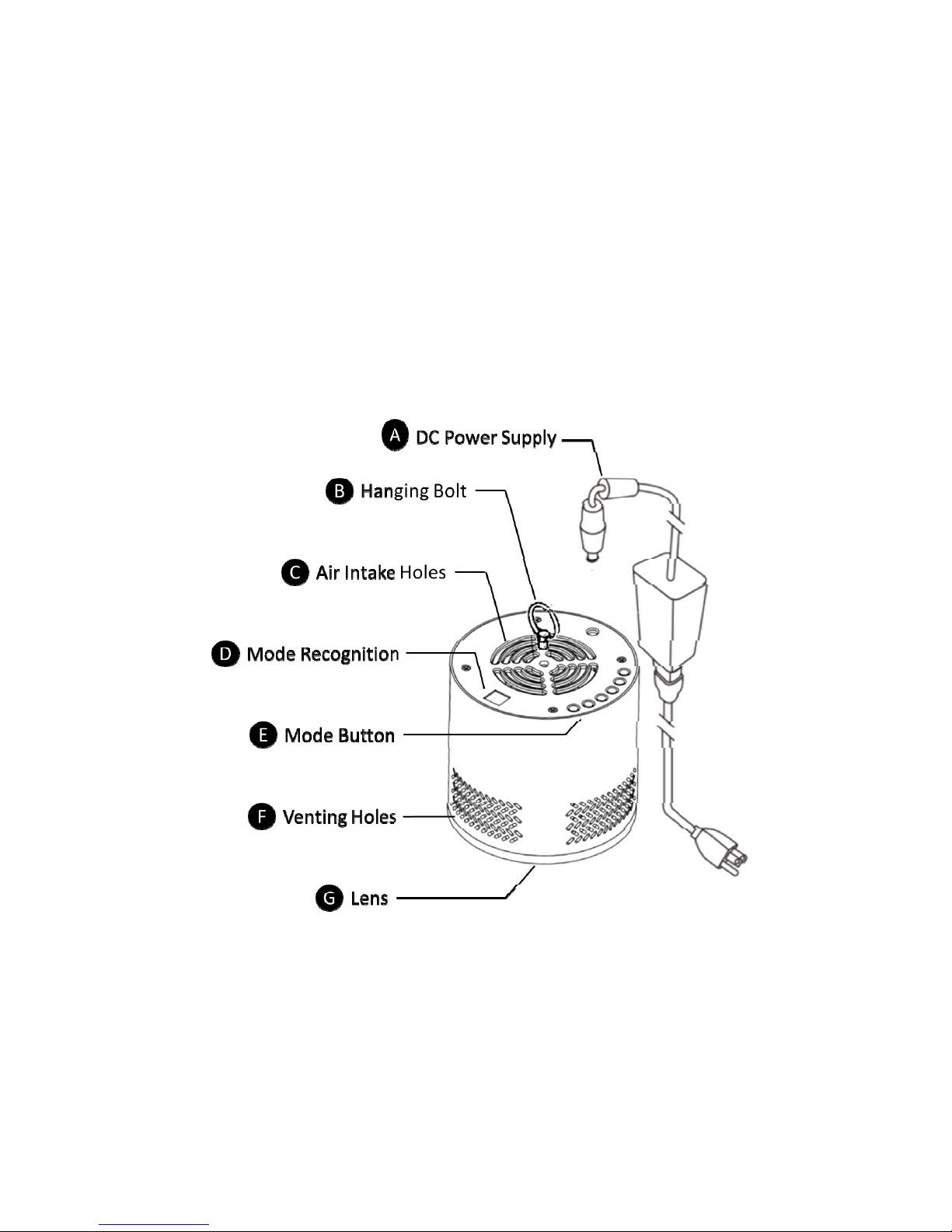

PARTSDIAGRAM

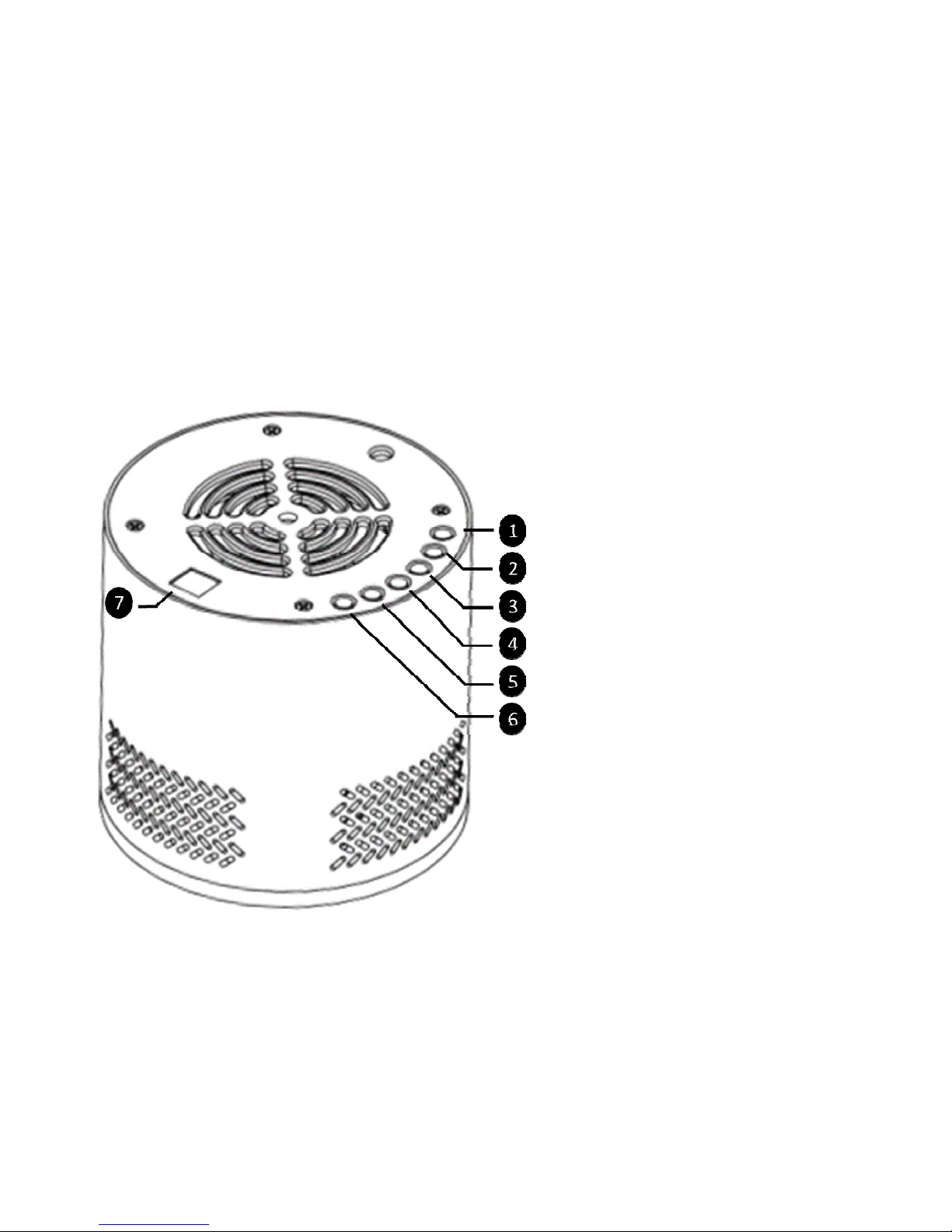

button ①‐‐‐ 5Mmode
button ②‐‐‐ 10 Mmode
button ③‐‐‐ 15 Mmode
button ④‐‐‐ 20 Mmode
button ⑥‐‐‐ BLUEmode
button ⑤‐‐‐ COLORmode
long press the button ①~⑥
to adjust luminance
shortpressthebutton
⑦the screen shows the current mode and the
luminance of the light
FUNCTION

Maintenance
1.Keepairventandfanclearofdust.Tocleanthefan,insertthetipofaCO2dust
blower(orsimilardustblowers)inone oftheslotsontheunit‘soutershell.Holdand
spray.
2.Keepthediffuserclean.Ifthediffuserbecomescontaminatedwithwater,dustor
otherparticles,cleanitwithisopropylalcohol.Wetacottonswaboranapkinin
isopropylalcoholandgentlywipethesurfaceofthediffuserandletitdry.

Safetyinstruction
1.Donotuseapowersupplythatisoutsidethespecifications.
2.Donotuseoutdoor.This unitisintendedforindooruseonly.
3.Donotexposeunittoanextremelyhumidenvironmentorsubmerseunitinwater.
Thismayleadtounitfailure.
4.Donotplaceworkingilluminatorinclosecontactwithanyobject.
Thismaycausetheobjectstoheatupandtheunittooverheat.
5.Keepdiffuserawayfromsharpobjects.
Thismaybreakthediffuserandleadtounitfailure.
6.Donotcoverorplaceobjectsonthepowersupply.
Powersupplyshouldnotbecontainedinanairtightspace.

Troubleshooting guide
Problem Solution
Light doesn’t turn ON
Make sure the unit connected to the power supply and the power
supply is connected to an outlet with the connect specifications.
Make sure electrical power is available to the AC outlet being used.
Check to make sure the power supply has the right specifications.
Make sure the device is operating within the specified operating
temperature range. If unit overheats, it will automatically shut
down.
Unit is flickering
Check to make sure you are using a power supply with the connect
specifications.
Make sure the unit has not overheated by operating at a room
temperature exceeding 40.
The fan is not operating properly.

Productspecifications
Illuminator
Power consumption 110Wmaximum
Inputvoltage 30VDC
ListedPowerSupply
Input 100‐240VAC50‐60Hz
Output 30VDC,4A,maxpower120W

WARRANTY
•SANDASTER warrants,totheoriginalbuyer,allofitsproductstobefreefrom
defectsinbothworkmanshipandmaterialforaperiodofoneyearfromthedataof
purchase.Thiswarrantyextendstoallproductswhichhaveproveddefective
throughnormalusebutexcludesproductsthathavebeendamaged,disassembled,
modified,misusedbythebuyeroranyotherperson.Thiswarrantyisinlieuofall
otherwarranties,andSANDASTERdisclaimsallwarrantiesexpressedorimplied,
includinganywarrantyofmerchantability,fitnessforaparticularpurpose,or
arisingfromthecourseofdealingbetweenthepartiesorusageoftrade.
•SANDASTERwillreplaceorrepairtoproperworkingconditionanyproductsthat
arereturnedunderwarranty.Productsrepairedorreplacedunderwarrantyare
onlywarrantedfortheremainingunexpiredperiodoftimeoftheoriginalwarranty.

•FederalCommunicationCommissionInterferenceStatement
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuantto
Part15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmful
interferenceinaresidentialinstallation.
Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedin
accordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereis
noguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmful
interferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,
theuserisencouragedtotrytocorrecttheinterferencebyoneofthefollowingmeasures:
.Reorientorrelocatethereceivingantenna.
.Increasetheseparationbetweentheequipmentandreceiver.
.Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.
.Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
•FCCCaution:Toassurecontinuedcompliance,anychangesormodificationsnotexpresslyapprovedbythe
partyresponsibleforcompliancecouldvoidtheuser'sauthoritytooperatethisequipment.(Example‐ use
onlyshieldedinterfacecableswhenconnectingtocomputerorperipheraldevices).
•FCCRadiationExposureStatement
ThisequipmentcomplieswithFCCRFradiationexposurelimitssetforthforanuncontrolledenvironment.This
equipmentshouldbeinstalledandoperatedwithaminimumdistanceof0.5centimetersbetweentheradiator
andyourbody.
Thistransmittermustnotbeco‐locatedoroperatinginconjunctionwithanyotherantennaortransmitter.
Theantennasusedforthistransmittermustbeinstalledtoprovideaseparationdistanceofatleast0.5cm
fromallpersonsandmustnotbeco‐locatedoroperatinginconjunctionwithanyotherantennaortransmitter.
•ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:
•(1)Thisdevicemaynotcauseharmfulinterference,and(2)Thisdevicemustacceptanyinterference
received,includinginterferencethatmaycauseundesiredoperation.
