Sandstrom SDW60B10 User manual

1. Remove all packaging before positioning the machine. (Fig 1)
2. Please ensure the dishwasher is installed by a qualified
technician. Refer to the tools required in Fig 2.
3. Ensure there is clearance each side of the unit to allow slight
sideways movement for servicing when required. Good
levelling is essential for correct closure and sealing of the door.
When the unit is correctly levelled, the door should not catch
the inner liner on either side of the cabinet. The adjustable feet
may be loosened or tightened in order to obtain the optimum
leveling of the unit. (Fig 3)
4. If required, the worktop of the dishwasher can be removed. The
height without the worktop is 820 mm.
Figure 3 outlines the minimum dimensions required to
accommodate the dishwasher within fitted kitchen furniture
units.
Do not connect the unit to the mains before installation. Ensure
you are not installing the unit right in front of the mains. This is
to avoid potential damage to the back of the unit. (Fig 4)
5. The condensation strip must be fitted to the underside of the
worktop above your dishwasher to protect it against any
moisture. Its purpose is to protect your worktop’s underside
from steam rising from the dishwasher. (Fig 5 and 6)
• Ensure the surface is clean prior to sticking the condensation
strip to the underside of the worktop.
• Remove the backing paper from the condensation strip. (Fig 5)
• Stick the condensation strip to the underside of the worktop.
(Fig 6)
water drain hose
U-shaped drain hose
holder
Congratulations on the purchase of your new
Sandstrøm Dishwasher.
This is an Installation Guide for 60 cm wide freestanding dishwasher.
To avoid the risk of accidents or damage to the dishwasher, it is essential to read the
the instruction manual before it is installed or used for the first time.
Please follow this guide for a successful installation.

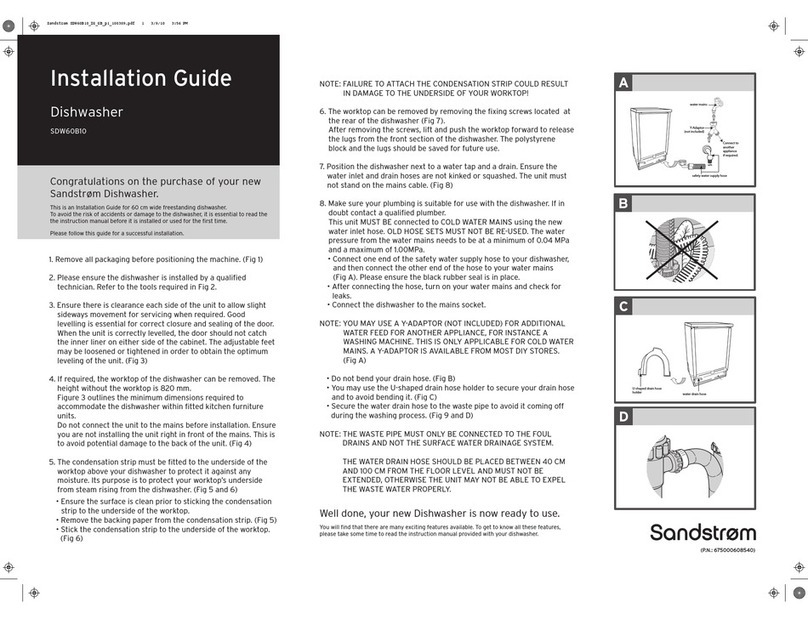

Installation Guide
Dishwasher
SDW60B10
NOTE: FAILURE TO ATTACH THE CONDENSATION STRIP COULD RESULT
IN DAMAGE TO THE UNDERSIDE OF YOUR WORKTOP!
6. The worktop can be removed by removing the fixing screws located at
the rear of the dishwasher (Fig 7).
After removing the screws, lift and push the worktop forward to release
the lugs from the front section of the dishwasher. The polystyrene
block and the lugs should be saved for future use.
7. Position the dishwasher next to a water tap and a drain. Ensure the
water inlet and drain hoses are not kinked or squashed. The unit must
not stand on the mains cable. (Fig 8)
8. Make sure your plumbing is suitable for use with the dishwasher. If in
doubt contact a qualified plumber.
This unit MUST BE connected to COLD WATER MAINS using the new
water inlet hose. OLD HOSE SETS MUST NOT BE RE-USED. The water
pressure from the water mains needs to be at a minimum of 0.04 MPa
and a maximum of 1.00MPa.
• Connect one end of the safety water supply hose to your dishwasher,
and then connect the other end of the hose to your water mains
(Fig A). Please ensure the black rubber seal is in place.
• After connecting the hose, turn on your water mains and check for
leaks.
• Connect the dishwasher to the mains socket.
NOTE: YOU MAY USE A Y-ADAPTOR (NOT INCLUDED) FOR ADDITIONAL
WATER FEED FOR ANOTHER APPLIANCE, FOR INSTANCE A
WASHING MACHINE. THIS IS ONLY APPLICABLE FOR COLD WATER
MAINS. A Y-ADAPTOR IS AVAILABLE FROM MOST DIY STORES.
(Fig A)
• Do not bend your drain hose. (Fig B)
• You may use the U-shaped drain hose holder to secure your drain hose
and to avoid bending it. (Fig C)
• Secure the water drain hose to the waste pipe to avoid it coming off
during the washing process. (Fig 9 and D)
NOTE: THE WASTE PIPE MUST ONLY BE CONNECTED TO THE FOUL
DRAINS AND NOT THE SURFACE WATER DRAINAGE SYSTEM.
THE WATER DRAIN HOSE SHOULD BE PLACED BETWEEN 40 CM
AND 100 CM FROM THE FLOOR LEVEL AND MUST NOT BE
EXTENDED, OTHERWISE THE UNIT MAY NOT BE ABLE TO EXPEL
THE WASTE WATER PROPERLY.
water mains
safety water supply hose
Y-Adaptor
(not included)
Connect to
another
appliance
if required.
A
B
C
D
Well done, your new Dishwasher is now ready to use.
You will find that there are many exciting features available. To get to know all these features,
please take some time to read the instruction manual provided with your dishwasher.
(P.N.: 675000608540)
Sandstrom SDW60B10_IG_GB_p1_100309.pdf 1 3/9/10 3:56 PM

1
4
7
5 6
2 3
600
600
unit in mm
850
30
850
600
620
min.100
80
level level
level
level
Remove
Remove
Remove
Unscrew
Stick the Condensation Strip
under the worktop, where you
want to install the dishwasher.
Leave some space
8 9
ST4 screws
