5
If items are missing or damaged please contact Partmaster (UK only).
Tel: [phone] for assistance.

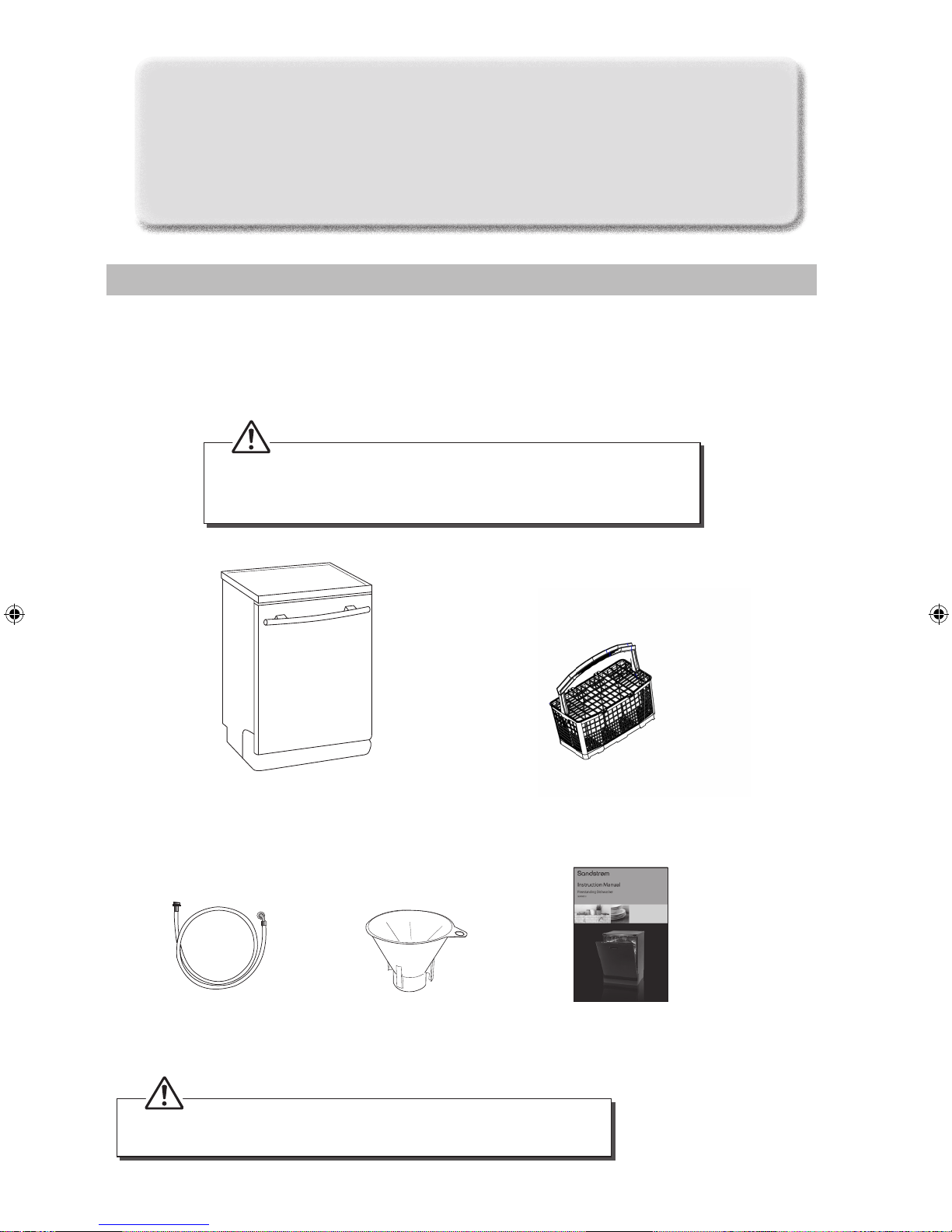

Unpacking
Remove all packaging from the dishwasher. Retain the packaging. If you dispose of it please do so
according to local regulations.
The following items are included:
Water Supply Hose
P.N.: 42005932

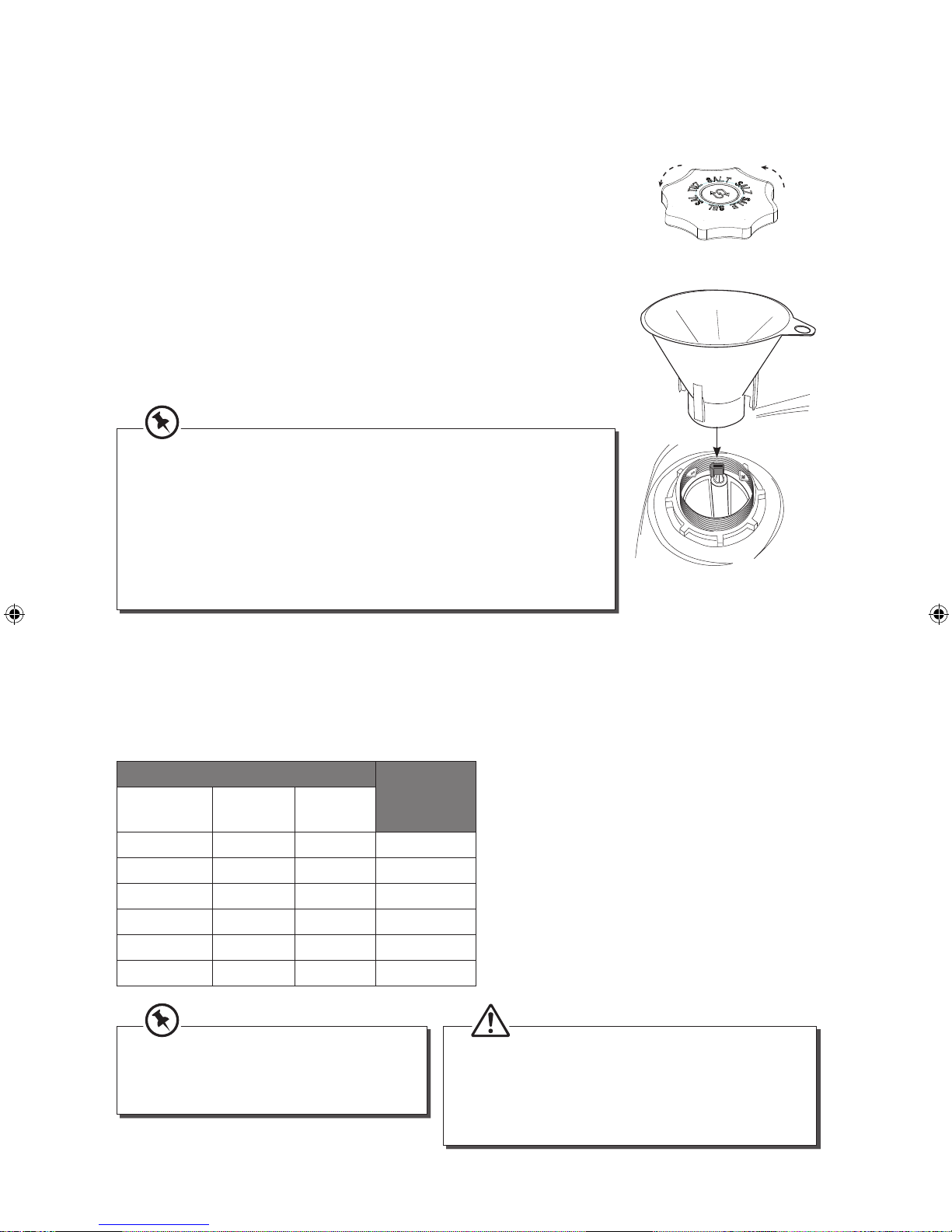

Salt Funnel
P.N.: 42005853
The Main Unit - Front View
Instruction Manual
P.N.: 52065297
This product has been wet tested to ensure correct operation. As a
result some water may remain inside the unit. This is normal and safe.
Remove any water droplets from the exterior if necessary.
Thank you for purchasing your new Sandstrøm Freestanding Dishwasher.
You must spend some time reading this installation/instruction manual in order to fully
understand how to install and operate it.
Read all the safety instructions carefully before use and keep this installation/instruction
manual for future reference.
SDW60B12_IB_120522_Funnel Image_Pauline.indd 5 12年5月22日 下午10:35
Cutlery Basket
P.N.: 42021073

6
INSTALLATION

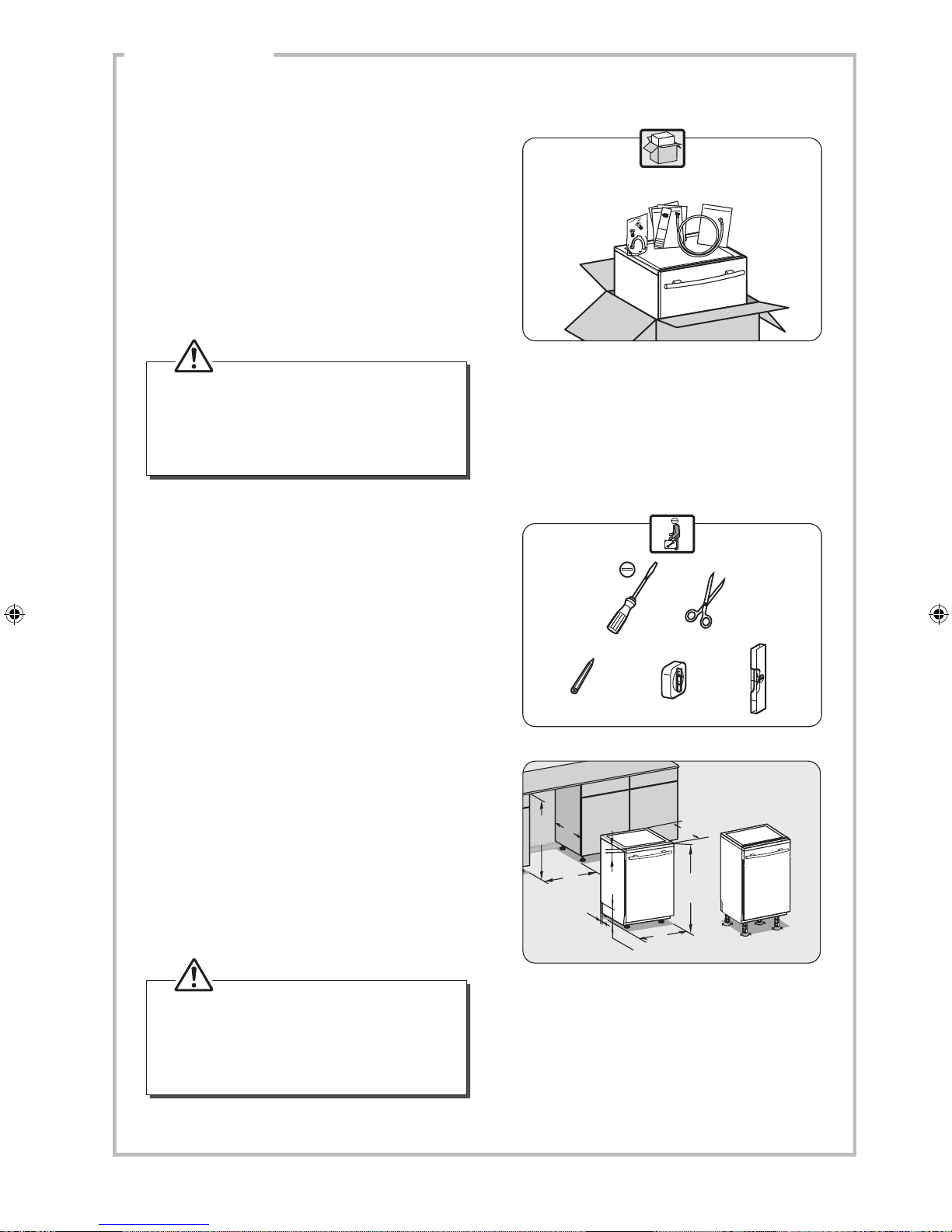

1. Please ensure the dishwasher is installed by
a qualified technician. Refer to the tools (not
included) required.
level level
level
level
850
600
620
596
598
845
30
min.100
50
unit in mm
Location
When selecting a position for your freestanding
dishwasher you should make sure the installation
surface is flat and firm, and the room is well
ventilated. Avoid locating your dishwasher near
a heat source, eg. cooker, boiler or radiator.
Extreme cold ambient temperatures may also
cause the appliance not to perform properly. This
dishwasher is not designed for use in a garage or
outdoors.
Do not drape the dishwasher with any covering.
2. If installing under a worktop, ensure there
is clearance each side of the unit to allow
slight sideways movement for servicing
when required. Good levelling is essential for
correct closure and sealing of the door. When
the unit is correctly levelled, the door should
not catch the inner liner on either side of the
cabinet. The adjustable feet may be loosened
or tightened in order to obtain the optimum
levelling of the unit.
All parts removed must be saved for any
future reinstallation. Ensure the dishwasher
is unplugged and empty. 2 people are
required to handle the dishwasher during
installation.
Installation
* images are for indication only; please refer to your individual model for actual details.
If installing under a worktop, you must treat
the worktop to protect its underside against
the steam rising from the dishwasher. If you
are not sure how to do this, please consult an
appropriately-qualified professional.
SDW60B12_IB_120522_Funnel Image_Pauline.indd 6 12年5月22日 下午10:35

7
INSTALLATION
3. Do not connect the unit to the mains before
installation. Ensure you are not installing the
unit right in front of the mains socket. This
is to avoid potential damage to the back of
the unit and to allow disconnection from the
supply mains.
Leave some space
Treat the worktop to protect
its underside against the
steam from the dishwasher.
* images are for indication only; please refer to your individual model for actual details.
If installing under a worktop, you must treat
the worktop to protect its underside against
the steam rising from the dishwasher. If you
are not sure how to do this, please consult an
appropriately-qualified professional.

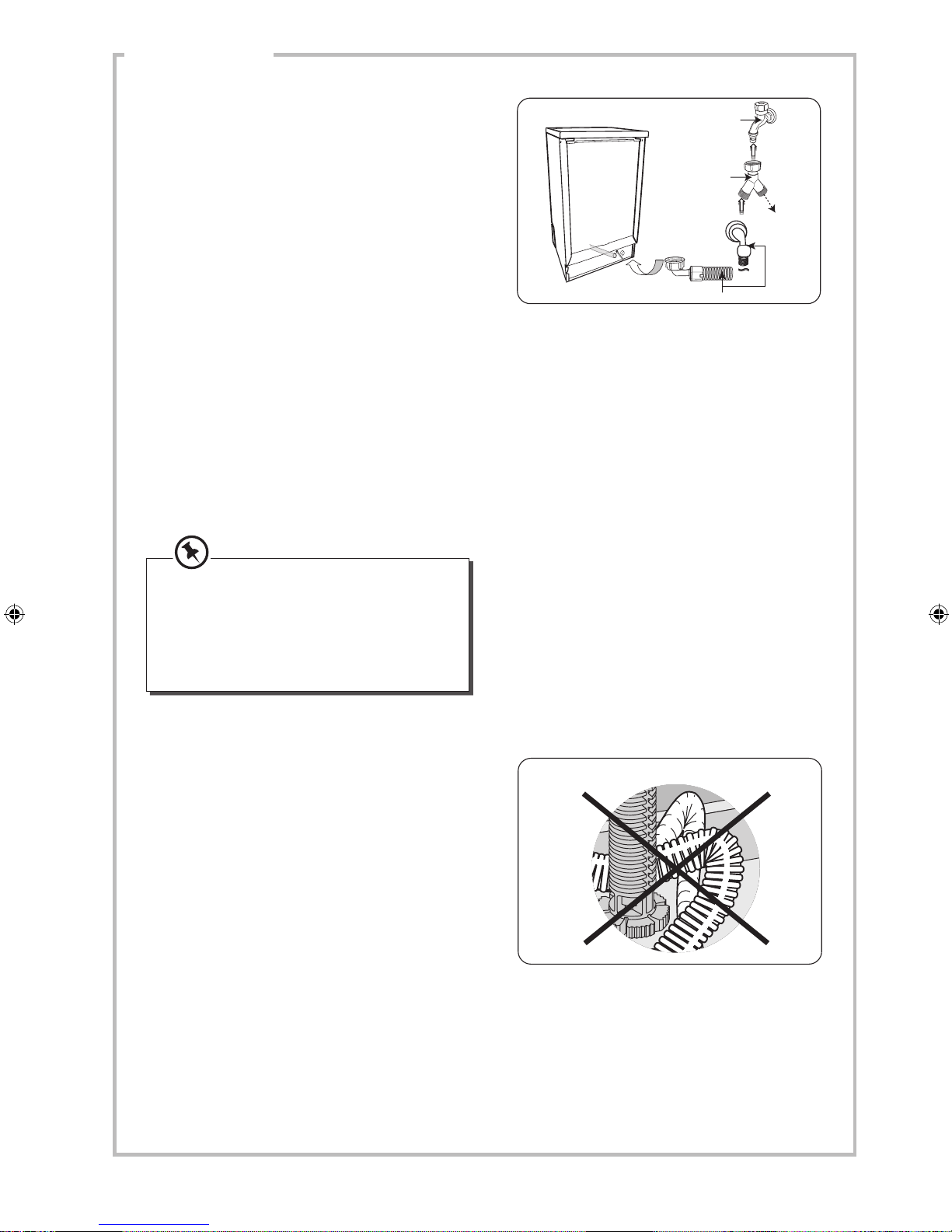

4. Position the dishwasher next to a water tap
and a drain. Ensure the water inlet and drain
hoses are not kinked or squashed. The unit
must not stand on the mains cable.
SDW60B12_IB_120522_Funnel Image_Pauline.indd 7 12年5月22日 下午10:35

8
INSTALLATION
5. Make sure your plumbing is suitable for use
with the dishwasher. If in doubt contact
a qualified plumber. This unit MUST BE
connected to COLD WATER MAINS using the
new water inlet hose. OLD HOSE SETS MUST
NOT BE RE-USED. The water pressure from
the water mains needs to be at a minimum of
0.04 MPa and a maximum of 1.00MPa.
• Connect one end of the water supply hose
to your dishwasher, and then connect the
other end of the hose to your water mains.
Please ensure the black rubber seals, one
in each end, are in place.
• After connecting the hose, turn on your
water mains and check for leaks.
• Connect the dishwasher to the mains
socket, which must remain accessible to
allow disconnection of the appliance from
the mains supply.
• Do not bend your drain hose.
• Ensure your hose is not kinked or
squashed.
You may use a Y-adaptor (not included)
for additional water feed for another
appliance, for instance a washing machine.
This is only applicable for cold water mains.
A Y-adaptor is available from most DIY
stores.
water mains
Y-Adaptor
(not included)
Connect
to another
appliance
if required.
water supply hose
* images are for indication only; please refer to your individual model for actual details.
SDW60B12_IB_120522_Funnel Image_Pauline.indd 8 12年5月22日 下午10:36

9
INSTALLATION
• You may use a U-shaped drain hose holder
(not included) to secure your drain hose
and to avoid kinking it.
• Secure the water drain hose to the waste
pipe to avoid it coming off during the
washing process.
• The waste pipe must only be connected to the foul drains
and not the surface water drainage system.
• The water drain hose should be placed between 50 cm
and 110 cm from the oor level and must not be extended,
otherwise the unit may not be able to expel the waste water
properly.
• Please close the water tap after use.
• The supplied plug for this appliance should remain
accessible or a switch for disconnection from the supply
must be incorporated in the fixed wiring with at least 3 mm
contact separation in all poles.
* images are for indication only; please refer to your individual model for actual details.
SDW60B12_IB_120522_Funnel Image_Pauline.indd 9 12年5月22日 下午10:36
holder

10
Product Overview
Internal View
Rear View
* images are for indication only; please refer to your individual model for actual details.
SDW60B12_IB_120522_Funnel Image_Pauline.indd 10 12年5月22日 下午10:36
Water Inlet
Mains Cable
Drain Hose
Drain Outlet

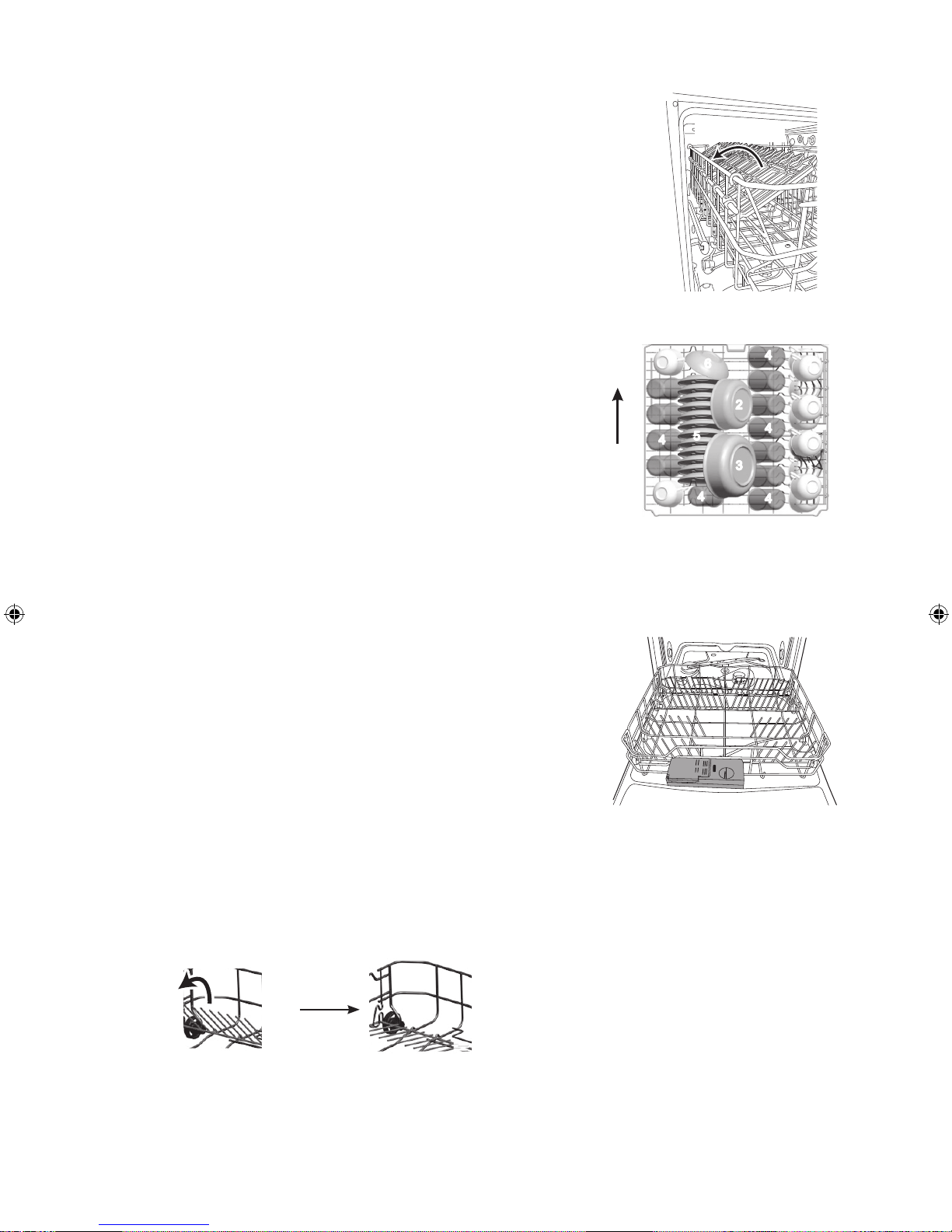

Upper
Basket
Lower Basket
Active Drying
Unit
Salt Reservoir
Rinse Aid
Reservoir

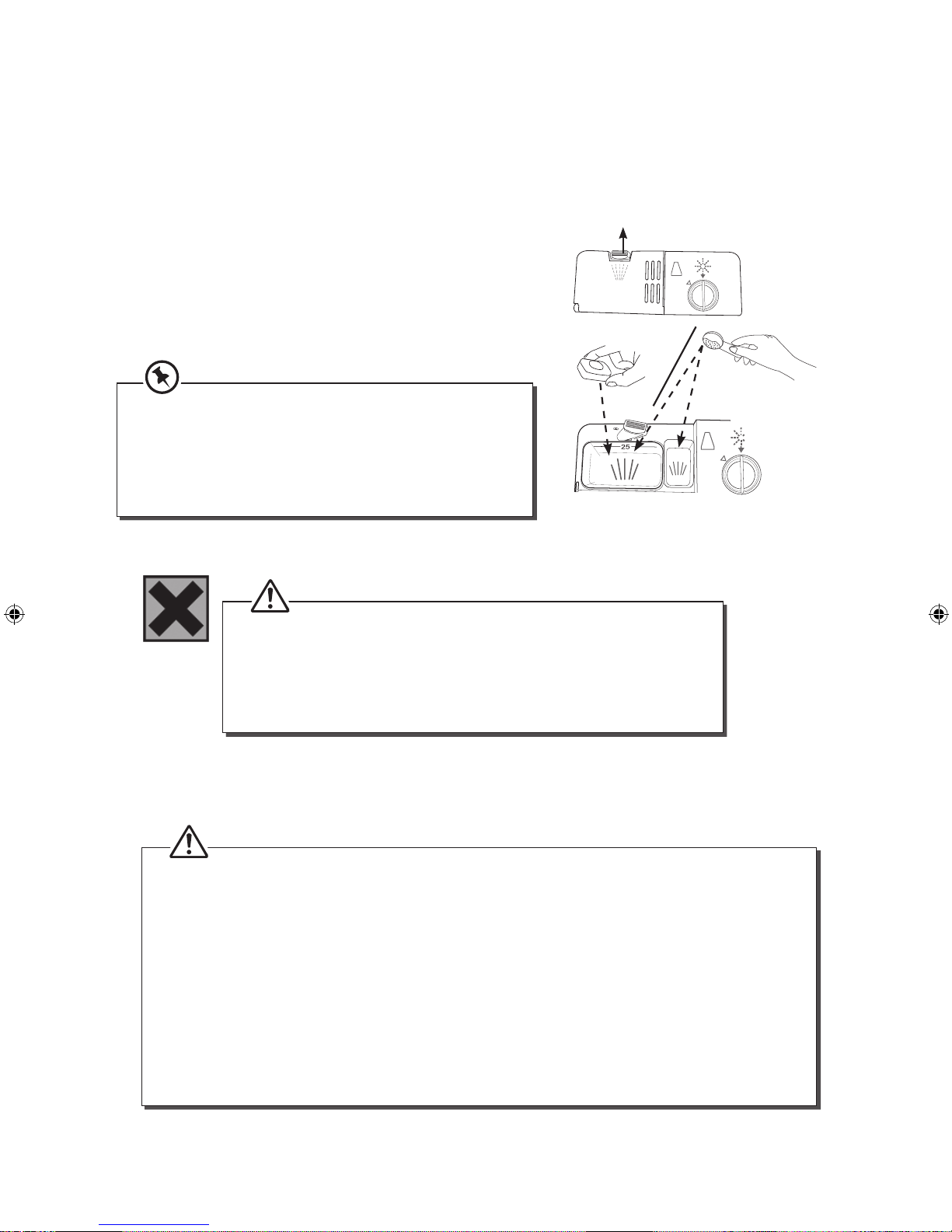

Detergent
Dispenser
Cup Rack
Filtering System
Lower Spray
Arms
Upper Spray
Arms
