Sandstrom S42SWLH13 User manual

Instruction Manual
Soundbar with
wireless sub-woofer
S42SWLH13
S42SWLH13_IB_RC_130531_Michelle.indd 1 31/5/13 5:28 PM

S42SWLH13_IB_RC_130531_Michelle.indd 2 31/5/13 5:28 PM

Contents
Safety Warnings....................................................................................................................4
Unpacking.............................................................................................................................6
Product Overview.................................................................................................................7
The Main Unit ................................................................................................................................................7
Rear View of Sub-woofer ...........................................................................................................................8
Remote Control.....................................................................................................................9
Remove the Plastic Strip from the Remote Control .........................................................10
Battery Replacement for the Remote Control..................................................................10
Remote Control Operation Range.....................................................................................11

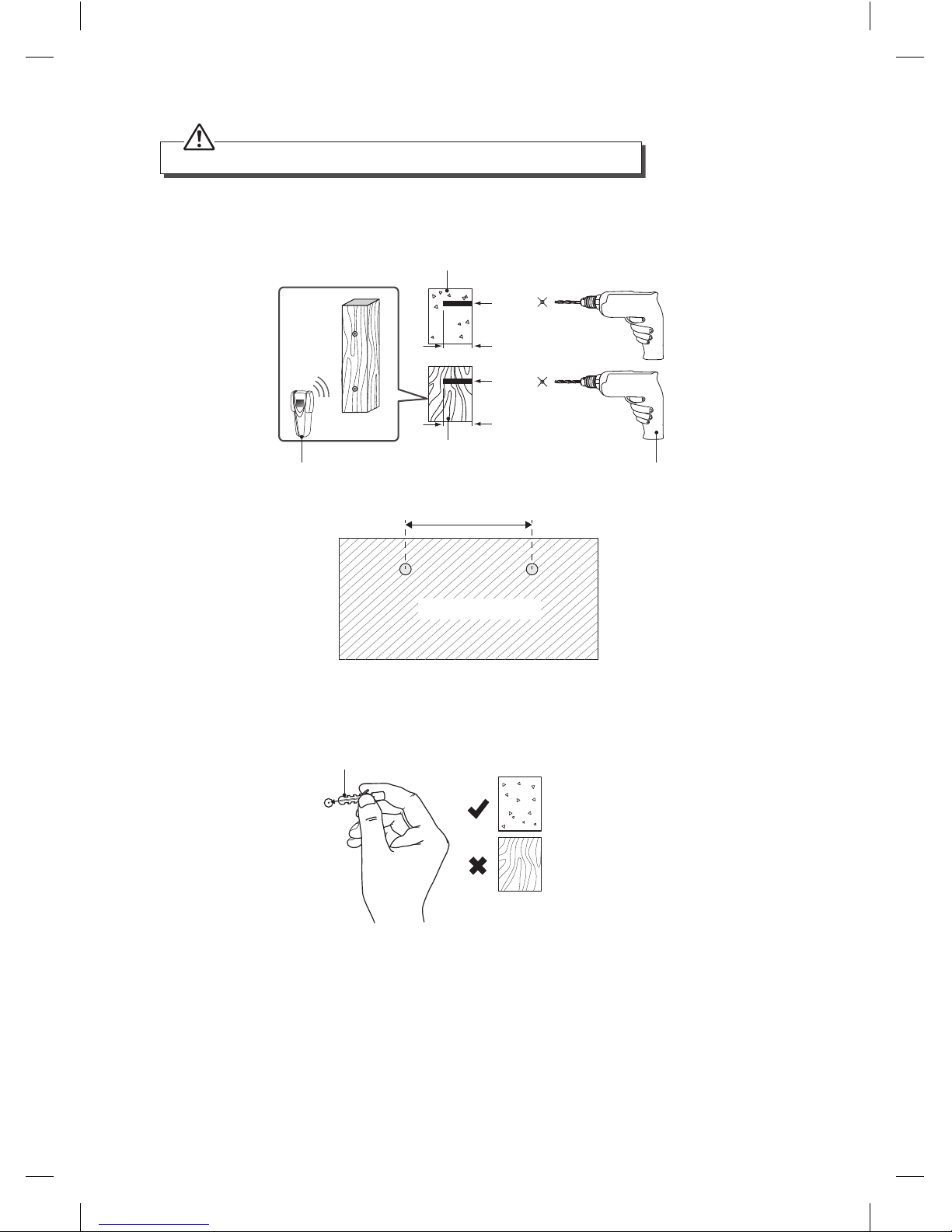

Wall Mounting ....................................................................................................................12
Connections ........................................................................................................................15
Using the HDMI Connection ................................................................................................................. 15
Using the AUX Connection.................................................................................................................... 15
Using the MP3 LINK Connection.......................................................................................................... 16
Using the OPTICAL Connection ........................................................................................................... 16
Using the COAXIAL Connection........................................................................................................... 16

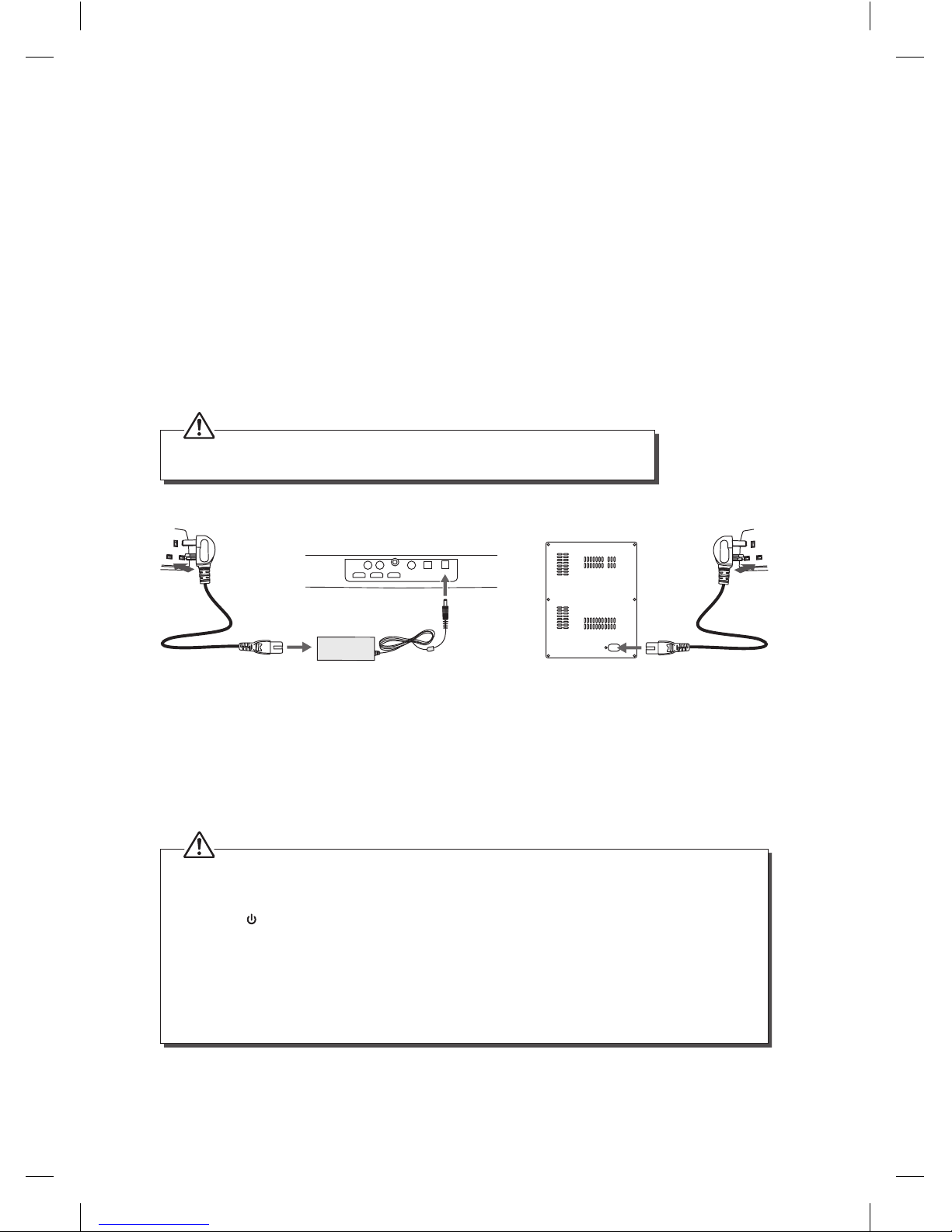

Connecting to the Mains Supply......................................................................................................... 17
Wireless Pairing the Soundbar and the Sub-woofer .................................................................... 17
General Operation..............................................................................................................18
Selecting Modes........................................................................................................................................ 18
Adjusting the Volume.............................................................................................................................. 18
EQ (Equaliser).............................................................................................................................................. 18
BASS ............................................................................................................................................................... 18
LINE IN Operation...............................................................................................................19
Bluetooth® Operation ........................................................................................................19

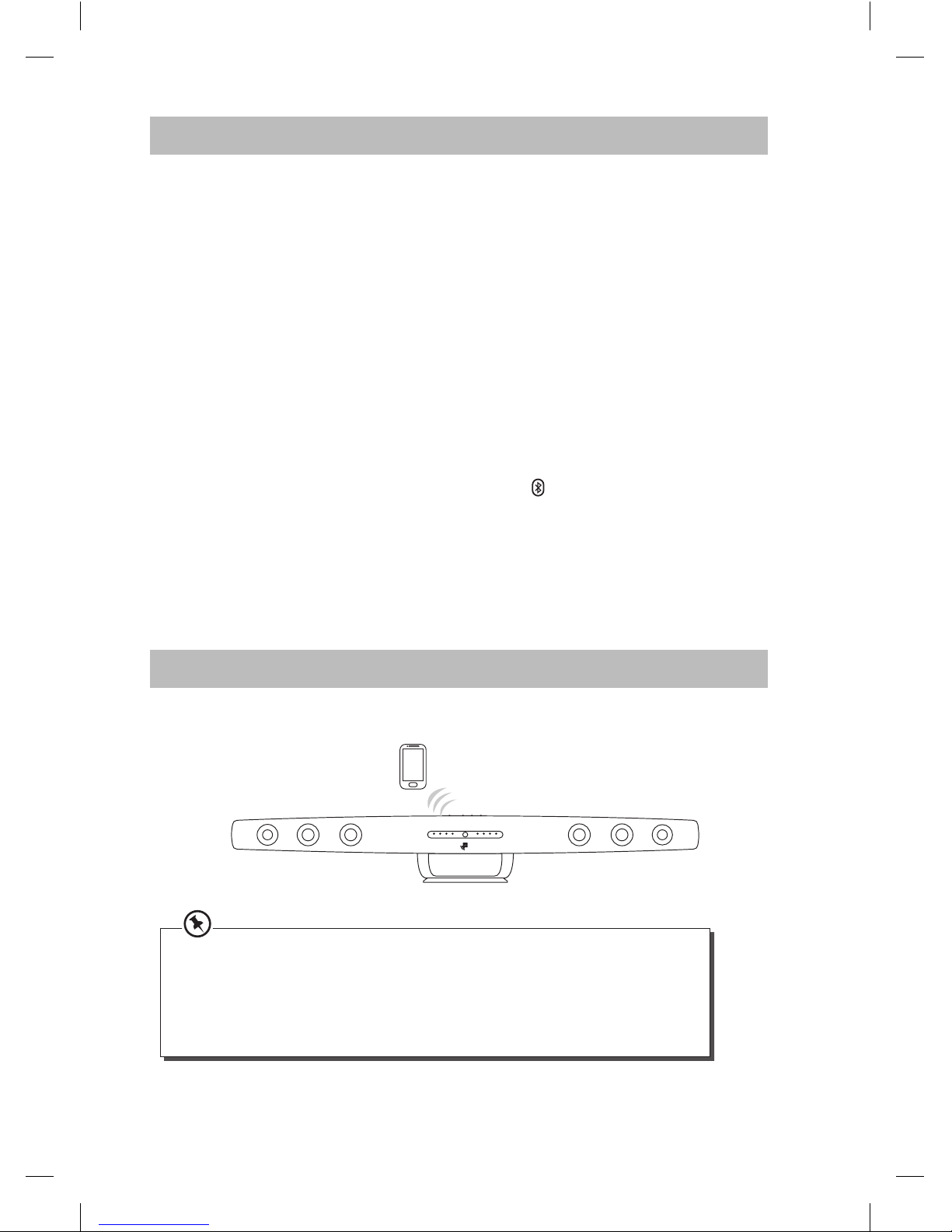

NFC (Near Field Communication) Operation....................................................................20
Maintenance .......................................................................................................................20
Hints and Tips .....................................................................................................................21
Specications......................................................................................................................22
S42SWLH13_IB_RC_130531_Michelle.indd 3 31/5/13 5:28 PM

4
Safety Warnings
• Read all the instructions carefully before
using the unit and keep them for future
reference.
• Retain the manual. If you pass the unit
onto a third party make sure to include this
manual.
• Check that the voltage marked on the
rating label matches your mains voltage.
Damage
• Please inspect the unit for damage after
unpacking.
• Do not continue to operate the unit if you
are in any doubt about it working normally,
or if it is damaged in any way - switch o,
withdraw the mains plug and consult your
dealer.
Location of Unit
• The unit must be placed on a at stable
surface and should not be subjected to
vibrations.
• Do not place the unit on sloped or unstable
surfaces as the unit may fall o or tip over.
• The mains socket must be located near the
unit and should be easily accessible.
• This unit is designed for indoor use only.
Temperature
• Avoid extreme degrees of temperature,
either hot or cold. Place the unit well away
from heat sources such as radiators or gas/
electric res.
• Avoid exposure to direct sunlight and other
sources of heat.
Naked Flames
• Never place any type of candle or naked
ame on the top of or near the unit.
Moisture
• To reduce the risk of re, electric shock or
product damage, do not expose this unit
to rain, moisture, dripping or splashing. No
objects lled with liquids, such as vases,
should be placed on the unit.
• If you spill any liquid into the unit, it can
cause serious damage. Switch it o at the
mains immediately. Withdraw the mains
plug and consult your dealer.
Ventilation
• To prevent the risk of electric shock or
re hazard due to overheating, ensure
that curtains and other materials do not
obstruct the ventilation vents.
• A minimum distance of 5cm around the
unit should be maintained to allow for
sucient ventilation.
• Do not install or place this unit in a
bookcase, built-in cabinet or in another
conned space. Ensure the unit is well
ventilated.
Safety
• Always disconnect the unit from the mains
supply before connecting/disconnecting
other devices or moving the unit.
• Unplug the unit from the mains socket
during a lightning storm.
• In the interests of safety and to avoid
unnecessary energy consumption,
never leave the unit switched on while
unattended for long periods of time, e.g.
overnight, while on holiday or while out of
the house. Switch it o and disconnect the
mains plug from the mains socket.
Mains Cable
• Make sure the unit or unit stand is not
resting on top of the mains cable, as the
weight of the unit may damage the mains
cable and create a safety hazard.
• If the mains cable is damaged it must be
replaced by the manufacturer, its service
agent, or similarly qualied persons in
order to avoid a hazard.
Mains Adapter Cable
• Make sure the unit or unit stand is not
resting on top of the mains adapter cable,
as the weight of the unit may damage the
cable and create a safety hazard.
Mains Adapter
• The mains adapter will continue to
draw electricity from the mains supply
when plugged in the mains socket.
In the interests of safety and to avoid
unnecessary energy consumption, never
leave the adapter plugged in the mains
socket while unattended for long periods
of time. Disconnect the adapter from the
power supply.
S42SWLH13_IB_RC_130531_Michelle.indd 4 31/5/13 5:28 PM

5
Interference
• Do not place the unit on or near appliances
which may cause electromagnetic
interference. If you do, it may adversely
aect the operating performance of the
unit, and cause a distorted picture or
sound.
Batteries
• Batteries used in the remote control for this
unit are easily swallowed by young children
and this is dangerous.
• Keep loose batteries away from young
children and make sure that the battery
holder tray is secure in the remote control.
Seek medical advice if you believe a cell
has been swallowed.
• Please dispose of batteries correctly by
following the guidance in this manual.
Supervision
• Children should be supervised to ensure
that they do not play with the unit and the
remote control.
• Never let anyone especially children push
anything into the holes, slots or any other
openings in the case - this could result in a
fatal electric shock.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning ash with arrowhead
symbol, within an equilateral
triangle, is intended to alert the
user to the presence of uninsulated
“dangerous voltage”within the
unit’s enclosure that may be of
sucient magnitude to constitute a
risk of electric shock.
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and
maintenance (servicing)
instructions in the manual
accompanying the unit.
Service
• To reduce the risk of electric shock, do not
remove screws. The unit does not contain
any user-serviceable parts. Please leave all
maintenance work to qualied personnel.
• Do not open any xed covers as this may
expose dangerous voltages.
Maintenance
• Ensure to unplug the unit from the mains
socket before cleaning.
• Do not use any type of abrasive pad or
abrasive cleaning solutions as these may
damage the unit’s surface.
• Do not use liquids to clean the unit.
S42SWLH13_IB_RC_130531_Michelle.indd 5 31/5/13 5:28 PM

6

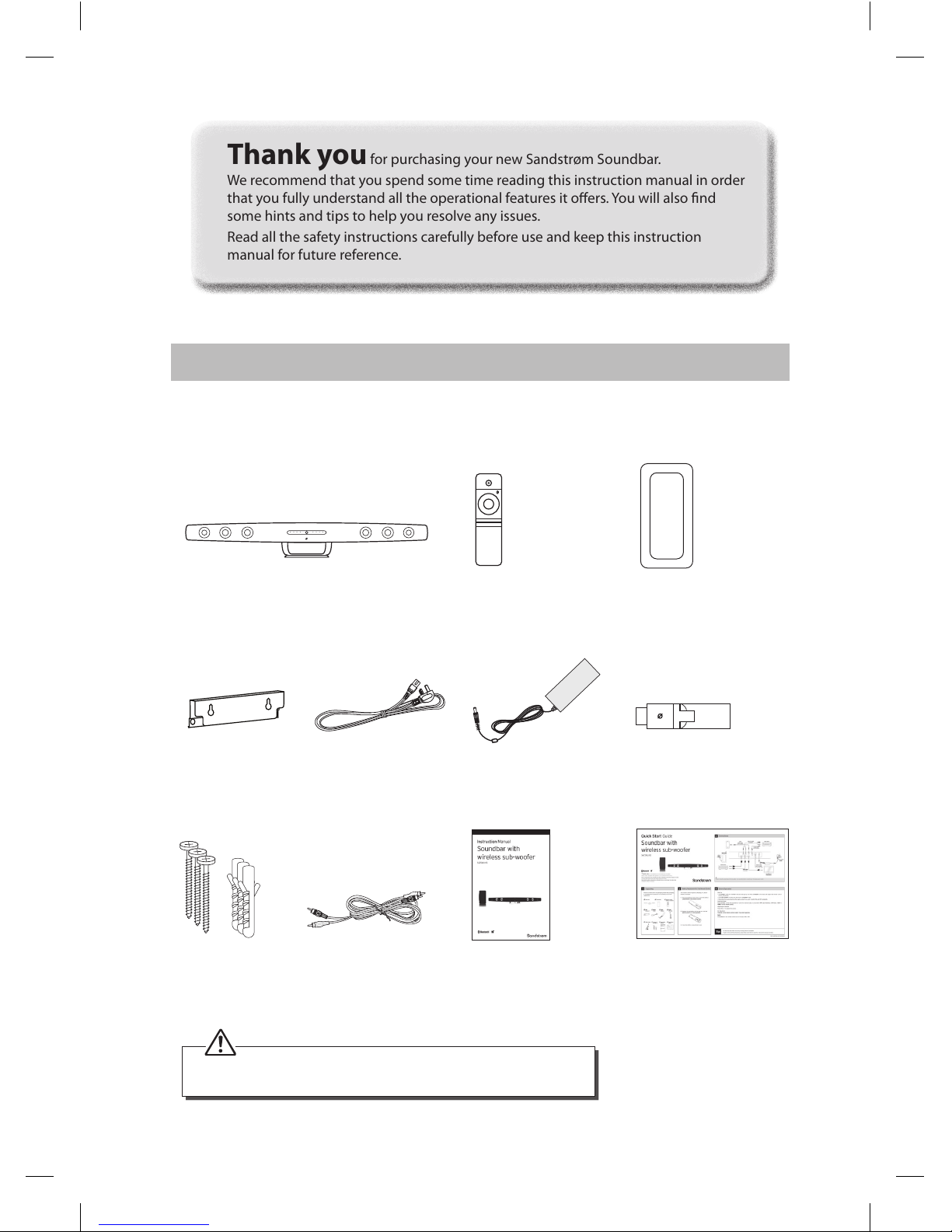

Unpacking
Remove all items from the packaging. Retain the packaging. If you dispose of it please do so
according to local regulations.
The following items are included:
Thank youfor purchasing your new Sandstrøm Soundbar.
We recommend that you spend some time reading this instruction manual in order
that you fully understand all the operational features it oers. You will also nd
some hints and tips to help you resolve any issues.
Read all the safety instructions carefully before use and keep this instruction
manual for future reference.
If items are missing, or damaged please contact Partmaster (UK only).
Tel: [phone] for assistance.
Main Unit Remote Control
(battery included)
Wall Bracket x 1 Mains Cable x 2
Sub-woofer
Quick Start GuideInstruction ManualAudio L/R CableScrews x 3
Dowels x 3
Mains Adapter L-shaped Adapter
STANDBY AUX MP3LINK BT COAXIAL OPTICAL HDMI1 HDMI2
EQ S-BASS
OPTICALCOAXIAL
HDMI 2HDMI 1
MUTE
AUX/
MP3 LINK
VOL
+
VOL –
S42SWLH13_IB_RC_130531_Michelle.indd 6 31/5/13 5:28 PM

7
SOURCESTANDBY VOL–V OL +
STANDBY AUX MP3LINK BT COAXIAL OPTICAL HDMI1 HDMI2
Product Overview
The Main Unit
Front View
1. Speakers
2. Remote Control Sensor
Receives signal from the remote
control.
1. STANDBY Button
Switches the unit between ON and
STANDBY modes.
2. SOURCE Button
Selects the input source.
1 2 3 4
3. Status LED Indicators
• Lights up red when the unit is in
STANDBY mode.
• Lights up blue in Bluetooth mode.
• Lights up amber in AUX, MP3,
COAXIAL, OPTICAL and HDMI modes.
4. NFC (Near Field Communication)
Sensor
Pairs with Bluetooth device.
3. VOL – Button
Decreases the volume.
4. VOL + Button
Increases the volume.
Top View
32 4 11
S42SWLH13_IB_RC_130531_Michelle.indd 7 31/5/13 5:28 PM

8
HDMI IN 1 HDMI IN 2 HDMIOUT
MP3 LINK
OPTICAL DC IN
COAXIAL
MP3 LINK
L AUX R
Rear View of Sub-woofer
1. AUX (L/R) Sockets
2. MP3 LINK Socket
3. COAXIAL Socket
4. OPTICAL Socket
1. Reset Button
Resets the sub-woofer.
2. AC~ Power Socket
5. DC IN Socket
6. HDMI IN 1 Socket
7. HDMI IN 2 Socket
8. HDMI OUT Socket
Rear View
6 7 8
1 2 3 54
AC ~
1 2
S42SWLH13_IB_RC_130531_Michelle.indd 8 31/5/13 5:28 PM

9
EQ S-BASS
OPTICALCOAXIAL
HDMI 2HDMI 1
MUTE
AUX/
MP3 LINK
VOL
+
VOL –
1. Button
Switches the unit between ON and STANDBY
modes.
2. AUX/MP3 Button
Switches to AUX or MP3 mode.
3. VOL + Button
Increases the volume.
4. EQ Button
Switches between preset equalisers.
5. VOL – Button
Decreases the volume.
6. COAXIAL Button
Connects to devices with coaxial output.
7. HDMI 1 Button
Connects to devices with HDMI output.
8. Button
Selects Bluetooth mode.
9. MUTE Button
Mutes your Soundbar or resumes the sound.
10. Bass Button
Switches bass on or o.
11. OPTICAL Button
Connects to devices with optical output.
12. HDMI 2 Button
Connects to devices with HDMI output.
Remote Control
10
9
11
8
12
1
2
4
3
5
7
6
S42SWLH13_IB_RC_130531_Michelle.indd 9 31/5/13 5:28 PM

10
Battery Replacement for the Remote Control
The remote control requires a CR2032, 3V Lithium battery (included).
1. Press and slide the back cover to open the
battery compartment of the remote control.
2. Replace the old battery with a new one, with
the positive polarity (+) facing upward.
3. Close the battery compartment cover.
Lithium Cell
CR2032
Remove the Plastic Strip from the Remote Control
Remove the plastic strip from the battery if the battery is
being used for the rst time. It is located at the bottom rear
of the remote control.
S42SWLH13_IB_RC_130531_Michelle.indd 10 31/5/13 5:28 PM

11
Remote Control Operation Range
• The remote control sensor on the front unit is
sensitive to the remote control’s commands up
to a maximum of 8 metres away and within a
maximum of a 60° arc.
• Please note that the operating distance may
vary depending on the brightness of the room.
STANDBY AUX MP3LINK BT COAXIAL OPTICAL HDMI1 HDMI2
EQ S-BASS
OPTICALCOAXIAL
HDMI2HDMI1
MUTE
AUX/
MP3LINK
VOL
+
VOL –
30° 30°
Max. 8 m
Handling the Battery
• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause re,
personal injury or damage to property.
• Install the battery correctly in the battery compartment. Normally the battery’s positive polarity (+)
will face up.
• When the battery is exhausted, the remote control will not function.
• Only use the battery type indicated in this manual.
• Do not dispose of the used battery as domestic waste. Dispose of it in accordance with local
regulations.
• Small button cell batteries such as the one used in the remote control are easily swallowed by young
children and this is dangerous. Keep loose button cells away from young children and make sure that
the battery is secure in the remote control. Seek medical advice if you believe a battery cell has been
swallowed.
Handling the Remote Control
• Do not drop the remote control.
• Do not allow the remote control to suer any impact.
• Do not spill water or any liquid on the remote control.
• Do not place the remote control on a wet object.
• Do not place the remote control under direct sunlight or near sources of excessive heat.
• Remove the battery from the remote control when not in use for a long period of time, as corrosion or
battery leakage may occur and result in physical injury, and/or property damage, and/or re.
S42SWLH13_IB_RC_130531_Michelle.indd 11 31/5/13 5:28 PM

12
Wall Mounting
Screw
Screw
Assembly is required. Installation must be carried out by qualied personnel only. Incorrect assembly can
result in severe personal injury and property damage (if you intend to install this product yourself, you
must check for installations such as electrical wiring and plumbing that may be buried inside the wall).
The supplied wall bracket is only for use on vertical walls constructed from solid brick, solid concrete,
solid wood, solid wooden battens, drywall, plaster wall and lath wall. It is the installer’s responsibility to
verify that the wall will safely support the total load of the Soundbar and wall bracket. Additional tools
(not included) are required for the installation. Do not overtighten screws. Keep this instruction manual
for future reference.
1. Remove the base stand from the unit.
Ensure all cables to the main unit are disconnected before installing or removing the base stand.
2. Attach the wall bracket to the unit with the 2 screws removed from the base stand
following the diagram below.
Wall bracket
Base stand
S42SWLH13_IB_RC_130531_Michelle.indd 12 31/5/13 5:28 PM

13
Use an electronic stud nder to check the wall type before drilling and mounting.
ø8mm
50mm
ø3mm
30mm
110 mm
Wall (Front view)
Electronic stud nder
(not included)
Solid wall
Drywall, Plaster wall,
Lath wall, etc. Drill
(not included)
4. Firmly x 1 dowel into each hole in the wall.
Dowel
Solid wall (i.e., Solid brick,
Solid concrete, Solid wood,
Solid wooden battens)
Drywall, Plaster wall,
Lath wall, etc.
3. Drill 2 parallel holes (Ø 3-8 mm each according to wall type) in the wall. The distance
between the holes should be 110 mm.
S42SWLH13_IB_RC_130531_Michelle.indd 13 31/5/13 5:28 PM

14
5. Insert 1 screw into each dowel. Be sure to leave a 5 mm gap between the wall and the
screw’s head.
Screw
5 mm
Dowel
Wall
(Side view)
Main unit
(Side view)
6. Lift the unit with the attached wall bracket over the heads of the screws and slot into
place.
Wall bracket
Screw
Dowel
Wall
(Side view)
S42SWLH13_IB_RC_130531_Michelle.indd 14 31/5/13 5:28 PM

15
HDMI IN 1 HDMIIN 2 HDMI OUT
MP3 LINK
OPTICAL DCIN
COAXIAL
MP3 LINK
L AUX R
HDMI cable
(not included)
Connections
Using the HDMI Connection
Use an HDMI cable (not included) to connect an AV device’s HDMI OUT socket to the unit’s
HDMI IN 1 or HDMI IN 2 socket.
Use another HDMI cable (not included) to connect a visual device’s HDMI IN socket to the
unit’s HDMI OUT socket.
Use the L-shaped adapter (if necessary) in areas with insucient space to connect the HDMI cable.
HDMI IN 1 HDMIIN 2 HDMIOUT
MP3 LINK
OPTICAL DCIN
COAXIAL
MP3 LINK
L AUX R
Audio L/R cable
AV device Visual device
Using the AUX Connection
Use the audio L/R cable to connect an audio or visual device’s AUX OUT sockets to the
unit’s AUX (L/R) (input) sockets.
S42SWLH13_IB_RC_130531_Michelle.indd 15 31/5/13 5:28 PM

16
HDMI IN 1 HDMI IN 2 HDMIOUT
MP3 LINK
OPTICAL DC IN
COAXIAL
MP3 LINK
L AUX R
HDMI IN 1 HDMIIN 2 HDMIOUT
MP3 LINK
OPTICAL DCIN
COAXIAL
MP3 LINK
L AUX R
3.5mm to 3.5mm stereo audio cable
(not included)
Optical cable
(not included) Audio device
Using the MP3 LINK Connection
Use 3.5mm to 3.5mm stereo audio cable (not included) to connect a mobile device’s
earphone socket to the unit’s MP3 LINK (3.5mm stereo audio input) socket.
Using the OPTICAL Connection
Use an optical cable (not included) to connect an audio device’s OPTICAL OUT socket to
the unit’s OPTICAL (input) socket.
HDMI IN 1 HDMI IN 2 HDMIOUT
MP3 LINK
OPTICAL DC IN
COAXIAL
MP3 LINK
L AUX R
COAXIAL cable
(not included)
Audio device
Using the COAXIAL Connection
Use a coaxial cable (not included) to connect an audio or visual device’s COAXIAL OUT
socket to the unit’s COAXIAL (input) socket.
S42SWLH13_IB_RC_130531_Michelle.indd 16 31/5/13 5:28 PM

17
Connecting to the Mains Supply
• The Soundbar and sub-woofer are designed to operate with the supplied mains
adapter and mains cables.
• Connecting the Soundbar to any other power source may damage the unit. Unwind the
mains adapter and mains cable to their full length. Connect the mains adapter to the
DC IN socket of the unit, then connect the mains cable to the mains adapter and into a
mains socket.
• Connect the mains cable to the AC~ socket of the sub-woofer and then into a mains
socket.
• Make sure the mains cables are rmly inserted into the mains sockets. The Soundbar
and the sub-woofer are now connected and ready to use.
• To switch the Soundbar and the sub-woofer o completely, remove the mains plugs
from the mains sockets.
To the mains socket
To the mains socket
Ensure all audio connections of the Soundbar are connected before connecting to
the mains power socket.
HDMI IN 1 HDMI IN 2 HDMI OUT
MP3 LINK
OPTICAL DC IN
COAXIAL
L AUX R
AC ~
Wireless Pairing the Soundbar and the Sub-woofer
There is no cable needed to connect the Soundbar with the sub-woofer. When the
Soundbar is on, it will automatically pair with the sub-woofer. Place the soundbar and sub-
woofer close to each other.
• Never press the RESET Button at the back of the sub-woofer.
• If the RESET Button is pressed accidentally causing the soundbar and sub-woofer to unpair, follow the
steps below to re-pair.
1. Press STANDBY to switch the soundbar to standby mode.
2. Press and hold MUTE on the remote control until the red LED indicator on the soundbar blinks.
3. Press and hold the RESET Button at the back of the sub-woofer until the LED indicator blinks on the
sub-woofer.
– The LED indicators will continue blinking while pairing and will become steady when pairing is
successful.
– If the pairing fails, the LED indicator on the sub-woofer will light up in yellow.
S42SWLH13_IB_RC_130531_Michelle.indd 17 31/5/13 5:28 PM

18
General Operation
• During STANDBY mode, the STANDBY indicator will light up red. Press STANDBY on
the main unit or on the remote control to turn the unit on.
• Press STANDBY to switch the unit back to STANDBY mode.
• Disconnect the mains plug from the mains socket if you want to switch the unit o
completely.
When the unit volume is close to mute or is idle for approximately 15 minutes,
it will automatically switch to standby.
Selecting Modes
When the unit is on, press SOURCE on the unit repeatedly to select AUX / MP3 /
BLUETOOTH / COAXIAL / OPTICAL / HDMI 1 / HDMI 2 modes. The relative status indicator
will light up. Alternatively, press AUX / MP3, , COAXIAL, OPTICAL, HDMI1 or HDMI2 on
the remote control.
Adjusting the Volume
• Press VOL +/– to adjust the volume.
• If you wish to turn o the sound, press MUTE on the remote control. Press MUTE again,
or press VOL +/– to resume normal playback.
Pressing the volume buttons when the unit is muted will restore the sound.
EQ (Equaliser)
Press EQ on the remote control to switch between preset equalisers to suit individual
preference.
Cycle through the preset equalisers to select the preferred sound ambience. Standard
settings are Optimiser / Flat / Pop / Jazz / Rock.
BASS
Press BASS on the remote control to turn the bass ON or OFF.
• To add more bass, press BASS.
• To switch o bass, press BASS again.
S42SWLH13_IB_RC_130531_Michelle.indd 18 31/5/13 5:28 PM

19
LINE IN Operation
There are AUX, MP3 LINK, COAXIAL, OPTICAL and HDMI (input) sockets located at the
rear of the unit. Analogue audio sound signals from other sources can be connected to the
unit through these sockets.
1. Before connecting to the mains socket:
• Use an optical cable (not included) to connect the audio device’s OPTICAL OUT
socket to the unit’s OPTICAL (input) socket.
• Use the audio L/R cable to connect the device’s audio output sockets to the unit’s
AUX L/R (input) sockets.
• Use an HDMI cable (not included) to connect the device’s HDMI OUT socket to the
unit’s HDMI IN 1 or HDMI IN 2 socket.
• Use a coaxial cable (not included) to connect the device’s COAXIAL OUT socket to
the unit’s COAXIAL (input) socket.
• Use a 3.5mm to 3.5mm stereo audio cable (not included) to connect the device’s
earphone socket to the unit’s MP3 LINK (3.5mm stereo audio input) socket.
2. Press SOURCE repeatedly on the unit or AUX/MP3/ /COAXIAL/OPTICAL/HDMI 1/
HDMI 2 on the remote control to switch between AUX, MP3, COAXIAL, HDMI and
OPTICAL modes.
3. Operate your audio device directly for playback features.
4. Press VOL +/– to adjust the volume.
Bluetooth® Operation
You can listen to tracks from a media device if it is connected to the unit via Bluetooth.
STANDBY AUX MP3LINK BT COAXIAL OPTICAL HDMI1 HDMI2
• The operational range between the unit and the device is approximately 10 metres.
• Before connecting a Bluetooth device to the unit, ensure you know the device’s capabilities.
• Compatibility with all Bluetooth devices is not guaranteed.
• Obstacles between the device and the unit can reduce operational range.
• If the signal strength is weak, your Bluetooth receiver may disconnect, but it will re-enter
pairing mode automatically.
S42SWLH13_IB_RC_130531_Michelle.indd 19 31/5/13 5:28 PM

20
Maintenance
Cleaning the Unit
Ensure the unit is fully unplugged from the mains socket before cleaning.
• To clean the unit, wipe the case with a slightly moist, lint-free cloth.
• Do not use any cleaning uids containing alcohol, ammonia or abrasives.
• Do not spray aerosol at or near the unit.
To connect your device to the unit via Bluetooth, follow the steps below:
1. Press SOURCE repeatedly on the unit or press on the remote control to select
Bluetooth mode. Bluetooth indicator will ash until it pairs.
2. Activate your Bluetooth device and select the search mode.
3. “S42SWLH13” will appear on your Bluetooth device.
4. Select “S42SWLH13” and enter “0000” for password if necessary.
5. On successful pairing, the unit will beep and the blue LED will light up solidly.
NFC (Near Field Communication) Operation
Pair your NFC-enabled mobile device directly with this unit by just a single tap.
1. Activate NFC on your mobile device.
2. Tap the mobile device on the icon of the unit until a beep is heard.
3. Operate your mobile device directly for playback features.
4. Tap again on the icon of the unit to disconnect.
This function only works with mobile devices that support NFC technology.
STANDBY AUX MP3 LINK BT COAXIAL OPTICAL HDMI1 HDMI2
S42SWLH13_IB_RC_130531_Michelle.indd 20 31/5/13 5:28 PM
