Sansonic FT-300A User manual

l 5
AN ONiC
OME NETWORK BOX
FT-300A
ATSC Converter Box
c
Advanced Television Systems Committee
[][]IDOLBVi"
DIGITAL
0DTJ/
STANDARD DERNITIONTELEVISION
1M
rIJ • " Product that have earned the ENERGY STAR@ are designed to
, protect the environment through superior energy efficiency
'il'iijij+4i
t
lji
All manuals and user guides at all-guides.com
all-guides.com

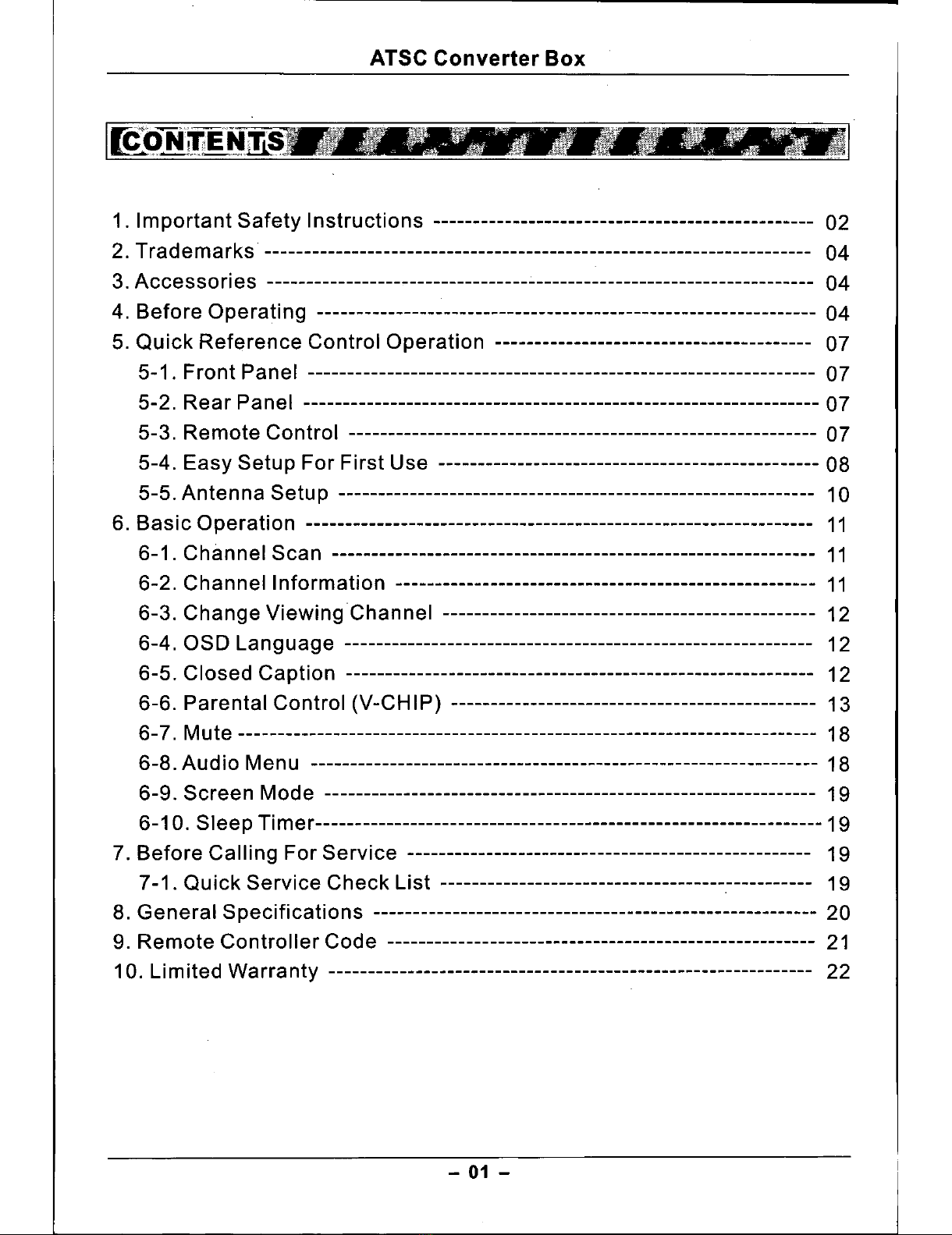

TSC Converter Box
. Importa nt Safety Instructions ------------------------------------------------ 02
2. Trademarks --------------------------------------------------------------------- 04
3. Accesso ries --------------------------------------------------------------------- 04
4. Before Operati ng --------------------------------------------------------------- 04
5. Quick Reference Control Operation ---------------------------------------- 07
5- . Front Pa nel ---------------------------------------------------------------- 07
5-2. Rea r Pa nel ----------------------------------------------------------------- 07
5-3. Remote Control ----------------------------------------------------------- 07
5-4. Easy Setup For First Use ------------------------------------------------ 08
5-5. Anten na Setu p ------------------------------------------------------------ 0
6. Basic Operation ----------------------------------------------------------------
6- . Channel Scan -------------------------------------------------------------
6-2. Cha nnel Information -----------------------------------------------------
6-3. Change Viewing Chan nel ----------------------------------------------- 2
6-4. OS D Lang uage ----------------------------------------------------------- 2
6-5. Closed Caption ----------------------------------------------------------- 2
6-6. Parental Control (V-CH IP) ---------------------------------------------- 3
6- 7. Mute ------------------------------------------------------------------------- 8
6-8. Aud io Men u ---------------------------------------------------------------- 8
6-9. Screen Mode -------------------------------------------------------------- 9
6- 0. Sleep Timer---------------------------------------------------------------- 9
7. Before Calling For Service --------------------------------------------------- 9
7- . Quick Service Check List ----------------------------------------------- 9
8. General Specifications -------------------------------------------------------- 20
9. Remote Controller Code ------------------------------------------------------ 2
0. Limited Warra nty ------------------------------------------------------------- 22
- 01 -
All manuals and user guides at all-guides.com

TSC Converter Box

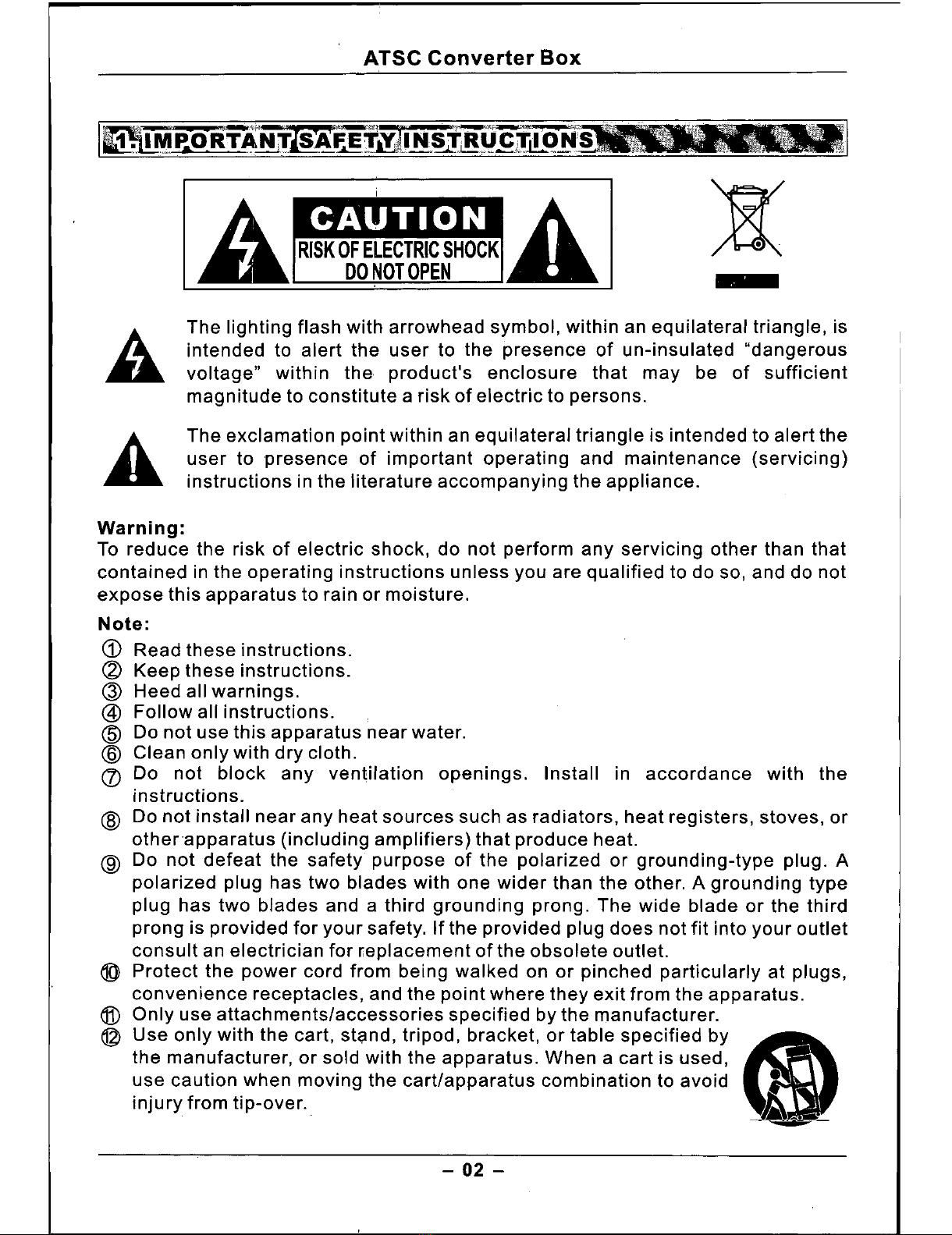

The lighting flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of un insulated "dangerous
voltage" within the product's enclosure that may be of sufficient
magnitude to constitute a risk of electric to persons.
The exclamation point within an equilateral triangle is intended to alert the
user to presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
Warning:
To reduce the risk of electric shock, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so, and do not
expose this apparatus to rain or moisture.
Note:
CD Read these instructions.
@ Keep these instructions.
~ Heed all warnings.
@ Follow all instructions.
<ID Do not use this apparatus near water.
@ Clean only with dry cloth.
(/) Do not block any ventilation openings. Install in accordance with the
instructions.
@ Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
<ID Do not defeat the safety purpose of the polarized or grounding type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong is provided for your safety. If the provided plug does not fit into your outlet
consult an electrician for ~eplacement of the obsolete outlet.
@ Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
@ Only use attachments/accessories specified by the manufacturer.
@ Use only with the cart, stand, tripod, bracket, or table specified by CD
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip over. ~J\.
r.~
02
All manuals and user guides at all-guides.com

TSC Converter Box
l Unplug this apparatus during lightning storms or when unused for long periods
of time.
Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
~ To Reduce the Risk of Fire or Electric Shock, Do not Expose This Appliance To
Rain or Moisture.
~ Apparatus shall not be exposed to dripping or splashing and no objects filled
with liquids, shall not be placed on the apparatus.
The Shock Hazard Marking and Associated Graphical Symbol is provided on the
back panel of unit.
Plug the adapter into AC11 OV outlet, Connect the supplied adapter in the slot of
the unit marked "DC IN", If the unit will not used for a long time, remove the
adapter from the outlet.
Before connect the adapter and the unit, make sure that all the connections
have been made.
~ If an outside antenna is connected to the device, be sure the antenna system is
grounded so as to provide some protection against voltage surges and built-up
static charges. Section 810 of the National Electrical Code provides information
with respect to proper grounding of mast and supporting structure, grounding of
the lead-in wire to antenna discharge unit. Size of grounding conductors,
location of antenna discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode.

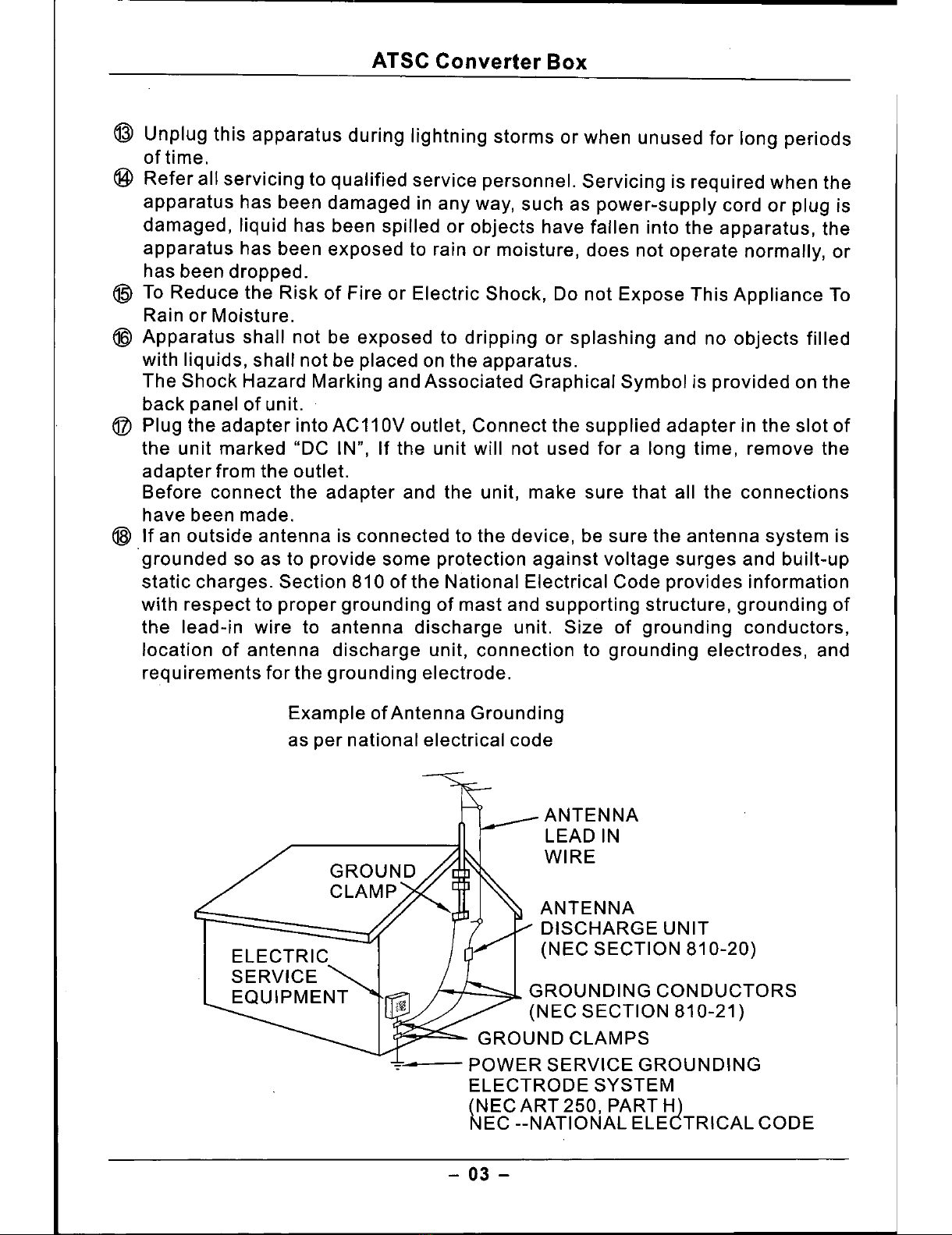

Example of Antenna Grounding
as per national electrical code
ANTENNA
LEAD IN
WIRE
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
.,.~ POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
NEC --NATIONAL ELECTRICAL CODE
- 03 -
All manuals and user guides at all-guides.com

TSC Converter Box

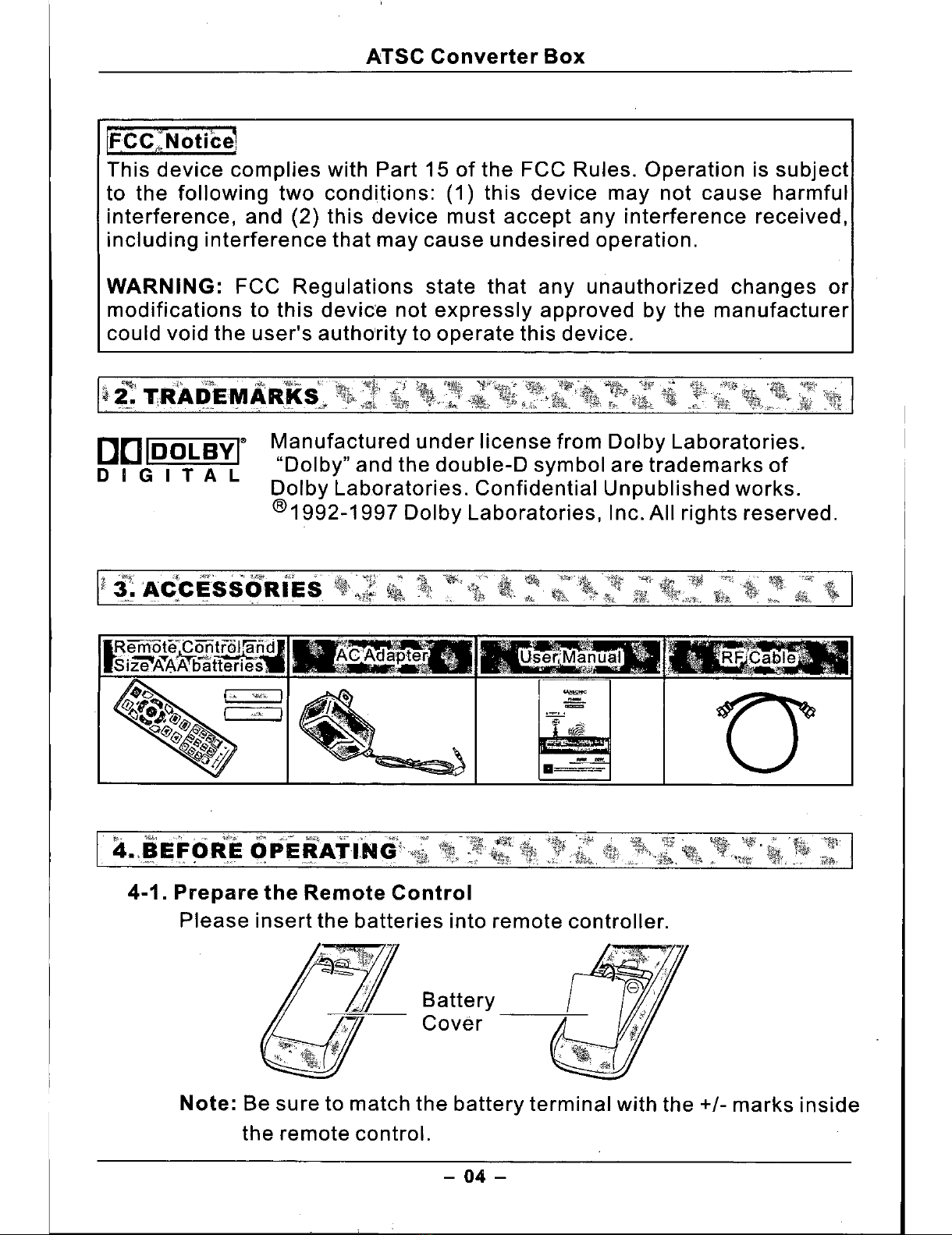

FCC;Not :el
his device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
W RNING: FCC Regulations state that any unauthorized changes or
modifications to this devic'e not expressly approved by the manufacturer
could void the user's autho'rity to operate this device.
D[]IOOLBVI"
DIGIT L
Manufactured under license from Dolby Laboratories.
"Dolby" and the double-D symbol are trademarks of
Dolby Laboratories. Confidential Unpublished works.
@1992-1997 Dolby Laboratories, Inc. All rights reserved.
4-1. Prepare the Remote Control
Please insert the batteries into remote controller.
Battery
Cover
Note: Be sure to match the battery terminal with the +/- marks inside
the remote control.
04
