SERVICE MANUAL (Basic Information)
CMH1822 / KMH0922 (✕2)
SPLIT SYSTEM AIR CONDITIONER
8526481017400 REFERENCE NO. WM–700700
W
Indoor Unit Outdoor Unit
CMH1822
KMH0922
92-144S/M(Basic)00.12.1310:32AMページA

92-144S/M(Basic)00.12.1310:32AMページB

ii WM– 700700
SERVICE MANUAL
CMH1822 / KMH0922 (×2)
(Basic Information)
92-144S/M(Basic)00.12.1310:32AMページii

WM– 700700
IMPORTANT!
Please Read Before Starting
This air conditioning system meets strict safety and operating
standards. As the installer or service person, it is an important
part of your job to install or service the system so it operates
safely and efficiently.
For safe installation and trouble-free operation, you must:
●Carefully read this instruction booklet before beginning
●Follow each installation or repair step exactly as shown
●Observe all local, state, and national electrical codes
●Pay close attention to all danger, warning, and caution
notices given in this manual
This symbol warns of an imme-
diate hazard which will result in
severe personal injury or death.
This symbol refers to a hazard or
unsafe practice which can result
in severe personal injury or
death.
This symbol refers to a hazard
or unsafe practice which can
result in personal injury or prod-
uct or property damage.
If Necessary, Get Help
These instructions are all you need for most installation
sites and maintenance conditions. If you require help for a
special problem, contact our sales/service outlet or your
certified dealer for additional instructions.
In Case of Improper Installation
The manufacturer shall in no way be responsible for
improper installation or maintenance service, including
failure to follow the instructions in this document.
SPECIAL PRECAUTIONS
When Wiring
ELECTRICAL SHOCK CAN CAUSE SEVERE PER-
SONAL INJURY OR DEATH. ONLY A QUALIFIED,
EXPERIENCED ELECTRICIAN SHOULD
ATTEMPT TO WIRE THIS SYSTEM.
• Do not supply power to the unit until all wiring and tub-
ing are completed or reconnected and checked.
• Highly dangerous electrical voltages are used in this sys-
tem. Carefully refer to the wiring diagram and these
instructions when wiring. Improper connections and inad-
equate grounding can cause accidental injury or death.
• Ground the unit following local electrical codes.
• Connect all wiring tightly. Loose wiring may cause over-
heating at connection points and a possible fire hazard.
When Transporting
Be careful when picking up and moving the indoor and out-
door units. Get a partner to help, and bend your knees when
lifting to reduce strain on your back. Sharp edges or thin
aluminum fins on the air conditioner can cut your fingers.
When Installing…
…In a Ceiling or Wall
Make sure the ceiling/wall is strong enough to hold the
unit’s weight. It may be necessary to construct a strong
wood or metal frame to provide added support.
…In a Room
Properly insulate any tubing run inside a room to prevent
“sweating” that can cause dripping and water damage to
walls and floors.
…In Moist or Uneven Locations
Use a raised concrete pad or concrete blocks to provide a
solid, level foundation for the outdoor unit. This prevents
water damage and abnormal vibration.
…In an Area with High Winds
Securely anchor unit down with bolts and metal frame.
Provide a suitable air baffle.
…In a Snowy Area (for Heat Pump-type Systems)
Install the outdoor unit on a raised platform that is higher
than drifting snow. Provide snow vents.
When Connecting Refrigerant Tubing
• Keep all tubing runs as short as possible.
• Use the flare method for connecting tubing.
• Apply refrigerant lubricant to the matching surfaces of the
flare and union tubes before connecting them, then tighten
the nut with a torque wrench for a leak-free connection.
• Check carefully for leaks before starting the test run.
NOTE:
Depending on the system type, liquid and gas lines may be
either narrow or wide. Therefore, to avoid confusion the
refrigerant tubing for your particular model is specified as
either “narrow” or “wide” rather than as “liquid” or “gas.”
When Servicing
• Turn the power OFF at the main power box (mains)
before opening the unit to check or repair electrical parts.
• Keep your fingers and clothing away from any moving
parts.
• Clean up the site after you finish, remembering to check
that no scraps or bits of wiring have been left inside the
unit being serviced.
DANGER:
WARNING:
CAUTION:
iii
92-144S/M(Basic)00.12.1310:32AMページiii

Table of Contents
Page
1. OPERATING RANGE............................................................................................................................... 1
2. SPECIFICATIONS .................................................................................................................................... 2
Unit Specifications ....................................................................................................................................... 2
Applicable Indoor Unit................................................................................................................................. 3
3. DIMENSIONAL DATA ............................................................................................................................. 4
4. COOLING CAPACITY............................................................................................................................. 5
5. HEATING CAPACITY.............................................................................................................................. 7
6. REFRIGERANT FLOW DIAGRAM ...................................................................................................... 9
7. ELECTRICAL DATA................................................................................................................................10
●Electrical Characteristics....................................................................................................................... 10

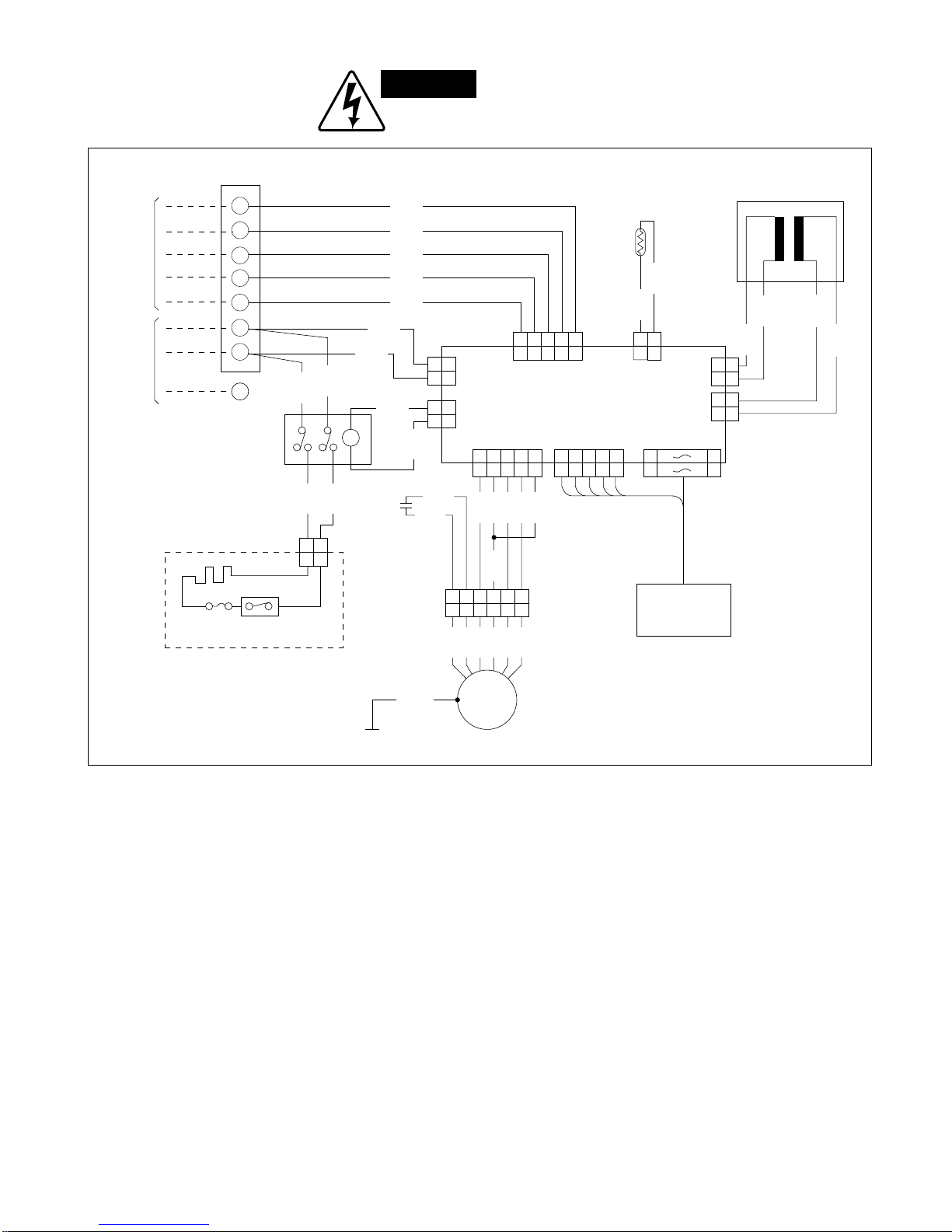

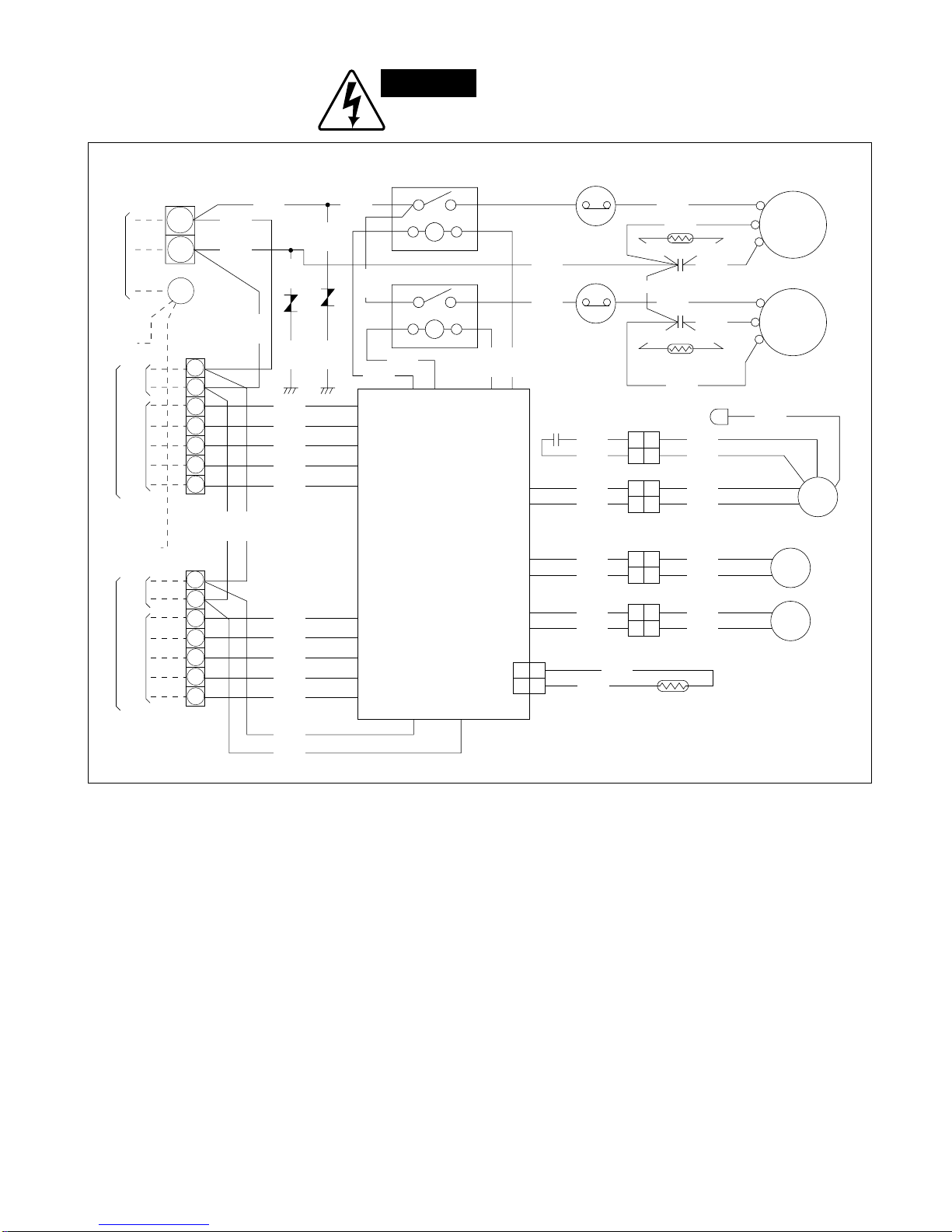

●Electrical Wiring Diagram..................................................................................................................... 11
iv WM–700700
92-144S/M(Basic)00.12.1310:32AMページiv

1WM–700700
1. OPERATING RANGE
Temperature Indoor Air Intake Temp. Outdoor Air Intake Temp.
Maximum 95°F DB / 71°F WB 115°F DB
Minimum 67°F DB / 57°F WB 67°F DB
CMH1822 / KMH0922 (×2)
92-144S/M(Basic)00.12.1310:32AMページ1

DATA SUBJECT TO CHANGE WITHOUT NOTICE.
Remarks: Rating conditions are:
Cooling: Outside air temperature 95°F DB/75°F WB
Indoor unit entering air temperature 80°F DB/67°F WB
Heating: Outside air temperature 47°F DB/43°F WB
Indoor unit entering air temperature 70°F DB
Model No. Outdoor unit CMH1822
Applicable indoor unit KMH0922
No. of indoor units
Capacity BTU/h
kW
Phase, Frequency Hz
Voltage rating V
Available voltage range V
Running amperes A
Power input W
Power factor %
Starting amperes A
S. E. E. R. (H. S. P. F.) BTU/Wh
Fan speeds 1
Compressor … number Rotary … 2
Refrigerant amount charged at shipment lbs. (kg) R-22: 2.34 (1.06) ×2
Refrigerant control Capillary tube
Operation sound (Outdoor unit) dB-A 54
Refrigerant tubing connections Flare type
Max. allowable tubing length at shipment ft. (m) 33 (10)
Limit of tubing length ft. (m) 50 (15)
Limit of elevation difference ft. (m) 23 (7)
between the 2 units
Refrigerant tube o.d. Narrow tube in. (mm) 1/4 (6.35)
Wide tube in. (mm) 3/8 (9.52)
Refrigerant tube kit Optional
Height in. (mm) 24-13/16 (630)
Width in. (mm) 32-11/16 (830)
Depth in. (mm) 12-13/32 (315)
Net weight lbs. (kg) 134 (60.8)
Shipping volume cu. ft. (cu. m) 10.3 (0.96)
Shipping weight (Approx.) lbs. (kg) 140.8 (64)
Performance
Electrical Rating
Features
Dimensions &
Weight
2. SPECIFICATIONS
Unit Specifications
1 unit (Cooling)
8,800 / 8,700
2.58 / 2.55
Single, 60
230 / 208
187 to 253
4.1 / 4.3
900 / 870
95 / 97
27
10.0 / 10.0
1 unit (Heating)
10,000 / 9,800
2.93 / 2.87
Single, 60
230 / 208
187 to 253
4.1 / 4.3
900 / 870
95 / 97
27
(7.0 / 7.0)
2 units (Cooling)
16,800 / 16,300
4.92 / 4.78
Single, 60
230 / 208
187 to 253
8.2 / 8.7
1,820 / 1,780
95 / 97
27 ×2
10.0 / 10.0
2 units (Heating)
19,000 / 18,000
5.57 / 5.27
Single, 60
230 / 208
187 to 253
7.5 / 7.9
1,640 / 1,590
95 / 97
27 ×2
(7.0 / 7.0)
92-144S/Mp.2Table00.12.1311:19AMページ2

3WM–700700
DATA SUBJECT TO CHANGE WITHOUT NOTICE.
Remarks: Rating conditions are:
Cooling: Outside air temperature 95°F DB/75°F WB
Indoor unit entering air temperature 80°F DB/67°F WB
Heating: Outside air temperature 47°F DB/43°F WB
Indoor unit entering air temperature 70°F WB
Model No. KMH0922
Type Wall-mounted
Cooling Heating
Capacity BTU/h 8,800 / 8,700 10,000 / 9,800
kW 2.58 / 2.55 2.93 / 2.87
Air circulation (High) cu. ft./min. 220 / 210
Moisture removal (High) pints/h 2.2
Phase, Frequency Hz Single, 60
Voltage rating V 230 / 208
Available voltage range V 187 to 253
Heat element kW – HSPF — 1.0 / 0.82 – 6.6 / 6.6
Controls Microprocessor
Control unit Remote control unit
Temperature control IC thermostat
Timer ON/OFF 12-hours
Fan speeds 3
Air deflector Horizontal / Vertical Manual / Manual
Air filter Washable, easy access
Operation sound Hi / Me / Lo dB-A 40 / 35 / 30
Refrigerant tubing connections Flare type
Refrigerant tube o.d. Narrow tube in. (mm) 1/4 (6.35)
Wide tube in. (mm) 3/8 (9.52)
Refrigerant tube kit Optional
Accessories Mounting bracket
Height in. (mm) 13-19/32 (345)
Width in. (mm) 31-1/2 (800)
Depth in. (mm) 7-3/32 (180)
Net weight lbs. (kg) 24 (11)
Shipping volume cu. ft. (cu. m) 3.3 (0.093)
Shipping weight lbs. (kg) 29 (13)
Performance
Electrical
Rating
Features
Dimensions &
Weight
Applicable Indoor Unit
92-144S/M(Basic)00.12.1310:32AMページ3

WM–700700
4

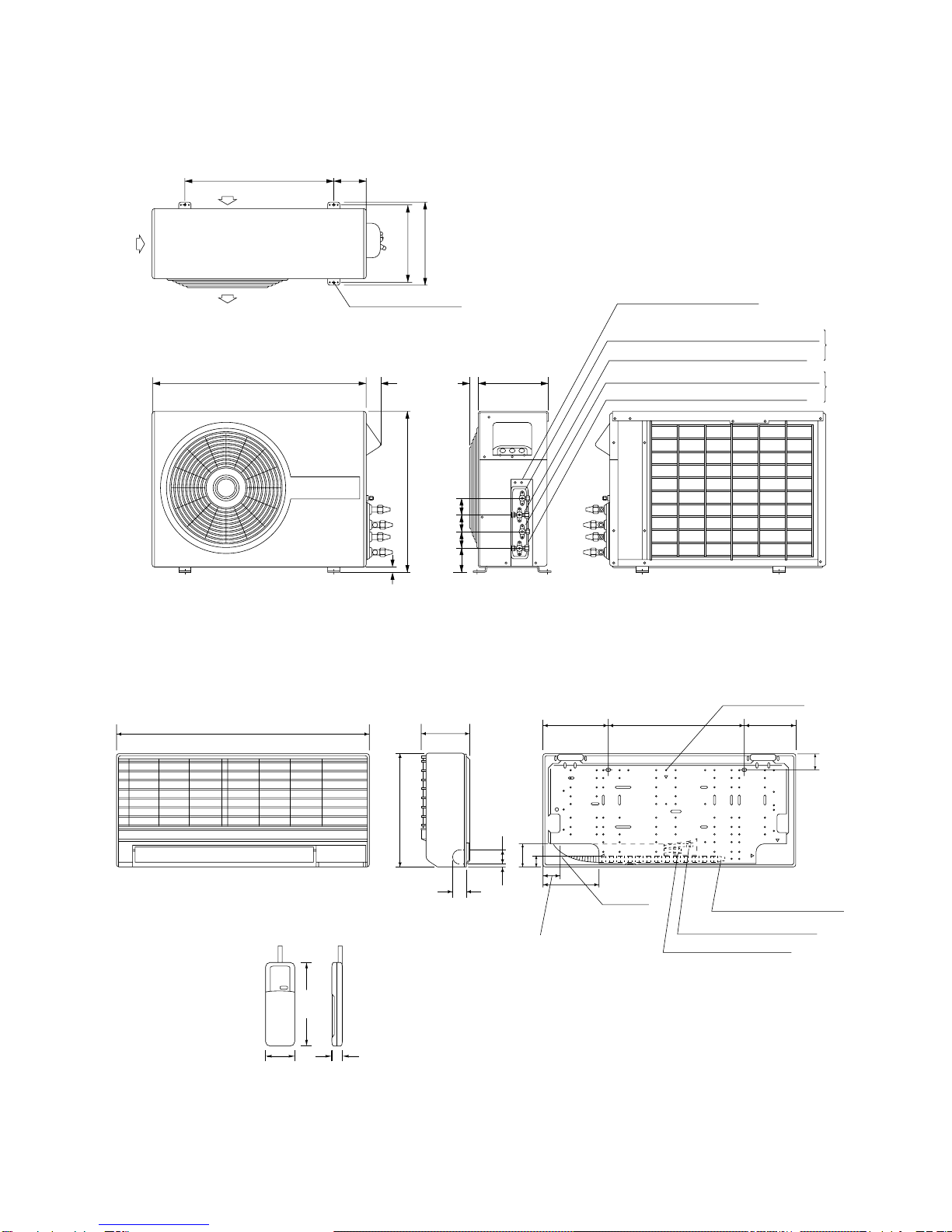

3. DIMENSIONAL DATA
Outdoor Unit: CMH1822
Indoor Unit: KMH0922
O.D. 3/8" wide tubing service valve
2-9/32
3-3/4
11-7/32
1-3/162-1/432-11/16
3/4
24-13/16
Air discharge
Air
intake
Air intake
21-3/16 5-3/4
12-3/12
13-1/4
4 ×15/32 dia. hole
O.D. 1/4" narrow tubing service valve
O.D. 3/8" wide tubing service valve
O.D. 1/4" narrow tubing service valve
High pressure gauge port
Unit A
Unit B
2-9/32
2-9/32
31-1/2 7-3/32 7-11/64 17-23/32
Rear panel
(center point
of gravity)
6-23/32
13-19/32
1-49/64
3-3/4
15/32
1-49/64
1-3/8 5-1/2
1-49/64
Center of
tubing hole
(for right
rear)
O.D. 3/8" wide tubing
O.D. 1/4" narrow tubing
Drain hose O.D. 23/32
1-5/8
2-23/64 25/32
7-7/8
Remote
control unit
92-144S/M(Basic)00.12.1310:32AMページ4

4. COOLING CAPACITY
230V
CMH1822 / KMH0922 (×1)
5WM–700700
TC: Total Cooling Capacity (BTU/H)
SHC: Sensible Heat Capacity (BTU/H)
kW: Compressor Input (kW)
Remarks: Rating conditions (* mark) are: Outside ambient temperature 95°F DB
Indoor unit entering air temperature 80°F DB/67°F WB
Rating Capacity: 8,800 BTU/H Air Flow Rate: 220 CFM
Evaporator Condenser
Ent. Temp. °F/(°C) Ambient Temp. °F/(°C)
WB DB 75 85 95 105 115
(23.9) (29.4) (35.0) (40.6) (46.1)
TC 8,710 8,320 7,920 7,470 6,860
kW 0.62 0.67 0.73 0.79 0.87
59 72 (22.2) SHC 6,200 5,990 5,790 5,560 5,260
(15.0) 76 (24.4) SHC 6,940 6,740 6,530 6,300 6,000
80 (26.7) SHC 7,720 7,510 7,310 7,080 6,780
84 (28.9) SHC 8,460 8,250 7,920 7,470 6,860
88 (31.1) SHC 8,710 8,320 7,920 7,470 6,860
TC 9,010 8,730 8,390 7,930 7,300
kW 0.62 0.68 0.74 0.81 0.89
63 72 (22.2) SHC 5,260 5,120 4,960 4,740 4,460
(17.2) 76 (24.4) SHC 6,000 5,860 5,700 5,490 5,200
80 (26.7) SHC 6,780 6,640 6,480 6,260 5,970
84 (28.9) SHC 7,520 7,380 7,220 7,000 6,720
88 (31.1) SHC 8,260 8,120 7,960 7,740 7,300
TC 9,260 9,110 *8,800 8,320 7,740
kW 0.63 0.69 0.75 0.82 0.91
67 72 (22.2) SHC 4,280 4,220 4,080 3,870 3,630
(19.4) 76 (24.4) SHC 5,020 4,960 4,820 4,610 4,370
80 (26.7) SHC 5,800 5,730 5,600 5,390 5,150
84 (28.9) SHC 6,540 6,470 6,340 6,130 5,890
88 (31.1) SHC 7,280 7,220 7,080 6,870 6,630
TC 9,550 9,390 9,150 8,740 8,230
kW 0.63 0.69 0.76 0.84 0.93
71 72 (22.2) SHC 3,280 3,220 3,120 2,960 2,760
(21.7) 76 (24.4) SHC 4,020 3,960 3,860 3,700 3,510
80 (26.7) SHC 4,800 4,730 4,640 4,480 4,280
84 (28.9) SHC 5,540 5,470 5,380 5,220 5,020
88 (31.1) SHC 6,280 6,220 6,120 5,960 5,760
TC 9,730 9,630 9,420 9,080 8,710
kW 0.65 0.71 0.77 0.86 0.95
75 76 (24.4) SHC 3,020 2,980 2,910 2,790 2,660
(23.9) 80 (26.7) SHC 3,790 3,760 3,680 3,560 3,430
84 (28.9) SHC 4,540 4,500 4,420 4,300 4,180
88 (31.1) SHC 5,280 5,240 5,160 5,050 4,920
92-144S/M(Basic)00.12.1310:32AMページ5

6WM–700700
208V
CMH1822 / KMH0922 (×1)
TC: Total Cooling Capacity (BTU/H)
SHC: Sensible Heat Capacity (BTU/H)
kW: Compressor Input (kW)
Remarks: Rating conditions (* mark) are: Outside ambient temperature 95°F DB
Indoor unit entering air temperature 80°F DB/67°F WB
Rating Capacity: 8,700 BTU/H Air Flow Rate: 210 CFM
Evaporator Condenser
Ent. Temp. °F/(°C) Ambient Temp. °F/(°C)
WB DB 75 85 95 105 115
(23.9) (29.4) (35.0) (40.6) (46.1)
TC 8,610 8,220 7,830 7,390 6,790
kW 0.61 0.66 0.72 0.78 0.86
59 72 (22.2) SHC 6,090 5,880 5,680 5,450 5,150
(15.0) 76 (24.4) SHC 6,800 6,590 6,390 6,160 5,860
80 (26.7) SHC 7,550 7,340 7,130 6,910 6,610
84 (28.9) SHC 8,260 8,050 7,830 7,390 6,790
88 (31.1) SHC 8,610 8,220 7,830 7,390 6,790
TC 8,910 8,630 8,290 7,840 7,220
kW 0.61 0.67 0.73 0.80 0.88
63 72 (22.2) SHC 5,180 5,040 4,870 4,660 4,370
(17.2) 76 (24.4) SHC 5,890 5,750 5,590 5,370 5,090
80 (26.7) SHC 6,630 6,500 6,330 6,120 5,830
84 (28.9) SHC 7,350 7,210 7,050 6,830 6,550
88 (31.1) SHC 8,060 7,930 7,760 7,550 7,220
TC 9,150 9,000 *8,700 8,220 7,660
kW 0.62 0.68 0.74 0.81 0.90
67 72 (22.2) SHC 4,230 4,160 4,030 3,820 3,580
(19.4) 76 (24.4) SHC 4,940 4,870 4,740 4,530 4,290
80 (26.7) SHC 5,690 5,620 5,490 5,280 5,040
84 (28.9) SHC 6,400 6,330 6,200 5,990 5,750
88 (31.1) SHC 7,110 7,050 6,910 6,700 6,460
TC 9,440 9,280 9,050 8,640 8,130
kW 0.62 0.68 0.75 0.83 0.91
71 72 (22.2) SHC 3,250 3,190 3,100 2,940 2,740
(21.7) 76 (24.4) SHC 3,970 3,900 3,810 3,650 3,450
80 (26.7) SHC 4,710 4,650 4,560 4,400 4,200
84 (28.9) SHC 5,430 5,360 5,270 5,110 4,910
88 (31.1) SHC 6,140 6,080 5,980 5,820 5,630
TC 9,620 9,520 9,310 8,980 8,610
kW 0.64 0.70 0.76 0.85 0.94
75 76 (24.4) SHC 3,000 2,960 2,880 2,760 2,640
(23.9) 80 (26.7) SHC 3,740 3,700 3,630 3,510 3,380
84 (28.9) SHC 4,450 4,420 4,340 4,220 4,090
88 (31.1) SHC 5,170 5,130 5,050 4,940 4,810
92-144S/M(Basic)00.12.1310:32AMページ6

7WM–700700

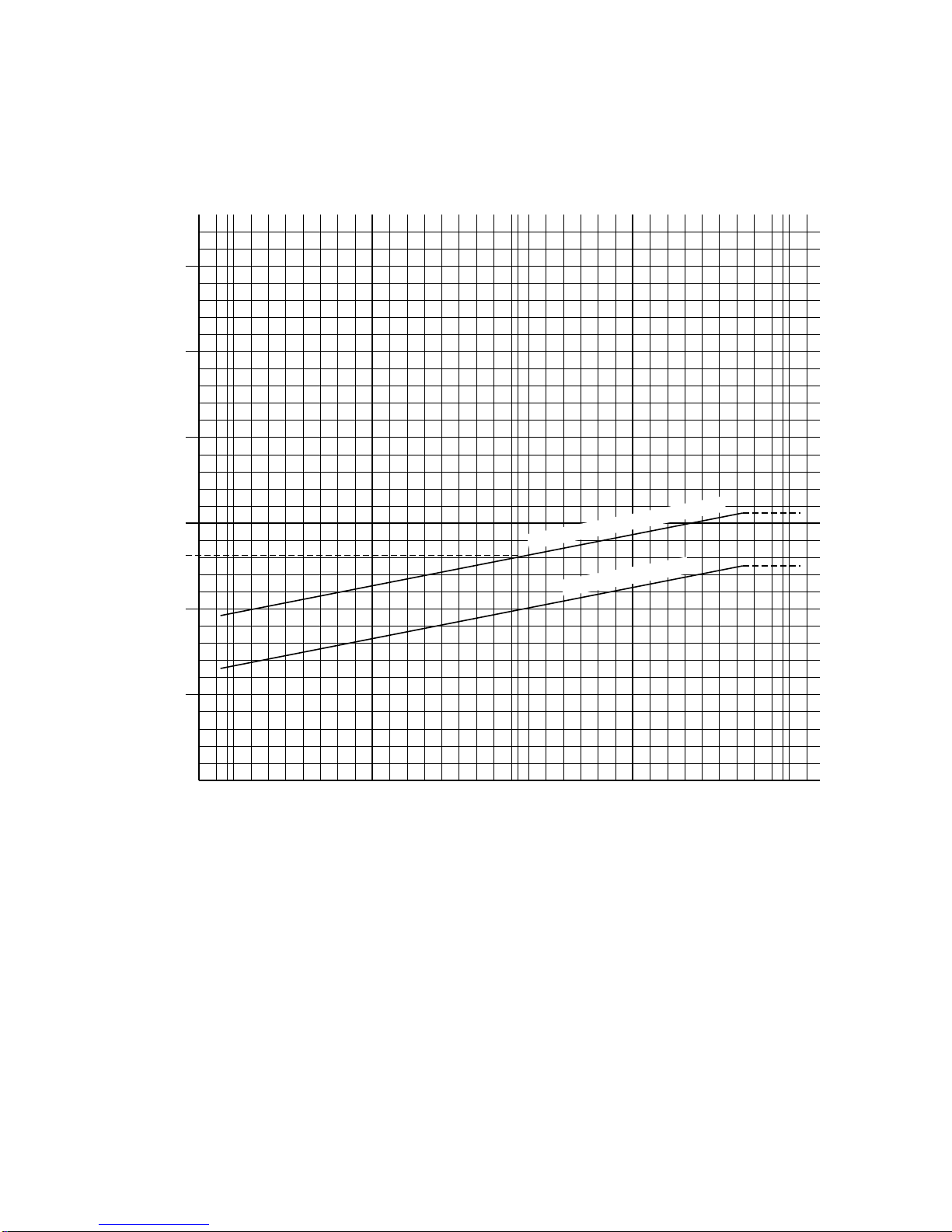

5. HEATING CAPACITY
1 Phase 60Hz 230V Model Name: CMH1822 / KMH0922 (×1)
Indoor Entering Air Temperature 70°F
Temperature of Air Entering Outdoor Coil
(°F D.B. at 75% RH)
Heating Capacity (BTU/h)
30,000
25,000
20,000
15,000
10,000
5,000
23
(–5)
32
(0)
41
(5)
50 59
(15)
68
(20)
75°F
(23.7°C)
47
(8.3)
13,100
Heat-pump with back-up heater
Heat-pump capacity
17
(–8.3)
92-144S/M(Basic)00.12.1310:32AMページ7

8WM–700700
1 Phase 60Hz 208V Model Name: CMH1822 / KMH0922 (×1)
Indoor Entering Air Temperature 70°F
Temperature of Air Entering Outdoor Coil
(°F D.B. at 75% RH)
Heating Capacity (BTU/h)
30,000
25,000
20,000
15,000
10,000
5,000
23
(–5)
32
(0)
41
(5)
50 59
(15)
68
(20)
75°F
(23.7°C)
47
(8.3)
9,800
12,300
Heat-pump with back-up heater
Heat-pump capacity
17
(–8.3)
92-144S/M(Basic)00.12.1310:32AMページ8

Heat exchanger
Narrow tube
O. D.
1/4"
(6.35mm)
Wide tube
O.D.
3/8"
(9.52mm)
Service
valve
Muffler
Accumulator Compressor A
Reversing
valve
Service valve Dehydrator
Capillary
tube
( )
Check valve
Strainer
Heat exchanger
Narrow tube
O.D.
1/4"
(6.35mm)
Wide tube
O.D.
3/8"
(9.52mm)
Service
valve
Muffler
Accumulator Compressor B
Reversing
valve
Service valve Dehydrator
Capillary
tube
( )
Check valve
Strainer
Capaillary tube
Heat exchanger
Check
port B
Check
port A
Indoor Unit A
Indoor Unit B
Heat exchanger
Narrow tube
O.D.
1/4"
(6.35mm)
Wide tube
O.D.
3/8"
(9.52mm)
Service
valve
Muffler
Accumulator Compressor A
Reversing
valve
Service valve Dehydrator
Capillary
tube
( )
Check valve
Strainer
Heat exchanger
Narrow tube
O.D.
1/4"
(6.35mm)
Wide tube
O.D.
3/8"
(9.52mm)
Service
valve
Muffler
Accumulator Compressor B
Reversing
valve
Service valve Dehydrator
Capillary
tube
( )
Check valve
Strainer
Capaillary tube
Heat exchanger
Check
port B
Check
port A
Indoor Unit A
Indoor Unit B
6. REFRIGERANT FLOW DIAGRAM
Cooling Cycle
Heating Cycle
9WM–700700
92-144S/M(Basic)00.12.1310:32AMページ9

10 WM–700700
7. ELECTRICAL DATA
● Electrical Characteristics
CMH1822 / KMH0922 (×1)
Remarks: Rating conditions are:
Cooling: Outside air temperature 95°F DB/75°F WB
Indoor unit entering air temperature 80°F DB/67°F WB
Heating: Outside air temperature 47°F DB/43°F WB
Indoor unit entering air temperature 70°F WB
Performance at Indoor Unit Outdoor Unit Complete Unit
230/208V – 1ø – 60Hz Fan Motor Max. Heat Fan Motor Compressor Heat-pump Max. Heat
Cooling Rating A 0.15 / 0.14 — 0.52 / 0.52 3.43 / 3.64 4.1 / 4.3 —
Conditions W 34 / 29 — 116 / 104 750 / 737 900 / 870 —
Heating Rating A 0.15 / 0.14 4.35 / 3.93 0.52 / 0.52 3.43 / 3.64 4.1 / 4.3 8.45 / 8.23
Conditions W 34 / 29 1,000 / 818 116 / 104 750 / 737 900 / 870
Locked-Rotor Amperes A 0.19 / 0.18 — 0.71 / 0.64 27 — —
Remarks: Rating conditions are:
Cooling: Outside air temperature 95°F DB/75°F WB
Indoor unit entering air temperature 80°F DB/67°F WB
Heating: Outside air temperature 47°F DB/43°F WB
Indoor unit entering air temperature 70°F WB
Performance at Indoor Unit Outdoor Unit Complete Unit
230/208V – 1ø – 60Hz Fan Motor Max. Heat Fan Motor Compressor Heat-pump Max. Heat
Cooling Rating A 0.30 / 0.28 — 0.52 / 0.52 7.38 / 7.90 8.2 / 8.7 —
Conditions W 68 / 58 — 116 / 104 1,636 / 1,618 1,820 / 1,780 —
Heating Rating A 0.30 / 0.28 8.70 / 7.86 0.52 / 0.52 6.68 / 7.10 7.5 / 7.9 16.2 / 15.76
Conditions W 68 / 58 2,000 / 1,636 116 / 104 1,456 / 1,428 1,640 / 1,590 3,640 / 3,226
Locked-Rotor Amperes A
0.19 ×2 / 0.18 ×2 — 0.71 / 0.64 27 ×2— —
CMH1822 / KMH0922 (×2)
92-144S/M(Basic)00.12.1310:32AMページ10

11 WM–700700
● Electrical Wiring Diagram
Outdoor Unit: CMH1822
CMA
S
C
R
BLK
RED
Compressor motor A
PTC. A
WHT
BLK WHT
OLR. A
CMB
R
C
S
RED
Compressor motor B
WHT
OLR. B
BLK WHT
BLK
PTC. B
BLK
1
2
7
6
5
4
3
2
1
34
12
34
12
1
2
1
2
CONTROLLER
S. CB
RED
RED
YEL
YEL 1
2
1
2
S. CB
S. CB
S. CA
RED
RED
WHT
WHT 1
2
1
2
S. CA
S. CA
WHT
GRY
GRY
WHT 1
2
1
2
FMG
FMO
BRN
PNK
PNK
BRN 1
2
1
2
YEL
G
BLK
WHT
GRY
VLT
BLU
GB
FMB
SVB
CMB
24B
GA
FMA
SVA
CMA
24A
7
6
5
4
3
2
1
PNK
YEL
ORG
RED
BRN
Terminal
plate
RED
RED
BLK
Power supply
Terminal
plate
7PB
Control supply
TO INDOOR UNIT
7PA
Control supply
TO INDOOR UNIT
Terminal
plate
BLK
RED
BLK
REDGRN
(GRN/YEL)
GRN
(GRN/YEL)
SA
SA
RED
RED
BLK
RED
Power relay A
Power relay B
RED
BLU
ORG
BLU
ORG
PA1 PB2
PB1 PA2
FU Supply
CS
Capacitor A
BLK
BLU
(BLU)
(RED)
(WHT)
(GRN)
Capacitor B
Capacitor F
BLK
BLK
Thermistor
Fan motor
Solenoid coil A
Solenoid coil B
FM
A
B
WARNING: To avoid electrical shock hazard, be sure to
disconnect power before checking, servicing
and/or cleaning any electrical parts.
92-144S/M(Basic)00.12.1310:32AMページ11

12 WM–700700
Indoor Unit: KMH0922
1
1
2
1
2
1
1
12
12
2
2
5
5
4
4
3
3
1
1
5
5
4
4
3
3
1
1
2
2
6
6
Thermistor
2P
Supply
CONTROLLER
Remote
control
switch
Fan
motor
FM
2
3
1
2
1
2
BRN
PNK
GRY
YEL
WHT
VLT
GRY
ORG
WHT
VLT
Capacitor
PNK
BRN
1
2
1
2
WHT
WHT
PS
Transformer
BRN
Terminal plate
FROM OUTDOOR UNIT
GRN
G
G
BRN
5
5
4
4
3
3
2
2
1
1
YEL
YEL
1
1 2
WHT
WHT
1
1
2
2
3
3
4
4
5
5
1
2
1
2
4
5
6
7
1
1
2
2
Control linePower line
BRN
ORG
YEL
PNK
2P
HR
2
2P
TH
5P
Unit
5P FM REMOCON
2
REMOCON
1
SEC 2P
PRY 2P
Heater
assy
Thermo
fuse
Thermostat
Connector
Heater
relay
WHT
BLK
43
21
5
RY
WHT
BLK
Connector
WHT
RED
BLK
ORG
6
BLU
WARNING: To avoid electrical shock hazard, be sure to
disconnect power before checking, servicing
and/or cleanin
g
an
y
electrical
p
arts.
92-144S/M(Basic)00.12.1310:32AMページ12

For parts or service contact
SFS Corporation: 1200 West Artesia Blvd., Compton, California 90220
Printed in U.S.A.
CORPORATION
1991/Nov./12M
SANYO Canada Inc.: Toronto, Ont. M4H 1M6In Canada
WM–700700
H407/12M Printed in U.S.A.
92-144S/M(Basic)00.12.1310:32AMページ13
