INSTRUCTION MANUAL
Room Air Conditioner
( With Warranty Card )

Thank you for choosing SANYO air conditioner. Our design is based on the best efficiency and the
lowest noise operation and it can keep the room comfortable. Please read this Instruction Manual
carefully before operating the unit and keep it for consultation. If you still have any difficulties or
problems, consult your dealer for help.
CONTENT
Function and working temperature range
Technical specifications
Operating condition and power requi rement
Installation
Notes for installation
Part identification 7
Air conditioner operation
Operation tips 10
Caution
Care and maintenance
When trouble shooting
1
2
3
4
6
8
11
12
13
Warranty card

1
Function and working temperature range
Introduction
Window type room air conditioners of SANYO can regulate the room temperature,dry
the room. It is convenient for your work,study and life. It can be widely used in residence,
shop, hotel, office, library and laboratory, and so on.
Cooling in summer
In hot summer, Air conditioner can cool down
room air by transferring heat out.
Open storm door to keep the fresh air in the
room.
Exchange fresh air


Technical specifications
All the above subject to change without notice and the correct parameter is on the name
plate of your air conditioner.
The product specifications are based on the following rating conditions.
Voltage: AC 230 V 10%
27 / 19
--- ---
35 / 27
Noise
(Cooling)
(Hi / Low)
dB(A)
470 x 335 x 378
0.6
6, 00
Model
Current (A)
Function
Power supply
Refrigerant R22 (g)
Power input (kW)
Indoor
(Hi / Low)
Cooling capacity (KJ/h)
SA-56P
Cooling
Width × Height × Depth
Net weight (kg)
Dimension (mm)
22
Outdoor
230 V~ 60Hz
2.8
400
54 / 50
62 / 58
E.E.R (KJ/Wh)
10.3
(Hi / Low)
4
2

3
Electric circuit:
Must use special socket, do not use longer power lines, do not share
a same socket with other electric appliances to avoid fire etc.
The earthing method must be reliable.
Work within correct voltage range.
Earth wire do not connect earth wire to following places.
Water pipe Gas pipe
Rated voltage range: AC 230V 10 %
The compressor would vibrate violently to damage the
refrigerant system, when voltage is too high.
AC 230V

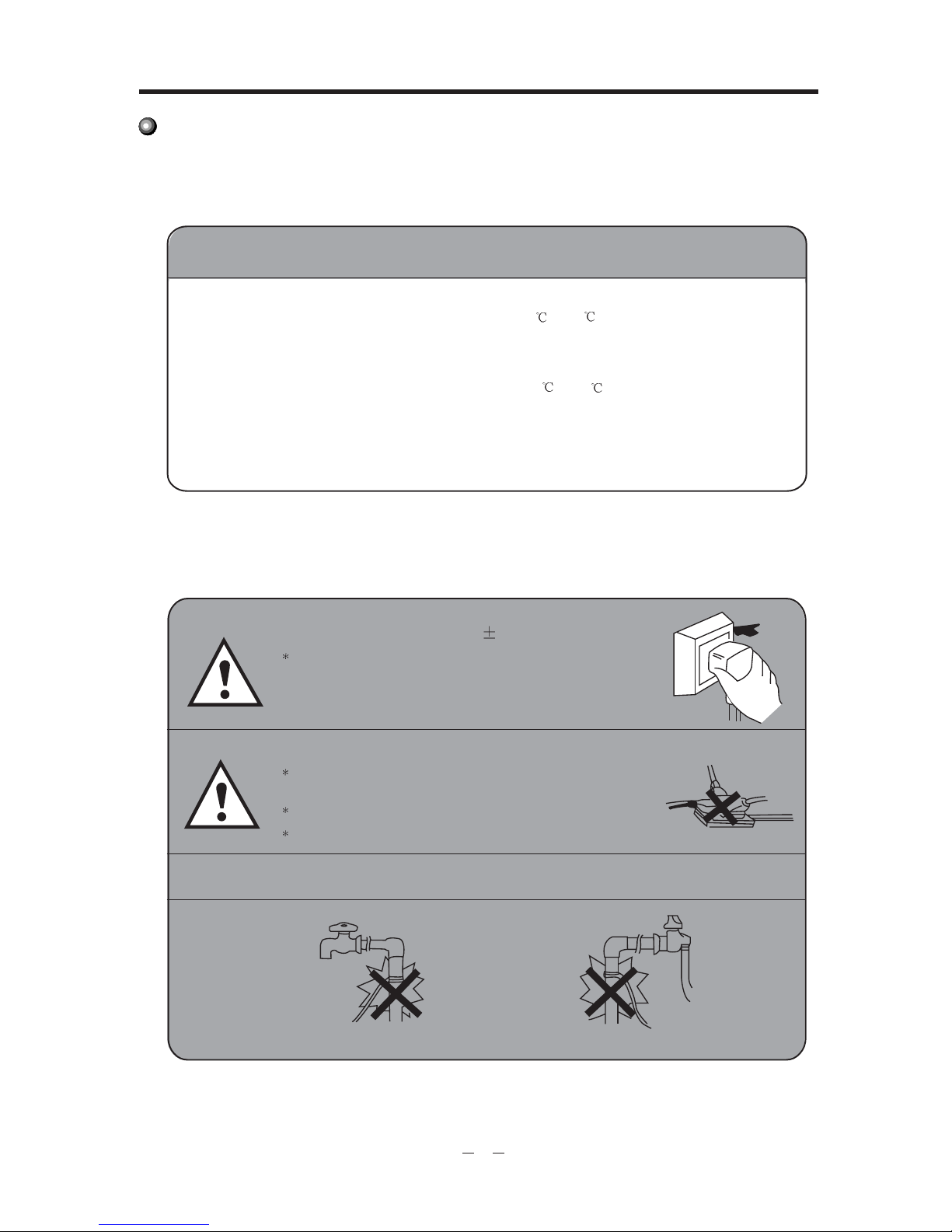

Cool mode operation
Operating condition
Power requirement
1. Outdoor temperature should be in range of 19 to 43 . Otherwise it is possible
for air conditioner to breakdown.
2. Room temperature should be in the range of 19 to 32 .
3. Room humidity should be lower than 90%, Otherwise it is possible to dew at air
conditioner surface anf even drop water.
Please operate air conditioner in correct conditions as following:

Installation precaution:
Window type conditioner is so valuable and the improper installation of
it will cause a lot of damage! Please associate the professional techni-
cian to install the unit and don’t install it by yourself.
Otherwise,wearenotresponsibleforthedamagelikethis.
Location:
The condensation water must be drained away conveniently.
Install air conditioner unit far away from TV set or radio etc. to avoid disturbing video or voice.
In salt and coastal area or place where is near thermal springs and polluted by sulphurous gas, or other special areas,
please contact the seller before use.
Avoid a place where is possible for inflammable gas to leak out.
Avoid other heat sources or direct sun light.
Avoid a place where is easy for children to touch.

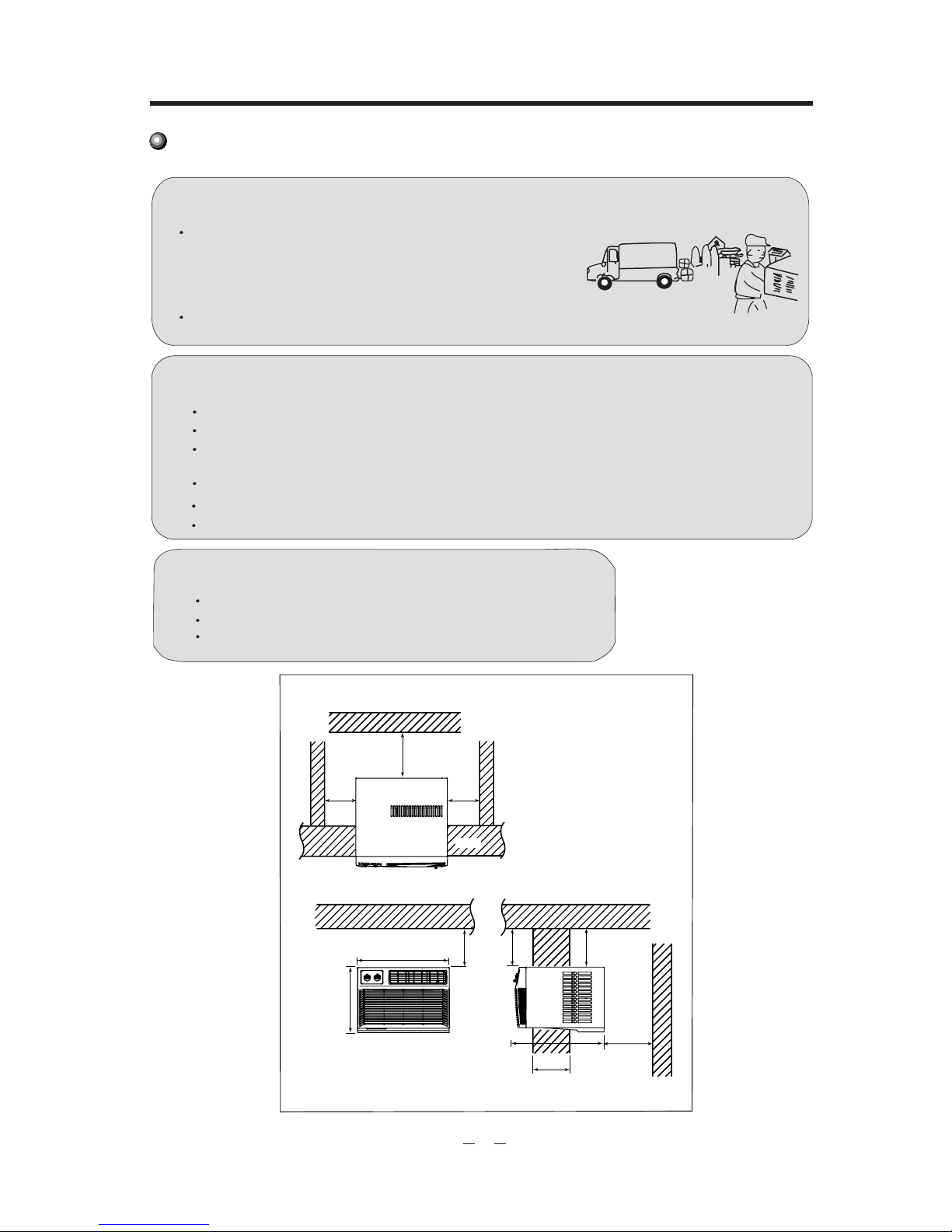

How to install:
Choose a location where there are no any obstacle surrounding the unit.
Prepare the installation hole slightly bigger than unit size.
Choose the installation space according to the following diagram.
4
Before installation, check that the voltage of the electric supply in your
home or office is the same as the voltage shown on the name plate.
Installation
470 mm
335 mm
(Top view)
Over
150 mm
Over
500 mm
Over
150 mm
Over
150 mm
(Front view)
Fence or
likewise
Wall
Cooling
378 mm
Less than
220 mm
Over
500 mm
(Side view)
Over
150 mm

5
Horizontal line
Sunshade board
Wall
Wooden frame
Rubber plate
Support
Horizontal line
Installation procedure:
1) Remove the sticker from the front panel.
2) Put the unit into the installation hole.
When installing the unit, it should be slanted
down to the back to avoid the enlargement of
noise or vibration. (Slant between 6-10mm.)
(Shown at right figure.)
The installation place should be strong enough
to avoid the enlargement of noise or vibration.
3) Fill up sews in the cabinet with sponge or foam.
Installation assistance:
Use iron support
The installation hole should be strong enough to
support the air conditioner. If it cannot, iron sup-
port has to be used outdoors.
Iron support should be fixed on the building (Shown
at right figure.)
Use sunshade board
Air conditioner should avoid anything to be dropped
into it and avoid direct sunshine. If there is no cover
on it, you should contact the seller for installing
the sunshade board. When installing the sunshade
board, don’t let it block the air inlet at the side grille.

6
Notes for installation
Remove
Before removing air conditioner to the other place, you should
contact the seller firstly.
Then it must be done under the direction of the professional
technician. In addition, the charge of this must be paid.
Noise
Electric wiring
Install in a location where is firm enough to avoid the enlargement of noise
and vibration.
Don’t put anything in front of the outlet of outdoor unit to avoid increasing
noise.
Be sure that hot air or noise will not inconvenience neighbors.
Please contact the seller as soon as there is strange noise during operation.
Please use the safety support.
Must connect with ground reliably.
The exclusive circuit must be used. But removable socket can’t be used because poor
contact of it can cause over heat or fire.
Don’t pull the power cord strongly.
In fixed circuit, there must be electricity leakage protection switch and leakage current
is less than 30mA.
Air switch (thermal-magnetic breaker) should be installed in the circuit and its recommended
capacity is 10A.
The fixed wiring should be more than 2.5mm2in area.

Part identification
7
432
5
1
1.) Front Panel
2.) Air louvers
3.) Air conditioner tabs
4.) Control Panel
5.) Slide-out filter

8
Air conditioner operation
Operating your air conditioner properly helps you to obtain the best possible results.
This section explains proper air conditioner operation.
IMPORTANT:
* If you turn the air conditioner off, wait at least 3 minutes before turning it back on. This
prevents the air conditioner from blowing a fuse or tripping a circuit breaker.
* Do not try to operate your air conditioner in the cooling mode when outside temperature is
below 19
ć . The inside evaporator coil will freeze up and the air conditioner will not
operate properly.
1.) Set the UNIT CONTROL to the desired setting. When the air conditioner is operating at
LOW COOL,MED COOL, or HIGH COOL, the fan circulates air continuously.
HIGH COOL - for maximum cooling
MED COOL - for normal cooling
LOW COOL - for sleeping comfort
FAN ONLY
when the FAN setting is selected, the fan
will run continuously to move air, but the
air will not be cooled.
Your air conditioner has one of
these controls:
UNIT CONTROL
HIGH
COOL
MED
COOL
LOW
COOL
FAN
ONLY OFF
2.) Turn the THERMOSTAT Control to a mid-setting.
Adjust the air conditioner's performance by turning the THERMOSTAT Control clockwise
( ) for maximum cooling. For less cooling, turn the THERMOSTAT Control anti-
clockwise ( ). Experiment and find the setting that suits you best. Recommended setting
"4" to achieve the best efficiency and keep the room confortable.
Your air conditioner has one of
these controls:
COLDER
THERMOSTAT
2

9
Air conditioner operation - (continued)
CHANGING AIR DIRECTION
The louvers in the top of the front panel allow you to control the direction of the cooled air.
Use the tabs to direct the air right or left (some models). Rotate the whole catridge to direct air
up, down or straight ahead.
Tabs
NORMAL OPERATING SOUNDS
When your air conditioner is operating normally , you may hear sounds such as:
* Droplets of water hitting the condenser , causing a "pinging" or "clicking" sound. The water
droplets help cool the condenser.
* Air movement from the fan.
* Clicks from the thermostat cycle.
* Vibrations or noise due to poor wall or window construction.
* A high-pitched hum or pulsating noise caused by the modern high-efficiency compressor
cycling on and off.

10

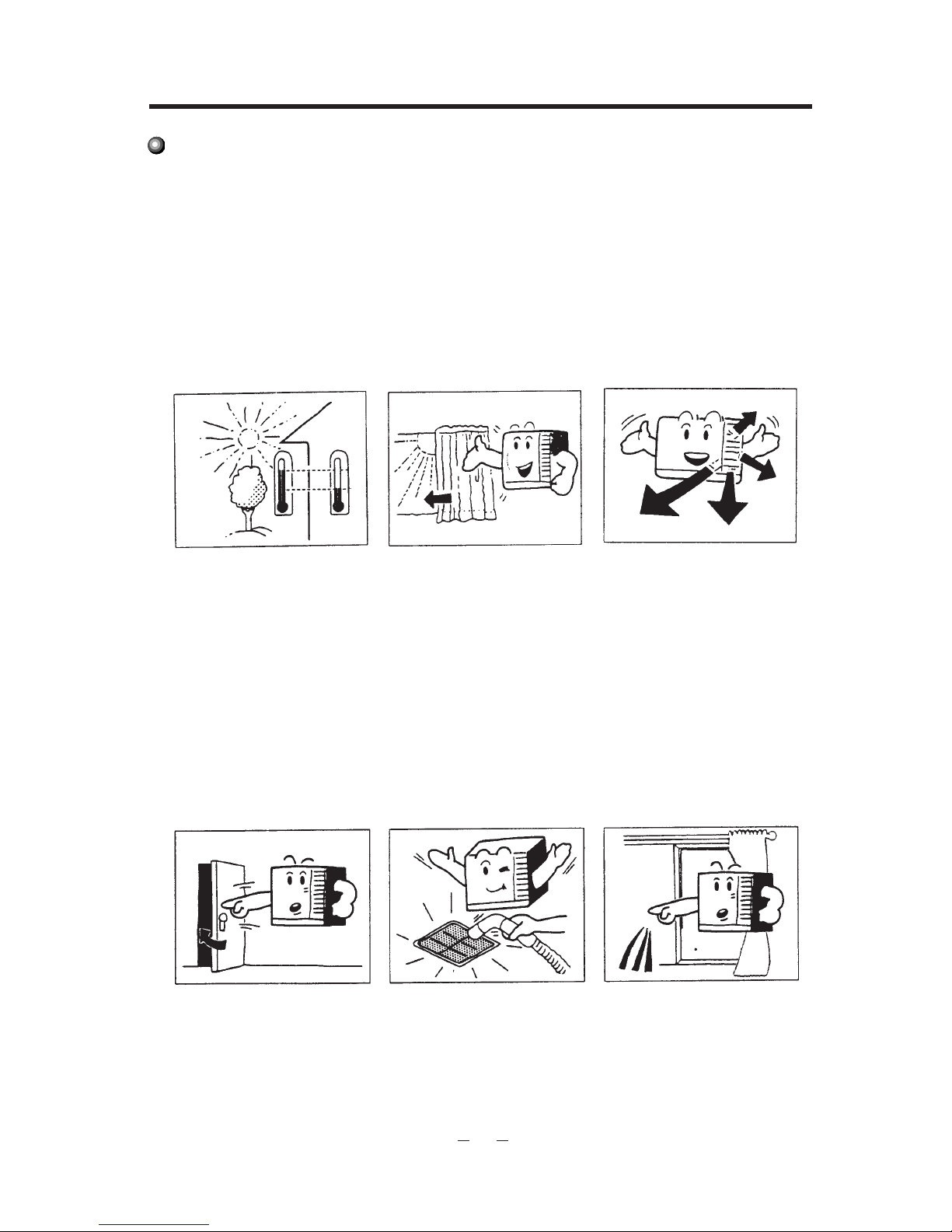

Operation tips
Operation for comfort and economy
Do not let sunshine enter the
room directly when the air
conditioner is in operation.
Keep blind or curtains closed,
in the room.
Make sure that the doors and
windows are shut tightly. Avoid
opening doors and windows as
much as possible to keep the cool
Clean the air filter regularly.
Blockages in the air filter
reduce dehumidifying effects.
Clean at least once every two
weeks.
Ventilate the room occasionally.
Since windows are kept closed, it
is a good idea to open them and
ventilate the room now and then.
air in the room.
Do not overcool the room
temperature, this is not good for
health and waste electricity.
Adjust the vertical and
horizontal airflow direction to
ensure a uniform temperature

11

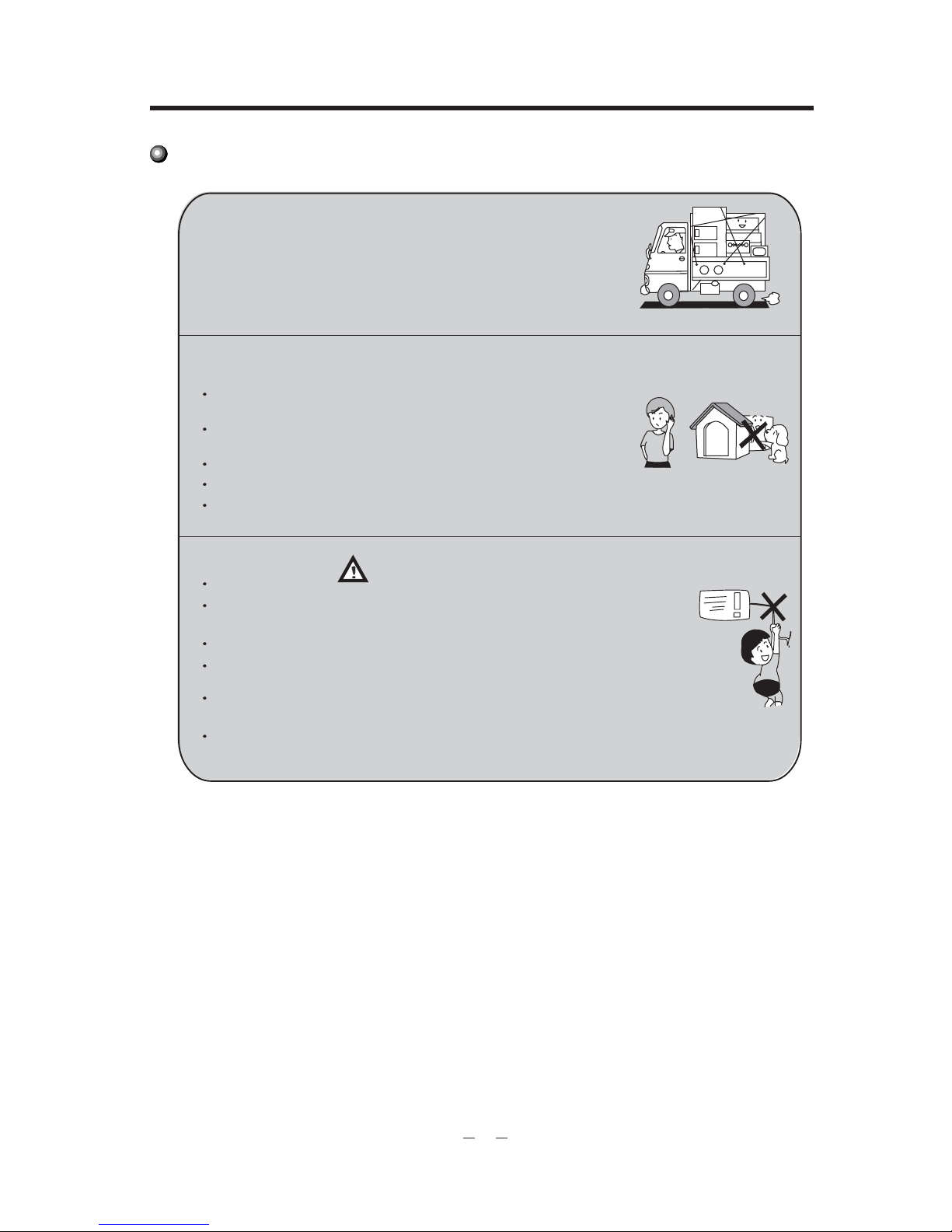

Caution
Do not use the air conditioner
for other purposes such as dry-
ing clothes, preserving foods,
keeping animals, or cultivating
vegetables.
Do not block the air intake and
outlet vents.
This causes lowered perfor-
mance and irregular operation.
Do not insert sticks or other ob-
jects into these vents as it is dan-
gerous to touch the electric com-
ponents and the fan.
Select the most appropriate
temperature.
Take care to adjust the tempera-
ture to suit the conditions.
Rooms occupied by infants,the
elderly, or the sick should be kept
at an appropriate temperature.
Do not use heating apparatuses
in the air conditioner’s plastic
parts melt if exposed to exces-
sive heat.
Avoid exposing the body directly
to a continuous unidirectional air
flow for long periods.
This is not reconmmended for
health reason.
Always wait at least 3 minutes before switching the
air condition on again after you have switched it off
during cooling.
A lways wait
at least 3 minutes
1)Theplugmustbeaccessibleaftertheapplianceispositioned.
2) Do not use this appliance in the laundry.
3) I f the power cord is damaged, it must be replaced by the manufacture or its service agent in avoid of hazard.
Do not pull out the power cord.
Damage to the cord may result in
serious electrical shocks.

12
Always turn off the air conditioner and main power supply before cleaning to ensure safety.
Clean unit
1. Plug out first before cleaning.
2. Clean surface panel with a soft
and dry cloth, Which is soaked
warm water below 40 .
3. Do not use chemical solvent for cleaning.
4. Do not splash water directly to indoor
Air filter
The air filter behind the intake grille should be washed at
least every two weeks or as often as it needs cleaning.
How to clean the air filter:
1. Pull out the air filter
from left or right
side.
*Check earth wire
Vacuum cleaner
Plug out only after
air conditioner
stops at all.
unit, in which there are micro-computer
and circuit plate, they must not be
touched by water.
Is it broken
or loose?
*Check air inlet and outlet of outdoor unit.
5. Let the filter dry thoroughly to ensure maximum
efficiency before reinstalling it. Do not operate the
air conditioner without the air filter . This can
damage the unit.
2. Vacuum the filter on
the dusty side to
remove light dust.
3. Wash the filter, cleaner
side up under gently
flowing water to wash
out accumulated dust
and lint.
4. If the filter is very
dirty, use a mild
household detergent in
the wash water.
Air block could result
in bad efficiency.
Care and maintenance
Air Filter
Filter

13
Fault phenomenon Trouble-shooting
Air conditioner does not
operate at all.
*Is power fail?
*Is plug out?
*Is power fuse or switch off?
*Is voltage higher than 253V or lower than 207V?
*Is air inlet or outlet blocking?
*Is there any other heat source in room?
*Are air filters dirty very much?
*Is indoor fan speed set at LOW?
*While in COOL mode operation, sometimes there
is foggy air flowing out of indoor unit, this is be-
cause that room humid air has been cooling rapid.
*For a noise that sounds like water flowing:
This is the sound of freon flowing inside the air con-
ditioner unit.
*For a noise that sound like a shower:
This is the sound of the dehumidifying water being
processed inside the air conditioner unit.
*Condensation occurs when the airflow from the air
conditioner cools the warm room air.
*This is to protect the mechanism.
*Wait about three minutes and operation will begin.
Cool efficiency is not
good.
Foggy air
flows out.
The air conditioner
operation is noisy.
It seems that condensation is leaking from air
conditioner.
.
Air conditioner does not operate for about 3 minutes
when restart.
If your air conditioner does not work properly, first check th
ask
for servicing,
it help to save your time and money. If it still does not work properly, then
only contact your dealer or service center.
e following items before
When trouble shooting

Immediately stop all operations and plug out, contact with
your dealer in the following situations.
*Operation starts or stops abnormally;
*Power fuse or switch often breaks;
*
Carelessly splash water or something
into air conditioner;
*Electrical lines are much hot or lines cover
breaks;
*Other strange situations.
14

!
!
!
!
Air Conditioner Serial No.
Model
Date of Purchase
Dealer
Customer's Name and Address
(Name) (Address)
TO VALIDATE YOUR ONE (1) YEAR WARRANTY COMPLETE
AND MAIL THIS CARD WITHIN 10 DAYS.
Invoice No.
WARRANTY
REGISTRATION
IMPORTANT
This quality SANYO product is guaranteed for one (1) year from the date of purchase of original buyer against
defect in manufacture or material. The compressor is guaranteed for five (5) years while refrigerant and other
consumable items are not covered by this warranty after one (1) year from the date of original purchase.
SANYO Service Corporation (SSC) shall perform the services and replacement of part/s free of charge covered by
this one (1) year warranty to its utmost effort. There will be corresponding charges for labor, adjustments and parts
after the warranty period. SSC will not be liable for damages direct or otherwise arising out of delays on failure in
furnishing parts or services caused by Acts of God, Acts of Government (national or local), environmental factors, labor
disputes, difficulties or failure of transportation, force majeur or other causes beyond its control, or for damages
resulting from delays in performing the services covered by this warranty.
This guarantee shall be valid upon purchase, mailed and duly register with SSC within ten (10) days. The warranty
shall be void if the unit has been tampered with or repaired by other than SSC or its authorized service shops.
Present this Warranty Card together with your Sales Invoice/Official Receipt upon request for Service.
1 Year Warranty
Air Conditioner
Product Warranty Certificate
Model
DETACH AND RETAIN THIS PORTION - RETURN ABOVE
Serial No.
Customer's Name
Dealer
Date of Purchase
Address
Branch
WARRANTY CARD
