INSTRUCTION MANUAL
FIRST MADE FOR SA-97P,SA-127P & SA-187P
MATERIAL OR MODEL *PAPER-JO
DIMENSION OR MAKER WOODFREE 80gm
COLOR BLACK Print
EZIS4AETON
APPROVALS
N.Yamazaki
2007/Nov/28
CHECK
Tai C. S
2007/Nov/21
DESIGN
Tai C. S
2007/Nov/21
APPROVALS ON.RSNOISIVER
DRAWN REMARKS: PART CODE
SAMS ONLY
85S-6-4119-001-00-0
PART NAME
EXPLANATORY BOOKLET
A1. Change Text of Cover, Pg 2, 7
2. Change warranty Card (Back)
Tai C.S
24.2.08 1
Tai C.S
24.2.08
REVIEW

Save These Instructions!
Cooling only Model
SANYO Electric Co., Ltd.
SA-97P
SA-127P
SA-187P
Pub. OI- 85S64119001001 © S ANYO 2008
INSTRUCTION MANUAL
Room Air Conditioner
( With Warranty Card )

Thank you for choosing SANYO air conditioner. Our design is based on the best efficiency and the
lowest noise operation and it can keep the room comfortable. Please read this Instruction Manual
carefully before operating the unit and keep it for consultation. If you still have any diculties or
problems, consult your dealer for help.
CONTENT
Function and working temperature range
Technical specifications
Operating condition and power requirement
Installation
Notes for installation
7Part identifications
Air conditioner operation
01Operation tips
Caution
Care and maintenance
When trouble shooting
1
2
3
4
6
8
11
12
13
Warranty card

1
Function and working temperature range
Introduction
Window type room air conditioners of SANYO can regulate the room temperature,dry
the room. It is convenient for your work,study and life. It can be widely used in residence,
shop, hotel, office, library and laboratory, and so on.
Cooling in summer
In hot summer, Air conditioner can cool down
room air by transferring heat out.
Open storm door to keep the fresh air in the
room.
Exchange fresh air

2

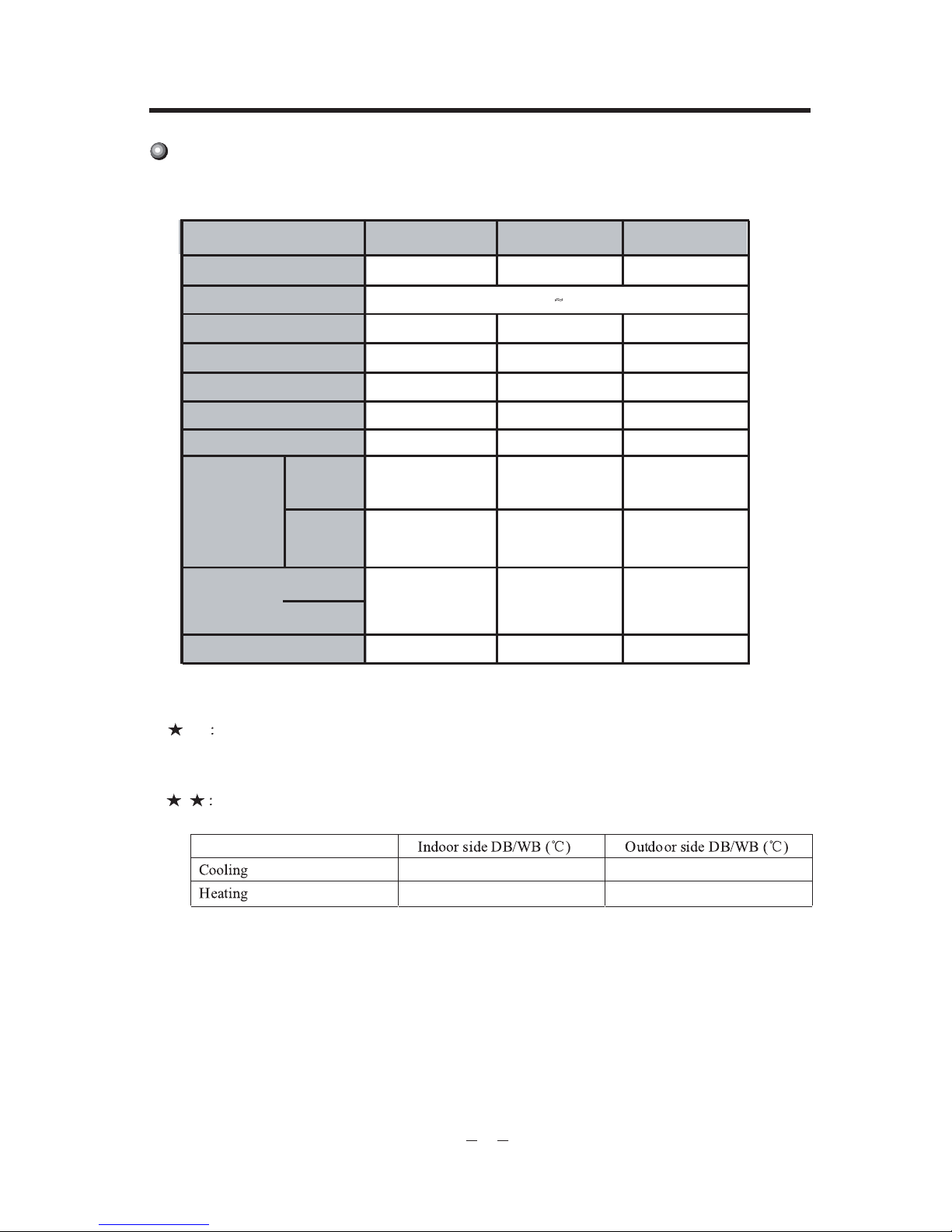

Technical specifications
All the above subject to chaneg without notice and the correct parameter is on the name
plate of your air conditioner.
The product specifications are based on the following rating conditions.
Voltag e: AC 230 V + 10%
27 / 19
--- ---
35 / 27
450 × 350 × 580
9,300
~
12,600 18,00
1.
8.
70
52/47
59/53
6
1.33
5.9
720
50/46
58/54
48
0.90
4.2
49/43
56/52
36
560 × 375 × 600 660 × 428 × 70
.39.5
10.3
Table 1
_
5
80
2
9
10
0
5
SA-97P SA-187P
SA-127P
Cooling Cooling
Cooling
230V 60Hz
Function
Refrigerant R22
Current
Power input
Cooling Capacity
Power Supply
E.E.R
Noise
(Cooling)
(Hi / Low)
dB (A)
Dimension
Width x Height x Depth
Net Weight
6
4
0
Model
(KJ/h)
(A)
(kW)
(g)
(KJ/Wh)
Indoor
(Hi / Low)
Outdoor
(Hi / Low)
(mm)
(kg)

3
Electric circuit:
Must use special socket, do not use longer power lines, do not share
a same socket with other electric appliances to avoid fire etc.
The earthing method must be reliable.
Work within correct voltage range.
Earth wire do not connect earth wire to following places.
Water pipe Gas pipe
Rated voltage range: AC 230V 10 %
The compressor would vibrate violently to damage the
refrigerant system, when voltage is too high.
AC 230V
Cool mode operation
Operating condition
Power requirement
1. Outdoor temperature should be in range of 19 to 43 . Otherwise it is possible
for air conditioner to breakdown.
2. Room temperature should be in the range of 19 to 32 .
3. Room humidity should be lower than 90%, Otherwise it is possible to dew at air
conditioner surface and even drop water.
Please operate air conditioner in correct conditions as following:

Installation precaution:
Window type conditioner is so valuable and the improper installation of
it will cause a lot of damage! Please associate the professional techni-
cian to install the unit and don’ t install it by yourself.
Otherwise, wearenotresponsibleforthedamagelikethis.
Location:
The condensation water must be drained away conveniently.
Install air conditioner unit far away from TV set or radio etc. to avoid disturbing video or voice.
In salt and coastal area or place where is near thermal springs and polluted by sulphurous gas, or other special areas,
please contact the seller before use.
Avoid a place where is possible for inflammable gas to leak out.
Avoid other heat sources or direct sun light.
Avoid a place where is easy for children to touch.
How to install:
Choose a location where there are no any obstacle surrounding the unit.
Prepare the installation hole slightly bigger than unit size.
Choose the installation space according to the following diagram.
4
Before installation, check that the voltage of the electric supply in your
home or office is the same as the voltage shown on the name plate.
Installation
* See Table 1 on page 2 for unit
dimension (WxDxH)mm.
*D mm
*W mm
*H mm

5
Horizontal line
Sunshade board
Wall
Wooden frame
Rubber plate
Support
Horizontal line

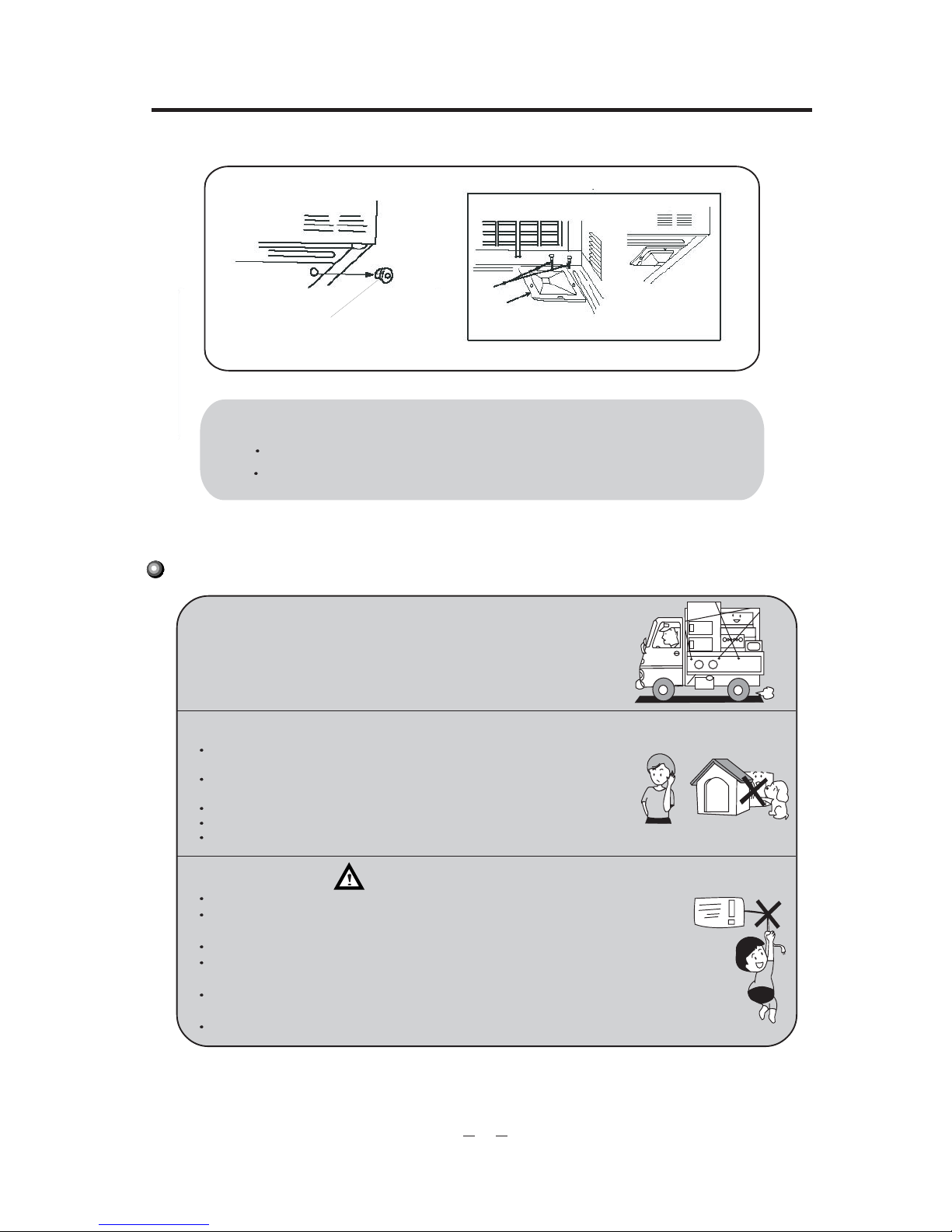

Drain water:
To get the maximum cooling efficiency, the air conditioner is designed to splash the condensation water on the
condenser coil.
If the splashing sound annoys you, you can provide an outside drain by using the following procedure, which
may however cause a small loss of performance.
1. Slide out the chassis from the cabinet.
2. Remove the rubber plug from the body base plate.
3. Install the drain pan to the corner of the cabinet with 2 screws.
4. Connect the drain hose to the outlet on the drain pan bottom.
5. Slide the chassis into its original place in the cabinet.

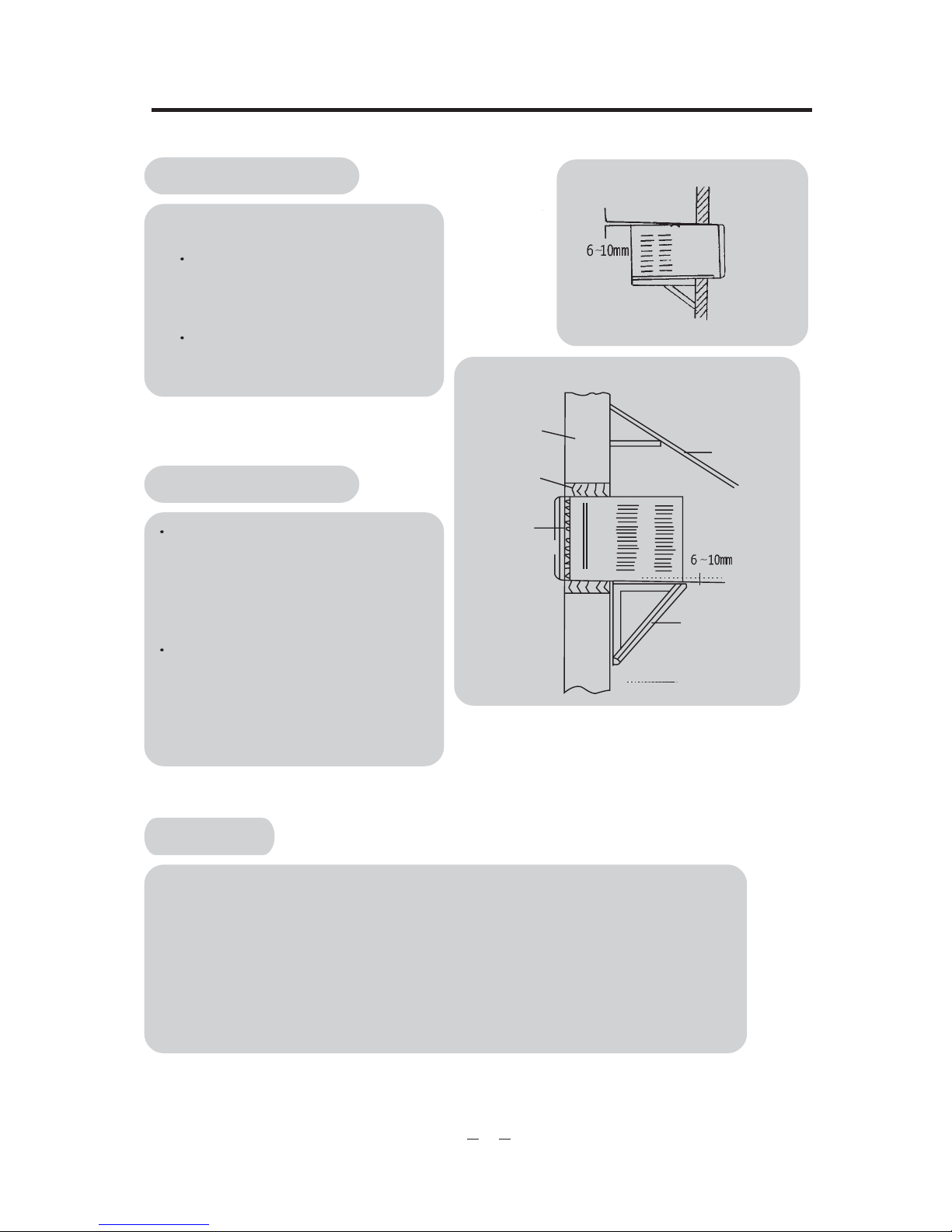

Installation procedure:
1) Remove the sticker from the front panel.
2) Put the unit into the installation hole.
When installing the unit, it should be slanted
down to the back to avoid the enlargement of
noise or vibration. (Slant between 6-10mm.)
(Shown at right figure.)
The installation place should be strong enough
to avoid the enlargement of noise or vibration.
3) Fill up sews in the cabinet with sponge or foam.
Installation assistance:
Use iron support
The installation hole should be strong enough to
support the air conditioner. If it cannot, iron sup-
port has to be used outdoors.
Iron support should be fixed on the building (Shown
at right figure.)
Use sunshade board
Air conditioner should avoid anything to be dropped
into it and avoid direct sunshine. If there is no cover
on it, you should contact the seller for installing
the sunshade board. When installing the sunshade
board, don’t let it block the air inlet at the side grille.

6
Notes for installation
Remove
Before removing air conditioner to the other place, you should
contact the seller firstly.
Then it must be done under the direction of the professional
technician. In addition, the charge of this must be paid.
Noise
Electric wiring
Install in a location where is firm enough to avoid the enlargement of noise
and vibration.
Don’t put anything in front of the outlet of outdoor unit to avoid increasing
noise.
Be sure that hot air or noise will not inconvenience neighbors.
Please contact the seller as soon as there is strange noise during operation.
Please use the safety support.
Must connect with ground reliably.
The exclusive circuit must be used. But removable socket can’t be used because poor
contact of it can cause over heat or fire.
Don’t pull the power cord strongly.
In fixed circuit, there must be electricity leakage protection switch and leakage current
is less than 30mA.
Air switch (thermal-magnetic breaker) should be installed in the circuit and its recommended
capacity is 10A (SA-97-P & SA-127P) and 15A (SA-187P).
The fixed wiring should be more than 2.5mm
2
in area.
Exterior View
Inside View
Screw Bottom Side View
of Drainage Pan
Drainage Pan
Exterior V iew
Inside V iew
Screw Bottom Side V iew
of Drainage Pan
Drainage Pan
Note:
Drain hose or tubing can be purchased locally to satisfy your particular needs.
Remove the rubber plug
The drainage pipe shall be steadily connected with the drainage faucet without leakage.

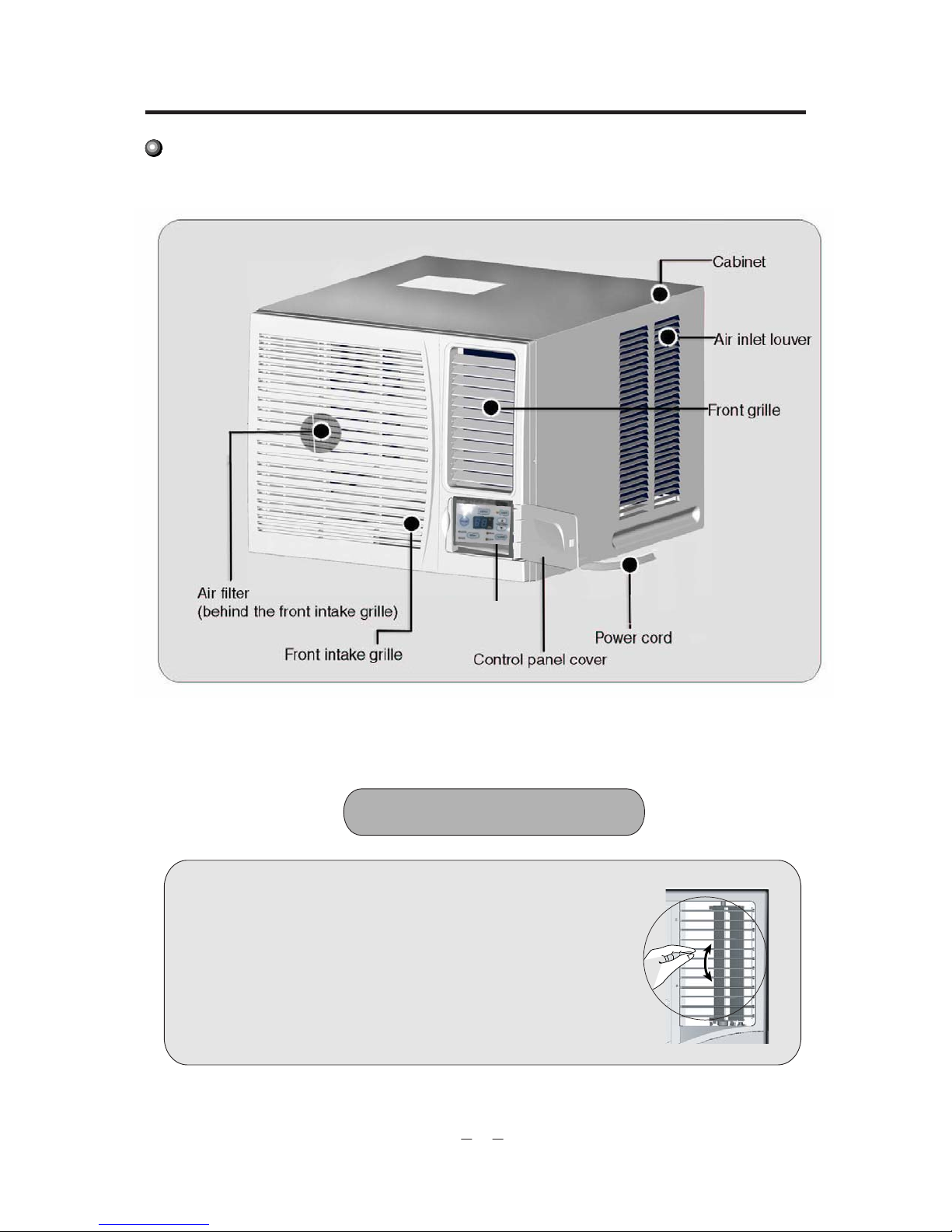

Part identication
Air direction adjustment
Vertical airflow direction vane
(Airflow direction adjustment up and down).
The vertical airflow direction vane is controlled by
positioning the vane to discharge the air upwards,
downwards or straight out.
7
Control panel

8
Touch Control Panel
ON/OFF Pad Air SWING Pad TIMER Pad
TEMP./TIMER
Setting Pad
DISPLAY Panel
MODE Selection Pad FAN SPEED Selection Pad

Air conditioner operation
9
ON / OFF Press this pad for turning the air conditioner ON and OFF.
DISPLAY This area will show the set temperature (from 16 OCto30OC) and, if in the TIMER
mode, it will show the ON and OFF settings of the TIMER (from 1 to 24 HR).
MODE Press this control pad to select the operation of “FAN” or “COOL” mode.
“COOL” mode - The air conditioner makes the room cooler. The room setting
temperature can be choose in the range of 16 OCto30OC.
“FAN” mode - The air conditioner running in fan only.
Note: The fan mode can not be use to control the temperature.
SWING When it is pressed, the louvers start to rotate automatically and stop when
repressed.
TEMP Press the pad to increase the set temperature by 1 OC.
Press the pad to reduce the set temperature by 1 OC.
The SET TEMP. can be selected from 16 OCto30OC.
TIMER This pad is used to set the time at which you wish the air conditioner to go ON or
OFF automatically.
TIMER ON:
At operating, press the TIMER pad and the light will blink. Then set the OFF time
intherangeof0-24hour by press the pad.
TIMER OFF:
At stopping, press TIMER pad and the light will blink. Then set the ON time in the
range of 0-24 hour by press the pad
FAN Use to choose the desired fan speed of “HIGH” or “LOW”. Each time the pad was
press, the fan speed mode was shifted.
024 HR
Timer Cancellation
024 HR
Timer Cancellation

10
Operation tips
Operation for comfort and economy
Do not let sunshine enter the
room directly when the air
conditioner is in operation.
Keep blind or curtains closed,
in the room.
Make sure that the doors and
windows are shut tightly. Avoid
opening doorsand windows as
much as possible tokeep the cool
Clean the air filter regularly.
Blackages in the air filter
reduce dehumidifying effects.
Clean at least once every two
weeks.
Ventilate the room occasionally.
Since windows are kept closed, it
is a good idea to open them and
ventilate the room now and then.
air in the room.
Do not overcool the room
temperature, this is not good for
health and waste electricity.
Adjust the vertical and
horizontal airflow direction to
ensure a uniform temperature

11

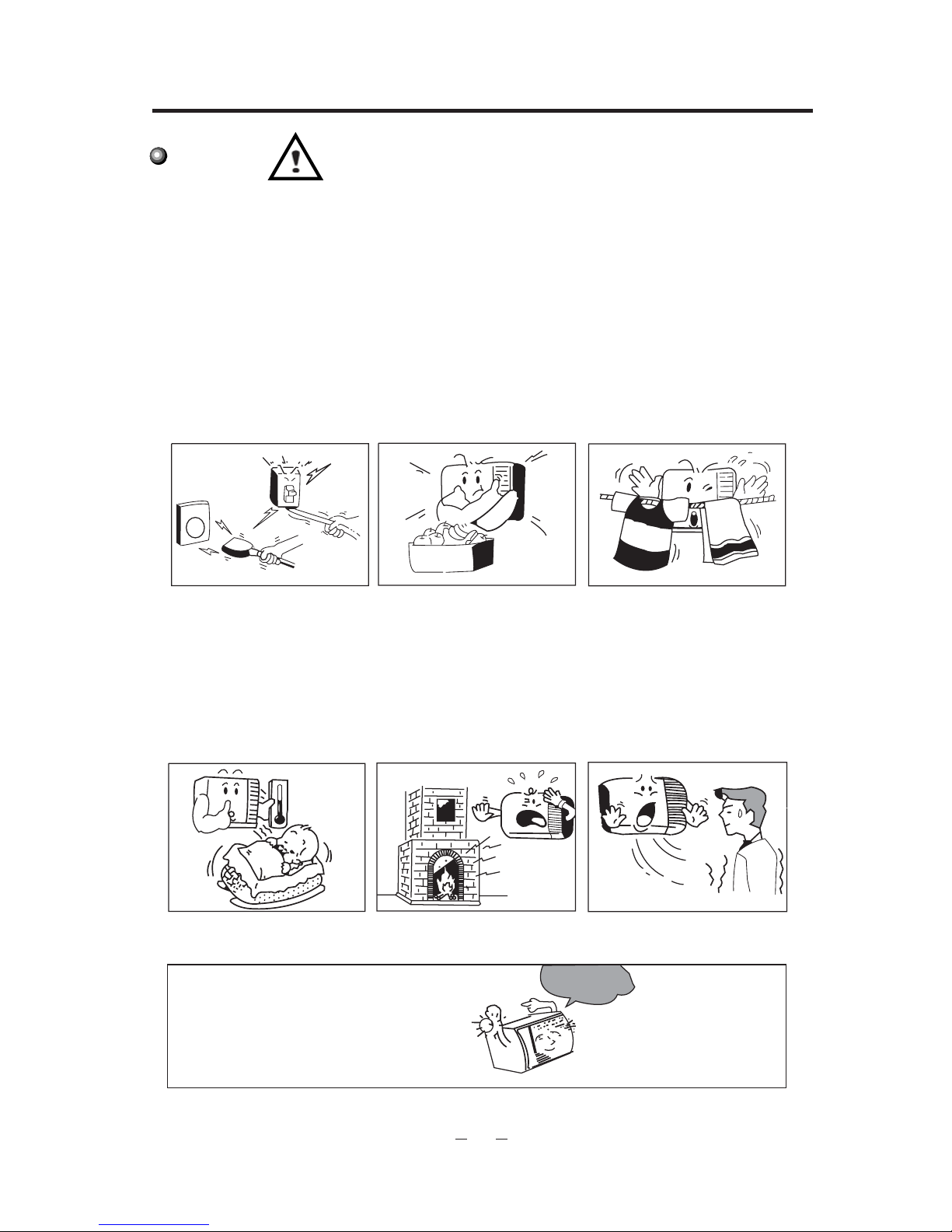

Caution
Do not use the air conditioner
for other purposes such as dry-
ing clothes, preserving foods,
keeping animals, or cultivating
vegetables.
Do not block the air intake and
outlet vents.
This causes lowered perfor-
mance and irregular operation.
Do not insert sticks or other ob-
jects into these vents as it is dan-
gerous to touch the electric com-
ponents and the fan.
Select the most appropriate
temperature.
Take care to adjust the tempera-
ture to suit the conditions.
Rooms occupied by infants,the
elderly, or the sick should be kept
at an appropriate temperature.
Do not use heating apparatuses
in the air conditioner’s plastic
parts melt if exposed to exces-
sive heat.
Avoid exposing the body directly
to a continuous unidirectional air
flow for long periods.
This is not reconmmended for
health reason.
Always wait at least 3 minutes before switching the
air condition on again after you have switched it off
during cooling.
A lways wait
at least 3 minutes
1) Theplugmustbeaccessibleaftertheapplianceispositioned.
2) Do not use this appliance in the laundry.
3) I f the power cord is damaged, it must be replaced by the manufacture or its service agent in void of hazard.
Do not pull out the power cord.
Damage to the cord may result in
serious electrical shocks.

12
Always turn off the air conditioner and main power supply before cleaning to ensure safety.
Clean unit
1. Plug out first before cleaning.
2. Clean surface panel with a soft
and dry cloth, Which is soaked
warm water below 40 .
3. Do not use chemical solvent for cleaning.
4. Do not splash water directly to indoor
Air filter
The air filter behind the intake grille should be washed at least
every two weeks or as often as it needs cleaning.
How to clean the air filter:
1. To remove the air intake grille, grasp the tab on the filter
and pull to take out.
*Check earth wire
Vacuum cleaner
Plug out only after
air conditioner
stops at all.
unit, in which there are micro-computer
and circuit plate, they must not be
touched by water.
Is it broken
or loose?
*Check air inlet and outlet of outdoor unit.
Let the filter dry thoroughly before reinstalling it.Do not
2. Vacuum the filter on the dusty side to remove light dust.
3. Wash the filter, cleaner side up under gently flowing water
to wash out accumulated dust and lint.
4. If the filter is very dirty, use a mild household detergent in
the wash water.
Air lock could result
in bad efficiency.
Care and maintenance
operate the air conditioner without the air filter. This
candamagetheunit.

13
Fault phenomenon Trouble-shooting
Air conditioner does not
operate at all.
*Is power fail?
*Is plug out?
*Is power fuse or switch off?
*Is voltage higher than 253V or lower than 207V?
*Is air inlet or outlet blocking?
*Is there any other heat source in room?
*Are air filters dirty very much?
*Is indoor fan speed set at LOW?
*While in COOL mode operation, sometimes there
is foggy air flowing out of indoor unit, this is be-
cause that room humid air has been cooling rapid.
*For a noise that sounds like water flowing:
This is the sound of freon flowing inside the air con-
ditioner unit.
*For a noise that sound like a shower:
This is the sound of the dehumidifying water being
processed inside the air conditioner unit.
*Condensation occurs when the airflow from the air
conditioner cools the warm room air.
*This is to protect the mechanism.
*Wait about three minutes and operation will begin.
Cool efficiency is not
good.
Foggy air
flows out.
The air conditioner
operation is noisy.
It seems that condensation is leaking from air
conditioner.
.
Air conditioner does not operate for about 3 minutes
when restart.
If your air conditioner does not work properly, first check th
ask
for servicing,
it help to save your time and money. If it still does not work properly, then
only contact your dealer or service center.
e following items before
When trouble shooting

Immediately stop all operations and plug out, contact with
your dealer in the following situations.
*Operation starts or stops abnormally;
*Power fuse or switch often breaks;
*
Carelessly splash water or something
into air conditioner;
*Electrical lines are much hot or lines cover
breaks;
*Other strange situations.

!
!
!
!
Air Conditioner Serial No.
Model
Date of Purchase
Dealer
Customer's Name and Address
(Name) (Address)
TO VALIDATE YOUR ONE (1) YEAR WARRANTY COMPLETE
AND MAIL THIS CARD WITHIN 10 DAYS.
Invoice No.
WARRANTY
REGISTRATION
IMPORTANT
This quality SANYO product is guaranteed for one (1) year from the date of purchase of original buyer against
defect in manufacture or material. The compressor is guaranteed for five (5) years while refrigerant and other
consumable items are not covered by this warranty after one (1) year from the date of original purchase.
SANYO Service Corporation (SSC) shall perform the services and replacement of part/s free of charge covered by
this one (1) year warranty to its utmost effort. There will be corresponding charges for labor, adjustments and parts
after the warranty period. SSC will not be liable for damages direct or otherwise arising out of delays on failure in
furnishing parts or services caused by Acts of God, Acts of Government (national or local), environmental factors, labor
disputes, difficulties or failure of transportation, force majeur or other causes beyond its control, or for damages
resulting from delays in performing the services covered by this warranty.
This guarantee shall be valid upon purchase, mailed and duly register with SSC within ten (10) days. The warranty
shall be void if the unit has been tampered with or repaired by other than SSC or its authorized service shops.
Present this Warranty Card together with your Sales Invoice/Official Receipt upon request for Service.
1 Year Warranty
Air Conditioner
Product Warranty Certificate
Model
DETACH AND RETAIN THIS PORTION - RETURN ABOVE
Serial No.
Customer's Name
Dealer
Date of Purchase
Address
Branch
WARRANTY CARD
