TECHNICAL & SERVICE MANUAL
INDOOR UNIT: SAP-KMRV93GJH
SAP-KMRV123GJH
SAP-KMRV183GJH
SAP-KMRV243GJH
FILE NO.
DC INVERTER MULTI-SYSTEM AIR CONDITIONER
SAP-KMRV93GJH
SAP–KMRV123GJH
SAP–KMRV183GJH
Destination: General area (50Hz)
Europe (50Hz)
Australia (50Hz)
General area (60Hz)
Indoor Model No. Product Code No.
SAP-KMRV93GJH-A 1 852 084 78
SAP-KMRV243GJH
REFERENCE NO. SM700537
SAP-KMRV123GJH 1 852 084 79
SAP-KMRV183GJH 1 852 084 80
SAP-KMRV243GJH-S 1 852 084 81
SAP-KMRV93GJH-C 1 852 087 02
IMPORTANT
These air conditioners employ
new refrigerant R410A.
Pay special attention when
servicing the unit.

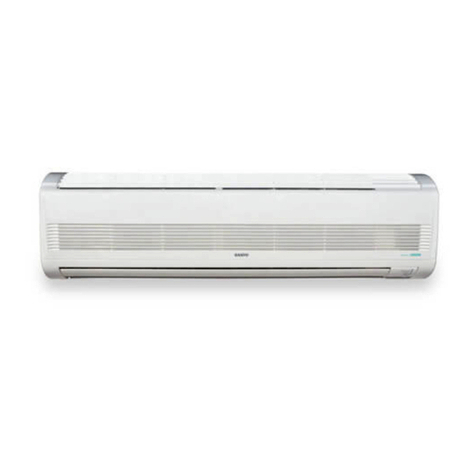

Wall Mounted Type Indoor Unit
< Combined Outdoor unit >
SAP-CMRV1923GJH (2-room multi unit)
SAP-CMRV2433GJH (3-room multi unit)
SAP-CMRV3143GJH (4-room multi unit)
1. The indoor unit SAP-KMRV243 can only
be combined with a 4-room multi unit.
Therefore, do not combine it with a 2-
room multi unit or 3-room multi unit.
2. For details about the combinations, refer to
“Unit Combination Table” in the T. Service
Manual for the Multi Outdoor Units.
NOTE
Capacity
2.8 kW
3.6 kW
5.0 kW
7.0 kW
2.8 kW
W


i
Important!
Please Read Before Starting
This air conditioning system meets strict safety and
operating standards. As the installer or service person,
it is an important part of your job to install or service the
system so it operates safely and efficiently.
For safe installation and trouble-free operation, you
must:
●Carefully read this instruction booklet before
beginning.
●Follow each installation or repair step exactly as
shown.
●Observe all local, state, and national electrical codes.
●Pay close attention to all warning and caution notices
given in this manual.
This symbol refers to a hazard or
unsafe practice which can result
in severe personal injury or
death.
This symbol refers to a hazard or
unsafe practice which can result
in personal injury or product or
property damage.
If Necessary, Get Help
These instructions are all you need for most installation
sites and maintenance conditions. If you require help
for a special problem, contact our sales/service outlet
or your certified dealer for additional instructions.
In Case of Improper Installation
The manufacturer shall in no way be responsible for
improper installation or maintenance service, including
failure to follow the instructions in this document.
Special Precautions
When Wiring
ELECTRICAL SHOCK CAN CAUSE
SEVERE PERSONAL INJURY OR
DEATH. ONLY A QUALIFIED,
EXPERIENCED ELECTRICIAN SHOULD
ATTEMPT TO WIRE THIS SYSTEM.
•Do not supply power to the unit until all wiring and
tubing are completed or reconnected and checked.
•Highly dangerous electrical voltages are used in this
system. Carefully refer to the wiring diagram and
these instructions when wiring. Improper connections
and inadequate grounding can cause accidental
injury or death.
•Ground the unit following local electrical codes.
•Connect all wiring tightly. Loose wiring may cause
overheating at connection points and a possible fire
hazard.
WARNING
CAUTION
WARNING
When Transporting
Be careful when picking up and moving the indoor and
outdoor units. Get a partner to help, and bend your
knees when lifting to reduce strain on your back. Sharp
edges or thin aluminum fins on the air conditioner can
cut your fingers.
When Installing…
…In a Ceiling or Wall
Make sure the ceiling/wall is strong enough to hold the
unit’s weight. It may be necessary to construct a strong
wood or metal frame to provide added support.
…In a Room
Properly insulate any tubing run inside a room to
prevent “sweating”that can cause dripping and water
damage to walls and floors.
…In Moist or Uneven Locations
Use a raised concrete pad or concrete blocks to
provide a solid, level foundation for the outdoor unit.
This prevents water damage and abnormal vibration.
…In an Area with High Winds
Securely anchor the outdoor unit down with bolts and a
metal frame. Provide a suitable air baffle.
…In a Snowy Area (for Heat Pump-type Systems)
Install the outdoor unit on a raised platform that is
higher than drifting snow. Provide snow vents.
When Connecting Refrigerant Tubing
•Use the flare method for connecting tubing.
•Apply refrigerant lubricant to the matching surfaces
of the flare and union tubes before connecting them,
then tighten the nut with a torque wrench for a leak-
free connection.
•Check carefully for leaks before starting the test run.
When Servicing
•Turn the power off at the main power box (mains)
before opening the unit to check or repair electrical
parts and wiring.
•Keep your fingers and clothing away from any
moving parts.
•Clean up the site after you finish, remembering to
check that no metal scraps or bits of wiring have
been left inside the unit being serviced.
Others
•Ventilate any enclosed areas when installing or
testing the refrigeration system. Escaped refrigerant
gas, on contact with fire or heat, can produce
dangerously toxic gas.
•Confirm upon completing installation that no
refrigerant gas is leaking. If escaped gas comes in
contact with a stove, gas water heater, electric room
heater or other heat source, it can produce
dangerously toxic gas.
•Do not install only a single indoor unit.
CAUTION

Table of Contents
Page
1. OPERATING RANGE ............................................................................................................................... 1
2. SPECIFICATIONS
2-1. Unit Specifications.......................................................................................................................... 2
2-2. Major Component Specifications.................................................................................................... 6
2-3. Other Component Specifications.................................................................................................... 9
3. DIMENSIONAL DATA............................................................................................................................... 10
4. REFRIGERANT FLOW DIAGRAM .......................................................................................................... 13
5. PERFORMANCE DATA
5-1. Air Throw Distance Chart ............................................................................................................... 14
6. ELECTRICAL DATA
6-1. Electrical Characteristics................................................................................................................ 18
7. INSTALLATION INSTRUCTIONS
7-1. Indoor Unit...................................................................................................................................... 21
7-2. Connecting Indoor Units................................................................................................................. 22
7-3. Test Run......................................................................................................................................... 25
8. FUNCTIONS
8-1. Operation Functions....................................................................................................................... 26
8-2. Protective Functions....................................................................................................................... 28
9. TROUBLESHOOTING ............................................................................................................................. 29
.................................................................................................................................................. 33
APPENDIX
ii

1
1. OPERATING RANGE
Temperature Indoor Air Intake Temp. Outdoor Air Intake Temp.
Cooling Maximum 32°C D.B. / 23°C W.B. 43°C D.B.
Minimum 19°C D.B. / 14°C W.B. 19°C D.B.
Heating Maximum 27°C D.B. 24°C D.B. / 18°C W.B.
Minimum 16°C D.B. —/–15°C W.B.

2
2. SPECIFICATIONS
2-1. Unit Specifications
Indoor Unit SAP–KMRV93GJH
Type Wall hang type indoor unit
Power Source 220–240V ~ 50Hz 220V ~ 60Hz
Voltage rating 230 V 220 V
Performance Cooling Heating Cooling Heating
Capacity kW 2.8 ( 0.7 - 3.2 ) 4.0 ( 0.9 - 5.4 ) 2.8 ( 0.7 - 3.2 ) 4.0 ( 0.9 - 5.4 )
Air circulation (Hi / Me / Lo)
m3/h 620 / 510 / 370 650 / 520 / 460 620 / 510 / 370 650 / 520 / 460
Moisture removal (High) Liters/h 1.6 —1.6 —
Electrical Rating Cooling Heating Cooling Heating
Available voltage range V 198 ~ 264 198 ~ 242
Running amperes A 0.13 0.14 0.13 0.14
Power input W 26 28 26 28
Features
Controls / Temperature control Microprocessor / I.C. thermostat
Control unit Wireless remote control unit
Timer ON/OFF 24 hours & Daily program,1-hour OFF
Fan speeds 3 and Auto
Airflow direction (Indoor) Horizontal Manual
Vertical Auto
Air filter Washable, Anti-Mold
Operation sound Hi /Me /Lo dB-A 41 / 38 / 33 44 / 39 / 34 41 / 38 / 33 44 / 39 / 34
Refrigerant tubing connections Flare type
Refrigerant Narrow tube mm (in.) 6.35(1/4)
tube diameter Wide tube mm(in.) 9.52(3/8)
Refrigerant g R410A
Refrigerant tube kit Optional
Dimensions & Weight
Unit dimensions Height mm 275
Width mm 805
Depth mm 178
Package dimensions Height mm 335
Width mm 860
Depth mm 252
Weight Net kg 8.5
Shipping kg 12
Shipping volume
m30.073
DATA SUBJECT TO CHANGE WITHOUT NOTICE.

3
Indoor Unit SAP–KMRV123GJH
Type Wall hang type indoor unit
Power Source 220–240V ~ 50Hz 220V ~ 60Hz
Voltage rating 230 V 220 V
Performance Cooling Heating Cooling Heating
Capacity kW 3.6 ( 0.8 - 3.6 ) 4.8 ( 0.9 - 6.3 ) 3.6 ( 0.8 - 3.6 ) 4.8 ( 0.9 - 6.3 )
Air circulation (Hi / Me / Lo)
m3/h 580 / 450 / 400 700 / 600 / 500 580 / 450 / 400 700 / 600 / 500
Moisture removal (High) Liters/h 2.0 —2.0 —
Electrical Rating Cooling Heating Cooling Heating
Available voltage range V 198 ~ 264 198 ~ 242
Running amperes A 0.13 0.12 0.13 0.12
Power input W 25 25 25 25
Features
Controls / Temperature control Microprocessor / I.C. thermostat
Control unit Wireless remote control unit
Timer ON/OFF 24 hours & Daily program,1-hour OFF
Fan speeds 3 and Auto
Airflow direction (Indoor) Horizontal Manual
Vertical Auto
Air filter Washable, Anti-Mold
Operation sound Hi /Me /Lo dB-A 46 / 39 / 33 47 / 40 / 34 46 / 39 / 33 47 / 40 / 34
Refrigerant tubing connections Flare type
Refrigerant Narrow tube mm (in.) 6.35(1/4)
tube diameter Wide tube mm(in.) 9.52(3/8)
Refrigerant g R410A
Refrigerant tube kit Optional
Dimensions & Weight
Unit dimensions Height mm 285
Width mm 805
Depth mm 219
Package dimensions Height mm 342
Width mm 859
Depth mm 289
Weight Net kg 9.5
Shipping kg 12
Shipping volume
m30.085
DATA SUBJECT TO CHANGE WITHOUT NOTICE.

4
Indoor Unit SAP–KMRV183GJH
Type Wall hang type indoor unit
Power Source 220–240V ~ 50Hz 220V ~ 60Hz
Voltage rating 230 V 220 V
Performance Cooling Heating Cooling Heating
Capacity kW 5.0 (1.1 - 5.8 ) 7.1 ( 1.2 - 7.8 ) 5.0 (1.1 - 5.8 ) 7.1 ( 1.2 - 7.8 )
Air circulation (Hi / Me / Lo)
m3/h 680 / 620 / 530 800 / 720 / 630 680 / 620 / 530 800 / 720 / 630
Moisture removal (High) Liters/h 2.8 —2.8 —
Electrical Rating Cooling Heating Cooling Heating
Available voltage range V 198 ~ 264 198 ~ 242
Running amperes A 0.12 0.12 0.12 0.12
Power input W 25 25 25 25
Features
Controls / Temperature control Microprocessor / I.C. thermostat
Control unit Wireless remote control unit
Timer ON/OFF 24 hours & Daily program,1-hour OFF
Fan speeds 3 and Auto
Airflow direction (Indoor) Horizontal Manual
Vertical Auto
Air filter Washable, Anti-Mold
Operation sound Hi /Me /Lo dB-A 49 / 44 / 38 50 / 49 / 44 49 / 44 / 38 50 / 49 / 44
Refrigerant tubing connections Flare type
Refrigerant Narrow tube mm (in.) 6.35(1/4)
tube diameter Wide tube mm(in.) 9.52(3/8)
Refrigerant g R410A
Refrigerant tube kit Optional
Dimensions & Weight
Unit dimensions Height mm 285
Width mm 805
Depth mm 219
Package dimensions Height mm 342
Width mm 859
Depth mm 289
Weight Net kg 9.5
Shipping kg 12
Shipping volume
m30.085
DATA SUBJECT TO CHANGE WITHOUT NOTICE.

5
Indoor Unit SAP–KMRV243GJH
Type Wall hang type indoor unit
Power Source 220–240V ~ 50Hz 220V ~ 60Hz
Voltage rating 230 V 220 V
Performance Cooling Heating Cooling Heating
Capacity kW 7.0 (1.5 - 8.1 ) 8.0 (2.0 - 8.8 ) 7.0 (1.5 - 8.1 ) 8.0 (2.0 - 8.8 )
Air circulation (Hi / Me / Lo)
m3/h 1100 /1000 / 920 1170 /1070 / 980 1100 /1000 / 920 1170 /1070 / 980
Moisture removal (High) Liters/h 3.4 —3.4 —
Electrical Rating Cooling Heating Cooling Heating
Available voltage range V 198 ~ 264 198 ~ 242
Running amperes A 0.27 0.28 0.35 0.36
Power input W 63 65 77 79
Features
Controls / Temperature control Microprocessor / I.C. thermostat
Control unit Wireless remote control unit
Timer ON/OFF 24 hours & Daily program,1-hour OFF
Fan speeds 3 and Auto
Airflow direction (Indoor) Horizontal Manual
Vertical Auto
Air filter Washable, Anti-Mold
Operation sound Hi /Me /Lo dB-A 47 / 43 / 38 47 / 43 / 38 47 / 43 / 38 47 / 43 / 38
Refrigerant tubing connections Flare type
Refrigerant Narrow tube mm (in.) 6.35(1/4)
tube diameter Wide tube mm(in.) 12.7(1/2)
Refrigerant g R410A
Refrigerant tube kit Optional
Dimensions & Weight
Unit dimensions Height mm 330
Width mm 1,140
Depth mm 228
Package dimensions Height mm 406
Width mm 1,231
Depth mm 325
Weight Net kg 18
Shipping kg 20
Shipping volume
m30.162
DATA SUBJECT TO CHANGE WITHOUT NOTICE.
1100/1000/920 1170/1070/980 1100/1000/920 1170/1070/980

6
2-2. Major Component Specifications
2-2-1. Indoor Unit
Indoor Unit SAP–KMRV93GJH
DATA SUBJECT TO CHANGE WITHOUT NOTICE.
Control PCB
Part No. POW-K5DHV5-A1
Controls Microprocessor
Control circuit fuse 2.50V 3.15A
Flap Motor and Louver Motor
Type Stepping motor
Model MP24S2-5V
Rating DC5V
Coil resistance (Ambient temp. 25°C) ΩWHT –BLU (respectively 4 wires): 70 ± 7%
Heat Exchanger Coil
Coil Aluminum plate fin / Copper tube
Rows 2
Fin pitch mm 1.3
Face area m20.124
Fan & Fan Motor
Type Fan / Fan motor Cross-flow / DC motor
Q’ty …Dia. and length mm 1 …D92
Fan motor model …Q’ty DR-8538-408A …1
No. of poles 8
Nominal output W 30
Coil resistance (Ambient temp. 20°C) ΩRED –WHT: 3.70
WHT –BLU: 3.70
BLU –RED: 3.70
Safety devices Type —
Operating temp. Open °C—
Close —
Run capacitor µF —
VAC —
Remote Control Unit RCS-3MVHPS4E

7
Indoor Unit SAP–KMRV123GJH
SAP–KMRV183GJH
DATA SUBJECT TO CHANGE WITHOUT NOTICE.
Control PCB
Part No. POW-K5DHV5-A
Controls Microprocessor
Control circuit fuse 2.50V 3.15A
Flap Motor and Louver Motor
Type Stepping motor
Model MP24S2-5V
Rating DC5V
Coil resistance (Ambient temp. 25°C) ΩWHT –BLU (respectively 4 wires): 70 ± 7%
Heat Exchanger Coil
Coil Aluminum plate fin / Copper tube
Rows 2
Fin pitch mm 1.3
Face area m20.130
Fan & Fan Motor
Type Fan / Fan motor Cross-flow / DC motor
Q’ty …Dia. and length mm 1 …D100
Fan motor model …Q’ty DR-8538-408 …1
No. of poles 8
Nominal output W 30
Coil resistance (Ambient temp. 20°C) ΩRED –WHT: 3.70
WHT –BLU: 3.70
BLU –RED: 3.70
Safety devices Type —
Operating temp. Open °C—
Close —
Run capacitor µF —
VAC —
Remote Control Unit RCS-3MVHPS4E

8
Indoor Unit SAP–KMRV243GJH
DATA SUBJECT TO CHANGE WITHOUT NOTICE.
Control PCB
Part No. POW-KMRV243GJ
Controls Microprocessor
Control circuit fuse 2.50V 3.15A
Flap Motor and Louver Motor
Type Stepping motor
Model MP24GA2 ... 2
Rating DC 12V
Coil resistance (Ambient temp. 20°C) ΩEach terminal (1-2, 1-3, 1-4, 1-5): 400 ± 7%
Heat Exchanger Coil
Coil Aluminum plate fin / Copper tube
Rows 2
Fin pitch mm 1.3
Face area m20.214
Fan & Fan Motor
Type Fan / Fan motor Cross-flow / AC motor
Q’ty …Dia. and length mm 1 …D100
Fan motor model …Q’ty KFG4X-31B6P-S …1
No. of poles …rpm (220V, High) 4 ... 1269
Nominal output W 30
Coil resistance (Ambient temp. 20°C) ΩBRN –WHT:161.2 ORG –YEL: 26.9
WHT–VLT: 11.6 YEL –BLK: 22.8
VLT –ORG: 68.7 BLK –PNK: 115.2
Safety devices Type Thermal protector
Operating temp. Open °C 130 ± 8
Close °C 79 ± 15
Run capacitor µF 1.5
VAC 480
Remote Control Unit RCS-3MVHPS4E

2-3. Other Component Specifications
9
Indoor Unit SAP–KMRV93GJH
SAP–KMRV123GJH
SAP–KMRV183GJH
SAP–KMRV243GJH
00 102030405060708090
40
60
80
100
120
140
160
180
200
20
10
1
2
3
4
5
6
7
8
9
10
15 20 25 30 35 40
•Indoor air temp sensor •Indoor heat exchanger sensor
•Humidity sensor
30 35 40 45 50 55 60 65 70 75 80 85 90
1
10
100
1000
25°C
Resistance (Ω)
Resistance (Ω)
Resistance (Ω)
Temperature (°C) Temperature (°C)
Relative humidity (%)

10
3. DIMENSIONAL DATA
Indoor Unit SAP–KMRV93GJH
Remote control unit
Drain hose ø16
805
275
58.5
128.5
41
41
18 120
178 (3)
40
10
Narrow tube ø6.35 (1/4")
Center of tubing
hole (2 places)
Wide tube ø9.52 (3/8")
785 10
10
56
182
61 23
65
110
;
15
78
14.3
unit: mm

11
Indoor Unit SAP–KMRV123GJH
SAP–KMRV183GJH
Remote control unit
Drain hose ø16
805
285
Narrow tube ø6.35 (1/4")
Center of tubing
hole (2 places)
Wide tube ø9.52 (3/8")
775 15
15
;
;
;
;
219
;
;
(3)
;
;
;
;
;
;
;
10
;
;
;
56
;
;
;
152
99
41
58.5
27.5
27.5
41
99
93.5
;
;;
;
;
;
;
;
;;
;;
;
;
;
;
;
;
;
;
;
;
;;
;
;
;
;
;
;;
;
;;
;
;
;;
;
;
;
;
;
;
;
;
;;
;
;
;
;
;
;;
;;
;
;
;
;
;
;
;
;
;
;
40
182
61 23
65
110
;
15
78
14.3
unit: mm

12
Indoor Unit SAP–KMRV243GJH
174 Center of tubing
hole (2 places) Narrow tube ø6.35(1/4")
Wide tube ø12.7 (1/2")
228
48
135
330
1,140
48
Drain hose ø18
Remote control unit
182
61 23
65
110
;
15
78
14.3
unit: mm

4. REFRIGERANT FLOW DIAGRAM
13
Indoor Unit SAP–KMRV93GJH
SAP–KMRV123GJH
SAP–KMRV183GJH
φ9.52
EC
P
φ6.35
Indoor unit
Cooling
Heating
Indoor heat
exchanger
φ12.7
EC
P
φ6.35
Indoor unit
Cooling
Heating
Indoor heat
exchanger
Indoor Unit SAP–KMRV243GJH

5. PERFORMANCE DATA
5-1. Air Throw Distance Chart
Horizontal distance (m)
Axis air velocity (m/s)
Vertical distance (m)
Room air temp. : 20°C
Fan speed : High
Heating
Horizontal distance (m)
Axis air velocity (m/s)
Vertical distance (m)
Room air temp. : 27°C
Fan speed : High
Cooling
0
1
2
3
4
0123456789
: Flap angle 0°, : Axis air velocity 0°
: Flap angle 30°,: Axis air velocity 30°
0
1
2
3
4
0123456789
: Flap angle 45°, : Axis air velocity 45°
: Flap angle 60°, : Axis air velocity 60°
14
Indoor Unit SAP–KMRV93GJH

Horizontal distance (m)
Axis air velocity (m/s)
Vertical distance (m)
Room air temp. : 20°C
Fan speed : High
Heating
Horizontal distance (m)
Axis air velocity (m/s)
Vertical distance (m)
Room air temp. : 27°C
Fan speed : High
Cooling
0
1
2
3
4
0123456789
: Flap angle 0°, : Axis air velocity 0°
: Flap angle 30°,: Axis air velocity 30°
0
1
2
3
4
0123456789
: Flap angle 45°, : Axis air velocity 45°
: Flap angle 60°, : Axis air velocity 60°
15
Indoor Unit SAP–KMRV123GJH

Horizontal distance (m)
Axis air velocity (m/s)
Vertical distance (m)
Room air temp. : 20°C
Fan speed : High
Heating
Horizontal distance (m)
Axis air velocity (m/s)
Vertical distance (m)
Room air temp. : 27°C
Fan speed : High
Cooling
0
1
2
3
4
0123456789
: Flap angle 0°, : Axis air velocity 0°
: Flap angle 30°,: Axis air velocity 30°
0
1
2
3
4
0123456789
: Flap angle 45°, : Axis air velocity 45°
: Flap angle 60°, : Axis air velocity 60°
16
Indoor Unit SAP–KMRV183GJH
This manual suits for next models
6
Table of contents
Other Sanyo Air Conditioner manuals

Sanyo
Sanyo C2432 User manual

Sanyo
Sanyo XMHS1272 Operating manual

Sanyo
Sanyo 12FH11X User manual

Sanyo
Sanyo SPW-C1155DXHN8 Manual

Sanyo
Sanyo SAP-K92A Operating manual

Sanyo
Sanyo ECO R410A User manual

Sanyo
Sanyo KS1852 User manual

Sanyo
Sanyo KHS1232 Instruction manual

Sanyo
Sanyo 24KS72 Instruction Manual

Sanyo
Sanyo STB1020C1-S User manual

Sanyo
Sanyo SAP-K91AA-S Operating manual

Sanyo
Sanyo STB0823H1 User manual

Sanyo
Sanyo C1852 User manual

Sanyo
Sanyo 26UH72R Owner's manual

Sanyo
Sanyo 26UW72R User manual

Sanyo
Sanyo SAP-C302AH-S Operating manual

Sanyo
Sanyo CLM1972 Operating manual

Sanyo
Sanyo KH2442 User manual

Sanyo
Sanyo RS1211 User manual

Sanyo
Sanyo SPW-U253GH56 User manual
