Sanyo SAP-K91AA Operating manual

TECHNICAL & SERVICE MANUAL
SAP–K91AA + SAP–C91AA
SAP–K121AA + SAP–C121AA
FILE NO.
REFERENCE NO. SM700460
Indoor Unit Outdoor Unit
SPLIT SYSTEM AIR CONDITIONER
80%
SAP–K91AA
SAP–K121AA SAP–C91AA SAP–C121AA
Indoor Model No. Product Code No. Destination
SAP–K91AA–S 1 852 070 71
SAP–K121AA–S 1 852 070 72
Outdoor Model No. Product Code No. Destination
SAP–C91AA–S 1 852 070 79 Australia
SAP–C121AA–S 1 852 070 80
Australia

i
Important!
Please Read Before Starting
This air conditioning system meets strict safety and
operating standards. As the installer or service person,
it is an important part of your job to install or service the
system so it operates safely and efficiently.
For safe installation and trouble-free operation, you
must:
●Carefully read this instruction booklet before
beginning.
●Follow each installation or repair step exactly as
shown.
●Observe all local, state, and national electrical codes.
●Pay close attention to all warning and caution notices
given in this manual.
This symbol refers to a hazard or
unsafe practice which can result
in severe personal injury or
death.
This symbol refers to a hazard or
unsafe practice which can result
in personal injury or product or
property damage.
If Necessary, Get Help
These instructions are all you need for most installation
sites and maintenance conditions. If you require help
for a special problem, contact our sales/service outlet
or your certified dealer for additional instructions.
In Case of Improper Installation
The manufacturer shall in no way be responsible for
improper installation or maintenance service, including
failure to follow the instructions in this document.
Special Precautions
When Wiring
ELECTRICAL SHOCK CAN CAUSE
SEVERE PERSONAL INJURY OR
DEATH. ONLY A QUALIFIED,
EXPERIENCED ELECTRICIAN SHOULD
ATTEMPT TO WIRE THIS SYSTEM.
• Do not supply power to the unit until all wiring and
tubing are completed or reconnected and checked.
• Highly dangerous electrical voltages are used in this
system. Carefully refer to the wiring diagram and
these instructions when wiring. Improper connections
and inadequate grounding can cause accidental
injury or death.
• Ground the unit following local electrical codes.
• Connect all wiring tightly. Loose wiring may cause
overheating at connection points and a possible fire
hazard.
WARNING
CAUTION
WARNING
When Transporting
Be careful when picking up and moving the indoor and
outdoor units. Get a partner to help, and bend your
knees when lifting to reduce strain on your back. Sharp
edges or thin aluminum fins on the air conditioner can
cut your fingers.
When Installing…
…In a Ceiling or Wall
Make sure the ceiling/wall is strong enough to hold the
units weight. It may be necessary to construct a strong
wood or metal frame to provide added support.
…In a Room
Properly insulate any tubing run inside a room to
prevent “sweating” that can cause dripping and water
damage to walls and floors.
…In Moist or Uneven Locations
Use a raised concrete pad or concrete blocks to
provide a solid, level foundation for the outdoor unit.
This prevents water damage and abnormal vibration.
…In an Area with High Winds
Securely anchor the outdoor unit down with bolts and a
metal frame. Provide a suitable air baffle.
…In a Snowy Area (for Heat Pump-type Systems)
Install the outdoor unit on a raised platform that is
higher than drifting snow. Provide snow vents.
When Connecting Refrigerant Tubing
• Use the flare method for connecting tubing.
• Apply refrigerant lubricant to the matching surfaces
of the flare and union tubes before connecting them,
then tighten the nut with a torque wrench for a leak-
free connection.
• Check carefully for leaks before starting the test run.
When Servicing
• Turn the power off at the main power box (mains)
before opening the unit to check or repair electrical
parts and wiring.
• Keep your fingers and clothing away from any
moving parts.
• Clean up the site after you finish, remembering to
check that no metal scraps or bits of wiring have
been left inside the unit being serviced.
Others
• Ventilate any enclosed areas when installing or
testing the refrigeration system. Escaped refrigerant
gas, on contact with fire or heat, can produce
dangerously toxic gas.
• Confirm upon completing installation that no
refrigerant gas is leaking. If escaped gas comes in
contact with a stove, gas water heater, electric room
heater or other heat source, it can produce
dangerously toxic gas.
CAUTION

Table of Contents
Page
1. OPERATING RANGE .............................................................................................................................. 1
2. SPECIFICATIONS
2-1. Unit Specifications.......................................................................................................................... 2
2-2. Major Component Specifications.................................................................................................... 4
2-3. Other Component Specifications.................................................................................................... 8
3. DIMENSIONAL DATA.............................................................................................................................. 9

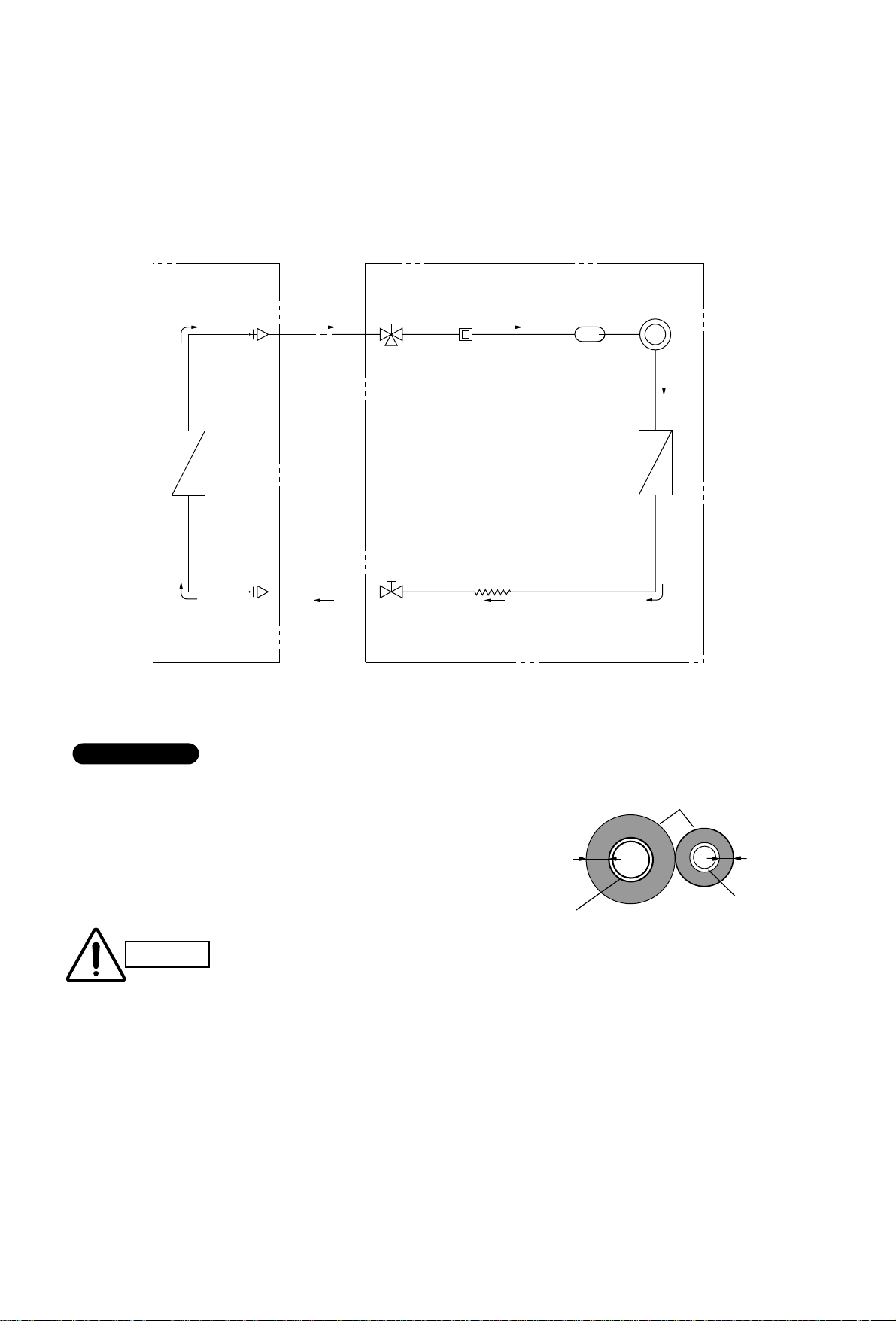

4. REFRIGERANT FLOW DIAGRAM ......................................................................................................... 12
5. PERFORMANCE DATA
5-1. Performance charts ....................................................................................................................... 13
5-2. Air Throw Distance Chart .............................................................................................................. 14
5-3. Cooling Capacity ........................................................................................................................... 15
6. ELECTRICAL DATA
6-1. Electrical Characteristics................................................................................................................ 17
6-2. Electric Wiring Diagrams................................................................................................................ 18
7. INSTALLATION INSTRUCTIONS
7-1. Installation Site Selection ............................................................................................................... 21
7-2. Remote Control Unit Installation Position....................................................................................... 23
7-3. Recommended Wire Length and Diameter ................................................................................... 24
8. FUNCTION
8-1. Room Temperature Control ........................................................................................................... 25
8-2. Dry Operation ................................................................................................................................ 26
8-3. Freeze Prevention ......................................................................................................................... 26
8-4. Outdoor Fan Speed Control .......................................................................................................... 27
9. TROUBLESHOOTING
9-1. Check before and after troubleshooting ........................................................................................ 28
9-2. Air conditioner does not operate .................................................................................................... 29
9-3. Some part of air conditioner does not operate .............................................................................. 33
9-4. Air conditioner operates, but abnormalities are observed ............................................................. 35
9-5. If a sensor is defective ................................................................................................................... 36
10. CHECKING ELECTRICAL COMPONENTS
10-1. Measurement of Insulation Resistance .......................................................................................... 37
10-2. Checking Continuity of Fuse on PCB Ass'y.................................................................................... 38
10-3. Checking Motor Capacitor ............................................................................................................. 38
11. MAINTENANCE
11-1. Changing Address of Remote Control Unit in Indoor Unit ............................................................. 39
INSTRUCTION MANUAL ........................................................................................................ 40
APPENDIX
ii

1
1. OPERATING RANGE
Temperature Indoor Air Intake Temp. Outdoor Air Intake Temp.
Cooling Maximum 32°C D.B. / 23°C W.B. 43°C D.B.
Minimum 19°C D.B. / 14°C W.B. 19°C D.B.

2
2. SPECIFICATIONS
2-1. Unit Specifications
DATA SUBJECT TO CHANGE WITHOUT NOTICE.
Remarks: Rating conditions are:
Cooling: Indoor air temperature 27°C D.B./ 19°C W.B.
Outdoor air temperature 35°C D.B./ 24°C W.B.
Power Source 240 V Single phase 50 Hz
Voltage rating V 240
Cooling
Capacity kW 2.50
BTU/h 8,500
Air circulation (High) m3/h 430
Moisture removal (High) Liters/h 0.80
Available voltage range V 216 to 264
Running amperes A 3.9
Power input W 930
Power factor % 99
C.O.P. W/W 2.69
Compressor locked rotor amperes A 21
Controls / Temperature control Microprocessor / I.C. thermostat
Control unit Wireless remote control unit
Timer 1-hour OFF / 12-hour ON or OFF
Fan speeds Indoor / Outdoor 3 and Auto / 1 (Hi)
Airflow direction (Indoor) Horizontal Manual
Vertical Auto
Air filter Washable, Anti-Mold
Compressor Rotary (Hermetic)
Refrigerant / Amount charged at shipment g R22 / 850
Refrigerant control Capillary tube
Operation sound Indoor – Hi / Me / Lo dB-A 39 / 37 / 33
Outdoor – Hi dB-A 44
Refrigerant tubing connections Flare type
Max. allowable tubing length at shipment m 7.5
Refrigerant tube Narrow tube mm (in.) 6.35 (1/4)
diameter Wide tube mm (in.) 9.52 (3/8)
Refrigerant tube kit / Accessories Optional / Hanging wall bracket
Indoor Unit Outdoor Unit
Unit dimensions Height mm 250 530
Width mm 790 680
Depth mm 174 225
Package dimensions Height mm 242 580
Width mm 850 812
Depth mm 312 315
Weight Net kg 7.0 29.0
Shipping kg 10.0 31.0
Shipping volume m30.06 0.15
Dimensions & Weight Features Electrical Rating Performance
Indoor Unit SAP–K91AA
Outdoor Unit SAP–C91AA

3
DATA SUBJECT TO CHANGE WITHOUT NOTICE.
Remarks: Rating conditions are:
Cooling: Indoor air temperature 27°C D.B. / 19°C W.B.
Outdoor air temperature 35°C D.B. / 24°C W.B.
Power Source 240 V Single phase 50 Hz
Voltage rating V 240
Cooling
Capacity kW 3.40
BTU/h 11,600
Air circulation (High) m3/h 470
Moisture removal (High) Liters/h 1.1
Available voltage range V 216 to 264
Running amperes A 5.9
Power input W 1,290
Power factor % 91
C.O.P. W/W 2.64
Compressor locked rotor amperes A 35
Controls / Temperature control Microprocessor / I.C. thermostat
Control unit Wireless remote control unit
Timer 1-hour OFF / 12-hour ON or OFF
Fan speeds Indoor / Outdoor 3 and Auto / Auto (Hi, Lo)
Airflow direction (Indoor ) Horizontal Manual
Vertical Auto
Air filter Washable, Anti-Mold
Compressor Rotary (Hermetic)
Refrigerant / Amount charged at shipment g R22 / 875
Refrigerant control Capillary tube
Operation sound Indoor – Hi / Me / Lo dB-A 40 / 37 / 34
Outdoor – Hi dB-A 46
Refrigerant tubing connections Flare type
Max. allowable tubing length at shipment m 7.5
Refrigerant tube Narrow tube mm (in.) 6.35 (1/4)
diameter Wide tube mm (in.) 12.7 (1/2)
Refrigerant tube kit / Accessories Optional / Hanging wall bracket
Indoor Unit Outdoor Unit
Unit dimensions Height mm 250 530
Width mm 790 680
Depth mm 174 225
Package dimensions Height mm 242 580
Width mm 850 812
Depth mm 312 315
Weight Net kg 7.0 32.0
Shipping kg 10.0 34.0
Shipping volume m30.06 0.15
Dimensions & Weight Features Electrical Rating Performance
Indoor Unit SAP–K121AA
Outdoor Unit SAP–C121AA

4
2-2. Major Component Specifications
2-2-1. Indoor Unit
DATA SUBJECT TO CHANGE WITHOUT NOTICE.
Part No. POW–K91GJA
Controls Microprocessor
Control circuit fuse 250 V – 3.15 A
Remote Control Unit RCS–2S4E
Type Cross–flow
Number ... Dia. and length mm 1 ... ø95 / L578
Fan motor model ... Number IBH-884-020 ... 1
No. of poles ...rpm (High) 2 ... 1,290
Nominal output W 20
Coil resistance (Ambient temp. 20°C) ΩWHT – BRN : 201
WHT – VLT : 261
Safety Type Thermal fuse
devices Operating temp. Open °C 130
Close —
Run capacitor µF 1.5
VAC 440
Type Stepping motor
Model MP24GA3
Rating DC 12 V
Coil resistance (Ambient temp. 25°C) ΩA pair of each terminal: 380 ± 7%
Coil Aluminum plate fin / Copper tube
Rows 2
Fin pitch mm 1.4
Face area m20.110
Heat
Exch. Coil Flap Motor Fan & Fan Motor
Controller
PCB
Indoor Unit SAP–K91AA

5
DATA SUBJECT TO CHANGE WITHOUT NOTICE.
Part No. POW–K121GJA
Controls Microprocessor
Control circuit fuse 250 V – 3.15 A
Remote Control Unit RCS–2S4E
Type Cross–flow
Number ... Dia. and length mm 1 ... ø95 / L578
Fan motor model ... Number IBH-884-020 ... 1
No. of poles ...rpm (High) 2 ... 1,350
Nominal output W 20
Coil resistance (Ambient temp. 20°C) ΩWHT – BRN : 201
WHT – VLT : 261
Safety Type Thermal fuse
devices Operating temp. Open °C 130
Close —
Run capacitor µF 1.5
VAC 440
Type Stepping motor
Model MP24GA3
Rating DC 12 V
Coil resistance (Ambient temp. 25°C) ΩA pair of each terminal: 380 ± 7%
Coil Aluminum plate fin / Copper tube
Rows 2
Fin pitch mm 1.4
Face area m20.110
Heat
Exch. Coil Flap Motor Fan & Fan Motor
Controller
PCB
Indoor Unit SAP–K121AA

6
2-2-2. Outdoor Unit
Type Rotary (Hermetic)
Compressor model C–R81H5Q 80682645–S
Nominal output W 800
Compressor oil ... Amount cc 4GSD–T or SAY-56T ... 500
Coil resistance (Ambient temp. 25°C) ΩC – R : 3.38
C – S : 7.49
Type External (OLR A) External (OLR T)
Safety Overload relay MRA99109–9201 CS–7C115
devices Operating temp. Open °C 150 ± 5 115 ± 3
Close °C 69 ± 11 95 ± 5
Operating amp.(Ambient temp. 25°C) Trip in 6 to 16 sec. at 16 A —
Run capacitor µF 22.5
VAC 400
Type Propeller
Number ... Dia. mm 1 ... ø 370
Fan motor model ... Number UE6-21AH5PB-S ... 1
No. of poles ... rpm (240 V, High) 6 ... 780
Nominal output W 20
Coil resistance (Ambient temp. 20°C) ΩWHT – BRN : 338.3
WHT – PNK : 389.7
Safety Type Thermal fuse
devices Operating temp. Open °C 145 ± 2
Close —
Run capacitor µF 1.5
VAC 440
Coil Aluminum plate fin / Copper tube
Rows 1
Fin pitch mm 1.3
Face area m20.333
External Finish Acrylic baked-on enamel finish
Heat
Exch. Coil Compressor
Fan & Fan Motor
DATA SUBJECT TO CHANGE WITHOUT NOTICE.
Outdoor Unit SAP–C91AA

7
Type Rotary (Hermetic)
Compressor model C–R112H5X 80616745–S
Nominal output W 1,100
Compressor oil ... Amount cc 4GSD–T or SAY-56T ... 550
Coil resistance (Ambient temp. 25°C) ΩC – R : 1.96
C – S : 5.38
Type External (OLR A)
Safety Overload relay MRA99122–9201
devices Operating temp. Open °C 145 ± 5
Close °C 69 ± 11
Operating amp.(Ambient temp. 25°C) Trip in 6 to 16 sec. at 25 A
Run capacitor µF 25.0
VAC 400
Type Propeller
Number ... Dia. mm 1 ... ø 370
Fan motor model ... Number UE6S–21AC5P–S ... 1
No. of poles ... rpm (240 V, High) 6 ... 780
Nominal output W 20
Coil resistance (Ambient temp. 20°C) ΩBRN – WHT : 341.2
WHT – YEL : 212.7
YEL – PNK : 190.0
Safety Type Thermal fuse
devices Operating temp. Open °C 145 ± 2
Close —
Run capacitor µF 1.5
VAC 440
Coil Aluminum plate fin / Copper tube
Rows 2
Fin pitch mm 1.2
Face area m20.315
External Finish Acrylic baked-on enamel finish
Heat
Exch. Coil Compressor
Fan & Fan Motor
DATA SUBJECT TO CHANGE WITHOUT NOTICE.
Outdoor Unit SAP–C121AA

2-3. Other Component Specifications
8
<Only for SAP-C121 models>
Thermostat (Fan Speed Control 23S) MQT5S
Switching temp. °C high ➞LOW 28.5°C ± 1.5
low ➞HIGH 31.5°C ± 2
Contact rating AC 220V, 3A
Power Relay (PR) G7L-2A-TUB
Coil rating AC 200–240V, 50/60Hz
Coil resistance Ω(at 23°C) 21 ± 15%
Contact rating AC 220V, 25A
Outdoor Unit SAP–K91AA
SAP–C121AA
Thermistor (Room sensor) DTN-TKS128B
Resistance kΩ25°C 5.0 ± 3%
Thermistor (Coil sensor) DTN-TKS131B
Resistance kΩ0°C 15.0 ± 2%
Transformer (TR) ATR-J105
Rating Primary AC 230V, 50/60Hz
Secondary 19V, 0.526A
Capacity 10VA
Coil resistance Ω(at 21°C) Primary (WHT – WHT): 205 ± 10%
Secondary (BRN – BRN): 2.0 ± 10%
Thermal cut-off temp. 150°C
Indoor Unit SAP–K91AA
SAP–K121AA

9

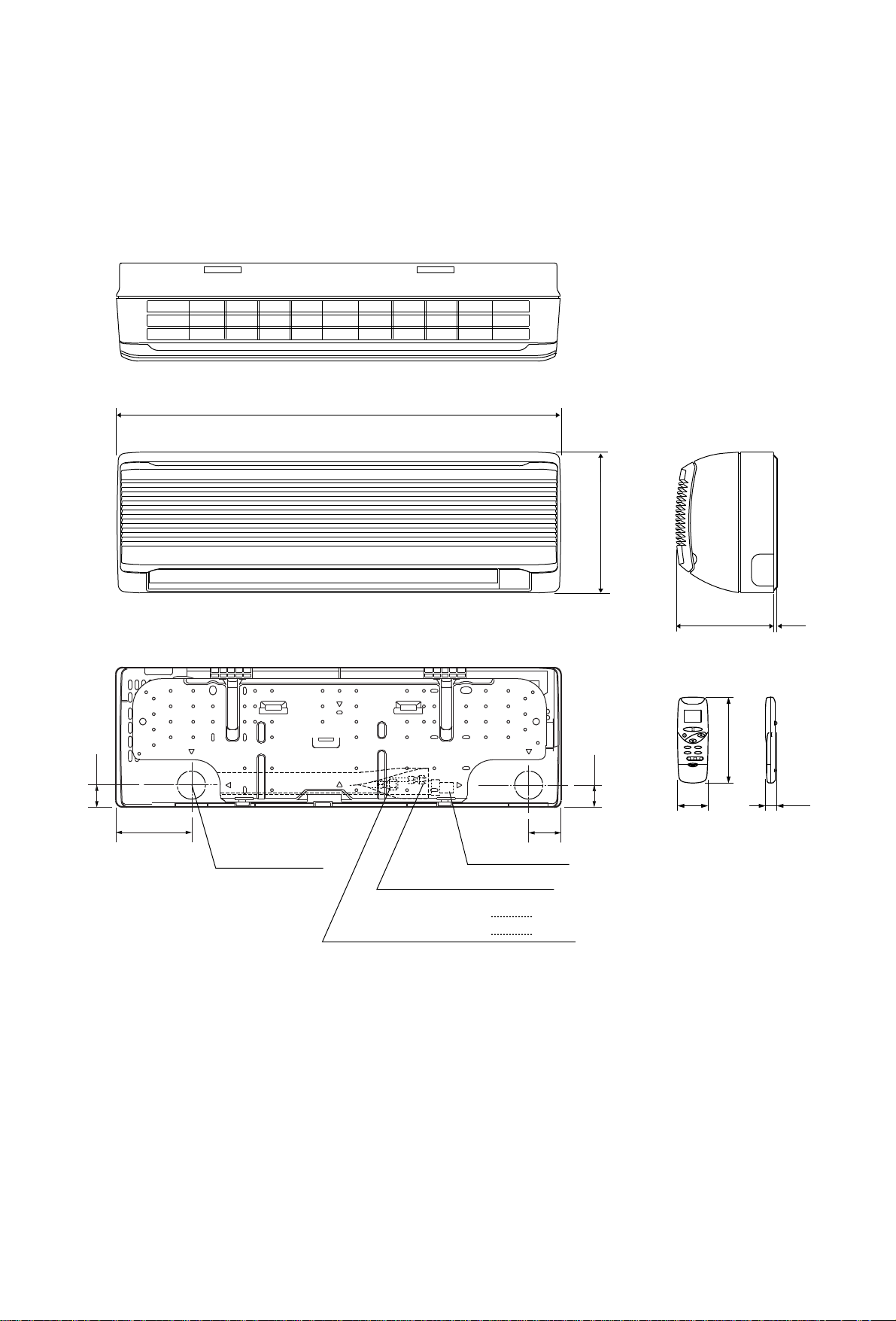

3. DIMENSIONAL DATA
Indoor Unit SAP–K91AA
SAP–K121AA
790
250
174 (3)
Narrow tube ø6.35 (1/4")
Drain hose ø18
58.5
132
41.0
41.0
Center of tubing
hole (2 places)
Remote control unit
172
61 23
Wide tube ø9.52 (3/8")
Wide tube ø12.7 (1/2") K91
K121
Unit : mm

10
Outdoor Unit SAP–C91AA
680 58
530
15
225
Narrow tube service valve
ø6.35 (1/4")
Wide tube service valve
ø9.52 (3/8")
150
103 55
538
2 – ø12 holes 71
286
260
Air intake
Air discharge
Unit : mm

11
Outdoor Unit SAP–C121AA
680 71
530
15
225
Narrow tube service valve
ø6.35 (1/4")
Wide tube service valve
ø12.7 (1/2")
150
103 55
538
2 – ø12 holes 71
286
260
Air intake
Air discharge
Unit : mm

4. REFRIGERANT FLOW DIAGRAM
12
Insulation of Refrigerant Tubing
Because capillary tubing is used in the outdoor unit, both the
wide and narrow tubes of this air conditioner become cold. To
prevent heat loss and wet floors due to dripping of
condensation, both tubes must be well insulated with a
proper insulation material. The thickness of the insulation
should be a min. 8 mm.
After a tube has been insulated,
never try to bend it into a narrow
curve because it can cause the tube
to break or crack.
IMPORTANT
CAUTION
Wide tube
Thickness:
Min. 8 mm
Insulation
Narrow tube
Thickness:
Min. 8 mm
Compressor
Accumulator
Wide tube
service
valve
Wide tube
O.D.
ø9.52 mm
(3/8 ")
O.D.
ø12.7 mm
(1/2 ")
Narrow
tube
service
valve
Narrow tube
O.D.
ø6.35 mm
(1/4")
Condenser
Capillary tube
Indoor Unit Outdoor Unit
Evaporator
Muffler
or
Indoor Unit SAP–K91AA
SAP–K121AA Outdoor Unit SAP–C91AA SAP–C121AA

5. PERFORMANCE DATA
5-1. Performance charts
13

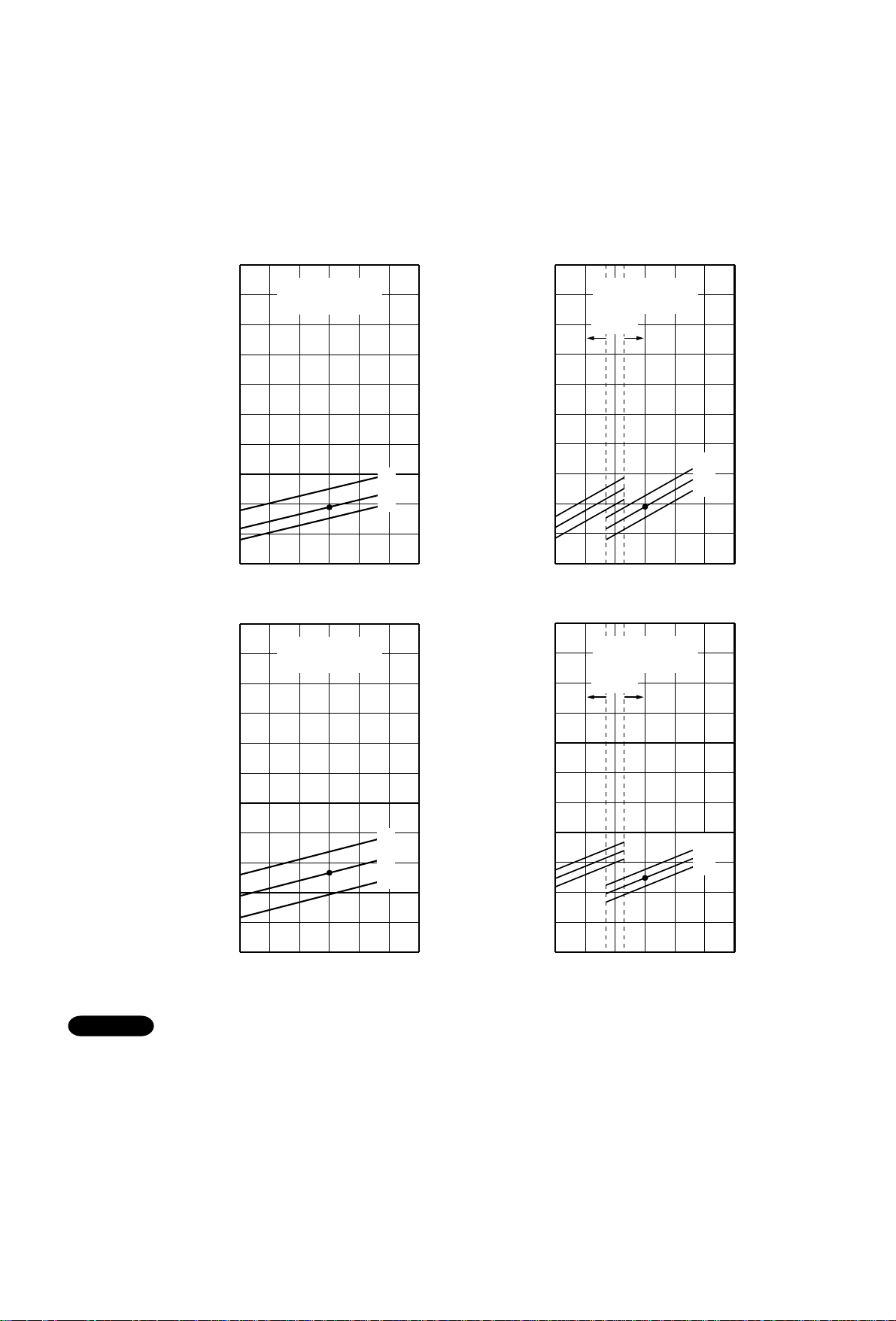

25 30 35 40 45 50
Outdoor inlet air D.B. temp. (°C)
Indoor inlet air
D.B. temp. (°C)
■Cooling Characteristics
Indoor inlet air
D.B. temp. (°C)
10
9
8
7
6
5
4
3
225 30 35 40 45 50
Outdoor inlet air D.B. temp. (°C)
Operating current (A)
11
Low pressure at wide tube service valve MPa (kgf/cm2G)
1.38 (13)
1.28 (12)
1.18 (11)
1.08 (10)
0.98 ( 9 )
0.89 ( 8 )
0.79 ( 7 )
0.69 ( 6 )
0.59 ( 5 )
0.49 ( 4 )
0.39 ( 3 )
1.47 (14)
32
27
21
32
27
21
● ...... Points of Rating condition
Black dots in above charts indicate the following rating conditions.
Cooling: Indoor air temperature 27°C D.B./19°C W.B.
Outdoor air temperature 35°C D.B./24°C W.B.
NOTE
Indoor Unit SAP–K91AA
Outdoor Unit SAP–C91AA Indoor Unit SAP–K121AA Outdoor Unit SAP–C121AA
Indoor inlet air
D.B. temp. (°C)
Outdoor
fan speed
HighLow
25 30 35 40 45 50
Outdoor inlet air D.B. temp. (°C)
12
11
10
9
8
7
6
5
425 30 35 40 45 50
Outdoor inlet air D.B. temp. (°C)
Operating current (A)
13
Indoor inlet air
D.B. temp. (°C)
Outdoor
fan speed
HighLow
32
27
21
32
27
21
Low pressure at wide tube service valve MPa (kgf/cm2G)
1.38 (13)
1.28 (12)
1.18 (11)
1.08 (10)
0.98 ( 9 )
0.89 ( 8 )
0.79 ( 7 )
0.69 ( 6 )
0.59 ( 5 )
0.49 ( 4 )
0.39 ( 3 )
1.47 (14)
■Cooling Characteristics

5-2. Air Throw Distance Chart
Horizontal distance (m)
Axis air verocity (m/s)
Vertical distance (m)
Room air temp. : 27°C
Fan speed : High
Heating
Horizontal distance (m)
Axis air verocity (m/s)
Vertical distance (m)
Room air temp. : 27°C
Fan speed : High
0
1
2
3
4
0123456789
: Flap angle 0° , : Axis air velocity 0°
: Flap angle 30°, : Axis air velocity 30°
0
1
2
3
4
0123456789
: Flap angle 0° , : Axis air velocity 0°
: Flap angle 30°, : Axis air velocity 30°
14
Indoor Unit SAP–K91AA
Indoor Unit SAP–K121AA

15
5-3. Cooling Capacity
Indoor Unit SAP–K91AA
Outdoor Unit SAP–C91AA
240V Single Phase 50Hz
RATING CAPACITY 2.50 kW
AIR FLOW RATE 430
m3/h
EVAPORATOR CONDENSER
ENT. TEMP. °C OUTDOOR AMBIENT TEMP. °C
W.B. D.B. 20 25 30 35 40 43
TC 2.52 2.41 2.30 2.19 2.06 1.89
CM 0.63 0.68 0.73 0.78 0.83 0.89
21 SHC 1.71 1.65 1.59 1.54 1.47 1.40
15 23 SHC 1.92 1.86 1.80 1.75 1.68 1.61
25 SHC 2.13 2.07 2.01 1.96 1.89 1.82
27 SHC 2.34 2.28 2.22 2.17 2.06 1.89
29 SHC 2.52 2.41 2.30 2.19 2.06 1.89
31 SHC 2.52 2.41 2.30 2.19 2.06 1.89
TC 2.70 2.59 2.47 2.35 2.21 2.03
CM 0.65 0.70 0.75 0.81 0.86 0.91
21 SHC 1.49 1.43 1.38 1.32 1.26 1.18
17 23 SHC 1.70 1.64 1.59 1.53 1.47 1.39
25 SHC 1.91 1.85 1.80 1.74 1.68 1.60
27 SHC 2.12 2.06 2.01 1.95 1.89 1.81
29 SHC 2.33 2.27 2.22 2.16 2.10 2.02
31 SHC 2.54 2.48 2.43 2.35 2.21 2.03
TC 2.88 2.75 2.63 #2.50 2.35 2.16
CM 0.67 0.72 0.77 0.83 0.88 0.94
21 SHC 1.26 1.21 1.15 1.10 1.03 0.96
19 23 SHC 1.47 1.42 1.36 1.31 1.24 1.17
25 SHC 1.68 1.63 1.57 1.52 1.45 1.38
27 SHC 1.89 1.84 1.78 1.73 1.66 1.59
29 SHC 2.10 2.05 1.99 1.94 1.87 1.80
31 SHC 2.31 2.26 2.20 2.15 2.08 2.01
TC 3.05 2.92 2.78 2.65 2.49 2.29
CM 0.69 0.74 0.80 0.85 0.91 0.96
23 SHC 1.24 1.19 1.13 1.08 1.02 0.94
21 25 SHC 1.45 1.40 1.34 1.29 1.23 1.15
27 SHC 1.66 1.61 1.55 1.50 1.44 1.36
29 SHC 1.87 1.82 1.76 1.71 1.65 1.57
31 SHC 2.08 2.03 1.97 1.92 1.86 1.78
TC 3.23 3.09 2.95 2.78 2.60 2.42
CM 0.70 0.76 0.82 0.88 0.93 0.99
23 25 SHC 1.21 1.16 1.10 1.04 0.98 0.91
27 SHC 1.42 1.37 1.31 1.25 1.19 1.12
29 SHC 1.63 1.58 1.52 1.46 1.40 1.33
31 SHC 1.84 1.79 1.73 1.67 1.61 1.54
TC : Total Cooling Capacity (kW)
SHC : Sensible Heat Capacity (kW)
CM : Compressor Input (kW)
Rating conditions (#Mark) are
Outdoor Ambient Temp. 35°C D.B.
Indoor Unit Entering Air Temp. 27°C D.B. / 19°C W.B.

16
Indoor Unit SAP–K121AA
Outdoor Unit SAP–C121AA
240V Single Phase 50Hz
RATING CAPACITY 3.40 kW
AIR FLOW RATE 470
m3/h
EVAPORATOR CONDENSER
ENT. TEMP. °C OUTDOOR AMBIENT TEMP. °C
W.B. D.B. 30 35 40 43
TC 3.13 2.98 2.80 2.58
CM 1.05 1.13 1.17 1.36
21 SHC 2.06 1.98 1.88 1.77
15 23 SHC 2.29 2.20 2.11 1.99
25 SHC 2.51 2.43 2.33 2.22
27 SHC 2.74 2.65 2.56 2.44
29 SHC 2.96 2.88 2.78 2.58
31 SHC 3.13 2.98 2.80 2.58
TC 3.36 3.20 3.00 2.76
CM 1.08 1.16 1.20 1.39
21 SHC 1.83 1.75 1.65 1.54
17 23 SHC 2.06 1.97 1.88 1.76
25 SHC 2.28 2.20 2.10 1.99
27 SHC 2.51 2.42 2.33 2.21
29 SHC 2.73 2.65 2.55 2.44
31 SHC 2.96 2.87 2.78 2.66
TC 3.57 #3.40 3.20 2.94
CM 1.11 1.19 1.24 1.43
21 SHC 1.59 1.50 1.41 1.29
19 23 SHC 1.81 1.73 1.63 1.52
25 SHC 2.04 1.95 1.86 1.74
27 SHC 2.26 2.18 2.08 1.97
29 SHC 2.49 2.41 2.31 2.19
31 SHC 2.71 2.63 2.54 2.42
TC 3.78 3.60 3.39 3.12
CM 1.14 1.23 1.28 1.47
23 SHC 1.56 1.48 1.39 1.27
21 25 SHC 1.79 1.71 1.61 1.50
27 SHC 2.01 1.93 1.84 1.72
29 SHC 2.24 2.16 2.06 1.95
31 SHC 2.46 2.38 2.29 2.17
TC 4.01 3.78 3.54 3.29
CM 1.17 1.26 1.31 1.50
23 25 SHC 1.52 1.43 1.33 1.23
27 SHC 1.74 1.65 1.55 1.46
29 SHC 1.97 1.88 1.78 1.68
31 SHC 2.19 2.10 2.01 1.91
TC :
Total Cooling Capacity (kW)
SHC : Sensible Heat Capacity (kW)
CM : Compressor Input (kW)

17
6. ELECTRICAL DATA
6-1. Electrical Characteristics
Indoor Unit Outdoor Unit Complete Unit
Fan Motor Fan Motor Compressor
Performance at 240V Single phase 50Hz
Rating Conditions Running Amps. A0.18 0.24 5.48 5.9
Power Input kW 0.040 0.058 1.192 1.29
Full Load Conditions Running Amps. A0.18 0.24 6.78 7.2
Power Input kW 0.040 0.058 1.502 1.60
Rating Conditions : Indoor Air Temperature 27°C D.B. / 19°C W.B.
Outdoor Air Temperature 35°C D.B.
Full Load Conditions : Indoor Air Temperature 32°C D.B. / 23°C W.B.
Outdoor Air Temperature 43°C D.B.
Indoor Unit SAP–K121AA
Outdoor Unit SAP–C121AA
Indoor Unit Outdoor Unit Complete Unit
Fan Motor Fan Motor Compressor
Performance at 240V Single phase 50Hz
Rating Conditions Running Amps. A0.18 0.25 3.47 3.9
Power Input kW 0.040 0.060 0.83 0.93
Full Load Conditions Running Amps. A0.18 0.25 4.27 4.7
Power Input kW 0.040 0.060 0.99 1.09
Rating Conditions : Indoor Air Temperature 27°C D.B. / 19°C W.B.
Outdoor Air Temperature 35°C D.B.
Full Load Conditions : Indoor Air Temperature 32°C D.B. / 23°C W.B.
Outdoor Air Temperature 43°C D.B.
Indoor Unit SAP–K91AA
Outdoor Unit SAP–C91AA
