Sanyo STB0810C1 User manual

INSTRUCTION MANUAL
26" Through The Wall
Air Conditioner
Cool Only Models
Cool/Heat Models
Save These Instructions!
STB Series
Pub. OI-85164119637001 ©SANYO 2000
STB0810C1
STB1010C1
STB1020C1
STB1220C1
STB0811C1
STB1023C1
STB1123C1

Contents
Page
Product Information..............................................................................................2
Alert Symbols........................................................................................................2
Installation Location..............................................................................................3
Electrical Requirements........................................................................................3
Safety Instructions ................................................................................................3
Names of Parts......................................................................................................4
Control Panel and Operation Functions..............................................................5
Other Features.......................................................................................................7
Care and Cleaning.................................................................................................8
Tips for Energy Saving.........................................................................................9
Troubleshooting...................................................................................................10
Product Information
If you have problems or questions concerning your Air Conditioner, you will
need the following information. Model and serial numbers are on the
nameplate of the cabinet.
Model No. Serial No.
Date of purchase
Dealer's address
Phone number
Alert Symbols
The following symbols used in this manual, alert you to potentially
dangerous conditions to users, service personnel or the appliance:
This symbol refers to a hazard or unsafe
practice which can result in severe personal
injury or death.
CAUTION This symbol refers to a hazard or unsafe
practice which can result in personal injury
or product or property damage.
2OI-602-02EG
oi602000

Installation Location
•We recommend that this air conditioner be installed properly by
qualified installation technicians in accordance with the Installation
Instructions provided with the unit.
•Before installation, check that the voltage of the electric supply in your
home or office is the same as the voltage shown on the nameplate.
•Do not install this air conditioner where there are fumes or flammable
gases, or in an extremely humid space such as a greenhouse.
•Do not install the air conditioner where excessively high heat-
generating objects are placed.
Electrical Requirements
1. All wiring must conform to the local electrical codes. Consult your
dealer or a qualified electrician for details.
2. Each unit must be properly grounded with a ground (or earth) wire or
through the supply wiring.
3. Wiring must be done by a qualified electrician.
Safety Instructions
•Read this Instruction Manual carefully before using this air conditioner.
If you still have any difficulties or problems, consult your dealer for
help.
•This air conditioner is designed to give you comfortable room
conditions. Use this only for its intended purpose as described in this
Instruction Manual.
•Never use or store gasoline or other flammable vapor or liquid near the
air
•Never use an extension code with this air conditoner.
conditioner – it is very dangerous.
CAUTION •Do not turn the air conditioner on and off from the power mains switch.
Use the mode selector switch.
•Do not stick anything into the air outlet of the unit. This is dangerous
because the fan is rotating at high speed.
•Do not let children play with the air conditioner.
•Do not cool or heat the room too much if babies or invalids are present.
3OI-602-03EG
oi602000

Names of Parts
Air Intake Air from the room is drawn into this section and passes through
air filters which remove dust.
Air Outlet Conditioned air is blown out of the air conditioner through the air
outlet.
4OI-602-04EG
oi602000
Air intake
Air outlet
Cover switch and
control panel
Wall case
Front grille

Control Panel and Operation
Functions
Thermostat
Cool Only Model
Cool/Heat Model
Control The thermostat knob is used to control the room temperature. The unit
automatically cycles on and off to maintain room temperature.
A comfortable temperature will be maintained in most rooms when the
control is set to about intermediate range.
Mode Selector HI HEAT provides heating with high fan speed operation.
LOW HEAT provides heating with low fan speed operation.
OFF setting stops heating or cooling operation. However, power remains
connected to the unit Hi FAN/Lo FAN provides fan operation without
cooling or heating.
HI COOL provides cooling with high fan speed operation.
LO COOL provides cooling with low fan speed operation.
5OI-602-05EG
oi602000
THERMOSTAT SELECTOR
LOW OFF
FAN
FAN
COOLER
LOW
COOL
HIGHHIGH COOL
Thermostat Mode
selector
HIGH
THERMOSTAT SELECTOR
LOW
LOW
OFF FAN
FAN
HEAT
COOLERWARMER
HEAT LOW COOL
HIGH
HIGH
COOL
Thermostat Mode
selector

Operation: 1. Set the mode selector for fan, cooling or heating operation.
2. Set the thermostat to the desired position. (Refer to the setting
temperature guide above.)
3.
1)
Set the operation selector switch.
NOTE The above temperatures are provided for reference only, and may differ
from the actual temperature of the room.
How to stop the air
conditioner: To stop the air conditioner, set the mode selector to OFF position.
How to restart the air
conditioner: To restart the air conditioner, set the mode selector to desired position.
CAUTION If the unit is turned off during cooling and heating, DO NOT restart it
immediately, as this can damage it. Wait at least three minutes before
starting
2) Freezing Up:
If you notice that your air conditioner is not cooling as it should, it may
be that ice has formed on the cooling coils. The ice blocks air flow and
stops the unit from cooling the room. This “freezing up” is a temporary
condition that most often occurs at night when the Thermostat is set on
the coldest setting and the Selector is set on LOW COOL.
To correct the condition set the Selector at (H or L) FAN or HIGH COOL
with the Thermostat with turning the thermostat knob to the opposite
direction from ”COOLER”.
it again.
WARMER
(88°F) (55°F)(55°F)
COOLERCOOLER
r
a
n
g
e
I
n
t
e
r
m
e
d
i
a
t
e
7
2
°
F
r
a
n
g
e
I
n
t
e
r
m
e
d
i
a
t
e
7
2
°
F
THERMOSTAT
(setting temperature guide)
6OI-602-06EG
oi602000
Cooling Only Model Cool/Heat Model
Control Panel and Operation
Functions (continued)

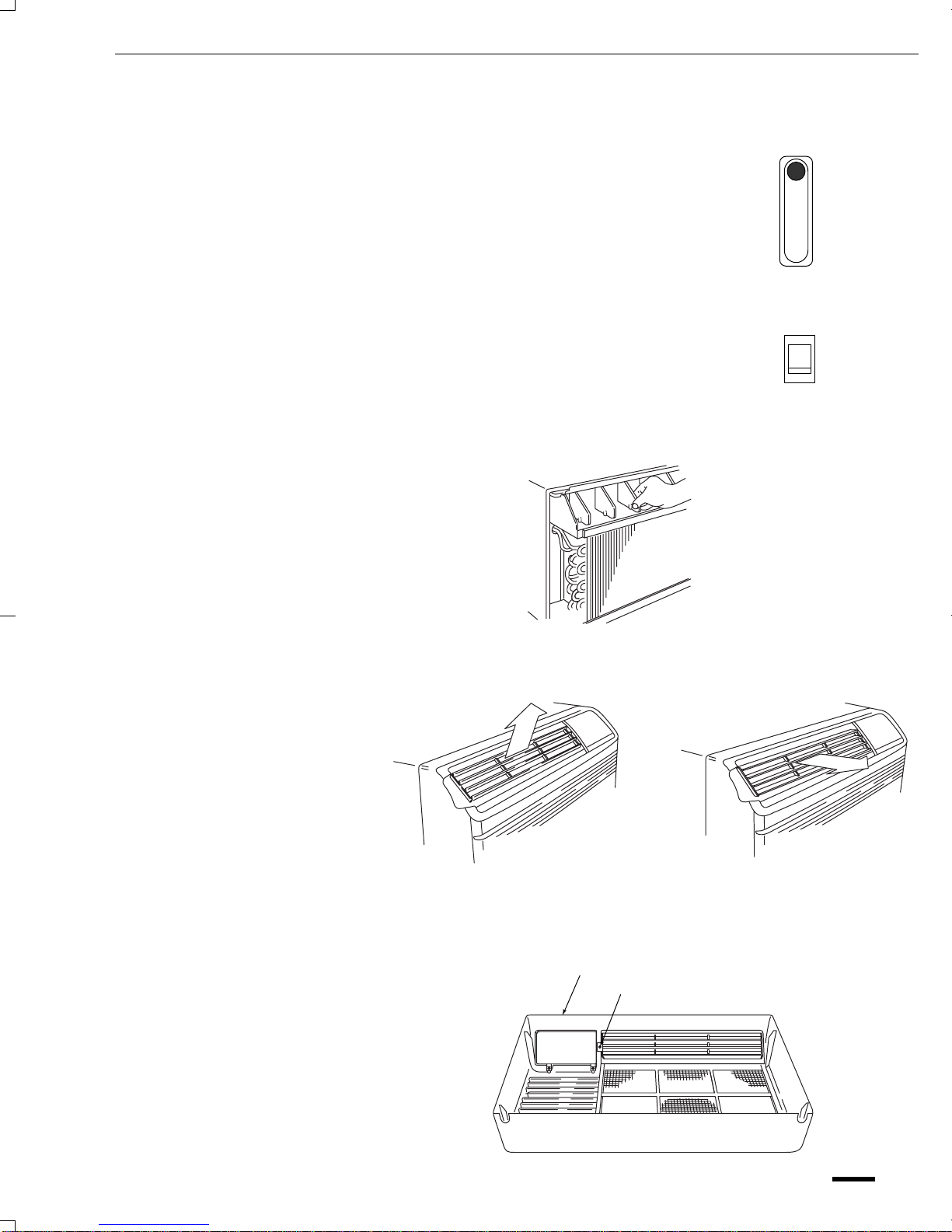

Other Features
Ventilation Control The Vent Control is located behind the front grille.
When set at CLOSE, only the air inside the room
can be circulated and conditioned. When set at OPEN,
some indoor air can be exhausted from the room.
Fan Switch The Fan Switch is located under the control panel.
To reach it, you need to remove the front grille,
knobs and the control panel.
Remove the front grille to adjust the louvers side-to-side.
The direction of the heated or cooled air may be adjusted by removing
and turning the louvers around.
To change the louver direction, remove the front grille and 1 louver screw that
hold the louvers in place. Turn the louver section 180°(end for end), replace the
screws and replace the front grille. The textured face of the louver section must
be facing toward the room side.
To Adjust the Air Direction
7OI-602-03EG
oi602000
VENT
CLOSE
OPEN
FAN
CONT
CYCLE
Louver screw
Front grille

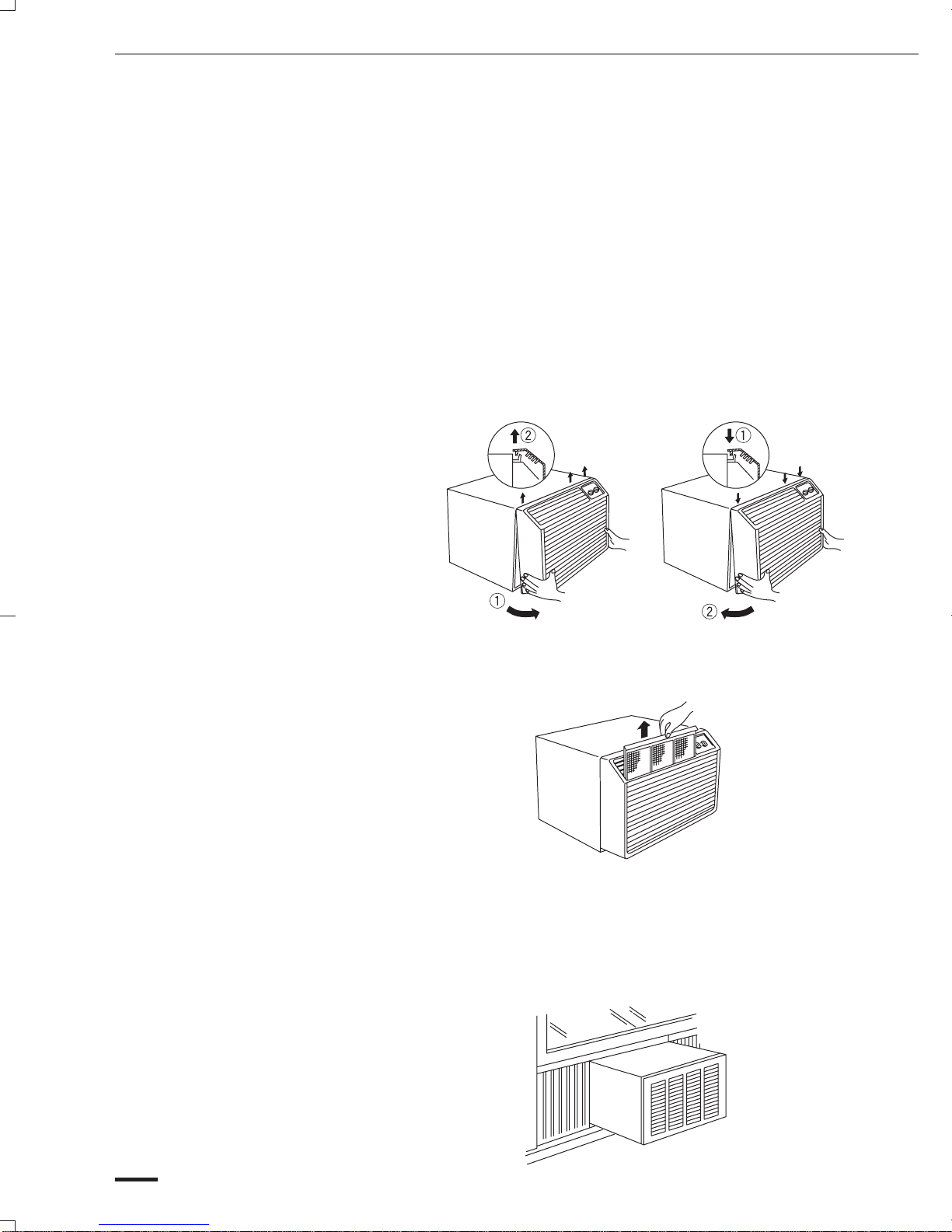

Care and Cleaning
8OI-602-10EG
oi602000
Front Grille & Wall Case Wash the front grille and wall case finish with mild soap or detergent and
lukewarm water.
Control Panel The control panel is shipped with a protective plastic film. This film can be
left on or removed. To clean, use a damp cloth and mild detergent.
Outdoor Coil The coil on the outdoor side of the unit should be checked periodically and
cleaned if clogged with dirt or soot from the atmosphere. If extremely dirty,
it may need to be professionally steam cleaned.
Base Pan
Front Grille Removal
(appearance may vary)
In some installations, dirt or other foreign matter may be blown into the
The front grille can be removal for more through cleaning or to make the
model and serial numbers accessible.
Air Filter
(appearance may vary) The air filter behind the front grille should be checked and cleaned at least
every 30 days or more often if necessary.
Condenser Coils The coils on the weather side of the air conditioner should be checked
regularly. If they are clogged with dirt or soot they may be professionally
steam cleaned, a service available through your Sanyo service outlet.
Clean the filter with a vacuum cleaner to remover light dust. It can also be
washed in warm, soapy water.
from the outside and settle in the base pan (the bottom of the unit).
Check the base pan periodically and clean it out, if necessary.

Tips for Energy Saving
Do not •Block the air intake and outlet of the unit. If they are obstructed, the
unit will not work well, and may be damaged.
•Let direct sunlight into the room. Use sunshades, blinds or curtains. If
the walls and ceiling of the room are warmed by the sun, it will take
longer to cool the room.
Do •Keep the air filter clean. (Refer to “Care and Cleaning”.)
A clogged filter will impair the performance of the unit.
•To prevent conditioned air from escaping, keep windows, doors and any
other openings closed.
•Keep
•Keep outdoor condenser coil clean.
•It’s best to operate your air conditioner at high speed during extremely
hot or cold weather.
the ventilator closed for economy and maximum cooling.
9OI-602-11EG
oi602000

Troubleshooting
PROBLEM POSSIBLE CAUSE AND REMEDY
AIR CONDITIONER DOES
NOT OPERATE •Not plugged in. Plug may have been bumped loose by vacuum cleaner or
furniture.
•If plugged in, fuse could have blown or circuit breaker may have been tripped.
AIR CONDITIONER
“DOES NOT HEAT OR
COOL AS IT SHOULD”
•Curtains, blinds or furniture blocking front of air conditioner will restrict air
flow.
WATER LEAKS INSIDE •Air conditioner is not installed level. Install level or tilt slightly toward the
outside.
WATER LEAKS OUTSIDE •Excess water may overflow in extremely hot and humid weather.
This is normal.
NOISY OPERATION •When compressor or fan switches on and off, a metallic knock may be heard.
This is normal.
•Something is hitting or vibrating inside the cabinet. Turn off air conditioner and
consult your dealer.
•Thermostat Control may not be set high or low enough. Also, when Fan Switch
is at CYCLE, the temperature in the room will vary more than when it’s at
CONTINUOUS. Turn knob to another number. Highest setting should provide
maximum cooling. The lowest setting should provide maximum heating.
•Air filter dirty, should be cleaned at least every 30 days.
•Room may have been very hot or cold when air conditioner was first turned on.
Allow time for it to cool down or warm up.
•Conditioned air may be escaping through open furnace floor registers and cold
air returns.
•Cooling coils have iced up. To melt ice, set the Fan at high speed and the
Thermostat Control to a lower number.
10 OI-602-12EG
oi602000

SANYO FISHER COMPANY
A DIVISION OF SANYO NORTH AMERICA CORPORATION
21605 Plummer Street
Chatsworth, CA 91311 U.S.A.
In Canada
SANYO Canada Inc.
300 Applewood Crescent,
Concord, Ontario
L4K 5C7, Canada
