Sanyo MCD-ZX300 User manual

Service Manual
FILE NO.
REFERENCE No. SM5810282
PRODUCT CODE No.
164 083 03 300 (CA)
164 083 01 300F(XE)
164 083 04 350 (CA)
164 083 02 350F(XE)
CD Portable Radio
Cassette Recorder
MCD-ZX300 (CA)
MCD-ZX300F (XE)
MCD-ZX350 (CA)
MCD-ZX350F (XE)
MCD-ZX300
SERIES
MCD-ZX350
SERIES
SPECIFICATIONS
(CASSETTE SECTION)
Recording System ........... 4-track, , 2-channel stereo
Erasing System ............... Magnet erase
Tape speed ..................... 4.75 cm/sec.
Fast forward and
Rewind time .............. Approx. 110 sec. (C-60 tape)
Frequency range ............ 80 - 12,000 Hz (Normal tape)
(CD PLAYER SECTION)
Channels ......................... 2 channels stereo
S/N ratio .......................... 70 dB
Wow & Flutter .................. Below measurable limits
Sampling frequency ........ 44.1 kHz
Quantization .................... 16 bits linear/ch
Pickup light source .......... Semi-conductor laser
Pickup wave length ......... 790 nm
Laser output .................... Continuous wave max. 0.6 mW
(RADIO SECTION)
Tuning range ................... FM : 87.5 - 108 MHz (XE)
FM : 88.0 - 108 MHz (CA)
AM : 526.5 - 1,606.5 kHz (XE)
AM : 525.0 - 1,710.0 kHz (CA)
(GENERAL SECTION)
Power output ................... 2W/ch (DC max)
Speaker ........................... 10 cm x 2
Terminal impedance ....... PHONES : 32 ohms
Power source .................. AC : 230V, 50Hz (XE)
: 120V, 60Hz (CA)
DC : 12 V ("D"X8 batteries)
Dimensions ..................... 380 (W) x 170 (H) x 260 (D) mm
Weight (approx.).............. 2.7 kg (Not including batteries)
Specifications subject to change without notice.
CONTENTS
Specification ..................................................................... Front
Laser beam safety precaution .......................................... 1
Tuner Adjustments ........................................................... 2
Tape Deck Adjustments ................................................... 3
Exploded View (Cabinet & Chassis) ................................ 4
Parts List .......................................................................... 5
Exploded View & Parts List(Tape Deck) ......................... 7

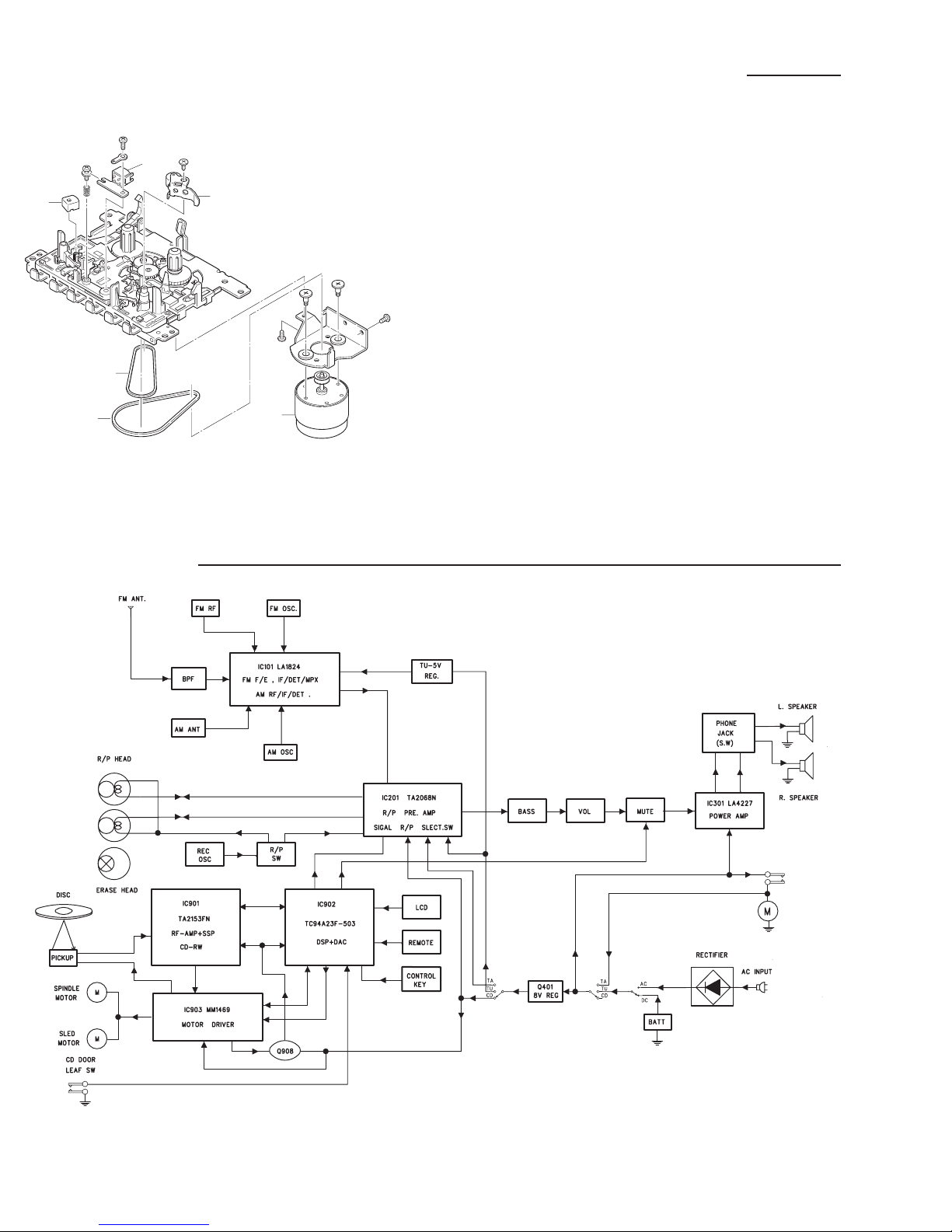

Block Diagram .................................................................. 7
IC Block Diagram & Description ....................................... 8

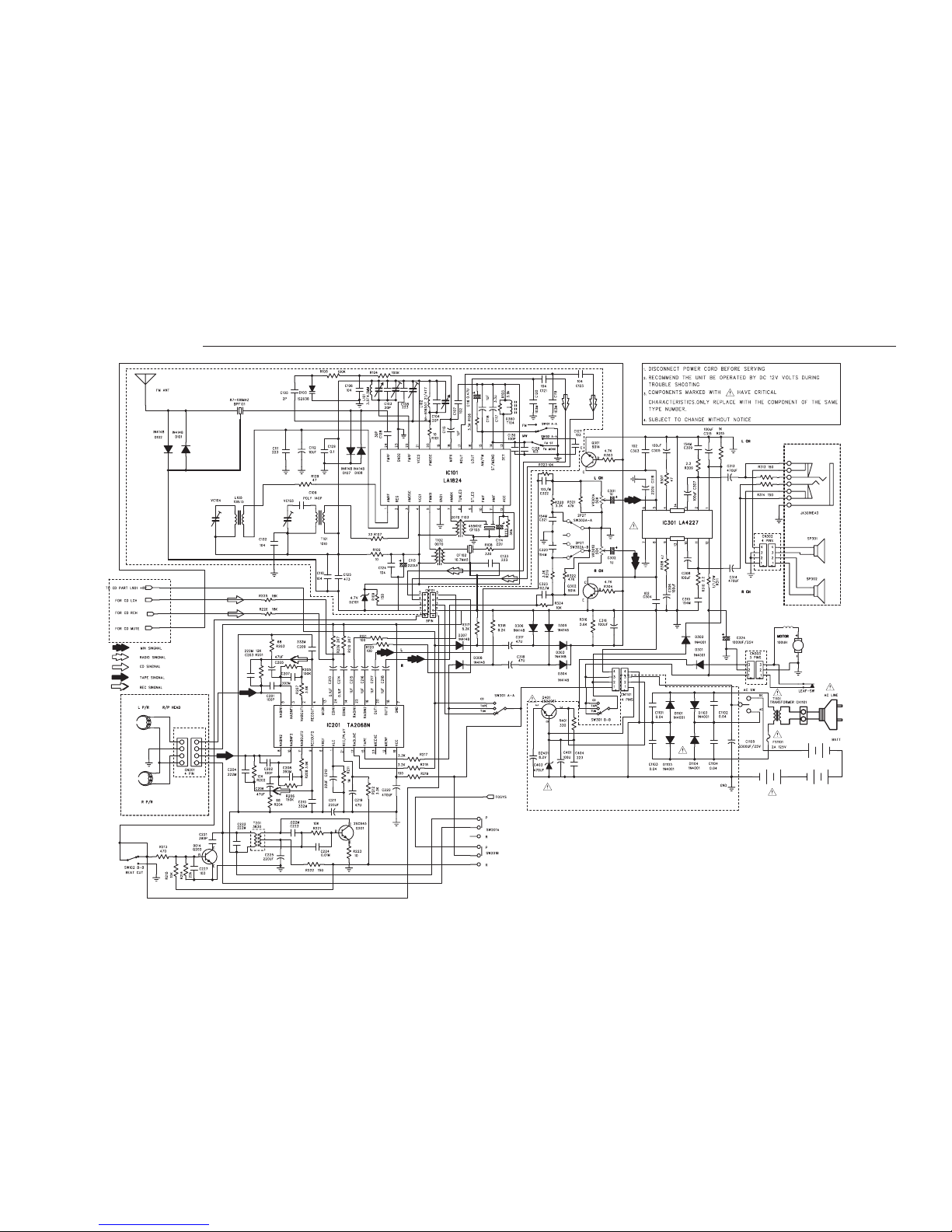

Schematic Diagram (Main/CA) ........................................ 10
Schematic Diagram (Main/XE) ......................................... 12

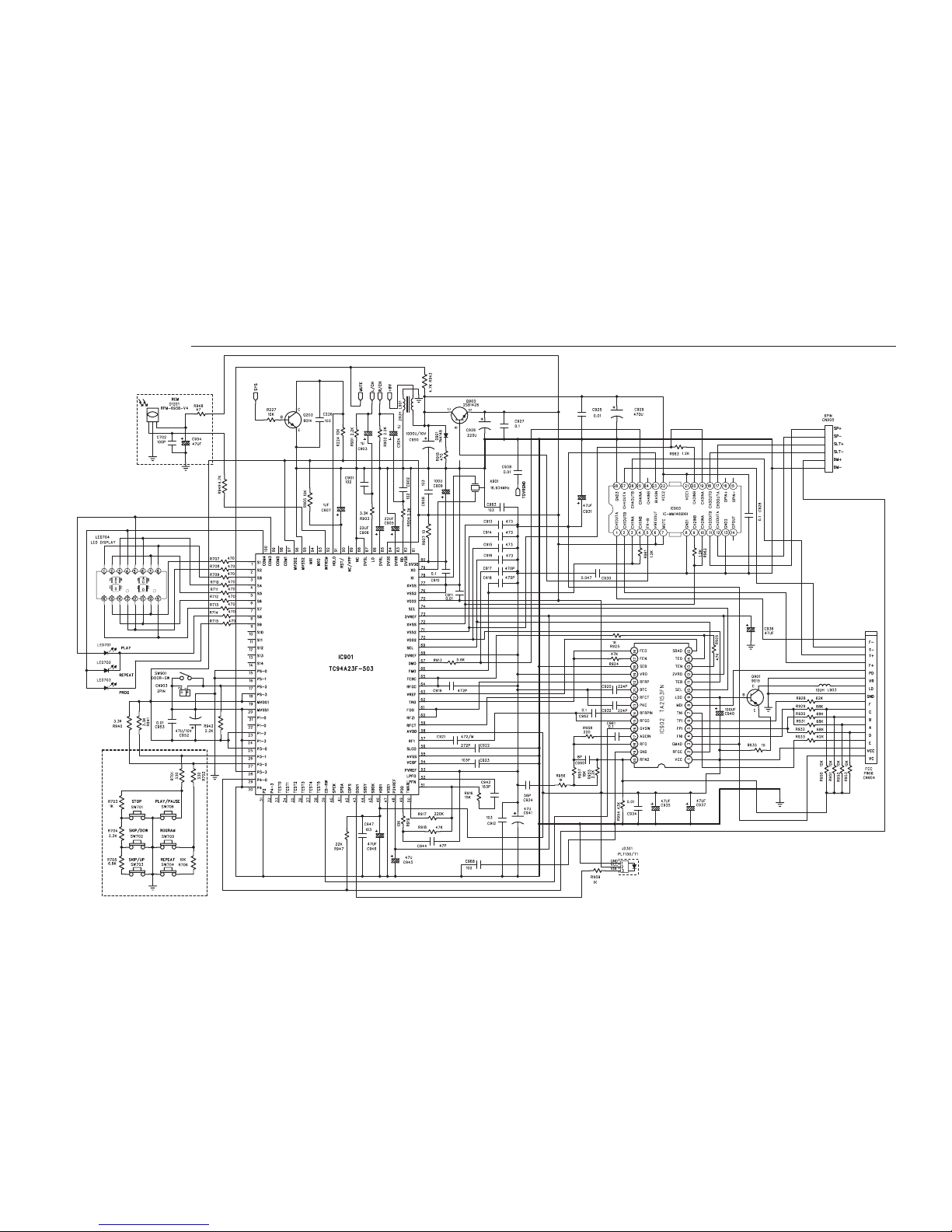

Schematic Diagram (CD/CA) ........................................... 14
Schematic Diagram (CD/XE) ........................................... 16

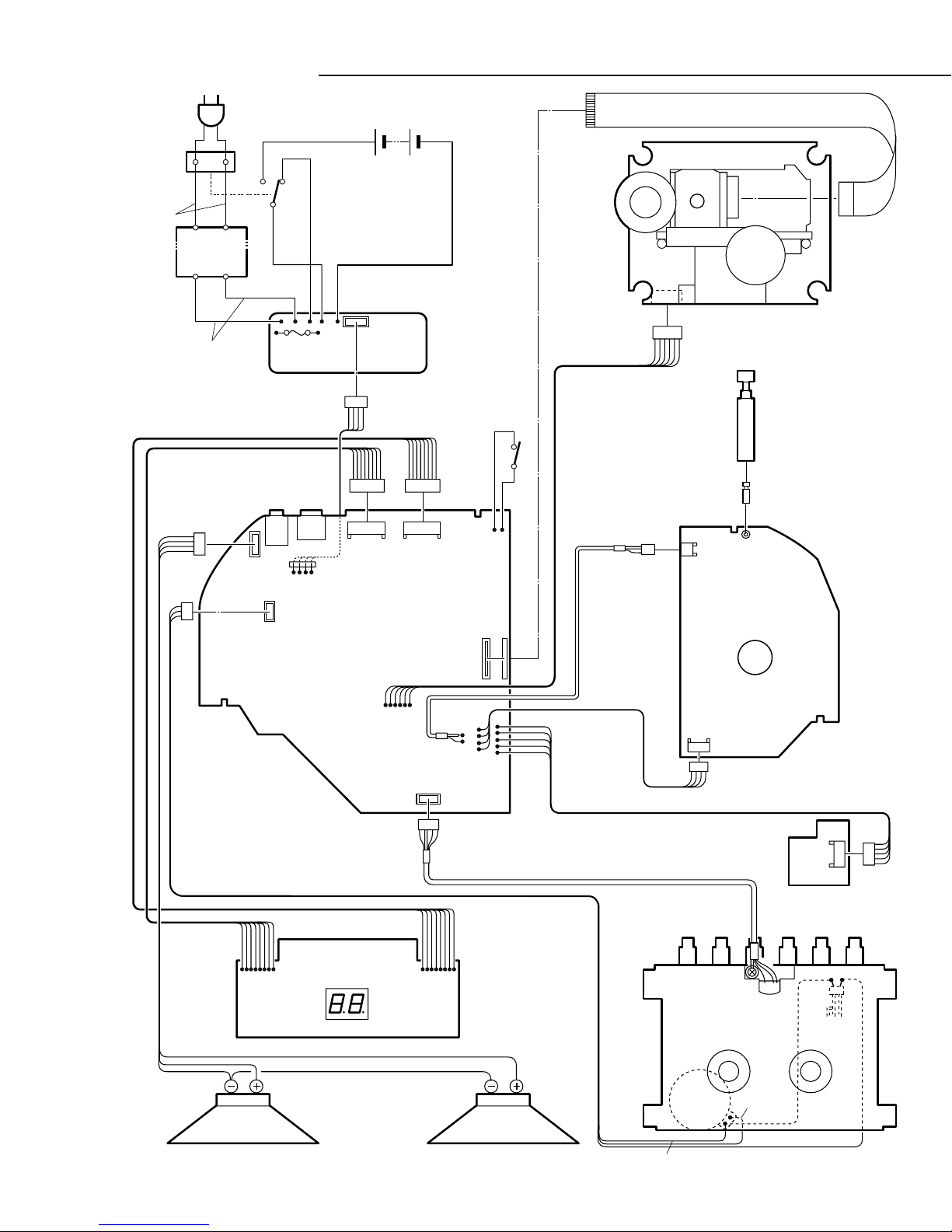

Wiring Diagram (CD Main and Rec SW) ........................ 18
Wiring Diagram (Tuner, Display and Rectifier) .............. 19
Wiring Connection ........................................................... 20

- 1 -
CAUTION :
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN MAY RESULT
IN HAZARDOUS RADIATION EXPOSURE.
LASER OUTPUT................ 0.6 mW Max. (CW)
WAVE LENGTH ................. 790 nm
IC301 LA4227(Power Amp.)IC201 TA2068N (Cassette Preamp.)
+
STANDBY
SW
BIAS
CIRCUIT
Ch1
Ch2
THERMAL
SHUT DOWN
PROTECTION
-
+
-
123456
78
9
101112
STANDBY OUT2 BS2 NF2 IN2 DC
(FILTER)
VCC OUT1 BS1 NF1 IN1 PRE GND
IC903 MM1469XH (CD Driver)

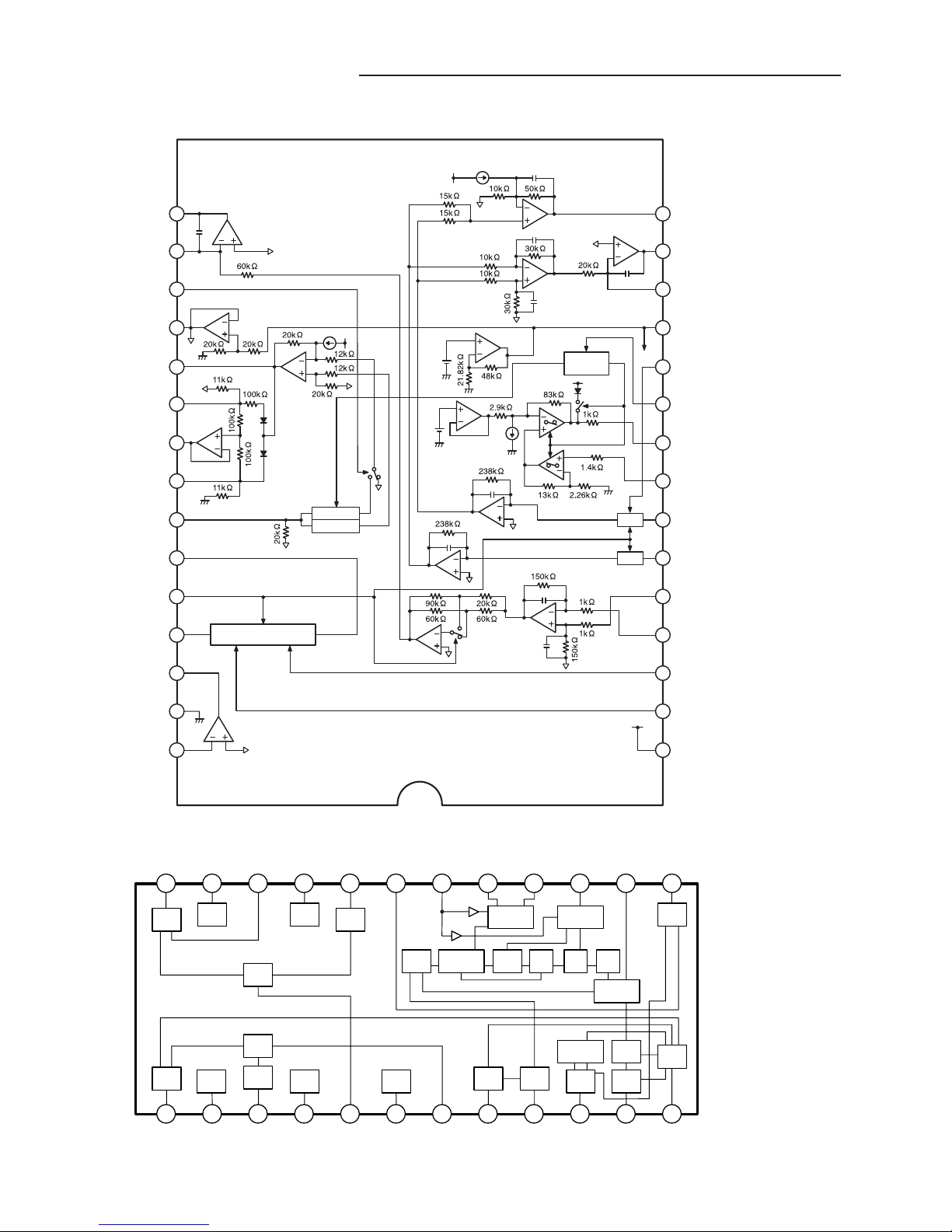

IC BLOCK DIAGRAM & DESCRIPTION
28 27 26 25 24 23 22 21 20 19 18 17 16 15
1234567 891011 12 13 14
Vcc
Vcc
DRIVER MUTE
D.BU FD.BU FD.BU FD.BU F
D.BU FD.BU FD.BU FD.BU F
Level shift
Level shift
Level shift
Level shift
T. S . D
• Pickup that emits a laser beam is used on this CD section.

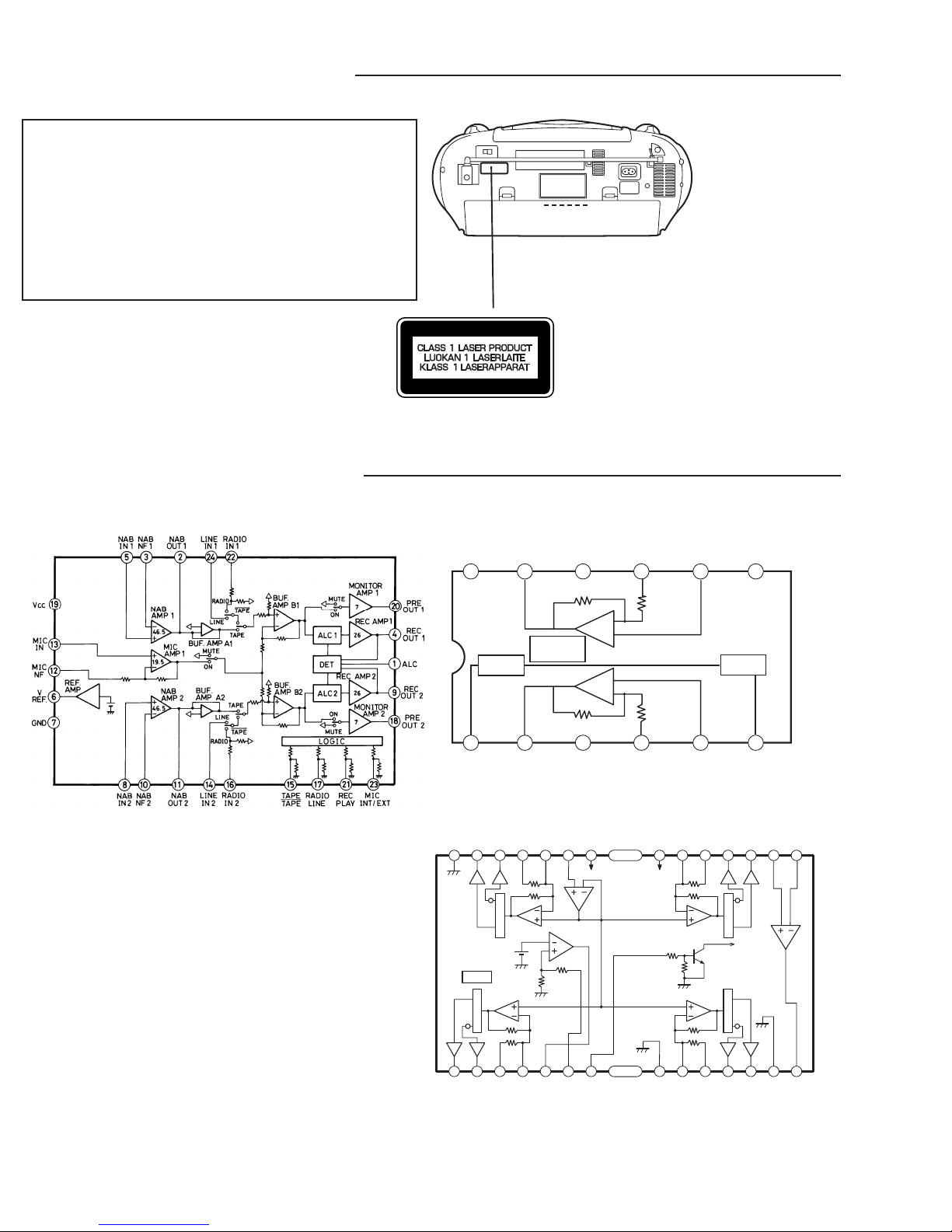

LASER BEAM SAFETY PRECAUTION

- 2 -
T103 T102 JW106 T101
T104 IC101 JW105 L101 VC102 VC103 L102 VC104 VC103
FM ANT
FM (E)
MW ANT
1. AM ADJUSTMENT Band switch : MW
Step Adjusting Connection S G Position of Adjust- VTVM
Circuit Input Output Frequency tuning dial ment Oscilloscope
Closed the output Connect sweep
1IFterminal by sweep generator to 465 kHz Low T103
g
enerator
,
it
p
lace IC101
(
19
(
H
))
and
to MW ANT. C107
(
E
)
.
2 515 kHz Low end T101
Tuning Connect AM SG to Connect VTVM to Max.
3coverage TEST LOOP. speaker terminals. 1640 kHz High end VC103
4 600 kHz 600 kHz MW COIL
Tracking Connect AM SG to Connect VTVM to Max.
5TEST LOOP. speaker terminals. 1400 kHz 1400 kHz V104
• Use a plastic screw driver for adjustments.
• Adjust the intermediate frequency of AM and FM to the frequency of ceramic filter.
• Set of unit
Supply voltage : DC 12V
Speaker : 4 ohms
Standard output : 50 mW (450 mV)
Function switch : RADIO

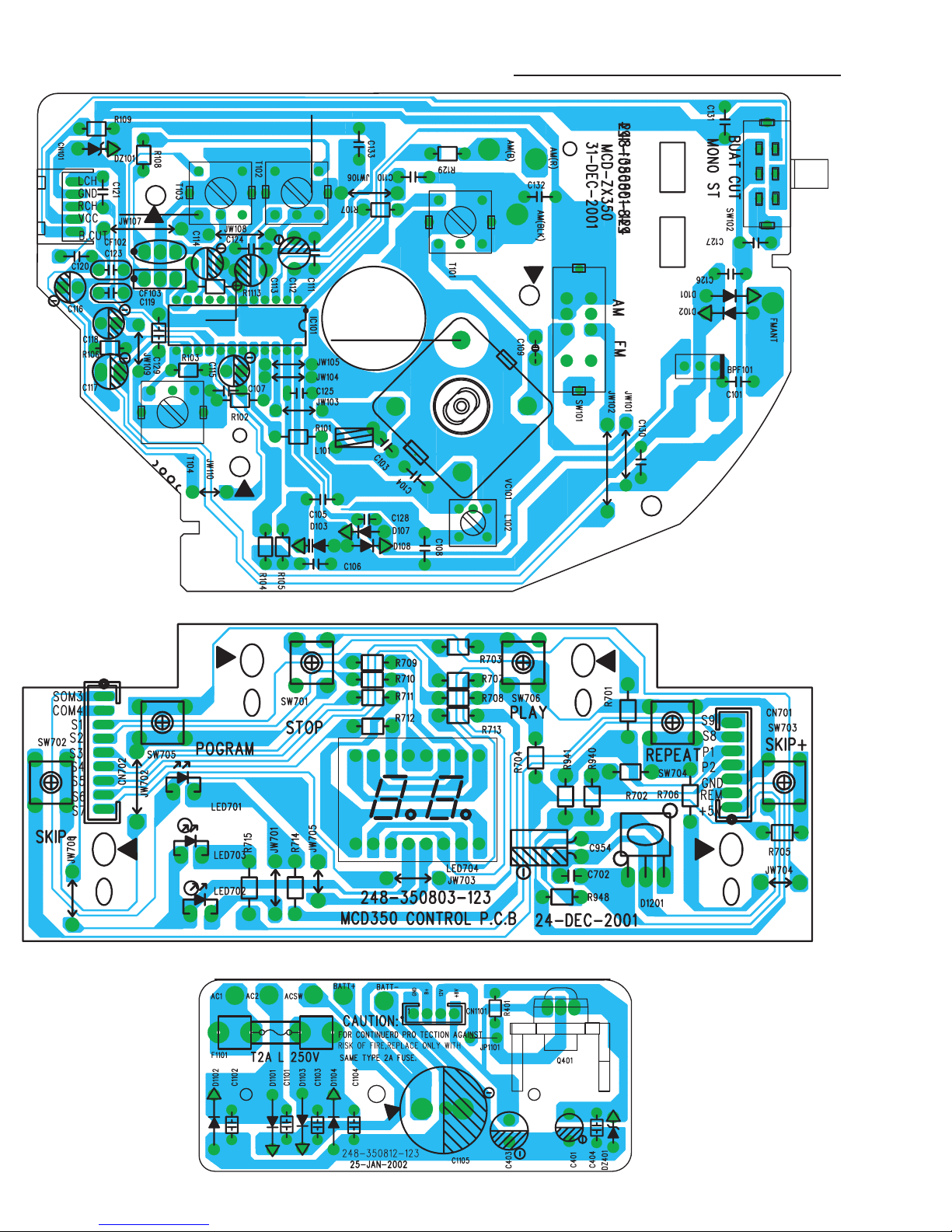

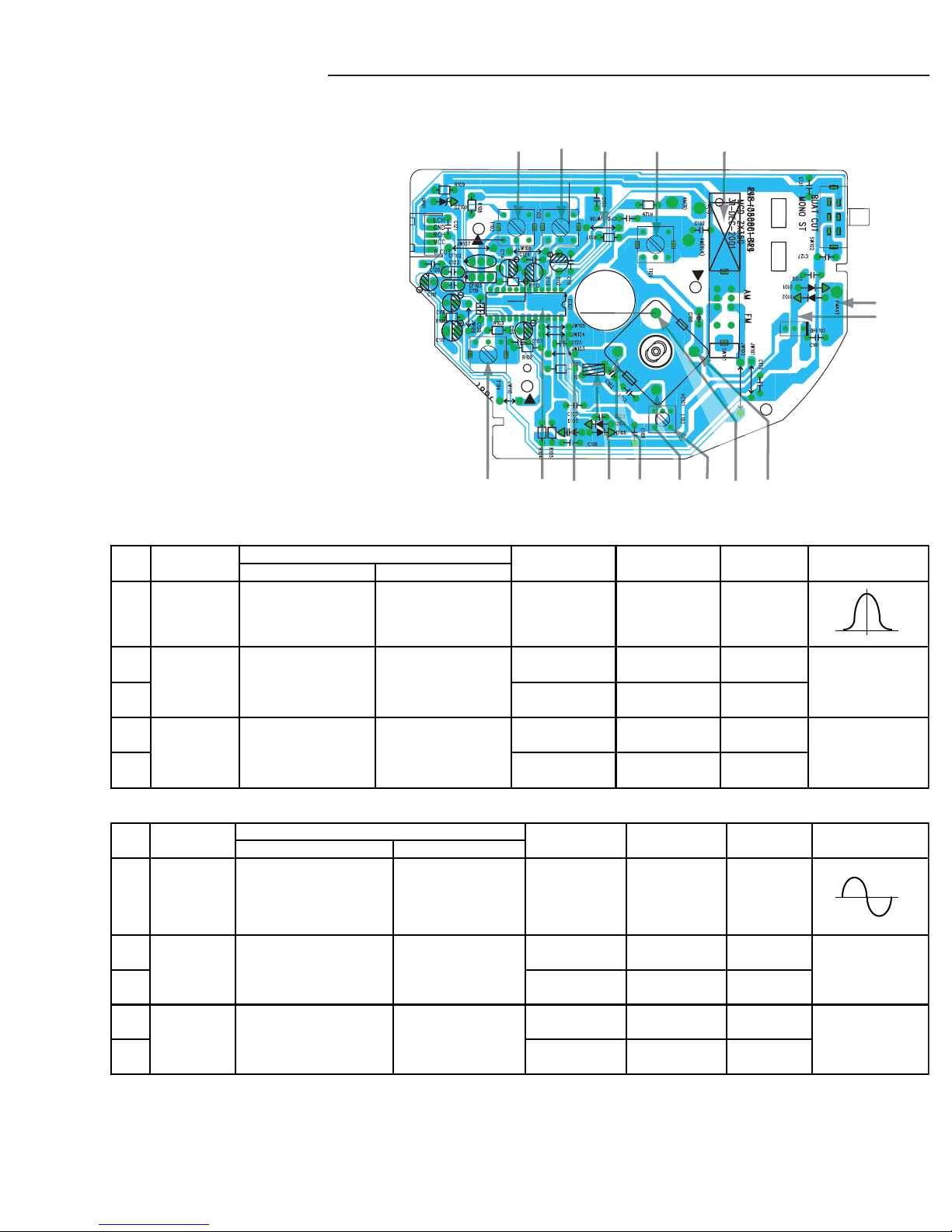

PARTS LOCATION
TUNER ADJUSTMENTS
This is a basic adjustment.
2. FM ADJUSTMENT Band switch : FM FM Dummy antenna : 75 ohms unbalance
Step Adjusting Connection S G Position of Adjust- VTVM
Circuit Input Output Frequency tuning dial ment Oscilloscope
T104 and
1IF 10.7MHz Low T102
287MHz Low end L102
Tuning Connect FM SG to Connect VTVM to Max.
3coverage FM ANT (H) & FM (E). speaker terminals. 109MHz High end VC101
4 90.0MHz 90.0MHz L101
Tracking Connect FM SG to Connect VTVM to Max.
5FM ANT (H) & FM (E). speaker terminals. 106.0MHz 106.0MHz VC102
Connect sweep
generator to
IC101 (24pin)
and C107
(
E
)
Connect VTVM
generator to
IC101 (19PIN)
and C1075
(
E
)
.

- 3 -
2. HEAD AZIMUTH ADJUSTMENT
(1) Load the test tape(VTT-703, etc., 10 kHz) for azimuth
adjustment.
(2) Press the PLAY button.
(3) Use a cross-tip screwdriver to turn the screw for azimuth
adjustment so that the left and right output are maximized.
(4) Press the STOP button.
(5) After completion of the adjustment, use thread lock(TB-1401B)
to secure the azimuth-adjustment screw.
3. MOTOR SPEED ADJUSTMENT
(1) Insert the test tape(TCC-119, etc., 3,000 Hz).
(2) Press the PLAY button.
(3) Use a flat-tip screwdriver to turn the SVR(located inside the
rear of the motor) to adjust SVR so that the frequency counter
become 3,000 Hz.
4. CHECKING THE MECHANISM TORQUES AND TENSION
• Clean the head, capstan and pinch roller before making any measurement.
Measurement Take-up torque Back tension Tape tension
Cassette for PLAY : TW-211A PLAY : TW-2111A Drive-power cassete
measurement F.FW/REW : TW-2231 TW-2412
PLAY 30 - 60 gr.cm 2.0 - 4.5 gr.cm 60 gr or more.
F.FWD 55 - 120 gr.cm. ----- -----
REW 55 - 120 gr.cm. ----- -----
1. HEAD REPLACEMENT
• After replacement, demagnetize the heads by using a degausser.
• Be sure to clean the heads before attempting to make any adjustments.
• All wiring should be returned to the original position after work is completed.
TAPE DECK ADJUSTMENTS
This is a basic adjustment.

- 4 -
EXPLODED VIEW(CABINET & CHASSIS)
10
10
12
11
11
71 72
13
14
15
16
17
18
33
33
30
29
28
27
20
26
36
37
34
56
35
38
39
40
31
1
25
9
44
51
51
54
53
55
57
73
75
74
Y01
Y01
Y02
Y02
Y03
Y04
Y05
Y05
Y14
Y14
Y13
Y13
Y12
Y07
Y07
Y10
Y11
Y11
Y17
Y18
Y20
Y21
Y21
Y21
Y21
Y22
Y23
Y23
Y16
Y15
3
4
5
6
7
8
2

- 5 -
PARTS LIST
CAUTION : Regular type resistors and capacitors are not listed. To know those values, refer to the schematic diagram.
Regular type resistors are less than 1/4W carbon type and 0 ohm chip resistors.
Regular type capacitors are less than 50V and less than 1000µF of Ceramic type and Electrolytic type.
PRODUCT SAFETY NOTICE
EACH PRECAUTION IN THIS MANUAL SHOULD BE FOLLOWED DURING SERVICING. COMPONENTS IDENTIFIED WITH
THE IEC SYMBOL !
!! IN THE PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATE COMPONENTS IN WHICH SAFETY
CAN OF SPECIAL SIGNIFICANCE. WHEN REPLACING A COMPONENT IDENTIFIED , USE ONLY THE REPLACEMENT PARTS
DESIGNATED, OR PARTS WITH THE SAME RATINGS OF RESISTANCE, WATTAGE OR VOLTAGE THAT ARE DESIGNATED
IN THE PARTS LIST IN THIS MANUAL. LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS MUST BE MADE TO
DETERMINE THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT BEFORE RETURNING
THE PRODUCT TO THE CUSTOMER.
REF.NO. PART NO. DESCRIPTION
PACKING & ACCESSORIES
REF.NO. PART NO. DESCRIPTION
645 055 3080 CARTON CASE(300CA)
645 055 1390 CARTON CASE(300XE)
645 055 3097 CARTON CASE(350CA)
645 055 1406 CARTON CASE(350XE)
645 055 3028 INSTRUCTION MANUAL(CA)
645 055 1314 INSTRUCTION MANUAL(300XE)
645 055 1321 INSTRUCTION MANUAL(350XE)
645 055 3059 POLY BAG(CA)
645 046 1620 POLY BAG(XE)
645 044 1943 POLY BAG,I/B
645 027 2073 POLY BAG,PWR CORD
645 055 1369 POLY FOAM
!
!! 645 023 3463 POWER CORD(XE)
!
!! 645 041 7160 AC CORD(CA)
645 041 9812 REMOTE CTL(350CA,XE)
CABINET & CHASSIS
REF.NO. PART NO. DESCRIPTION
1 645 054 3326 KNOB ROTARY,VOL
2645 054 0776 CD DECK MECHANISM,13933162
3645 042 1181 CASS DOOR SPRING
4645 055 1123 ASSY CASS LID,U4-A77
5645 055 1291 CD DISPLAY LENS(All except 350XE)
5645 055 1284 CD DISPLAY LENS(350XE)
6 645 055 1116 ASSY CD CTL PANEL
7645 055 2892 ASSY CABINET(350CA)
7645 055 2885 ASSY CABINET(300CA)
7645 055 1062 ASSY CABINET(350XE)
7645 055 1055 ASSY CABINET(300XE)
8 645 054 3425 KNOB PUSH,BASSXPANDER
9645 054 3432 KNOB LEVEL,FUNCTION
10 645 042 0924 SPK CLIP
11 645 054 3401 CTL BD BKT
12 645 036 0527 ASSY,CASS GEAR
13 645 054 3333 KNOB CASS PAUSE
14 645 054 3340 KNOB CASS STOP/EJECT
15 645 054 3357 KNOB CASS FFWD
16 645 054 3364 KNOB CASS REWIND
17 645 054 3371 KNOB CASS PLAY
18 645 054 3388 KNOB CASS RECORD
20 645 055 1093 ASSY CD DOOR
25 645 054 3319 KNOB ROTARY,TUNING
26 645 054 0929 HANDLE
27 645 042 0542 DIAL POINTER
28 645 042 0351 CD DOOR SPRING
29 645 055 1109 ASSY TOP PANEL,CD TRAY
30 645 042 0801 CD DOOR LOCK
31 645 033 4245 ASSY,GEAR CD DOOR,1020
33 645 033 3446 RUBBER SILICON
34 645 042 0733 TUNING DRUM
35 645 042 0740 TUNING KNOB GEAR
36 645 033 0391 AC SKT COVER
37 645 042 0788 FUNCTION KNOB BKT
38 645 042 0764 BAND KNOB BKT
39 645 055 1086 ASSY CABINET REAR(All except 300XE)
39 645 055 1079 ASSY CABINET REAR(300XE)
40 645 054 3432 KNOB LEVEL,BAND
44 645 055 1307 BATTERY LID
FIXING PARTS
REF.NO. PART NO. DESCRIPTION
Y01 645 027 1168 SCR 3X8,SPK
Y02 645 023 6617 SCREW ST 3X10,CTL BKT
Y03 645 027 1168 SCR 3X8,CASS DOOR GEAR
Y04 645 023 6594 SCREW ST 3X8,RECORDING BD
Y05 645 023 6617 SCREW ST 3X10,CASS DECK
Y07 645 023 6594 SCREW ST 3X8,CD BD
Y10 645 033 4276 SCR 2X6,CD LEAF AW
Y11 645 042 0306 SCR 3 X 12,CD TRAY TO F CAB
Y12 645 027 1168 SCR 3X8,CD DOOR GEAR
Y13 645 027 1373 WASHER METAL
Y14 645 033 0247 SCR 2.6X8,CD DECK
Y15 645 033 1527 SCR 2.6X6,TUNING DRUM
Y16 645 023 6594 SCREW ST 3X8,TUNER BD
Y17 645 027 1182 SCR 3X20,PWR TRANS
Y18 645 027 1144 SCR 2.8X12,AC SOCKET
Y20 645 023 6594 SCREW ST 3X8,RECTIFIER BD
Y21 645 027 1199 SCR 3X30,F CAB TO BACK CAB
Y22 645 027 1236 SCR 3X8,ROD ANT
Y23 645 023 6617 SCREW ST 3X10,CD TRAY
ELECTRICAL-PARTS
REF.NO. PART NO. DESCRIPTION
51 645 042 3307 SPK 4
53 645 043 9780 LEAF SW,CD LID SW
54 !
!! 645 042 9439 PWR TRANS,D1110VN(CA)
54 !
!! 645 041 9881 PWR TRANS,V3023FS(XE)
55 !
!! 645 041 9935 AC SOCKET HJC-022A,UL APP(CA)
55 !
!! 645 032 9760 AC SOCKET S-1-1225,VDE MARK(XE)
56 !
!! 645 055 2984 FUSE GLASS TUBE,FS1101(CA)
56 !
!! 645 054 0639 FUSE GLASS TUBE,FS1101(XE)
57 645 041 9928 ROD ANTENNA,2 SECTION
645 055 1161 FFC CABLE 16PINS,
CD CN904 TO CD DECK
DISPLAY P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
71 614 324 6763 ASSY,PWB DISPLAY(Only initial)
(300CA,XE)
71 614 324 5438 ASSY,PWB DISPLAY(Only initial)
(350CA,XE)
D1201 645 033 3477 DIODE RPM-6938-V4(350CA,XE)
LED701 645 054 0615 LED ROUND TYPE,P/P
LED702 645 054 0615 LED ROUND TYPE,REP
LED703 645 054 0615 LED ROUND TYPE,PROG
SW701 645 042 0023 SW TACT,STOP/CLEAR
SW702 645 042 0023 SW TACT,FB-B-SCAN
SW703 645 042 0023 SW TACT,FF-F-SCAN
SW704 645 042 0023 SW TACT,REPEAT

- 6 -
REF.NO. PART NO. DESCRIPTION
PARTS LIST
REF.NO. PART NO. DESCRIPTION
REC SW P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
72 614 323 9888 ASSY,PWB REC SW(Only initial)
SW201 645 033 3569 PUSH SW,REC SW PS-22F03
645 054 0622 CONNECTOR 5P,
REC SW CN201A TO MAIN CN
645 027 1397 NUT
CD MAIN P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
73 614 324 5407 ASSY,PWB CD MAIN/AMP(Only initial)
(CA)
73 614 324 5193 ASSY,PWB CD MAIN/AMP(Only initial)
(XE)
C0203 403 059 4409 POLYESTER 2200P M 50V
C0204 403 059 4409 POLYESTER 2200P M 50V
C0207 403 061 4701 POLYESTER 0.039U M 50V
C0208 403 061 4701 POLYESTER 0.039U M 50V
C0209 403 060 6904 POLYESTER 3300P M 50V
C0210 403 060 6904 POLYESTER 3300P M 50V
C0222 403 059 4409 POLYESTER 2200P M 50V
C0223 403 059 6908 POLYESTER 0.022U M 50V
C0224 403 057 1202 POLYESTER 0.01U M 50V
C0309 403 058 6008 POLYESTER 0.15U M 50V
C0310 403 058 6008 POLYESTER 0.15U M 50V
C0320 403 058 6008 POLYESTER 0.15U M 50V
C0321 403 058 6008 POLYESTER 0.15U M 50V
C0322 403 056 8905 POLYESTER 1000P M 50V
C0323 403 056 8905 POLYESTER 1000P M 50V
C0324 403 045 1801 ELECT 1000U M 25V
C0920 403 059 8902 POLYESTER 0.22U M 50V
C0921 403 061 9003 POLYESTER 4700P M 50V
C0922 403 060 1305 POLYESTER 2700P M 50V
C0932 403 059 8902 POLYESTER 0.22U M 50V
C0950 403 135 4507 ELECT 1000U M 10V
CN201 645 054 0653 4P HEADER
CN302 645 027 0611 WAFER 4P
CN303 645 033 3682 HEADER 3PINS
CN901 645 054 0684 9P HEADER
CN902 645 054 0677 7P HEADER
CN903 645 051 6511 2P HEADER
CN904 645 054 0646 FFC HEADER 16PINS
D0301 645 023 6112 RECTIFIER 1N-4001
D0302 645 023 6112 RECTIFIER 1N-4001
D0303 645 023 6099 DIODE 1N-4148
D0304 645 023 6099 DIODE 1N-4148
D0305 645 023 6099 DIODE 1N-4148
D0306 645 023 6099 DIODE 1N-4148
D0307 645 023 6099 DIODE 1N-4148
D0308 645 023 6099 DIODE 1N-4148
D0901 645 023 6099 DIODE 1N-4148
IC201 645 033 4696 IC TA2068N
IC301 645 032 9920 IC LA-4227
IC901 645 054 0592 EIC TC94A23FN503
IC902 645 054 0585 IC TA2153FN
IC903 645 044 3022 IC MM1469XH
JK301 645 033 3743 EARPHONE JACK
L0301 645 044 1721 FERRITE BEAD
L0303 645 044 1721 FERRITE BEAD(XE)
L0901 645 042 0108 CHOKE COIL 26UH
L0903 645 033 3637 CHOKE COIL 10UH
Q0201 645 033 3491 TR 2SC945P
Q0202 645 023 6129 TR 9014C
Q0203 645 023 6129 TR 9014C
Q0301 645 023 6129 TR 9014C
Q0302 645 023 6129 TR 9014C
Q0901 645 032 9890 TR KTC-9015C
Q0903 645 054 0578 TR 2SB1426Q
SW301 645 042 0054 SW SLIDE,SS23E01G6
SW302 645 042 0030 SW PUSH,ON-OFF
T0201 645 027 0307 BIAS COIL,IFT 3630
VR301 645 042 0085 ROTARY VR,SHAFT VOL
X0901 645 052 4837 RESONATOR 16.934MHZ
645 027 0352 CHOKE COIL 100UH,MOTOR
645 051 6474 FERRITE BEAD,CN901 TO CN902
645 033 3606 FERRITE BEAD,
MAIN CN301 TO CN1101(CA)
645 051 6474 FERRITE BEAD,
X’FORMER PRI.LEAD(XE)
645 051 6474 FERRITE BEAD,
X’FORMER SEC.LEAD(XE)
645 042 0337 HEAT SINK
TUNER P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
74 614 324 5421 ASSY,PWB TUNER(Only initial)(CA)
74 614 324 5209 ASSY,PWB TUNER(Only initial)(XE)
BF101 645 051 6467 BAND PASS FILTER,BDF101
C0109 645 051 6443 POLYESTER 140PF
C0119 403 057 1202 POLYESTER 0.01U M 50V
C0120 403 057 1202 POLYESTER 0.01U M 50V
CF102 645 055 1130 CERAMIC FILTER
CF103 645 027 0291 CERAMIC FILTER(CA)
CF103 645 041 9966 CERAMIC FILTER(XE)
CN101 645 054 0660 5P HEADER
CY001 403 107 1008 CERAMIC 1000P Z 50V,
TUNER TO MIAN(XE)
D0101 645 023 6099 DIODE 1N-4148
D0102 645 023 6099 DIODE 1N-4148
D0103 645 023 6082 DIODE 1S-2638,AFC
D0107 645 023 6099 DIODE 1N-4148
D0108 645 023 6099 DIODE 1N-4148
DZ101 645 023 6105 ZENER DIODE
IC101 645 041 9973 IC LA1824
L0101 645 023 6297 VHF COIL
L0102 645 032 9944 FTZ COIL,BH-816557
L0105 645 054 0608 AM COIL
SW101 645 042 0047 SW SLIDE SS22E01G6,BAND SW
SW102 645 024 1048 SW SLIDE SK22F03G6,
MONO & BEAT C SW
T0101 645 026 6669 AM OSC,1010
T0102 645 027 0437 FM IFT,IF 0070
T0103 645 033 3866 AM COIL,IF 2070
T0104 645 027 0444 FM IFT,IF 0380
VC101 645 026 6676 PVC,AM/FM
645 055 0560 ASSY BAR ANT
645 042 0344 CONTACT PIN,RT-01T-1.0B
645 042 0184 HSG 1PIN,FM ANT
RECTIFIER P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
75 614 324 5216 ASSY,PWB RECTIFIER(Only initial)(CA)
75 614 323 9918 ASSY,PWB RECTIFIER(Only initial)(XE)
C1105 403 135 0400 ELECT 3300U M 25V
CN1101 645 027 0611 WAFER 4P
D1101 645 023 6112 RECTIFIER 1N-4001
D1102 645 023 6112 RECTIFIER 1N-4001
D1103 645 023 6112 RECTIFIER 1N-4001
D1104 645 023 6112 RECTIFIER 1N-4001
DZ401 645 033 3859 ZENER 8.2V
FS1101 645 055 2984 FUSE GLASS TUBE(CA)
FS1101 645 054 0639 FUSE GLASS TUBE(XE)
Q0401 645 033 3507 TR 2SD2061E
645 027 1298 EYELET,AC1,AC2,AC SW,BATT+,BATT
645 035 0511 FUSE HOLDER MW1010K,
FOR FS1101
645 042 0320 HEAT SINK
SW705 645 042 0023 SW TACT,MEMORY
SW706 645 042 0023 SW TACT,PLAY/PAUSE

- 7 -
TM06
TM05
TM04
TM02
TM01
TM03
EXPLODED VIEW and PARTS LIST(CD MECHANISM & TAPE DECK MECHANISM)
BLOCK DIAGRAM
This is a basic block diagram.
This is a basic exploded view.
CASS DECK MECHANISM(P21VB-A83-2L1F4)
REF.NO. PART NO. DESCRIPTION
645 050 1814 CASS DECK MECHANISM,
SEMI AUTO STOP
TM01 645 018 0637 R/P HEAD
TM02 645 050 1401 PINCH ROLLER
TM03 645 030 6839 E HEAD
TM04 645 050 1395 RF BELT
TM05 645 050 1784 MAIN BELT
TM06 645 050 2101 ASSY,MOTOR

- 8 -
IC BLOCK DIAGRAM & DESCRIPTION
IC901 TC94A23FN503 (CD PROCESSOR)
R/W Buf.
Micon interface
ALU
78
76
77
68 67 66 65 64 63 62 61 60 59 58 55
XSS
XI
XO
80
XVDD
81
DVSR
82
RO
83
DVRR
84
DVDD
85
DVRL
86
LO
87
DVSL
VDD
VSS
93
MXO
94
MXI
24
P1-3
21
P1-0
92
INTR
32
P4-3(SCK/SCL)
31
P4-2(S10/S11/SDA)
30
P4-1(S12)
29
P4-0(ADin/BUZR)
28
P3-3(ADin3)
27
P3-2(ADin2)
26
P3-1(ADin1)
25
P3-0
Bias
LCD Driver/Output Port Port 8
Port 2
Power on Reset
COM1(OT1)
9897
COM2(OT2)
99
COM3(OT3)
10 0
COM4(OT4)
1
S1(OT5)
2
S2(OT6)
10
S10(OT14/ZDET)
11
S11(OT15/CLCK)
12
S12(OT16/DATA)
13
S13(OT17/SFSY)
14
S14(OT18/LRCK)
15
P8-0(S15/BCK)
16
P8-1(S16/AOUT)
17
P8-2(S17/MBOV)
18
P8-3(S18/IPF)
36
35
34
33
P2-3(DATAin)
90 RST
19,96
46,75
47,76
MVDD
20,95 MVSS
P2-2(LRCKin)
P2-1(HSO in)
P2-0(EMPHin)
89
37
IN2
IN1(BCKin)
38 TESTC
88 TESTM
91 HOLD
39 OT19(HSO)
40 OT20(SPCK)
41 OT21(SPDA)
42 OT22(COFS)
43 DOUT
44 SBSY
45 SBOK
50 LPFN
51 LPFO
53 PVREF
54 VCOF
48 P2VREF
49 PDO
50 TMAX
56 SLCO
57 RFI
AVSS AVDD RFCI RFZI RFRP FEI SBAD TEI TEZI FOO TRO VREF
69
RFGC
70
TEBC
71
FMO
72
DMO
73
2VREF
74
SEL
ZDET, CLCK, DATA, SFSY, LRCK, BCK, MBOV, IPF
Reset
F/F
OT19-22
Correction circuit
16k SRAM
Address
Stack Reg.
(8Level)
AD
Conv.
Port 3
BUZR
Port 4
Serial
Interface
Interrupt
Cont.
Timer
Port 1
X’tal
OSC MPX
CPU clock
SBSY
ROM
(16 x 8192 Step)
Data Reg(16 bit)
Program
Counter Instruction
Decoder
RAM
(4 x 512 word)
G-Reg.
SBSY
CLCK, DATA, SFSY,
LRCK, BCK, MBOV, IPF
Reset
CD Reset
Audio out Digital out
AD
ZDET
PWM
PX’tal OSC
Clock
gene.
1 bit DAC
RAM
LPF
ROM
VREF
CLV
servo Synchronous
guarantee EFM
decode
VCO
Sub code decoder
SERVO
control
Digital equalizer
Automatic adjustment
circuit
CD clock VREF
DA
Data
slicer
PLL
TMAX
VREF
P2-0~P2-3
IN1

- 9 -
IC BLOCK DIAGRAM & DESCRIPTION
IC902 TA2153FN (ANALOG SIGNAL PROCESSOR)
16
17
18
FEO
FEN
SEB
19VRO
20RFRP
21BTC
22RFCT
23PKC
24RFRPIN
25RFGO
26GVSW
27AGCIN
28RFO
29GND
30RFN2
15
14
13
SBAD
TEO
TEN
12 2VRO
11 TEB
10 SEL
9 LDO
8 MDI
7 TNI
6 TPI
5 FPI
4 FNI
3 GMAD
2 RFGC
1 Vcc
AGC Amp.
BOTTOM
PEAK
3 STATE
DET.
I-I
I-I
10pF
15pF
40pF
15pF
3pF
10pF
3pF
36pF
40pF
SW1
SW3
SW2
IC902 TA2153FN (ANALOG SIGNAL PROCESSOR)
12345678910 11 12
24 23 22 21 20 19 18 17 16 15 14 13
FM
RF
AM
RF
AM
MIX
FM
MIX
FM
OSC
AM
OSCREG Vcc1
Vcc2GND2
GND1
DECODER PHASE
COMP
PILOT
DET
TRIG ST-SW VCO
DET
DET
AM-IF
S-METER
FM-IF
AGC
FF FF FF
ST
LED
TUN
LED

- 11 -- 10 -
VC102
VC101
SHEMATIC DIAGRAM (MAIN/CA)
This is a basic schematic diagram.

- 13 -- 12 -
VC102
VC101
SHEMATIC DIAGRAM (MAIN/XE)
This is a basic schematic diagram.

- 15 -- 14 -
SHEMATIC DIAGRAM (CD/CA)
This is a basic schematic diagram.
ZX350 Only

- 17 -- 16 -
SHEMATIC DIAGRAM (CD/XE)
This is a basic schematic diagram.
ZX350 Only

- 18 -

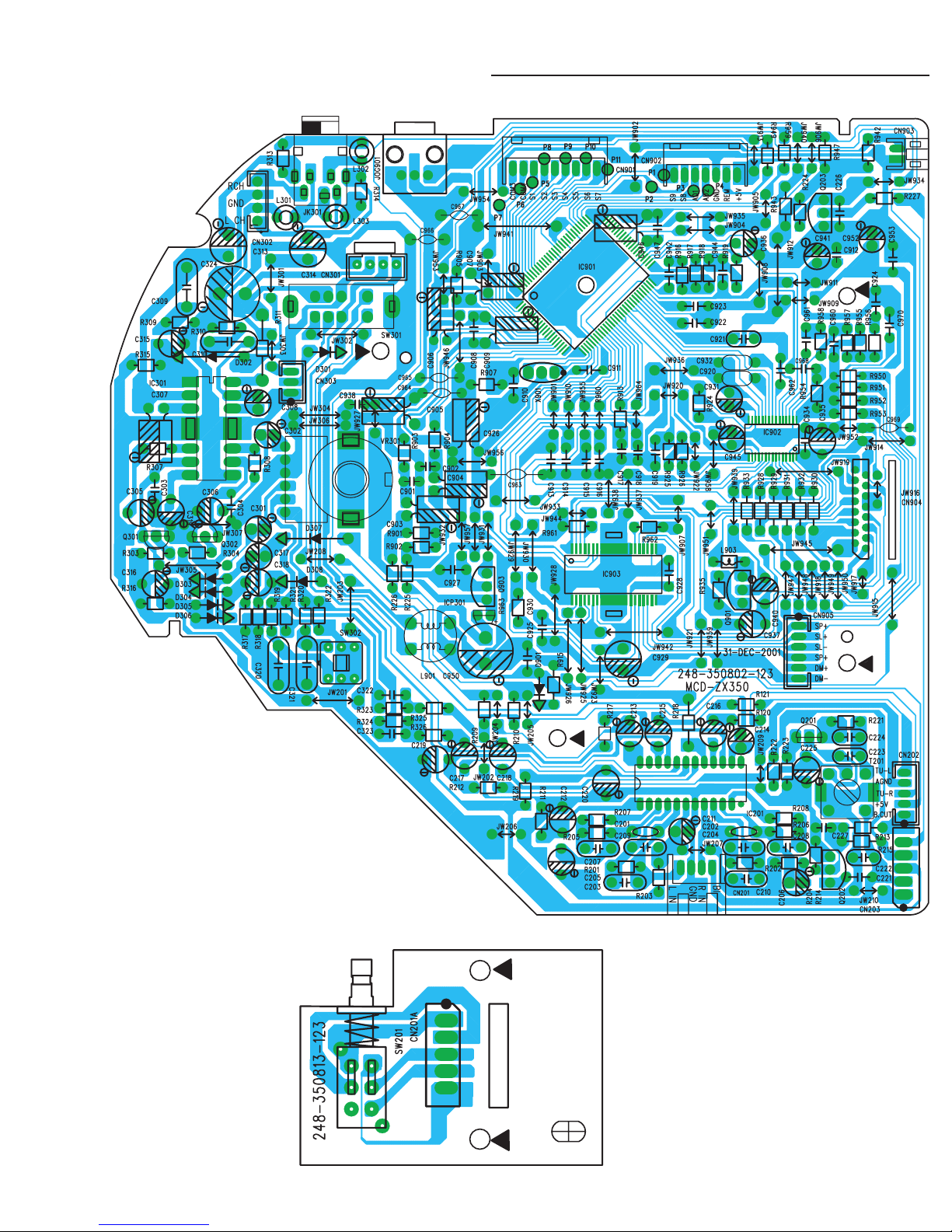

WIRING DIAGRAM (CD MAIN and REC SW)
This is a basic wiring diagram.
CD MAIN
REC SW

- 19 -
WIRING DIAGRAM (TUNER , DISPLAY and RECTIFIER)
TUNER
DISPLAY
RECTIFIER
This is a basic wiring diagram.

- 20 -
CN902
(6P)
CN902
(8P)
CN901
(8P)
CN903
(2P)
CN904
(16P)
CN303
(3P)
CN302
(4P) CN301
(4P)
CN205
(2P)
CN201
(4P)
CN702
(8P)
CN701
(8P)
CN202
(4P) CN203
(5P)
DISPLAY P.W.B
CN1101
(4P)
BATTERY
DC12V
RECTIFIER
P. W. B
CD MAIN P.W.B
P. T
AC IN
RED
ORANGE
YELLOW
YELLOW
BLACK
BROWN
F1101
T2A L 250V
MOTOR
SWITCH
R/P HEAD
M
CD MECHANISM
CN101
(4P)
CN102
(2P)
CN201
(5P)
(6P)
(16P)
TUNER P.W.B
REC SW P.W.B
CD
SWITCH
L-CH SPEAKER R-CH SPEAKER
TAPE DECK
MECHANISUM
FM ROD
ANT.
JK301
PHONES
JOG901
BLACK BLACK
YELLOW
RED
ORANGE
WHITE RED
BLACK
OPT.
DIGITAL
OUT
WIRING CONNECTION
This is a basic wiring connection.

SANYO Electric Co., Ltd.
Osaka, Japan
Apr./ '02 BB Printed in Japan
