Sanyo DP42841 User manual

Specifications
POWER RATING . . . . . . . . . . . . . . . . . . . . . . . . . 120VAC
178 W (AVG.)
ANTENNA INPUT IMPEDANCE. . . . . . . . . . . . . . . . . 75Ω
UHF/VHF/CATV
DIGITAL
RECEIVING CHANNEL . . . . . . . . . . . . . . . . . 2 - 13 (VHF),
14 - 69 (UHF),
01, 14-94, 95-135 (CATV)
1-135 (DIGITAL)
REMOTE READY. . . . . . . . . 36 KEY REMOTE CONTROL
SOUND OUTPUT. . . . . . . . . . . . . . . . . . . . . . . 10.0 W/CH
INTERMEDIATE FREQUENCY
PICTURE IF CARRIER . . . . . . . . . . . . . . . . . . 45.75MHz
SOUND IF CARRIER . . . . . . . . . . . . . . . . . . . 41.25MHz
COLOR SUB CARRIER . . . . . . . . . . . . . . . . . 42.17MHz
CABINET DIMENSIONS
WIDTH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1012mm
HEIGHT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 704mm
DEPTH INCLUDING BASE . . . . . . . . . . . . . . . . 307mm
REFERENCE No. SM780184
DP42841, Z5VG, PRODUCT CODE 113026406
FILE NO.
SERVICE MANUAL Remote Control Digital
Color Television DP42841 (U.S.A.)
(CANADA)
ORIGINAL VERSION
Chassis No. P42841-00
NOTE: Match the Chassis No. on
the unit’s back cover with
the Chassis No. in the
Service Manual.
If the Original Version
Service Manual Chassis
No. does not match the
unit’s, additional Service
Literature is required. You
must refer to “Notices” to the
Original Service Manual
prior to servicing the unit.
Servicing should be performed by only trained and qualified service personnel.
Contents
SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . 2
SERVICE ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . 3
ON-SCREEN SERVICE MENU . . . . . . . . . . . . . . . . . . . . . 4
POWER FAILURE CIRCUIT . . . . . . . . . . . . . . . . . . . . . . . 5
MECHANICAL DISASSEMBLY . . . . . . . . . . . . . . . . . . . . 6
CHASSIS ELECTRICAL PARTS LIST . . . . . . . . . . . . . . . . 8
COMPONENT AND TEST POINT LOCATIONS . . . . . . 21
BLOCK DIAGRAM POWER LINES. . . . . . . . . . . . . . . . . 25
BLOCK DIAGRAM SIGNAL LINES . . . . . . . . . . . . . . . . 26
IC BLOCK DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . 27
TROUBLESHOOTING FLOW CHARTS . . . . . . . . . . . . . 33
MAIN IC(SIGNAL PROCESSOR) & PERIPHERICALS . . 36
SCHEMATIC NOTES . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
IC, DIODE, AND TRANSISTOR PIN LAYOUTS. . . . . . . 38
PC BOARD CONNECTIONS AND LOCATIONS . . . . . . 39
CAPACITOR AND RESISTOR CODE CHART . . . . . . . . 40
SCHEMATIC DIAGRAMS. . . . . . . . . . . . . . . . . . . . . . . . 41
© Sanyo Manufacturing Corporation 2011

– 2 –
SAFETY PRECAUTIONS
WARNING: The chassis of this receiver has a floating
ground with the potential of one half the AC line voltage in
respect to earth ground. Service should not be attempted by
anyone not familiar with the precautions necessary when
working on this type of equipment.
The following precautions must be observed:
1. An isolation transformer must be connected in the power
line between the receiver and the AC line before any ser-
vice is performed on the receiver.
2. Comply with all caution and safety-related notes provid-
ed inside the cabinet, on the chassis, and on the back.
3. When replacing a chassis in the cabinet, always be certain
that all the protective devices are installed properly, such
as control knobs, adjustment covers, shields and barriers.
4. Before replacing the back cover of the set, thoroughly
inspect the inside of the cabinet to see that no stray parts
or tools have been left inside.
Before returning any television to the customer, the
service technician must perform the following safety
checks to be sure that the unit is completely safe to
operate without danger of electrical shock.
ANTENNA COLD CHECK
Remove AC plug from the 120 VAC outlet and place a
jumper across the two blades. Connect one lead of an ohm-
meter to the jumpered AC plug, and touch the other lead to
each exposed antenna terminal (UHF and VHF antenna ter-
minals). The resistance must measure between 1M ohm and
5.2M ohm. Any resistance value below or above this range
indicates an abnormality which requires corrective action.

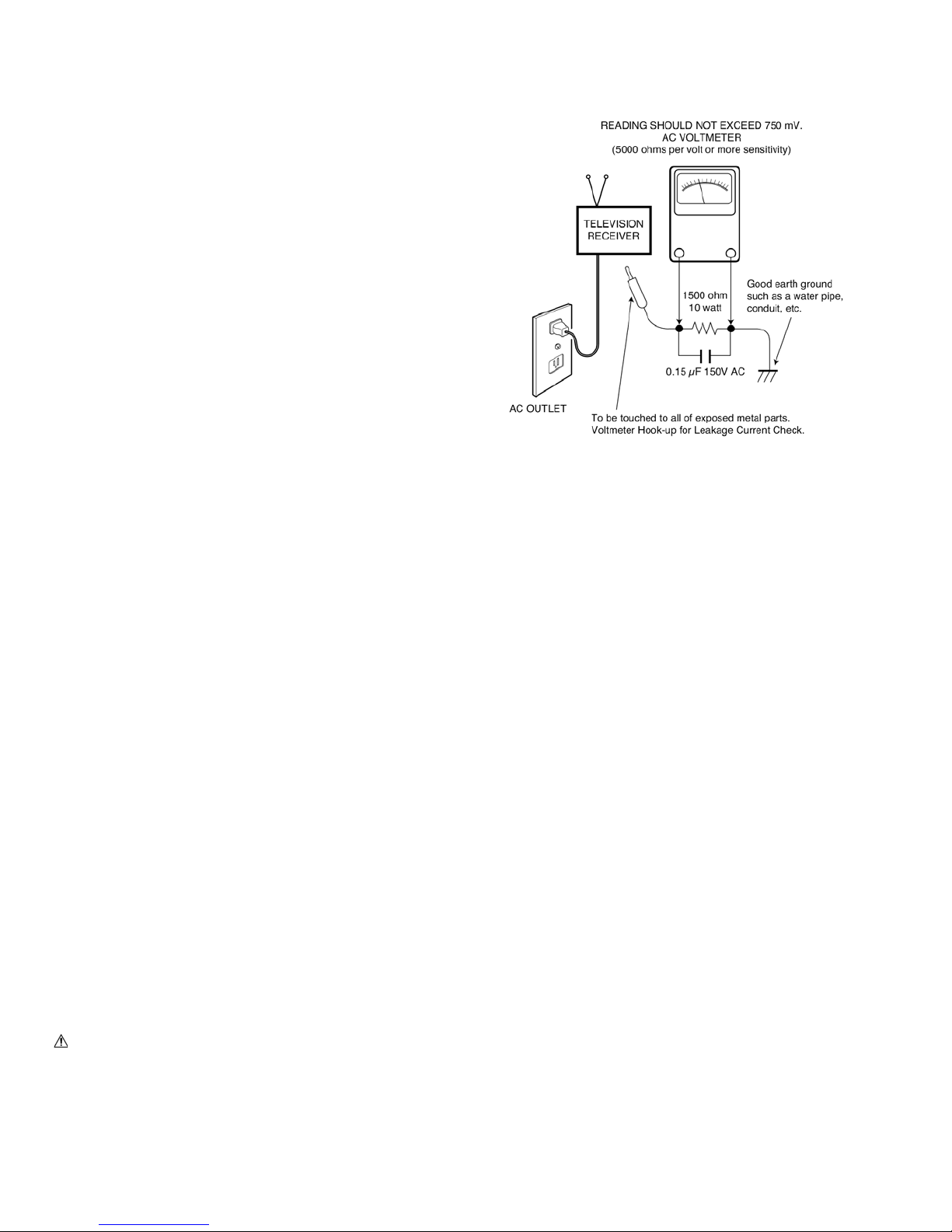

LEAKAGE CURRENT CHECK
Plug the AC line cord directly into a 120 VAC outlet. (Do not
use an isolation transformer for this check.) Use an AC volt-
meter, that has 5000 ohms per volt or more sensitivity.
Connect a 1500 ohm 10 watt resistor, paralleled by a 0.15 μF
150 VAC capacitor, between a known good earth ground
(water pipe, conduit, etc.) and all exposed metal parts of the
cabinet (antennas, handle bracket, metal cabinet, screw
heads, metal overlays, control shafts, etc.). Measure the AC
voltage across the 1500 ohm resistor. The AC voltage
should not exceed 750 mV. A reading exceeding 750 mV
indicates that a dangerous potential exists. The fault must
be located and corrected. Repeat the above test with the
receiver power plug reversed.
NEVER RETURN A RECEIVER TO THE CUSTOMER
WITHOUT TAKING THE NECESSARY CORRECTIVE ACTION.
PRODUCT SAFETY NOTICE
When replacing components in a receiver, always keep in
mind the necessary product safety precautions. Pay special
attention to the replacement of components marked with a
in the parts list and in the schematic diagrams. To ensure
safe product operation, it is necessary to replace those com-
ponents with the exact same PARTS.
SERVICING ELECTROSTATICALLY SENSITIVE DEVICES
Semiconductors (solid-state devices) that can be damaged
by static electricity are referred to as Electrostatically
Sensitive (ES) devices. Examples of typical ES devices are:
Integrated Circuits (IC), Field-Effect Transistors (FET), and
“chip” components. The following techniques should be
observed strictly, to reduce the occurrence of semiconduc-
tor damage due to electrostatic discharge.
1. Immediately prior to handling any semiconductor com-
ponent or an assembly containing a semiconductor
device or devices, discharge the electrostatic buildup on
your body by touching a known earth ground. You may
also obtain and wear a commercially available discharg-
ing wrist strap device.
CAUTION: Be sure to remove the wrist strap before
applying power to any unit being serviced.
2. After removing an ES equipped assembly, place it on a
conductive surface, such as, aluminum foil, to prevent
buildup or exposure to static electricity.
3. Use only grounded-tip soldering irons to solder or unsol-
der ES devices.
4. Use only anti-static solder removal devices. Some suc-
tion-type devices can generate static electricity adequate
to damage ES devices.
5. A replacement ES device will come packaged in protective
material (conductive foam, aluminum foil, or some compa-
rable conductive material). Do Not remove an ES device
from its protective packaging unless you are prepared to
install it immediately.
6. Precisely prior to removing an ES device from its protective
packaging, touch the protective packaging to the chassis or
assembly in which the device will be installed.
CAUTION: Be sure that no power is applied to the chassis
or circuit assembly.
7. Incidental body movements, such as, lifting a foot from
a carpeted floor or the rubbing of fabric together can
generate static electricity sufficient to damage ES devices.
Therefore, minimize all body movements while handling
exposed (unpackaged) ES devices.
SAFETY INSTRUCTIONS

– 3 –
SERVICE ADJUSTMENTS
GENERAL
This set has an On-screen Service Menu system included in
the CPU that allows remote operation for most of the
service adjustments.
ON-SCREEN SERVICE MENU SYSTEM

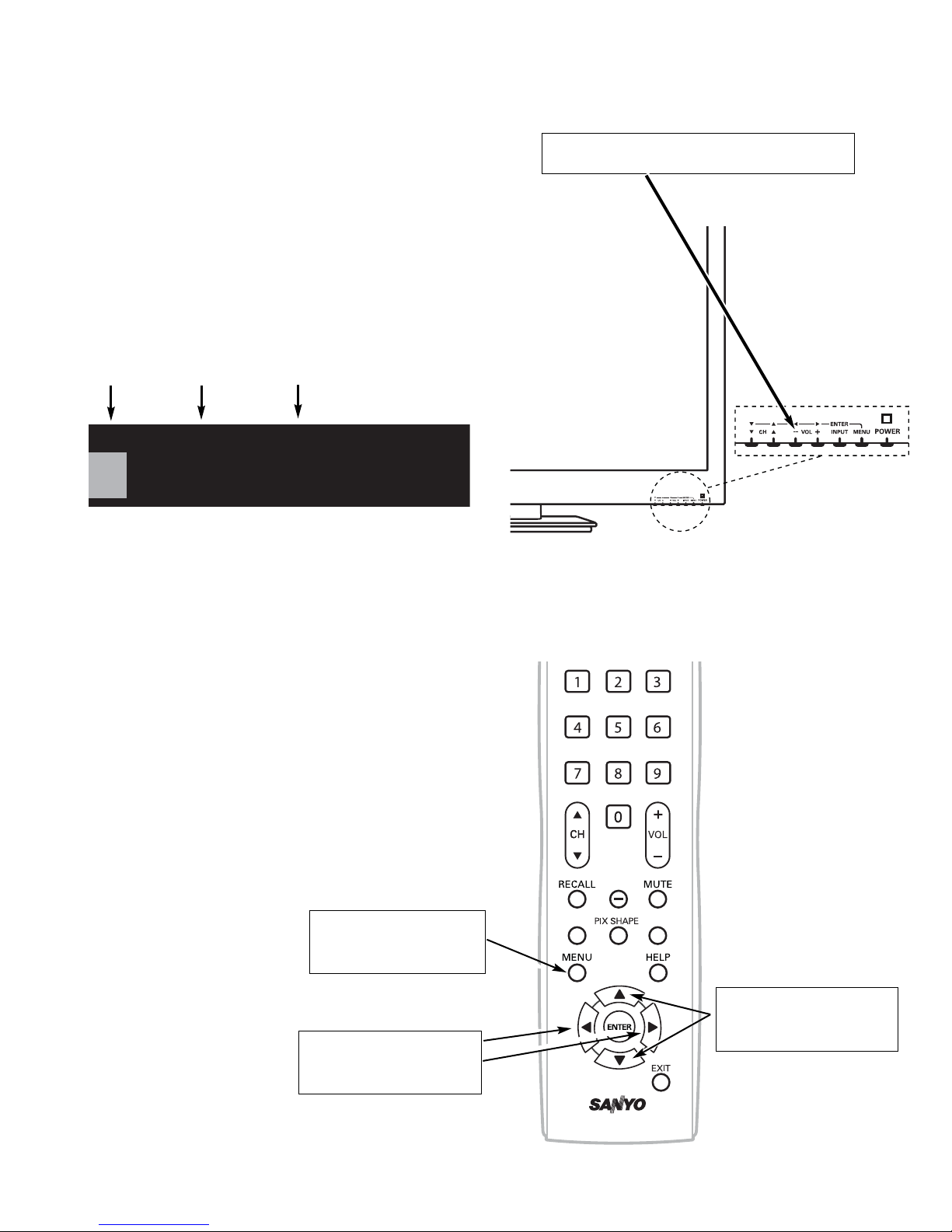

1. Enter the Service Menu:
•Turn off the receiver and disconnect the AC power
supply.
•While pressing the Volume (––) button on the televi-
sion, reconnect the AC power supply. The Service
Menu will now appear. The remote can now be used
to make adjustments. See Figure 1 below.
2. Service Adjustments:
•Press the Cursor  and key to select the desired
service menu item you want to adjust. See page 4 for
the On-screen Service Menu.
•Use the Cursor or key to adjust the data.
The or key will increase or decrease the data
sequentially.
3. Exit from the Service Menu:
•Press the MENU key to turn off the Service Menu
display.
Figure 1. Service Menu Display
HEX DATA
Index ParameterName
FACTORY_VOL 0x21 48 0 255
Value Def. MIN MAX
1
ITEM NO. TITLE
SUB CH
INFO DYN VOL
Menu:
Exit Service Menu
Cursor :
Select Item
Cursor :
Adjust the data
Volume – :Enter Service Menu

– 4 –
ON-SCREEN SERVICE MENU
Table 1. ON-SCREEN SERVICE MENU
When IC5750 (Flash Memory) is replaced, check the bus data to confirm they are the same as below. See page 3 for
On-Screen Service Menu access and adjustments.
PROGRAM CODES
The microprocessor used in this model is a multi-purpose type and is used in several different models. To ensure
proper operation and the correct features for your particular model, the program codes must be correct.
Note 1. Option Data 1 (NO. 087 OP1) should be hexadecimal
00. See 087 above. If this program code is wrong the TV will
not operate properly.
Note 2. Option Data 2 (NO. 088 OP2) should be hexadecimal
13. See 088 above. If this program code is wrong the TV will
not operate properly.
No. Title Initial Data Note
1A0 MUTE A0h Audio mute at Power ON
086 VOL 30h Volume setup inspection
087 OP1 00h Option 1 Data (HDMI)
088 OP2 13h Option 2 Data (Display Panel)
101 1R00 00h ROM Correction Data
102 1R01 00h ROM Correction Data
↓↓ ↓ ↓
197 2R47 00h ROM Correction Data
198 2R48 00h ROM Correction Data
• All data except in gray box area is fixed. Do not change for correct operating.
• Data in gray box is initial and can be set according to adjusment information.

– 5 –

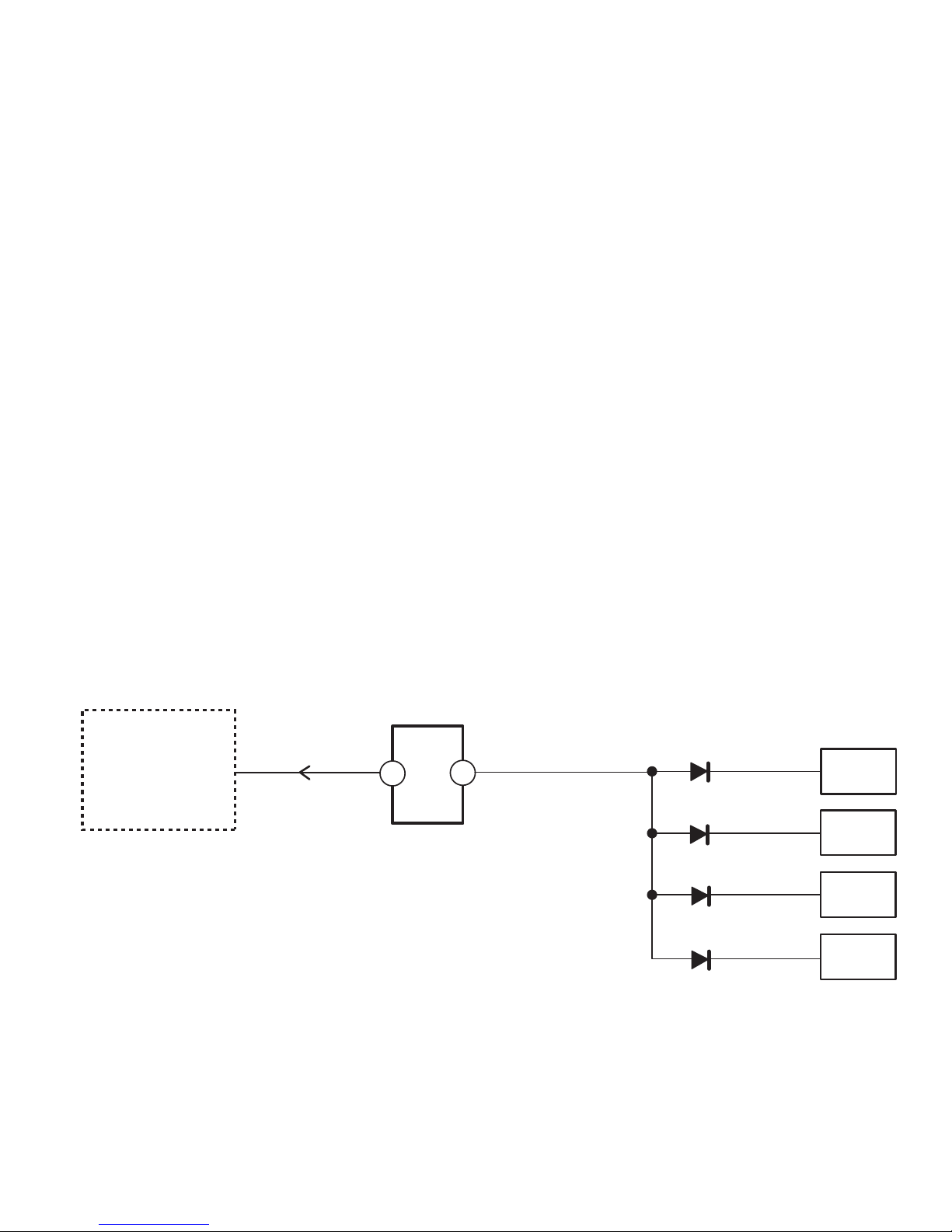

POWER FAILURE CIRCUIT
Check the following if the unit is turned off by the power
failure detector.
1. Disconnect the AC power cord (120V AC line) for a short
time.
2. Connect a DC Voltmeter to the circuits shown below.
3. Press the Power key and check for the proper voltage
supplies.
4. If any of these voltages is low, the power failure detec-
tor should turn the unit off within three seconds.
5. Check all circuits shown below.
Note: If power failure is detected 3 times in 15 minutes,
the set will enter the standby mode and cannot be
switched On.To reset the operating programs of the
sub_CPU it is necessary to disconnect the AC cord
for a short time.
Internal sub_CPU on main IC 5500 is programmed so the
set will go to standby mode when there is circuit failure as
described below. (Refer to“Block Diagram Power Lines”.)
This unit is equipped with a Power Failure Detector function
included in the sub_CPU which checks for an abnormal
condition in the chassis power supplies.
If, while the power is on, a failure is caused by any of the fol-
lowing that results in a low voltage supply, the sub_CPU will
turn the unit off in 1.5 seconds to prevent further damage:
•Failure within the power supply circuits.
•A short circuit in the load side from the supply.
Power Failure: Detected voltage failure for circuit.
(Connected to IC5500 pin D9, through RB5501.)
(Normal: High; Failure: Low)
If, while the power is off, the power is switched on and any
of these failures remains uncorrected, the sub_CPU will
shut off the power within three seconds.
D9
D5
IC5500 (sub_CPU)
Power Fail
Power On1
Power Board
Main
D1668
K8B
D1641
D6700
Audio_Pow
12V
9V
5V
D1613
5V

– 6 –
STAND REMOVAL
Position TV face down on a padded or cushioned surface
to protect the screen and finish.
Remove 4 screws (B: 6x12) to take the stand off.
MECHANICAL DISASSEMBLY
C
C
CC
D
B
Screws for
mounting stand
CAUTION:
This LCD TV uses several different kinds of screws. Using the correct screw is necessary to prevent damage. Lead wires must
be redressed to their previous locations after servicing. The Earth sheet and gasket are provided to prevent interference to
other radio and television receivers. The Earth sheet and gasket should be returned to its previous position after servicing.
ANALOG BOARD AND
MAIN (DIGITAL) BOARD REMOVAL
Remove 5 screws (C: 3X10) to take the Analog Board and
the Main (Digital) Board off.
POWER UNIT REMOVAL
Remove 6 screws (C: 3X10) to take the Power Unit off.
BACK CABINET REMOVAL
Remove 16 screws to take the Back Cabinet off.
(C:3x10, 12 pcs; D:4x8, 4 pcs)
Main(Digital) Board
Power Unit
C
C
C
C
C
Analog Board
C
C
C
C
C
C
KEY SW Unit
C
C
C
RC LCD Board
KEY SW BOARD REMOVAL
Remove 2 screws (C:3x10) to take the KEY SW board off.
RC LED BOARD REMOVAL
Remove 1 screw (C: 3x10) to take the RC LED board off.

– 7 –
CHASSIS BASE REMOVAL
Remove 4 screws (D: 4x8) to take off the chassis base.
SPEAKER REMOVAL
Lift up each speaker from the front cabinet.
ELECTROSTATICALLY SENSITIVE DEVICES
Many solid-state devices (especially Integrated
Circuits) are Electrostatically Sensitive, and, therefore,
require special handling techniques as described
under “Servicing Electrostatically Sensitive Devices,”
on page two in this service literature.
LCD PANEL REMOVAL
Lift up the LCD panel from front cabinet.
DD
DD
Speaker
Speaker
Chasis Base

– 8 –
CHASSIS ELECTRICAL PARTS LIST
CAUTION: To Protect against electrical shock and for continued product safety, refer to SAFETY PRECAUTIONS
and PRODUCT SAFETY NOTICE on Page 2.
PRODUCT SAFETY NOTICE
PRODUCT SAFETY SHOULD BE CONSIDERED WHEN A REPLACEMENT IS MADE IN ANY AREA OF A RECEIVER.
COMPONENTS INDICATED BY A IN THIS PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATE
COMPONENTS IN WHICH SAFETY CAN BE OF SPECIAL SIGNIFICANCE. IT IS PARTICULARLY RECOMMENDED
THAT ONLY PARTS DESIGNATED ON THE FOLLOWING PARTS LIST BE USED FOR COMPONENT REPLACE-
MENT DESIGNATED BY A . NO DEVIATIONS FROM RESISTANCE, WATTAGE, AND VOLTAGE RATINGS MAY
BE MADE FOR REPLACEMENT ITEMS DESIGNATED BY A .
Schematic
Location Part No. Description Schematic
Location Part No. Description

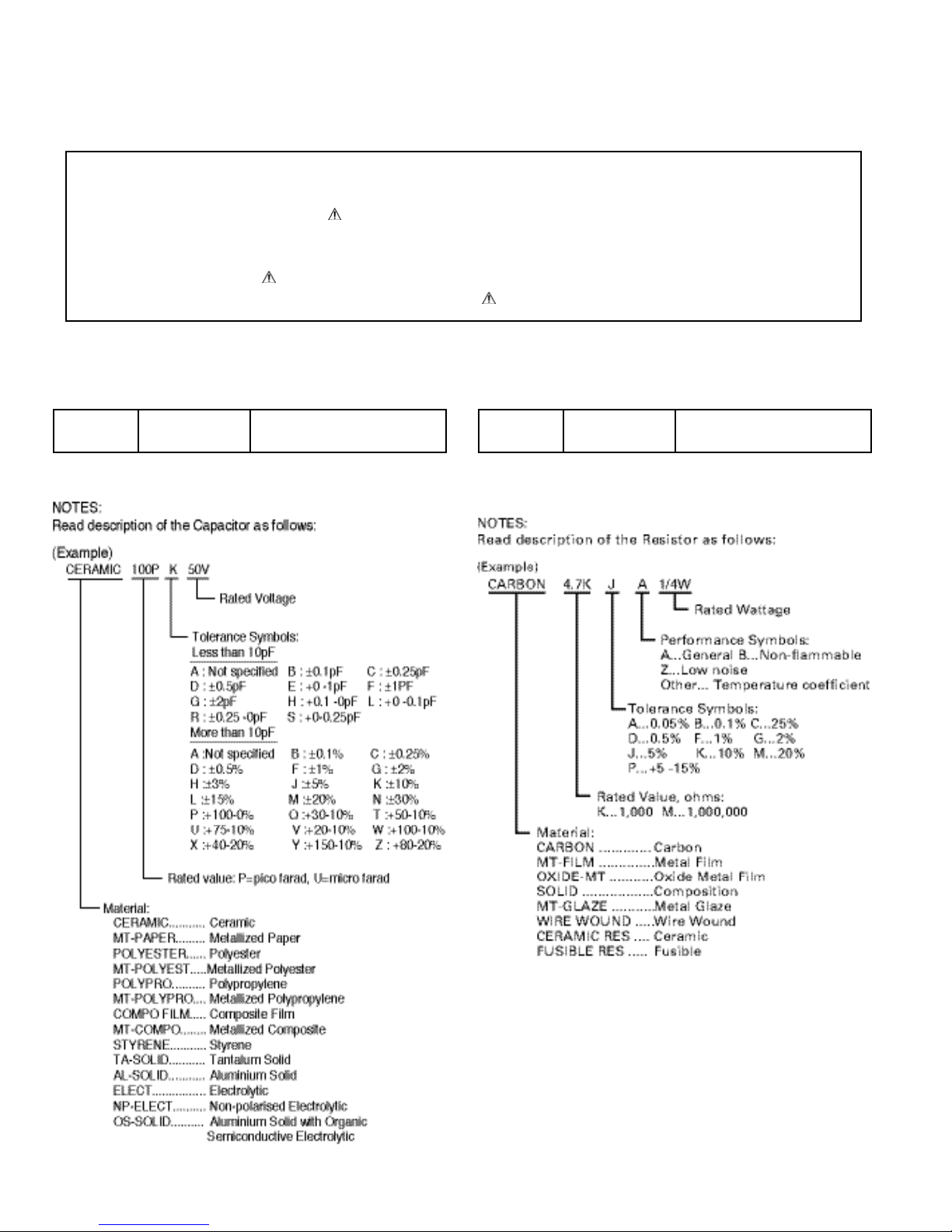

Note: Schematic part location numbers may not always match with the part descriptions.
The part descriptions are correct and should be used.
CAPACITORS RESISTORS

– 9 –
Schematic
Location Part No. Description
“ASSY,PWB,DIGITAL_Z-Z5VG”
CAPACITORS
C001 F1G1C104A077 CERAMIC 0.1U K 16V
C003 F1G1C104A077 CERAMIC 0.1U K 16V
C004 F1J1E105A171 CERAMIC 1U K 25V
C005 F1G1C104A077 CERAMIC 0.1U K 16V
C006 F1G1C104A077 CERAMIC 0.1U K 16V
C007 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C008 F1H1H104A913 CERAMIC 0.1U K 50V
C009 F1H1H104A913 CERAMIC 0.1U K 50V
C010 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C011 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C012 F1H1H104A913 CERAMIC 0.1U K 50V
C013 F1H1H104A913 CERAMIC 0.1U K 50V
C015 F1H1H104A913 CERAMIC 0.1U K 50V
C017 F1H1H104A913 CERAMIC 0.1U K 50V
C018 F1H1H104A913 CERAMIC 0.1U K 50V
C019 F1H1H104A913 CERAMIC 0.1U K 50V
C020 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C021 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C023 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C024 F1G1C104A077 CERAMIC 0.1U K 16V
C025 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C027 F1J1E105A171 CERAMIC 1U K 25V
C5505 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5506 F1G1H103A706 CERAMIC 0.01U K 50V
C5507 F1H0J4750004 CERAMIC 4.7U K 6.3V
C5508 F1G1C104A077 CERAMIC 0.1U K 16V
C5509 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5510 F1G1C104A077 CERAMIC 0.1U K 16V
C5511 F1G1H1020008 CERAMIC 1000P K 50V
C5512 F1G1C104A077 CERAMIC 0.1U K 16V
C5513 F1G1C104A077 CERAMIC 0.1U K 16V
C5514 F1G1H1020008 CERAMIC 1000P K 50V
C5515 F1G1H1020008 CERAMIC 1000P K 50V
C5516 F1G1H103A706 CERAMIC 0.01U K 50V
C5517 F1G1H221A737 CERAMIC 220P J 50V
C5518 F1G1C104A077 CERAMIC 0.1U K 16V
C5519 F1G1H103A706 CERAMIC 0.01U K 50V
C5520 F1G1C104A077 CERAMIC 0.1U K 16V
C5522 CC1H390JMNCNG CERAMIC 39P J 50V
C5523 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5525 F1G1H221A737 CERAMIC 220P J 50V
C5527 F1G1H103A706 CERAMIC 0.01U K 50V
C5528 F1G1C104A077 CERAMIC 0.1U K 16V
C5531 F1G1C104A077 CERAMIC 0.1U K 16V
C5532 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5533 F1G1C104A077 CERAMIC 0.1U K 16V
C5534 F1G1H103A706 CERAMIC 0.01U K 50V
C5535 F1G1H1020008 CERAMIC 1000P K 50V
C5536 F1G1H221A737 CERAMIC 220P J 50V
C5537 F1J0J106A004 CERAMIC 10U K 6.3V
C5537 F1J0J106A020 CERAMIC 10U K 6.3V
C5538 F1G1H1020008 CERAMIC 1000P K 50V
C5539 F1G1H103A706 CERAMIC 0.01U K 50V
C5540 F1G1H1020008 CERAMIC 1000P K 50V
C5541 F1G1H103A706 CERAMIC 0.01U K 50V
C5542 F1J0J106A004 CERAMIC 10U K 6.3V
C5542 F1J0J106A020 CERAMIC 10U K 6.3V
C5543 F1G1H103A706 CERAMIC 0.01U K 50V
C5544 F1G1A105A047 CERAMIC 1U K 10V
C5546 F1G1C104A077 CERAMIC 0.1U K 16V
C5547 F1G1H392A571 CERAMIC 3900P K 50V
C5549 F1G1C104A077 CERAMIC 0.1U K 16V
C5550 F1G1H103A706 CERAMIC 0.01U K 50V
C5551 F1G1H1020008 CERAMIC 1000P K 50V
C5552 F1G1C104A077 CERAMIC 0.1U K 16V
C5553 F1G1H103A706 CERAMIC 0.01U K 50V
C5554 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5555 F1G1C104A077 CERAMIC 0.1U K 16V
C5556 F1J0J106A004 CERAMIC 10U K 6.3V
C5556 F1J0J106A020 CERAMIC 10U K 6.3V
C5557 F1G1A105A047 CERAMIC 1U K 10V
C5558 F1G1H1020008 CERAMIC 1000P K 50V
C5559 F1G1H1020008 CERAMIC 1000P K 50V
C5560 F1G1A105A047 CERAMIC 1U K 10V
C5561 F1G1H1020008 CERAMIC 1000P K 50V
C5562 F1G1C104A077 CERAMIC 0.1U K 16V
C5563 F1G1C104A077 CERAMIC 0.1U K 16V
C5565 F1J0J106A004 CERAMIC 10U K 6.3V
C5565 F1J0J106A020 CERAMIC 10U K 6.3V
C5566 F1G1A105A047 CERAMIC 1U K 10V
C5567 F1H0J4750004 CERAMIC 4.7U K 6.3V
C5568 F1G1H1020008 CERAMIC 1000P K 50V
C5569 F1G1C104A077 CERAMIC 0.1U K 16V
C5570 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5571 F1G1C104A077 CERAMIC 0.1U K 16V
C5572 F1G1A105A047 CERAMIC 1U K 10V
C5574 F1G1A105A047 CERAMIC 1U K 10V
C5575 F1G1A105A047 CERAMIC 1U K 10V
C5576 F1G1A105A047 CERAMIC 1U K 10V
C5577 F1G1A105A047 CERAMIC 1U K 10V
C5578 F1G1A105A047 CERAMIC 1U K 10V
C5579 F1G1A105A047 CERAMIC 1U K 10V
C5580 F1G1A105A047 CERAMIC 1U K 10V
C5581 F1G1E473A091 CERAMIC 0.047U K 25V
C5583 F1G1E473A091 CERAMIC 0.047U K 25V
C5585 F1G1H103A706 CERAMIC 0.01U K 50V
Schematic
Location Part No. Description

– 10 –
Schematic
Location Part No. Description Schematic Location Part No. Description
C5586 F1G1E473A091 CERAMIC 0.047U K 25V
C5588 F1G1E473A091 CERAMIC 0.047U K 25V
C5590 F1G1E473A091 CERAMIC 0.047U K 25V
C5592 F1G1C104A077 CERAMIC 0.1U K 16V
C5593 F1G1E473A091 CERAMIC 0.047U K 25V
C5595 F1G1E473A091 CERAMIC 0.047U K 25V
C5597 F1G1H103A706 CERAMIC 0.01U K 50V
C5598 F1G1E473A091 CERAMIC 0.047U K 25V
C5600 F1G1E473A091 CERAMIC 0.047U K 25V
C5602 F1G1E473A091 CERAMIC 0.047U K 25V
C5606 CC1H390JMNCNG CERAMIC 39P J 50V
C5613 F1H1H1500009 CERAMIC 15P J 50V
C5614 F1H1H1500009 CERAMIC 15P J 50V
C5615 F1G1C104A077 CERAMIC 0.1U K 16V
C5616 F1G1C104A077 CERAMIC 0.1U K 16V
C5618 F1G1C104A077 CERAMIC 0.1U K 16V
C5619 CC1H150JMNCNG CERAMIC 15P J 50V
C5620 CC1H150JMNCNG CERAMIC 15P J 50V
C5650 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5652 CK1A684KMNBNG CERAMIC 0.68U K 10V
C5653 F1G1C104A077 CERAMIC 0.1U K 16V
C5658 F1G1A2240008 CERAMIC 0.22U K 10V
C5661 F1G1C104A077 CERAMIC 0.1U K 16V
C5700 F1G1A105A047 CERAMIC 1U K 10V
C5701 F1G1C104A077 CERAMIC 0.1U K 16V
C5702 F1G1A105A047 CERAMIC 1U K 10V
C5703 F1G1C104A077 CERAMIC 0.1U K 16V
C5704 F1G1C104A077 CERAMIC 0.1U K 16V
C5705 F1G1C104A077 CERAMIC 0.1U K 16V
C5707 F1G1C104A077 CERAMIC 0.1U K 16V
C5708 F1G1C104A077 CERAMIC 0.1U K 16V
C5709 F1G1C104A077 CERAMIC 0.1U K 16V
C5711 F1G1C104A077 CERAMIC 0.1U K 16V
C5712 F1G1C104A077 CERAMIC 0.1U K 16V
C5713 F1G1C104A077 CERAMIC 0.1U K 16V
C5714 F1J0J106A004 CERAMIC 10U K 6.3V
C5714 F1J0J106A020 CERAMIC 10U K 6.3V
C5715 F1J0J106A004 CERAMIC 10U K 6.3V
C5715 F1J0J106A020 CERAMIC 10U K 6.3V
C5750 F1G1A105A047 CERAMIC 1U K 10V
C5902 F1G1A105A047 CERAMIC 1U K 10V
C5903 F1G1A474A052 CERAMIC 0.47U K 10V
C5905 F1G1C104A077 CERAMIC 0.1U K 16V
C6250 F1G1A105A047 CERAMIC 1U K 10V
C6251 F1G1H1020008 CERAMIC 1000P K 50V
C6252 F1H0J4750004 CERAMIC 4.7U K 6.3V
C6253 F2G1C101A066 ELECT 100U M 16V
C6254 F1G1C104A077 CERAMIC 0.1U K 16V
C6255 CC1H560JMNCNG CERAMIC 56P J 50V
C6256 F1H0J4750004 CERAMIC 4.7U K 6.3V
C6257 F1H0J4750004 CERAMIC 4.7U K 6.3V
C6258 CC1H560JMNCNG CERAMIC 56P J 50V
C6259 F1H0J4750004 CERAMIC 4.7U K 6.3V
C6260 F1G1H1020008 CERAMIC 1000P K 50V
C6261 F1G1A105A047 CERAMIC 1U K 10V
C6330 F1G1C104A077 CERAMIC 0.1U K 16V
C6332 F2G1C221A066 ELECT 220U M 16V
C6500 F1G1C104A077 CERAMIC 0.1U K 16V
C6501 F1G1C104A077 CERAMIC 0.1U K 16V
C6530 F1G1C104A077 CERAMIC 0.1U K 16V
C6531 F1G1C104A077 CERAMIC 0.1U K 16V
C6560 F1G1C104A077 CERAMIC 0.1U K 16V
C6561 F1G1C104A077 CERAMIC 0.1U K 16V
C6600 F1G1C104A077 CERAMIC 0.1U K 16V
C6601 F1G1A105A047 CERAMIC 1U K 10V
C6602 F2G1C471A066 ELECT 470U M 16V
C6701 F1G1C104A077 CERAMIC 0.1U K 16V
C6702 F1G1C104A077 CERAMIC 0.1U K 16V
C6703 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C6706 F1G1C104A077 CERAMIC 0.1U K 16V
C6707 F2G1C471A066 ELECT 470U M 16V
C6708 F1G1A2240008 CERAMIC 0.22U K 10V
C6720 F1H0J4750004 CERAMIC 4.7U K 6.3V
C6721 F1G1C104A077 CERAMIC 0.1U K 16V
C6722 F1G1H223A720 CERAMIC 0.022U K 50V
C6723 F1G1A105A047 CERAMIC 1U K 10V
C6725 F1G1H392A571 CERAMIC 3900P K 50V
C6726 F1G1A105A047 CERAMIC 1U K 10V
C6727 F2G1C471A066 ELECT 470U M 16V
C6728 F1G1H103A706 CERAMIC 0.01U K 50V
C6729 F1G1C104A077 CERAMIC 0.1U K 16V
C6730 F1G1H1020008 CERAMIC 1000P K 50V
C6740 F1G1A2240008 CERAMIC 0.22U K 10V
C6741 F1G1C104A077 CERAMIC 0.1U K 16V
C6742 F1G1C104A077 CERAMIC 0.1U K 16V
C6743 F2G1C221A066 ELECT 220U M 16V
C6752 F1G1E473A091 CERAMIC 0.047U K 25V
C6753 F1G1A105A047 CERAMIC 1U K 10V
C6754 F1G1A105A047 CERAMIC 1U K 10V
DIODES
D6700 B0ACCK000005 DIODE 1SS355-TE-17
B0ACDJ000007 DIODE 1SS352-(TPH3)
DDDA2J10100LG DIODE DA2J10100L
D6720 B0JCND000033 DIODE CRS20I30A
INTEGRATED CIRCUITS
IC001 QLV4906V-H—P IC LV4906V-TLM-H
IC5500 C1AB00003726 IC ZR39748BGCG
IC5650 C0EBY0000980 IC XC6108N28AMR
IC5660 C0EBY0000980 IC XC6108N28AMR
IC5700 C3ABSY000092 IC H5PS5162FFR-25C
IC5750 QXXAAJQ1300— IC S25FL064P0XMFI0 N8LJ
IC5750A C3FBPY000228 IC S25FL064P0XMFI000
IC5900 C0EBY0000980 IC XC6108N28AMR
IC6250 C0ABBB000350 IC BA4558RF-E2
C0ABBB000450 IC NJM4558M-TE2
IC6500 C0JBAA000502 “IC TC7SET08FU(5L,JF,T”
C0JBAA000505 IC 74AHCT1G08GW
IC6530 C0JBAA000502 “IC TC7SET08FU(5L,JF,T”

– 11 –
Schematic
Location Part No. Description Schematic Location Part No. Description
C0JBAA000505 IC 74AHCT1G08GW
IC6560 C0JBAA000502 “IC TC7SET08FU(5L,JF,T”
C0JBAA000505 IC 74AHCT1G08GW
IC6600 C0DBZYY00458 IC RT9711CGB
IC6700 C0CBAYG00009 IC LM1117S-ADJ
IC6720 QLV5893M-E—P IC LV5893M-TE-L-E
IC6750 C0DBGYY02242 IC AP2128K-ADJTRG1
COILS
L001 J0JCC0000371 “INDUCTOR , 120 OHM”
L002 G1C220MA0445 “INDUCTOR ,22UH”
L003 G1C220MA0445 “INDUCTOR ,22UH”
L004 G1C220MA0445 “INDUCTOR ,22UH”
L005 G1C220MA0445 “INDUCTOR ,22UH”
L010 J0JYC0000381 “INDUCTOR , 220 OHM”
L011 J0JYC0000381 “INDUCTOR , 220 OHM”
L012 J0JYC0000381 “INDUCTOR , 220 OHM”
L013 J0JYC0000381 “INDUCTOR , 220 OHM”
L5500 J0JCC0000371 “INDUCTOR , 120 OHM”
L5501 J0JCC0000371 “INDUCTOR , 120 OHM”
L5502 J0JCC0000371 “INDUCTOR , 120 OHM”
L5503 J0JYC0000381 “INDUCTOR , 220 OHM”
L5504 J0JYC0000381 “INDUCTOR , 220 OHM”
L5505 J0JCC0000371 “INDUCTOR , 120 OHM”
L5506 J0JCC0000371 “INDUCTOR , 120 OHM”
L5507 J0JCC0000371 “INDUCTOR , 120 OHM”
L5508 J0JCC0000371 “INDUCTOR , 120 OHM”
L5509 J0JCC0000371 “INDUCTOR , 120 OHM”
L5510 J0JCC0000371 “INDUCTOR , 120 OHM”
L5511 J0JCC0000371 “INDUCTOR , 120 OHM”
L5512 D0GB750JA072 MT-GLAZE 75 JA 1/10W
L5513 J0JCC0000371 “INDUCTOR , 120 OHM”
L5514 J0JCC0000371 “INDUCTOR , 120 OHM”
L5515 J0JCC0000371 “INDUCTOR , 120 OHM”
L5516 G1CR22JA0041 “INDUCTOR,0.22U J”
L6250 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6301 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6308 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6310 D1HYR004A012 R-NETWORK 0X4 0.063W
L6311 D1HYR004A012 R-NETWORK 0X4 0.063W
L6312 D1HYR004A012 R-NETWORK 0X4 0.063W
L6313 D1HYR004A012 R-NETWORK 0X4 0.063W
L6314 D1HYR004A012 R-NETWORK 0X4 0.063W
L6315 D1HYR004A012 R-NETWORK 0X4 0.063W
L6720 G1C220MA0445 “INDUCTOR ,22UH”
L6721 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6722 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
TRANSISTORS
Q6250 B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q6251 B1ADCF000194 TR ISA1235AC1F
B1ADCF000201 TR ISA1235AC1E
TXXLBB005—-P TR MMBTSA1235F
Q6252 B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q6329 TCPH3338-T-EP TR CPH3338-T-TL-E
Q6330 T2SC2859-Y—P TR 2SC2859-Y TE85L
Q6331 B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q6332 B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q6700 B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q6701 TCPH3338-T-EP TR CPH3338-T-TL-E
Q6720 B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q6721 B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q6730 TMCH6437-P-EG TR MCH6437-P-TL-E
Q6740 B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q6741 B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q6742 TMCH6437-P-EG TR MCH6437-P-TL-E
RESISTORS
R004 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R005 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R006 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R007 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R008 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5500 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R5501 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R5502 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5503 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5504 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5505 D0GB123ZA038 MT-GLAZE 12K FA 1/10W
R5506 D0GB821ZA037 MT-GLAZE 820 FA 1/10W
R5507 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R5508 D0GB123ZA038 MT-GLAZE 12K FA 1/10W
R5509 D0GB472ZA038 MT-GLAZE 4.7K FA 1/10W
R5510 D0GB472ZA038 MT-GLAZE 4.7K FA 1/10W
R5513 D0GB820JA072 MT-GLAZE 82 JA 1/10W
R5514 D0GB100JA072 MT-GLAZE 10 JA 1/10W
R5516 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R5517 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R5518 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R5519 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R5520 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5522 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R5523 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R5524 D0GB391ZA037 MT-GLAZE 390 FA 1/10W

– 12 –
Schematic
Location Part No. Description Schematic Location Part No. Description
R5525 D0GB472JA072 MT-GLAZE 4.7K JA 1/10W
R5526 D0GB472JA072 MT-GLAZE 4.7K JA 1/10W
R5527 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5528 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5529 D0GB333JA070 MT-GLAZE 33K JA 1/10W
R5530 D0GB273JA072 MT-GLAZE 27K JA 1/10W
R5531 D0GB333JA070 MT-GLAZE 33K JA 1/10W
R5532 D0GB273JA072 MT-GLAZE 27K JA 1/10W
R5533 D0GB333JA070 MT-GLAZE 33K JA 1/10W
R5534 D0GB273JA072 MT-GLAZE 27K JA 1/10W
R5535 D0GB333JA070 MT-GLAZE 33K JA 1/10W
R5536 D0GB273JA072 MT-GLAZE 27K JA 1/10W
R5537 D0GB333JA070 MT-GLAZE 33K JA 1/10W
R5538 D0GB273JA072 MT-GLAZE 27K JA 1/10W
R5539 D0GB333JA070 MT-GLAZE 33K JA 1/10W
R5540 D0GB273JA072 MT-GLAZE 27K JA 1/10W
R5541 D0GB333JA070 MT-GLAZE 33K JA 1/10W
R5542 D0GB273JA072 MT-GLAZE 27K JA 1/10W
R5543 D0GB273JA072 MT-GLAZE 27K JA 1/10W
R5544 D0GB333JA070 MT-GLAZE 33K JA 1/10W
R5545 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5546 D0GB750JA072 MT-GLAZE 75 JA 1/10W
R5547 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5548 D0GB750JA072 MT-GLAZE 75 JA 1/10W
R5549 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5550 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5551 D0GB750JA072 MT-GLAZE 75 JA 1/10W
R5552 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5553 D0GB750JA072 MT-GLAZE 75 JA 1/10W
R5554 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5555 D0GB750JA072 MT-GLAZE 75 JA 1/10W
R5556 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5557 D0GB750JA072 MT-GLAZE 75 JA 1/10W
R5558 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5559 D0GB750JA072 MT-GLAZE 75 JA 1/10W
R5560 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5561 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5562 D0GB750JA072 MT-GLAZE 75 JA 1/10W
R5563 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5564 D0GB750JA072 MT-GLAZE 75 JA 1/10W
R5565 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5566 D0GB750JA072 MT-GLAZE 75 JA 1/10W
R5567 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5568 D0GB681JA069 MT-GLAZE 680 JA 1/10W
R5569 D0GB105JA071 MT-GLAZE 1M JA 1/10W
R5570 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5572 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R5573 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R5574 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R5575 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R5576 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R5577 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5578 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R5579 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R5581 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R5582 D0GB222JA072 MT-GLAZE 2.2K JA 1/10W
R5583 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R5584 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R5585 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5586 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5587 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R5588 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R5589 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R5591 D0GB472JA072 MT-GLAZE 4.7K JA 1/10W
R5592 D0GB472JA072 MT-GLAZE 4.7K JA 1/10W
R5593 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R5594 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R5598 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R5599 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R5650 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5653 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R5654 D0GB472JA072 MT-GLAZE 4.7K JA 1/10W
R5659 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R5662 D0GB472JA072 MT-GLAZE 4.7K JA 1/10W
R5700 D0GB101ZA037 MT-GLAZE 100 FA 1/10W
R5701 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R5702 D0GB101ZA037 MT-GLAZE 100 FA 1/10W
R5750 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R5751 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R5753 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R5900 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R5901 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R5902 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R5903 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5908 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5950 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R5952 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R5954 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R5956 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R5957 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R6250 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R6251 D0GB471JA069 MT-GLAZE 470 JA 1/10W
R6253 D0GB392JA072 MT-GLAZE 3.9K JA 1/10W
R6254 D0GB222JA072 MT-GLAZE 2.2K JA 1/10W
R6255 D0GB222JA072 MT-GLAZE 2.2K JA 1/10W
R6256 D0GB273JA072 MT-GLAZE 27K JA 1/10W
R6257 D0GB563JA072 MT-GLAZE 56K JA 1/10W
R6259 D0GB563JA072 MT-GLAZE 56K JA 1/10W
R6260 D0GB273JA072 MT-GLAZE 27K JA 1/10W
R6262 D0GB392JA072 MT-GLAZE 3.9K JA 1/10W
R6263 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R6266 D0GB471JA069 MT-GLAZE 470 JA 1/10W
R6267 D0GB471JA069 MT-GLAZE 470 JA 1/10W
R6268 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R6269 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6314 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6315 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6317 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6318 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6321 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6322 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6323 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W

– 13 –
Schematic
Location Part No. Description Schematic Location Part No. Description
R6324 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6330 D0GZ151JA019 MT-GLAZE 150 JA 1W
R6331 D0GZ151JA019 MT-GLAZE 150 JA 1W
R6332 D0GZ151JA019 MT-GLAZE 150 JA 1W
R6337 D0GB105JA071 MT-GLAZE 1M JA 1/10W
R6339 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6340 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6341 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6342 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6344 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6346 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6348 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6350 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6500 D0GB473JA072 MT-GLAZE 47K JA 1/10W
R6501 D0GB473JA072 MT-GLAZE 47K JA 1/10W
R6502 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R6503 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6504 D0GB470J0002 MT-GLAZE 47 JA 1/10W
R6505 D0GB470J0002 MT-GLAZE 47 JA 1/10W
R6506 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R6516 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6517 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6519 D0GB223JA070 MT-GLAZE 22K JA 1/10W
R6520 D0GB470J0002 MT-GLAZE 47 JA 1/10W
R6530 D0GB473JA072 MT-GLAZE 47K JA 1/10W
R6531 D0GB473JA072 MT-GLAZE 47K JA 1/10W
R6532 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R6533 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6534 D0GB470J0002 MT-GLAZE 47 JA 1/10W
R6535 D0GB470J0002 MT-GLAZE 47 JA 1/10W
R6536 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R6546 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6547 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6549 D0GB223JA070 MT-GLAZE 22K JA 1/10W
R6550 D0GB470J0002 MT-GLAZE 47 JA 1/10W
R6560 D0GB473JA072 MT-GLAZE 47K JA 1/10W
R6561 D0GB473JA072 MT-GLAZE 47K JA 1/10W
R6562 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R6563 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6564 D0GB470J0002 MT-GLAZE 47 JA 1/10W
R6565 D0GB470J0002 MT-GLAZE 47 JA 1/10W
R6566 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R6576 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6577 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6579 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6581 D0GB470J0002 MT-GLAZE 47 JA 1/10W
R6582 D0GB223JA070 MT-GLAZE 22K JA 1/10W
R6600 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6602 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6604 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6606 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6607 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6608 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
R6700 D0GB223JA070 MT-GLAZE 22K JA 1/10W
R6702 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6703 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6704 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6705 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6706 D0GB471ZA037 MT-GLAZE 470 FA 1/10W
R6707 D0GB100JA072 MT-GLAZE 10 JA 1/10W
R6708 D0GB221Z0002 MT-GLAZE 220 FA 1 /10W
R6709 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6720 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6722 D0GB470J0002 MT-GLAZE 47 JA 1/10W
R6723 D0GB103ZA038 MT-GLAZE 10K FA 1/10W
R6724 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R6725 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6726 D0GB472ZA038 MT-GLAZE 4.7K FA 1/10W
R6728 D0GB220JA072 MT-GLAZE 22 JA 1/10W
R6729 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6730 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6731 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6732 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6733 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6734 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6740 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6742 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6743 D0GB223JA070 MT-GLAZE 22K JA 1/10W
R6744 D0GB104JA068 MT-GLAZE 100K JA 1/10W
R6745 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6746 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6750 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6755 D0GB681ZA037 MT-GLAZE 680 FA 1/10W
R6756 D0GB332ZA038 MT-GLAZE 3.3K FA 1/10W
R6757 D0GB103ZA038 MT-GLAZE 10K FA 1/10W
R6758 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
RB5501 D1HY2204A012 R-NETWORK 22X40.063W
RB5951 D1HYR004A012 R-NETWORK 0X40.063W
“ASSY,PWB,ANALOG-COMP-
Z5VG”
CAPACITORS
C1020 F2A1V4700087 ELECT 47U M 35V
C1051 F1H1H102A219 CERAMIC 1000P K 50V
C1052 F1H1H102A219 CERAMIC 1000P K 50V
C1600 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C1602 F2A0J2210063 ELECT 220U M 6.3V
C1603 F1H1H104A220 CERAMIC 0.1U Z 50V
C1604 F2A1V4710080 ELECT 470U M 35V
C1620 F2A1V4710080 ELECT 470U M 35V
C1621 F1H1A105A036 CERAMIC 1U K 10V
C1622 F1H1H104A913 CERAMIC 0.1U K 50V
C1623 F1K1H105A138 CERAMIC 1U K 50V
C1625 F1H1H104A913 CERAMIC 0.1U K 50V
C1626 F1J1E105A171 CERAMIC 1U K 25V
C1627 F2A1V4710080 ELECT 470U M 35V
C1640 F1H1H104A220 CERAMIC 0.1U Z 50V
C1641 F1J1E105A171 CERAMIC 1U K 25V
C1642 F2A1V4700087 ELECT 47U M 35V

– 14 –
Schematic
Location Part No. Description Schematic Location Part No. Description
C1643 F1H1H104A220 CERAMIC 0.1U Z 50V
C1644 F2A1V4710080 ELECT 470U M 35V
C1666 F2A1V4710080 ELECT 470U M 35V
C1680 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C1682 F2A1V4700087 ELECT 47U M 35V
C1683 F1H1H104A220 CERAMIC 0.1U Z 50V
C1684 F2A0J2210063 ELECT 220U M 6.3V
C1704 F1H1H103A219 CERAMIC 0.01U K 50V
C1800 F1H1H104A220 CERAMIC 0.1U Z 50V
C1801 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C1802 F1H1H103A219 CERAMIC 0.01U K 50V
C1803 F1H1H103A219 CERAMIC 0.01U K 50V
C1804 F1H1H104A220 CERAMIC 0.1U Z 50V
D1905 B3AGA0000063 LED SPR-3 9MVWF
C2405 F1H1H104A220 CERAMIC 0.1U Z 50V
C2410 F1H1H104A220 CERAMIC 0.1U Z 50V
C2411 F1H1H104A220 CERAMIC 0.1U Z 50V
C3900 F1H1H104A220 CERAMIC 0.1U Z 50V
C3902 F1H1H104A220 CERAMIC 0.1U Z 50V
C3904 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C6100 J0JCC0000371 INDUCTOR“, 120 OHM”
C6101 J0JCC0000371 INDUCTOR“, 120 OHM”
C6102 F1H1H102A219 CERAMIC 1000P K 50V
C6104 F1H1H2700008 CERAMIC 27P J 50V
C6105 F1H1H2700008 CERAMIC 27P J 50V
C6106 F1H1H104A220 CERAMIC 0.1U Z 50V
C6107 F2A0J2210063 ELECT 220U M 6.3V
C6109 F2A1C1020123 ELECT 1000U M 16V
C6110 F1H1H104A220 CERAMIC 0.1U Z 50V
C6111 F1H1H102A219 CERAMIC 1000P K 50V
C6113 F1H1H2200008 CERAMIC 22P J 50V
C6114 F1H1H2200008 CERAMIC 22P J 50V
DIODES
D1613 B0ACCK000005 DIODE 1SS355-TE-17
B0ACDJ000007 DIODE 1SS352-(TPH3)
DDDA2J10100LG DIODE DA2J10100L
D1620 B0JCND000033 DIODE CRS20I30A
B0ACCK000005 DIODE 1SS355-TE-17
B0ACDJ000007 DIODE 1SS352-(TPH3)
D1641 DDDA2J10100LG DIODE DA2J10100L
D1668 B0ACCK000005 DIODE 1SS355-TE-17
B0ACDJ000007 DIODE 1SS352-(TPH3)
DDDA2J10100LG DIODE DA2J10100L
D1750 B0ACCK000005 DIODE 1SS355-TE-17
B0ACDJ000007 DIODE 1SS352-(TPH3)
DDDA2J10100LG DIODE DA2J10100L
D2405 B0JCGD000002 DIODE RB551V-30-TE-17
B0JCGD000014 DIODE DSF05S30U
INTEGRATED CIRCUITS
IC1600 C0CBAYG00009 IC LM1117S-ADJ
IC1620 QLV58063MX-HP IC LV58063MX-TLM-H
IC1640 C0CBAYG00009 IC LM1117S-ADJ
IC1680 C0CBAYG00009 IC LM1117S-ADJ
IC2401 C0JBAA000570 “IC TC7SH08F,LJ(T”
IC2402 C0JBAA000570 “IC TC7SH08F,LJ(T”
COILS
L1610 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1612 RGF4R70JTAANL MT-GLAZE 4.7 JA 1/10W
L1617 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1618 RGF4R70JTAANL MT-GLAZE 4.7 JA 1/10W
L1620 G0C150M00005 “INDUCTOR,15UH”
L1621 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1640 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1641 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1642 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1643 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1646 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1680 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1681 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1702 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
L1703 J0JYC0000381 “INDUCTOR , 220 OHM”
L1704 J0JYC0000381 “INDUCTOR , 220 OHM”
L1705 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1706 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1707 J0JYC0000381 “INDUCTOR , 220 OHM”
L1708 J0JYC0000381 “INDUCTOR , 220 OHM”
L1709 J0JYC0000381 “INDUCTOR , 220 OHM”
L1710 J0JYC0000381 “INDUCTOR , 220 OHM”
L1711 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1712 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1716 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
L1801 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
L1802 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
L1902 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6102 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6103 J0JCC0000371 “INDUCTOR , 120 OHM”
L6104 J0JCC0000371 “INDUCTOR , 120 OHM”
L6105 J0JYC0000382 “INDUCTOR ,600 OHM”
TRANSISTORS
Q1750 B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q1751 B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q1810 B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q1813 B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q3900 B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q3901 B3L000000032 IC GA1A2S100LY

– 15 –
Schematic
Location Part No. Description Schematic Location Part No. Description
Q3902 B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
D3904 B0BC6R100010 ZD UDZS-TE-176.2B
B0BC6R2A0384 ZENER DIODE MM3Z6V2B
DZDZ2J062M0LG ZD DIODE DZ2J062M0L
RESISTORS
R1004 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1009 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1020 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1022 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1023 D0GB820JA072 MT-GLAZE 82 JA 1/10W
R1024 D0GB750JA072 MT-GLAZE 75 JA 1/10W
R1028 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1033 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1038 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1043 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1051 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1052 D0GB104JA068 MT-GLAZE 100K JA 1/10W
R1054 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1055 D0GB104JA068 MT-GLAZE 100K JA 1/10W
R1600 D0GB121ZA038 MT-GLAZE 120 FA 1/10W
R1601 D0GB120JA072 MT-GLAZE 12 JA 1/10W
R1602 D0GB221Z0002 MT-GLAZE 220 FA 1 /10W
R1621 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1622 D0GB102ZA038 MT-GLAZE 1K FA 1/10W
R1623 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R1624 D0GB183JA072 MT-GLAZE 18K JA 1/10W
R1625 D0GB332ZA038 MT-GLAZE 3.3K FA 1/10W
R1628 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R1640 D0GB121ZA038 MT-GLAZE 120 FA 1/10W
R1641 D0GB120JA072 MT-GLAZE 12 JA 1/10W
R1642 D0GB821ZA037 MT-GLAZE 820 FA 1/10W
R1667 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R1668 D0GB333JA070 MT-GLAZE 33K JA 1/10W
R1680 D0GB101ZA037 MT-GLAZE 100 FA 1/10W
R1681 D0GB100JA072 MT-GLAZE 10 JA 1/10W
R1682 D0GB331ZA037 MT-GLAZE 330 FA 1/10W
R1702 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1707 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1708 D0GB183JA072 MT-GLAZE 18K JA 1/10W
R1750 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1751 D0GB182JA072 MT-GLAZE 1.8K JA 1/10W
R1752 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R1753 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R1754 D0GB332JA072 MT-GLAZE 3.3K JA 1/10W
R1771 J0JCC0000371 “INDUCTOR, 120 OHM”
R1772 J0JCC0000371 “INDUCTOR, 120 OHM”
R1776 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R1790 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1791 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R1792 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1797 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1800 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1801 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R1802 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R1803 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1804 D0GB222JA072 MT-GLAZE 2.2K JA 1/10W
R1805 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
R1810 D0GB331JA069 MT-GLAZE 330 JA 1/10W
R1811 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R1812 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R1813 D0GB331JA069 MT-GLAZE 330 JA 1/10W
R1843 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R2400 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R2401 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R2405 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R2407 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R2408 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R2409 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R2410 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R2411 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R2412 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R2413 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R2414 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R2415 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R2416 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R2417 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R2420 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R2421 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R2422 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6100 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R6101 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R1901 D0GB272JA072 MT-GLAZE 2.7K JA 1/10W
R1902 D0GB472JA072 MT-GLAZE 4.7K JA 1/10W
R1903 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R1904 D0GB272JA072 MT-GLAZE 2.7K JA 1/10W
R1905 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R1906 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R1907 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R1908 D0GB472JA072 MT-GLAZE 4.7K JA 1/10W
R1909 D0GB822JA072 MT-GLAZE 8.2K JA 1/10W
R1910 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R1911 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R1912 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R3900 D0GB224JA068 MT-GLAZE 220K JA 1/10W
R3902 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R3903 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R3904 D0GB223JA070 MT-GLAZE 22K JA 1/10W
R3905 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R3906 D0GB331JA069 MT-GLAZE 330 JA 1/10W
R3907 D0GB472JA072 MT-GLAZE 4.7K JA 1/10W
R3908 D0GB221JA069 MT-GLAZE 220 JA 1/10W
R3909 D0GB221JA069 MT-GLAZE 220 JA 1/10W
R3913 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R3914 D0GB221JA069 MT-GLAZE 220 JA 1/10W

– 16 –
Schematic
Location Part No. Description
MISCELLANEOUS
A100 1AA0B10N302D0 “ASSY,PWB,DIGITAL_Z-Z5VG”
A300 1AA0B10N319B0 “ASSY,PWB,ANALOG-COMP-
Z5VG”
A310 1AA0B10N319BA “ASSY,PWB,ANALOG-Z5VG”
A320 1AA0B10N319BB “ASSY,PWB,KEY_SW-Z5VG”
A330 1AA0B10N319BC “ASSY,PWB,RC_LED-Z5VG”
A400 1AA0B10N290B0 “ASSY,PWB,POWER Z5VG”
A3900 B3RAB0000094 “UNIT,REMOCON,RECEIVER”
A6100 1AV4F1BAZ0090 “TUNER,U/V”
1AV4F1BAZ0091 “TUNER,U/V”
EL901 1AV4T40C27200 LCD(T420HW09 V1)
F601 K5G502Y00018 FUSE 250V 5A
K8CTR 1AA96DQCN860W STANDARD WIRE ASSY-JPN
K8FRA 1AA94DQCN540W STANDARD WIRE ASSY-JPN
K8L K1KA05AA0193 “PLUG,5P”
K1004 K2HA9YYB0006 “JACK,RCA-9”
K1005 K2HA5YYB0002 “JACK,RCA-5”
K16A K1KY40BA0348 “SOCKET,PWB 40P”
K16B K1KY32BA0348 “SOCKET,PWB 32P”
K2400 K1FY115B0027 “SOCKET,D-SUB 15P”
K2401 K2HC1YYB0066 “JACK,PHONE D3.6”
K2405 K2HA2YYB0022 “JACK,RCA-2”
K8B 1AA9W0EDM001- NON STANDARD WIRE ASSY-
JPN
K55SP K1KA04AA0180 “PLUG,4P”
K5A K1KY40B00017 “PLUG,HOUSING 40P”
K5B K1KY32B00007 “PLUG,HOUSING 32P”
K5DL K1KA04AA0193 “PLUG,4P”
K5LV K1KY39A00001 “PLUG,39P(40-1)”
K6500 1LB4J11B0780M “SOCKET,HDMI 19P”
K6530 1LB4J11B0780M “SOCKET,HDMI 19P”
K6560 1LB4J11B0780M “SOCKET,HDMI 19P”
KUSB K1FY104B0066 “SOCKET,USB 4P”
KUSB K1FY104B0069 “SOCKET,USB 4P”
K605 K1KA10AA0194 “PLUG,10P”
K6AC K1KA02A00720 “PLUG,HOUSING 2P”
K6B K1KY14AA0983 “PLUG,14P”
SPL L0AA12C00016 “SPEAKER,8”
SPR L0AA12C00016 “SPEAKER,8”
T601 1LB4L51B1820N “TRANS,POWER,PULSE”
T602 1LB4L51B1840N “TRANS,POWER,PULSE”
VA601 D4EAY3850002 VARISTOR S14K385E2K1
W901 K2CB2YY00046 “CORD,POWER-2.0MK-VTR-02”
K2CB2YY00049 “CORD,POWER-2.0MK-VTR-02”
WK5LV-PN 1AA4W30B66600 “LVDS CABLE,40P-51P”
X5500 H0J250500115 “OSC,CRYSTAL 25MHZ”
819.42T08.003 INVERTER T420HW06_V2
855.42T14.C01 T-CON/PN

– 17 –
Schematic
Location Part No. Description Schematic Location Part No. Description
“ASSY,PWB,POWER Z5VG”
CAPACITORS
C605 CGXAV27224ABC MT-POLYEST 0.22U M 275V
F0CAF224A030 MT-POLYEST 0.22U K 275V
C606 CGXAV27224ABC MT-POLYEST 0.22U M 275V
F0CAF224A030 MT-POLYEST 0.22U K 275V
C607 CKXAA2E101AHN CERAMIC 100P K 250V
C608 F2A2E4710003 ELECT 470U M 250V
C609 CGXAV27224ABC MT-POLYEST 0.22U M 275V
F0CAF224A030 MT-POLYEST 0.22U K 275V
C610 CK3A102KANHAN CERAMIC 1000P K 1K
C611 CK3A102KANHAN CERAMIC 1000P K 1K
C612 CK3A102KANHAN CERAMIC 1000P K 1K
C613 CK3A102KANHAN CERAMIC 1000P K 1K
C614 F2A2E4710003 ELECT 470U M 250V
C615 F1H1E474A100 CERAMIC 0.47U K 25V
C616 F1A3D220A007 CERAMIC 22P J 2K
C617 CG2J123KAPAQN MT-POLYEST 0.012U K 630V
C619 F2A1V4700088 ELECT 47U M 35V
C620 F1H1H104A913 CERAMIC 0.1U K 50V
C621 F1H1H104A913 CERAMIC 0.1U K 50V
C624 F1H1H473A918 CERAMIC 0.047U K 50V
C625 F1H1H104A913 CERAMIC 0.1U K 50V
C626 F2A1H100B765 ELECT 10U M 50V
C627 F1K1H105A138 CERAMIC 1U K 50V
C628 F1H1H6810003 CERAMIC 680P J 50V
C629 F1H1H1010005 CERAMIC 100P J 50V
C630 F0C2J823A129 MT-POLYPRO 0.082U J 630V
C631 CK3D101KANHAN CERAMIC 100P K 2K
CK3D101KCRDAN CERAMIC 100P K 2K
C632 CK3D471KCRDAN CERAMIC 470P K 2K
C632 F1B3D471A084 CERAMIC 470P K 2K
C633 CK3D150JTDANG CERAMIC 15P J 2K
C634 CK3D150JTDANG CERAMIC 15P J 2K
C635 F1H1E474A100 CERAMIC 0.47U K 25V
C638 CKXAA2E471AHN CERAMIC 470P K 250V
C639 F1H1H102A219 CERAMIC 1000P K 50V
C640 F2A1H220B765 ELECT 22U M 50V
C643 F1H1H104A913 CERAMIC 0.1U K 50V
C645 F0C2J823A129 MT-POLYPRO 0.082U J 630V
C646 CKXAA2E101AHN CERAMIC 100P K 250V
C647 CKXAA2E101AHN CERAMIC 100P K 250V
C649 F1H1H102A219 CERAMIC 1000P K 50V
C650 CKXAA2E102AHN CERAMIC 1000P M 250V
C653 CKXAA2E102AHN CERAMIC 1000P M 250V
C701 CK3A102KANHAN CERAMIC 1000P K 1K
F1B3A102A048 CERAMIC 1000P K 1K
C702 CK3A102KANHAN CERAMIC 1000P K 1K
F1B3A102A048 CERAMIC 1000P K 1K
C703 CE1V681M6QANC ELECT 680U M 35V
F2A1V6810036 ELECT 680U M 35V
C704 CE1V681M6QANC ELECT 680U M 35V
F2A1V6810036 ELECT 680U M 35V
C705 CE1V471M6QANC ELECT 470U M 35V
F2A1V4710082 ELECT 470U M 35V
C706 CK3A102KANHAN CERAMIC 1000P K 1K
F1B3A102A048 CERAMIC 1000P K 1K
C707 CK3A102KANHAN CERAMIC 1000P K 1K
F1B3A102A048 CERAMIC 1000P K 1K
C708 CE1E102M6QANC ELECT 1000U M 25V
F2A1E1020116 ELECT 1000U M 25V
C710 F1H1H104A913 CERAMIC 0.1U K 50V
C711 F1K1E4750002 CERAMIC 4.7U K 25V
C712 CK3A102KANHAN CERAMIC 1000P K 1K
F1B3A102A048 CERAMIC 1000P K 1K
C713 CE1C272M6QANN ELECT 2700U M 16V
F2A1C272B840 ELECT 2700U M 16V
C714 F2A1C102B830 ELECT 1000U M 16V
C715 F1H1H104A913 CERAMIC 0.1U K 50V
C717 F2A1H1010107 ELECT 100U M 50V
C718 F1K1H105A138 CERAMIC 1U K 50V
C719 F1K1H105A138 CERAMIC 1U K 50V
C720 F1H1H104A913 CERAMIC 0.1U K 50V
C721 F1H1H104A913 CERAMIC 0.1U K 50V
C722 F1H1H104A913 CERAMIC 0.1U K 50V
C723 F1H1H104A913 CERAMIC 0.1U K 50V
C724 F1H1H104A913 CERAMIC 0.1U K 50V
C725 F1H1H102A219 CERAMIC 1000P K 50V
C726 F1H1H104A913 CERAMIC 0.1U K 50V
C727 F1H1H104A913 CERAMIC 0.1U K 50V
C729 F1H1H104A913 CERAMIC 0.1U K 50V
C730 F1H1H104A913 CERAMIC 0.1U K 50V
C732 F1H1E474A100 CERAMIC 0.47U K 25V
C733 CE1V471M6QANC ELECT 470U M 35V
C733 F2A1V4710082 ELECT 470U M 35V
C734 F1H1H104A913 CERAMIC 0.1U K 50V
C735 F2A1E1020115 ELECT 1000U M 25V
DIODES
D601 B0FBBQ000004 DIODE D15XB60 7101
D602 B0HAGV000005 DIODE EG01C
B0HAGV000028 DIODE EG01C
D603 B0HADP000007 DIODE EU1-V1
B0HAGP000019 DIODE EU1
D605 B3PAA0000612 PHOTO COUPLE PC123X5YFZ0F
DCBPC-817MC-N PHOTO COUPLE BPC-817MC
D606 B3PAA0000612 PHOTO COUPLE PC123X5YFZ0F
DCBPC-817MC-N PHOTO COUPLE BPC-817MC
D607 B3PAA0000612 PHOTO COUPLE PC123X5YFZ0F
DCBPC-817MC-N PHOTO COUPLE BPC-817MC
D608 B3PAA0000612 PHOTO COUPLE PC123X5YFZ0F
DCBPC-817MC-N PHOTO COUPLE BPC-817MC
D609 B0ACCK000005 DIODE 1SS355-TE-17
B0ACDJ000007 DIODE 1SS352-(TPH3)
DDDA2J10100LG DIODE DA2J10100L
D611 B0AAMR000059 DIODE HER106
DDAG01A——-N DIODE AG01A
D612 B0ACCK000005 DIODE 1SS355-TE-17
B0ACDJ000007 DIODE 1SS352-(TPH3)

– 18 –
Schematic
Location Part No. Description Schematic Location Part No. Description
DDDA2J10100LG DIODE DA2J10100L
D613 B0ACCK000005 DIODE 1SS355-TE-17
B0ACDJ000007 DIODE 1SS352-(TPH3)
DDDA2J10100LG DIODE DA2J10100L
D614 B0ACCK000005 DIODE 1SS355-TE-17
B0ACDJ000007 DIODE 1SS352-(TPH3)
DDDA2J10100LG DIODE DA2J10100L
D616 B0HADP000007 DIODE EU1-V1
B0HAGP000019 DIODE EU1
D617 B0ACCK000005 DIODE 1SS355-TE-17
B0ACDJ000007 DIODE 1SS352-(TPH3)
DDDA2J10100LG DIODE DA2J10100L
D618 B0ACCK000005 DIODE 1SS355-TE-17
B0ACDJ000007 DIODE 1SS352-(TPH3)
DDDA2J10100LG DIODE DA2J10100L
D619 B0ACCK000005 DIODE 1SS355-TE-17
B0ACDJ000007 DIODE 1SS352-(TPH3)
DDDA2J10100LG DIODE DA2J10100L
D620 B0BC01700015 ZENER DIODE UDZS18B-TE-17
B0BC018A0383 ZENER DIODE MM3Z 18B
DZDZ2J180M0LG ZD DIODE DZ2J180M0L
D621 B0ACCK000005 DIODE 1SS355-TE-17
B0ACDJ000007 DIODE 1SS352-(TPH3)
DDDA2J10100LG DIODE DA2J10100L
D622 B0ACCK000005 DIODE 1SS355-TE-17
B0ACDJ000007 DIODE 1SS352-(TPH3)
DDDA2J10100LG DIODE DA2J10100L
D623 B0BA02600034 ZENER DIODE MTZJ27B T-72
DZXLBXA27B—B ZENER DIODE ZJ27B
D624 B0ACCK000005 DIODE 1SS355-TE-17
B0ACDJ000007 DIODE 1SS352-(TPH3)
DDDA2J10100LG DIODE DA2J10100L
D625 B0ACCK000005 DIODE 1SS355-TE-17
B0ACDJ000007 DIODE 1SS352-(TPH3)
DDDA2J10100LG DIODE DA2J10100L
D626 B0ACCK000005 DIODE 1SS355-TE-17
B0ACDJ000007 DIODE 1SS352-(TPH3)
DDDA2J10100LG DIODE DA2J10100L
D627 B0BA01200093 ZENER DIODE MTZJ13B
DZXLBXA13B—B ZENER DIODE ZJ13BST
D628 B0JBSL000051 DIODE STPS20LCD100C
B0JBSL000053 DIODE SBR200-10JS
D629 B0JBSL000051 DIODE STPS20LCD100C
B0JBSL000053 DIODE SBR200-10JS
D630 B0JBRG000005 DIODE SBT80-06JS
B0JBRG000006 DIODE STPS10LCD60C
D631 B0JBRG000005 DIODE SBT80-06JS
B0JBRG000006 DIODE STPS10LCD60C
D636 B0ACCK000005 DIODE 1SS355-TE-17
B0ACDJ000007 DIODE 1SS352-(TPH3)
DDDA2J10100LG DIODE DA2J10100L
D637 B0ACCK000005 DIODE 1SS355-TE-17
B0ACDJ000007 DIODE 1SS352-(TPH3)
DDDA2J10100LG DIODE DA2J10100L
D638 B0BC6R100010 ZD UDZS-TE-176.2B
B0BC6R2A0384 ZENER DIODE MM3Z6V2B
DZDZ2J062M0LG ZD DIODE DZ2J062M0L
D639 B0BC01700015 ZENER DIODE UDZS18B-TE-17
B0BC018A0383 ZENER DIODE MM3Z 18B
DZDZ2J180M0LG ZD DIODE DZ2J180M0L
D640 B0BC01700015 ZENER DIODE UDZS18B-TE-17
B0BC018A0383 ZENER DIODE MM3Z 18B
DZDZ2J180M0LG ZD DIODE DZ2J180M0L
D641 B0BC026A0007 ZENER DIODE UDZS27B-TE-17
B0BC027A0383 ZENER DIODE MM3Z 27B
DZDZ2J270M0LG ZD DIODE DZ2J270M0L
INTEGRATED CIRCUITS
IC601 C5HABYY00013 IC STR-A6051M
IC602 C0DBBYY00037 IC SSC9512S
IC603 QXXAVC950—-P IC LM393D
IC604 C0DAAYY00072 IC TL431ATA
IC605 C0DAAYY00072 IC TL431ATA
COILS
L601 1LB4F35B0370N LINE FILTER
G0B902J00001 LINE FILTER
L602 1LB4F35B0360N LINE FILTER
G0B901J00001 LINE FILTER
L605 G0C3R0Z00001 “INDUCTOR ,3UH”
G0C3R0Z00002 “INDUCTOR ,3UH”
L606 G0C3R0Z00001 “INDUCTOR ,3UH”
G0C3R0Z00002 “INDUCTOR ,3UH”
L607 G0C1R0Z00001 “INDUCTOR,1.0UH”
G0C1R0Z00002 “INDUCTOR,1.0UH”
L612 1LB4F35B0370N LINE FILTER
G0B902J00001 LINE FILTER
TRANSISTORS
Q601 T2SK3994——N TR 2SK3994
B1CERM000034 TR FDPF33N25T
Q602 T2SK3994——N TR 2SK3994
B1CERM000034 TR FDPF33N25T
Q603 B1ADGF000013 TR 50A02CH-TL-E
Q604 B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q605 TXXLBB014—-P TR 2N7002
Q606 B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q607 B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q608 B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q609 B1ADCF000194 TR ISA1235AC1F
B1ADCF000201 TR ISA1235AC1E
TXXLBB005—-P TR MMBTSA1235F
Q610 B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S

– 19 –
Schematic
Location Part No. Description Schematic Location Part No. Description
TXXLBB006—-P TR MMBTSC3928R
Q611 B1ADCF000194 TR ISA1235AC1F
B1ADCF000201 TR ISA1235AC1E
TXXLBB005—-P TR MMBTSA1235F
RESISTORS
R601 DHXAVB029—-N THERMISTOR NTPAN3R0LDKB0
R602 RXXAVA685JABN RESISTER 6.8M JA 1/2W
R605 RGB3303JTBANL MT-GLAZE 330K JA 1/4W
R606 D0C11R0JA070 OXIDE-MT 1 JA 1W
R607 D0GZ105JA023 MT-GLAZE 1M JA 1/4W
R608 D0GZ105JA023 MT-GLAZE 1M JA 1/4W
R609 D0GB563ZA038 MT-GLAZE 56K FA 1/10W
R610 D0GB124JA068 MT-GLAZE 120K JA 1/10W
R611 D0C11R0JA070 OXIDE-MT 1 JA 1W
R612 D0GZ100JA018 MT-GLAZE 10 JA 1/4W
R614 D0GZ470JA018 MT-GLAZE 47 JA 1/4W
R615 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R616 D0GB562JA072 MT-GLAZE 5.6K JA 1/10W
R617 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R618 D0GB105ZA038 MT-GLAZE 1M FA 1/10W
R619 D0GB105ZA038 MT-GLAZE 1M FA 1/10W
R620 D0GB393ZA038 MT-GLAZE 39K FA 1/10W
R621 D0GB223ZA038 MT-GLAZE 22K FA 1/10W
R622 D0GB393ZA038 MT-GLAZE 39K FA 1/10W
R623 D0GZ105JA023 MT-GLAZE 1M JA 1/4W
R624 D0GZ105JA023 MT-GLAZE 1M JA 1/4W
R625 D0GZ105JA023 MT-GLAZE 1M JA 1/4W
R626 D0GB224JA068 MT-GLAZE 220K JA 1/10W
R627 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R628 D0C2R22JA119 OXIDE-MT 0.22 JA 2W
R629 D0GZ105JA023 MT-GLAZE 1M JA 1/4W
R630 D0GZ105JA023 MT-GLAZE 1M JA 1/4W
R631 D0GB333ZA038 MT-GLAZE 33K FA 1/10W
R634 D0GB471JA069 MT-GLAZE 470 JA 1/10W
R635 D0GB221JA069 MT-GLAZE 220 JA 1/10W
R636 D0GZ150JA018 MT-GLAZE 15 JA 1/4W
R637 D0GB104JA068 MT-GLAZE 100K JA 1/10W
R638 D0GZ150JA018 MT-GLAZE 15 JA 1/4W
R639 D0GZ100JA018 MT-GLAZE 10 JA 1/4W
R640 D0GB104JA068 MT-GLAZE 100K JA 1/10W
R641 D0GZ150JA018 MT-GLAZE 15 JA 1/4W
R642 D0GZ100JA018 MT-GLAZE 10 JA 1/4W
R644 D0GB473JA072 MT-GLAZE 47K JA 1/10W
R646 D0GB561JA069 MT-GLAZE 560 JA 1/10W
R648 RXXAVA105JABN RESISTER 1.0M JA 1/2W
R649 D0GB303JA072 MT-GLAZE 30K JA 1/10W
R650 D0C2R22JA119 OXIDE-MT 0.22 JA 2W
R660 D0GZ183JA018 MT-GLAZE 18K JA 1/4W
R661 D0GZ100JA018 MT-GLAZE 10 JA 1/4W
R662 D0GZ470JA018 MT-GLAZE 47 JA 1/4W
R663 D0GZ180JA018 MT-GLAZE 18 JA 1/4W
R700 D0GB822ZA038 MT-GLAZE 8.2K FA 1/10W
R701 D0C2821JA119 OXIDE-MT 820 JA 2W
R702 D0GB221JA069 MT-GLAZE 220 JA 1/10W
R703 D0GZ472JA018 MT-GLAZE 4.7K JA 1/4W
R705 D0GZ103JA018 MT-GLAZE 10K JA 1/4W
R706 D0GB152JA072 MT-GLAZE 1.5K JA 1/10W
R707 D0GB153ZA038 MT-GLAZE 15K FA 1/10W
R708 D0GB122ZA038 MT-GLAZE 1.2K FA 1/10W
R709 D0GB221JA069 MT-GLAZE 220 JA 1/10W
R710 D0GB102ZA038 MT-GLAZE 1K FA 1/10W
R711 D1BF4700A068 MT-GLAZE 470 JA 1/4W
R713 D0GB222JA072 MT-GLAZE 2.2K JA 1/10W
R714 D0GB103ZA038 MT-GLAZE 10K FA 1/10W
R715 D0GB822ZA038 MT-GLAZE 8.2K FA 1/10W
R716 D0GB222JA072 MT-GLAZE 2.2K JA 1/10W
R717 D0GB152ZA038 MT-GLAZE 1.5K FA 1/10W
R718 D0GB103ZA038 MT-GLAZE 10K FA 1/10W
R719 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R720 D0GB122JA072 MT-GLAZE 1.2K JA 1/10W
R721 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R722 D0GB474JA068 MT-GLAZE 470K JA 1/10W
R723 D0GB154JA068 MT-GLAZE 150K JA 1/10W
R724 D0GB473JA072 MT-GLAZE 47K JA 1/10W
R725 D0GB392ZA038 MT-GLAZE 3.9K FA 1/10W
R726 D0GB332JA072 MT-GLAZE 3.3K JA 1/10W
R727 D0GB104JA068 MT-GLAZE 100K JA 1/10W
R728 D0GB122JA072 MT-GLAZE 1.2K JA 1/10W
R729 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R730 D0GB103ZA038 MT-GLAZE 10K FA 1/10W
R731 D0GB471JA069 MT-GLAZE 470 JA 1/10W
R732 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R733 D0GB472JA072 MT-GLAZE 4.7K JA 1/10W
R734 D0GB223JA070 MT-GLAZE 22K JA 1/10W
R735 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R736 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R737 D0GB223JA070 MT-GLAZE 22K JA 1/10W
R738 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R739 D0GB472JA072 MT-GLAZE 4.7K JA 1/10W
R740 D0GB223JA070 MT-GLAZE 22K JA 1/10W
R741 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R742 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R743 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R744 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R745 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R746 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R747 D0GB223JA070 MT-GLAZE 22K JA 1/10W
R750 RN1R010FTDANL MT-FILM 0.01 FA 1W
R751 RN2R020FTEANL MT-FILM 0.02 FA 2W
R752 RN2R020FTEANL MT-FILM 0.02 FA 2W
R754 D0C2152JA119 OXIDE-MT 1.5K JA 2W
R765 D0GZ472JA018 MT-GLAZE 4.7K JA 1/4W
R766 D0GB104JA068 MT-GLAZE 100K JA 1/10W

– 20 –
"For Digital board replacement please get the correct assembly name/part number"
Service Name: ASSY,PWB,DIGITAL_Z-Z5VG
Japan BOM part number: 1AA0B10N302D0
"For Analog board replacement please get the correct assembly name/part number"
Service Name: ASSY,PWB,ANALOG-Z5VG
Japan BOM part number: 1AA0B10N319BA
NOTE: This sub assembly (A310) is from ASSY,PWB,ANALOG-COMP-Z5VG (A300)
"For KEW_SW unit replacement please get the correct assembly name/part number"
Service Name: ASSY,PWB,KEY_SW-Z5VG
Japan BOM part number: 1AA0B10N319BB
NOTE: This sub assembly (A320) is from ASSY,PWB,ANALOG-COMP-Z5VG (A300)
"For RC_LED unit replacement please get the correct assembly name/part number"
Service Name: ASSY,PWB,RC_LED-Z5VG
Japan BOM part number: 1AA0B10N319BC
"For Power Board replacement please get the correct assembly name/part number"
Service Name: ASSY,PWB,POWER Z5VG
Japan BOM part number: 1AA0B10N290B0
"For Inverter Board replacement please get the correct assembly name/part number"
Service Name: INVERTER T420HW06_V2
Japan BOM part number: 819.42T08.003
"For T-CON Board replacement please get the correct assembly name/part number"
Service Name: T-CON/PN
Japan BOM part number: 855.42T14.C01
