Sanyo LCD-22R35FHD User manual

LCD TV
SERVICE MANUAL
PRODUCT CODE No.
REFERENCE No.:SM0915170
1 682 350 81: PAL-BG
NTSC(AV)
FILE NO.
PRODUCT CODE No.
LCD-22R35FHD

CONTENTS
Safety precautions………………………………………………………………………..…
Alignment instructions …………………………….…….…………………………………
Method of software upgrading instructions………………………………………………..
Working principle analysis of the unit……………………………….………….………….
Block diagram…………………………………..………………………………….…………
IC block diagram and instruction…………………………………………………………..……
Wiring diagram …………………………………………………………………………….
Troubleshooting guide ………………………………………………………………..……
Schematic diagram…………………………………………………………………………
APPENDIX-A: Main assembly list
APPENDIX-B: Exploded View
3
5
12
15
16
17
25
26
29

Safety precautions
1. Instructions
Be sure to switch off the power supply before replacing or welding any components or
inserting/plugging in connection wire. Anti static measures must be taken (throughout the entire
production process!):
a) Do not touch here and there by hand at will;
b) Be sure to use anti static electric iron;
c) It’s necessary for the welder to wear anti static gloves.
Please refer to the part list before replacing components that have special safety requirements.
Do not replace with different components with different specs and type at will.
2. LCD servicing precautions
2.1 Screens are different from one model to another and therefore not interchangeable. Be sure to
use the screen of the original model for replacement.
2.2 The operation voltage of LCD screen is 700-825V. Be sure to take proper measures in
protecting yourself and the machine when testing the system in the course of normal operation or
right after the power is switched off. Please do not touch the circuit or the metal part of the module
that is in operation mode. Relevant operation is possible only one minute after the power is
switched off.
2.3 Do not use any adapter that is not identical with the TV set. Otherwise it will cause fire or
damage to the set.
2.4 Never operate the set or do any installation work in bad environment such as wet bathroom,
laundry, kitchen, or nearby fire source, heating equipment and devices or exposure to sunlight etc.
Otherwise bad effect will result.
2.5 If any foreign substance such as water, liquid, metal slices or other matters happens to fall into
the module, be sure to cut the power off immediately and do not move anything on the module lest
it should cause fire or electric shock due to contact with the high voltage or short circuit.
2.6 Should there be smoke, abnormal smell or sound from the module, please shut the power off
at once. Likewise, if the screen is not working after the power is on or in the course of operation,
the power must be cut off immediately and no more operation is allowed under the same
condition.
2.7 Do not pull out or plug in the connection wire when the module is in operation or just after the
power is off because in this case relatively high voltage still remains in the capacitor of the driving
circuit. Please wait at least one minute before the pulling out or plugging in the connection wire.
2.8 When operating or installing LCD please don’t subject the LCD components to bending,
twisting or extrusion, collision lest mishap should result.
2.9 As most of the circuitry in LCD TV set is composed of CMOS integrated circuits, it’s necessary
to pay attention to anti statics. Before servicing LCD TV make sure to take anti static measure and
ensure full grounding for all the parts that have to be grounded.
2.10 There are lots of connection wires between parts behind the LCD screen. When servicing or
moving the set please take care not to touch or scratch them. Once they are damaged the screen
Attention: This service manual is only for service personnel to take reference with. Before
servicing please read the following points carefully.

would be unable to work and no way to get it repaired.
If the connection wires, connections or components fixed by the thermotropic glue need to
disengage when service, please soak the thermotropic glue into the alcohol and then pull them
out in case of dagmage.
2.11 Special care must be taken in transporting or handling it. Exquisite shock vibration may lead
to breakage of screen glass or damage to driving circuit. Therefore it must be packed in a strong
case before the transportation or handling.
2.12 For the storage make sure to put it in a place where the environment can be controlled so as
to prevent the temperature and humidity from exceeding the limits as specified in the manual. For
prolonged storage, it is necessary to house it in an anti-moisture bag and put them altogether in
one place. The ambient conditions are tabulated as follows:
Temperature Operation range 0 ~ +50 oC
Storage range -20 ~ +60 oC
Humidity Operation range 20% ~ 85%
Storage range 10% ~ 90%
2.13 Display of a fixed picture for a long time may cause a permanent after-image on the screen,
as commonly called “ghost shadow”. The degree of the after-image varies with the maker of LCD
screen. This phenomenon doesn’t represent failure. This “ghost shadow” may remain in the
picture for a period of time (several minutes). But when operating it please avoid displaying still
picture in high brightness for a long time.
3. Installation precautions
3.1 The front panel of LCD screen is made of glass. When installing it please make sure to put it in
place.
3.2 For service or installation it’s necessary to use specified screw lest it should damage the
screen.
3.3 Be sure to take anti dust measures. Any foreign substance that happens to fall down between
the screen and the glass will affect the receiving and viewing effect
3.4 When dismantling or mounting the protective partition plate that is used for anti vibration and
insulation please take care to keep it in intactness so as to avoid hidden trouble.
3.5 Be sure to protect the cabinet from damage or scratch during service, dismantling or
mounting.

2 Adjustment equipment
Digital multimeter
Signal generator (54200)
PC (presetting FLASH software)
VG848, VG849 (VGA, YPbPr and HDMI signal generator)
DVD player with HDMI output
White balance apparatus (CA210)
Monitor
3 Adjustment flow
3.1 Test voltage of power supply
According to wiring diagram ‘9222KC4201JL’, connect main board, power board, IR board and
key board correctly, switch on power supply, then press key ‘power’ to turn on the TV set.
a）Test voltage of socket X302 each pin in turn, please refer to voltage value as Table 3.
Table 3 Voltage of X302 each pin
X302 Pin1 2 3 4、5 6、78 9 10 11 12 13
Vol. 3.3 V～5.0
V
1.0 V～3.3
V 0 11.5 V～ 12.5V 0 31 V～ 33 V
4.7 V～5.3
V 04.7 V～ 5.3 V 0 3.3 V～5.0 V
Alignment instructions

3.2 Adjustment flow chart as Fig.1
Fig. 1 Adjustment flow
Check if FLASH has been burned
Product main board on line
General assembly and adjustment
White balance adjustment
Connect to central signal source, check if each function of TV, such
as omitted program, analog parameter control, etc. is normal? Check
if output of earphones, speakers are normal?
Input HI definition signal (mode), check if each
function of YPbPr is normal?
Input VGA signal, check if display and each
function, such as analog parameters control, H/V
center, etc., are normal?
Input AV/S-VIDEO signal, check if each function
of both channels are normal?
Insert U disk, check if functions of MP3 and JPEG
are normal?
Check accessories and packing
Input HDMI signal, check if display and each
function, such as analog parameters control, H/V
Setting before leaving factory

4 Adjustment instruction
4.1 Unit adjustment
4.1.1 According to wiring diagram ‘9242KC4201JL’ , ‘9222KC4201JL’, ‘9219KC7201JL’ ,
‘9224KC7001J’ or ‘9232KC7001JL’, connect main board, power board, key board and IR board
correctly, switch on power supply, check if display is normal?
4.1.2 Instruction of factory menu

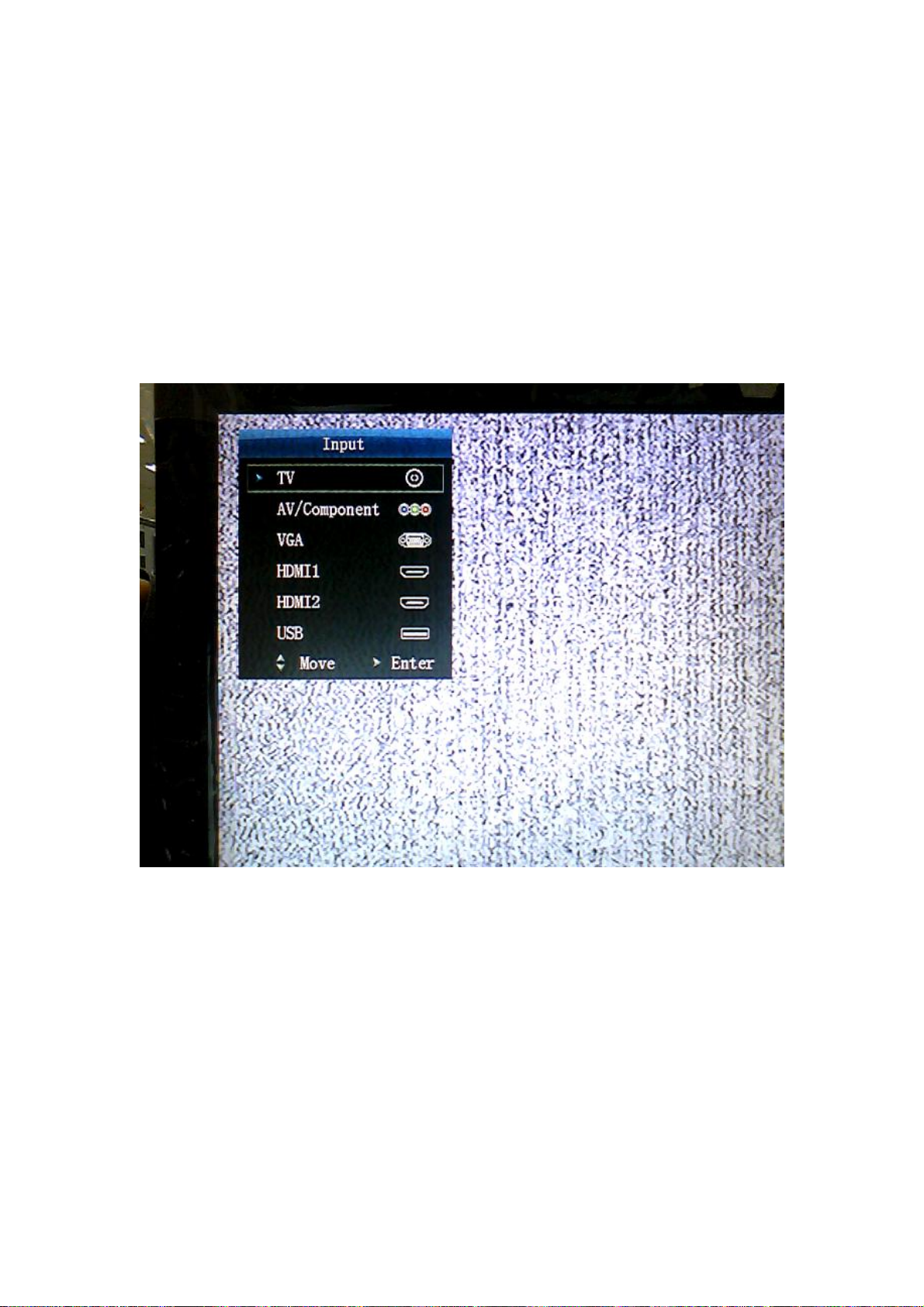

a）First press key ‘Program source’, then press number keys “2、5、8、0” in turn to enter initial
factory menu;
b）Press keys “” and “” to move cursor to each adjustment page of initial factory menu, then
press “” to enter into its adjustment menu;
c）Press keys “” and “” to move cursor upwards or downwards within any adjustment page;
d）Press keys “” and “” to adjust any item when cursor is moved onto it;
e）Press key “Menu” to exit to initial menu from any adjustment page;
f）Press key “Exit” to exit from factory menu in any case;
g）Set item “Aging Mode” as “On” to enter into factory aging mode.
4.2 White balance adjustment
4.2.1 Before adjustment
The unit should be working for above 30 minutes to be in stabler state; Use apparatus CA210 to
adjust white balance;
For model of which dimension is bigger than 26”, only 9300K color temperature (that is “normal”)
is needed adjustment, To guarantee BBY test requirements to be met when color temperature are
12000K and 6500K, make sure that chromaticity coordinates of bright scale are (X=285±5, Y=293±8)
and chromaticity coordinates of dark scale are (X=285±8, Y=293±12);
For model of which dimension is 26” or smaller than 26”, only 8000K color temperature (that is
“normal”) is needed adjustment, To guarantee test requirements to be met when color temperature
are 9300K and 6500K, make sure that chromaticity coordinates of bright scale are X=295±5,
Y=305±8) and chromaticity coordinates of dark scale are (X=295±8, Y=305±12);
4.2.2 White balance adjustment of HDMI channel
Input 16-grey-scale signal with format of 800×600/60 Hz (VG848: Timing is 854，PAT is 921),
enter into submenu “color temperature adjustment” of factory menu;
For model of which dimension is bigger than 26”, select “normal” color temperature (that is
9300K), fix item “G Offset”, adjust items “R Offset, B Offset” to set chromaticity coordinates of the 3rd
scale as （285±8, 293±12）and guarantee luminance within the range of 3 nit to 5 nit; fix item “G
GAIN”, adjust items “R GAIN, B GAIN” to set chromaticity coordinates of the reverse 3rd scale as
（285±8, 293±12）; adjust items “R Offset, B Offset” and “R GAIN, B GAIN” repeatedly until
chromaticity coordinates of both scales are all （285, 293）;
For model of which dimension is 26” and small than 26”, select “normal” color temperature (that is
8000K), fix item “G Offset”, adjust items “R Offset, B Offset” to set chromaticity coordinates of the 3rd
scale as （295±8, 305±12）and guarantee luminance within the range of 3 nit to 5 nit; fix item “G
GAIN”, adjust items “R GAIN, B GAIN” to set chromaticity coordinates of the reverse 3rd scale as
（295±5, 305±8）; adjust items “R Offset, B Offset” and “R GAIN, B GAIN” repeatedly until
chromaticity coordinates of both scales are all （295, 305）;
Set item “ALL COLOR” as “ON” after completing adjustment.

4.2.3 White balance adjustment of YPbPr channel
ADC calibration of SD mode: Input color-bar signal with format of 480i/60 Hz (VG848: Timing is
968，PAT is 918), enter into submenu “ADC adjustment” of factory menu and select item “AUTO
COLOR”, system will begin calibration automatically, please note whether picture and data are
abnormal clearly or not (main abnormal data phenomena are that several data are very different from
the other or about 1000 more than the other); it is failed to calibrate ADC if data are abnormal clearly,
so it is necessary to do the calibration again;
ADC calibration of HD mode: Input color-bar signal with format of 1080i/60 Hz (VG848: Timing is
972，PAT is 918), enter into submenu “ADC adjustment” of factory menu and select item “AUTO
COLOR”, system will begin calibration automatically, please note whether picture and data are
abnormal clearly or not (main abnormal data phenomena are that several data are very different from
the other or about 1000 more than the other); it is failed to calibrate ADC if data are abnormal clearly,
so it is necessary to do the calibration again;
White balance adjustment: Input 16-grey-scale signal with format of 1080i/60 Hz (VG848: Timing
is 972，PAT is 921), check if white balance is normal, if not, enter into submenu “color temperature
adjustment” of factory menu, set item “ALL COLOR” as “OFF”, please refer to step 4.2.2 to adjust
white balance for model of which dimension is 26” , bigger than 26” or smaller than 26” respectively;
Note: Item “ALL COLOR” must not be altered as “ON” again once set as “OFF”.
4.2.4 White balance adjustment of VGA channel
Auto-calibration: Input square signal with format of 800×600/60 Hz (VG848: Timing is 854，PAT is
CROSS) to do calibration automatically in order to make window filled with picture;
ADC calibration: Input monochrome signal with format of 800×600/60 Hz (VG848: Timing is 854，
PAT is 948), enter into submenu “ADC adjustment” of factory menu and select item “AUTO COLOR”,
system will begin calibration automatically, please note whether picture and data are abnormal clearly
or not (main abnormal data phenomena are that several data are very different from the other or
about 1000 more than the other); it is failed to calibrate ADC if data are abnormal clearly, so it is
necessary to do the calibration again;
White balance adjustment: Input 16-grey-scale signal with format of 800×600/60 Hz (VG848:
Timing is 854，PAT is 921), check if white balance is normal, if not, enter into submenu “color
temperature adjustment” of factory menu, set item “ALL COLOR” as “OFF”, please refer to step 4.2.2
to adjust white balance for model of which dimension is 26” , bigger than 26” or smaller than 26”
respectively;
Note: Item “ALL COLOR” must not be altered as “ON” again once set as “OFF”.
4.2.5 White balance adjustment of AV channel
Input 16-grey-scale signal with format of PAL (VG848: Timing is 969，PAT is 921), check if white
balance is normal, if not, enter into submenu “color temperature adjustment” of factory menu, set item
“ALL COLOR” as “OFF”, please refer to step 4.2.2 to adjust white balance for model of which
dimension is 26” , bigger than 26” or smaller than 26” respectively;
Note: Item “ALL COLOR” must not be altered as “ON” again once set as “OFF”.
4.2.6 Auto-white balance adjustment
4.2.6.1 ADC pre-calibration
Enter into factory menu, set “Program source” as “YPbPr”, input color-bar signal with format of
480i/60 Hz (VG848: Timing is 968，PAT is 918), enter into submenu “ADC adjustment” of factory
menu and select item “AUTO COLOR”, system will begin calibration automatically; input color-bar
signal with format of 1080i/60 Hz (VG848: Timing is 972，PAT is 918), enter into submenu “ADC

adjustment” of factory menu and select item “AUTO COLOR”, system will begin calibration
automatically,
Press key “Menu” to be back to upper menu, set “Program source” as VGA”, input monochrome
signal with format of 800×600/60 Hz (VG848: Timing is 854，PAT is 948), enter into submenu “ADC
adjustment” of factory menu and select item “AUTO COLOR”, system will begin calibration
automatically,
4.2.6.2 White balance adjustment (models except LC-19KC72, LC-22KC72)
TV set should be working for above 30 minutes to be in stabler state before white balance
adjustment; connect CA210 to USB port of PC with data line; connect VG848 and TV to COM port of
PC or virtual COM port respectively (default connection: VG848 to COM5,TV to COM1, the
connection can be altered and saved in administrator window with password “xoceco” if necessary);
output signal of VG848 must be sent to AV1, YPbPr, VGA and HDMI1 channels of TV;
Open program file “White_Balance.exe”, load configure file “AdjustConfig.txt”, then connect
CA210, VG848 and TV respectively according to the instruction on interface.
Note: set probe to “0-CAL” before connecting CA210, press “connect CA210”, set probe back to
“MEAS” after prompt “CA-210 connection and calibration are normal !” appears on the left-down side;
BBY channel is used by CA210 for BBY models, for other models, channels except BBY are used by
CA210; please enter into administer window with password “xoceco” to alter and save apparatus
setting if it is different;
At last, press “Begin auto-white-balance-adjustment”, auto-adjustment will be completed until
prompt “Adjustment is successful” appears.
4.2.6.3 White balance adjustment (models except LC-19KC72, LC-22KC72)
TV set should be working for above 30 minutes to be in stabler state before white balance
adjustment; connect CA210 to USB port of PC with data line; connect VG848 and TV to COM port of
PC or virtual COM port respectively (default connection: VG848 to COM5,TV to COM1, the
connection can be altered and saved in administrator window with password “xoceco” if necessary);
output signal of VG848 must be sent to AV1, YPbPr, VGA and HDMI1 channels of TV;
Note: Channel shared by AV/YPBPR must be adjusted respectively.
Open program file “White_Balance.exe”, if current working progress includes AV channel, enter
into channel setting of administer window to make sure no YPBPR576i@60 but AV is chosen, or load
configure file “AdjustConfigAV.txt”; if current working progress includes YPBPR channel, enter into
channel setting of administer window to make sure no AV but YPBPR576i@60 is chosen, or load
configure file “AdjustConfigYPBPR.txt.txt”; then connect CA210, VG848 and TV respectively
according to the instruction on interface.
Note: set probe to “0-CAL” before connecting CA210, press “connect CA210”, set probe back to
“MEAS” after prompt “CA-210 connection and calibration are normal !” appears on the left-down side;
BBY channel is used by CA210 for BBY models, for other models, channels except BBY are used by
CA210; please enter into administer window with password “xoceco” to alter and save apparatus
setting if it is different;
At last, press “Begin auto-white-balance-adjustment”, auto-adjustment will be completed until
prompt “Adjustment is successful” appears.

5 Performance check
5.1 TV port
Connect RF port to central signal source, first enter into channel menu, then auto search
programs, check if there is any omitted program ,output of speakers and picture are normal
5.2 AV/S-Video port
Input AV/S signal to corresponding terminal respectively, check if picture and sound are normal.
5.3 YPbPr/YCbCr port
Input YUV signal from signal general VG848 with YUV format listed as Table 8, check if picture
and sound are normal.
Table 8 YUV signal format
NO. Definition H. Fre.
kHz
V. Fre.
Hz
Dot-pulse Fre.
MHz Note
1 720×[email protected]/60 Hz 15.734 59.94/60 13.5 480i(59.94/60p)
2 720×480p@59.94/60 Hz 31.469 59.94/60 27.00 480p(59.94/60p)
3 1280×720p@59.94/60 Hz 44.96 59.94/60 74.18 720p(59.94/60p)
4 1920×1080i@59.94/60 Hz 33.75 59.94 74.25 1080i(59.94/60i)
5 1920×1080p@23.98/24 Hz 27.00 23.98/24 74.25 1080p(23.98/24p)
6 1920×1080p@59.94/60 Hz 67.50 59.94/60 148.50 1080p(59.94/60p)
5.4 VGA port
Input VGA signal from signal general VG848 with VGA format listed as Table 9, check if picture
and sound are normal, if not, enter into menu to do auto-calibration.
Table 9 VGA signal format
NO. Definition H. Fre.
kHz
V. Fre.
Hz
Dot-pulse Fre.
MHz Note
1 720×400@70 Hz 31.47 70.08 28.32 DOS
2 640×480@60 Hz 31.50 60.00 25.18 VESA
3 800×600@60 Hz 37.90 60.00 40.00 VESA
4 1024×768@60 Hz 48.40 60.00 65.00 VESA
5 1280×1024@60 Hz 63.98 60.02 108.00 VESA
(only for Full HD panel)
6 1360×768@60 Hz 47.71 60.01 85.50 VESA
(only for 1366X768 panel)
7 1920×1080@60 Hz 67.16 59.96 173.00 VESA
(only for Full HD panel)
5.5 HDMI port
Input HDMIsignal from signal general VG849 with VGA format listed as Table 8&9 , check if
picture and sound are normal
5.6 USB port
Inset U disk, check if JPEG picture and MP3 music are displayed normally
5.7 AV OUT port
Check if picture and sound of AV OUT are normal
5.8 Check other functions
Check if time-on/off, sleeping time, picture/sound mode, OSD, still picture/mute and
microcrystalline-magical-picture, etc., are normal.

6 User menu setting before leaving factory
Enter into factory menu, select item ‘Reset’, TV set will be preset automatically before leaving
factory. Be sure to do the step after completing adjustments in factory.
7 Instruction for software burning in factory as Table 10
Table 10 Instruction for software burning in factory
Loc. Part No. Part Type Instruction for
software function
Burned before
SMT Method of burning
N104 5272532004 W25X32VSS Main CPU
program Yes Burned software with ALL11

Instruction of software upgrade
Instruction of software upgrade for KC# model:
1. Save upgrade file “flash.img” into the root directory of a U disk;
2. Insert the U disk into USB port of TV set, press key “power” until TV set is in
“standby” state, then power on TV set again;
3. Press key “program source” until menu “program source” display, then
press keys “2”, “5”, “8”, “0” by turn to enter into factory menu, please refer to
the following Fig. 1;
Fig. 1 “Program source” menu

Fig. 2 Factory menu
4. Press keys of remote control “▲”,”▼” to select item “ISP”, press key “enter”
to begin updating progress, a prompt “Updating, Pls, Waiting…” is
displaying, wait for a while until menu display (TV set is unable to accept
other operation now), please refer to the Fig. 3;

Fig. 3 Updating prompt
5. TV set will auto-reset after completing update, according to step1 and step
2, enter into factory menu again to confirm updating completion by
checking the time of update file.

Working principle analysis of the unit
RF signal from antenna is sent into TUNER301 to be processed by HF-amplified and
frequency mixing, then IF signal is outputted to SWF Z301 to be IF filtered to get ideal IF
characteristics, then the signal is sent to main chip N101(RTD2674S)-27#,28# to be
amplified by inline IF amplifier and synchronous demodulated to get CVBS.
Video and audio signal from AV, S-VIDEO , YPbPr, VGA , HDMI are sent to main chip
N101(RTD2674S) directly.
Main chip N101(RTD2674S) is a special large scale IC with full functions, such as HDMI
interface process, video decoding, video switch selection, A/D and D/A transformation,
interleaved/successive scans, mode transformation, OSD and low-voltage difference
output process, etc.; furthermore, it also has functions of audio selection and process,
MCU, etc.; external video signal is processed by main chip N101(RTD2674S), then 4
pairs of difference signals and one pair of clock signals are outputted to LCD to display;
external audio signal processed by main chip N101(RTD2674S) is sent to sound amplifier
N308(TDA7266SA) to be amplified and then to speakers.

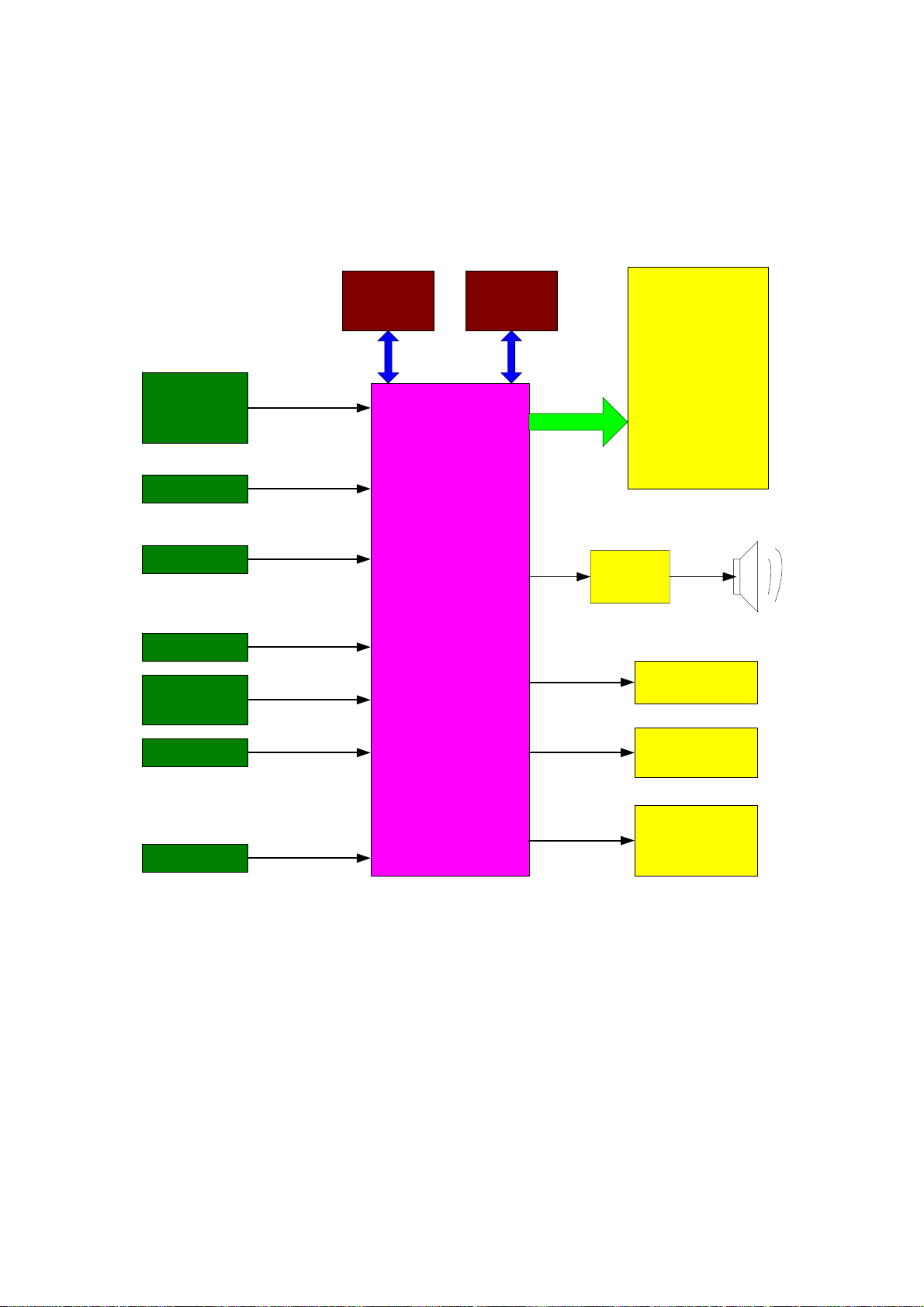

Block Diagram
IC
RTD2674S
TUNER
AV
YPbPr
HDMI
DDR
EM6AA160TS-
4G
PANEL
AUDIO
AMP
TDA7266SA
VIDEO
HP
VGA
AUDIO
VGA
USB
SPEAKER
SPI FLASH
W25X32VSSIG-E
IF
CVBS
YPbPR
RGB
L/R
TMDS
D+/D-
LVDS

RTD2674S

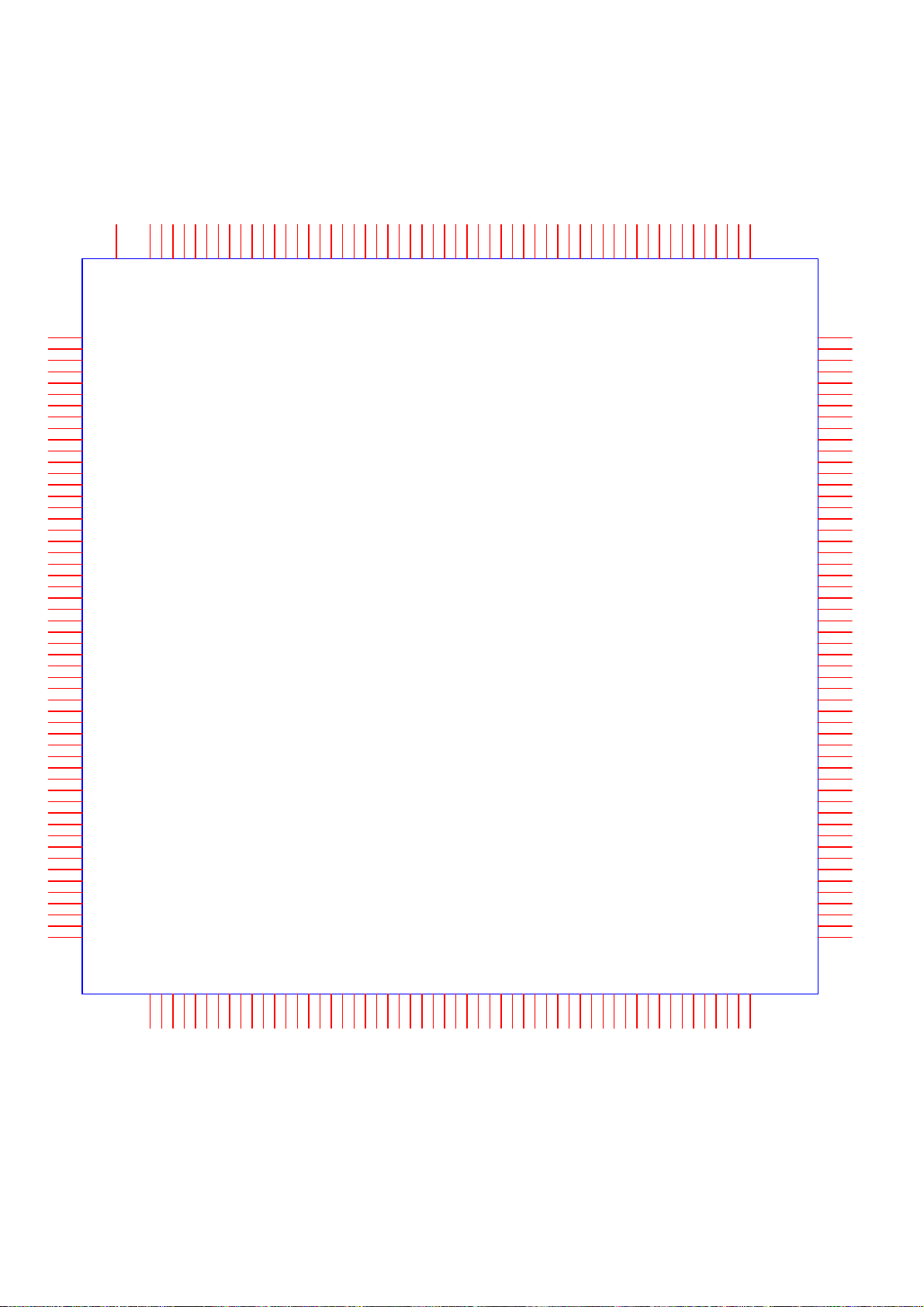

Pin List
RTD2674
LQFP-216
E-PAD
U2
QFP216E
AGND_BB1 216
VCM_BB
1
AIO_2L
5
AIO_1R
6
AIO_1L
7
AVDD_BB0_3.3V
2
AIN_5L/LSADC6
3
AIN_3R
10
AIN_3L
11
AIN_2R
12
AIN_2L
13
AIN_1R
14
AIN_1L
15
AOUT_R
16
AOUT_L
17
HPOUT_R
18
HPOUT_L
19
SCART_FSW_0
20
DAC_VDD_3.3V
22
AVOUT_1
23
AVOUT_2
24
DAC_GND
25
ADC2X_GND_3.3V
26
IF_N
27
IF_P
28
ADC2X_VDD
29
PLL_GND
30
XI N
31
XOU T
32
PLL_VDD_3.3V
33
CORE_1.2V
34
SCART_FSW_1
21
USB_AVDD_3.3V
35
HSDM
36
HSDP
37
USB_AVDD_1.2V
38
I2C0_SCL
39
I2C0_SDA
40
IO_3.3V
41
GPIO_A0/RF_AGC
42
GPIO_A1/IF_AGC
43
CORE_1.2V
44
O_FP
45
O_FN
46
O_EP
47
O_EN
48
O_DP
49
O_DN
50
O_CP
51
O_CN
52
O_BP
53
O_BN
54 ADDR5 109
ADDR6 110
ADDR7 111
ADDR8 112
ADDR9 113
ADDR11 114
ADDR12 115
CKE 116
DDR_IO_2.5V 117
CK 118
CK# 119
DM1 120
DDR_IO_2.5V 121
DDR_VREF 122
DQ_15 123
DQ_14 124
DQ_13 125
DQ_12 126
DQ_11 127
DQ_10 128
DDR_IO_2.5V 129
DQ_9 130
DQ_8 131
DQS1 132
CORE_1.2V 133
IO_3.3V 134
LSADC_REF 135
LSADC0/GPIO 136
LSADC1/GPIO 137
STBY_CORE_1.2V 140
GPIO_C0 141
GPIO_C1 142
GPIO_C2 143
GPIO_C3 144
GPIO_C4 145
RESET_IN 146
SPI_CS_N 147
SPI_SCK 148
SPI_DO 149
SPI_DI 150
STBY_CORE_1.2V 151
GPIO_C5 152
GPIO_C6 153
LSADC2/GPIO 138
GPIO_C8 154
IO_3.3V 155
VGA_DDC_SDA 156
VGA_DDC_SCL 157
HDDC1_SDA 158
HDDC1_SCL 159
HDDC0_SDA 160
HDDC0_SCL 161
CEC 162
TMDS_1.2V 163 TMDS_3.3V 164
P1_RX3N/HDMI_CLKN_1 165
P1_RX3P/HDMI_CLKP_1 166
P1_RX2N/HDMI_0N_1 167
P1_RX2P/HDMI_0P_1 168
P1_RX1N/HDMI_1N_1 169
P1_RX1P/HDMI_1P_1 170
P1_RX0N/HDMI_2N_1 171
P1_RX0P/HDMI_2P_1 172
P0_RX3N/HDMI_CLKN_0 173
P0_RX3P/HDMI_CLKP_0 174
P0_RX2N/HDMI_0N_0 175
P0_RX2P/HDMI_0P_0 176
P0_RX1N/HDMI_1N_0 177
P0_RX1P/HDMI_1P_0 178
P0_RX0N/HDMI_2N_0 179
P0_RX0P/HDMI_2P_0 180
TMDS_REXT 181
TMDS_1.2V 182
APLL_VDD_3.3V 183
APLL_GND 184
HSYNC 185
VSYNC 186
ADC_VDD_3.3V 187
VD_VDD_3.3V 188
(VGA_G)VIN_0P 189
VIN_0N 190
(VGA_B)VIN_1P 191
VIN1_N 192
(VGA_R)VIN_2P 193
VIN_2N 194
(Pb)VIN_3P 195
VIN_Y0N 196
(Y)VIN_4P 197
(Pr)VIN_5P 198
(FSC_B/Pb)VIN_6P 199
VIN_Y1N 200
(FSC_G/Pr)VIN_7P 201
(FSC_R/Y)VIN_8P 202
ADC_VDD_1.2V 203
VD_VDD_1.2V 204
VD_GND 205
(SV-C/FSC_CVBS)VIN_11P 206
VIN_A0N 207
(SV-Y)VIN_9P 208
(SV-C)VIN_12P 209
VIN_A1N 210
(CVBS/SV-Y)VIN_10P 211
(CVBS/SV-C)VIN_13P 212
VIN_A2N 213
(CVBS)VIN_14P 214
AVDD_BB1_3.3V 215
O_AP
55
O_AN
56
IO_3.3V
57
E_FP
58
E_FN
59
E_EP
60
E_EN
61
E_DP
62
E_DN
63
E_CP
64
E_CN
65
E_BP
66
E_BN
67
E_AP
68
E_AN
69
CORE_1.2V
70
TCON/GPIO_B0
71
TCON/GPIO_B2
72
TCON/GPIO_B3
73
TCON/GPIO_B4
74
TCON/GPIO_B5
75
TCON/GPIO_B6
76
TCON/GPIO_B7
77
TCON/GPIO_B8
78
IO_3.3V
79
TCON/GPIO_B9
80
TCON/GPIO_B10
81
TCON/GPIO_B12
82
CORE_1.2V
83
DQS0
84
DQ_7
85
DQ_6
86
DDR_IO_2.5V
87
DQ_5
88
DQ_4
89
DQ_3
90
DQ_2
91
DQ_1
92
DQ_0
93
DDR_IO_2.5V
94
DM0
95
WE#
96
CAS#
97
RAS#
98
CORE_1.2V
99
BA0
100
BA1
101
ADDR10
102
ADDR0
103
ADDR1
104
ADDR2
105
ADDR3
106
DDR_IO_2.5V
107
ADDR4
108
E-PAD 217
AIO_2R
4
AIN_4R
8
AIN_4L
9
LSADC4/GPIO 139
Ｍａｉｎ ＩＣ
IC block diagram

Table 1-1. RTD2674S Pin Assignments – Pin detail description
(I/O Legend: A = Analog, I = Input, O = Output, P = Power, G = Ground)
Pin No Pin Name Type Description Note
1 VCM_BB AP Analog Audio Common Voltage Reference Connect 1uF to GND
2 AVDD_BB0 AP Analog Baseband Power 3.3V Analog 3.3V
3 AIN_5L/LSADC6 AI Low Speed ADC input 6
4 AIO_2R AIO Analog Audio input/output 2 (Right Channel)
5 AIO_2L AIO Analog Audio input/output 2 (Left Channel)
6 AIO_1R AIO Analog Audio input/output 1 (Right Channel)
7 AIO_1L AIO Analog Audio input/output 1 (Left Channel)
8 AIN_4R AI Analog Audio input 4 (Right Channel)
9 AIN_4L AI Analog Audio input 4 (Left Channel)
10 AIN_3R AI Analog Audio input 3 (Right Channel)
11 AIN_3L AI Analog Audio input 3 (Left Channel)
12 AIN_2R AI Analog Audio input 2 (Right Channel)
13 AIN_2L AI Analog Audio input 2 (Left Channel)
14 AIN_1R AI Analog Audio input 1 (Right Channel)
15 AIN_1L AI Analog Audio input 1 (Left Channel)
16 AOUT_R AO Analog Baseband Audio Out (Right Channel)
17 AOUT_L AO Analog Baseband Audio Out (Left Channel)
18 HPOUT_R AO Head Phone DAC output (Right Channel)
19 HPOUT_L AO Head Phone DAC output (Left Channel)
20 Scart_FSW_0 AIO SCART RGB Fast Switch Input 0
21 Scart_FSW_1 AIO SCART RGB Fast Switch Input 1
22 DAC_VDD_0 AP Video DAC Power 3.3V Analog 3.3V
23 AVOUT_1 AP CVBS DAC output1
24 AVOUT_2 AP CVBS DAC output2
25 DAC_GND_0 AP Video DAC GND
26 ADC2X_GND_1 AP IFADC GND
27 IF_N AP IF demod Negative input
28 IF_P AP IF demod Postive input
29 ADC2X_VDD_0 AP IFADC power 3.3V Analog 3.3V
30 PLL_GND_1 AP XTAL PLL GND
31 XIN AP 27MHz Crystal Input
32 XOUT AP 27MHz Crystal Output
33 PLL_VDD_0 AP XTAL PLL power 3.3V Analog 3.3V
34 Core_1.2V DP Core Power 1.2V Digital 1.2V, Power Down@
Power saving
35 AVDD_1 AP USB Power 3.3V Analog 3.3V
36 HSDM_1 AP USB HOST0 Data Negative
37 HSDP_1 AP USB HOST0 Data Postive
38 LV_USB_1 AP USB Power 1.2V Analog 1.2V
39 I2C0_SCL DIO Tuner I2C clock 5V tolerance even when
power-off
40 I2C0_SDA DIO Tuner I2C data 5V tolerance even when
power-off
RTD2674S
Ｍａｉｎ ＩＣ

41 VCC3_0 P PAD I/O Power 3.3V Digital I/O 3.3V
42 GPIO_A0 DIO GPIO_A0 5V tolerance even when
power-off
43 GPIO_A1 DIO GPIO_A1 5V tolerance even when
power-off
44 Core_1.2V P Core Power 1.2V Digital 1.2V, Power Down@
Power saving
45 B_FP AO LVDS_Port_B_F_Pair_P
46 B_FN AO LVDS_Port_B_F_Pair_N
47 B_EP AO LVDS_Port_B_E_Pair_P
48 B_EN AO LVDS_Port_B_E_Pair_N
49 B_DP AO LVDS_Port_B_D_Pair_P
50 B_DN AO LVDS_Port_B_D_Pair_N
51 B_CP AO LVDS_Port_B_C_Pair_P
52 B_CN AO LVDS_Port_B_C_Pair_N
53 B_BP AO LVDS_Port_B_B_Pair_P
54 B_BN AO LVDS_Port_B_B_Pair_N
55 B_AP AO LVDS_Port_B_A_Pair_P
56 B_AN AO LVDS_Port_B_A_Pair_N
57 LVDSV P LVDS Power 3.3V
58 A_FP AO LVDS_Port_A_F_Pair_P
59 A_FN AO LVDS_Port_A_F_Pair_N
60 A_EP AO LVDS_Port_A_E_Pair_P
61 A_EN AO LVDS_Port_A_E_Pair_N
62 A_DP AO LVDS_Port_A_D_Pair_P
63 A_DN AO LVDS_Port_A_D_Pair_N
64 A_CP AO LVDS_Port_A_C_Pair_P
65 A_CN AO LVDS_Port_A_C_Pair_N
66 A_BP AO LVDS_Port_A_B_Pair_P
67 A_BN AO LVDS_Port_A_B_Pair_N
68 A_AP AO LVDS_Port_A_A_Pair_P
69 A_AN AO LVDS_Port_A_A_Pair_N
70 Core_1.2V P Core Power 1.2V Digital 1.2V, Power Down@
Power saving
71 GPIO_B0 DIO GPIO_B0 5V tolerance even when
power-off
72 GPIO_B2 DIO GPIO_B2 5V tolerance even when
power-off
73 GPIO_B3 DIO GPIO_B3 5V tolerance even when
power-off
74 GPIO_B4 DIO GPIO_B4 5V tolerance even when
power-off
75 GPIO_B5 DIO GPIO_B5 5V tolerance even when
power-off
76 GPIO_B6 DIO GPIO_B6 5V tolerance even when
power-off
77 GPIO_B7 DIO GPIO_B7 5V tolerance even when
power-off
78 GPIO_B8 DIO GPIO_B8 5V tolerance even when
power-off
79 VCC3_2 P PAD I/O Power 3.3V
RTD2674S
Ｍａｉｎ ＩＣ

80 GPIO_B9 DIO GPIO_B9 5V tolerance even when
power-off
81 GPIO_B10 DIO GPIO_B10 5V tolerance even when
power-off
82 GPIO_B12 DIO GPIO_B12 5V tolerance even when
power-off
83 Core_1.2V P Core Power 1.2V Digital 1.2V, Power Down@
Power saving
84 DQS0 DO DDR_DQS0
85 DQ_7 DIO DDR_Data7
86 DQ_6 DIO DDR_Data6
87 SVCC25 P DDR I/O Power 2.5V
88 DQ_5 DIO DDR_Data5
89 DQ_4 DIO DDR_Data4
90 DQ_3 DIO DDR_Data3
91 DQ_2 DIO DDR_Data2
92 DQ_1 DIO DDR_Data1
93 DQ_0 DIO DDR_Data0
94 SVCC25 P DDR I/O Power 2.5V
95 DM0 DO DDR_Data_Mask0
96 WE# DO DDR Write Enable (Low Enable)
97 CAS# DO DDR CAS (Low Enable)
98 RAS# DO DDR RAS (Low Enable)
99 Core_1.2V P Core Power 1.2V Digital 1.2V, Power Down@
Power saving
100 BA0 DO DDR Bank Address0
101 BA1 DO DDR Bank Address1
102 ADDR10 DO DDR Address10
103 ADDR0 DO DDR Address0
104 ADDR1 DO DDR Address1
105 ADDR2 DO DDR Address2
106 ADDR3 DO DDR Address3
107 SVCC25 P DDR I/O Power 2.5V
108 ADDR4 DO DDR Address4
109 ADDR5 DO DDR Address5
110 ADDR6 DO DDR Address6
111 ADDR7 DO DDR Address7
112 ADDR8 DO DDR Address8
113 ADDR9 DO DDR Address9
114 ADDR11 DO DDR Address11
115 ADDR12 DO DDR Address12
116 CKE DO DDR Clock Enable
117 SVCC25 P DDR I/O Power 2.5V
118 CK DO DDR Clock Differential(+)
119 CK# DO DDR Clock Differential(-)
120 DM1 DO DDR Data Mask1
121 SVCC25 P DDR I/O Power 2.5V
122 VREF AI DDR Reference Voltage Input 1.25V Ref input
RTD2674S
Ｍａｉｎ ＩＣ
