2-LAMP LARGE VENUE LCD PROJECTOR w/FULL 10-BIT PROCESSING
Issued 3/06 ©2006 SANYO

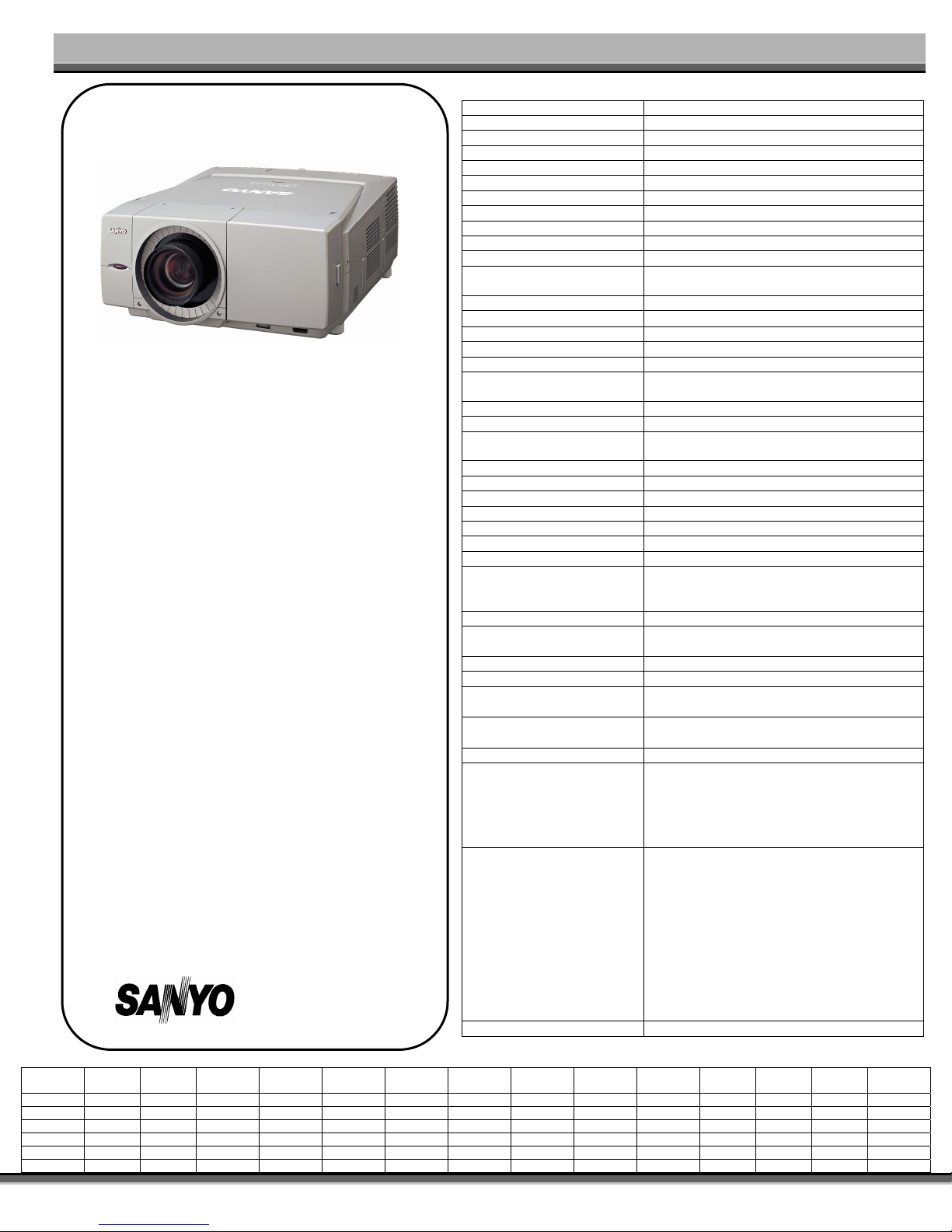

PLC-XF60A
2-Lamp Multimedia HDTV Projector
EXCEPTIONALLY BRIGHT, HIGH CONTRAST IMAGE
Rated to deliver a radiant 6500 ANSI Lumens (in 2-lamp mode),
the PLC-XF60A delivers class-leading brightness in its class. A
fully adjustable mechanical shutter helps boost the contrast ratio
to 1300:1. A wide range of other image adjustment options,
including keystone correction, Vertical/Horizontal lens shift (lens
sold separately) and picture zoom, are also provided.
UNSURPASSED FULL 10-BIT IMAGE QUALITY
10-bit video processing of both luminance and RGB signals plus
a 12-bit progressive IC produce a true high-definition picture with
outstanding brightness and contrast. A separate 12-bit gamma
correction IC ensures deep, rich blacks and superior edge detail.
Progressive scanning with 3-2/2-2 pulldown and 1080i
progressive technologies provide jitter-free digital video playback
of filmed programming. New Real Color Manager Pro software
simplifies set-up and helps maintain optimum performance
NEW ADVANCED TECHNOLOGIES
SANYO’s PLC-XF60A incorporates a number of innovative new
technologies to adapt to a broader range of applications. These
include:
• Mechanical Shutter System clicks into place to block the
lamp light the instant you turn off the image.
• Single intake/exhaust fan with filter LED for improved dust
resistance and easy maintenance.
• New fan control with angle sensor allows 360°positions.
• Front panel interface for greater positioning flexibility
• New on-screen display with built-in test patterns provides
quicker, more accurate set-up and calibration.
UNIQUE LENS MEMORY CAPABILITY
When used in conjunction with optional LNS-W04 or LNS-W06
lenses, zoom, focus and lens shift position can be programmed
into memory. The POA-LNA04 (Lens Attachment) is required.
NETWORK CONNECTIVITY
The PLC-XF60A can be connected to a computer network via
the optional Advanced PJ-Net board (POA-MD19NET) for
management and control capabilities.
*Real Time Capture *Network Communication *Network Viewer
*Advanced Card Imager *E-mail Alert *Automatic On/Off
*Web Management by internet browser *Multi Control
*SNMP agent *SNMP Manager
PRESENTATION TECHNOLOGIES
21605 Plummer Street
Chatsworth, CA 91311
Ph: 888-337-1215 (toll-free)
Fax [phone]
www.sanyolcd.com
Specifications
Resolution 1024 x 768 (XGA)
Brightness (typical) 6500 ANSI Lumens (2-lamp mode)
Uniformity 90% (corner to corner)
LCD Panel System 1.4” TFT Poly-Silicon w/ micro lens x 3
Number of Pixels 2,359,296 (786,432 x 3)
Contrast Ratio 1300:1
Projection Lens Lens sold separately
Projection Image (diag.) Dependent on lens (30” ~ 500” w/ LNS-S02Z)
Throw Distance Dependent on lens
Zoom/Focus Dependent on lens
Lens Shift Powered (Up/Down/Left/Right)
Up/Down/Left/Right Ratio Up/Down: 10:0 ~ 0:10 or 8:1 ~ 1:8 or 1:1
Left/Right: 3:2 ~ 2:3 or 1:1
Lens Position Memory w/ LNS-W04 and W06 (Lens Shift/Zoom/Focus)
Digital Keystone Correction Vert. +/- 35°, Horiz. +/- 20°
Projection System Dichroic mirror & X prism w/ PBS
Lens Throw Ratio Dependent on lens
Projection Lamp 300W UHP x 2
Scanning Frequency H sync: 15kHz ~ 120kHz
V sync: 48Hz ~ 120Hz
Dot Clock 230MHz or less
Color System PAL/SECAM/NTSC/NTSC4.43/PAL-M/PAL-N
Computer Compatibility UXGA/SXGA/WXGA (compression)
XGA/SVGA/VGA/MAC
Voltage 100~240V AC, 50/60Hz, auto voltage
BTU Rating 3071
dB Rating 42dBA (normal)/39dBA (Eco mode)
Power Consumption 900W
Dimensions (W x H x D) 20.4” x 9.9” x 23.9” (not including Adjustable Feet)
Net Weight 54.5 lbs. (without lens)
User Maintenance Clean air filters, replace lamp assembly
Input Terminals
Input 1
Digital Visual Interface (DVI-D w/HDCP) •
VGA (D-Sub15)
Input 2 RGB & Component (BNC x 5)
Input 3 Component & Composite (RCA x 3) •
S-Video (Mini DIN 4-pin)
Input 4 (Detachable) Expansion slot (Digital or Analog board)
Input 5 (Detachable) Expansion slot (Digital board only)
Output Terminal VGA (D-Sub15) through Input 1 Analog only •
No Speaker in the projector
Control Terminals Serial Port In/Out (D-Sub 9 x 2) •USB (Type A
& Type B) •Wired R/C (mini-jack)
Exclusive Terminal For Smoke Resistant Box
Included Accessories Owner's Manual(CD-ROM) •Quick Manual •
Wireless/Wired RF Remote Control w/Batteries
(two “AA”) •Warranty Card •VGA Cable •AC
Power Cord(9.8ft) •Lens Attachment x 2 (POA-
LNA04 & POA-LNA02) •Light Block Sheet x 2 •
Real Color Management Pro Software(CD-ROM)
Optional Accessories Optional Lenses (see below)
POA-SR140 (Smoke Resistant Box)
POA-FIL140 (Replacement Filter for SR140)
POA-MD19NET (Advanced PJ-Net board)
POA-MD17SDID (HD & SD Dual-SDI board)
POA-MD21WARP (WARP & Blending board)
POA-MD09VD3 (Faroudja Progressive board)
POA-MD18DVI (DVI w/HDCP board)
POA-MD04VGA (D-Sub15 board) - Input4 only
POA-LNA02 (for W02, W02KS, M01, S01)
POA-LNA04 or LNA01 (for all other lenses)
6103157689 (Replacement Lamp)
FCC Rating Class A, UL Listed
Because its products are subject to continuous improvement, SANYO reserves the right to modify
product design and specifications without notice and without incurring any obligations.
Type Short
Fixed Short Zoom On-Axis Short Fixed Short Zoom Short Zoom Short Zoom On-Axis Short Fixed Standard Zoom 1 Standard Zoom 2 Standard Zoom 3 Semi-Long
Zoom Long Fixed Long Zoom Ultra Long Zoom
Part No. LNS-W01 LNS-W02 LNS-W03 LNS-W04 LNS-W05 LNS-W06 LNS-W07 LNS-S01 LNS-S02 LNS-S03 LNS-M01 LNS-T01 LNS-T02 LNS-T03
Zoom No Yes(power) No Yes (power) Yes (power) Yes (power) No Yes(power) Yes(power) Yes(power) Yes(power) No Yes(power) Yes(power)
Throw Ratio 1.5:1 1.8 – 2.3:1 1.0:1 2.0 – 2.6:1 1.2 – 1.7:1 1.5 – 2.0:1 0.7:1 2.3 – 3.7:1 2.6 – 3.3:1 3.3 – 4.5:1 4.5 – 5.8:1 8.9:1 5.6 – 8.0:1 8.1 – 11.6:1
F Stop 2.5 2.5 – 2.9 2.6 1.7 – 2.3 2.0 – 2.57 2.3 – 2.8 2.5 2.6 – 3.5 2.0 – 2.3 1.7 – 2.6 2.0 – 2.6 2.0 2.0 – 2.9 2.2 – 2.5
Lens Shift 8:1 – 1:8 8:1 – 1:8 1:1 8:1 – 1:8 8:1 – 1:8 8:1 – 1:8 1:1 10:0 – 0:10 10:0 – 0:10 8:1 – 1:8 8:1 – 1:8 8:1 – 1:8 8:1 – 1:8 8:1 – 1:8
Weight 12.8 lbs. 5.5 lbs. 6.6 lbs. 6.2 lbs. 6.6 lbs. 6.6 lbs. 6.8 lbs. 3.7 lbs. 4.2 lbs. 8.2 lbs. 4.2 lbs. 8.4 lbs. 6.8 lbs. 16.1 lbs.
* Lens sold separately
